Voxx Movies To Go HRD60701 User manual

HRD60701
7” LCD Monitor
With Built-In DVD Player
and HDMI Port
For Rear Seat Entertainment
Installation And Operation Manual

Important Notices
Installation of headrest products requires careful planning and preparation. Be
extremely careful with seats that have airbags built into them. Keep wiring away from
any air bag wiring (usually identified by yellow connectors and yellow wire jackets).
Damage to air bag wiring can result in personal injury to vehicle occupants. If you have
any questions regarding wire routing or installation in a vehicle, please contact VOXX
Electronics Technical Support at 1-800-225-6074.
When connecting power and ground in a mobile video installation, insure that the ACC
wire is fused at the point where it is connected to the vehicle ACC wiring. Failure to do
so can result in damage to the vehicle if a short circuit develops between the vehicle
connection point and the mobile video product.
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to
the driver if the LCD panel or video monitor is used for vehicle information, system
control, rear or side observation or navigation. If the LCD panel or video monitor is
used for television reception, video or DVD play, the LCD panel or video monitor must
be installed so that these features will only function when the vehicle is in “park” or
when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that
operates when the vehicle is in gear or when the parking is not applied must be
installed to the rear of the driver’s seat where it will not be visible, directly or indirectly,
to the operator of the motor vehicle.
Patented: Refer to www.voxxintl.com/patents

3
Features ..............................................................................................................4
Quick Start Guide ............................................................................................5
Materials Supplied ..........................................................................................6
Headrest Cover Replacement .....................................................................7
Installation - Vehicle Preparation.............................................................. 8
Installation - Wiring Diagram ......................................................................9
Controls and Indicators Diagram............................................................10
Remote Control Battery Replacement................................................. 11
Remote Control Operation ................................................................12-15
Souce Menu....................................................................................................16
Source Menu(Continued)................................................................... … 17
System Menu Setting and Adjustments ..............................................18
System Menu Setting and Adjustments(Continued) ............... 19-23
Playing DVD and Audio Discs ..................................................................24
Playing DVD and Audio Discs(Continued) ..........................................25
DVD Basics ............................................................................................... … 26
USB Devices (Media and Charging) .......................................................27
Troubleshooting ...........................................................................................28
Specifications/AV Adapter Cable............................................................29
Warranty ..........................................................................................................31
Table of Contents

4
•7” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD)
Monitor
• Built-in DVD Player
• Last position memory for DVD Player
• Five Audio / Video Source inputs
• DVD
• USB
• AV
• AUX
• HDMI
• USB 2.0 port
• HDMI® Input
• On Screen Display (OSD) for control of picture quality and functions
• Full function remote control
• Plays DVD, CD and MP3 discs
• 100 Channel Wireless FM Modulator
• Dual Channel IR Transmitter (for use with optional IR headphones)
• Adjustable posts and tilting headrest (for adjusting screen viewing angle).
Features

5
1. Press the POWER ( ) button on the front panel or the POWER button on the remote
control.
2. Press the screen release (PUSH) button. The screen will pop open a short distance. Raise the
screen up 90 degrees to access the DVD mechanism.
3. Snap a DVD, CD or MP3 disc onto the hub (label facing outward). Spin the disc to ensure
that it is properly attached to the hub.
4. Lower the screen back to its stored position and press on the bottom of the screen to latch
it to the DVD housing. (Note: For safety reasons, the DVD will not play if the screen is not
latched closed. The headrest can be tilted forward or backward to adjust the viewing angle.)
5. When the DVD menu appears, select the menu item using the +/- buttons on the front
panel and press the Play ( 4/ ; ) button to start the DVD playing. If using the remote
control press the or buttons to select the menu item and then press the Play ( 4 ;)
button to start the movie playing.
6. If using IR wireless head phones, rst turn the volume control to its lowest setting, press
the power button and increase the volume to a comfortable listening level.
7. If audio playback through the vehicle radio is preferred, use the following steps:
• The FM Modulator can be set from 88.1MHz to 107.9MHz.
Pick one of these frequencies that is either unused or is a very weak station
• Long press the MENU ( ) button on the front panel and short press the
MENU button at FMM selection or the FM ON/OFF button on the remote control
until FMM ON appears on the screen.
• Press the +/- buttons on the front panel or the or on the remote control to set
the FM Modulator frequency to the frequency setting on the vehicle radio.
• To turn o the FM modulator repeat the above steps until FMM OFF appears on the
screen.
NOTE: If driving long distances it may be necessary to change the vehicle radio to
another weak station and then change the FM modulator to the same frequency if there is
interference with a local FM station.
Quick Start Guide

6

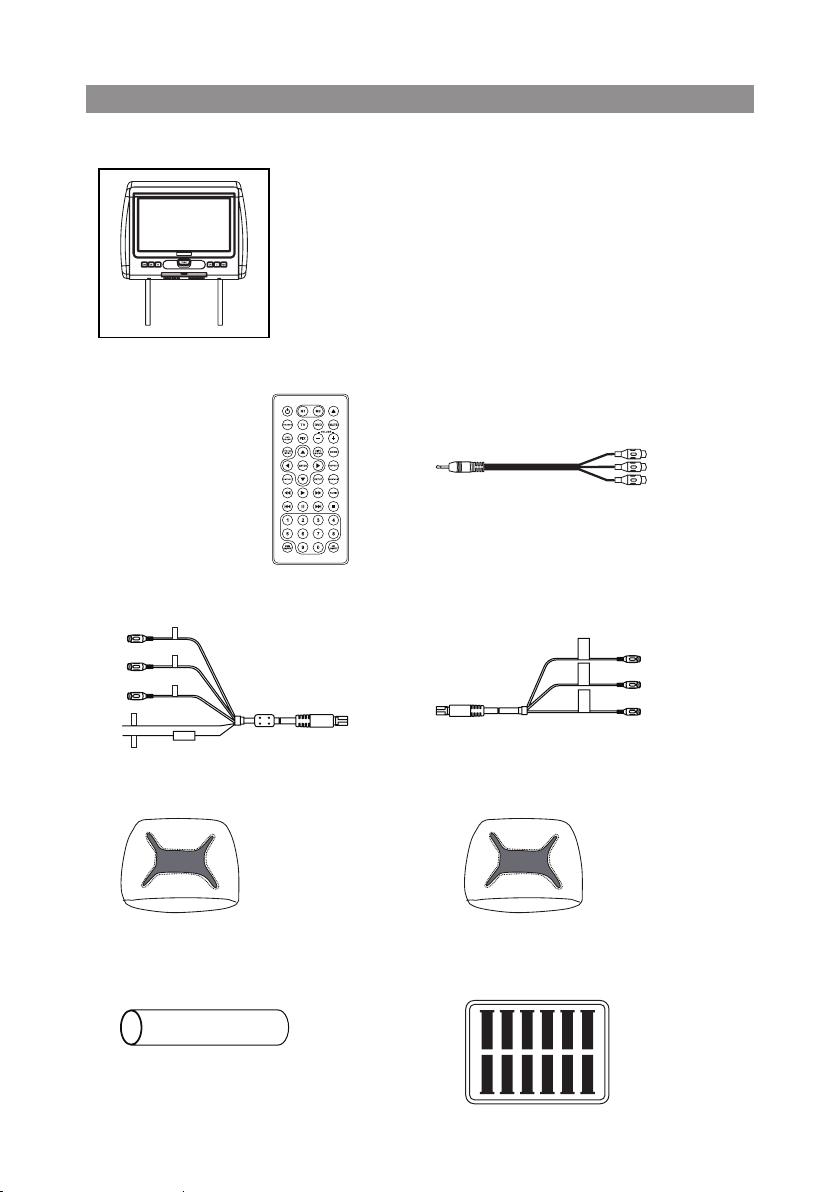

1) MTGHRD1 System Monitor with DVD Player (MTGHRD1) (1 pc)
NOTE: The MTGHRD1 monitor has been designed with interchangeable
covers. The headrest as supplied is covered with shale colored vinyl. A
black or pewter vinyl cover can replace the shale colored vinyl cover.
2) Remote Control
(P/N 500019-1 pc)
4) AV IN / Power Cable, 8 Pin Din to 3 RCA (Red)
(P/N 112-4309-1 pc)
6) Black Vinyl Headrest Cover
(P/N 126-1377-1 pc)
8) Shrink Tubing, Black
(P/N 138-1495 -2 pcs)
5) AV OUT Cable, 8 Pin Din to 3 RCA (Green)
(P/N 112-4310-1 pc)
7) Pewter Vinyl Headrest Cover
(P/N 126-1378-1 pc)
9) Support Tube Sleeve Box (contains six pairs
of tube adapters) (P/N 170-0170 - 1 Tray)
3) AV Adapter Cable
(P/N 112-3227-1 pc)
Materials Supplied

7
NOTE: If desired, replace the headrest cover before installing the headrest in the vehicle.
1. Using a Phillips screwdriver, remove the two Phillips screws and lift the bottom edge of the
monitor upward. Carefully pull the headrest wires up through the tubes so that the monitor can be
moved away from the headrest.
2. Remove the velcro tabs securing the headrest cover and peel the cover off of the headrest.
3. Replace the headrest cover with the black or pewter cover and secure the headrest cover
by re-attaching the velcro tabs.
4. Pull the monitor cables back out of the tubes while lowering the monitor into position. Hook the
tabs at the top of the monitor into the top of the headrest and align the two holes in the monitor
with the screw holes in the headrest.
5. Insert and tighten the two Phillips screws.

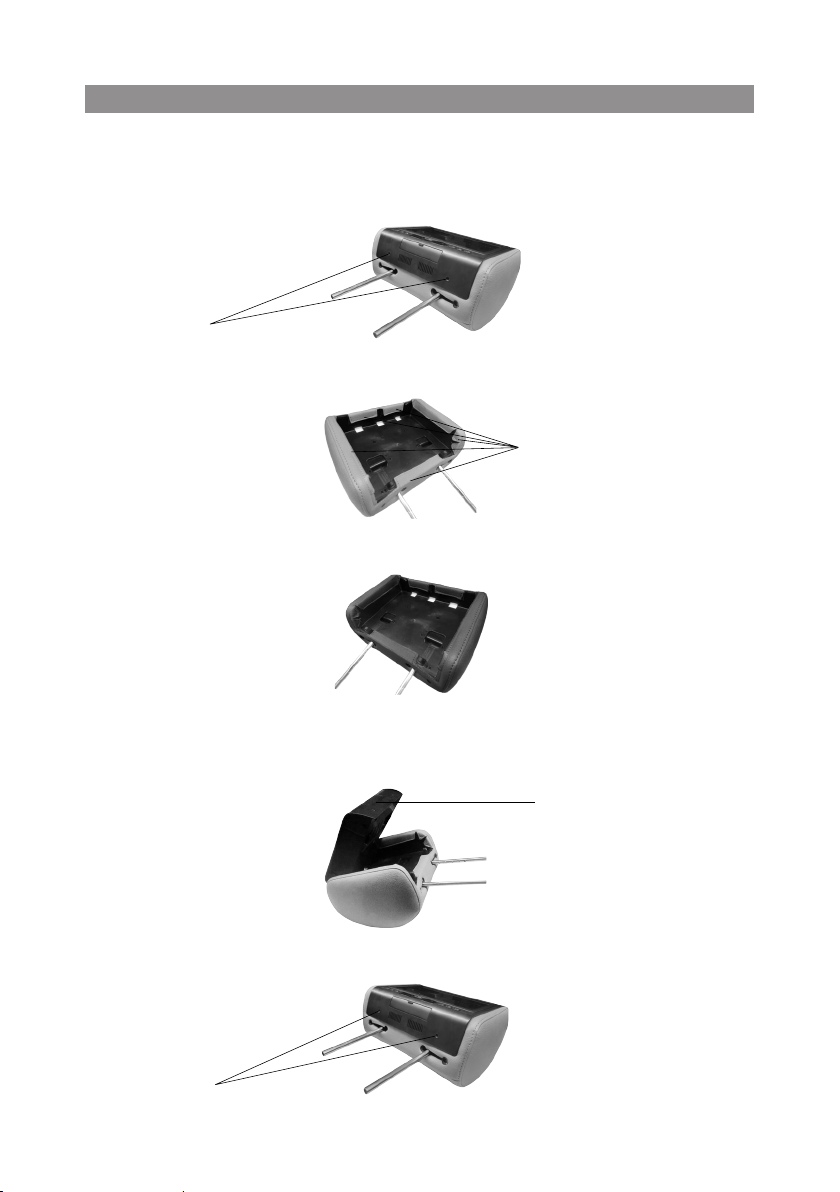

Phillips Screws
Remove Velcro Tabs
Philips Screws
Push
Headrest Cover Replacement

8
1. Decide on the system configuration and the options that will be installed.
2. Read the manual and get familiar with the electrical requirements and connections.
3. Decide on the mounting locations and methods of mounting the products that will be
connected to the MTGHRD1 system.
4. Prepare the vehicle by removing any interior trim necessary to gain access to the vehicle's
wiring as well as all areas where interconnecting wire harnesses will be located. This
manual will only focus on the installation of the MTGHRD1 monitor in the supplied
configuration.
NOTE: The monitor should be installed in the passenger position most used.
5. Locate an accessory power source and ground with +12 VDC (ACC) present when the
ignition key is in the accessory and run positions and 0 VDC should be present when the
ignition key is in the OFF position. Generally, these wires can be found at the ignition
switch or fusebox.
NOTE: Insure that the accessory power is fused at the source. Failure to do so may result in
vehicle wiring damage.
6. Run the wiring harnesses throughout the vehicle as necessary (Refer to the Wiring
Diagrams on page 9). Be sure that all the wiring is protected from sharp edges and is
routed in such a manner that it will not be pinched when it is fully installed. Be sure to
leave enough slack in the wiring at each component to allow sufficient working room.
Be sure to leave enough slack in the monitor cables to allow the headrest to move up or
down, and for seat movement.
7. Install the headrest:
a. Remove vehicle's original headrest.
b. Adjust the posts of the MTGHRD1 to the same width of the posts on the original
headrest by pulling the posts apart or pushing them together. (Note: grab the posts close
to the bottom of the headrest while doing this adjustment)
c. Locate the tube adapters that most closely match the outer diameter of the original
vehicle headrest post.
d. Insert the appropriate support tube adapters in vehicle headrest post guides (if
needed).
e. Hold the headrest above the seat and insert the two cables into the vehicle support
guides. Make sure that the headrest is in the correct position (display facing the rear).
f. Route the cables through the seat back and out the bottom of the seat while pulling the
cables to remove the slack. Be sure to leave enough slack in the monitor cables to allow
the headrest to move up or down.
8. Connect all the components together (electrically) and verify proper operation of all the
system functions.
9. If two (2) MTGHRD1’s are installed in a vehicle, set one unit to IRTA and the other unit to
IRTB. See page 19 for instructions.
Installation - Vehicle Preparation

9
Headrest Monitor
Video Out Yellow
Video In Yellow
AV IN / Power Cable, 8 Pin Din to 3 RCA (Red)
(P/N 112-4309)
AV OUT Cable, 8 Pin Din to 3 RCA (Green)
(P/N 112-4310)
Audio In Left White
Audio In Right Red
+12V (ACC)
Ground-
Audio Out Left White
Audio Out Right Red
w|zo
Headrest Cable
P/N 112-4308
GREEN
Headrest Cable
P/N 112-4307
RED
RED Connector GREEN Connector
Installation - Wiring Diagram

10
AUXIN USB PHONE
HDMI
Headrest Screen
IR Sensor
Volume + / Next *
System Menu
Volume - / Previous
*
IR Headphone
Transmitter Lens
Wired Headphone
Connector
USB Connector
Headrest Screen
(Open Position)
DVD Insertion
Area
Cover
(Bottom View)
AUX IN Connector
HDMI/MHL Connec
tor
Power / Source
Play / Pause
Stop
Screen Release
Pull Down
(Front View - Monitor Open)
*Note: Press and hold
to display volume
control
Controls and Indicators Diagram

11
NOTE:
The remote control has a battery installed with a pull tab to prevent battery discharge.
Remove the pull tab before attempting to use the remote.
Clear Plastic
Protective Pull Ta
b
(1)
(2)

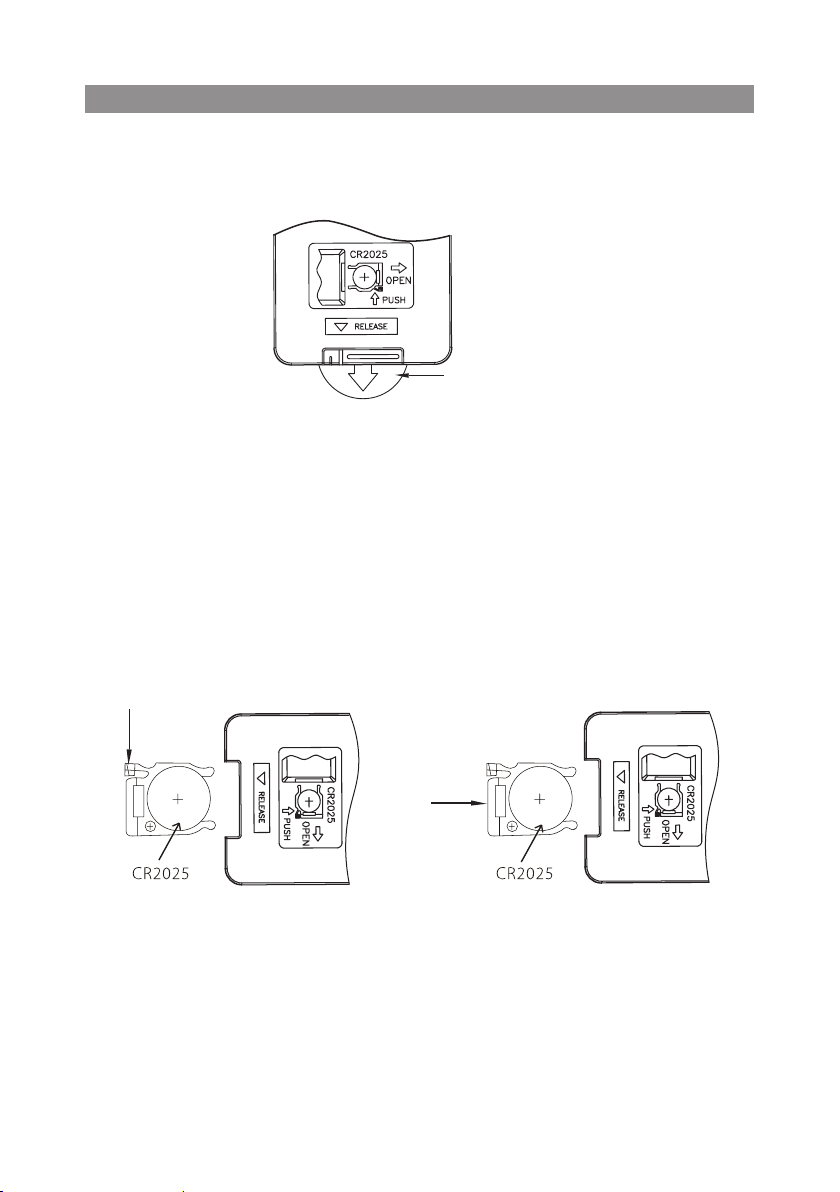

Battery Replacement
1. Depress the tab (1) and slide the battery holder (2) out in the direction of the arrow.
2. Install one CR2025 battery. Make sure that the proper polarity (+ or -) is observed.
3. Slide the battery holder into the remote control until it locks.
Remote Control Battery Replacement

12
Remote Control Operation

13
* Function control is available on the unit and the Remote Control.
** Function not available in this model.

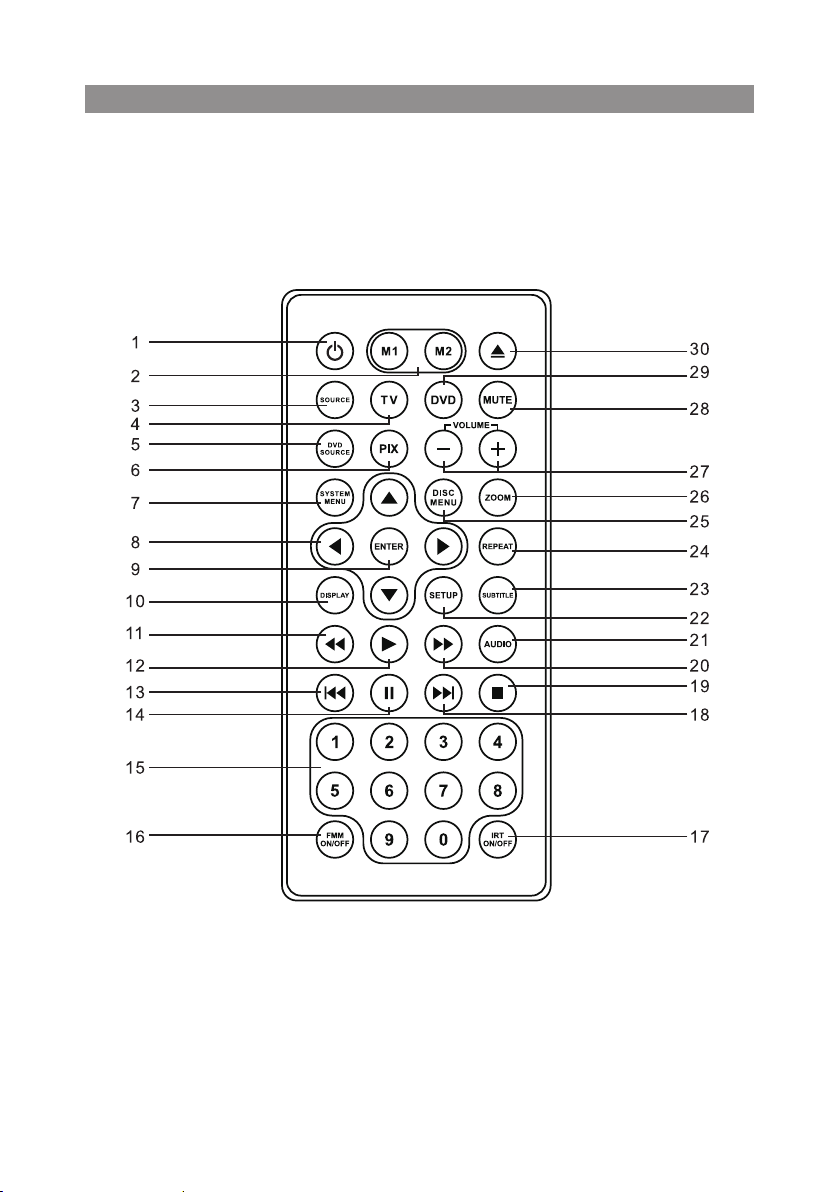

1. POWER*
Press this button to turn the unit ON and OFF..
2. MONITOR SELECT
M1 Button – Set the remote control code to allow control of the unit in M1 mode.
M2 Button – Set the remote control code to allow control of the unit in M2 mode.
Note: M1/M2 operation is only for when 2 systems are installed in the same vehicle.
This allows independent Remote Control and independent playback of audio
for each system.
3. SOURCE*
Press to display the Source OSD for DVD, USB, AV,AUX and HDMI.
4. TV Mode Select
Switches certain function keys on the remote control for monitor functions.
5. DVD Source**
No function on this model.
6. PIX ( Picture Select )
This button is used to make picture adjustments. Use the UP or DOWN direction buttons
to select BRIGHTNESS, CONTRAST,COLOR, TINT, or RESET. Use the UP or DOWN buttons to
adjust the setting. The OSD will automatically disappear if no adjustments are made within
6 seconds.
7. SYSTEM MENU
Allows the user to access the system menu. Press the por qcursor buttons to select
PICTURE, AUDIO, SYSTEM, PLAYER, FMM .
8. CURSOR (pqt u)
Use the cursor buttons to access menu selections on the screen.
9. ENTER
Used to execute a selected setting or menu option.
10. DISPLAY
Press once to display current disc information of Title, Chapter & Time. Press again to
display Subtitle, Audio & Angle while the disc is playing.
OFF OFF OFF
....
DVD TT 0/12 CH 0/25 00:00:00
Remote Control Operation

14
11. BACKWARD ( )
Press to search in a backward direction. Press repeatedly to change the search speed from
2, 4, 8, 20 times and normal speed.
12. PL AY (u)*
Press to activate the play mode while a disc is loaded into the disc compartment.
13. PREVIOUS ( )
Press to return to the previous chapter or track.
14. PAUSE (II)*
Press to pause playback.
15. NUMBERS
Allow the user to enter the numbers 0-9 for selection of the tracks, titles, chapters or
password setting.
16. FMM ON/OFF
Turns the FM Modulator power on/o.
17. IRT ON/OFF
Turns the Infrared Transmitter on/o for IR wireless headphones.
18. NEXT ( )
Press to skip to the next chapter or track.
19. STOP (n)*
Press to stop playback. (Playback will resume from the point it is stopped).
Press twice to stop playback fully. (Playback will resume from the beginning of the disc).
Note: For MP3 or photo mode, press twice to return to Audio/Photo/Video option
menu.
20. FORWARD ( )
Press to search in a forward direction. Press repeatedly to change the search speed from 2,
4, 8, 20 times and normal speed.
21. AUDIO
Press to display and select audio language in DVD mode. Each time this button is pressed,
the language changes.
22. SETUP**
No function on this model.
23. SUBTITLE
Press to display and select the subtitle language in DVD mode. Each time this button is
pressed, the subtitle language changes.Pressing the button will also turn the subtitles o.
Note: The type and number of subtitle languages vary from disc to disc.
24. REPEAT
Allows the user to repeat a selected chapter, title or all track.
Remote Control Operation

15
25. DISC MENU
In DVD mode, press once to access the Root Menu and then press again to resume to
previous screen.
26. ZOOM
Press this button to enlarge or decrease the picture size when playing a DVD disc.
Press ZOOM button DVD Player performs
1 Time Enlarges the picture 2X
2 Times Enlarges the picture 3X
3 Times Enlarges the picture 4X
4 Times Reduces the picture 1/2
5 Times Reduces the picture 1/3
6 Times Reduces the picture 1/4
7 Times Picture is returned to original size
27. VOLUME DOWN (-) or UP (+)
Press to select the increase or decrease the volume for the wired headphones.
28. MUTE
Press this button to mute the audio for the wireless FM Modulator, IR headphones and
audio output.
Pressing the button again restores the audio to the previously set level.
29. DVD Mode Select Button
Switches certain function keys on the remote control for DVD function.
30. EJECT ( )**
No function on this model.
Remote Control Operation

16
The System is capable of accessing six source inputs. To select or change a source, press the
source button on the front panel or the Source button on the remote control. The source
OSD will appear on the screen as shown in the gure below. Use the ＋ or － cursor buttons
on the front panel or the por qcursor buttons on the remote control to highlight a source.
Press the Source button on the front panel or the OK button on the remote control to select
the desired source.
DVD
The DVD source input is used to play DVDs, Audio CDs and MP3 discs.
USB
The USB source input is used to read USB and play MP3 les, JPEG les (Photos) and MPEG I, II
files.
AV
The AV input connection is performed when there is an external input source connected.
Souce Menu
SOURCE
AV
AUX
HDMI
MOVE
DVD
USB

17
Source Menu(Continued)
AUX
An external audio device may be connected to the system using the AUX pigtail P/N 112B3227
(not included) connected to the AUX input. The AUX input connection is performed when
there is an external input source connected.
HDMI
These Source inputs allow the user to enjoy high-denition digital images and high-quality
sound by connecting a HD device such as a Blu-ray player or smartphone with an HDMI output
to the system. User can connect HDMI device with an optional HDMI cable. Smartphones and
Tablet require the appropriate adapter for your smart device. You can also use this input to
connect a Smart Stick such as a ROKU, Amazon FireTV and Chromecast device (these devices
may require Wi-Fi Hotspot access to stream content which is not included with this system).
Notes:
• This source requires an HDMI enabled device and a special HDMI adapter. Contact your
HDMI device supplier for the adapter.
• Phone functionality (phone calls, texting, etc.) may be limited while using the adapter.
• HDMI content is copy protected and is not available on the AV output of the System.
• This system does not support devices with MHL features.

18

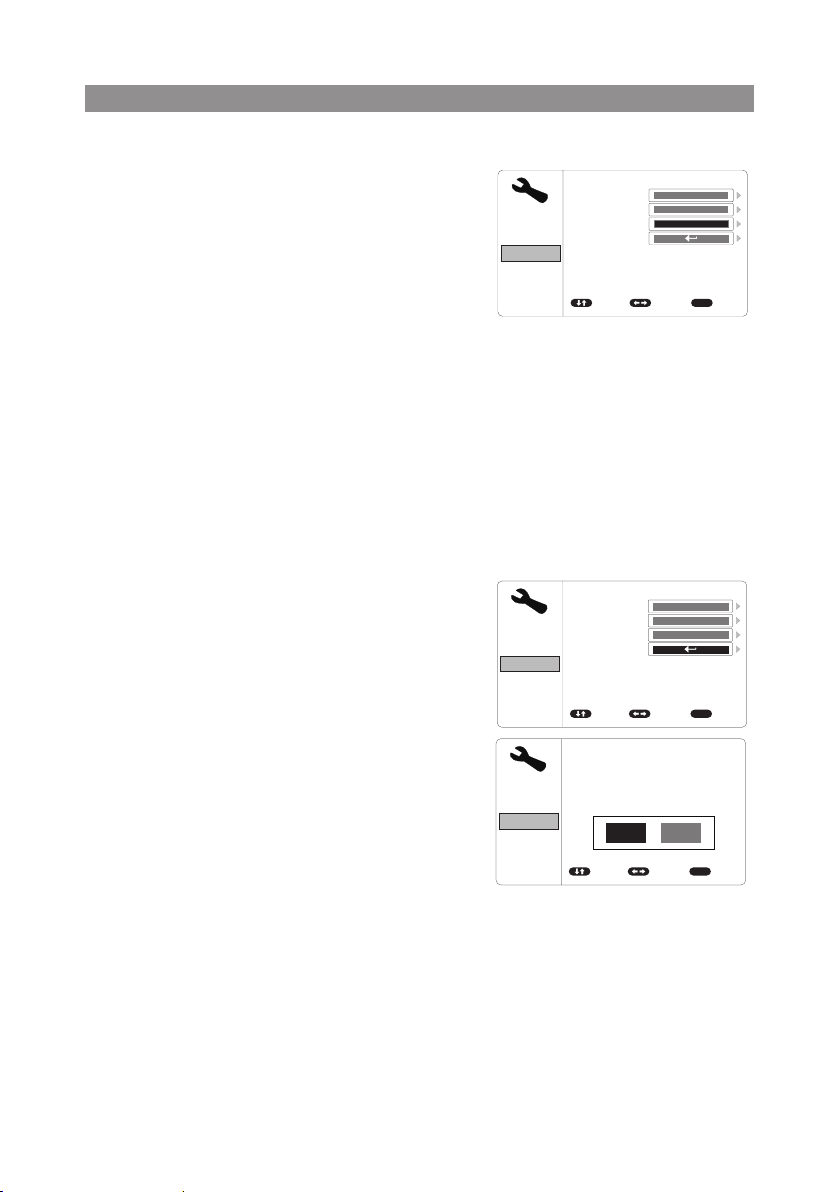

System Menu Setting and Adjustments
PICTURE CONTROL
The PICTURE setup functions allows the user to
select and set the picture control function.
BRIGHTNESS, CONTRAST, COLOR adjustments range
from 0 to 32.
TINT adjustments range from -16 to 16.
AUDIO MODE
The AUDIO setup functions allows the user to select
and set the IRT Headphone transmitter "ON" or "OFF"
IRT
The IR transmitter can be set to ON or OFF. The IR
Transmitter must be set to "ON" for the wireless
headphone to be operational.
LANGUAGE
The LANGUAGE setup allows the user to select
ENGLISH,SPANISH, FRENCH, GERMAN for the on-
screen language display.
DEFAULT DVD
The DEFAULT DVD allows the user to set the system
default source to DVD ON or OFF.
If souce default is set to ON, every time the unit
is turned off the on, the unit will power up and
automatically switch the source to DVD.
If source default is set to OFF and the system is
turned off then on, the unit will power up in the
source that was last selected.
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
BRIGHTNESS
CONTRAST
COLOR
TINT
MOVE
16
16
0
MENU
16
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
BRIGHTNESS
CONTRAST
COLOR
TINT
MOVE
16
0
MENU
16
16
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
BRIGHTNESS
CONTRAST
COLOR
TINT
MOVE
0
MENU
16
16
16
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
BRIGHTNESS
CONTRAST
COLOR
TINT
MOVE MENU
16
16
16
0
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
IRT
MOVE MENU
ON
VOLUME 16
ENGLISH
ON
M1
AUDIO
AUDIO
AUDIO
SYSTEM
SYSTEM
SYSTEM
PLAYER
PLAYER
PLAYER
FMM
FMM
FMM
ADJUST
ADJUST
ADJUST
EXIT
EXIT
EXIT
BRIGHTNESS
LANGUAGE
TV SYSTEM
CONTRAST
DEFAULT DVD
SCREEN SAVER
COLOR
MONITOR MODE
ASPECT RATIO
PASSWORD SETUP
TINT
RESET
RATING
LAST MEMORY
AUDIO LANGUAGE
MOVE
MOVE
MOVE
16
16
16
0
MENU
MENU
MENU
ENGLISH
NTSC
6 ADULT
ON
ON
ON
M1
16:9
ENGLISH
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1 PICTURE
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
SELECT EXIT
FM
FMM CHANNEL
MOVE MENU
ON
AUDIO
SYSTEM
PLAYER
FMM
SELECT EXITMOVE MENU
88.1MHz
88.3MHz
88.5MHz
88.7MHz
88.9MHz
89.1MHz
89.3MHz
89.5MHz
89.7MHz
89.9MHz
90.1MHz
90.3MHz
90.5MHz
90.7MHz
90.9MHz
91.1MHz
91.3MHz
91.5MHz
91.7MHz
91.9MHz
92.1MHz
92.3MHz
92.5MHz
92.7MHz
92.9MHz
93.1MHz
93.3MHz
93.5MHz
93.7MHz
93.9MHz
94.1MHz
94.3MHz
94.5MHz
94.7MHz
94.9MHz
95.1MHz
95.3MHz
95.5MHz
95.7MHz
95.9MHz
96.1MHz
96.3MHz
96.5MHz
96.7MHz
96.9MHz
AUDIO
AUDIO
AUDIO
SYSTEM
SYSTEM
SYSTEM
PLAYER
PLAYER
PLAYER
FMM
FMM
FMM
ADJUST
ADJUST
ADJUST
EXIT
EXIT
EXIT
BRIGHTNESS
LANGUAGE
TV SYSTEM
CONTRAST
DEFAULT DVD
SCREEN SAVER
COLOR
MONITOR MODE
ASPECT RATIO
PASSWORD SETUP
TINT
RESET
RATING
LAST MEMORY
AUDIO LANGUAGE
MOVE
MOVE
MOVE
16
16
16
0
MENU
MENU
MENU
ENGLISH
NTSC
6 ADULT
ON
ON
ON
M1
16:9
ENGLISH
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1 PICTURE
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
SELECT EXIT
FM
FMM CHANNEL
MOVE MENU
ON
AUDIO
SYSTEM
PLAYER
FMM
SELECT EXITMOVE MENU
88.1MHz
88.3MHz
88.5MHz
88.7MHz
88.9MHz
89.1MHz
89.3MHz
89.5MHz
89.7MHz
89.9MHz
90.1MHz
90.3MHz
90.5MHz
90.7MHz
90.9MHz
91.1MHz
91.3MHz
91.5MHz
91.7MHz
91.9MHz
92.1MHz
92.3MHz
92.5MHz
92.7MHz
92.9MHz
93.1MHz
93.3MHz
93.5MHz
93.7MHz
93.9MHz
94.1MHz
94.3MHz
94.5MHz
94.7MHz
94.9MHz
95.1MHz
95.3MHz
95.5MHz
95.7MHz
95.9MHz
96.1MHz
96.3MHz
96.5MHz
96.7MHz
96.9MHz

19
MONITOR MODE
This allows the user to change the system to M1 or
M2 mode. Once the setting is changed, the remote
control and IR headphones will only work if set to
that same setting.
1.M1 Mode - For the Remote Control to operate the
system when set to M1, press the M1
button on the Remote Control.
Please make sure IR Headphones are set to
Channel A when the system is in M1 mode.
2.M2 Mode - For the Remote Control to operate the
system when set to M2, press the M2
button on the Remote Control.
Please make sure IR Headphones are set to
Channel B when the system is in M2 mode.
RESET
The Reset function allows user to reset all the
setting options to factory settings.
System Menu Setting and Adjustments(Continued)
AUDIO
AUDIO
AUDIO
SYSTEM
SYSTEM
SYSTEM
PLAYER
PLAYER
PLAYER
FMM
FMM
FMM
ADJUST
ADJUST
ADJUST
EXIT
EXIT
EXIT
BRIGHTNESS
LANGUAGE
TV SYSTEM
CONTRAST
DEFAULT DVD
SCREEN SAVER
COLOR
MONITOR MODE
ASPECT RATIO
PASSWORD SETUP
TINT
RESET
RATING
LAST MEMORY
AUDIO LANGUAGE
MOVE
MOVE
MOVE
16
16
16
0
MENU
MENU
MENU
ENGLISH
NTSC
6 ADULT
ON
ON
ON
M1
16:9
ENGLISH
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
SELECT EXIT
FM
FMM CHANNEL
MOVE MENU
ON
AUDIO
SYSTEM
PLAYER
FMM
SELECT EXITMOVE MENU
88.1MHz
88.3MHz
88.5MHz
88.7MHz
88.9MHz
89.1MHz
89.3MHz
89.5MHz
89.7MHz
89.9MHz
90.1MHz
90.3MHz
90.5MHz
90.7MHz
90.9MHz
91.1MHz
91.3MHz
91.5MHz
91.7MHz
91.9MHz
92.1MHz
92.3MHz
92.5MHz
92.7MHz
92.9MHz
93.1MHz
93.3MHz
93.5MHz
93.7MHz
93.9MHz
94.1MHz
94.3MHz
94.5MHz
94.7MHz
94.9MHz
95.1MHz
95.3MHz
95.5MHz
95.7MHz
95.9MHz
96.1MHz
96.3MHz
96.5MHz
96.7MHz
96.9MHz
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
IRT
MOVE MENU
ON
VOLUME 16
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXITMOVE MENU
YES NO

20
PLAYER MODE
The Player setup function allow the user to select DVD
functionality.
TV SYSTEM
The TV SYSTEM setup allows the user to choose
television standard which corresponds to your TV.
NTSC-Select this type for NTSC TV
PAL-Select this type for PAL TV
AUTO-Select this type if the connected screen is
a multi-system TV. The video format of the
disc (NTSC or PAL) will determine the video
signal output.
SCREEN SAVER
This allows you to set the Screen Saver mode.
ON -Screen Saver will appear
OFF -Screen Saver will not appear
Note: The DVD player will enter Screen Saver mode
if the unit is inactive for approximately 2 minutes.
ASPECT RATIO(For DVD Screen Display)
4:3 PS (Pan Scan)
The left and right of the screen are cut off and
displays the central portion of the 16:9 screen.
4:3 LB (Letter Box)
Displays the content of the DVD title in the 16:9
aspect ratio.The black bars will appear at the top
and bottom of the screen.
16:9
This displays a wide picture with black bands on
the upper and lower portion of the screen. The
bandwidth will vary,depending on the aspect ratio
of the disc.
System Menu Setting and Adjustments(Continued)
PICTURE PICTURE
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO AUDIO
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM SYSTEM
PLAYER
PLAYER
PLAYER
PLAYER
PLAYER
PLAYER
PLAYER PLAYER
FMM
FMM
FMM
FMM
FMM
FMM
FMM FMM
ADJUST
ADJUST
ADJUST
ADJUST
ADJUST
ADJUST
ADJUST ADJUST
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT EXIT
TV SYSTEM
TV SYSTEM
TV SYSTEM
TV SYSTEM
SUBTITLEGLANGUAGE
SUBTITLEGLANGUAGE
TV SYSTEM TV SYSTEM
SCREEN SAVER
SCREEN SAVER
SCREEN SAVER
SCREEN SAVER
MENU LANGUAGE
MENU LANGUAGE
SCREEN SAVER SCREEN SAVER
ASPECT RATIO
ASPECT RATIO
ASPECT RATIO
ASPECT RATIO
ASPECT RATIO ASPECT RATIO
PASSWORD SETUP
PASSWORD SETUP
PASSWORD SETUP
PASSWORD SETUP
PASSWORD SETUPPASSWORD SETUP
LAST MEMORY
LAST MEMORY
LAST MEMORY
LAST MEMORY
LAST MEMORY LAST MEMORY
AUDIO LANGUAGE
AUDIO LANGUAGE
AUDIO LANGUAGE
AUDIO LANGUAGE
AUDIO LANGUAGE AUDIO LANGUAGE
MOVE
MOVE
MOVE
MOVE
MOVE
MOVE
MOVE MOVE
MENU
MENU
MENU
MENU
MENU
MENU
MENU MENU
NTSC
NTSC
NTSC
NTSC
ENGLISH
ENGLISH
ENGLISH
ENGLISH
NTSC NTSC
ADULT ADULT
ADULT
ADULT
ADULT ADULT
ON
ON
ON
ON
ON ON
ON
ON
ON
ON
ON ON
16:9
16:9
16:9
4:3 PS
16:9 16:9
ENGLISH
ENGLISH
ENGLISH
ENGLISH
ENGLISH ENGLISH
RATING
RATING
RATING
RATING RATING
RATING
PICTURE PICTURE
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO AUDIO
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM SYSTEM
PLAYER
PLAYER
PLAYER
PLAYER
PLAYER
PLAYER
PLAYER PLAYER
FMM
FMM
FMM
FMM
FMM
FMM
FMM FMM
ADJUST
ADJUST
ADJUST
ADJUST
ADJUST
ADJUST
ADJUST ADJUST
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT EXIT
TV SYSTEM
TV SYSTEM
TV SYSTEM
TV SYSTEM
SUBTITLEGLANGUAGE
SUBTITLEGLANGUAGE
TV SYSTEM TV SYSTEM
SCREEN SAVER
SCREEN SAVER
SCREEN SAVER
SCREEN SAVER
MENU LANGUAGE
MENU LANGUAGE
SCREEN SAVER SCREEN SAVER
ASPECT RATIO
ASPECT RATIO
ASPECT RATIO
ASPECT RATIO
ASPECT RATIO ASPECT RATIO
PASSWORD SETUP
PASSWORD SETUP
PASSWORD SETUP
PASSWORD SETUP
PASSWORD SETUPPASSWORD SETUP
LAST MEMORY
LAST MEMORY
LAST MEMORY
LAST MEMORY
LAST MEMORY LAST MEMORY
AUDIO LANGUAGE
AUDIO LANGUAGE
AUDIO LANGUAGE
AUDIO LANGUAGE
AUDIO LANGUAGE AUDIO LANGUAGE
MOVE
MOVE
MOVE
MOVE
MOVE
MOVE
MOVE MOVE
MENU
MENU
MENU
MENU
MENU
MENU
MENU MENU
NTSC
NTSC
NTSC
NTSC
ENGLISH
ENGLISH
ENGLISH
ENGLISH
NTSC NTSC
ADULT
ADULT
ADULT
ADULT
ADULT ADULT
ON
ON
ON
ON
ON ON
ON
ON
ON
ON
ON ON
16:9
16:9
16:9
4:3 PS
16:9 16:9
ENGLISH
ENGLISH
ENGLISH
ENGLISH
ENGLISH ENGLISH
RATING
RATING
RATING
RATING
RATING
RATING
