1. WELCOME
Congratulations on purchasing your new VT9300 DECT. We are sure you will enjoy its
wide range of features, and find the headset comfortable to wear and easy to use.
VT9300 DECT headset features
• Wideband audio for exceptional sound quality.
• Volume and mute controls.
• Intuitive headset multi-function button for easy call handling.
• LED and audio indicators.
• Advanced hearing protection with safetone™.
• Noise-cancelling microphone.
VT9300 DECT base features
• Headset recharge docking cradle.
• Visual call status indicators.
• Visual wireless connection status indicators.
• Mute indicators.
• Battery indicators.
• Voice-prompted configuration.
• Volume adjustment
• Work with PC softphone (Skype for Business )

4
2. PRODUCT OVERVIEW
2.1 PACKAGE CONTENTS
Headset Base
Power adapter User manual Mini USB Cable

5

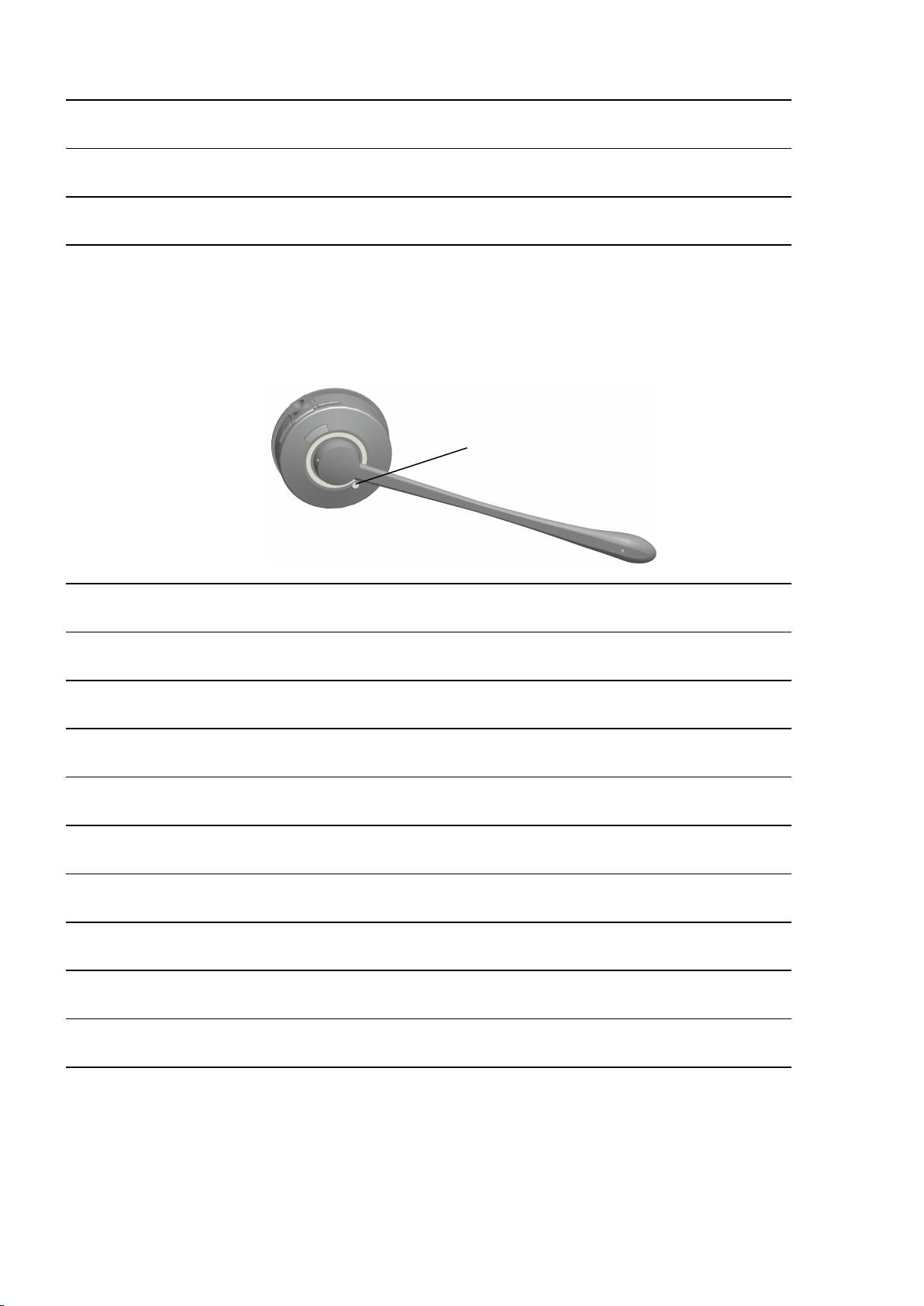

2.2 HEADSET OVERVIEW
Receiver volume UP
Receiver volume DOWN
MIC Mute
Multiple function button
Headset status LED
MIC boom
Headset charger
contacts
Receiver
Noise-canceling MIC
Leather cushion
Headband

6
2.3 BASE OVERVIEW
Headset seat
Charger contacts
Headset in use light
Headset with paired light
MIC mute light
Battery charging status light

7
MIC volume adjustment
Receiver volume adjustment
Speaker
AC Power adapter port
PAGE Switch
Mini USB Port for connect to PC

8
3 CONNECTING TO PC
3.1 CONNECT TO PC
The Base connected to a PC using a USB cable, and PC need Skype for business, set the Skype for business
audio device for 9300DECT,and than can call use the headset with multi-button,

8
3.2 CONNECT POWER SUPPLY TO BASE
1. Plug the power adapter into the port marked on the base.
2. Connect the power adapter to the mains power socket.
3.3 DOCK THE HEADSET
1. Press the Multiple function button, it will be powered on after the LED lights for 2S. Press the
Multiple function button again or dock the headset with the base, then lifting the headset, the headset with
paired light will lit up when the headset and base are in the connection.
2. When docked correctly the headset battery will begin charging, if needed(LED will flash when
charging ). Charge for 20 minutes or until the battery indicator on the base is steady green.
3. Clear the paired base: Press the marked R+ at the back of the base, the battery charging status light
will flash 3 times.
4. Renew to pair the headset: consistently press the PAGE switch for 5S, the headset with paired
light will flash to search the headset, consistently press the headset mute button until the headset
status LED flash, then the headset are in the paired status. Connection will be successful when the LED

9
power off in the same time.
4. CONFIGURING THE PC AUDIO
Due to the large range of desk phone brands/models available, a clear dial tone must be set before
first-time use of the VT9300 DECT. setting the clear dial tone will enable the VT9300 DECT to function
correctly with your PC which have Skype for Business. additionally it is also important to set the
microphone volume for optimal sound quality.
4.1 SET A CLEAR DIAL TONE
1. Put on the headset.
2.Use AC adapter to support Base Power.
3.Use Mini USB cable connect to the PC.
3.Open the Application Skype for business, and than set
The audio device as 9300DECT.
4.2 SET THE MICROPHONE VOLUME
1. Put on the headset.
2. Make a test call. Call a friend or colleague to test your
speaking volume. ensure the listener does not adjust their own
volume.
3.Adjust the microphone volume using the microphone + / -
volume buttons, as illustrated, if your speaking volume is too
loud or too quiet for the listener.
4.Adjust the receiver volume using the receiver + / -
volume buttons, as illustrated, if your listening volume is too
loud or too quiet by the listener.
5. When the microphone volume is set, end the call.
5. VT9300 DECT FEATURES
MIC adjustment
Receiver adjustment
Speaker

10
5.1 HEADSET MULTI-FUNCTION BUTTON
The multi-function button can answer calls and end calls using a combination of taps, double-taps or
presses .
Function Tap Press hold
Answer incoming call √
End current call √
Power on √
Power off √
5.2 HEADSET SPEAKER VOLUME BUTTONS
The speaker volume buttons adjust the headset speaker volume.
5.3 HEADSET MUTE BUTTON
The mute button mutes or un-mutes the headset microphone.
Function Tap Press Hold
Multi-function button
Speaker volume button＂+＂
Speaker volume button”-＂
Mute button

11
MIC muting √
Mute Canceling √
In the paired statues √
5.4 HEADSET LED INDICATOR
The LED indicator indicates call status.
Headset state LED Indicator
Power on Light hold for 2S
Power off ON 100ms OFF 100ms FLSSH 3S
Pairing ON 250ms OFF 250ms FLASH
Standby ON 250ms OFF 8s FLASH
Connected Light on hold
Online Light on hlod
Incoming call ON 300ms OFF 700ms Flash
Headset docked in base ON 3S OFF 5S FLASH？
Low battery clarming ON 300ms OFF 100ms+ON 300ms OFF500 FLASH
Led indicator

12

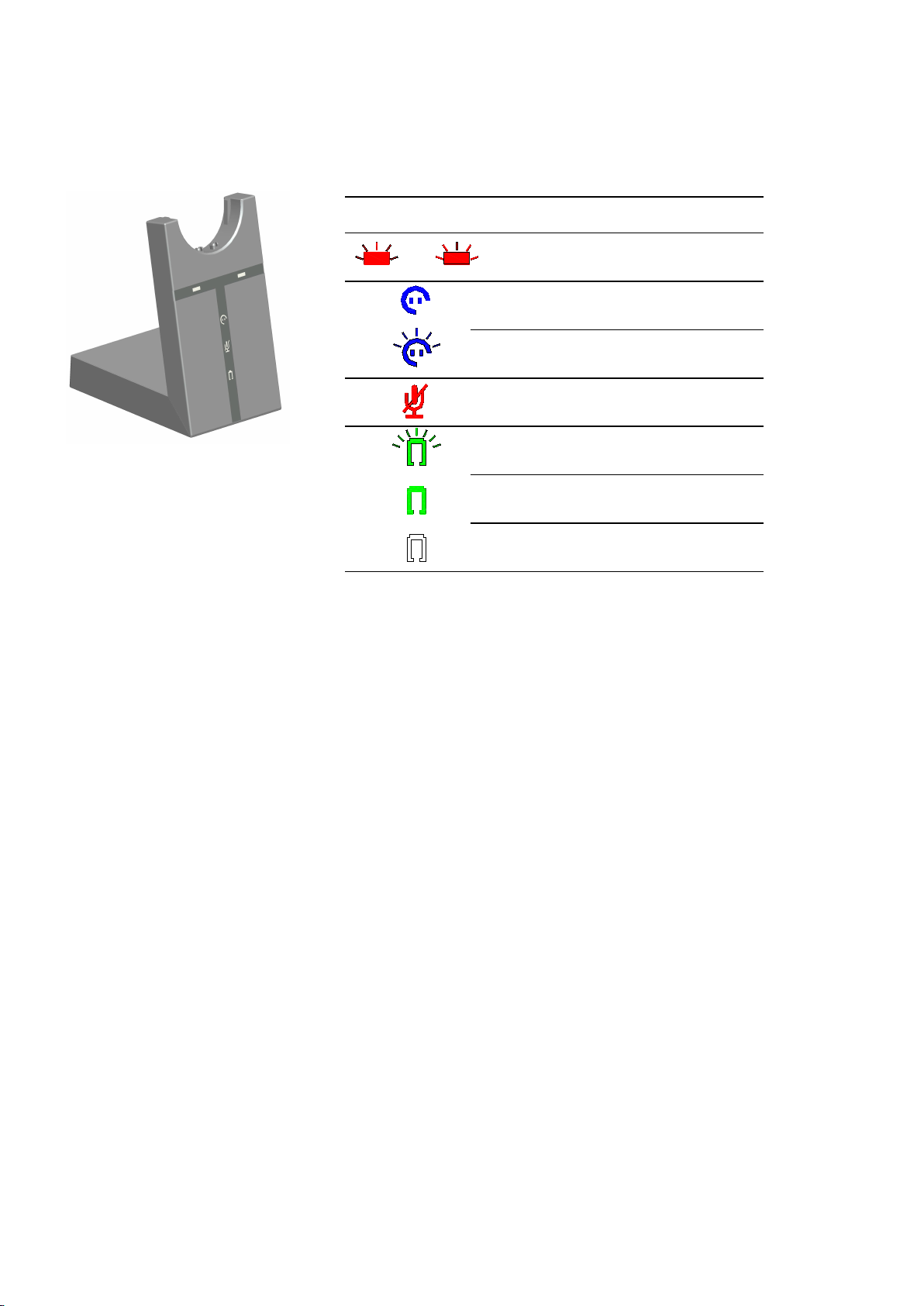

5.5 BASE VISUAL INDICATORS
The VT9300 DECT base has five LEDs to indicate battery, call status and events.
6 .CALL MANAGEMENT
6.1 Making Call &Answer Call &End Call
When Headset on base, you want making call& Answer call, you only pick up
the headset, when headset is on your head you can tip the multi-button to making
call or answer call; when you end call you have two ways, one is tip the multi-button,
another is put the headset on Base.
Icon Status
Online
Link between headset and base
Searching for headset
Microphone muted
Battery charging
Full battery
Unknown battery status

13
7. TECHNICAL SPECIFICATIONS
7.1 VT 9300 DECT HEADSET
Operating environment:
0˚C to +40˚C; Up to 95% Rh non-condensing.
Call control:
Multi-function button support for answer call, end call, reject call, docking operations also answer and end calls.
Volume control and microphone mute:
button controls on headset.
Visual indicator:
LED indicates call status, pairing status and other events.
Audio indicators:
Tones indicate incoming calls, low battery, volume level, microphone muting and other events.
Sound quality:
DSP noise reduction; echo cancellation; tone control; wideband and narrowband audio.
Recharge:
While docked in the VT 9300 DECT Headset.
Wireless standard:
(CAT - IQ) European DECT and U.S. DECT.
DECT range:
For European DECT, up to 120 meters from VT 9300 DECT Headset base to headset.
For U.S. DECT, up to 350 feet from VT 9300 DECT Headset base to headset.
DECT frequencies:
US DECT: 1.92 - 1.93 Ghz.
EU DECT: 1.88 - 1.90 Ghz.
Wearing-styles:
Headband and ear hook
Microphone boom arm style:

14
Long boom arm。
Speaker(s):
Wideband speaker.
Microphone:
noise-cancelling microphone.
7.2 Headset Battery
Battery type:
Lithium Ion-polymer.
Battery capacity:
300 ma/h, typical.
Battery talk time:
Up to 8 hours.
Battery lifetime:
Minimum 1000 charge cycles.
Battery standby time:
At least 36 hours.
Operating temperature range:
-20˚C to +60˚C.
Battery charge time:
20% charge in less than 20 minutes.
50% charge in less than 45 minutes.
Full charge in less than 3 hours.
Battery shelf life:
headset battery holds charge for 6 months in the off state, before recharge is required.
7.3 VT 9300 DECT BASE
VT 9300 DECT base meets the following specifications.
Dimensions:

15
97mm x 75 mm x 120 mm。
Wireless standard:
(CAT - IQ) European DECT and U.S.DECT.
Operating environment:
-0˚C to +40˚C; Up to 95% Rh non-condensing.
Recharge cradle:
Fits supplied VT 9300 DECT series headset.
PC connections:
Mini USB port for connect to PC, DC port for Power Adapter
Clear Dial tone switch and microphone volume switch:
electromechanical switches. Clear dial tone switch and microphone volume level set manually.
74 PRODUCT DISPOSAL
Please dispose of the headset according to local regulations and recycle when possible. Do not dispose as
household waste. Do not dispose of the headset in a fire as the battery may explode. batteries may also explode
if damaged.
