Vulcan Fitness 53040 User manual

© 2008 VULCAN FITNESS
Instruction Manual
*Artist expression, actual product may vary from illustration.
Model No. 53040
Bike

2 • Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL
READ THIS FIRST
Customer Support
Vulcan Fitness U.K. Ltd. (England)
York Way, Daventry, Northants, NN11 4YB, England
Tel: [phone]
Help desk Tel: [phone]
Fax: [phone]
Email: helpdesk@yorktness.co.uk
Vulcan Fitness (Australia) pty. ltd.
Unit 1, Lot 2, Swaham Road, Minto, N.S.W. 2566, Australia
Tel: [phone]
Help desk Tel: [phone]
Fax: [phone]
Email: service@yorktness.com.au
Should you require any assistance regarding this product
please gather the following information, and then contact
us using the details above.
• Serial no. - this can be found on the sticker located as
indicated. For future reference, please write down your
serial number in the space below.
• Original purchase date.
• Place of purchase.
• Information about the place and conditions of use.
• Precise description of the issue / defect.
Serial No:
Disclaimer
While every eort has been made to ensure that the
information contained in this guide is accurate and
complete, no liability can be accepted for any errors or
omissions. Vulcan Fitness reserves the right to change the
specications of the hardware and software described
herein at any time without prior notice.
No part of this guide may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated
into any language in any form, by any means, without the
prior written permission of Vulcan Fitness.
Vulcan Fitness makes no warranties for damages due to
mistaken operation or malfunction of the equipment.

Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL • 3
READ THIS FIRST
Safety Precautions
Before using the equipment, please ensure that you read
the safety precautions described below. Always ensure that
the equipment is operated correctly.
The safety precautions noted below are intended to
instruct you in the safe and correct operation of the
equipment to prevent injuries or damage to yourself, other
persons and equipment.
THIS LIST IS NOT EXHAUSTIVE. Save these instructions.
Fitness Precautions:
Before you undertake any programme of exercise that will
increase cardiovascular activity, please be sure to consult
with your doctor. Frequent strenuous exercise should be
approved by your doctor and proper use of your product is
essential.
If you feel any pain or abnormal symptoms, STOP
YOUR WORKOUT IMMEDIATELY. Consult your physician
immediately.
Equipment Safety:
• Please keep all children away from exercise products
when in use. Do not allow children to climb or play on
them when they are not in use.
• Regularly check to see that all nuts, bolts and ttings
are securely tightened. Periodically checking all
moving parts for obvious signs of wear or damage.
• Clean only with a damp cloth, do not use solvent
cleaners. If you are in any doubt, do not use your
product. Contact CUSTOMER SUPPORT.
• Before use, always ensure that your product is
positioned on a solid, at surface. If necessary, use a
rubber mat underneath to reduce the possibility of
slippage during use.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
Exercise Safety:
• Wear proper workout clothing: Do not wear loose
clothing.
• Do not wear shoes with leather soles or high heels. Tie
all long hair back.
• Remove all personal jewelry before exercising.
• After eating, allow 1-2 hours before exercising as this
will help to prevent muscle strain.
• Injuries to health may result from incorrect or excessive
training.
MAX. User Weight: 110KG (250LB)
Your product is intended for use in clean dry
conditions. You should avoid storage in excessively
cold or damp places as this may lead to corrosion and
other related problems that are outside our control.
WARNING

TABLE OF CONTENTS
Thank you for
purchasing a
VULCAN FITNESS
equipment.
You have chosen a high quality, safe and innovative piece
of equipment as your training partner and we are certain
it will keep you motivated on the way to achieving your
personal tness goal.
The precautions noted within this guide are intended to
instruct you in the safe and correct use of the products and
to prevent injuries or damage to yourself, other persons and
property. Please read and ensure that you understand them
before proceeding to other sections of this guide.
Table of contents
Read This First .............................................................. 02 - 03
•Disclaimer/Customer Support .................................... 02
•Safety Precautions ........................................................... 03
Table Of Contents ............................................................... 04
Introduction .......................................................................... 05
Assembly Instructions ............................................. 06 - 08
•Getting Started ................................................................. 06
•Hardware Identification Chart .................................... 06
•Assembly Instructions ........................................... 07 - 08
Operational Instructions ................................................. 09
•Operating Instructions ................................................... 09
•Computer Operation ...................................................... 09
•Replacing The Batteries ................................................. 09
Troubleshooting .................................................................. 10
Fitness Guide ......................................................................... 11
•Conditioning Guidelines ............................................... 11
Warranty .................................................................................. 12
Part List ............................................................................ 14 - 15

Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL • 5
INTRODUCTION
• Magnetic tension upright cycle
• Adjustable saddle in height
• Smooth, quiet, durable, compact and comfort
• Extra large LCD
• 5KG cast iron ywheel, belt drive
• Magnetic system with dial tension knob
• Heavy duty one piece crank system

6 • Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL
ASSEMBLY INSTRUCTIONS
Getting Started
Place all parts from the box in a cleared area and position
them on the oor in front of you. Remove all packing
materials from your area and place them back into the box.
Do not dispose of the packing materials until assembly
is completed. Read each step carefully before beginning.
If you are missing a part, please contact our technical
support.
After unpacking the unit, open the hardware bag and make
sure that you have all the following items. Some hardware
may be already attached to the part:

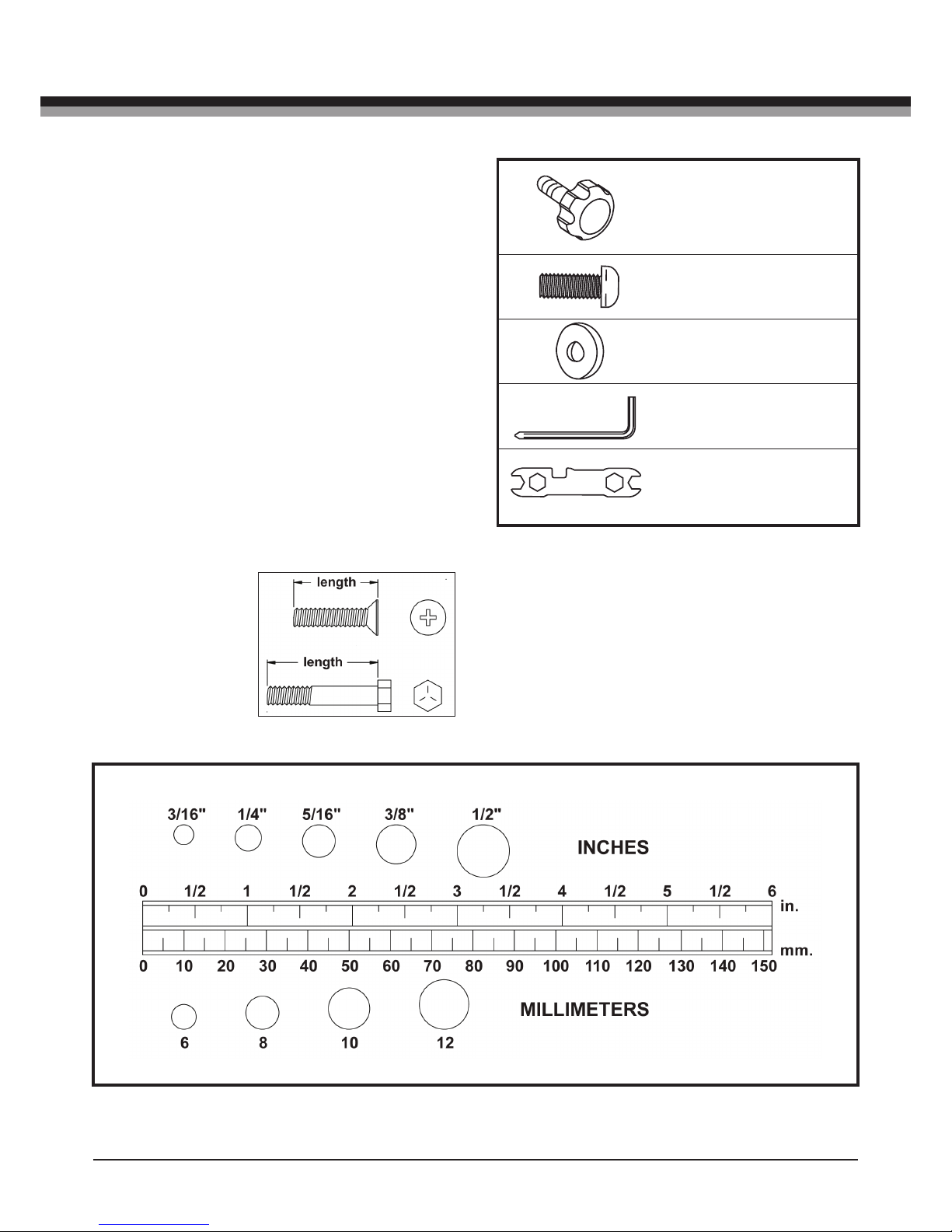

Hardware Identification Chart
This chart is provided to help identity the hardware used
in the assembly process. Place the washers, the end of
the bolts, or screws on the circles to check for the correct
diameter. Use the small scale to check the length of the
bolts and screws.
NOTE: The length of all bolts and screws except those
with at heads is
measured from below
the head to the end of
the bolt or screw. Flat
head bolts and screws
are measured from
the top of the head to
the end of the bolt or
screw.
Part No. 19 x 1
ROUND KNOB (Ø60 X 88MM X M10 X Ø8)
Part No. 41 x 13
BOLT (M8 X 16MM)
Part No. 46 x 13
Ø8 CURVE WASHER (Ø16 X Ø8 X 1.6MM)
Part No. 63 x 1
ALLEN WRENCH / SCREWDRIVER (S = 5)
Part No. 64 x 1
WRENCH

Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL • 7

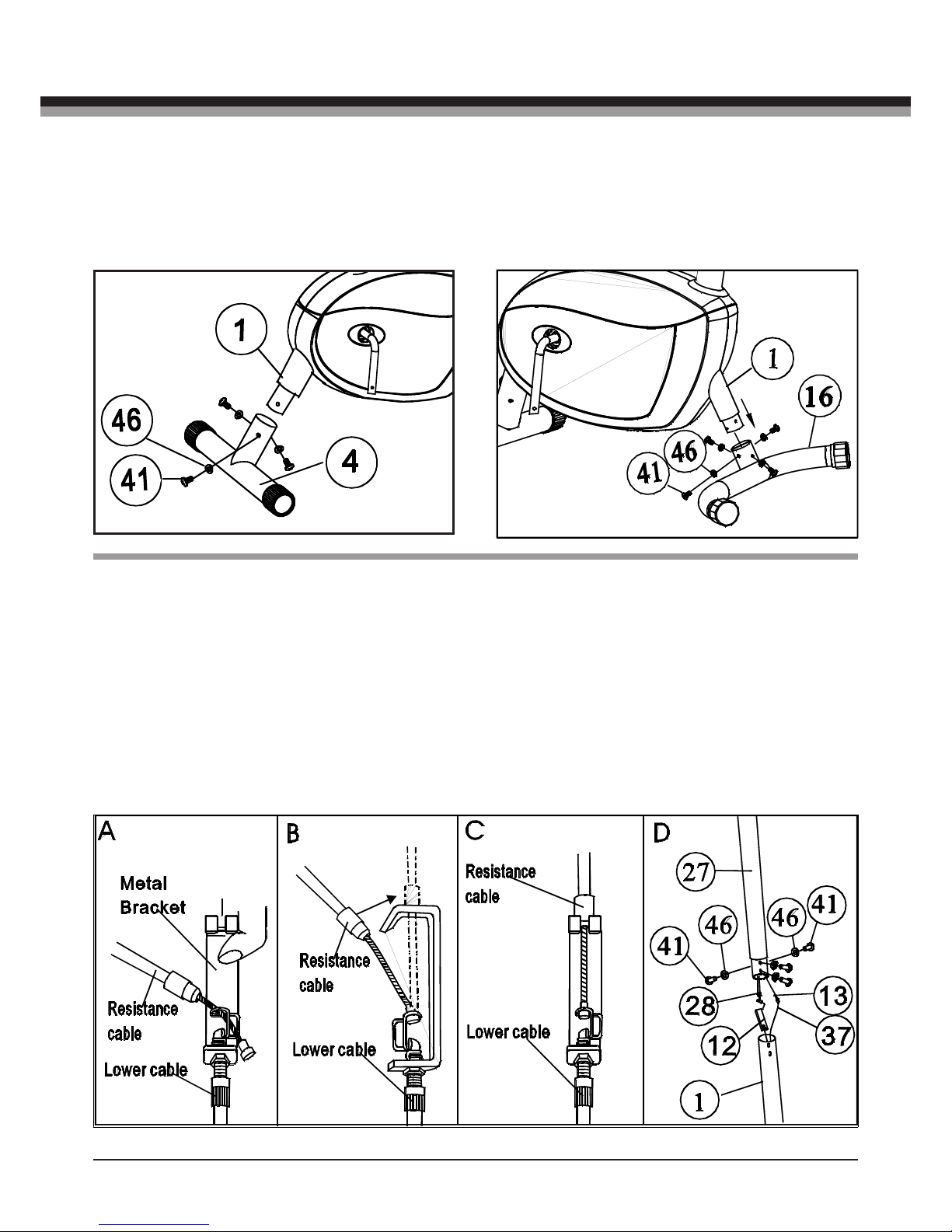

Step 1
Attach the Front Stabilizer (4) to the tube of the Main
Frame (1) with three M8 x 16 Bolts (41) and ø8 Curve
Washer (46).
Step 3
A. Connect the Computer Cable II (37) from the Main Frame (1) to the Computer Cable I (13) from the Handlebar
Support (27).
B. Put the cable end of resistance cable of Tension Control Knob (28) into the spring hook of Tension Control Wire (12) as
shown in drawing A. Pull the resistance cable of Tension Control knob (28) up and force it into the gap of metal bracket
of Tension Control Wire (12) as shown in drawing B.
C. Connect the resistance cable of the Tension Control Knob (28) with the Tension Control Wire (12) completed as shown
in drawing C.
D. Attach the Handlebar Support (27) to the tube of the Main Frame (1) with four M8 x 16 Bolts (41) and ø8 Curve
Washers (46) as shown in drawing D.
Step 2
Attach the Rear Stabilizer (16) to the tube of the Main
Frame (1) with four M8 x 16MM Bolts (41) and ø8 Curve
Washers (46).
ASSEMBLY INSTRUCTIONS

8 • Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL
ASSEMBLY INSTRUCTIONS
Step 4
A. Insert the Hand Pulse Wires (62) into the hole on the
Handlebar Support (27) and then pull them out of the
top end of the Handlebar Support (27).
B. Attach the Handlebar (25) onto the Handlebar Support
(27) with two M8 x 16 Bolts and ø8 Curve Washers (46).
C. Connect the Computer Cable I (13) and Hand Pulse
Wires (62) to the wires that come from the Computer
(26).
D. Install the Computer (26) onto the top end of the
Handlebar Support (27).
Step 5
A. Remove three M8 Nylon Nuts (45) and ø8 Flat Washers
(48) from underneath of the Seat Cushion (20) and then
attach the Seat Cushion (20) onto the triangle plate of the
Seat Post (21) with three M8 Nylon Nuts (45) and ø8 Flat
Washers (48) that were removed.
B. Insert the Seat Post (21) into the Bushing (22) of the
Main Frame (1).
C. Slide the Seat Post (21) up or down slightly to the desired
hole for the suitable position.
D. Lock the Seat Post (21) in place by tightening the Round
Knob (19) in a clockwise direction.
NOTE: When adjusting the height of seat post, the
maximum insert depth mark line cannot be higher than
the edge of bushing.
Step 6
Attach the Left and Right Pedals (5, 6) to the Crank (9). The Left Pedal (5)
should be threaded in a counterclockwise direction. The Right Pedal (6)
should be threaded in a clockwise direction.
NOTE: The Left and Right Pedals (5, 6) and Crank (6) are marked with“L” & “R”.

Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL • 9
OPERATIONAL INSTRUCTIONS
Operating Instructions:
1. Adjusting the tension control knob:
To increase the load, turn the tension control knob in a clockwise direction.
To decrease the load, turn the tension control knob in a counterclockwise direction.
2. Adjusting the rear stabilizer end cap:
Turn the rear stabilizer end cap on the rear stabilizer as needed to level the bike.
3. Adjusting the seat post:
Turn the round knob in a counterclockwise direction and then slide the seat post up or down slightly to the desired hole
for the suitable position. Lock the seat post in place by tightening the round knob in a clockwise direction.
4. Sitting pose:
Sit on the seat cushion when exercising, please tighten the pedaling straps and hold the handlebar with hands, adjust
your posture according to your exercise speed and intensity.
Computer Operation
FUNCTIONS DESCRIPTION
AUTO ON/OFF: When you start to exercise or press the button on the computer, the computer will turn on.
The equipment will automatically turn o after 8 minutes if not in use.
SCAN: Press the MODE button until the arrow points to the SCAN; the computer will automatically
scan the functions of TIME (TIME), SPD (SPEED), DST (DISTANCE), and CAL (CALORIES) every 4
seconds.
TIME: Press the MODE button until the arrow points to the TIME; the computer will display your
elapsed workout time in minutes and seconds.
SPD (SPEED): Press the MODE button until the arrow points to the SPD; the computer will display the current
training speed.
DST (DISTANCE): Press the MODE button until the arrow points to the DST; the computer will display the
accumulative distance traveled during workout.
CAL (CALORIES): Press the MODE button until the arrow points to the CAL; the computer will display the total
accumulated calories burned during workout.
PUL (PULSE): Press the MODE button until the arrow points to the PUL and then grasp the handlebar grip
sensors with both hands during exercise; the computer will display your current heart rate
gures. To ensure the pulse readout is more precise, please always grip sensors with both
hands when trying to test heart rate gures.
RESET: Holding this button for 4 seconds will reset all functional values to zero.
Replacing The Battery
If the computer is displaying garbled information you may need to re-install two size“AA” or“UM-3” batteries.

10 • Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL
Troubleshooting Guide:
• Verify that all bolts and nuts are locked properly and the turning parts are free of damage and should be able to turn freely.
• Clean the equipment with soap and a slightly damp cloth only. Please do not use any solvents to clean the equipment.
PROBLEM POTENTIAL CAUSES CORRECTIONS
Base is unstable. • Floor is not at or there is small object
under the front or rear stabilizer.
• The rear stabilizer end caps on the rear
stabilizer have not been leveled when
adjusting.
• Remove the object.
• Adjust the rear stabilizer end caps.
Handlebar or seat post
is shaking.
• The bolt or round knob is loose. • Tighten the bolt or round knob.
Loud noise from the
moving parts.
• The interval of the parts is improper
tighten.
• Open the covers to adjust.
No resistance when
riding the upright bike.
• The interval of the magnetic resistance
increases.
• Tension control knob is damaged.
• Belt slips.
• The bearing set is damaged.
• Open the covers to adjust.
• Change the tension control knob.
• Open the covers to adjust.
• Change the bearing set.
TROUBLESHOOTING

Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL • 11
Conditioning Guidelines:
How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are
out of shape, start slowly and increase your workout gradually. Increase your workout intensity gradually by monitoring your
heart rate while you exercise.
Remember to follow these essentials:
• Have your doctor review your training and diet programs.
• Begin your training program slowly with realistic goals that have been set by you and your physician.
• Warm up before you exercise and cool down after you work out.
• Take your pulse periodically during your workout and strive to stay within a range of 60% (lower intensity) or 90% (higher
intensity) of your maximum heart rate zone. Start at the lower intensity and build up to higher intensity as you become
more aerobically t.
• If you feel dizzy or light-headed you should slow down or stop exercising.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic capacity will
improve over the next six to eight weeks. It is important to pace yourself while you exercise so you don’t tire too quickly.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table below. For eective
aerobic exercise, your heart rate should be maintained at a level between 60% and 90% of your maximum heart rate. If just
starting an exercising program, work out at the low end of your target heart rate zone. As your aerobic capacity improves,
gradually increase the intensity of your workout by increasing your heart rate.
Measure your heart rate periodically during your workout by stopping the exercise but continuingly to move your legs or walk
around. Place two or three ngers on your wrist and take a six second heartbeat count. Multiply the results by ten to nd your
heart rate. For example, if your six second heartbeat count is 14, your heart rate is 140 beats per minute. A six second count is
used because your heart rate will drop rapidly when you stop exercising. Adjust the intensity of your exercise until your heart
rate is at the proper level.
Target Heart Rate Zone Estimated by Age*
AGE TARGET HEART RATE ZONE
(55% - 90% OF MAXIMUM HEART RATE)
AVERAGE MAXIMUM
HEART RATE 100%
20 YEARS 110-180 BEATS PER MINUTE 200 BEATS PER MINUTE
25 YEARS 107-175 BEATS PER MINUTE 195 BEATS PER MINUTE
30 YEARS 105-171 BEATS PER MINUTE 190 BEATS PER MINUTE
35 YEARS 102-166 BEATS PER MINUTE 185 BEATS PER MINUTE
40 YEARS 99-162 BEATS PER MINUTE 180 BEATS PER MINUTE
45 YEARS 97-157 BEATS PER MINUTE 175 BEATS PER MINUTE
50 YEARS 94-153 BEATS PER MINUTE 170 BEATS PER MINUTE
55 YEARS 91-148 BEATS PER MINUTE 165 BEATS PER MINUTE
60 YEARS 88-144 BEATS PER MINUTE 160 BEATS PER MINUTE
65 YEARS 85-139 BEATS PER MINUTE 155 BEATS PER MINUTE
70 YEARS 83-135 BEATS PER MINUTE 150 BEATS PER MINUTE
*For cardiorespiratory training benets, the American College of Sports Medicine recommends working out within a heart
rate range of 55% to 90% of maximum heart rate. To predict the maximum heart rate, the following formula was used: 220
- Age = predicted maximum heart rate.
FITNESS GUIDE

12 • Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL
This product is supplied with a standard warranty as follows:
• 12 months frame
• 12 months other parts
• 12 months labour
This product is warranted for use in a home, personal, family or household environment
Please Note: Warranty details may vary from one market area to another
Warranty Terms
Vulcan Fitness warrants that the Product you have purchased from an authorized Vulcan Fitness reseller is free from defects
in materials and workmanship. The Warranty is valid subject to normal and reasonable use in the environment as described
above, and correct assembly of the product during the warranty period. The warranty period extends to the original
purchaser only. It is not transferable to anyone who subsequently purchases the Product from you.
The warranty excludes normal wear and tear on parts.
Your sales receipt, showing the date of purchase of the product, is your proof of the date of purchase.
This warranty becomes valid only if the Product is assembled / installed according to the instructions / directions included
with the product. This warranty does not extend to any product that has been damaged or rendered defective: (a) as a result
of accident, misuse, abuse or lack of reasonable care; (b) by the use of parts not manufactured by Vulcan Fitness or sold by
Vulcan Fitness; (c) by modication of the product; (d) as a result of service by anyone else other than Vulcan Fitness or an
authorized Vulcan Fitness warranty service provider.
During the warranty period, Vulcan Fitness will at no additional charge provide replacement part(s) or repair the product (at
Vulcan Fitness’s option) if it becomes defective, malfunctions or otherwise fails to conform with this warranty under normal,
non-commercial, personal, family or household use. In repairing the product, Vulcan Fitness may replace defective parts or at
the option of Vulcan Fitness, use serviceable used parts that are equivalent to new parts in performance. All exchanged parts
and products replaced under this warranty will become the property of Vulcan Fitness. Vulcan Fitness reserves the right to
change manufacturers of any part to cover any existing warranty.
If the product must be returned, you must return the Product or defective part to Vulcan Fitness in its original container (or
equivalent) with Proof of Purchase. Any evidence of alteration, erasing or forgery of proof of purchase documents will be
cause to void this warranty. You must prepay any shipping charges and you are responsible for insuring any product or part
that is returned. Should any product submitted for warranty service be found to be ineligible, an estimate of repair cost will
be furnished and the repair will be made if requested, upon Vulcan Fitness’s receipt of payment or acceptable arrangement
of payment. Under no circumstances will returns be accepted without return authorization by our Customer Service
department.
To obtain warranty service you must provide the following information:
Name of Product, Product Code, Batch No, Date Purchased, and Nature of fault or part number required.
Neither dealer of this product nor any retail establishment selling this product has any authority to make any warranties or to
promise remedies in addition to, or inconsistent with, those stated above. This warranty does not aect your statutory rights.
Please note that warranty terms may vary from one market area to another.
WARRANTY

Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL • 13

14 • Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL
PART LIST

Vulcan Magnetic Upright Bike | INSTRUCTION MANUAL • 15
KEY NO. DESCRIPTION QTY
1 MAIN FRAME (534 X 116 X 424) 1
2 FRONT STABILIZER END CAP (Ø66 X 40) 2
3 REAR STABILIZER END CAP (Ø50) 2
4 FRONT STABILIZER (Ø50 X 1.5 X 400) 1
5 LEFT PEDAL (1/2” JD-222) 1
6 RIGHT PEDAL (1/2” JD-222) 1
7 FLYWHEEL 1
8 SCREW (ST2.9 X 8) 2
9 CRANK (215 X 300 X 135) 1
10 SENSOR 1
11 BEAD BOWL 2
12 TENSION CONTROL WIRE (L = 48) 1
13 COMPUTER CABLE I (L = 900) 1
14 BOLT (M8 X 20) 1
15 BELT (L = 30”) 1
16 REAR STABILIZER (50 X 1.5 X 546) 1
17 LEFT COVER (496.1 X 331.4 X 76) 1
18 RIGHT COVER (496.1 X 331.4 X 78.5) 1
19 ROUND KNOB (Ø60 X 88 X M10 X Ø8) 1
20 SEAT CUSHION (218) 1
21 SEAT POST (124 X 118 X 529) 1
22 BUSHING (Ø50) 1
23 HANDLEBAR FOAM GRIP (450 X Ø29 X Ø19) 2
24 HANDLEBAR END PLUG (Ø31 X 22) 2
25 HANDLEBAR (300 X 430 X 99) 1
26 COMPUTER (E-2221B) 1
27 HANDLEBAR SUPPORT (Ø50 X 1.5 X 616) 1
28 TENSION CONTROL KNOB (L = 386) 1
29 SPRING (Ø10 X Ø1 X 125) 1
30 MAGNETIC GUIDER (14 X M6 X 90) 1
31 PIN (Ø12 X Ø6 X 67) 1
32 MAGNETIC BRACKET (199.5 X 45 X 50) 1
KEY NO. DESCRIPTION QTY
33 BRACKET (35 X 18 X 14 X 2) 1
34 FLYWHEEL AXIS (Ø10 X 140) 1
35 SPACE (Ø13 X Ø10.5 X 20) 1
36 PRESSING BELT WHEEL 1
37 COMPUTER CABLE II (L = 420) 1
38 BOLT (M8 X 40) 1
39 SCREW (ST 4.2 X 20) 10
40 BOLT (M5 X 16) 1
41 BOLT (M8 X 16) 13
42 NYLON NUT (M6) 1
43 NUT (M10 X 1 X 3) 3
44 NUT (M10 X 1 X 5) 3
45 NYLON NUT (M8) 5
46 Ø8 CURVE WASHER (Ø16 X Ø8 X 1.6) 13
47 BELT WHEEL (Ø200 X 20) 1
48 Ø8 FLAT WASHER (Ø16 X Ø8 X 1.6) 4
49 SPRING SPACER (Ø6) 2
50 PLASTIC COVER (79 X 78 X Ø50 X 8.6) 2
51 SPECIAL FLAT WASHER (Ø30 X Ø10.5 X 2) 2
52 BOLT (M10 X 60) 1
53 NUT M10 1
54 BEAD BRACKET 2
55 SMALL SPACER RING 1
56 BIG WASHER 1
57 THIN HEXAGON NUT 1
58 LOCK NUT 1
59 BIG SPACER RING 1
60 M8 NUT 1
61 HAND PULSE SENSOR 2
62 HAND PULSE WIRE (L = 600) 2
63 ALLEN WRENCH / SCREWDRIVER (S = 5) 1
64 WRENCH 1
PART LIST

© 2008 VULCAN FITNESS
Instruction Manual
*Artist expression, actual product may vary from illustration.
Model No. 53040
Bike
