VWR UCW-VA10101 User manual

O PERATOR ’ S M ANUAL
G LASSWARE W ASHERS

Rev 007, 06/17 i
© VWR2017
Copyright © 2017 VWR International. All marks herein are used under license.
All brand or product names mentioned may be trademarks or registered trademarks of their respective
companies.
Part Number 100002431
Rev 007, 06/17
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
VWR International Radnor Corporate Center
Building One
Suite 200
PO Box 6660
100 Matsonford Road
Radnor, PA 1987-8600
Website http://us.vwr.com
This Glassware Washer Operator’s Manual contains confidential and proprietary information of VWR
International and may be used only by a recipient designated by and for purposes specified by VWR
International.
Reproduction of, dissemination of, modifications to, or the creation of derivative works from this
Glassware Washer Operator’s Manual, by any means and in any form or manner, is expressly prohibited,
except with the prior written permission of VWR International. Permitted copies of this document must
retain all proprietary notices contained in the original.
The information in this document is subject to change without prior notice. Always confirm with VWR
International that you are using the most current version of this document. VWR International is free to
modify any of its products and services, in any manner and at any time, notwithstanding the information
contained in this document.
THE CONTENTS OF THIS DOCUMENT SHALL NOT CONSTITUTE ANY WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE OR GIVE RISE TO ANY
LIABILITY OF VWR INTERNATIONAL, ITS AFFILIATES OR ITS SUPPLIERS.
The terms and conditions governing the use of this Glassware Washer Operator’s Manual shall consist of
those set forth in written agreements with VWR International.

ii Rev 007, 06/17
© VWR 2017
Important Symbols
WARNING! INJURY OR EVEN
DEATH MAY RESULT IF A
RECOMMENDATION MARKED
WITH THIS SYMBOL IS NOT
HEEDED.
CRUSH HAZARD. KEEP HANDS
CLEAR WHEN OPERATING DOOR.
ELECTRIC SHOCK DANGER!
USE APPROPRIATE CAUTION
TO AVOID INJURY OR DEATH.
CORROSIVE CHEMICAL. WEAR
SUITABLE GLOVES, SAFETY
GLASSES, AND PROTECTIVE
CLOTHING.
BURN DANGER! POTENTIALLY
HOT SURFACE. USE
APPROPRIATE CAUTION.
PROPERTY CAUTION! TO PREVENT
DAMAGE TO CHAMBER EQUIP-
MENT AND/OR LOAD, ADHERE TO
PROCEDURES MARKED BY THIS
SYMBOL.
DO NOT STORE FLAMMABLE
MATERIALS IN CHAMBER.
PRACTICAL OPERATING TIP.
THESE RECOMMENDATIONS
STREAMLINE UNIT OPERATION
AND PREVENT COMMON
OPERATOR ERRORS.
WEAR SAFETY GLASSES. EXPLOSIVE MATERIALS HAZARD!
KEEP OBJECTS AWAY FROM HEAT.
Safety Warnings
 Always verify that the electric service and other utilities match the unit’s requirements before
connecting to power.
 Always read the instruction manual before operating the washer.
 Always wear safety glasses when using glass flasks.
 Always practice team lifting when moving heavy equipment.
 Always ensure that only an authorized technician services the washer.
 Always assume that external and internal parts may be very hot. Utilize personal protective
equipment to avoid burns.
 Never clean with solvents. Use mild detergent and water only.
 Never operate the unit without all covers in place.
 Never use with toxic, corrosive, flammable or organic materials unless special precautions are in
place to prevent injury to personnel or damage to equipment.

Rev 007, 06/17 iii
© VWR 2017
WARNING! THE DISPOSAL AND/OR EMISSION OF SUBSTANCES USED IN CONNECTION WITH
THIS EQUIPMENT MAY BE GOVERNED BY VARIOUS FEDERAL, STATE OR LOCAL
REGULATIONS. ALL USERS OF THIS EQUIPMENT ARE URGED TO BECOME FAMILIAR WITH
ANY REGULATIONS THAT APPLY IN THE USERS AREA CONCERNING THE DUMPING OF
WASTE MATERIALS IN OR UPON WATER, LAND OR AIR AND TO COMPLY WITH SUCH
REGULATIONS.
Warranty Information
VWR washers are warranted by VWR International to be free of defects in material and workmanship when operated
under normal conditions as specified in the instructions provided in this manual. Please take this opportunity to locate
the serial tag on your new VWR and record the information below for future reference. VWR International also
recommends that you complete and return your unit’s warranty registration card.
Model Number
Serial Number
Part Number
Limited Warranty
VWR International (the “Company”) shall warrant each of its products against defects in material or workmanship for a
period of 24 months from the date of shipment provided that the product is used in a reasonable manner under
appropriate conditions and consistent with the applicable operating instructions.
The obligation of the Company shall be, at its option, to repair or replace, without charge any parts that prove to be
defective within the warranty period, if the purchaser notifies the Company promptly in writing of such defect. No
product shall be returned to the Company without prior approval of the Company.
This limited warranty shall cover the costs of parts and labor to repair or replace all defective product(s) at the Seller’s
factory. For all products installed by the Company and located within the Company service travel areas, this warranty
shall cover transportation charges to ship the product to and from the Company’s factory and/or the costs of travel,
room and board if the Company’s employees conduct repair at the Buyer’s location. In lieu of repair or replacement at
the Company’s factory, the Company may, in its discretion, authorize a third party to perform the repair or replacement
at the Buyer’s location, and at the Company’s sole expense.
The Company shall not be responsible for labor charges payable with respect to persons other than Company
employees. Replacement or repair of parts pursuant to this warranty shall not in any way extend the original warranty
period. The Company shall not be responsible for any unauthorized repairs, replacements or product modifications, nor
will it be responsible for any product failures resulting from such unauthorized repairs, replacements or product
modifications negligently or otherwise made by persons other than Company employees or authorized representatives
of the Company. The buyer shall assume transportation charges to ship the product to and from the Company’s factory
and the costs of travel, room and board if the Company’s employees conduct repair at the Buyer’s location within the
warranty period if the product was not installed by the Company’s and/or is not located within the Company’s service
travel areas.
THE COMPANY DOES NOT MAKE AND EXPRESSLY DISCLAIMS ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, WITH
RESPECT TO THE SALE, INSTALLATION, DESIGN OR USE OF ITS PRODUCTS. ADDITIONALLY, THE
COMPANY SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF OR
ANY DEFECTS IN ITS PRODUCTS.
The Company’s employees are available to provide general advice to customers concerning the use of the Company’s
products; however, oral representations are not warranties with respect to particular products or their uses and may not
be relied upon if they are inconsistent with the relevant product specifications for the items set forth herein.
Notwithstanding the above, the terms and conditions set forth in the Company’s formal sales contracts shall be
controlling and supersede any inconsistent terms contained herein, and any changes to such contracts must be made
in writing and signed by an authorized executive of the Company.

iv Rev 007, 06/17
© VWR 2017

Rev 007, 06/17 v
© VWR2017
Contents
Important Symbols ............................................................................................................................................... ii
Safety Warnings ................................................................................................................................................... ii
Warranty Information .......................................................................................................................................... iii
Contents ...................................................................................................................... v
Introduction ................................................................................................................. 1 
Overview .............................................................................................................................................................. 1
Key Features ................................................................................................................................................... 1
Installation and Startup ............................................................................................... 3
Initial Inspection ................................................................................................................................................... 3
Service Connections ............................................................................................................................................ 4
Required Plumbing Supplies ................................................................................................................................ 4
Dimensional Requirements .................................................................................................................................. 5

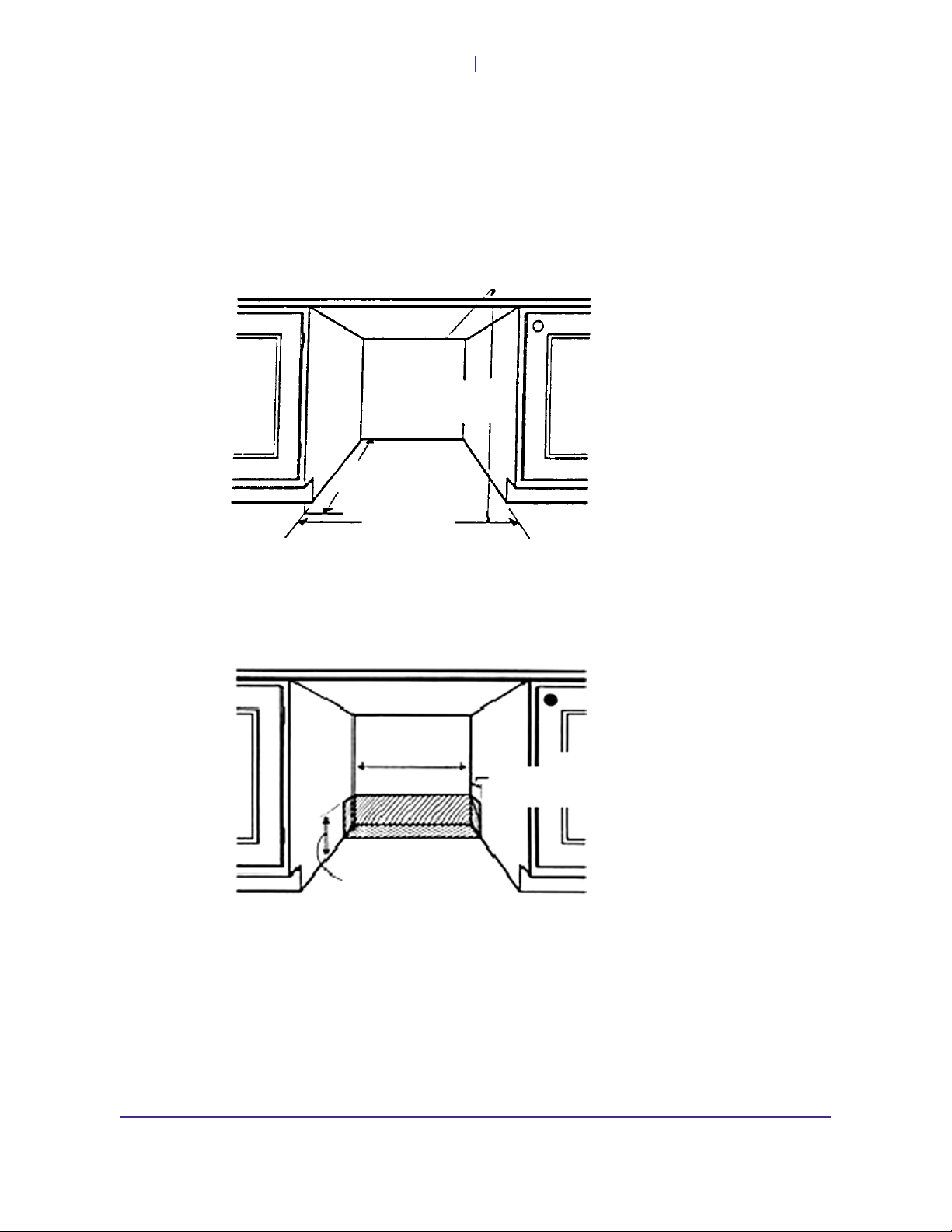

Undercounter Washer Site Preparation ............................................................................................................... 5
Water Connections .............................................................................................................................................. 5
Electrical Connection ........................................................................................................................................... 6
Freestanding Washer Site Preparation ................................................................................................................ 6
Approximate Rear Connection Locations ............................................................................................................. 7
Washer Setup ...................................................................................................................................................... 7
Washer Components ................................................................................................ 11
On / Off Power Switch ........................................................................................................................................ 11
Handle Cover ..................................................................................................................................................... 12
Ventilation Port ................................................................................................................................................... 12
Control Panel ..................................................................................................................................................... 12
Internal Components .......................................................................................................................................... 13
Detergent / Neutralizer Dispenser ................................................................................................................. 13
Spray Arms .................................................................................................................................................... 14
Filtration ......................................................................................................................................................... 14
Racks ............................................................................................................................................................ 15
Optional Spindle Racks ................................................................................................................................. 15
Operation .................................................................................................................. 17
Cycle Overview .................................................................................................................................................. 17
Pre-Washes ................................................................................................................................................... 17

Contents
V
WR
vi Rev 007, 06/17
© VWR 2017
Main Wash .................................................................................................................................................... 17
Rinses ........................................................................................................................................................... 17
Drying ............................................................................................................................................................ 18
Detergent Recommendations ............................................................................................................................ 18
Select Dosage ............................................................................................................................................... 18
Before Starting a Cycle ...................................................................................................................................... 18
Starting a Cycle .................................................................................................................................................. 18
Control Panel ................................................................................................................................................. 19
Selecting a Program ...................................................................................................................................... 20
Heavy Wash “Time Saver” Option ................................................................................................................. 20
Stopping or Changing a Program .................................................................................................................. 20
Option/Set Navigation ........................................................................................................................................ 21
Drying Options ............................................................................................................................................... 21
Delayed Start ................................................................................................................................................. 21
Set Time ........................................................................................................................................................ 21
Start/Stop ...................................................................................................................................................... 22
Pausing a Cycle ................................................................................................................................................. 22
Safety Features ......................................................................................................... 23
Overfill Protection ............................................................................................................................................... 23
Door Switch ........................................................................................................................................................ 23
Maintenance ............................................................................................................. 25
Daily Maintenance ............................................................................................................................................. 25
Coarse Filter .................................................................................................................................................. 25
Fine Filter ...................................................................................................................................................... 25
Reassembling Filters ..................................................................................................................................... 26
Weekly Maintenance .......................................................................................................................................... 26
Reassembling Racks ......................................................................................................................................... 27
Unheated Storage .............................................................................................................................................. 27
Cleaning ............................................................................................................................................................. 28
Appendix A: Troubleshooting .................................................................................... 29
Appendix B: Fault Indicators ..................................................................................... 31

Rev 007, 06/17 1
© VWR2017
Chapter
1
Introduction
Overview
VWR glassware washers offer extreme durability with stainless steel chambers, easy-
to-use touch-based controls, six cycle program selections, selectable wash
temperature, deionized (DI) water final rinsing1 and a variety of time- and energy-
saving settings.
Equipped with built-in door dispensers for detergent and liquid neutralizer, all models
are available in the undercounter configuration, as well as freestanding and mobile
configurations. A wide variety of optional specialty baskets and inserts are available to
facilitate washing test tubes, Petri dishes, small graduated cylinders, bottles and other
loads that require special consideration. Most models can also accommodate optional
spindle racks for more effective cleaning of narrow-neck glassware such as volumetric
and Erlenmeyer flasks.
Key Features
 Digital microprocessor controller with display.
 Five selectable wash cycle settings.
 Separate wash and drain pumps.
 Optional final deionized water rinses for some cycles.
 Triple filtration system to protect plumbing and pumps from broken glass and
debris.
 Dual drying fans for optimal drying.
1 Deionized water rinsing is not available on some units.

Introduction
V
WR
2 Rev 007, 06/17
© VWR 2017

Rev 007, 06/17 3
© VWR 2017
Chapter
2
Installation and Startup
Initial Inspection
Your VWR glassware washer was carefully packed and thoroughly inspected before
leaving the factory. However, in the unlikely event that shipping damage has occurred,
retain all packing material and contact your freight carrier immediately.
DO NOT ACCEPT damaged shipments from a carrier without a signed notification of
damages.
Upon receiving your shipment, inspect all contents of your equipment for damage.
Check packing material for small accessory items. Remove all packing material
carefully and inspect for concealed shipping damage. Inspect the inside of the
machine for any visible damage. If concealed damage or loss is discovered, contact
the freight carrier immediately.2 Keep all contents, packing material and related
paperwork intact until a written report is obtained.
Note: VWR International will cooperate in the matter of collecting your claim, but is not
responsible for the collection or free replacement of the material. When possible, replacement
parts will be shipped and invoiced to you, making them a part of your claim.
2 “Concealed damage or loss” refers to damage or loss that does not become apparent until the merchandise has been
unpacked and inspected. Should damage or loss be discovered, you may make a written request for inspection by the carrier's
agent within 15 days of the delivery date. You may then file a claim with the freight carrier or VWR International, depending on
the terms of your shipment. If your shipment was “FOB Destination” file your claim with VWR International and include the
inspection report and any other supporting documents. If your shipment was “FOB Shipping Point” file your claim with the
freight carrier and include the inspection report and any other supporting documents.

Installation and Startup
V
WR
4 Rev 007, 06/17
© VWR 2017
Service Connections
PROPERTY CAUTION! ONLY QUALIFIED PERSONNEL FAMILIAR WITH LOCAL PLUMBING AND
ELECTRICAL CODES AND ORDINANCES SHOULD INSTALL THE WASHER. FOR A FIRST-TIME
INSTALLATION, ALL SITE PREPARATION WORK MUST BE COMPLETED BEFORE THE
WASHER CAN BE INSTALLED WITH FINAL UTILITY CONNECTIONS. IF THE NEW WASHER
REPLACES AN EXISTING UNIT, VERIFY THAT ALL PLUMBING AND ELECTRICAL
CONNECTIONS ARE PROPERLY SIZED AND LOCATED.
The service connections that you intend to use must meet the following requirements:
Requirement Specification
Tap Water Supply
(All Models)
 Minimum Flow Requirement:
3 gpm (11 lpm) @ 18 – 60 psig (124 – 414 kPa)
 Although not required, hot water speeds water heat-up and decreases
cycle time. Hot water supply must not exceed 60 °C (140 °F)
Deionized Water Supply
(All Models Except H-1105)
 Minimum Flow Requirement:
3 gpm (11 lpm) @ 18 - 60 psig (124 - 414 kPa)
 Resistivity  1 M/cm
 Although not required, installing a shutoff valve (not supplied) in the
water supply line at a readily accessible location will help facilitate
service of the unit.
Electrical Requirements
(All Models)
 120 VAC, 1, 60 Hz, 15 A.
 Installation Overvoltage Category II.
 Main supply voltage fluctuations not to exceed ±10% of normal voltage.
Environmental Conditions
 This product is intended for indoor use in the following
environmental conditions:
 Altitudes up to 6500 ft (2000 m)
 Temperatures from 5 to 40 °C (41 to 104 °F)
 Maximum relative humidity of 80% for temperatures up to 31 °C (88 °F),
decreasing linearly to 50% relative humidity at 40 °C (104 °F).
Required Plumbing Supplies
Your unit is supplied with rear-mounted PEX plastic hose with 3/8-inch brass
compression fittings3 for connection to your facility’s tap and DI water supplies (if
applicable). Various hose and compression adaptors will be provided for additional
water and plumbing needs. It is recommended that you install a shutoff valve at the
water supply connection. An appropriate fitting for connecting the supplied drain hose
to the drain system is also required.
3 Model UCW-VA00001 uses a compression fitting.

V
WR Installation and Startup
Rev 007, 06/17 5
© VWR 2017
Dimensional Requirements
For all units, allow at least 26.5 inches of clearance in front of the unit for door
extension and at least two (2) inches of clearance on each side of the door. Prepare
an installation space or cabinet recess consistent with these and the other dimensions
as specified for your model.
Recommended cabinet recess dimensions for undercounter washers are shown
below.
Undercounter Washer Site Preparation
During undercounter washer installation, ensure that the water and electrical services
enter the cabinet recess within the shaded area shown below.
2 to 3-1/2”
(50-90 mm)
7 to 9”
(180-230 mm)
25"
(635 mm)
34-1/2"
(876 mm)
24-1/8"
(613 mm)

Installation and Startup
V
WR
6 Rev 007, 06/17
© VWR 2017
Water Connections
Plan the fitting connections and the route for water supply tubing from the washer to
your water supplies. Drill appropriately sized cabinet entry holes as required, keeping
within the shaded area pictured on the previous page. With the washer outside of the
cabinet recess, feed the water supply tubing through the cabinet hole(s) toward the
water source connectors. Route the unit’s drain hose toward a connection to your
facility’s main drain, but do not make any connections at this time.
For units requiring a DI water connection, use plastic or stainless fittings. Brass fittings
may corrode from DI water and are therefore not recommended.
Electrical Connection
WARNING! THE ELECTRICAL RECEPTACLE MUST BE PROPERLY GROUNDED AND COMPLY
WITH APPLICABLE PORTIONS OF NATIONAL AND LOCAL ELECTRICAL CODES. ALL WASHER
SERVICING SHOULD OCCUR WITH THE POWER CORD DISCONNECTED FROM POWER.
For convenience, the unit is provided with a prewired electrical cable and plug. Locate
or install a code-conforming electrical receptacle within reach of the washer’s supplied
cable. The electrical supply should be a dedicated circuit that is properly grounded
and equipped with an appropriately-sized breaker.
Drill a cabinet entry hole for the power cable. Refer to the image below:
Your VWR glassware washer should not share a circuit with any other appliances.
Provide a local disconnect or switch to ensure safe maintenance access.
Freestanding Washer Site Preparation
For freestanding units, ensure that the water and electrical service connections have
sufficient slack. Excessive tension in water hoses strains fitting connections and can
cause host leakage and/or breakage.
Position the unit on a firm, level floor. Follow the instructions in the Washer Setup
section of this chapter to level and secure the unit.
Shutoff
Valve
AC Receptacle Hole for Power Cable

V
WR Installation and Startup
Rev 007, 06/17 7
© VWR 2017
Approximate Rear Connection Locations
Note: Your unit may vary from the
image shown, depending on the
model.
Washer Setup
Your VWR glassware washer must be enclosed on the top and back, and on both
sides. The cabinet enclosure into which undercounter units are installed supplies this
protection. Freestanding and mobile units are wrapped with stainless steel panels.
To install your VWR glassware washer:
1. Connect the washer drain hose to your facility’s main drain, ensuring that the
“high-loop” configuration is preserved (as shown below).
The drain connection must conform to the following requirements:
 No part of the drain hose should exceed 35 inches (90 cm) above
the bottom of the washer.
Drain Hose
Saddle
Tap Inlet
Deionized (DI)
Water Inlet
(All models
except H-1105)

Installation and Startup
V
WR
8 Rev 007, 06/17
© VWR 2017
 The drain connection must be at least 20 inches (50 cm) above the
bottom of the washer.
 The drain hose should extend no more than 10 feet (3 m).
 Any joints or fittings must be 3/4-inch (18 mm) ID or larger.
 Do not connect the drain hose directly to a floor well or its
equivalent as this could cause a siphoning action that could empty
the machine during cycles. Never connect the drain line to a check
valve.
 Do not route the washer drain through a vent or air gap, as this may
impede flow during some drain phases. If the drain cannot be hard-
piped, secure the drain hose over an open counter drain or floor
drain instead.
PRACTICAL OPERATING TIP. DRILL AN APPROPRIATELY SIZED CABINET ENTRY HOLE AS
REQUIRED TO REACH THE DRAIN CONNECTION. FEED THE SUPPLIED DRAIN HOSE
THROUGH THE CABINET HOLE TOWARD THE DRAIN CONNECTION AND CONNECT THE
DRAIN HOSE TO YOUR DRAIN.
2. Connect the washer to a tap water supply and tighten all connections
securely. If your unit is equipped with a DI water connection, connect the DI
water supply and tighten all connections securely.
3. Connect the unit to the appropriate electrical supply.
4. Test the unit for leaks before leveling and securing the washer in place.
To test for leaks:
 Turn on the electrical power and water supplies.
 Close and secure the door.
 Select and operate a Daily Wash. This cycle executes both tap
water and DI water rinses (if applicable).
 While the cycle is operating, carefully check all water supply and
drain connections to ensure that there are no leaks. Correct any
observed leaks before continuing.
5. Position the unit in its final location. For freestanding and mobile units, secure
the unit by depressing the caster break levers on the unit’s casters.

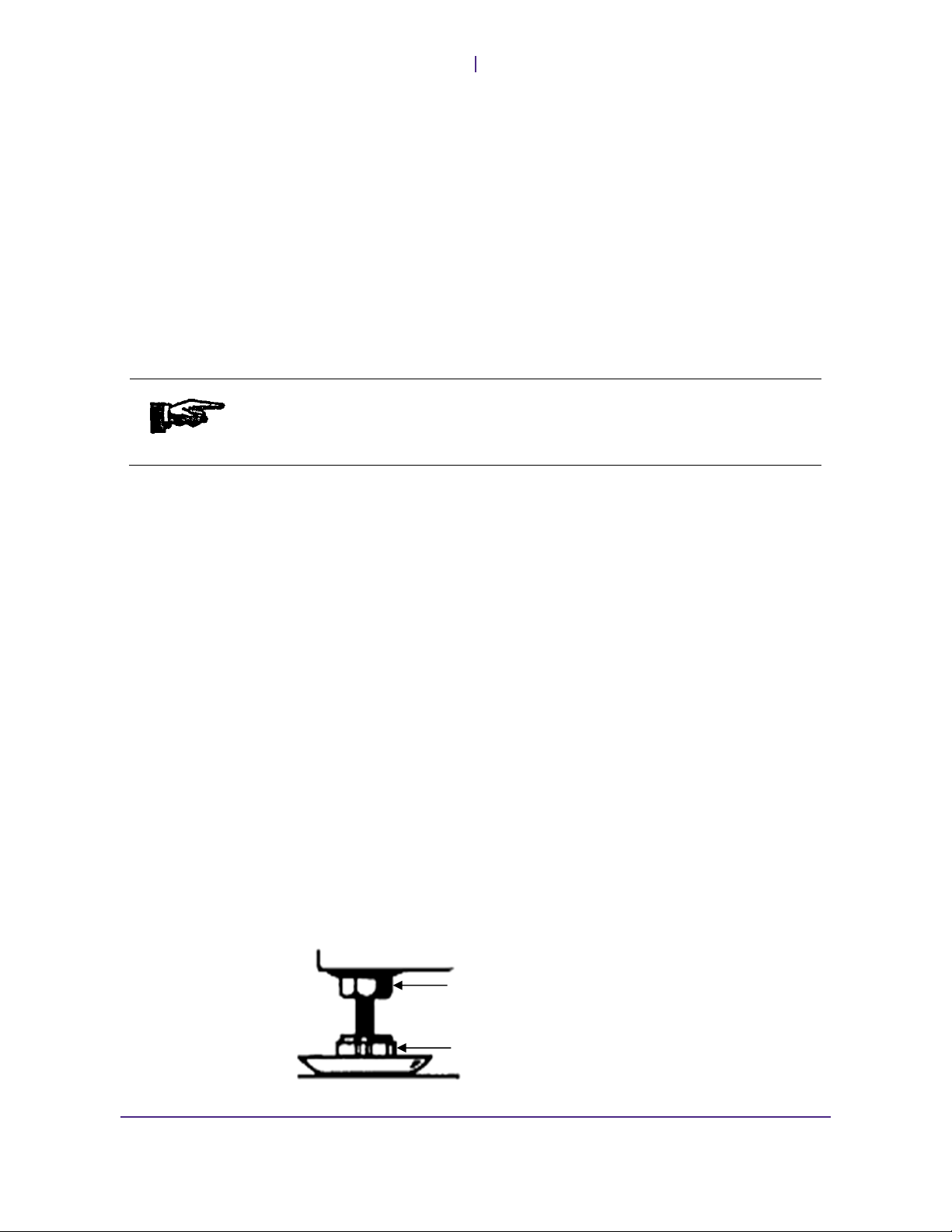

6. Adjust the leveling legs as required.
On undercounter units, leg height may be adjusted by using a 5/8-inch (16
mm) wrench. Any inclination must be ≤ 2 degrees. Use the locking nut to lock
your adjustments
Locking Nut
Foot / Slider

V
WR Installation and Startup
Rev 007, 06/17 9
© VWR 2017

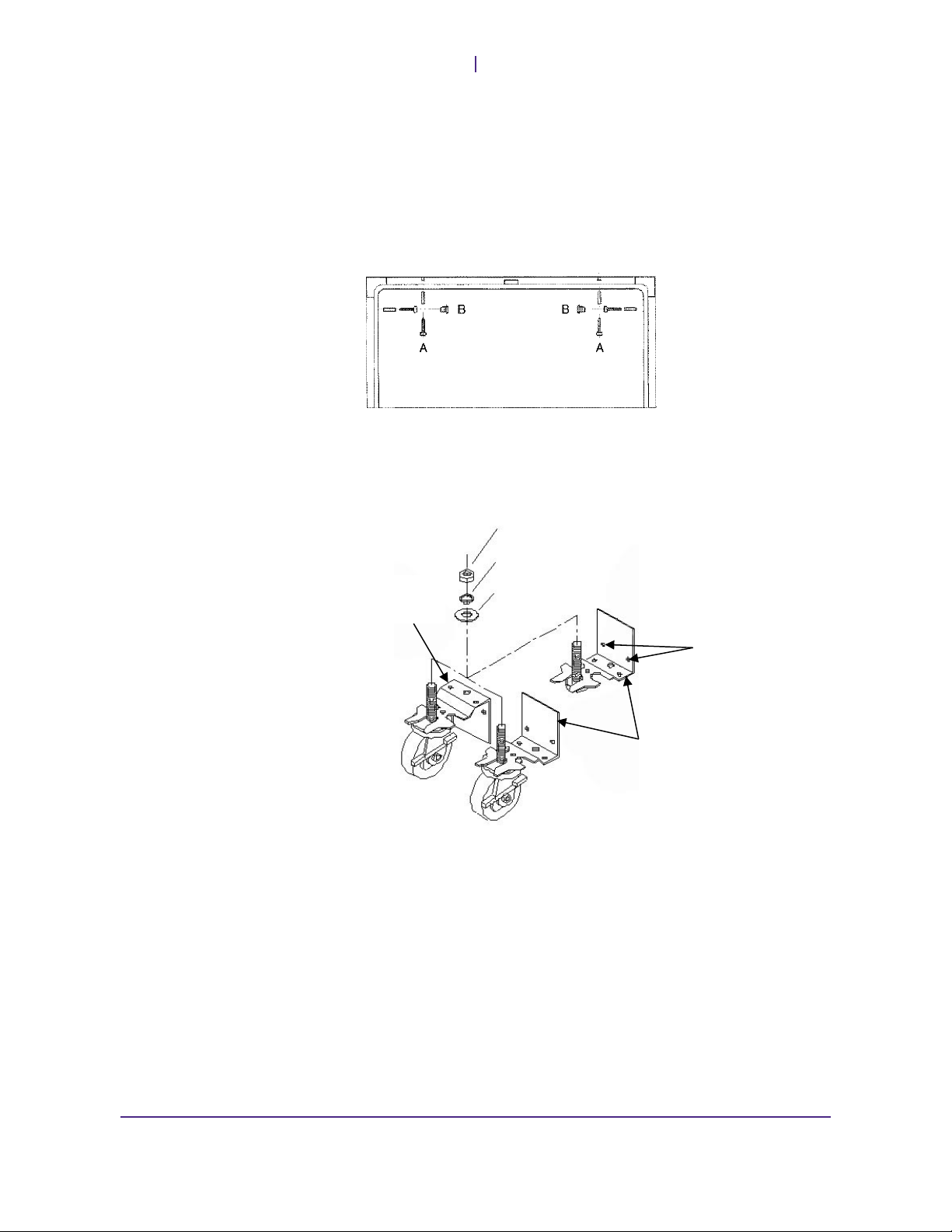

7. Secure the washer in its final location.
 For undercounter units:
To prevent forward tilting when downward force is applied to the
open door, or when heavily loaded baskets are pulled outward, use
the supplied screws to fasten the washer to the cabinet. Secure the
washer to the cabinet using either option “A” or option “B” (one
screw on each side) as follows:
 For freestanding and mobile units:
If your application creates a potential for forward tilting, use the
supplied Tip Guards or similar brackets to secure the washer’s rear
casters to the wall or floor.
Tip Guard Position
for Leveling Feet or
Casters
Mounting
Holes
Tip Guard
Position for
Casters Only

Installation and Startup
V
WR
10 Rev 007, 06/17
© VWR 2017

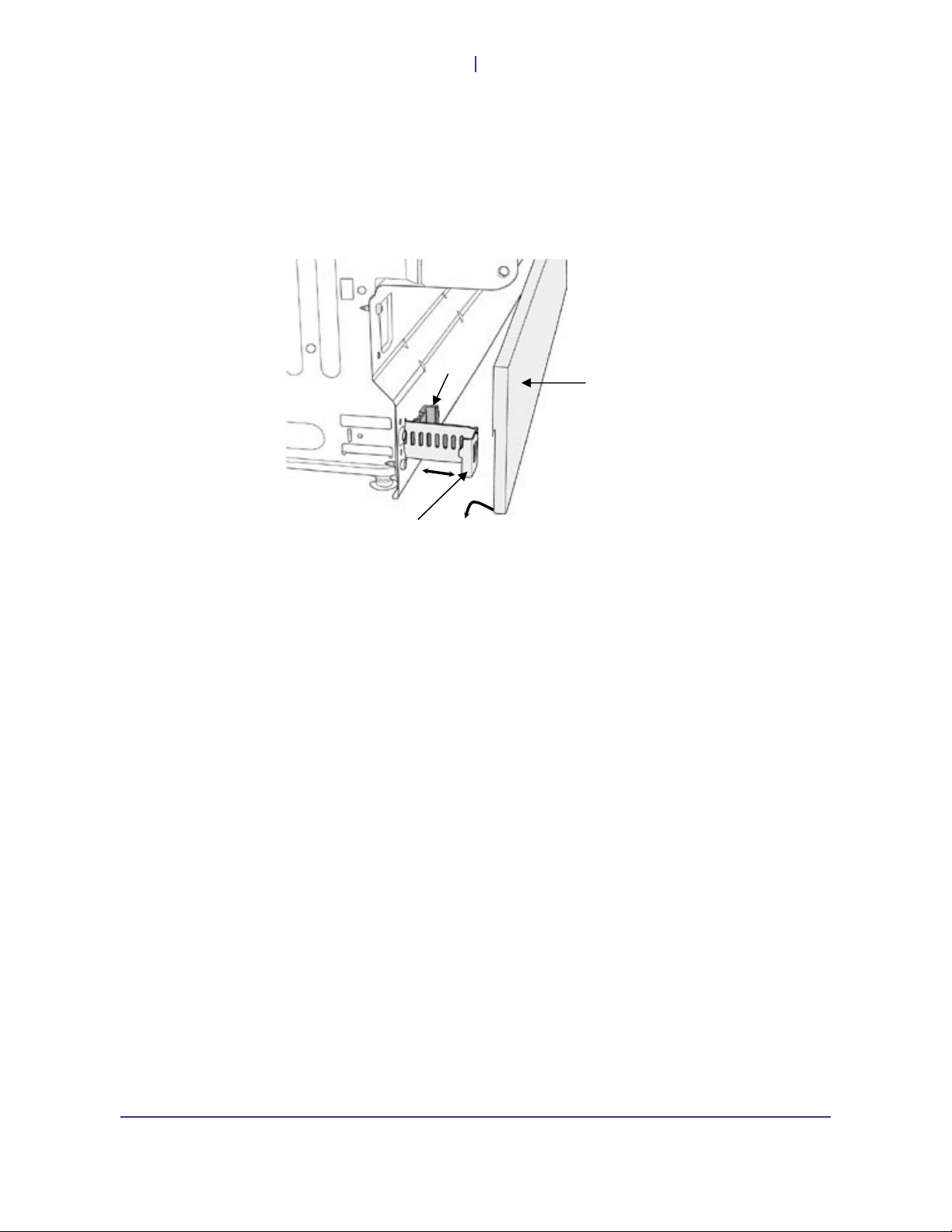

8. Install the optional Toe-Kick Plate, if desired. The Toe-Kick Plate attaches to
the washer’s lower front to optimize appearance, but is not required for
operation of your unit.
To install the Toe-Kick Plate, position each of the two Plate Support Brackets
inward or outward to the desired depth (pulling its catch inward to release the
bracket). Then, simply hook the Toe-Kick Plate on to the front of the bracket.
Catch
Toe-Kick Plate
Plate Support Bracket

Rev 007, 06/17 11
© VWR 2017
Chapter
3
Washer Components

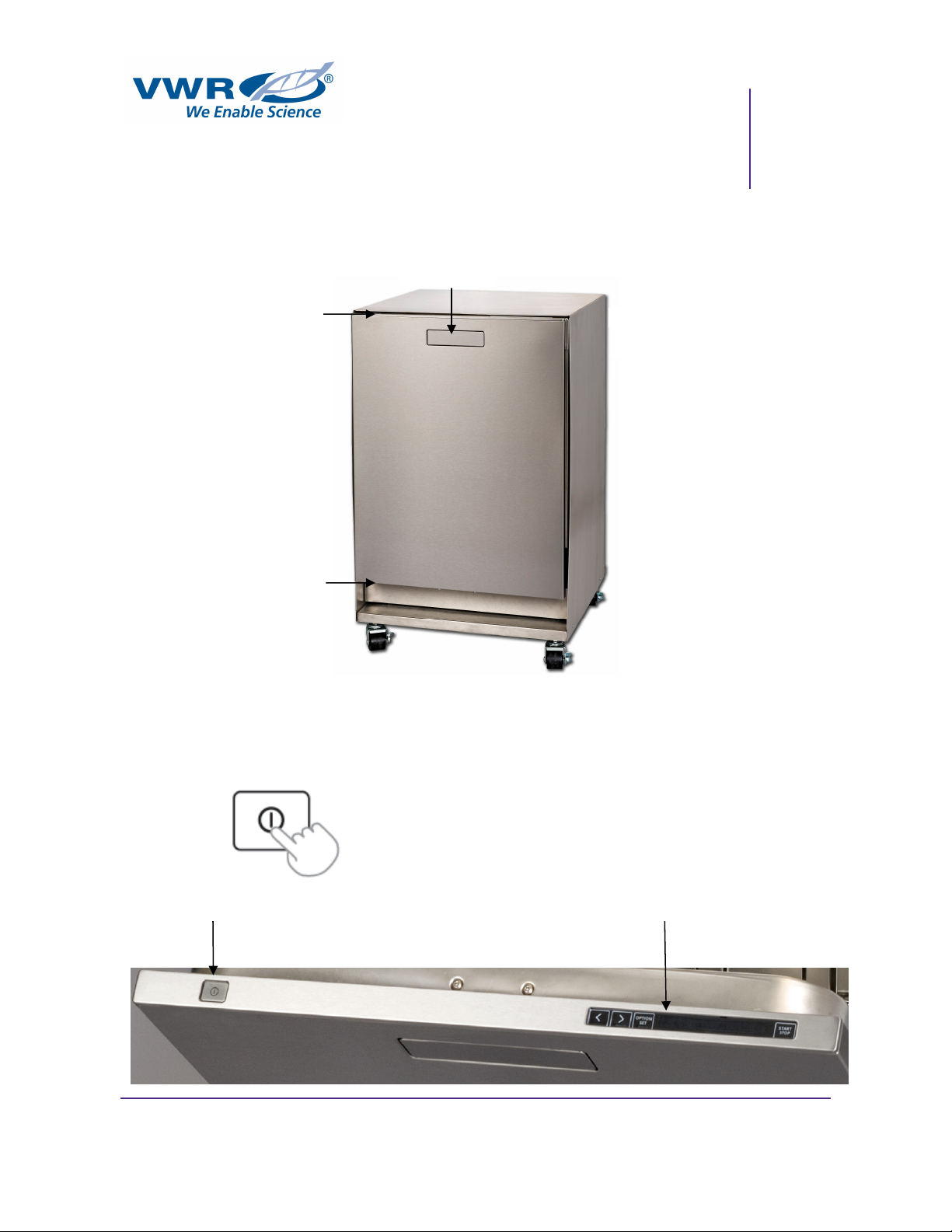

Note: Your unit may vary from the image shown, depending on the model.
On / Off Power Switch
Open your washer’s door to view the On/Off power switch and
control panel. Pushing down on the On/Off power switch will turn the
washer on and off. When on, the unit will energize and the control
panel indicator will illuminate.
On / Off Power Switch Control Panel
Handle Cover
On / Off Power Switch
Ventilation Port

Washer Components
V
WR
12 Rev 007, 06/17
© VWR 2017
Handle Cover
To unlatch the door, insert your hand, palm up, into the handle cover and pull the latch
forward. When closing the door, push the door closed firmly to reactivate the latch. A
switch within the door handle detects when the door is opened.
Ventilation Port
During the drying phase, fan-circulated air exhausts from this port. Avoid obstructing
this port during washer operation.

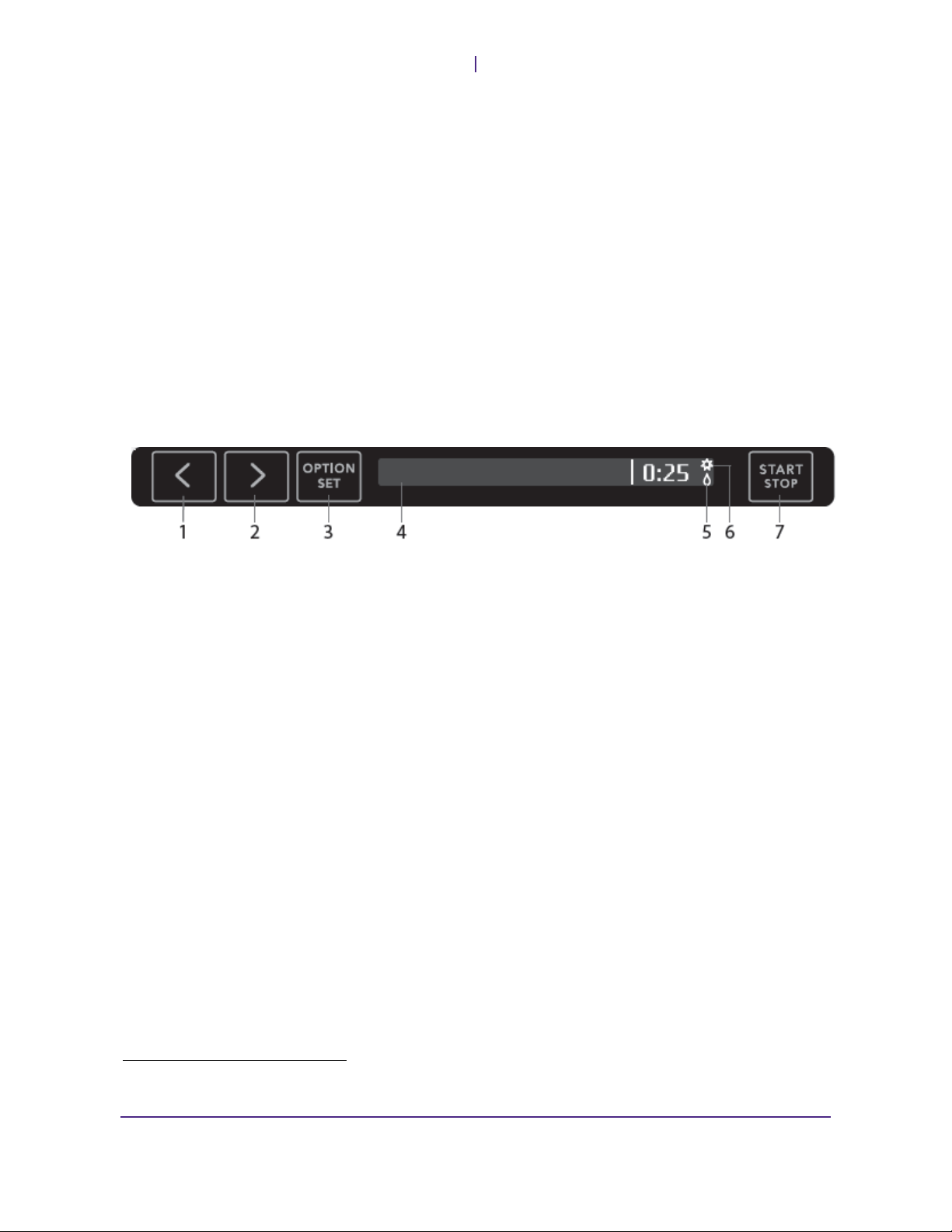

Control Panel
VWR glassware washers are equipped with a user-friendly panel of touch-based
controls and indicator lights, located on the upper ledge of the door. Note that
operating the control panel requires a light touch of the fingertip rather than a hard
push.
1. Navigation button < (left)
2. Navigation button > (right)
3. Option/Set
4. Display
5. Rinse Aid Indicator
6. Salt Indicator4
7. Start/Stop
Note: For descriptions of available cycle programs, please see the Operation section of this
manual (i.e., Chapter 4).
4 Salt indicator functionality not available on all units.
