Instruction Manual
Freestanding Dishwasher
SDW60B10
SDW60B10_IB_111024.indd 1 10/24/11 11:55 AM

SDW60B10_IB_111024.indd 2 10/24/11 11:55 AM

Contents
Unpacking..................................................................................................................................... 4
Installation .................................................................................................................................... 5
Location .......................................................................................................................................................................5
Product Overview......................................................................................................................... 9
Internal View...............................................................................................................................................................9
Rear View .....................................................................................................................................................................9
Control Panel Overview ............................................................................................................. 10
Before Operating........................................................................................................................ 11
To open the door...................................................................................................................................................11
To close the door ................................................................................................................................................... 11
Adding the Detergent Powder and Tablet ...................................................................................................12
Adding of Rinse Aid..............................................................................................................................................13
Adjusting Rinse Aid Reservoir...........................................................................................................................13

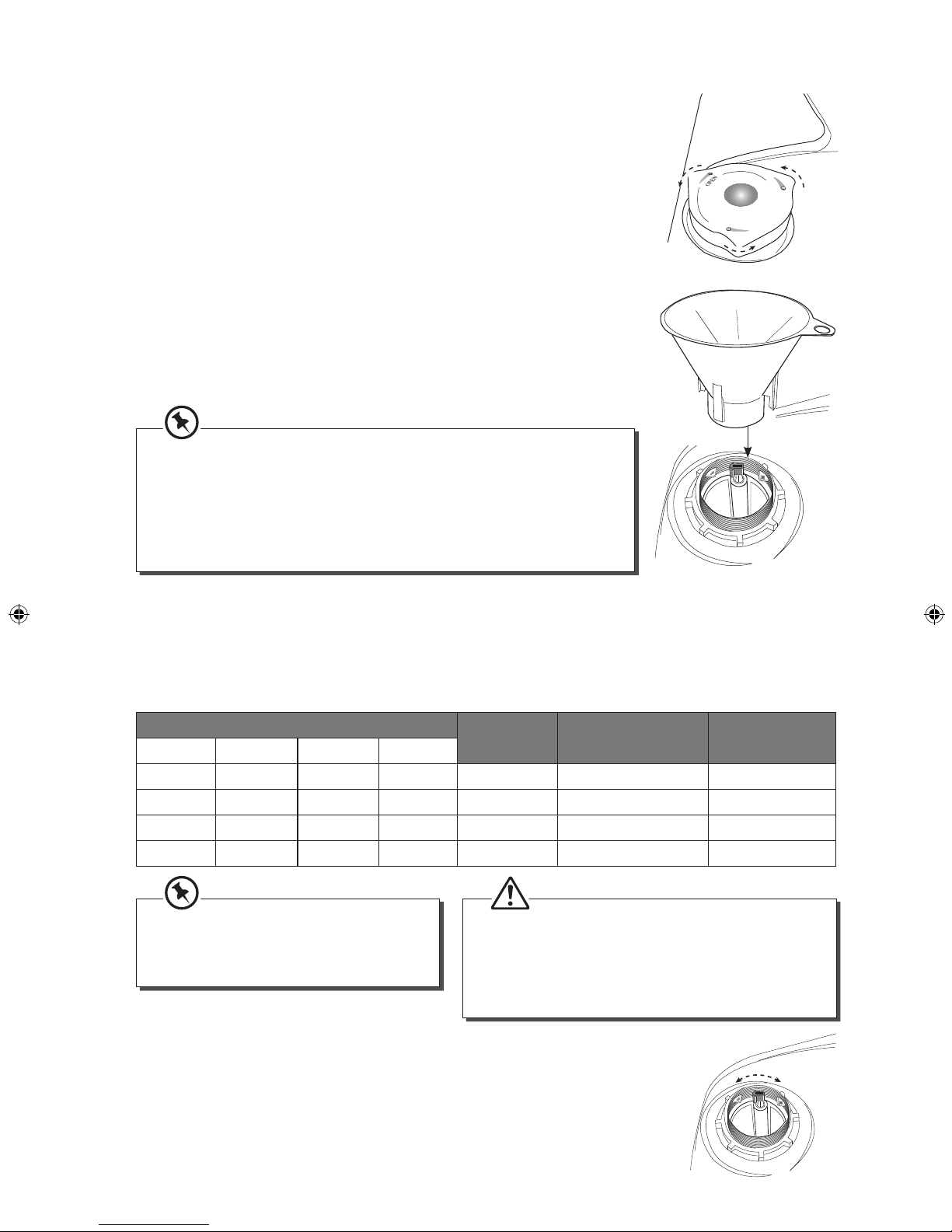

Adding of Salt .........................................................................................................................................................14
Adjusting of Salt Consumption........................................................................................................................14

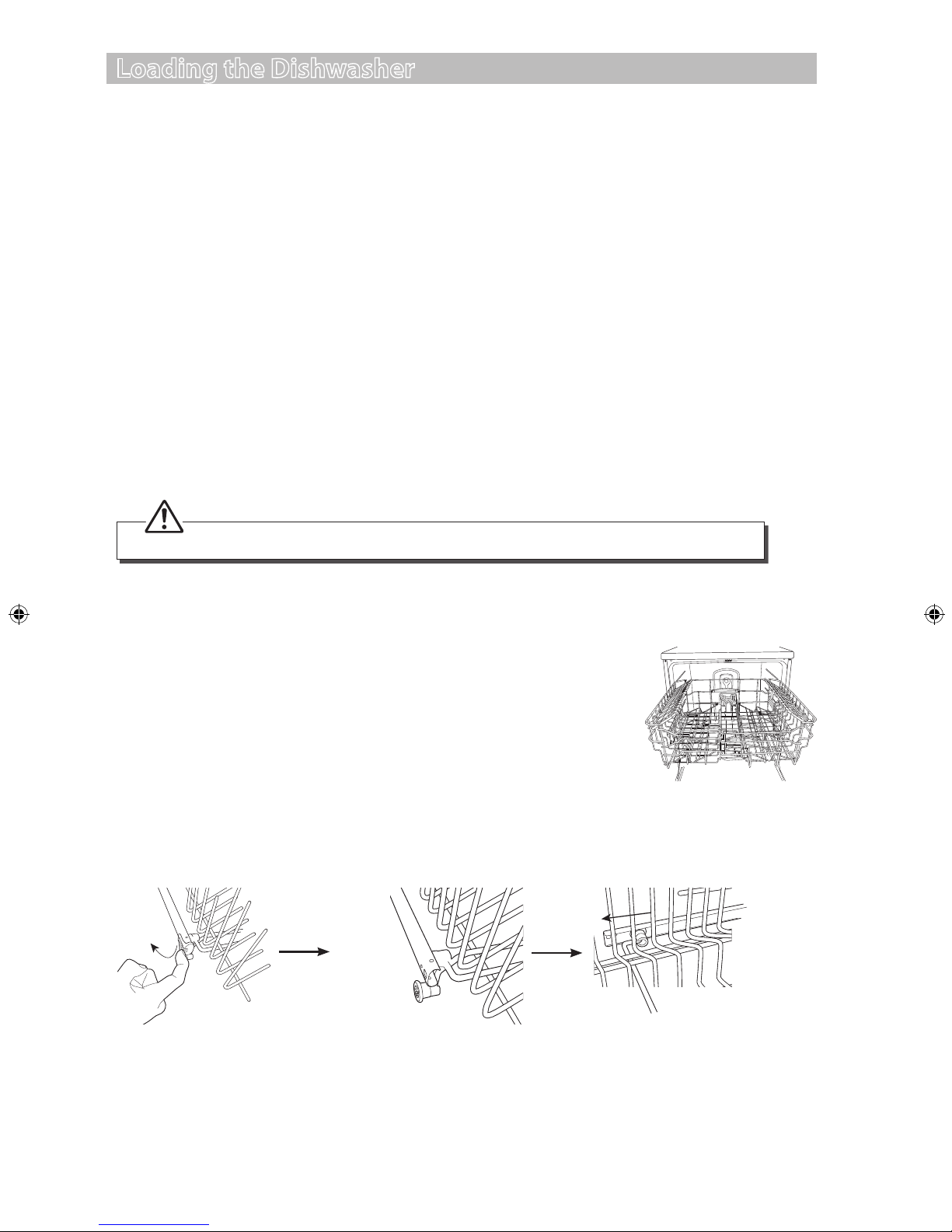

Loading the Dishwasher ............................................................................................................ 15
Before Loading the Dishwasher.......................................................................................................................15
Upper Basket...........................................................................................................................................................15
Adjusting the Upper Basket...............................................................................................................................15
Hinged Cup Rack ................................................................................................................................................... 16
Loading the Upper Basket for 12 Place Settings........................................................................................16
Lower Basket ........................................................................................................................................................... 16
Hinged Spikes......................................................................................................................................................... 16
Loading the Lower Basket for 12 Place Settings ........................................................................................17
Cutlery Basket.........................................................................................................................................................17
Wash Cycle Table......................................................................................................................... 18
Starting a Wash Cycle ................................................................................................................. 19
Changing a Programme ............................................................................................................. 19
Delay Start................................................................................................................................... 20
At the End of a Programme........................................................................................................ 20
Switching o the Dishwasher.................................................................................................... 20
Unloading the Dishwasher ........................................................................................................ 20
Half Load ..................................................................................................................................... 21
Cleaning After Use...................................................................................................................... 21
External Care ...........................................................................................................................................................21
Frost Precaution ......................................................................................................................... 23
Maintenance After Prolonged Period of Non-Operation ........................................................ 23
Moving the Dishwasher ............................................................................................................. 23
Helpful Tips and Guide............................................................................................................... 24
Fault Code ................................................................................................................................................................24
Technical Problems............................................................................................................................................... 24
Disposal of Dishwasher.............................................................................................................. 26
Disposal of Packing Material ..................................................................................................... 26
Specication ............................................................................................................................... 27
Safety Warnings.......................................................................................................................... 28
SDW60B10_IB_111024.indd 3 10/24/11 11:55 AM

4
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.

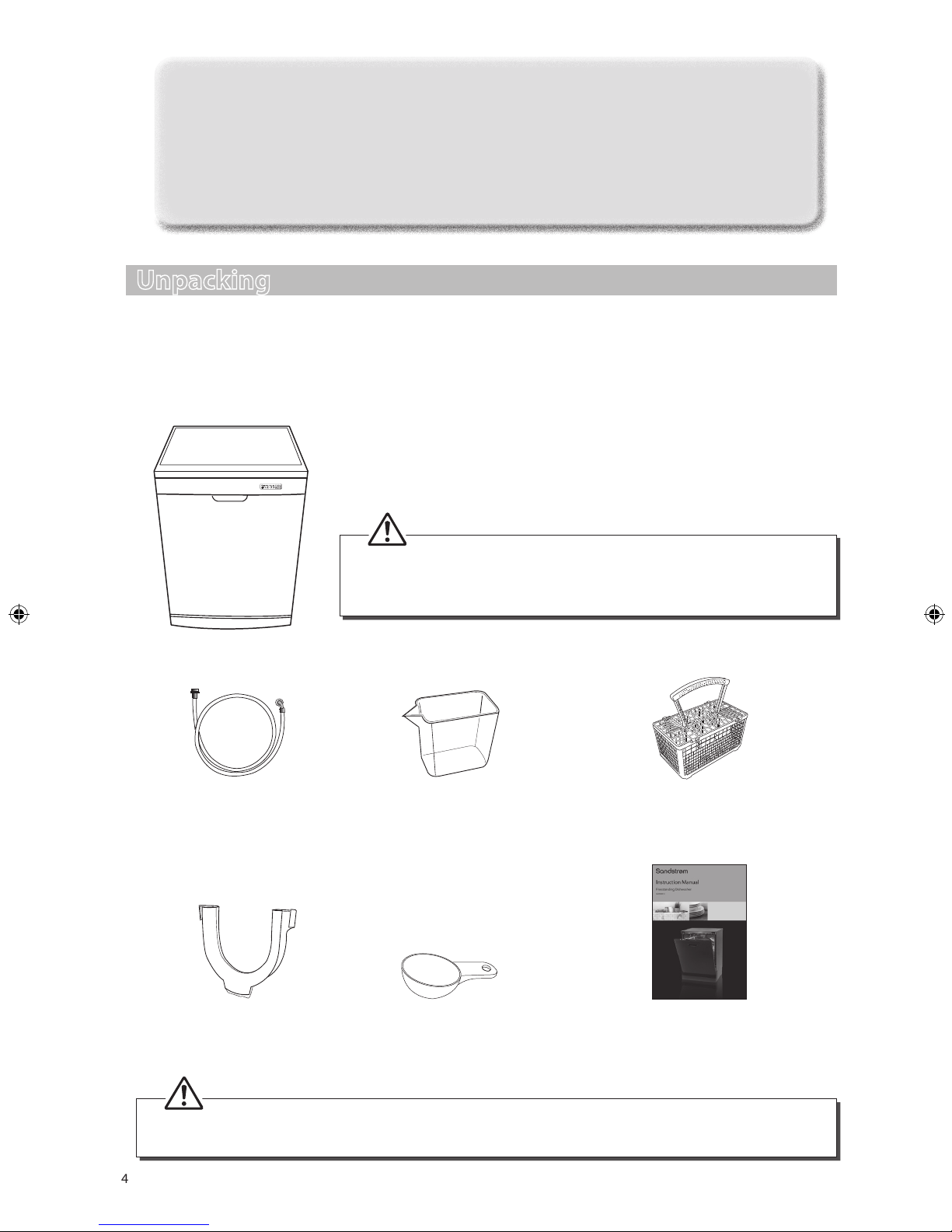

Unpacking
Remove all packaging from the dishwasher. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Measuring cup X 1
60ml (approx)
P.N.: 673006200004
Detergent measuring spoon x 1
1 full spoon = 20g (approx.)
P.N.: 673002200079
U-shape hose holder X 1
P.N.: 673006200003
Water supply hose X 1
P.N.: 673005400045
Cutlery Basket x 1
P.N.: 673002200099
The Main Unit - Front View
Instruction manual X 1
P.N.: SDW60B10-003
1
2
This product has been wet tested to ensure correct operation. As a
result some water may remain inside the unit. This is normal and safe.
Remove any water droplets from the exterior if necessary.
Thank you for purchasing your new Sandstrøm Freestanding Dishwasher.
We recommend that you spend some time to read this installation/instruction manual in
order to fully understand how to install and operate it.
Read all the safety instructions carefully before use and keep this installation/instruction
manual for future reference.
SDW60B10_IB_111024.indd 4 10/24/11 11:55 AM

5

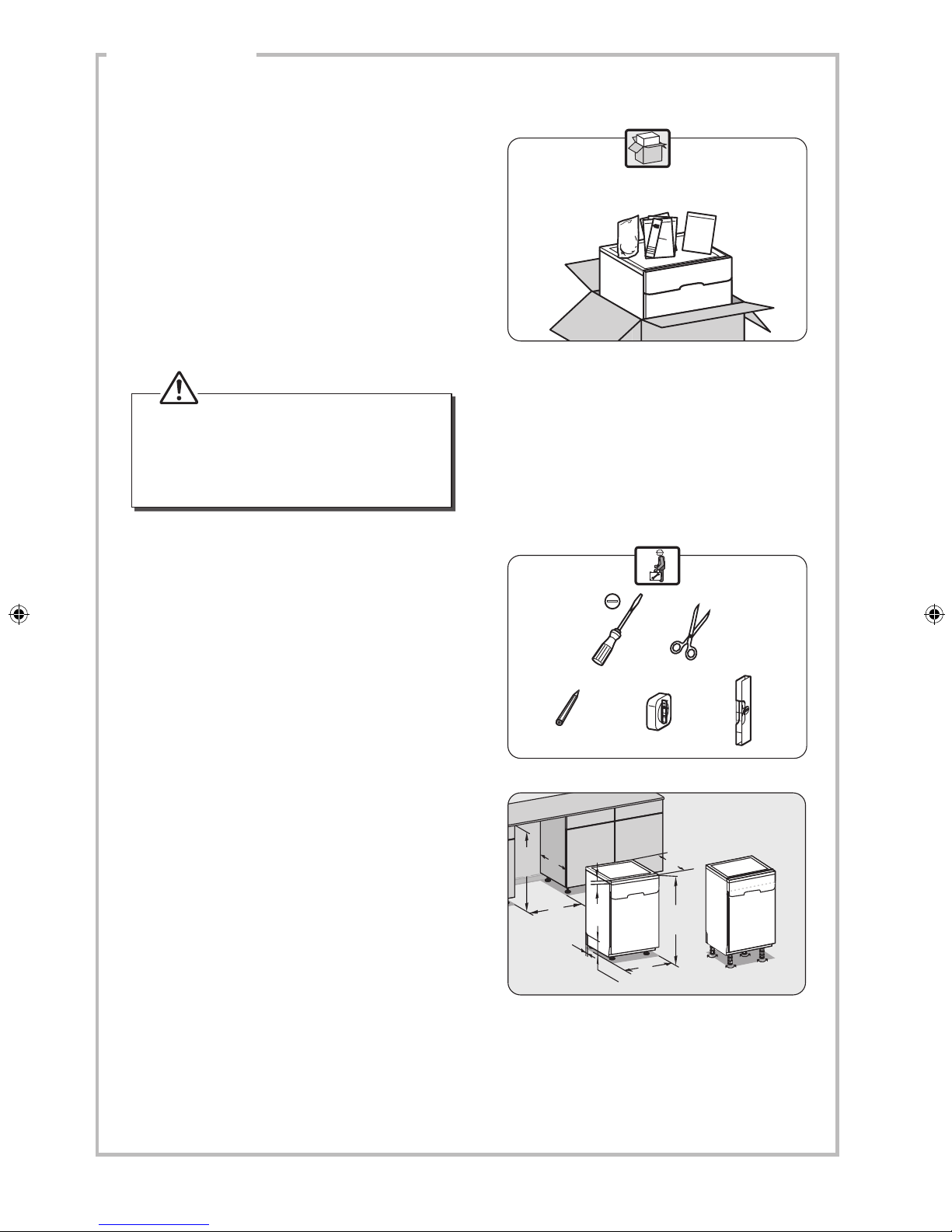

INSTALLATION
1. Please ensure the dishwasher is installed
by a qualified technician. Refer to the tools
required.
level level
level
level
850
600
620
600
580
850
30
min.100
80
unit in mm
Location
When selecting a position for your freestanding
dishwasher you should make sure the installation
surface is flat and firm, and the room is well
ventilated. Avoid locating your dishwasher near
a heat source, eg. cooker, boiler or radiator.
Extreme cold ambient temperatures may also
cause the appliance not to perform properly. This
dishwasher is not designed for use in a garage or
outdoor installation.
Do not drape the dishwasher with any covering.
When installing, ensure that free space is left at
the sides.
2. Ensure there is clearance each side of the
unit to allow slight sideways movement for
servicing when required. Good levelling is
essential for correct closure and sealing of the
door. When the unit is correctly levelled, the
door should not catch the inner liner on either
side of the cabinet. The adjustable feet may
be loosened or tightened in order to obtain
the optimum levelling of the unit
All parts removed must be saved to do
the reinstallation in the future. Ensure
the dishwasher is unplugged and empty.
We recommend that 2 people handle the
dishwasher during installation.
SDW60B10_IB_111024.indd 5 10/24/11 11:55 AM

6

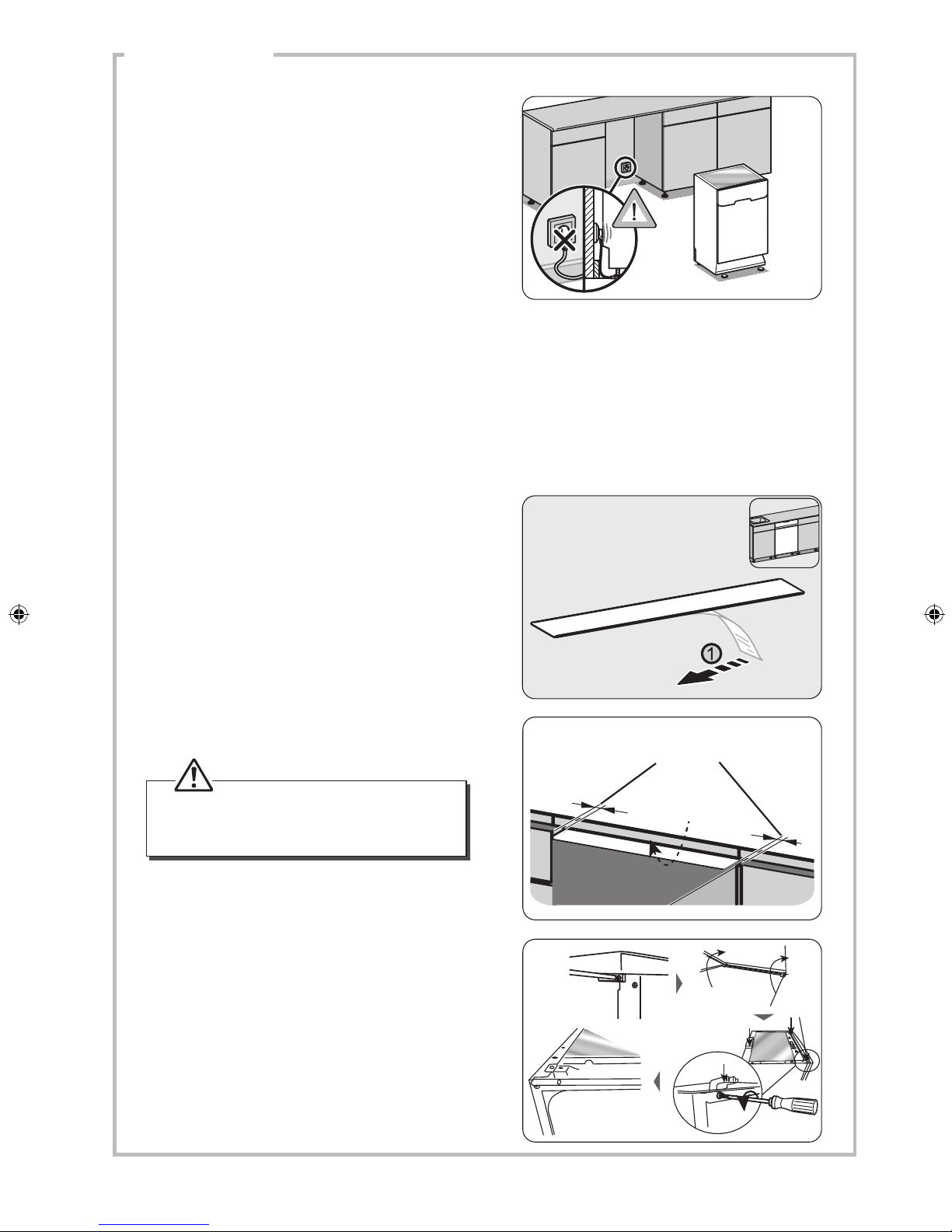

INSTALLATION
4. The condensation strip must be fitted to
the underside of the worktop above your
dishwasher to protect it against any moisture.
Its purpose is to protect your worktop’s
underside from steam rising from the
dishwasher.
• Ensure the surface is clean prior to sticking
the condensation strip to the underside of
the worktop.
• Remove the backing paper from the
condensation strip.
Stick the Condensation Strip
under the worktop, where you
want to install the dishwasher.
Leave some space
3. If required, the worktop of the dishwasher can
be removed. The height without the worktop
is 820 mm. The minimum dimensions required
to accommodate the dishwasher within fitted
kitchen furniture units.
Do not connect the unit to the mains before
installation. Ensure you are not installing the
unit right in front of the mains. This is to avoid
potential damage to the back of the unit.
• Stick the condensation strip to the
underside of the worktop.
Remove
Remove
Remove
Unscrew
5. The worktop can be removed by removing
the fixing screws located at the rear of the
dishwasher. After removing the screws, lift
and push the worktop forward to release the
lugs from the front section of the dishwasher.
The polystyrene block and the lugs should be
saved for future use.
Failure to attach the condensation strip
could result in damage to the underside of
your worktop!
SDW60B10_IB_111024.indd 6 10/24/11 11:55 AM

7
INSTALLATION

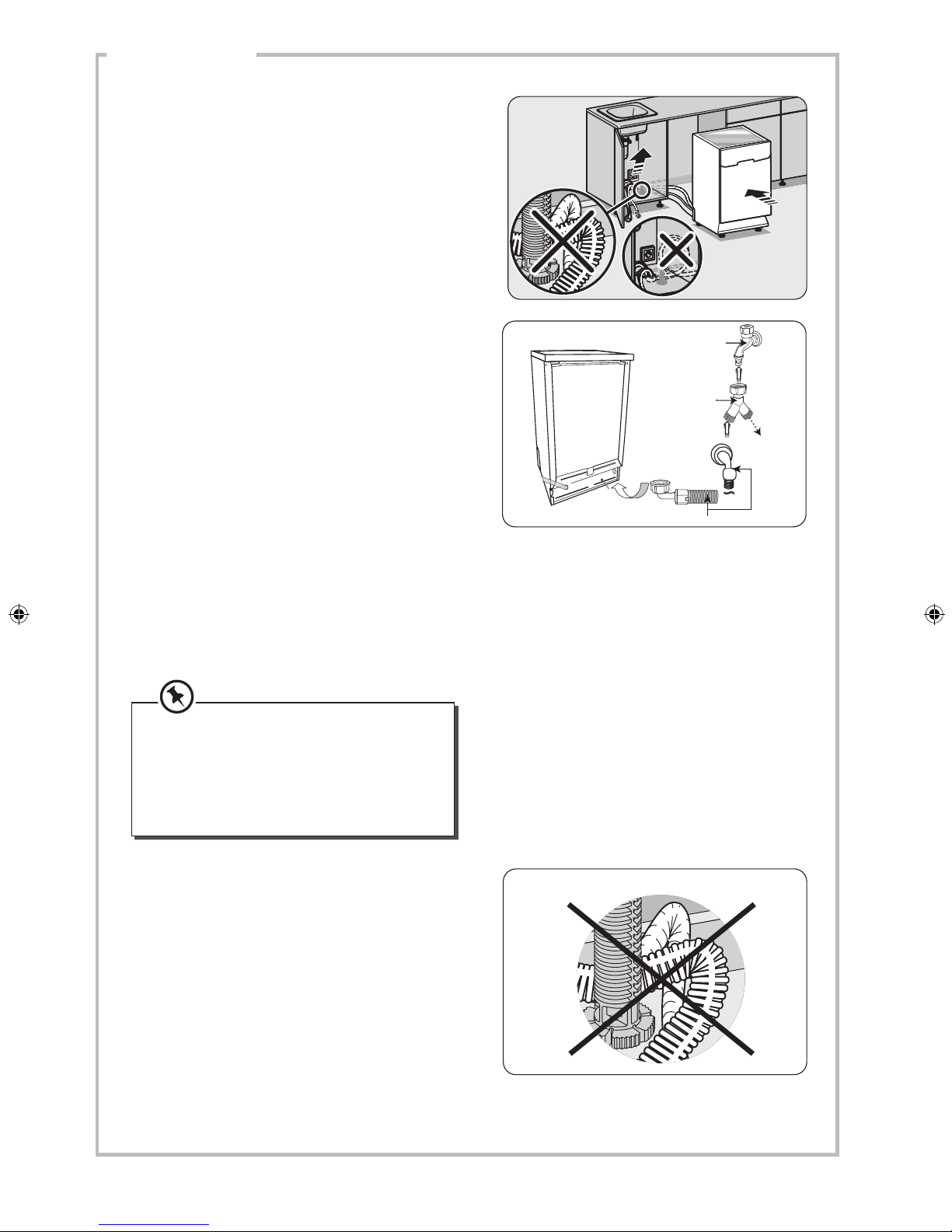

6. Position the dishwasher next to a water tap
and a drain. Ensure the water inlet and drain
hoses are not kinked or squashed. The unit
must not stand on the mains cable.
7. Make sure your plumbing is suitable for use
with the dishwasher. If in doubt contact
a qualified plumber. This unit MUST BE
connected to COLD WATER MAINS using the
new water inlet hose. OLD HOSE SETS MUST
NOT BE RE-USED. The water pressure from
the water mains needs to be at a minimum of
0.04 MPa and a maximum of 1.00MPa.
• Connect one end of the safety water
supply hose to your dishwasher, and then
connect the other end of the hose to
your water mains. Please ensure the black
rubber seal is in place.
• After connecting the hose, turn on your
water mains and check for leaks.
• Connect the dishwasher to the mains
socket.
• Do not bend your drain hose.
safety water supply hose
Connect to
another
appliance
if required.
water mains
Y-Adaptor
(not included)
You may use a Y-adaptor (not included)
For additional water feed for another
appliance, for instance a washing machine.
This is only applicable for cold water mains.
A Y-adaptor is available from most DIY
stores.
SDW60B10_IB_111024.indd 7 10/24/11 11:55 AM

8
INSTALLATION
ST4 screws
water drain hose
U-shaped drain hose
holder
• You may use the U-shaped drain hose
holder to secure your drain hose and to
avoid bending it.
• Secure the water drain hose to the waste
pipe to avoid it coming off during the
washing process.
• The waste pipe must only be connected
to the foul drains and not the surface
water drainage system.
• The water drain hose should be placed
between 40 cm and 100 cm from the
floor level and must not be extended,
otherwise the unit may not be able to
expel the waste water properly.
• Please close the hydrant after use.
SDW60B10_IB_111024.indd 8 10/24/11 11:55 AM

9
Product Overview
Internal View
Rear View
Water Inlet
Mains Cable
Drain Hose
Drain Oulet
Upper
Basket
Lower
Basket
Rinse Aid
Reservoir
Detergent
Dispenser
Salt Reservoir
Cup Rack
Filtering
System
Spray
Arms
SDW60B10_IB_111024.indd 9 10/24/11 11:56 AM

10
On
Off
PROG
Control Panel Overview
1. On/Off Button
• To turn the dishwasher on and off.
Power on light
• Illuminates when On/Off button is pressed.
2. Delay Start Button
• Press to preset the wash timer and delay the starting time by up to 24 hours.
• Each press of this button increases the delay start time by 1 hour intervals.
3. Display Window
• Shows the selected programme time, time delay and error codes.
4. Programme Button
• Press to select your required washing programme.
5. Half Load Button
• Press to button to select the half load washing cycle.
Half load indicator light
• Illuminates when the half load washing cycle is selected.
• Only the upper spray arm will be in function.
• Load the soiled dishes in the upper basket.
6. Exterior Display Window
• Shows the selected programme, programme time, time delay and error codes.
1 2 3 4 5
1
2
6
