WACKER Group PT 6LT User manual

Pump
PT 6 /...
OPERATOR’S MANUAL
0154629en 006
0107
0154629EN

PT 6 /... Table of Contents
wc_bo0154629en_006TOC.fm 1
1. Foreword 3
2. Safety Information 4
2.1 State Regulations Concerning Trailers ................................................. 4
2.2 Operating Safety .................................................................................. 5
2.3 Operator Safety While Using Internal Combustion Engines ................. 6
2.4 Service Safety ...................................................................................... 6
2.5 Towing Safety ....................................................................................... 7
2.6 Reporting Trailer Safety Defects .......................................................... 8
2.7 Label Locations .................................................................................... 9
2.8 Safety Labels ...................................................................................... 10
3. Technical Data 13
3.1 Engine ................................................................................................ 13
3.2 Pump .................................................................................................. 14
3.3 Lubrication .......................................................................................... 14
3.4 Trailer ................................................................................................. 14
3.5 Dimensions ....................................................................................... 15
4. Operation 16
4.1 Operation and Service Locations ....................................................... 16
4.2 Application .......................................................................................... 18
4.3 Recommended Fuel ........................................................................... 18
4.4 Before Starting the Engine ................................................................. 18
4.5 Before Starting the Pump ................................................................... 18
4.6 To Start ............................................................................................... 20
4.7 To Stop ............................................................................................... 20
4.8 Automatic Shutdown System ............................................................. 21
4.9 Important Operation Note ................................................................... 21
4.10 Hoses ................................................................................................. 22
4.11 Hose Couplings .................................................................................. 22
4.12 Hose Clamps ...................................................................................... 22
4.13 Strainer ............................................................................................... 23
4.14 Discharge Port .................................................................................... 23
4.15 Covers ................................................................................................ 24
4.16 Hitching and Towing the Trailer .......................................................... 26

Table of Contents PT 6 /...
wc_bo0154629en_006TOC.fm 2
5. Maintenance 28
5.1 Engine Fuel Delivery System Maintenance .........................................28
5.2 Storage ................................................................................................28
5.3 Periodic Maintenance Schedule ..........................................................29
5.4 Air Cleaner ..........................................................................................30
5.5 Fuel Filter ............................................................................................31
5.6 Priming the Fuel System .....................................................................31
5.7 Engine Lubrication ...............................................................................32
5.8 Engine Oil ............................................................................................33
5.9 Valve Clearances ................................................................................33
5.10 Fan Belt ...............................................................................................34
5.11 Pump Housing Mounting Bolts ............................................................35
5.12 Mechanical Seal Lubrication ...............................................................36
5.13 Bearing Housing Lubrication ...............................................................37
5.14 Impeller Clearance ..............................................................................38
5.15 Cleaning the Engine Cooling Fins .......................................................40
5.16 Battery .................................................................................................40
5.17 Lifting the Machine ..............................................................................41
5.18 Tires ....................................................................................................42
5.19 Wheels and Lug Nuts ..........................................................................42
5.20 Tongue Jack ........................................................................................42
5.21 Safety Chains ......................................................................................43
5.22 Lights ...................................................................................................44
5.23 Wiring Diagram — Trailer ....................................................................45
5.24 Wiring Diagram (0007174 > Rev 119; 0007175 > Rev 122) ...............46
5.25 Wiring Diagram Components ..............................................................47
5.26 Wiring Diagram (0007174 < Rev 120; 0007175 < Rev 123) ...............48
5.27 Wiring Diagram Components ..............................................................49
5.28 Basic Troubleshooting .........................................................................50

wc_tx000001gb diesel.fm 3
CALIFORNIA
Proposition 65 Warning:
Diesel engine exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
1. Foreword
This manual provides information and procedures to safely operate
and maintain this Wacker model. For your own safety and protection
from injury, carefully read, understand and observe the safety
instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this
manual or need an additional copy, please contact Wacker
Corporation. This machine is built with user safety in mind; however,
it can present hazards if improperly operated and serviced. Follow
operating instructions carefully! If you have questions about operating
or servicing this equipment, please contact Wacker Corporation.
The information contained in this manual was based on machines in
production at the time of publication. Wacker Corporation reserves the
right to change any portion of this information without notice.
All rights, especially copying and distribution rights, are reserved.
Copyright 2007by Wacker Corporation.
No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express written permission from Wacker Corporation.
Any type of reproduction or distribution not authorized by Wacker
Corporation represents an infringement of valid copyrights and will be
prosecuted. We expressly reserve the right to make technical
modifications, even without due notice, which aim at improving our
machines or their safety standards.
WARNING

Safety Information PT 6 /...
wc_si000098gb.fm 4
2. Safety Information
This manual contains DANGER, WARNING, CAUTION, NOTICE and
NOTE callouts which must be followed to reduce the possibility of
personal injury, damage to the equipment, or improper service.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE: Used without the safety alert symbol, NOTICE indicates a
hazardous situation which, if not avoided, could result in property
damage
Note: Contains additional information important to a procedure.
2.1 State Regulations Concerning Trailers
Trailer laws covering such things as brakes, lights, safety chains, etc.,
will vary from state to state. Make certain that your trailer is in
compliance with the regulations of the state in which the trailer will be
used. If you are not sure what these regulations are, contact the state
motor vehicle department for information.
In some states, trailers must be registered and licensed by the State
Department of Transportation. Before towing, be sure to check
licensing requirements.
DANGER
WARNING
CAUTION

PT 6 /... Safety Information
wc_si000098gb.fm 5
2.2 Operating Safety
Familiarity and proper training are required for the safe operation of
equipment. Equipment operated improperly or by untrained personnel
can be dangerous. Read the operating instructions contained in both
this manual and the engine manual and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the equipment before
being allowed to operate the machine.
2.2.1 NEVER allow anyone to operate this equipment without proper
training. People operating this equipment must be familiar with the
risks and hazards associated with it.
2.2.2 NEVER touch the engine or muffler while the engine is on or
immediately after it has been turned off. These areas get hot and may
cause burns.
2.2.3 NEVER use accessories or attachments that are not recommended by
Wacker. Damage to equipment and injury to the user may result.
2.2.4 NEVER leave machine running unattended.
2.2.5 NEVER operate this machine in applications for which it is not
intended.
2.2.6 NEVER open the priming plug when the pump is hot. Never loosen or
remove inlet or discharge hose fittings when the pump is hot. Hot water
inside could be pressurized much like the radiator on an automobile.
Allow the pump to cool to the touch before loosening the plug and
before loosening or removing the inlet or discharge hose fittings.
2.2.7 NEVER position the pump on a loose, uneven, or unstable surface
where it can tip, roll, slide or fall! The pump must be secure before
operating. Position the pump on a firm, flat surface; adjust the trailer
jacks to be sure the pump is level and supported firmly.
2.2.8 NEVER open the pump housing cover while the pump is operating or
start the pump with the cover off. The rotating impeller inside the pump
can cut or sever objects caught in it.
2.2.9 NEVER block or restrict flow from the inlet line or the discharge line.
Remove kinks from the discharge line before starting the pump.
Operation with a blocked inlet line or discharge line can cause water
inside the pump to overheat.
2.2.10 NEVER reach into or insert anything into the pump while the engine is
on! The impeller inside the pump housing is turning at all times while
the engine is running.
2.2.11 DO NOT allow anyone to stand in front of the discharge port when
starting the engine or while priming the pump! The sudden out-rush of
water could push or knock a person down.
WARNING

Safety Information PT 6 /...
wc_si000098gb.fm 6
2.2.12 ALWAYS make sure the hose connections on the pump are tight. A
loose connection could cause water to spray or result in a hose falling
off the pump while it is in operation.
2.2.13 ALWAYS make sure the water stream from the pump discharge is not
directed in such a way so as to cause erosion to the surrounding
ground or damage or weakening of nearby structures!
2.3 Operator Safety While Using Internal Combustion Engines
2.3.1 DO NOT run the machine indoors or in an enclosed area such as a
deep trench unless adequate ventilation, through such items as
exhaust fans or hoses, is provided. Exhaust gas from the engine
contains poisonous carbon monoxide gas; exposure to carbon
monoxide can cause loss of consciousness and may lead to death.
2.3.2 DO NOT smoke while operating the machine.
2.3.3 DO NOT smoke when refueling the engine.
2.3.4 DO NOT refuel a hot or running engine.
2.3.5 DO NOT refuel the engine near an open flame.
2.3.6 ALWAYS refill the fuel tank in a well-ventilated area.
2.3.7 ALWAYS replace the fuel tank cap after refueling.
2.3.8 ALWAYS check the fuel lines and the fuel tank for leaks and cracks
before starting the engine. Do not run the machine if fuel leaks are
present or the fuel lines are loose.
2.3.9 ALWAYS keep the area around a hot exhaust pipe free of debris to
reduce the chance of an accidental fire.
2.4 Service Safety
Poorly maintained equipment can become a safety hazard! In order
for the equipment to operate safely and properly over a long period of
time, periodic maintenance and occasional repairs are necessary.
2.4.1 DO NOT attempt to clean or service the machine while it is running.
Rotating parts can cause severe injury.
2.4.2 DO NOT use gasoline or other types of fuels or flammable solvents to
clean parts, especially in enclosed areas. Fumes from fuels and
solvents can become explosive.
2.4.3 DO NOT attempt to clean or service the machine while it is running.
2.4.4 DO NOT operate the machine without an air cleaner.
2.4.5 ALWAYS replace worn or damaged components with spare parts
designed and recommended by Wacker Corporation.
WARNING

PT 6 /... Safety Information
wc_si000098gb.fm 7
2.4.6 ALWAYS keep the machine clean and labels legible. Replace all
missing and hard-to-read labels. Labels provide important operating
instructions and warn of dangers and hazards.
2.4.7 ALWAYS replace the safety devices and guards after repairs and
maintenance.
2.4.8 ALWAYS check all external fasteners at regular intervals.
2.4.9 ALWAYS remain aware of moving parts and keep hands, feet, and
loose clothing away from the moving parts of the equipment.
2.5 Towing Safety
Towing a large trailer requires special care. Both the trailer and vehicle
must be in good condition and securely fastened to each other to
reduce the possibility of an accident.
2.5.1 ALWAYS check that the hitch and coupling on the vehicle are rated
equal to, or greater than, the trailer's “gross vehicle weight rating”
(GVWR).
2.5.2 ALWAYS inspect the hitch and coupling for wear or damage. DO NOT
tow the trailer using defective parts.
2.5.3 ALWAYS make sure the coupling is securely fastened to the vehicle.
2.5.4 ALWAYS check the tires on the trailer for tread wear, inflation, and
condition. Replace worn tires.
2.5.5 ALWAYS connect the safety chains.
2.5.6 ALWAYS connect the breakaway cable safety hook to the bumper or
rear of the vehicle. DO NOT attach it to the hitch.
2.5.7 ALWAYS test the surge brakes on the trailer and the brakes on the
vehicle that will be used for towing.
2.5.8 ALWAYS make sure directional and trailer lights are connected and
working properly.
2.5.9 ALWAYS check that the lug nuts holding the wheels are tight and that
none are missing.
WARNING

Safety Information PT 6 /...
wc_si000098gb.fm 8
2.6 Reporting Trailer Safety Defects
If you believe your trailer has a defect which could cause a crash or
could cause injury or death, you should immediately inform the
National Highway Traffic Safety Administration (NHTSA) in addition to
notifying Wacker Corporation.
If NHTSA receives similar complaints, it may open an investigation;
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
Wacker Corporation.
To contact NHTSA, you may either contact the Auto Safety Hotline toll-
free at 1-800-424-9393 (or 366-0129 in Washington DC area),
www.nhtsa.com, or write to NHTSA, U.S. Department of
Transportation, 400 7th Street SW, (NSA-11), Washington, DC 20590.
You can also obtain other information about motor vehicle safety from
the Auto Safety Hotline.

PT 6 /... Safety Information
wc_si000098gb.fm 9
2.7 Label Locations
wc_gr001145
13
7
6
3
810
9
5
6
4
12
11
2

Safety Information PT 6 /...
wc_si000098gb.fm 10
2.8 Safety Labels
Ref. Label Meaning
1
DANGER!
Engines emit carbon monoxide; operate
only in well-ventilated area. Read the
Operator’s Manual.
No sparks, flames, or burning objects
near the machine. Shut off the engine
before refueling.
2
CAUTION!
Use only clean, filtered diesel fuel.
3
CAUTION!
Read and understand the supplied
Operator’s Manuals before operating
this machine. Failure to do so increases
the risk of injury to yourself or others.
4
CAUTION!
Lifting point.
5
WARNING!
Hot surface!
6
WARNING!
Pressurized contents. Do not open
when hot!
7
WARNING!
Never pump volatile, flammable or low
flash point fluids. These fluids could
ignite or explode.

PT 6 /... Safety Information
wc_si000098gb.fm 11
8Read Operator’s Manual.
Use hitch rated from trailer’s “Gross Vehicle Weight Rating”.
Securely attach trailer to tow vehicle.
Attach safety chains using cross pattern.
Attach breakdown chain to vehicle.
Check trailer lights.
9
10
A nameplate listing the model number,
item number, revision number, and
serial number is attached to each unit.
Please record the information found on
this plate so it will be available should
the nameplate become lost or dam-
aged. When ordering parts or request-
ing service information, you will always
be asked to specify the model number,
item number, revision number, and
serial number of the unit.
11
CAUTION!
Service oil bath air filter daily before
starting engine. Severe engine damage
will occur if oil bath filter is low or empty.
Ref. Label Meaning
INSTRUCTIONS DE REMORQUAGE
TOWING INSTRUCTIONS ABSCHLEPPINSTRUKTIONEN INSTRUCCIONES DE REMOLQUE
1. READ OPERATOR'S MANUAL.
2. USE HITCH RATED FRO TRAILER'S
"GROSS VEHICLE WEIGHT RATING".
3. SECURELY ATTACH TRAILER TO TOW
VEHICLE.
4. ATTACH SAFETY CHAINS USING CROSS
PATTERN.
5. ATTACH BREAKDOWN CHAIN TO VEHICLE.
6. CHECK TRAILER LIGHTS.
1. BETRIEBSVORSCHRIFT LESEN.
2. ANHANGEVORRICHTUNG VERWENDEN,
DIE DER GESAMTBETRIEBSGEWICHTSKLASSE
ENTSPRICHT.
3. ANHANGER SICHER AM ZUGFAHRZEUG
BEFESTIGEN.
4. SICHERHEITSKETTEN KREUZWEISE ANBRINGEN.
5. ABREISSKETTE AM FAHRZEUG ANBRINGEN.
6. ANHANGERLEUCHTEN PRUFEN.
1. LEA EL MANUAL DEL OPERARIO.
2. UTILICE UN ACOPLE CORRECTAMENTE
CLASIFICADO PARA LA "CLASE DE PESO BUTO"
DEL VEHICULO DEL REMOLQUE.
3. ASEGURESE DE AMARRAR CORRECTAMENTE
EL REMOLQUE AL VEHICULO DE REMOLQUE.
4. FIJE EN CRUZ LAS CADENAS DE SEGURIDAD.
5. FIJE EN EL VEHICULO DE REMOLQUE LA CADENA
DE DESPRENDIMIENTO.
6. CONTROLE LAS LUCES DEL REMOLQUE.
1. LIRE LA NOTICE D'EMPLOI.
2. UTILISER UN GROCHET D'ATTELAGE CONFORME AU
DEBIT NOMINAL DU POIDS BRUT DE VEHICULE DU
TRACTEUR.
3. ATTACHER LA REMORQUE FERMEMENT AU VEHICULE
TRACTEUR.
4. ATTACHER LES CHAINES DE SURETTE EN UTILISANT
UNE METHODE CROISEE.
5. ATTACHER LA CHAINE DE REMORQUAGE AU VEHICULE.
6. VERIFIER LES LAMPES DE LA REMORQUE.
114894

Safety Information PT 6 /...
wc_si000098gb.fm 12

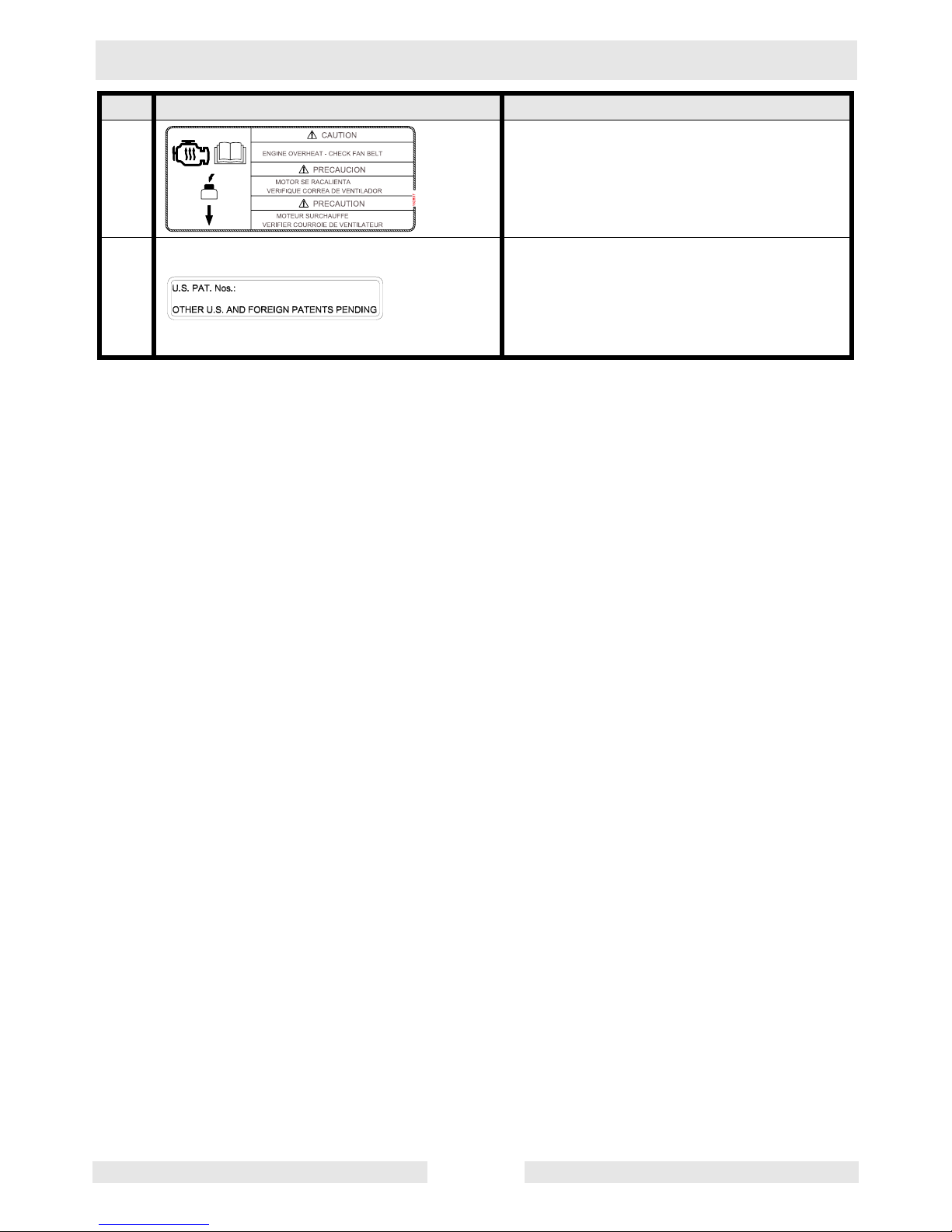

12
CAUTION!
Engine overheat - Check fan belt.
This machine may be covered by one or
more patents.
Ref. Label Meaning

PT 6 /... Technical Data
wc_td000099gb.fm 13
3. Technical Data
3.1 Engine
Item No. PT 6LT
0007175
PT 6LS
0007174
Engine
Engine type Three cylinder, 4-cycle air cooled, diesel engine
Engine make Lombardini
Engine model 11LD625-3
Rated power kW (Hp) 22 (30)
Alternator Amp 14
Engine speed - full load rpm 2500 ± 100
Engine speed - idle rpm 1500 ± 100
Valve clearance (cold)
intake:
exhaust:
mm (in.) 0.15 (0.006)
0.20 (0.007)
Air cleaner type Oil Bath
(Do not use oil lighter than 20W)
Battery V / size 12V / 31
Fuel type No. 2 Diesel
Fuel tank capacity l (gal.) 98 (26)

Technical Data PT 6 /...
wc_td000099gb.fm 14
3.2 Pump
3.3 Lubrication
3.4 Trailer
Item No. PT 6LT
0007175
PT 6LS
0007174
Pump
Weight kg (lbs.) 1090 (2400) 850 (1870)
Max. suction lift m (ft.) 7.5 (25)
Max. total head m (ft.) 30.5 (100)
Max. discharge m³/h (gpm) 295 (1300)
Suction / discharge dia. mm (in.) 150 (6)
Max. solid size mm (in.) 50 (2)
Item No. PT 6LT
0007175
PT 6LS
0007174
Lubrication
Engine type / qty. SAE 15W40 CD Rated / 5.0 L (5 qts.)
Pump seal housing type / qty. SAE 15W40 / 800ml (27oz.)
Pump bearing housing type / qty. SAE 15W40 / 470ml (16oz.)
Item No. PT 6LT
0007175
Trailer
Power take-off type Direct Drive with Flex-Coupling
Trailer tounge weight kg (lbs) 75 (165)
Gross vehicle weight
Rating kg (lbs) 1588 (3500)
Tire size 205 / 75D-14
Tire load Rating C

PT 6 /... Technical Data
wc_td000099gb.fm 15
3.5 Dimensions
wc_gr001154

Operation PT 6 /...
wc_tx000261gb.fm 16
4. Operation
4.1 Operation and Service Locations
See Graphic: wc_gr003183
Ref. Description Ref. Description
1 Engine oil dipstick 14 Engine oil filter
2 Fuel filter 15 Battery box
3 Manual fuel pump lever 16 Trailer hitch
4 Engine oil drain plug 17 Jack stand
5 Engine throttle solenoid 18 Rear stabilizers
6 Control panel 19 Drain cover
7 Ignition switch 20 Front impeller cover
8 Hour meter 21 Suction port
9 Bearing/Seal housing 22 Priming cover
10 Lifting point 23 Discharge port
11 Engine oil fill cap 24 Fuel fill cap
12 Inspection cover 25 License plate holder
13 Air cleaner 26 Circuit breaker

PT 6 /... Operation
wc_tx000261gb.fm 17
wc_gr003183
18
17
15
16
7
8
9
6
26
23
22
21
20
19
25
12
11
13
10
14
24
1
2
45
3

Operation PT 6 /...
wc_tx000261gb.fm 18
4.2 Application
The PT6 is a self-priming, high performance trash pump designed to
handle water and solids up to 50.8 mm (2.0 in). It is built for the
demands of construction, mining, municipality, farm and marine
applications.
4.3 Recommended Fuel
The engine requires No. 2 diesel fuel. Use only fresh, clean fuel. Fuel
containing water or dirt will damage the fuel system. Consult the
engine owner’s manual for complete fuel specifications.
4.4 Before Starting the Engine
4.4.1 Read and understand the safety and operating instructions at the
beginning of this manual.
4.4.2 Check:
• The oil level in the engine
• The fuel level
• The condition of the air cleaner
• The tightness of the external fasteners
• The condition of the fuel lines
NOTICE:DO NOT run the engine without oil in the oil-bath air cleaner
or severe engine damage will result.
4.5 Before Starting the Pump
See Graphic: wc_gr001165
4.5.1 Check the bearing/seal housing (f) for proper oil level. Also check the
oil for water contamination. Do not operate the pump if contamination
is found.
4.5.2 Position the pump as near to the water as possible, on a firm, flat
surface. Keep the pump level.
4.5.3 Lower the rear stabilizers (a) until they contact the ground. Lock the
stabilizers in position with the pins.
4.5.4 Crank down the jack stand (b) on the front of the trailer. Block both
wheels to keep the pump from rolling during operation.
