WAGNER Evobell 3500 Operational manual
Evobell 3500
II 3G T6 X
"?
High rotation atomizer
Edition 05/2010
Translation of the original
Operating manual
3
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
Contents
1 ABOUT THESE INSTRUCTIONS 6
1.1 Languages 6
1.2 Warnings, notes and symbols in these instructions 6
2 GENERAL SAFETY INSTRUCTIONS 7
2.1 Safety instructions for the operator 7
2.1.1 Electrical equipment 7
2.1.2 Personnel qualifications 7
2.1.3 A safe work environment 7
2.2 Safety instructions for personnel 7
2.2.1 Safe handling of WAGNER spray units 8
2.2.2 Material hoses 8
2.2.3 Cleaning 8
2.2.4 Handling hazardous liquids, varnishes and paints 9
2.2.5 Touching hot surfaces 9
2.3 Correct use 9
2.4 Use in an explosion hazard area 10
2.4.1 Correct use 10
2.4.2 Explosion protection identification 10
2.4.3 Identification„X“ 10
2.4.3.1 Maximum surface temperature 10
2.4.3.2 Advice about safety 10
2.4.3.3 Safety instructions 11
2.5 Setting up stationary electrostatic spraying equipment 13
3 GUARANTEE AND CONFORMITY DECLARATIONS 14
3.1 Important notes on product liability 14
3.2 Guarantee 14
3.3 CE-Declaration of Conformity 15
3.4 National technical standards and specifications 15
4 DESCRIPTION 16
4.1 Fields of application, using in accordance with the instructions 16
4.1.1 Processable materials 16
4.1.2 Categorization of working materials 16
4.2 Delivery scope 18
4.2.1 Evobell 3500 model identification 18
4.3 Specifications 20
4.3.1 Materials of the parts transporting paint 20
4.3.2 Technical data 20
4.3.3 Connection - Designations and dimensions 23
4.3.3.1 Connections - Drive unit 23
4.3.3.2 Connections - Valve block 24
4.4 Functional descriptions 25
4.4.1 Design of high rotation atomizer 25
4.4.2 Functions of the High rotation atomizer 26
4.5 Atomizing process 27
4.5.1 Spraying process 27
4.5.2 The electrostatic effect 28
4.6 Installation scheme 29
4
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
5 START-UP AND OPERATION 30
5.1 Put the equipment in place and connect 30
5.1.1 Typical electrostatic spraying system 30
5.1.2 Ventilation of the spray booth 32
5.1.3 Air supply 32
5.1.4 Fluid (paint) hoses 32
5.1.5 Earthing 33
5.1.6 Preparation of paints 35
5.1.7 Viscosity conversion table 35
5.2 Operating instructions for safe operation 36
5.3 Start up 37
5.3.1 General rules for handling the high rotation atomizer 37
5.3.2 Preparation for starting up 38
5.4 Working 40
5.4.1 Start-up for spraying 40
5.4.2 Spray pattern 40
5.4.3 Remove / Attach the casing 41
5.4.4 Replacing the bell 42
5.4.5 Changing the distributor 44
5.4.6 Replacing the air conduction 47
5.4.7 Replacing material tube / Valve block 49
5.4.8 Replacing the resistance block / High voltage cable 52
6 MAINTENANCE 54
6.1 Finishing work and cleaning 55
6.2 Maintenance work 56
6.2.1 Visual checks - Joints and fluid hoses 56
6.2.2 Visual check - Valve block 57
6.2.3 Visual check - Bell solvents valve 57
6.2.4 Visual check - Resistance block 57
6.2.5 Visual check - Sensor 57
6.2.6 Visual check - Bell 57
6.2.7 Visual check - Distributor 57
6.2.8 Visual check - Air conduction 57
6.2.9 Visual check - Material tube 57
6.3 Inspections in accordance with DIN EN 50176 58
6.3.1 Overview of inspections 58
6.3.2 Inspection intervals in accordance with table 4 of DIN EN 50176: 2010-04 59
6.4 Inspections in accordance with DIN EN 50348 60
6.4.1 Overview of inspections 60
6.4.2 Inspection intervals in accordance with table 4 of DIN EN 50348: 2010-05 61
7 TROUBLE SHOOTING AND SOLUTION 62
Contents
5
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
8 REPAIRS 63
8.1 Replacing drive unit 65
8.1.1 Disassembly drive unit 65
8.1.2 Assembly drive unit 68
8.2 Replace valve block 70
8.2.1 Disassembly valve block 70
8.2.2 Assembly valve block 71
8.3 Remove bell solvent valve 72
8.3.1 Disassembly bell solvent valve 72
8.3.2 Assembly bell solvent valve 73
8.4 Remove bearing tube / Clamp rod 74
8.4.1 Disassembly bearing tube / Clamp rods 74
8.4.2 Assembly bearing tube / Clamp rods 75
9 ACCESSORIES 76
9.1 Material tubes (Attention: Left threads) 76
9.2 Bells 77
9.3 Distributor 77
9.4 Air conduction 77
9.5 Valve block 78
9.6 Resistance block 78
9.7 High voltage cable with Plug / Eye 78
9.8 Hoses 79
9.9 Air filter 79
9.10 Speed- / Bearing air control 80
9.11 Miscellaneous 80
10 SPARE PARTS 81
10.1 How to order spare parts 81
10.2 Spare parts list Evobell 3500 82
Contents
6
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
1.2 WARNINGS, NOTES AND SYMBOLS IN THESE INSTRUCTIONS
1 ABOUT THESE INSTRUCTIONS
1.1 LANGUAGES
This operating manual contains information on the operation, repair and maintenance of
the unit.
Always observe these instructions when operating the unit.
This equipment can be dangerous if it is not operated in accordance with this manual.
Compliance with these instructions constitutes an integral component of the warranty
agreement.
Warning instructions in this manual point out particular dangers to users and equipment
and state measures for avoiding the hazard.
These warning instructions fall into the following categories:
Danger - imminent danger.Non-observance will result
in death, serious injury and serious material damage.
Warning - possible danger. Non-observance can result
in death, serious injury and serious material damage.
Caution - a possibly hazardous situation.
Non-observance can result in minor injury.
Note - provide information on particular characteristics and how to proceed.
Caution - a possibly hazardous situation.
Non-observance can cause material damage.
SIHI_0100_GB
DANGER
This line warns of the hazard!
Possible consequences of failing to observe the warning instructions.
The signal word points out the hazard level.
The measures for preventing the hazard and its consequences.
SIHI_0103_GB
WARNING
This line warns of the hazard!
Possible consequences of failing to observe the warning instructions.
The signal word points out the hazard level.
The measures for preventing the hazard and its consequences.
SIHI_0103_GB
WARNING
This line warns of the hazard!
Possible consequences of failing to observe the warning instructions.
The signal word points out the hazard level.
The measures for preventing the hazard and its consequences.
SIHI_0102_GB CAUTION
This line warns of the hazard!
Possible consequences of failing to observe the warning instructions. The signal word
points out the hazard level.
The measures for preventing the hazard and its consequences.
This operating manual is available in the following languages:
Language: Part No. Language: Part No.
German 387840 English 387841
French 387842 Dutch 387843
Italian 387844 Spanish 387845
Danish 387847 Swedish 387846
Czech 387849 Russian 2319592
Rumanian 2319593
7
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
2 GENERAL SAFETY INSTRUCTIONS
2.1 SAFETY INSTRUCTIONS FOR THE OPERATOR
2.1.1 ELECTRICAL EQUIPMENT
2.1.2 PERSONNEL QUALIFICATIONS
2.1.3 A SAFE WORK ENVIRONMENT
2.2 SAFETY INSTRUCTIONS FOR PERSONNEL
Keep these operating instructions to hand near the unit at all times.
Always follow local regulations concerning occupational safety and accident prevention.
Electrical plant and unit
To be provided in accordance with the local safety requirements with regard to the
operating mode and ambient influences.
May only be maintained by skilled electricians or under their supervision.
Must be operated in accordance with the safety regulations and electrotechnical
regulations.
Must be repaired immediately in the event of problems.
Must be put out of operation if they pose a hazard.
Must be de-energized before work is commenced on active parts. Inform staff about
planned work, observe electrical safety regulations.
%NSURETHATTHEUNITISOPERATEDANDREPAIREDONLYBYTRAINEDPERSONS
Ensure that the floor of the working area is anti-static in accordance with EN 50053
Part 1, §7-2, measurement in accordance with DIN 51953.
Ensure that all persons within the working area wear anti-static shoes, e.g. shoes with
leather soles.The measured insulation resistance must not exceed 100 MΩ.
The insulation resistance of protective clothing, including gloves, must not exceed
100 MΩ.
Customer to provide paint mist extraction units conforming to local regulations.
Ensure that the following components of a safe working environment are available:
– Material/air hoses adapted to the working pressure
– Personal safety equipment (breathing and skin protection)
Ensure that there are no ignition sources such as naked flame, glowing wires or hot
surfaces in the vicinity.
Do not smoke.
Always follow the information in these instructions, particularly the general safety
instructions and the warning instructions.
Always follow local regulations concerning occupational safety and accident
prevention.
8
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
2.2.1 SAFE HANDLING OF WAGNER SPRAY UNITS
2.2.2 MATERIAL HOSES
2.2.3 CLEANING
4HESPRAYJETISUNDERPRESSUREANDCANCAUSEDANGEROUSINJURIES
!VOIDINJECTIONOFPAINTORCLEANINGAGENTS
.EVERPOINTTHEHIGHROTATIONATOMIZERATPEOPLE
.EVERREACHINTOTHESPRAYJET
"EFOREALLWORKONTHEUNITANDINTHEEVENTOFWORKINTERRUPTIONS
n3ECURETHEHIGHROTATIONATOMIZERAGAINSTACTUATION
n2ELIEVETHEPRESSUREFROMTHEHIGHROTATIONATOMIZERANDUNIT
)NTHEEVENTOFSKININJURIESCAUSEDBYPAINTORCLEANINGAGENTS
.OTEDOWNTHEPAINTORCLEANINGAGENTTHATYOUHAVEBEENUSING
#ONSULTADOCTORIMMEDIATELY
Ensure that the hose material is chemically resistant to the sprayed materials.
Ensure that the material hose is suitable for the pressure generated in the unit.
Ensure that the material hose is not conductive.
Ensure that the material hose has a sufficiently high disruptive strength or that is
additionally isolated to earth.
De-energize the unit electrically.
Disconnect the pneumatic supply line.
Relieve the pressure from the unit.
Non-flammable cleaning agents should preferably be used.
Flammable cleaning liquids may only be used if, after switching off the high voltage
supply, all high voltage conducting parts are discharged to a discharge energy of less
than 0.24 mJ before they can be accessed.
Ensure that the flash point of the cleaning agent is at least 5 K above the ambient
temperature.
To clean, use only solvent-free cloths and brushes. Never use hard objects or spray on
cleaning agents a gun.
An explosive gas/air mixture forms in closed containers.
When cleaning units with solvents, never spray into a closed container.
Earth the container. Only use electrically conductive containers.
9
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
2.2.4 HANDLING HAZARDOUS LIQUIDS,VARNISHES AND PAINTS
2.2.5 TOUCHING HOT SURFACES
2.3 CORRECT USE
When preparing or working with paint and when cleaning the unit, follow the working
instructions of the manufacturer of the paints, solvents and cleaning agents being
used.
Take the specified protective measures, in particular wear safety goggles, protective
clothing and gloves, as well as hand protection cream if necessary.
Use a mask or breathing apparatus if necessary.
For sufficient health and environmental safety: Operate the unit in a spray booth or on
a spraying wall with the ventilation (extraction) switched on.
Wear suitable protective clothing when working with hot materials.
Touch hot surfaces only if you are wearing protective gloves.
When operating the unit with a coating material with a temperature of > 43 °C; 109.4 °F:
- Identify the unit with a warning label that says„Warning - hot surface“.
Order No.
9998910 Information label
9998911 Safety label
7!'.%2ACCEPTSNOLIABILITYFORANYDAMAGEARISINGFROMINCORRECTUSE
5SETHEUNITONLYTOWORKWITHTHEMATERIALSRECOMMENDEDBY7!'.%2
/PERATETHEUNITONLYASANENTIREUNIT
$ONOTDEACTIVATESAFETYEQUIPMENT
5SEONLY7!'.%2ORIGINALSPAREPARTSANDACCESSORIES
10
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
2.4.1 CORRECT USE
2.4.2 EXPLOSION PROTECTION IDENTIFICATION
2.4.3 IDENTIFICATION„X“
2.4 USE IN AN EXPLOSION HAZARD AREA
2.4.3.1 MAXIMUM SURFACE TEMPERATURE
2.4.3.2 ADVICE ABOUT SAFETY
4HEUNITISSUITABLEFORWORKINGLIQUIDMATERIALSINACCORDANCEWITHTHECLASSIlCATIONINTO
EXPLOSIONCLASSES
The high rotation atomizer‘s maximum surface temperature depends on the temperatur
e
of the coating material.
The high rotation atomizer is suitable for coating materials with a max. temperature o
f
+60 °C; +140 °F.
Ambient temperature
Permissible ambient temperature: +10 °C to +50 °C; +50 °F to +122 °F.
As defined in the Directive 94/9/EC (ATEX 95), the unit is suitable for use in areas where
there is an explosion hazard.
II 3G T6 X
CE: Communautés Européennes
Ex: Symbol for explosion protection
II: Unit class II
3: Category 3 (Zone 2)
G: Ex-atmosphere gas
T6: Temperature class: maximum surface temperature < 85 °C; 185 °F
X: Note on special operating conditions in accordance with operating manual
See chapter 4.1.1
The Evobell 3500 is a component of stationary equipment for electrostatic coating with
flammable liquid coating materials, in accordance with EN 50176.The spray system meets
the requirements of category 2G type B-L.
However, non-flammable liquid coating materials may also be processed with the Evobell
3500. In this case, the requirements of EN 50348 (Stationary equipment for electrostatic
coating with non-flammable liquid coating materials) must be complied with. Depending
on design, the spray system is categorized as type A-NL (discharge energy W < 350 mJ) or
type B-NL (W > 350 mJ).This categorization must be carried out before commissioning the
system, and marked accordingly on the system.
11
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
2.4.3.3 SAFETY INSTRUCTIONS
SIHI_0073_GB
DANGER
Exploding gas air mixture through a spark over!
Danger to life from flying parts and burns
Earth all unit components.
Earth the workpieces being painted.
Observe the minimum distance between the atomizer bell, the
earthed unit components and the workpieces to be coated.
The minimum distance amounts to 200 mm; 8 inches.
SIHI_0138_GB
DANGER
Discharge of electrostatically charged components in atmospheres
containing solvents!
Explosion hazard from electrostatic sparks or flames
Earth all unit components.
Earth the work pieces being painted.
Maintain the minimum distance between the cylindrical cover
of the atomizer and the earthed components.
The minimum distance amounts to 100 mm; 4 inches.
12
Evobell 3500

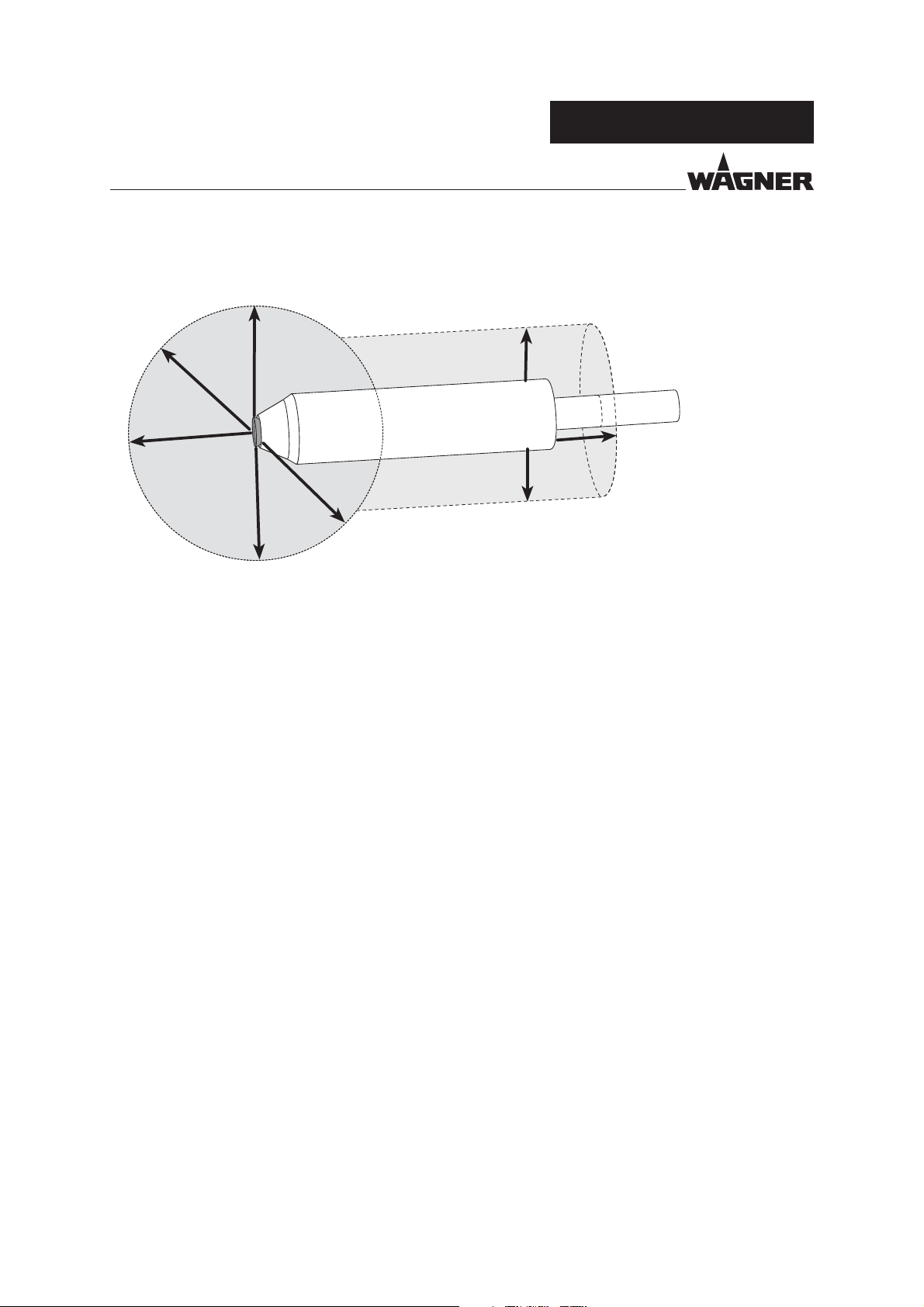

B_01195
200 mm;
8 inches
100 mm;
4 inches
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
Danger zone:
The distance between the workpieces and the parts of the spray system under high volt-
age must be large enough to prevent a sparkover during normal operation. A minimum
distance of 200 mm; 8 inches is recommended in the area of the atomizer bell and a mini-
mum distance of 100 mm; 4 inches in the area of the cylindrical cover. If required by the
application or if demanded by the design, these distances can also be smaller. In this case
it is necessary to check that sparkovers do not occur.
13
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
2.5 SETTING UP STATIONARY ELECTROSTATIC SPRAYING EQUIPMENT
Safe handling of WAGNER spray units
Mechanical sparks can form if the unit comes into contact with metal.
In an explosive atmosphere:
Do not knock or push the unit against steel or rusty iron.
Use only tools that are made of a permitted material.
Ignition temperature of the coating material
Ensure that the ignition temperature of the coating material is above the maximum
surface temperature.
Medium supporting atomizing
To atomize the material, use only weakly oxidizing gases, e.g. air.
Surface spraying, electrostatic
Do not spray unit parts with electrostatic (e.g. electrostatic spray gun).
Cleaning
If there are deposits on the surfaces, the unit may form electrostatic charges. Flames or
sparks can form if there is a discharge.
Remove deposits from the surfaces to maintain conductivity.
Use only a damp cloth to clean the unit.
The high-rotation atomizer is a component of a stationary spray system. EN 50176 must be
observed when stationary spray systems are installed. One of the requirements is that
activation of the high voltage is only possible by using a key. De-activation of the high
voltage must also be possible without a key.
14
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
3 GUARANTEE AND CONFORMITY DECLARATIONS
3.1 IMPORTANT NOTES ON PRODUCT LIABILITY
3.2 GUARANTEE
As a result of an EC regulation, effective as from January 1, 1990, the manufacturer shall
only be liable for his product if all parts come from him or are approved by him, and if the
devices are properly fitted , operated and maintained.
If other makes of accessory and spare parts are used, the manufacturer‘s liability could be
fully or partially null and void.
The usage of original WAGNER accessories and spare parts guarantees that all safety
regulations are observed.
Full guarantee is provided for this device:
We will at our discretion repair or replace free of charge all parts which within 24 months
in single-shift, 12 months in 2-shift or 6 months in 3-shift operation from date of receipt by
the Purchaser are found to be wholly or substantially unusable due to causes prior to the
sale, in particular faulty design, defective materials or poor workmanship.
The type of guarantee provided is such that the device or individual components of the
device are either replaced or repaired as we think fit. The resulting costs, in particular
shipping charges, road tolls, labour and material costs will be borne by us except where
these costs are increased due to the subsequent shipment of the unit to a location other
than the address of the purchaser.
We do not provide guarantee for damage that has been caused or contributed to for the
following reasons:
Unsuitable or improper use, faulty installation or commissioning by the purchaser or a
third party, normal wear, negligent handling, defective maintenance, unsuitable coating
products, substitute materials and the action of chemical, electro chemical or electrical
agents, except when the damage is attributable to us.
Abrasive coating products such as red lead, emulsions, glazes, liquid abrasives, zinc dust
paints and similar reduce the service life of valves, packings, spray guns, tips, cylinders,
pistons etc. Signs of wear and tear due to such causes are not covered by this guarantee.
Components that have not been manufactured by WAGNER are subject to the original
guarantee of the manufacturer.
Replacement of a component does not extend the period of guarantee of the device.
The unit should be inspected immediately upon receipt. To avoid losing the guarantee, we
or the supplier company are to be informed in writing about obvious faults within 14 days
upon receipt of the device.
We reserve the right to have the guarantee compliance met by a contracting company.
The services provided by this guarantee depend on evidence being provided in the form
of an invoice or delivery note. If an examination discovers that no guarantee claim exists,
the costs of repairs are charged to the purchaser.
It is clearly stipulated that this guarantee claim does not represent any constraint to statutory
regulations or regulations agreed contractually in our general terms and conditions.
J. Wagner AG
15
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
a) BGV A3 Electrical plant and units
b) BGR 500 Part 2, chap.2.29 Processing with coating materials
BGR 500 Part 2, chap. 2.36 Working with liquid ejection devices
c) TRBS 2153 Avoidance of ignition dangers due to electrostatic charges
d) BGR 180 Setting up for cleaning with solvents for liquid ejection devices
e) ZH 1/406 Guidelines for liquid ejection devices
f) BGI 740 Painting rooms and equipment
g) BGI 764 Electrostatic coating
Note: All titles can be ordered from Heymanns Publishing House in Cologne,
or they are to be found in the Internet.
CE Certificate of Conformity
The certificate is enclosed with this product. The certificate of conformity can be reordered
from your WAGNER representative, quoting the product and serial number.
Part number:
3.3 CE-DECLARATION OF CONFORMITY
3.4 NATIONAL TECHNICAL STANDARDS AND SPECIFICATIONS
Evobell 3500 387890
Herewith we declare that the supplied version of
- High rotation atomizer Evobell 3000 387001
- High rotation atomizer Evobell 3500 387051
Complies with the following guidelines:
- 94/9/EG
- 2006/42/EG
Applied standards, in particular:
- DIN EN 50176: 2010-04 DIN EN ISO 12100-1: 2004-04
- DIN EN ISO 12100-2: 2004-04 DIN EN ISO 13732-1: 2006-12
- DIN EN 1953: 1998-12 DIN EN 14462: 2010-02
- DIN EN ISO 14121-1: 2007-12 DIN EN 1127-1: 2008-02
- DIN EN 13463-1: 2009-07 DIN EN 13463-5: 2004-03
- DIN EN 50348: 2010-05
Applied national technical standards and specifications, in particular:
BGR 500 Part 2, chap. 2.29, chap. 2.36
TRBS 2153
Marking:
II 3G T6 X
16
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
4.1 FIELDS OF APPLICATION, USING IN ACCORDANCE WITH THE INSTRUCTIONS
EVOBELL 3500 is an air-bearing high-rotation atomizer. The device is suitable for atom-
izing liquid materials, in particular coating materials, under the influence of electrostatic.
4 DESCRIPTION
This high-speed rotation atomizer can be used to process both flammable liquid coating
materials (solvent-based paints) and non-flammable liquid coating materials (water-based
paints).
When using flammable liquid coating materials
It is imperative that the high-rotation atomizer be equipped with the resistance block. In
this case the system is classified as Type B-L (W < 350 mJ) in accordance with EN 50176. A
danger thus exists through explosive energy, but no danger through electric shock.
Coating paints, primers, corrosion protection, structure paints, etc. with a specific resist-
ance > 50 k(to WAGNER/Ransburg scale) are suitable for processing. The electrostatic
effect has no effect at strongly conductive materials and at such materials with an exces-
sive electrical resistance, i.e. no „paint wrap-around“ is present on the spray object. The
suitability of the sprayed material with regard to the charging ability can be read from the
actual values for the high voltage (kV) and for the spray current (µA).
e.g.
➞High kV value, low µA value (no wrap-around) = Paint with excessive electrical
resistance.
➞Low kV-value, high µA-value (no wrap-around) = Excessive conductivity of the paint.
When using non-flammable liquid coating materials
If water paints are used, the entire system (high-rotation atomizer with paint supply) is
brought to high-voltage potential. The system corresponds to Type A-NL (W < 350 mJ) or
Type B-NL (W > 350 mJ), depending on the structure in accordance with EN 50348. If the
system is classified to Type B-NL, a danger exists through electric shock
The complete system must be safely earthed before being accessed by people.
In the event of application problems, contact your WAGNER branch or the paint manufac-
turer.
4.1.1 PROCESSABLE MATERIALS
A large portion of stationary electrostatic paint spray systems are currently being con-
verted to water-based paints. At the same time the fire and explosion protection of these
systems can be eased considerably, if the water-based paints used can demonstrably be
considered non-flammable.
4.1.2 CATEGORIZATION OF WORKING MATERIALS
17
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
Water-dilutable paints such as are in principle divided into 3 groups:
Green Non-flammable (non-combustible) paints
Yellow Paints with low flammability
Red Flammable paints
Non-flammable:
Paints in this group have the following composition:
Gew. % H2O > 1.70 x Gew. % LM + 0.96 x Gew. % ORG
Where:
Gew. % Weight percent
H2O Water
LM Liquid organic phase (solvent mainly consisting of higher ethylene glycol esters)
ORG Solid organic phase (solids mainly consisting of binding agents and pigments)
Such paints behave like water in respect of flammability in liquid form (liquid phase) and in sprayed form.
Cleaners and thinners must also be non-flammable. A possible cleaner and thinner is, e.g. water with less than
35 weight percent 1:1 butylene glycol/N-propanol.
Paints in this group are categorized as non-flammable liquid coating materials.
When using non-flammable spray materials, the requirements of EN 50348 (mainly protection against contact)
must be complied with.
Low flammability:
Paints in this group have the following composition:
Gew. % H2O > 1.50 x Gew. % LM + 0.49 x Gew. % ORG
Spray clouds of these paints cannot be ignited by sparks with an energy < 4 J. Explosion protection in the spray
area is not usually necessary if ignition sources with an energy of more than 2 J do not occur.
Paints in this group are categorized as difficult to ignite.
When using spray materials that are difficult to ignite, the requirements of EN 50176 must be complied with.
Flammable:
Paints that do not meet the criteria for non-flammable or difficult to ignite.
Paints in this group are categorized as flammable liquid coating materials.
When using flammable spray materials, the requirements of EN 50176 must be complied with.
Please contact your local WAGNER dealer and the paint manufacturer if you encounter application problems.
18
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
4.2.1 EVOBELL 3500 MODEL IDENTIFICATION
In order to order the high-rotating atomizer please use the model identification
387051-A11D1FGHI in connection with the tables listed below.
Example: 387051 ADFGH-
Order no.
Bell diameter
Table„A“
Distributor model
Table„D“
Material tube diameter
Table„F“
Valve block
Table„G“
Used materials
Table„H“
11 1 I
Adjusting and installation tool
Table„I“
4.2 DELIVERY SCOPE
The high-rotation atomizer consists of the premounted basic device as well as the acces-
sories required explicitly to this purpose.
Accessories:
➞Bells in diverse diameters and materials with corresponding air conductions
➞Distributor variants
➞Material tubes (diameter of bore)
➞Valve blocks
➞Resistance block (if solvent paints are used)
➞Optical-fiber cables and speed sensor
Table “A” - Bell diameter
Number Bell diameter mm; inch
1 36 mm; 1.42 inch
2 50 mm; 1.97 inch
3 70 mm; 2.76 inch
4 T 70 mm; 2.76 inch
19
Evobell 3500
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
Table “F” - Material tube diameter
Number Description
1 Ø 0.8 mm; 0.031 inch
2 Ø 1.1 mm; 0.043 inch
3 Ø 1.6 mm; 0.063 inch
4 Ø 2.2 mm; 0.087 inch
5 T Ø 1.6 mm; 0.063 inch
6 T Ø 2.0 mm; 0.079 inch
Table “G” - Valve block
Number Description
1 1x Material, 1x Dump, 1 Flush
2 2x Material, 2x Dump, 2 Flush
Table “H” - used material
Number Description
1 Solvent paints
2 Water paints
Table “I” - Adjusting and installation tool
Number Description
1no
2yes
Table “D” - Distributor model
Number Description
1 32 x d1.5
2 20 x d2.3
3T
20
Evobell 3500
"?
$
$
,
,
OPERATING MANUAL
EDITION 05/2010 PART NO. DOC387841
4.3 SPECIFICATIONS
4.3.1 MATERIALS OF THE PARTS TRANSPORTING PAINT
➞Consistal®
➞1.4305
4.3.2 TECHNICAL DATA
Description Evobell 3500
Maximum voltage 100 kV
Speed monitoring Optical-fiber with speed sensor
4 pulses per rotation
El. material resistance* > 50 k
Shaft bearing Air bearing
Maximum speed 70.000 1/min (40.000 Bell d70) 70.000 rpm (40.000 Bell d70)
Air quality - bearing air Particle filter < 0.5 µm
Oil separator < 0.01 mg/m³ by
20 °C
Dew point 7.5 °C
Particle filter < 0.5 micron
Oil separator < 0.1 mgr/cu yd
by 68 °F
Dew point 46 °F
Air quality
Drive air / Brake air / Horn air
Particle filter < 5 µm
Oil separator < 0.6 mg/m³
by 20 °C
Dew point 16 °C
Particle filter < 5 micron
Oil separator < 7.1 mgr/cu yd
by 68 °F
Dew point 61 °F
Bearing air pression 500 ± 50 kPa (5 ± 0.5 bar) 72 ± 7 psi
Bearing air consumption 52 nl/min 1.82 scfm
Drive air pression 0 - 550 kPa (0 - 5.5 bar) 0 - 80 psi
Drive air consumption maxi. 470 nl/min 16.5 scfm
Brake air pression 0 - 550 kPa (0 - 5.5 bar) 0 - 80 psi
Horn air pression 20 - 500 kPa (0.2 - 5 bar) 3 - 72 psi
Horn air consumption maxi. 800 nl/min 28 scfm
Table of contents
Other WAGNER Electronic Cigarette manuals
