WAGO WINSTA Sunblind Box User manual

Pos: 2 /Dokumentatio n allgemein/Einband/Ei nband Deckblatt @ 9\mod_12 85229289866_0.doc @ 64941 @ @ 1
Manual
WAGO WINSTA® 770
WINSTA® Sunblind Box 4 Channel
770-629/130-000
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 3 /Alle Serien (Al lgemeine Module)/Hin weise zur Dokumentation/ Impressum - allgemein e Angaben, Anschri ften, Telefonnummern un d E-Mail-Adressen @ 3\mo d_1219151118203_21.doc @ 21060 @ @ 1

2 WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
© 2011 by WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D-32423 Minden
Phone: +49 (0) 571/8 87 – 0
Fax: +49 (0) 571/8 87 – 1 69
Web: http://www.wago.com
Technical Support
Phone: +49 (0) 571/8 87 – 5 55
Fax: +49 (0) 571/8 87 – 85 55
Every conceivable measure has been taken to ensure the accuracy and
completeness of this documentation. However, as errors can never be fully
excluded, we always appreciate any information or suggestions for improving the
documentation.
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally protected by trademark or patent.
=== Ende der Liste für Textmarke Einband_vorne ===

WAGO WINSTA® 770 Table of Contents 3
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 5 /Dokumentatio n allgemein/Verzeic hnisse/Inhalts verzeichnis - Überschri ft 1 und Verzeichnis @ 3\ mod_1219151230875_21.doc @ 21063 @ @ 1
Table of Contents
1Notes about this Documentation................................................................. 5
1.1 Scope of Validity....................................................................................... 5
1.2 Copyright................................................................................................... 5
1.3 Symbols..................................................................................................... 6
1.4 Number Notation....................................................................................... 8
1.5 Font Conventions ...................................................................................... 8
2Important Notes ........................................................................................... 9
2.1 Legal Bases ............................................................................................... 9
2.1.1 Subject
to Changes ............................................................................... 9
2.1.2 Technical Condition of Specified Devices........................................... 9
2.2 Safety Advice (Precautions).................................................................... 10
3Device Description ..................................................................................... 12
3.1 View ........................................................................................................ 13
3.2 Labeling................................................................................................... 14
3.3 Connectors............................................................................................... 15
3.3.1 Connection Overview......................................................................... 15
3.3.2 230V Supply....................................................................................... 16
3.3.3 Motors................................................................................................. 16
3.3.4 Local Push-Buttons ............................................................................ 17
3.3.5 Bus/Central Connection...................................................................... 17
3.3.6 Screening............................................................................................ 19
3.4 Display Elements .................................................................................... 20
3.5 Operating Elements................................................................................. 20
3.5.1 DIP Switch Module............................................................................ 20
3.5.2 IDC Connectors for Jumper................................................................ 21
3.6 Technical Data ........................................................................................ 22
3.6.1 General ............................................................................................... 22
3.6.2 Climatic Environmental Conditions................................................... 22
3.6.3 Supply................................................................................................. 22
3.6.4 Inputs.................................................................................................. 23
3.6.5 Outputs ............................................................................................... 23
3.6.6 Control................................................................................................ 24
3.6.7 Setting and Operating Units ............................................................... 24
3.7 Approvals ................................................................................................ 25
3.8 Standards and Guidelines........................................................................ 25
4Function Description ................................................................................. 26
4.1 Networking Several WINSTA®Sunblind Boxes.................................... 26
4.1.1 Bus Operation..................................................................................... 26
4.1.2 Central Operation ............................................................................... 26
4.2 Operating Functions................................................................................ 27
4.2.1 Sunblind Function .............................................................................. 27
4.2.2 Slat
Function....................................................................................... 27
4.2.3 Central
Function................................................................................. 27
5Assembly..................................................................................................... 28

4 Table of Contents WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
6Connect Devices ......................................................................................... 28
6.1 Connection Examples.............................................................................. 29
6.1.1 Central Connection with 24V Signals (Central Operation)................ 29
6.1.1.1 Central Operation without Voltage Monitoring ............................ 29
6.1.1.2 Central Operation with Voltage Monitoring.................................. 30
6.1.2 Bus Connection (Bus Operation)........................................................ 31
7Commissioning ........................................................................................... 32
7.1 General Notes.......................................................................................... 32
7.2 Opening the Housing............................................................................... 32
7.3 Setting Bus or Central Operation ............................................................ 33
7.3.1 Bus Operation..................................................................................... 33
7.3.2 Central Operation ............................................................................... 34
7.4 Setting Bus Address and Operating Mode.............................................. 35
7.4.1 Setting of the DIP Switches................................................................ 35
7.4.2 Setting
Bus Address ........................................................................... 36
7.4.3 Grouping............................................................................................. 37
7.4.3.1 A Group: Moving Motors 1 to 4 Simultaneously.......................... 37
7.4.3.2 Two Groups: Moving Motors 1 and 2 and Motors 3 and 4
Simultaneously .............................................................................. 37
7.4.3.3 Two Groups: Moving Motors 1, 2, and 3 Simultaneously, Motor 4
Moves Individually........................................................................ 37
7.4.3.4 Three Groups: Motors 1 and 2 Move Individually, Motors 3 and 4
Move Simultaneously .................................................................... 38
7.4.3.5 Four Groups: All Motors Move Individually ................................ 38
7.4.4 Setting of Bus Failure Monitoring / Voltage Monitoring................... 39
7.4.4.1 Standard Mode............................................................................... 39
7.4.4.2 Operation with Bus Failure Monitoring / Voltage Monitoring ..... 39
7.4.5 Setting the Operating Time ................................................................ 40
7.4.5.1 Operating Time 1 Minute .............................................................. 40
7.4.5.2 Operating Time 4 Minutes............................................................. 40
7.4.6 Setting the Operating Function (Sunblind/Slat Function).................. 41
7.4.6.1 Sunblind Function.......................................................................... 41
7.4.6.2 Slat
Function.................................................................................. 41
7.5 Initialization ............................................................................................ 42
8Diagnostics.................................................................................................. 43
9Accessories.................................................................................................. 44
List of Figures...................................................................................................... 45
List of Tables........................................................................................................ 46
=== Ende der Liste für Textmarke Verzeichnis_ vorne ===

WAGO WINSTA® 770 Notes about this Documentation 5
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 7 /Alle Serien (Al lgemeine Module)/Über schriften für alle Seri en/Hinweise zur Doku mentation - Überschr ift 1 @ 4\mod_1237987661750_21. doc @ 29029 @ 1 @ 1
1 Notes about this Documentation
Pos: 8 /Alle Serien (Al lgemeine Module)/Hin weise zur Dokumentation/ Hinweis: Dokumentati on aufbewahren @ 4\mod_1 237987339812_21. doc @ 29026 @ @ 1
Keep this documentation!
The operating instructions are part of the product and shall be kept for the entire
lifetime of the device. They shall be transferred to each subsequent owner or user
of the device. Care must also be taken to ensure that any supplement to these
instructions are included, if applicable.
Pos: 9 /Serie 770 (Winsta- Boxen)/Hinweise zur Dokumentation/ Gültigkeit Dokumentatio n Winsta-Box 0770-06 29 mit Versionsangabe @ 6\ mod_1260517433517_ 21.doc @ 46994 @ 2 @ 1
1.1 Scope of Validity
This documentation applies to the WINSTA®box 770-629/130-000
(WINSTA® Sunblind Box 4 Channel) from HW/FW version XXXX0201XX.
Pos: 10 /Serie 770 (W insta-Boxen)/Hinweise zur Dokumentation/ Hinweis zur Dokumentatio n Winsta-Box 0770-0629 @ 6\mod_1260517445938_ 21.doc @ 46998 @ @ 1
The WINSTA®box 770-629/130-000 shall only be installed and operated
according to the instructions in these operating instructions.
Pos: 11.1 /Alle Serien ( Allgemeine Module)/Hin weise zur Dokumentati on/Urheberschutz au sführlich @ 4\mod_1235 565145234_21.doc @ 27691 @ 2 @ 1
1.2 Copyright
This Manual, including all figures and illustrations, is copyright-protected. Any
further use of this Manual by third parties that violate pertinent copyright
provisions is prohibited. Reproduction, translation, electronic and phototechnical
filing/archiving (e.g., photocopying) as well as any amendments require the
written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany.
Non-observance will involve the right to assert damage claims.
Pos: 11.2 /Dokumentatio n allgemein/Glieder ungselemente/---Seitenwechsel---@ 3\mod_1221108045 078_0.doc @ 21810 @ @ 1

6 Notes about this Documentation WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 11.3 /Alle Serien ( Allgemeine Module)/Hin weise zur Dokumentati on/Symbole @ 3\mod_121 7394197593_21.doc @ 21010 @ 2 @ 1
1.3 Symbols
Personal Injury!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Personal Injury Caused by Electric Current!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Personal Injury!
Indicates a moderate-risk, potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Personal Injury!
Indicates a low-risk, potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Damage to Property!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Damage to Property Caused by Electrostatic Discharge (ESD)!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Important Note!
Indicates a potential malfunction which, if not avoided, however, will not result in
damage to property.

WAGO WINSTA® 770 Notes about this Documentation 7
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Additional Information:
Refers to additional information which is not an integral part of this
documentation (e.g., the Internet).
Pos: 11.4 /Dokumentatio n allgemein/Glieder ungselemente/---Seitenwechsel---@ 3\mod_1221108045 078_0.doc @ 21810 @ @ 1

8 Notes about this Documentation WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 11.5 /Alle Serien ( Allgemeine Module)/Hin weise zur Dokumentati on/Zahlensyste me@ 3\ mod_1221059454015_21. doc @ 21711 @ 2 @ 1
1.4 Number Notation
Table 1: Number Notation
Number code Example Note
Decimal 100 Normal notation
Hexadecimal 0x64 C notation
Binary '100'
'0110.0100'
In quotation marks, nibble separated with
dots (.)
Pos: 11.6 /Alle Serien ( Allgemeine Module)/Hin weise zur Dokumentati on/Schriftkonven tionen @ 3\mod_122105952 1437_21.doc @ 21714 @ 2 @ 1
1.5 Font Conventions
Table 2: Font Conventions
Font type Indicates
italic Names of paths and data files are marked in italic-type.
e.g.: C:\Programme\WAGO-I/O-CHECK
Menu Menu items are marked in bold letters.
e.g.: Save
> A greater-than sign between two names means the selection of a
menu item from a menu.
e.g.: File > New
Input Designation of input or optional fields are marked in bold letters,
e.g.: Start of measurement range
“Value” Input or selective values are marked in inverted commas.
e.g.: Enter the value “4 mA” under Start of measurement range.
[Button] Pushbuttons in dialog boxes are marked with bold letters in square
brackets.
e.g.: [Input]
[Key] Keys are marked with bold letters in square brackets.
e.g.: [F5]
Pos: 12 /Dokumentati on allgemein/Glieder ungselemente/---Seitenwechsel---@ 3\mod_1221108045078 _0.doc @ 21810 @ @ 1

WAGO WINSTA® 770 Important Notes 9
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 13 /Alle Serien ( Allgemeine Module)/Über schriften für alle Seri en/Wichtige Erläu terungen - Überschri ft 1 @ 4\mod_1241428899156_2 1.doc @ 32170 @ 1 @ 1
2 Important Notes
Pos: 14.1 /Alle Serien ( Allgemeine Module)/W ichtige Erläuterungen/ Einleitung Wi chtige Erläuterungen @ 3\mod_12 21059818031_21.doc @ 21717 @ @ 1
This section includes an overall summary of the most important safety
requirements and notes that are mentioned in each individual section. To protect
your health and prevent damage to devices as well, it is imperative to read and
carefully follow the safety guidelines.
Pos: 14.2 /Alle Serien ( Allgemeine Module)/Ü berschriften für alle Serien/Rechtlic he Grundlagen - Überschri ft 2 @ 3\mod_1221060626343 _21.doc @ 21726 @ 2 @ 1
2.1 Legal Bases
Pos: 14.3 /Alle Serien ( Allgemeine Module)/W ichtige Erläuterungen/ Änderungsvorbeha lt @ 3\mod_1221060036484 _21.doc @ 21720 @ 3 @ 1
2.1.1 Subject to Changes
WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any
alterations or modifications that serve to increase the efficiency of technical
progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from
the granting of patents or from the legal protection of utility patents. Third-party
products are always mentioned without any reference to patent rights. Thus, the
existence of such rights cannot be excluded.
Pos: 14.4 /Alle Serien ( Allgemeine Module)/W ichtige Erläuterungen/ Technischer Zustan d der Geräte @ 3\mod_122106 0446109_21.doc @ 21723 @ 3 @ 1
2.1.2 Technical Condition of Specified Devices
The components to be supplied Ex Works, are equipped with hardware and
software configurations, which meet the individual application requirements.
WAGO Kontakttechnik GmbH & Co. KG will be exempted from any liability in
case of changes in hardware or software as well as to non-compliant usage of
components.
Please send your request for modified and new hardware or software
configurations directly to WAGO Kontakttechnik GmbH & Co. KG.
Pos: 14.5 /Dokumentatio n allgemein/Glieder ungselemente/---Seitenwechsel---@ 3\mod_1221108045 078_0.doc @ 21810 @ @ 1

10 Important Notes WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 14.6 /Alle Serien ( Allgemeine Module)/Ü berschriften für alle Serien/Sicherhei tshinweise - Überschr ift 2 @ 6\mod_1260180299987_ 21.doc @ 46724 @ 2 @ 1
2.2 Safety Advice (Precautions)
Pos: 14.7 /Alle Serien ( Allgemeine Module)/W ichtige Erläuterungen/ Sicherheitshin weise/Einleitung Si cherheitshinweise Hardware @ 6\mod_1260180 170493_21.doc @ 46720 @ @ 1
For installing and operating purposes of the relevant device to your system the
following safety precautions shall be observed:
Pos: 14.8.1 /Alle Serien ( Allgemeine Module)/ Wichtige Erläuteru ngen/Sicherheitshi nweise/Gefahr/Gef ahr: Nicht an Geräten unt er Spannung arbeiten! @ 6\ mod_1260180365327_21. doc @ 46727 @ @ 1
Do not work on components while energized!
All power sources to the device shall be switched off prior to performing any
installation, repair or maintenance work.
Pos: 14.8.2 /Alle Serien ( Allgemeine Module)/ Wichtige Erläuteru ngen/Sicherheitshi nweise/Gefahr/Gef ahr: Unfallverhütung svorschrif tenbe achten! @ 6\mod_1260180 657000_21.doc @ 46735 @ @ 1
Pos: 14.8.3 /Alle Serien ( Allgemeine Module)/ Wichtige Erläuteru ngen/Sicherheitshi nweise/Gefahr/Gef ahr: Auf normgerechten An schluss achten! @ 6\mod_1260180753479_21. doc @ 46739 @ @ 1
Pos: 14.8.4 /Alle Serien ( Allgemeine Module)/ Wichtige Erläuteru ngen/Sicherheitshi nweise/Achtung/Ac htung: Verpolung ver meiden! @ 6\mod_1260184045 744_21.doc @ 46767 @ @ 1
Do not reverse the polarity of connection lines!
Avoid reverse polarity of data and power supply lines, as this may damage the
devices involved.
Pos: 14.8.5 /Alle Serien ( Allgemeine Module)/ Wichtige Erläuteru ngen/Sicherheitshi nweise/Achtung/Ac htung: Defekte oder besc hädigte Geräte austau schen! @ 6\mod_12601808 57358_21.doc @ 46743 @ @ 1
Replace defective or damaged devices!
Replace defective or damaged device/module (e.g., in the event of deformed
contacts), since the long-term functionality of device/module involved can no
longer be ensured.
Pos: 14.8.6 /Alle Serien ( Allgemeine Module)/ Wichtige Erläuteru ngen/Sicherheitshi nweise/Achtung/Ac htung: Geräte vor kri echenden und isolieren den Stoffen schützen! @ 6\mod_1260181036216_21. doc @ 46747 @ @ 1
Protect the components against materials having seeping and insulating
properties!
The components are not resistant to materials having seeping and insulating
properties such as: aerosols, silicones and triglycerides (found in some hand
creams). If you cannot exclude that such materials will appear in the component
environment, then install the components in an enclosure being resistant to the
above-mentioned materials. Clean tools and materials are imperative for handling
devices/modules.
Pos: 14.8.7 /Alle Serien ( Allgemeine Module)/ Wichtige Erläuteru ngen/Sicherheitshi nweise/Achtung/Ac htung: Reinigung nur mi t zulässigen Materi alien! @ 6\mod_1260181203 293_21.doc @ 46751 @ @ 1
Cleaning only with permitted materials!
Clean soiled contacts using oil-free compressed air or with ethyl alcohol and
leather cloths.
Pos: 14.8.8 /Alle Serien ( Allgemeine Module)/ Wichtige Erläuteru ngen/Sicherheitshi nweise/Achtung/Ac htung: Kein Kontaktspr ay verwenden! @ 6\mod_1260 181290808_21.doc @ 46755 @ @ 1
Do not use any contact spray!
Do not use any contact spray. The spray may impair contact area functionality in
connection with contamination.
Pos: 14.8.9 /Alle Serien ( Allgemeine Module)/ Wichtige Erläuteru ngen/Sicherheitshi nweise/Achtung/Ac htung: Elektrosta tische Entladung ver meiden! @ 6\mod_1260181364729_ 21.doc @ 46759 @ @ 1

WAGO WINSTA® 770 Important Notes 11
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Avoid electrostatic discharge!
The devices are equipped with electronic components that you may destroy by
electrostatic discharge when you touch. Pay attention while handling the devices
to good grounding of the environment (persons, job and packing).
Pos: 15 /Dokumentati on allgemein/Glieder ungselemente/---Seitenwechsel---@ 3\mod_1221108045078 _0.doc @ 21810 @ @ 1

12 Device Description WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 16 /Alle Serien ( Allgemeine Module)/Über schriften für alle Seri en/Gerätebeschrei bung - Überschrif t 1 @ 3\mod_1233756084656_21. doc @ 27096 @ 1 @ 1
3 Device Description
Pos: 17 /Serie 770 (W insta-Boxen)/Gerätebesc hreibung/Beschrei bung/Gerätebesc hreibung 0770-0629/ 0130-0000 @ 6\mod_1256821 013658_21.doc @ 43960 @ @ 1
The WINSTA®Sunblind Box is a decentralized, stand-alone unit that controls 4
sunblind motors operated via standard switches. Output group configuration,
operating time and "slat/sunblind" mode selection are performed via DIP switch.
Operating the boxes in a network configuration provides extended functionality:
1. The sunblinds of all connected boxes can optionally be moved into the
upper or lower end position via a central 24V control line. Either a weather
station, a timer or a central switch enables this functionality.
2. 2. The boxes also connect to a serial bus, allowing a higher-level control
system to access up to 16 boxes connected to one bus segment. This
operating mode addresses both individual channels and groups of boxes.
Bus failure / Voltage monitoring also enables the sun blinds to be moved to their
top position on a bus failure or, for example, on a wire break.
Pos: 18 /Dokumentati on allgemein/Glieder ungselemente/---Seitenwechsel---@ 3\mod_1221108045078 _0.doc @ 21810 @ @ 1

WAGO WINSTA® 770 Device Description 13
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 19 /Alle Serien ( Allgemeine Module)/Über schriften für alle Seri en/Ansicht - Überschr ift 2 @ 4\mod_124098421734 3_21.doc @ 31958 @ 2 @ 1
3.1 View
Pos: 20 /Serie 770 (W insta-Boxen)/Gerätebesc hreibung/Ansicht/ Ansicht 0770-0629/ 0130-0000 @ 6\mod_12568 21360033_21.doc @ 439 63 @ @ 1
DIP-Modul 2 DIP-Modul 1
M4
M3
M2
M1
S1
S2
S3
S4
1
2
N
1
2
N
N
2
1
N
2
1
N
L
4
3
2
1
123456
ON DIP
123456
ON DIP
123456
ON DIP
S6
S5
S7
230 V
Jumper
8
7
10
10
10
10
123
9
45
6
2
7
7
7

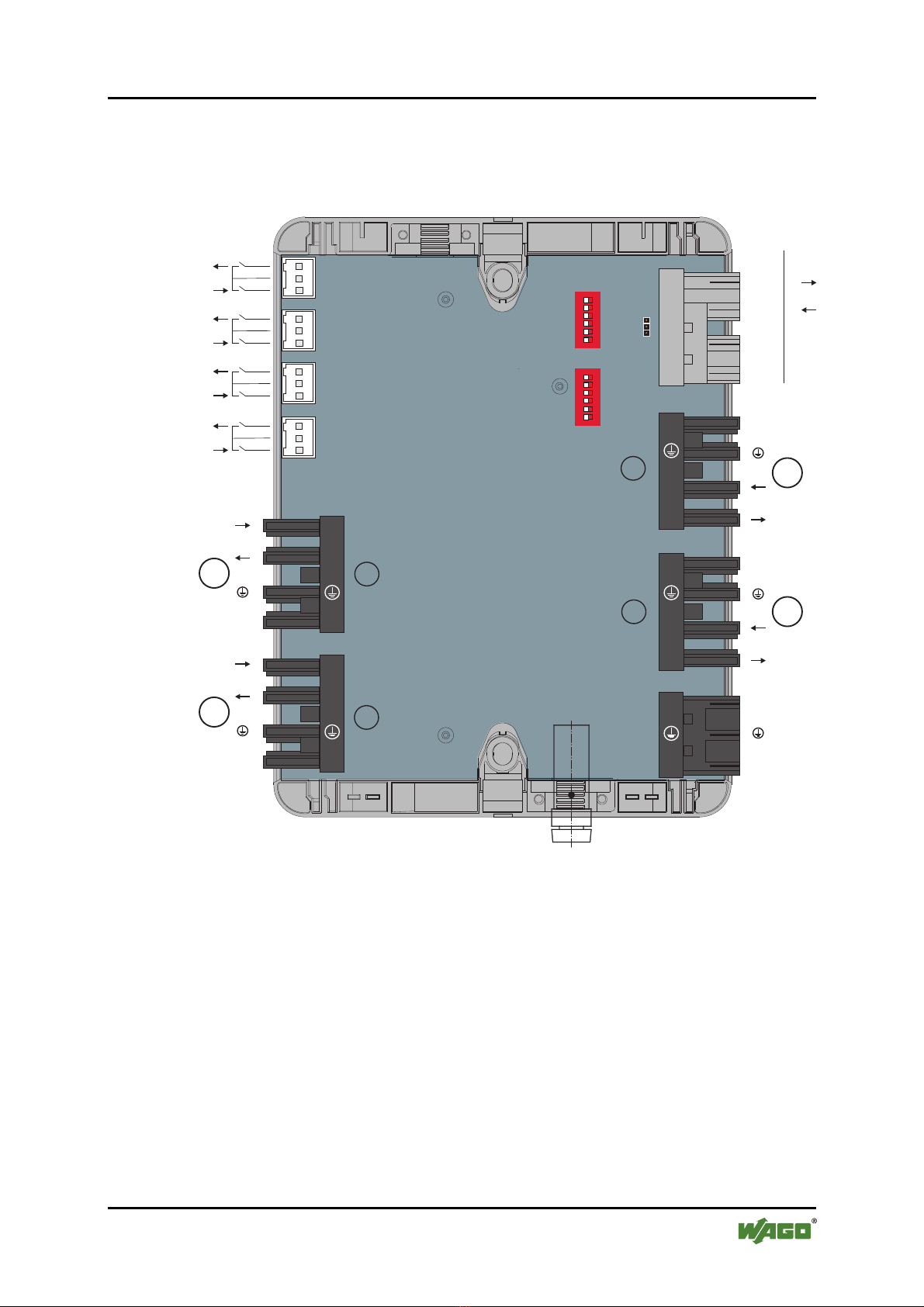

Figure 1: View
Table 3: Legend for "View" figure
No. Designation Description
1 --- Housing
2 --- Assembly/fitting points
3 S5 DIP module 1: bus addresses
4 S6 DIP module 2: operating functions
5 S7 IDC connector/jumper: selection of the control (bus/central)
6 --- Central/bus control (depending on the setting)
7 M1 ... M4 Motor connections
8 --- 230V power supply
9 --- 6.3A microfuse
10 S1 ... S4 Button inputs
Pos: 21 /Dokumentati on allgemein/Glieder ungselemente/---Seitenwechsel---@ 3\mod_1221108045078 _0.doc @ 21810 @ @ 1

14 Device Description WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 22 /Alle Serien ( Allgemeine Module)/Über schriften für alle Seri en/Bedruckung - Übersc hrift 2 @ 4\mod_1241082 409515_21.doc @ 32035 @ 2 @ 1
3.2 Labeling
Pos: 23 /Serie 770 (W insta-Boxen)/Gerätebesc hreibung/Bedruckun g/Bedruckung 0770- 0629/0130-0000 @ 7\mod _1267782981730_21.do c @ 51787 @ @ 1
Figure 2: Marking
The marking includes, in addition to the manufacturer and device designation, the
most important device data, the marking field for the address, the serial number
and the pin assignments for the connectors.
Marking field for address
To make identification even easier, enter the set bus address in the address field.
The serial number indicates the delivery status directly after production. This
number consists of the week and year of manufacture, the software version, the
hardware version and the firmware loader version (optional).
10 11 02 01 --
Calendar-
week
Year Software
version
Hardware
version
Firmware Loader
version
Figure 3: Example of a serial number
Pos: 24 /Dokumentati on allgemein/Glieder ungselemente/---Seitenwechsel---@ 3\mod_1221108045078 _0.doc @ 21810 @ @ 1

WAGO WINSTA® 770 Device Description 15
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 25 /Alle Serien ( Allgemeine Module)/Über schriften für alle Seri en/Anschlüsse - Übersc hrift 2 @ 4\mod_1240984262 656_21.doc @ 31961 @ 2 @ 1
3.3 Connectors
Pos: 26 /Serie 770 (W insta-Boxen)/Gerätebesc hreibung/Ansch lüsse/Anschlüsse 0770-0 629/0130-0000 @ 6\mod_1 255677975461_21.d oc @ 42970 @ 333333 @ 1
3.3.1 Connection Overview
DIP-Modul 2 DIP-Modul 1
230 V
M4
M3
M2
M1
S1
S2
S3
S4
1
2
N
1
2
N
N
2
1
N
2
1
N
L
4
3
2
1
123456
ON DIP
123456
ON DIP
123456
ON DIP
Jumper
S6
S5
S7
N
N
NC
A
B
NC
GND
NC
N
N
N
L
M
M
M
M
CentralBus
Figure 4: Connection Overview

16 Device Description WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
3.3.2 230V Supply
As a system supply (electrical supply for both the motors as well as the control
electronics), the sunblind box needs 230 V alternating voltage.
The power supply is handled by the three-pole plug connector with the
designation "230 V." The connection is fused with a 6.3 A fuse.

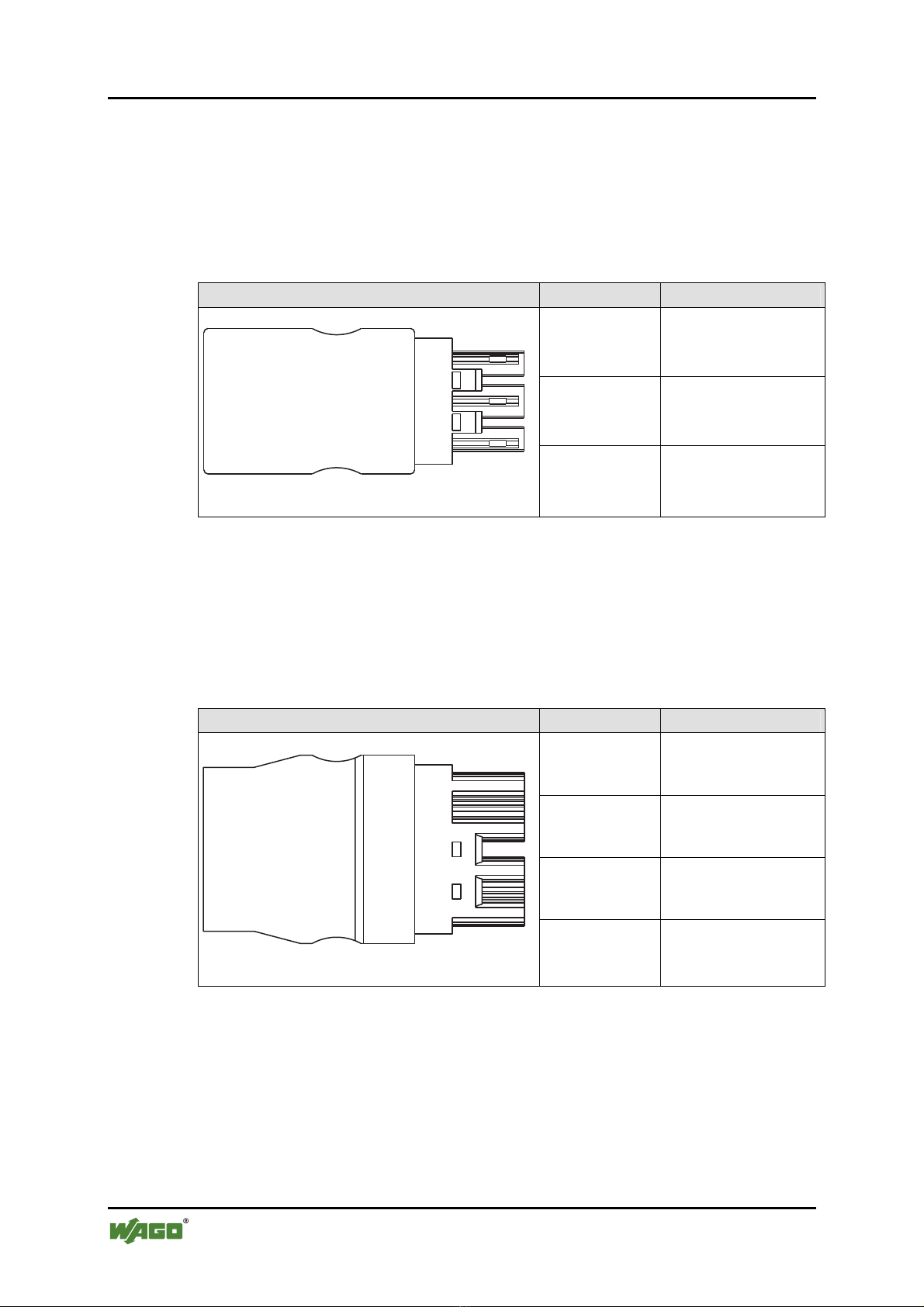

Table 4: Connection of 230V supply
Connection Designation Function
L L
PE PE
L
PE
N
L
PE
N
WAGO
770-103
WAGO
770-103
Figure 5: Connection of 230V supply
N N
3.3.3 Motors
The motors are each connected to the box via a four-pole plug ("M1" to "M4");
here a uniform rotational direction connection and the correct operation direction
must be observed.
Table 5: Motor connection
Connection Designation Function
1 Up
2 Down
PE PE
1
2
PE
N
1
2
PE
N
WAGO
770-114
WAGO
770-114
Figure 6: Motor connection
N N

WAGO WINSTA® 770 Device Description 17
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
3.3.4 Local Push-Buttons
The local operating push buttons are connected to the push button inputs ("S1" to
"S4") with the corresponding plug connectors. This is safety extra-low voltage.
The installation of these lines must be carried out in SELV.
Table 6: Local push button connection
Connection Designation Function
1 Down
2 12 V DC
1
2
3
1
2
3
WAGO
734-103 (Buchse)
734-603 (Gehäuse)
WAGO
734-103 (Buchse)
734-603 (Gehäuse)
Figure 7: Local push button connection
3 Up
3.3.5 Bus/Central Connection
Do not use unused connections!
Depending on the operating mode set, some connections are not connected (N.C.).
These connections cannot be used!
Usage can cause damage to or malfunction of the device!
The type of activation of the box can be selected with the help of an IDC
connector/jumper. At the factory, bus operation (activation via RS485 signal) is
pre-set. Alternatively, by changing the jumper, it is possible to select central
operation (activation via 24V DC control signal). The setting of the jumper is
described in the chapter "Putting into operation > Setting bus or central
operation."
In bus operation, a WAGO-I/O controller can be used on a bus segment to
connect up to 16 participants. These can be grouped and activated at will. The bus
connection is made using the four-pole plug ("Bus/central") and the plug
assignment "Bus."
With the help of a 24V DC control signal, it is possible to move all of the
connected shades into the upper or lower end position. This way, the sunblind box
can be operated with a weather station, timer or a central switch. Central operation
is also connected using the four-pole plug with the designation "Bus/Central,"
however with the plug assignment "Central" and previous re-plugging of the
jumper.

18 Device Description WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Table 7: Bus/central connection
Function
Connection Designation Bus Central
1 B N.C.
2 A GND
3 N.C. Down
1
2
3
4
1
2
3
4
WAGO
770-244 (Buchse)
770-504/023 (Gehäuse)
WAGO
770-244 (Buchse)
770-504/023 (Gehäuse)
Figure 8: Bus/central connection
4 N.C. Up
Activation via the WAGO-I/O-SYSTEM 750
The following module is required to activate via bus signal/RS485 and WAGO-
I/O-SYSTEM:
RS-485 serial interface, adjustable; item number 750-653/003-000.

WAGO WINSTA® 770 Device Description 19
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
3.3.6 Screening
The screening of the data and signal lines reduces the electromagnetic influences
and thus increases the signal quality. Measurement errors, data transmission
errors, and even destruction due to excessive voltage can be prevented this way.
Data and signal lines must be laid separately from all high-voltage cables.
There must be large-area contact between the screening of the cables and the
ground potential. The screening should be laid at the entrance to the cabinet or
housing in order to catch interference right at the entrance.
The screening of the bus line is described in the respective configuration
guidelines and standards of the bus system (RS485 specification).
Lay the screening so that its area is as large as possible!
Improved screening is achieved if the large-area screening is applied. This is
especially recommended for systems with a large circumference where the
possible occurrence of equalizing current or high impulse-type currents caused by
atmospheric discharge cannot be avoided. The WAGO-I/O-SYSTEM is suitable
for the screening connection system.
Pos: 27 /Dokumentati on allgemein/Glieder ungselemente/---Seitenwechsel---@ 3\mod_1221108045078 _0.doc @ 21810 @ @ 1

20 Device Description WAGO WINSTA® 770
770-629/130-000 WINSTA® Sunblind Box 4 Channel
Manual
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 28 /Alle Serien ( Allgemeine Module)/Über schriften für alle Seri en/Anzeigeelemen te- Überschrif t2 @ 4\mod_1240984390875_21.d oc @ 31964 @ 2 @ 1
3.4 Display Elements
Pos: 29 /Serie 770 (W insta-Boxen)/Gerätebesc hreibung/Anzeigee lemente/Anzeige elemente 0770-xxxx nic ht vorhanden @ 6\mod_1256 826265331_21.doc @ 43978 @ @ 1
The WINSTA® Sunblind Box 4 Channel 770-629/130-000 has no display
elements.
Pos: 30 /Alle Serien ( Allgemeine Module)/Über schriften für alle Seri en/Bedienelemen te- Überschrift 2 @ 4\mod_12 39191655456_21.doc @ 30439 @ 2 @ 1
3.5 Operating Elements
Pos: 31 /Serie 770 (W insta-Boxen)/Gerätebesc hreibung/Bediene lemente/Bediene lemente 0770-0629/0130- 0000 @ 6\mod_12568941696 78_21.doc @ 43990 @ 33 @ 1
3.5.1 DIP Switch Module
The sunblind box has two DIP switch modules that can be used to make different
settings.
DIP-Modul 2 DIP-Modul 1
M3
4
3
2
1
123456
ON DIP
123456
ON DIP
123456
ON DIP
S6
Jumper
S7
S5

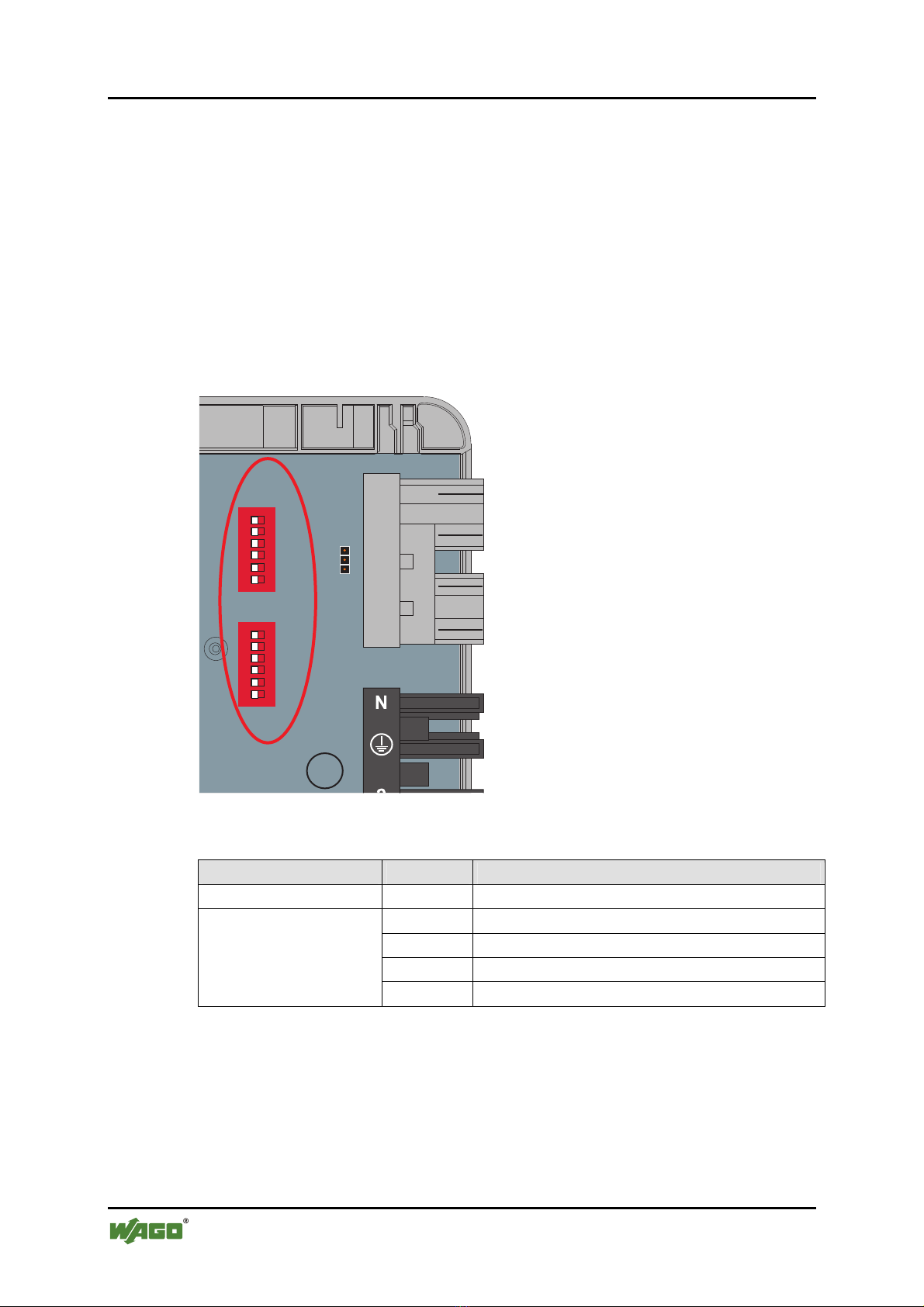

Figure 9: DIP switch module
Table 8: DIP switch module
DIP switch module Switch Function
1 1 ... 5 Bus address
1 ... 3 Grouping of the motors
4 Bus Failure / Voltage Monitoring
5 Moving time of the motors
2
6 Slat or sunblind mode
This manual suits for next models
