Instructions................................................................................................................... 3
1. Before Using the TV............................................................................................... 6
1.1 Remote control .................................................................................. 6
1.2 Front Panel Controls ........................................................................ 8
1.3 Rear Panel Jacks................................................................................. 8
1.4
CAM (Conditional Access Module) and Smart Card (Option) .... 9
2. Connections...........................................................................................................10
2.1 Connecting the TV to Various Other Systems.......................10
3. Easy Installation....................................................................................................13
3.1 Language ...........................................................................................13
3.2 Local Time/GMT...............................................................................13
3.3 Channel Search ................................................................................14
4. Operation................................................................................................................16
4.1 Basic Operation................................................................................16
5. TV Menu ..................................................................................................................17
5.1 PICTURE...............................................................................................17
5.2 SOUND ...............................................................................................19
5.3 MENU (In DTV mode only) ...........................................................21
5.4 SCREEN................................................................................................28
5.5 SETTING ..............................................................................................30
5.6 CHANNEL (In Analog TV mode only)........................................32
6. Function Description..........................................................................................35
6.1 Basic Function Usage.....................................................................35
6.2 Teletext Feature...............................................................................36
7. Appendix ...............................................................................................................37
7.1 Preparing before installing Wall-Mount on the wall ..........37
7.2 Troubleshooting..............................................................................38
7.3 Specifications....................................................................................39
Contents
2 - ENG
WALKER.indd 2 2008-08-26 �� 1:16:35

Safety Warnings
Instructions
Attention: In order to prevent fire or electrical shock, do not open the casing or rear
panel.
A lightning bolt with an arrowhead in an equilateral triangle should indicate to the
user that dangerous voltage inside the product is strong enough to give a person an
electrical shock.
CE Certification Symbol: We have conducted tests and demonstrated our compliance
with all relevant EU guidelines and requirements.
An exclamation mark in an equilateral triangle should indicate to the user that
important usage, maintenance and service instructions are located in the manual
accompanying the device.
A laser product symbol on the back of the device indicates that this device is a certified
laser product. The laser is weak outside of the device and only emits innocuous
radiation.
Keep Electrical Devices Out of the Hands of Children
Never allow children to use electronic devices unsupervised. Batteries can be deadly if swallowed.
Therefore, keep the device and batteries where children cannot reach them. If a battery is swallowed, medical
help must be sought immediately.
Moisture and Cleaning
This product is not waterproof! Do not immerse this device in water and do not let it come in contact with
water. Water can cause serious damage inside the device. Do not use any cleaning products which contain
alcohol, ammonia, benzene or abrasives, as these can damage the unit. Use a soft, damp cloth for cleaning.
Heat and Warmth
Do not place this device in direct sunlight. Ensure that the device is not exposed to a direct heat source such as
a radiator or an open fire. Make sure that the device's ventilation openings are not covered.
Caution! Important References to the Ear Protection
Your hearing is important to you and to us.
Therefore, please be careful when using this device.
We recommend that you: avoid loud volumes!
If this device is to be used by children, ensure that the device is not set too loud.
ENG - 3
WALKER.indd 3 2008-08-26 �� 1:16:36

Attention!
Too high a volume can cause irreparable damage in children.
SET A SAFE VOLUME LEVEL
• Afterrepeatedlisteningtoloudmusic,yourhearinggraduallybecomesadjustedtothisandgivesyouthe
impression that the volume is lower.
• Whatseemsnormaltoyoucaninfactbeharmfulinreality.
• Toprotectyourselffromthis,setthevolumetoalowlevel.
• Increasethevolumeslowly,untilyoucanhearclearlyandwithoutdifficulty.
• Therearemanykindsofauditorydamageandtheycannotbereversed.
• Ifyounoticedisturbanceswithyourears,pleasecontactadoctor.
Interference with Other Devices
If interference with radio or television reception occurs during use, place the device in another place in the room
or building.
Disposal
Batteries and packaging material do not belong in domestic waste. The batteries must be delivered to a
collection center for old batteries. The separate disposal of packaging materials protects the environment.
Disposal old electrical & electronic equipment (Applicable in the European union and other European countries with
separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated
as household waste. Instead it shall be handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this product. The recycling
of materials will help to conserve natural resources. For more detailed information about
recycling of this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.
4 - ENG
WALKER.indd 4 2008-08-26 �� 1:16:36

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus.Whenacartisused,usecautionwhenmovingthecart/apparatuscombinationtoavoidinjury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damagedinanyway,suchaspower-supplycordorplugisdamaged,liquidhasbeenspilledorobjectshave
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15.Donotexposethisapparatustodrippingorsplashingandensurethatnoobjectsfilledwithliquids,suchas
vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from
the AC receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. An apparatus with CLASS I construction shall be connected to a Mains socket outlet with a protective
earthing connection.
Note: Prolonged use of headphones at a high volume may cause health damage on your ears.
ENG - 5
WALKER.indd 5 2008-08-26 �� 1:16:36

1. Before Using the TV
1. POWER To switch between ON and STANDBY
mode.
2.
SOURCE To select the DTV, ATV, SCART1/2, AV,
Component, HDMI1/2 or PC.
3.
Number buttons
To select the channel directly and enter
channel edit, PIN code.
4.
OneTwo-digit button
OneTwo-digit channel selection.
TV/RADIO To switch between TV and radio.
5.
Colour buttons
To select button in the OSD (On Screen
Display).
Red button To display the Subtitle window on the
screen.
Green button To sort channel list.
Yellow button To display the Timer window.
Blue button To display the programme information.
6.
SLEEP To set the sleep timer.
7.
P.MODE To select picture mode.
8.
Navigation buttons
To control the cursor in the menu.
9.
STILL To freeze the current picture.
10.
MENU To display the main on-screen menu.
11.
VOL + / - To increase or decrease the volume.
12.
Not available
13. A.Lang To select the audio language.
14.
EXIT To return the normal viewing mode
from a menu.
15.
CH + / - To change channel up and down.
16.
GUIDE Electronic Program Guide display.
17.
ASPECT To select Aspect Ratio.
18.
S.MODE To select sound mode.
19.
PRE-CH To select the previous channel.
20.
MUTE button To cut off the sound.
1.1 Remote control
When using the remote, always point it directly at the TV.
6 - ENG
1
2
3
4
5
6
7
8
9
10
11
12
20
19
18
17
16
14
13
15
WALKER.indd 6 2008-08-26 �� 1:16:37

21. To display the available teletext sub-
page.
22.
To display the teletext index page.
23.
PIP/INPUT To select a source of sub-picture.
24.
PIP Picture-In-Picture On/Off
25.
FLOP/LIST To select the teletext mode.
26.
TTX/MIX To activate teletext mode.
27.
HOLD To hold teletext.
28.
SIZE To control teletext size.
29.
REVEAL To reveal teletext.
30.
CH
↑
/
↓
To change the PIP channel.
31.
STORE To store teletext.
32.
SWAP To exchange the main and sub pictures.
33.
LOCATE To select a position of sub-picture.
34.
/ To select the next or previous teletext
page.
35.
To cancel teletext.
Note
• Wheninsertingbatteries,makesurethatthepolarity(+/-)is
correct.
• ThedesignoftheRemoteControlUnitmaybechanged
without any notice in advance.
ENG - 7
21
22
23
35
24
25
26
27
28
34
33
32
31
30
29
WALKER.indd 7 2008-08-26 �� 1:16:38

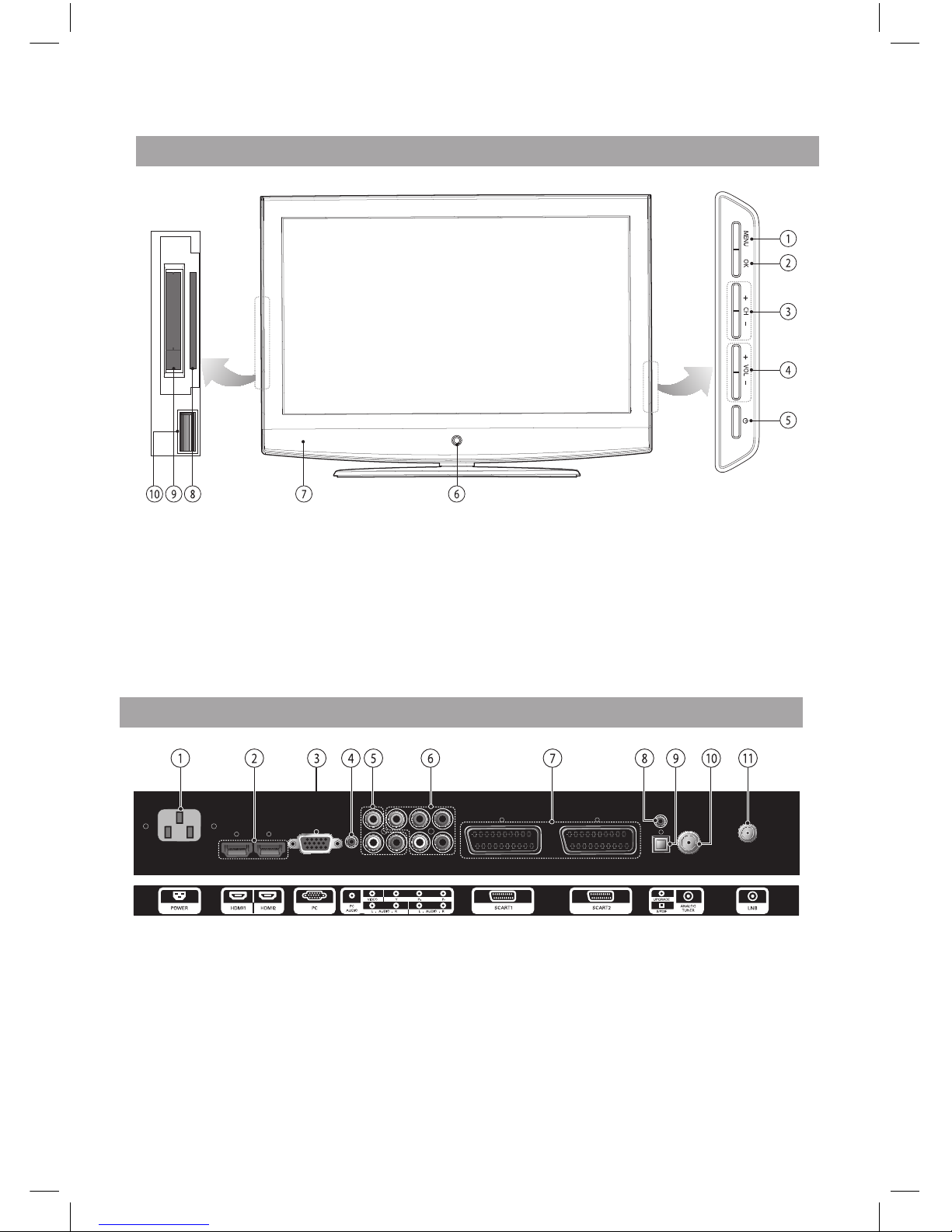

1.2 Front Panel Controls
1. Menu Press to display the on-screen menu of your TV’s
features.
2. OK Press this button to select the required menu.
3. + CH -Press to change channel up and down.
4. + VOL - Press to increase or decrease the volume.
5. Power Press to turn the TV On and Off.
6. Power / Standby Indicator
Blinks and turn off when the power is on and lights up in
standby mode.
7. Speaker
8. Smart Card Slot
Insert the smart card to view and listen to all the channels
you choose to subscribe to.
9. Common Interface (CI) Slot
Insert the CI to view and listen to all the channels you
choose to subscribe to.
10.USB port
Connect a USB memory device or a PC by using a USB cable.
1.3 Rear Panel Jacks
1. Power In
To connect the supplied power code.
2. HDMI1/2
TousetheHDMIcabletoconnectthisjacktotheHDMI
jackonyourexternaldeviceforthebestqualitypicture.
3. PC
ToconnecttothevideooutputjackonyourPC.
4. AUDIO
ToconnecttotheaudiooutputjackonyourPC.
5. Composite In
Audio(L/R)andvideo(VIDEO)connectionjack.
6. Component In
To input audio (L/R) and video (Y, PB, PR) for component.
7. SCART 1/2
ToconnectthisjacktotheexternaldevicesviaSCART
cable.
8. UPGRADE
To connect for the upgrade.
9. S/PDIF (Optical)
To connect a digital amplifier output.
10.ANALOG TUNER
To connect terrestrial antenna.
11.LNB
To connect satellite antenna.
8 - ENG
WALKER.indd 8 2008-08-26 �� 1:16:39

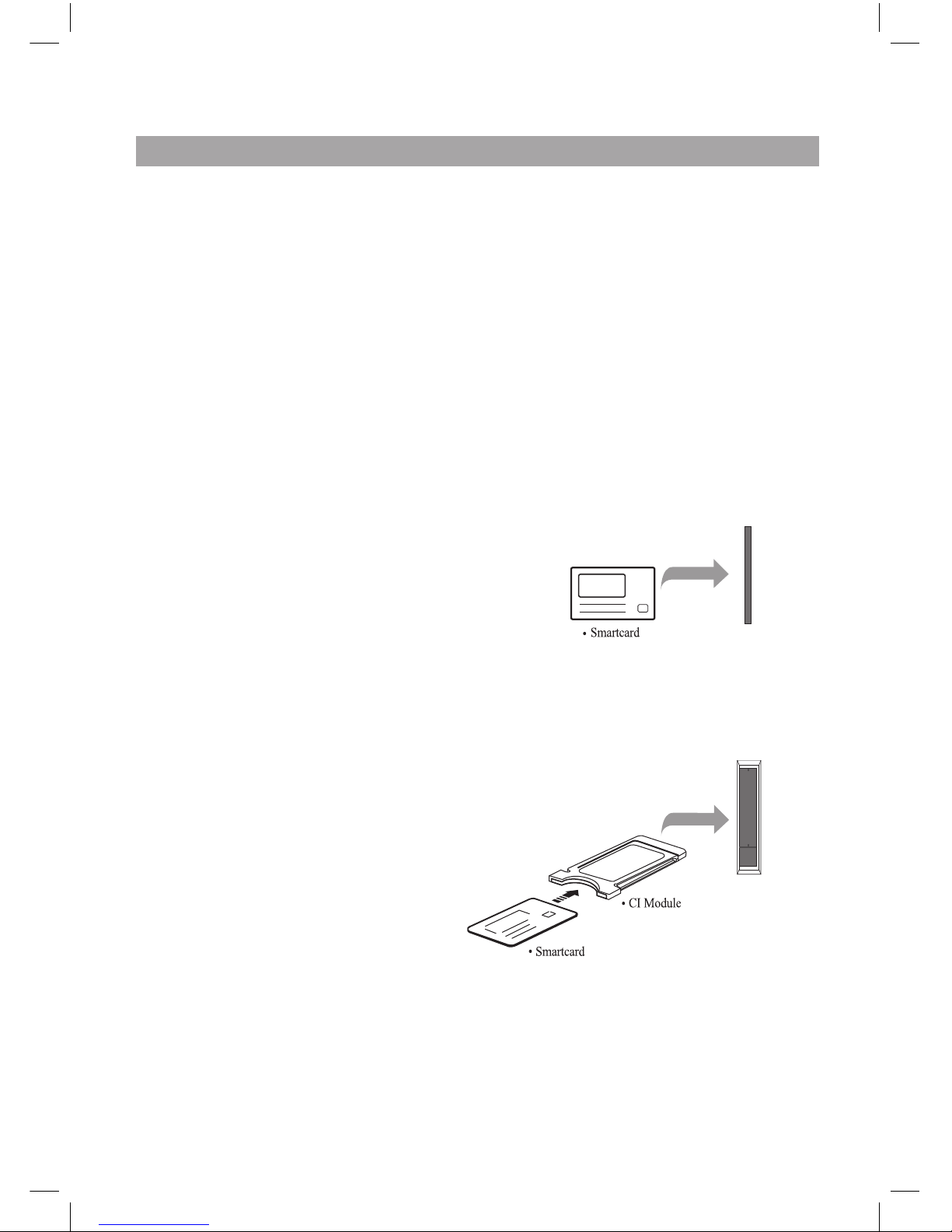

1.4 CAM (Conditional Access Module) and Smart Card (Option)
Note
Please do not plug in the main power supply cord until you have finished all of the connections!
Although some TV and radio channels are free to view, you must subscribe to most TV and radio/music channels
and a Conditional Access component is required.
Ifyouwanttoenjoywatchingscrambledbroadcastingchannels,youneedtopurchasetheCAMsandsmart
cards from a service provider’s sales department.
However, broadcasting channels from multiple service providers call for multiple CAMs and Smart cards.
TV which have only the CAMs and smartcards provided by the one service provider can show several
broadcasting channels of the provider.
Please refer to manuals provided by service providers for details because the CAM and smartcards are featured
with unique menus, apart from menus given by the TV.
Watching “Free-To-Air” channel is available regardless of the CAM and smart cards.
As service providers download new information to smart cards if necessary, those who have CAMs and smart
cards should always put the smart cards in proper slots
Inserting a Smart card
A Smart card looks similar to a credit card and entitles you to view
and listen to all the channels you choose to subscribe to. The
Smart card slot on the TV can be used for Smart cards only.
1. Open the right-hand cover on the left side panel of the TV.
2. Hold the Smart card vertically with the electronic chip (small
square-shaped, gold in colour) facing into the front of the TV.
3. Insert the Smart card into the top slot.
Inserting the CI (Common Interface) Module
Your TV is equipped with a slot for the Common Interface (CI).
1. Open the right-hand cover on the left side
panel of the TV.
2. Insert the smart card into the CI-Module, and
the CI-Module into the slot.
Note
CI and CAS embedded model only.
ENG - 9
WALKER.indd 9 2008-08-26 �� 1:16:39

2. Connections
2.1 Connecting the TV to Various Other Systems
There are several ways of connecting the TV to your VCR. Consult your local supplier for assistance in setting-up
your system that is best suited to your requirements.
2.1.1 To Connect Satellite and Terrestrial Antenna
Connect one end of coaxial cable to the ANALOG TUNER on the back of the TV and the other end to a terrestrial
antennaconnectionorthejackforthepublicantennaonthewall.
DiSEqC 1.0
- Connect the coaxial cable from the LNB to the LNBjackonbackoftheTV.
DiSEqC 1.2 Motor
1. Connect one end of your coaxial cable to the LNB connector on the TV and the other end to the REC or TV
connector on the DiSEqC 1.2 motor.
2. Connect the coaxial cable from the LNB to the LNB connector on the DiSEqC 1.2 motor.
2.1.2 To Connect a VCR
ConnecttheSCARTjackfromtheVCRtothebackoftheTV.YoucanalsouseA/Vjacks.
10 - ENG
WALKER.indd 10 2008-08-26 �� 1:16:40

2.1.3 To Connect a Set-top Box - SCART
ConnecttheTVtoaSet-topBoxwithSCART,ifyourSet-topBoxisequippedforit.YoucanalsouseA/Vjacks.
2.1.4 To Connect a DVD Player / Set-top Box - Component
TherearjacksonyourTVmakeiteasytoconnectaDVDplayer/Set-TopBoxtoyourTV.Componentvideo
separates the video into Y (Green), Pb (Blue), and Pr (Red) for enhanced video quality. Be sure to match
the component video and audio connections. Each external input source device has a different back panel
configuration. When connecting an external device, match the colour of the connection terminal to the cable.
2.1.5 To Connect a DVD Player / Set-top Box / HDMI
HDMIoffersthebestvideoquality.ThisconnectioncanonlybemadeifthereisanHDMIOutputjackonthe
external device. HDMI, or high-definition multimedia interface, is a next-generation interface that enables the
transmission of digital audio and video signals using a single cable without compression.
“Multimedia interface” is a more accurate name for it especially because it allows multiple channels of digital
audio (5.1 channels). When connecting via HDMI, you do not need to connect Audio Cables. You only need to
connect Audio cables when connecting via DVI.
• Set-top Box
Note
• ConnectthecablewithinputjackonTVproperly
as shown in the picture.
• ThedesignoftheRearPanelmaybechanged
without any notice in advance.
ENG - 11
WALKER.indd 11 2008-08-26 �� 1:16:41

2.1.6 To Connect a Digital Audio System
IfyouhaveaDACwithS/PDIFopticalcableinput,youcanconnecttheTVwithittoenjoyhigherqualitysound.
Connect S/PDIF optical cable to a digital amplifier.
2.1.8 To Connect a USB memory device
You can view video and photo or listen to audio files which are saved on a USB memory device or a PC.
2.1.9 LNB
If you have an analogue or digital Set-top Box and you wish to use the same CATV line then you can connect it
via the LNB. Connect one end of the coaxial cable to the LNB on the Set-top Box and connect the other end to
theCATVANT.INjackonyourSet-topBox.
2.1.7 To Connect a PC
ThisTVprovidesPlugandPlaycapability,meaningthatthePCadjustsautomaticallytotheTV’ssettings.
Note
A Digital Audio system is available only when the TV
Speaker function is set to off.
Note
• ConnectthecablewithinputjackonTVproperlyshowninthepicture.
• ThedesignoftheRearPanelmaybechangedwithoutanynoticeinadvance.
12 - ENG
WALKER.indd 12 2008-08-26 �� 1:16:42

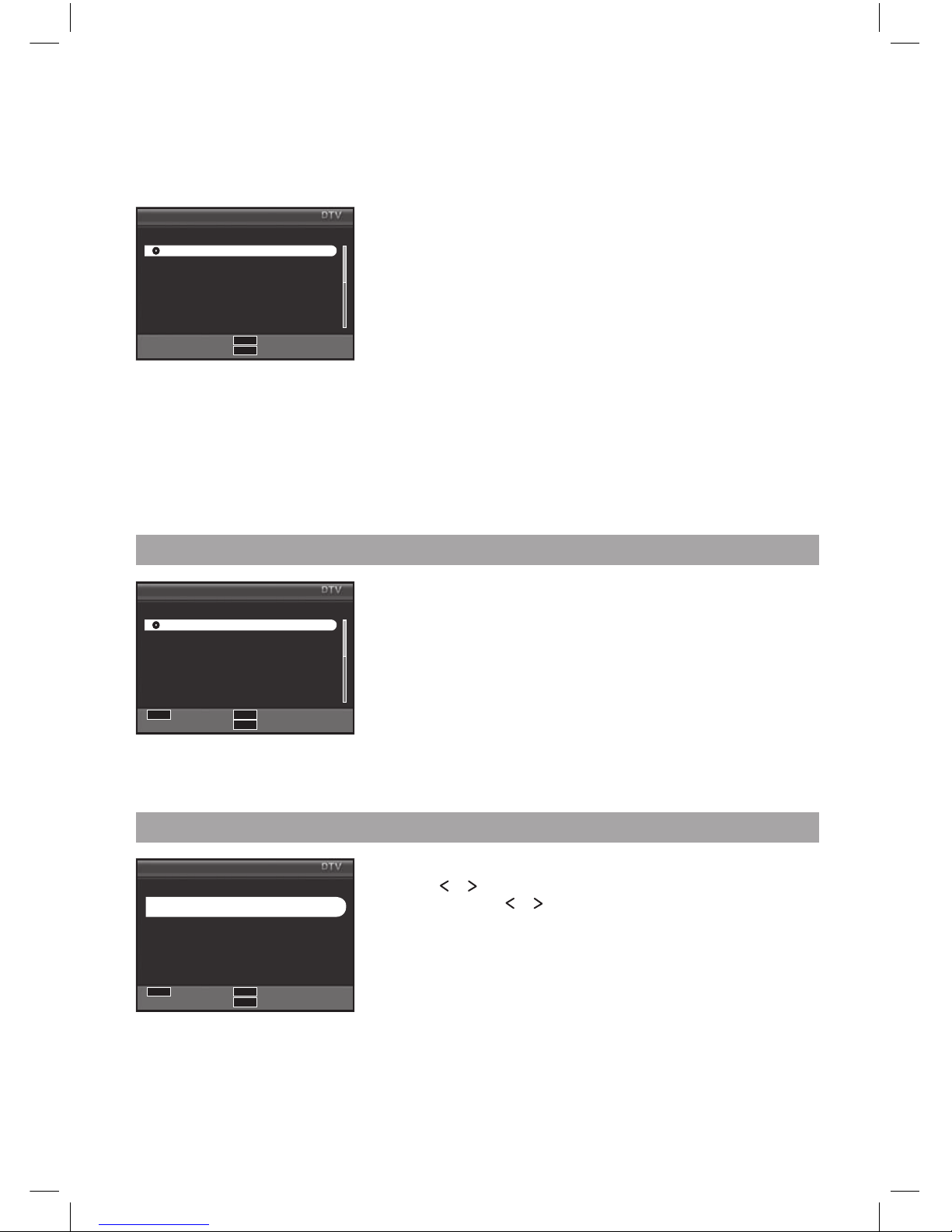

3. Easy Installation
3.1 Language
Press the OK button.
3.2 Local Time/GMT
• AutomaticInstallationby“EasyInstallation”
The Installation Wizard is a user-friendly method assuring the easy
set-up of the TV by the new user.
• SystemConnection
Connect the TV to all peripheral devices such as the Video, Audio
and DVD etc.
• PowerOn
Switch is turn on to the back of TV.
Turn on the power of the TV and other devices.
The power cord of the TV should be connected to a wall outlet.
Press the Power button on the side of the TV or on the remote
control.
• PowerOff
When you press the Power button again, the TV will display “OFF”.
Before you watch the TV, you must perform the installation procedure first. Therefore you will see only “Easy
Installation”menuatfirst.TheEasyInstallationgivesyoutheconvenienceofadjustingthetimeandchannel
search.
Select the time setting type.
Press the or button to select local time.
When you press the or button, the time zone will move by 30
minutes.
ENG - 13
Easy Installation
1. Menu Language
●English
OK
EXIT
Easy Installation
2. Audio Language
●English
OK
EXIT
MENU
Previous
Easy Installation
4. Local Time
OK
EXIT
MENU
Previous
GMT + 0:00
WALKER.indd 13 2008-08-26 �� 1:16:42

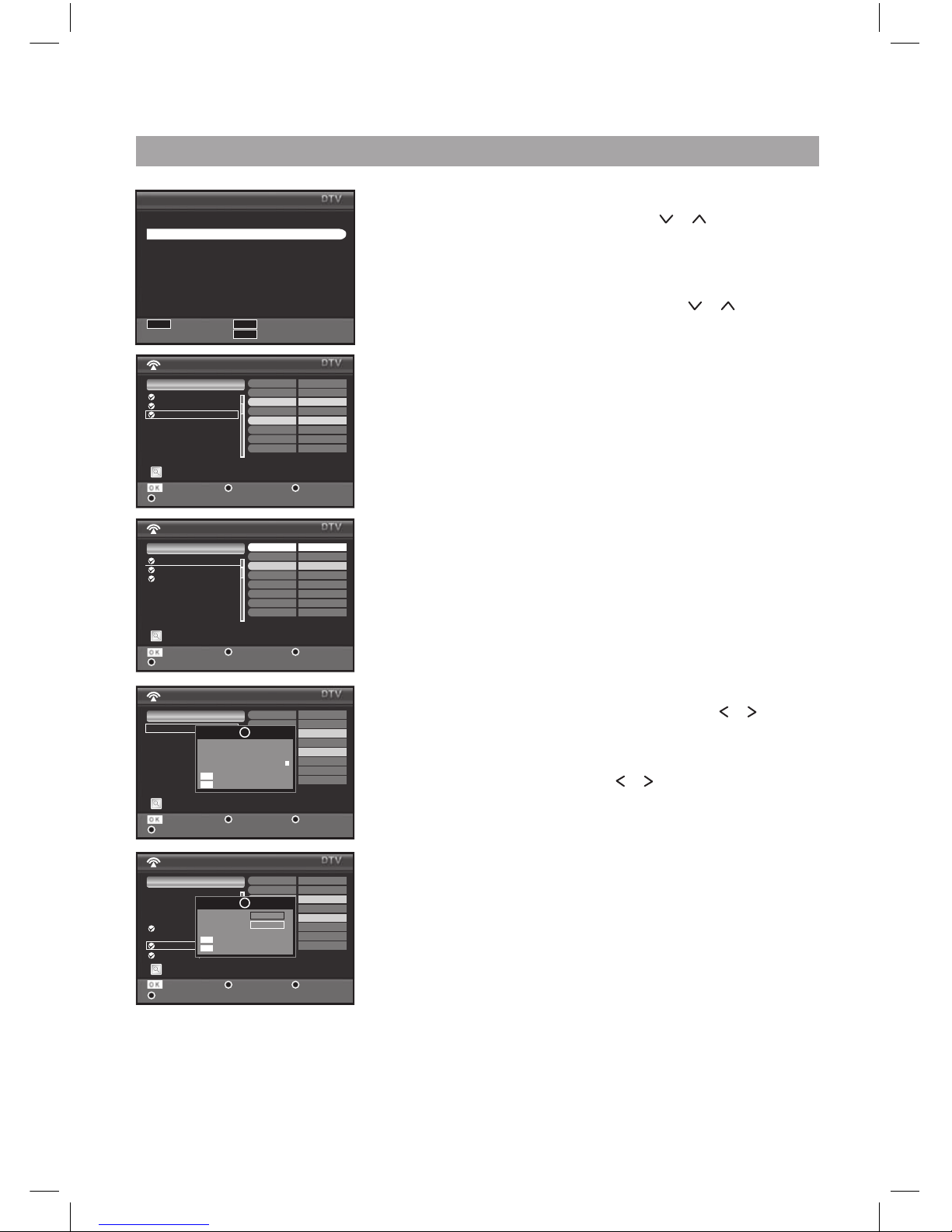

3.3 Channel Search
3.3.1 Satellite Search
1. Select the satellite list you want using the or button on the
satellite list.
• C/KU Switch You can select C/KU band by selection of switch
type.
• LNB Freq. Select the proper LNB frequency referring to
your LNB using OK and the or button.
• C-LNB Freq. When selecting the C/KU Switch is selected
as None, the C-LNB Freq will be dimmed
automatically. Press OK button, and then the
C-LNB Freq. List will be displayed. You can also
input the freq. you want. After inputting freq.
using numeric button, press OK button.
• LNB Power Select the LNB Power On or OFF.
• 22KHz Depending on the user’s antenna switch box or
LNB. When selecting the U-LNB 1 and U-LNB 2,
the 22KHz will be dimmed. (MOTOR DiSEqC 1,2).
• 0V/12V Depending on the user’s antenna switch box.
You can choose either 0V/12V.
• Tone Burst Depending on the user’s antenna switch box.
(Off, SAT A or SAT B)
• DiSEqC You can select and use appropriate port for your
DiSEqC switch box. Press OK button to select
DiSEqC List. (None, DiSEqC A, DiSEqC B, DiSEqC
C, DiSEqC D, Motor, USALS)
2. Press the Yellow button to edit, add or delete the TP list.
• Mode Select the input mode using the or button
(Edit, Add, Delete).
• Satellite Check the satellite and then press the OK button.
• Degree Input longitude using the numeric button and
then using the or button to select Wor E
(West / East).
- Press OK button to save.
3. After selecting all that is necessary, press Red button to scan the
satellite list.
• Network Select ON or OFF according to your Network.
• Search Type Select All or FTA Search Type.
- Press OK button and searching will start.
14 - ENG
Easy Installation
5. Channel Search
OK
EXIT
MENU
Previous
Channel Search
Channel Search
Select
Asiasat 3S (105.5 E)
Astra 1 (19.2 E)
Eurobird/Astra2 (28.2 E)
Astra3 (23.5 E)
AtlanticBird 1 (12.5 W)
Eutelsat W1 (10.0 E)
Eutelsat W3A (7.0 E)
C/Ku Switch
LNB Freq.
C-LNB Freq.
LNB Power
22KHz
0V/12V
Tone Burst
DISEqC
None
Univ. LNB1
576U
On
Auto
0V
Off
None
0 %
0 %
Scan TP List
Edit/Add/Delete
Satellite
Channel Search
Asiasat 3S (105.5 E)
Astra 1 (19.2 E)
Eurobird/Astra2 (28.2 E)
Astra3 (23.5 E)
AtlanticBird 1 (12.5 W)
Eutelsat W1 (10.0 E)
Eutelsat W3A (7.0 E)
Satellite C/Ku Switch
LNB Freq.
C-LNB Freq.
LNB Power
22KHz
0V/12V
Tone Burst
DISEqC
None
Univ. LNB1
576U
On
Auto
0V
Off
None
0 %
0 %
Scan TP List
Edit/Add/Delete
Select
Channel Search
Asiasat 3S (105.5 E)
Astra 1 (19.2 E)
Eurobird/Astra2 (28.2 E)
Astra3 (23.5 E)
AtlanticBird 1 (12.5 W)
Eutelsat W1 (10.0 E)
Eutelsat W3A (7.0 E)
C/Ku Switch
LNB Freq.
C-LNB Freq.
LNB Power
22KHz
0V/12V
Tone Burst
DISEqC
None
Univ. LNB1
C Norm. LNBF
On
Auto
0V
Off
None
0 %
0 %
Scan TP List
Edit/Add/Delete
Mode Edit Edit
◄ ►
Satellite Asiasat 3S OK
Degree 105.5 E
◄►
Save
Exit
OK
EXIT
Satellite
Select
?
Channel Search
Telstar 10 (76.5 E)
Arabsat 2A3A )2
Arabsat 2B (30
Asiasat 2 (100.5
Asiasat 3S (105
Astra1 (19.2 E)
Eurobird/Astra2 (
Astra3 (23.5 E)
C/Ku Switch
LNB Freq.
C-LNB Freq.
LNB Power
22KHz
0V/12V
Tone Burst
DISEqC
None
Univ. LNB1
C Norm. LNBF
On
Auto
0V
Off
None
0 %
0 %
Scan TP List
Edit/Add/Delete
Satellite
Select
Network ◄
Off
►
Search Type ◄
All
►
Save
Exit
OK
EXIT
?
WALKER.indd 14 2008-08-26 �� 1:16:43

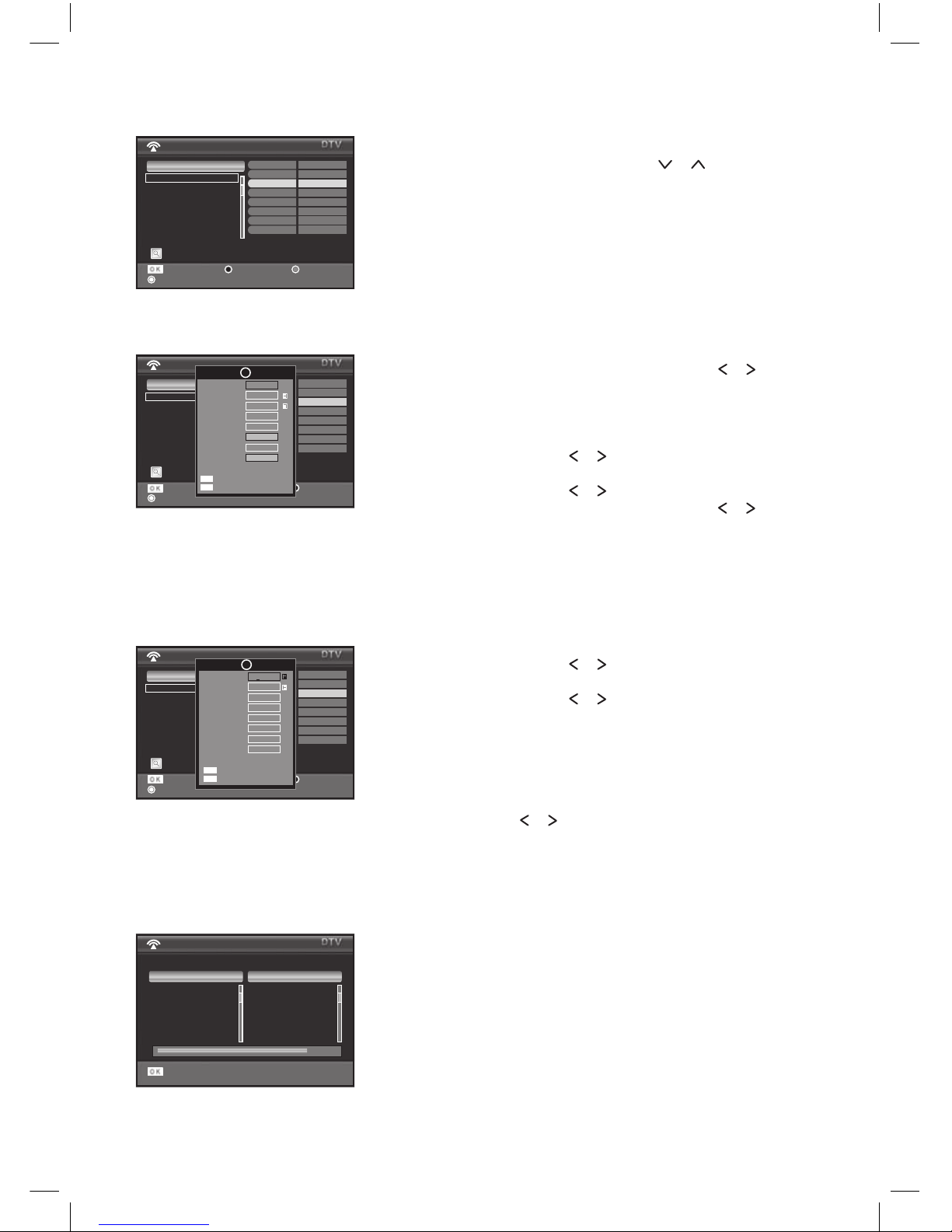

3.3.2 TP List Search
1. Select the satellite list you want using the or button on the
satellite list.
2. Press the Green button to display the TP list.
3. Press the Yellow button to edit, add or delete the TP list.
• Mode Select the input mode using the or button
(Edit, Add, Delete).
• Frequency Input a proper Frequency using numeric button.
• Symbol Rate Input a proper Symbol Rate using numeric
button.
• Polarity Use the or button to select the Polarisation
of the transponder. (Horizontal, Vertical)
• Transmission Use the or button to select the transmission.
• Modulation Select the modulation using the or button
(QPSK, 8PSK).
• FEC You can select the value of Auto, 1/2, 3/5, 2/3,
3/4, 4/5, 5/6, 8/9 or 9/10.
• Pilot You can select On, Off or Auto.
4. Press the Red button on the TP list.
• Frequency Input a proper Frequency using numeric button.
• Symbol Rate Input a proper Symbol Rate using numeric
button.
• Polarity Use the or button to select the Polarisation
of the transponder. (Horizontal, Vertical)
• FEC Use the or button to select the FEC of the
transponder. (Auto, 1/2, 2/3, 3/4, 5/6 or 7/8)
• Network You can select On or Off. When you select On,
you can find more transponders using the home
network.
• Video PID/Audio PID/PCR PID
You can set PID to search for services. Use the
or button or numeric button to input the
value.
5. Press OK button to start scanning.
ENG - 15
Channel Search
001 3640 27500 H S1
002 3647 4343 V S1
003 3647 8932 V S1
004 3680 26670 H S1
005 3700 27500 V S1
006 3706 6000 H S1
007 3718 7000 H S1
008 3725 4450 V S1
C/Ku Switch
LNB Freq.
C-LNB Freq.
LNB Power
22KHz
0V/12V
Tone Burst
DISEqC
None
C Norm. LNBF
C Norm. LNBF
On
Auto
0V
Off
None
0 %
0 %
TP Search TP List
Edit/Add/Delete
Asiasat 3S (105.5 E)
Select
Channel Search
Astra3 (23.5 E) TP[27] 1266MHz 2170Ks/s H Auto
78 723 STAR Sports
79 742 STAR Sports
80 755 ESPN
81 763 STAR Sports
82 772 ESPN India
83 792 ESPN India
84 ShenDongTV
TV List (84)
99 %
7 480 CUE
8 SDRenMin
9 SDJingJi
10 SDShengHuo
11 SDWenYi
12 SDJiaoTong
13 SDXiangCun
Radio (18)
Select
Channel Search
001 3640 27500 H S1
002 3647 4343 V S1
003 3647 8932 V S1
004 3680 26670 H S1
005 3700 27500 V S1
006 3706 6000 H S1
007 3718 7000 H S1
008 3725 4450 V S1
C/Ku Switch
LNB Freq.
C-LNB Freq.
LNB Power
22KHz
0V/12V
Tone Burst
DISEqC
None
C Norm. LNBF
C Norm. LNBF
On
Auto
0V
Off
None
0 %
0 %
TP Search TP List
Edit/Add/Delete
Asiasat 3S (105.5 E)
Select
Save
Exit
OK
EXIT
Mode ◄ Edit ►
Frequency 03640
Symbol Rate 27500
Polarity ◄ H ►
Transmission ◄ DVB_S ►
Modulation ◄ QPSK ►
FEC ◄ Auto ►
Pilot ◄ Off ►
?
Channel Search
001 3640 27500 H S1
002 3647 4343 V S1
003 3647 8932 V S1
004 3680 26670 H S1
005 3700 27500 V S1
006 3706 6000 H S1
007 3718 7000 H S1
008 3725 4450 V S1
C/Ku Switch
LNB Freq.
C-LNB Freq.
LNB Power
22KHz
0V/12V
Tone Burst
DISEqC
None
C Norm. LNBF
C Norm. LNBF
On
Auto
0V
Off
None
0 %
0 %
TP Search TP List
Edit/Add/Delete
Asiasat 3S (105.5 E)
Select
Save
Exit
OK
EXIT
Frequency 03640
Symbol Rate 27500
Polarity ◄ H ►
FEC ◄ Auto ►
Network ◄ Off ►
Video PID ◄ Auto ►
Audio PID ◄ Auto ►
POR PID ◄ Auto ►
?
WALKER.indd 15 2008-08-26 �� 1:16:43

4. Operation
4.1 Basic Operation
4.1.1 Turning the TV On / Off
Connect power code correctly, the set is switched to standby mode.
Press the Power button on the remote control and then the set will switch on.
4.1.2 Changing Channels
- Press the CH + or CH - button to change channels. You will see all the channels that the TV has memorized.
- The PRE-CH button to select the previous channel.
- The -/-- button is used to select stations that broadcast a digital signal. (In Analog TV mode only) For
example, for Channel 7-1, press “7”, then “-/--”, and then “1”.
- Use the numeric buttons to go directly to a channel.
4.1.3 Adjusting the Volume
Adjustthevolumetosuityourpersonalpreference.
- Use the VOL +or VOL - button to increase or decrease the volume.
- At any time, you can cut off the sound using MUTE button.
16 - ENG
WALKER.indd 16 2008-08-26 �� 1:16:43

5. TV Menu
To Display the Main Menu
Press the MENU button. The main menu is displayed on the screen.
Its left side has six icons. (PICTURE, SOUND, MENU, SCREEN, SETTING,
CHANNEL : The CHANNEL icon will be activated only at Analog TV
mode, the MENU icon will be activated only at DTV mode.)
To Select the Required Option
Use the or button to be able to select the required mode, and
then press the OK button to enter the required options.
To Exit the Menu
Press the EXIT button to exit or press the MENU button to return to the
previous menu.

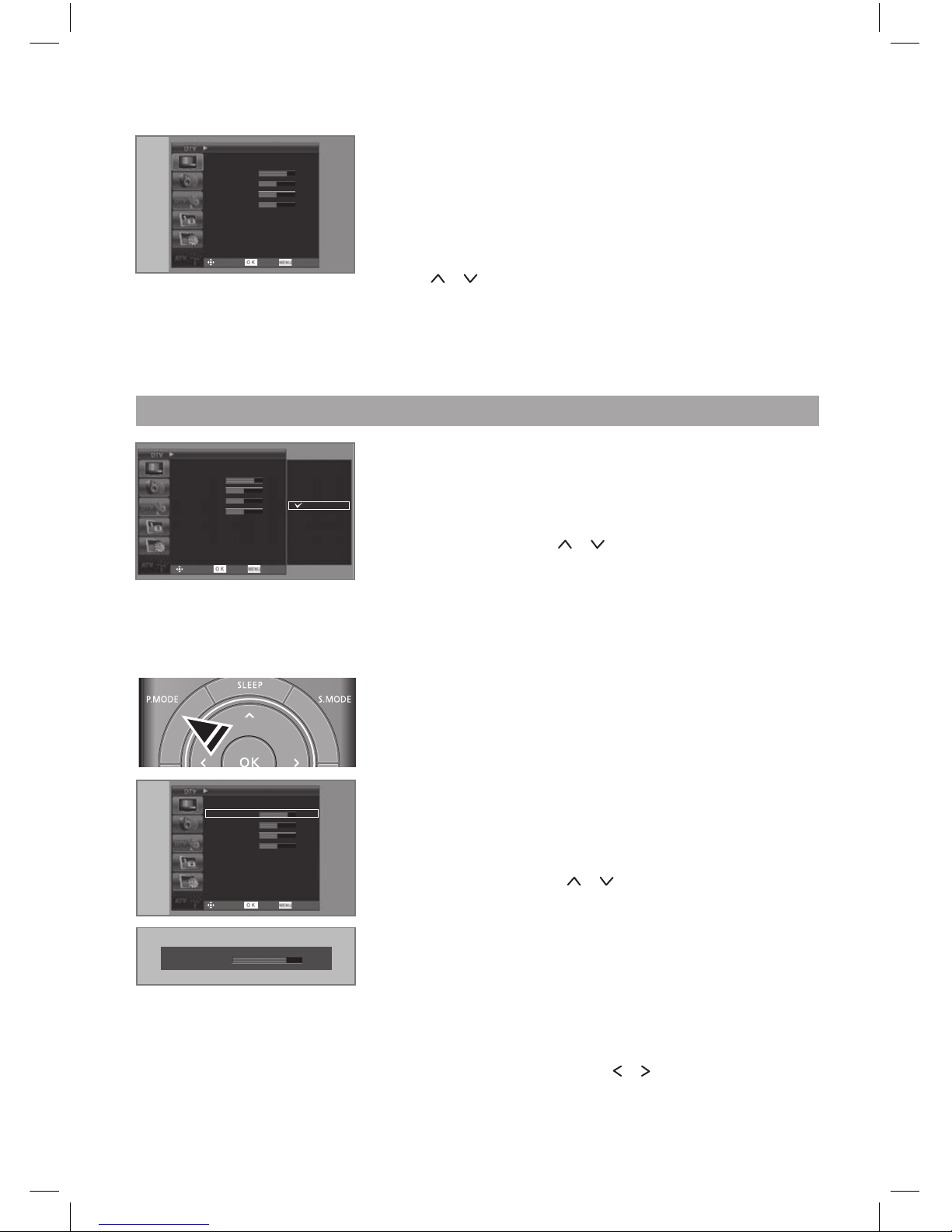

5.1 PICTURE
5.1.1 Changing the Picture Modes
Your TV has four automatic picture modes (Standard, Dynamic, Movie
and Custom) that are preset at the factory. You can select the type of
picture which best corresponds to your viewing requirements.
In the Picture Menu, use the or button to select the required
mode.
•Standard To select for the most general and natural screen display
status.
•Dynamic To select for viewing the TV during the day or when there
is bright light in the room.
•Movie To select when viewing the movie.
•Custom To select this option to use the user-defined setting.
Note
You can select these modes simply by pressing the P.MODE button on the
remote control.
5.1.2 Customizing the Picture Settings
Your TV has several setting options that allow you to control picture
quality.YoucanadjustpictureContrast,Brightness,Colour,Sharpness
and Tint to the levels you prefer.
In the PICTURE mode, use the or button to select the desired
picture option (Contrast, Brightness, Colour, Sharpness or Tint).
• Contrast Adjuststhedifferencebetweenthelightanddarklevelsin
the picture.
• Brightness Increases or decreases amount of white in your picture.
• Colour Adjustsintensityofallcolours.
• Sharpness Adjuststhelevelofcrispnessintheedgesbetweenthe
light and dark areas of the picture. The lower the level is,
the softer the image becomes.
• Tint Adjuststhebalancebetweenredgreenlevel.(Activated
only in the NTSC input)
Press the OK button and then use the or button to make
appropriateadjustments.
ENG - 17
Picture Mode Custom
Contrast 80
►
Brightness 50 ►
Colour 50 ►
Sharpness 50 ►
Tint ►
Colour Temp. Normal
3D NR On
Enter
Move Return
Picture Mode Custom
Contrast 80
►
Brightness 50 ►
Colour 50 ►
Sharpness 50 ►
Tint ►
Colour Temp. Normal
3D NR On
Active Colour On
Standard
Dynamic
Movie
Custom
Enter
Move Return
Picture Mode Custom
Contrast 80
►
Brightness 50 ►
Colour 50 ►
Sharpness 50 ►
Tint ►
Colour Temp. Normal
3D NR On
Active Colour On
Contrast ◄ ► 80
▲
▼
Enter
Move Return
WALKER.indd 17 2008-08-26 �� 1:16:44

5.1.3 Customizing the Colour Temperature
Adjuststhecolourtemperatureoptions(Cool,Normal,Warm).Choose
oneofthreeautomaticcolouradjustments.
In the Colour Temp. menu, use the or button to select the
required mode.
•Cool To set Cool to see less intense colours with more blue.
•Normal To select for the most general colour temperature.
•Warm To set Warm to enhance hotter colours such as red.
Press the EXIT button or press the MENU button three times to exit.
5.1.4 Selecting the 3D NR mode
You can select 3D NR to reduce the picture noise which may appear
on the screen during watching the TV. If the signal receives by the TV
is weak, you can activate this feature to reduce any static and ghosting
that may appear on the screen.
In the 3D NR menu, use the or button to select the required mode
(On or Off) and then press the OK button.
5.1.5 Setting the Active Colour
You can enhancer the colour of the picture. The colours of the sky and
grass will be stronger and clearer for a more vivid on-screen picture.
In the Active Colour menu, use the or button to select the
required mode (On or Off) and the press the OK button.
18 - ENG
Picture Mode Custom
Contrast 80
►
Brightness 50 ►
Colour 50 ►
Sharpness 50 ►
Tint ►
Colour Temp. Normal
3D NR On
Active Colour On
Cool
Normal
Warm
Enter
Move Return
Picture Mode Custom
Contrast 80
►
Brightness 50 ►
Colour 50 ►
Sharpness 50 ►
Tint ►
Colour Temp. Normal
3D NR On
Active Colour On
On
Off
Enter
Move Return
Picture Mode Custom
Contrast 80
►
Brightness 50 ►
Colour 50 ►
Sharpness 50 ►
Tint ►
Colour Temp. Normal
3D NR On
Active Colour On
On
Off
Enter
Move Return
WALKER.indd 18 2008-08-26 �� 1:16:44

5.2.1 Changing the Sound Modes
Your TV has four automatic sound modes (Standard, Music, Movie and
Custom) that are preset at the factory.
You can select your preferred sound setting.
In the Sound Mode menu, use the or button to select the required
mode.
•Standard To select for the most commending and natural audio.
•Music Toselectthisoptiontoenjoytheoriginalsoundwhen
listening to the music.
•Movie Toselectthisoptiontoenjoysublimesound.
•Custom To select this option to use the user-defined audio setting.
Note
You can select these modes simply by pressing the S.MODE button on the
remote control.
5.2.2 Customizing the Equalizer
Your TV has several settings which allow you to sound quality. You can
adjustthesoundfrequencyoftheequalizer.
In the Equalizer menu, use the or button to select a sound band and
then press the or buttontomakeappropriateadjustments.
5.2 SOUND
ENG - 19
Sound Mode Standard
Equalizer
►
Balance ►
Auto Volume Off
TV Speaker On
SOUND
Enter
Move Return
Sound Mode Standard
Equalizer
►
Balance ►
Auto Volume Off
TV Speaker On
Standard
Music
Movie
Custom
SOUND
Enter
Move Return
Sound Mode Standard
Equalizer
►
Balance ►
Auto Volume Off
TV Speaker On
SOUND
Enter
Move Return
Equalizer
Return
100 500 1k 5k 10k
Move Adjust
WALKER.indd 19 2008-08-26 �� 1:16:45

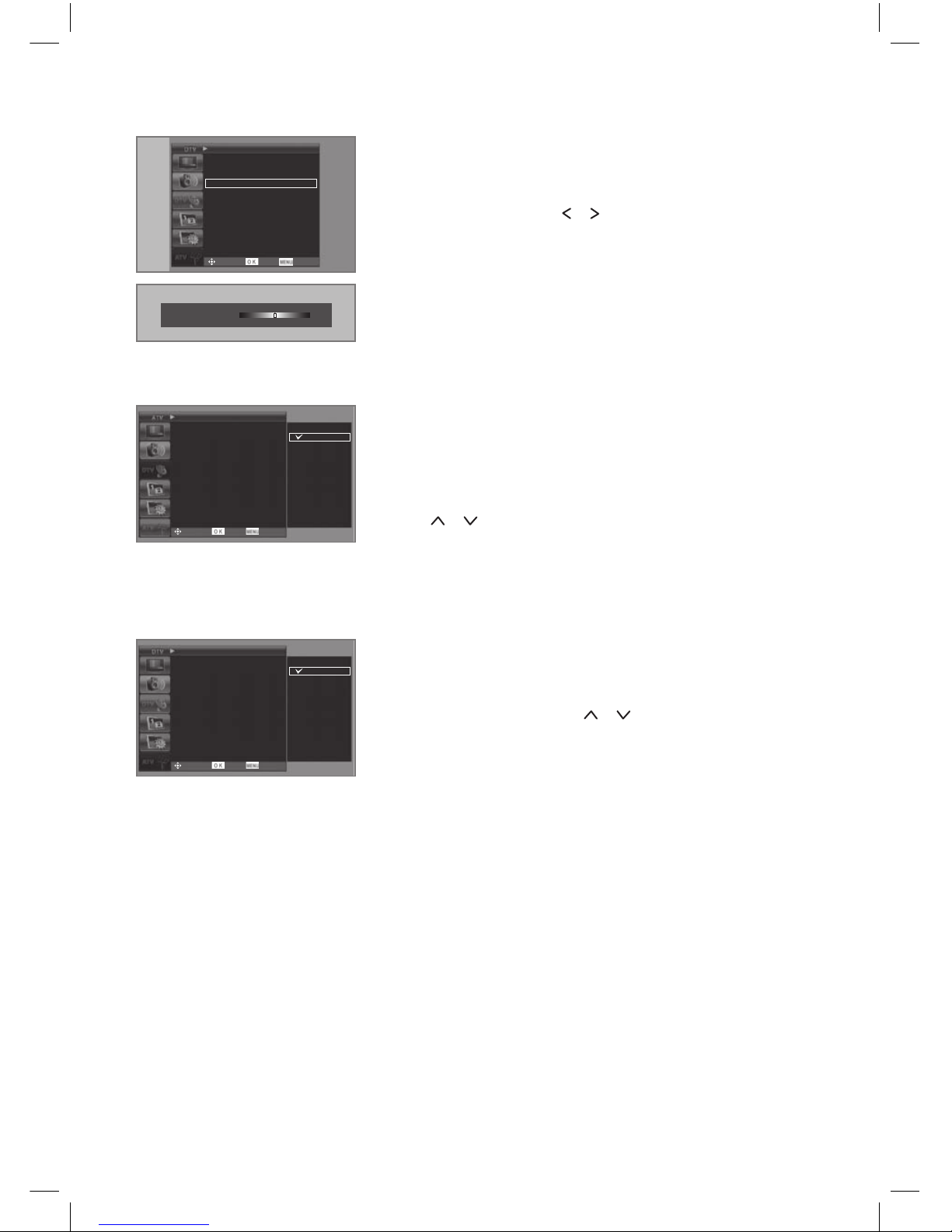

5.2.3 Customizing the Balance Adjustment
Youcanadjustthesoundbalanceofspeakertolevelsyouprefer.
In the Balance menu, use the or button to make appropriate
adjustments.
5.2.4 Setting the Auto Volume
You can select the status of the Auto Volume menu.
Automatically keeps on an equal volume level even if you change
programmes.
Use the or button to select the required mode (On or Off).
5.2.5 Setting the TV Speaker
Youcanadjuststheinternalspeakerstatus.
In the TV Speaker menu, use the or button to select the require
mode (On or Off) and then press the OK button.
When the TV speaker function is set to off, the sound related menu is
disabled.
20 - ENG
Balance L ◄ ► R
Sound Mode Standard
Equalizer
►
Balance ►
Auto Volume Off
TV Speaker On
SOUND
Enter
Move Return
Sound Mode Standard
Equalizer
►
Balance ►
Auto Volume On
TV Speaker On
On
Off
SOUND
Enter
Move Return
Sound Mode Standard
Equalizer
►
Balance ►
Auto Volume Off
TV Speaker On
On
Off
SOUND
Enter
Move Return
WALKER.indd 20 2008-08-26 �� 1:16:45
