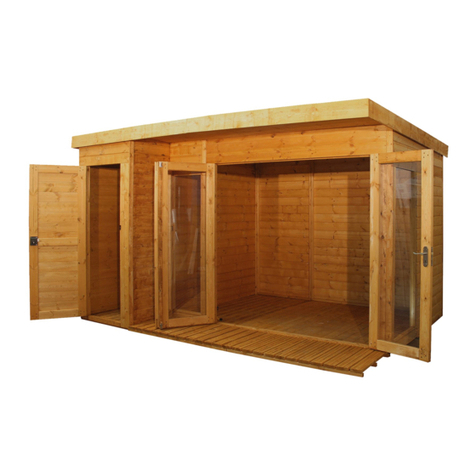

Waltons 01PTCOR0707-V1 Instruction manual

2mm Drill bit
x2
MUST
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
TIMBER
BUILDING A BASE
TYPES OF BASE
Whilst all products manufactured are made to the highest standards of Safety and in the case of
childrens products independently tested to EN71 level, we cannot accept responsibility for your safety
whilst erecting or using this product.
Refer to the instructions pages for you specic product code
Pressure Treated Timber
Alkaline Copper
Quaternary ACQ Copper Azole CA Micronized Copper Quaternary MCQ
Safety:

12345678
9
Step 1
6
50mm Screw x40
40mm Screw x40
80mm Screw x7
Felt Tacks x80
20mm Screw x6
30mm Screw x90
30mm Black Screw x3
Nail Bag
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Door Panel
AI-01COR0707-V1DP Window
Panel
AI-01COR0707-V1WP
Plain Panel
AI-01COR0707-V1PP Rear Panel
Right
AI-01COR0707-V1RPR
Rear Panel
Left
AI-01COR0707-V1RPL
Floor
AI-01COR0707-V1F Roof Sheet
PI-03-0041
Door
QTY 2
AI-01COR0707-V1D
Roof Support Bar - 44x58x2650mm - F4458-2650mm
Roof Support Bar - 44x58x1303mm - F4458-1303mm
Roof Support Bar - 763mm - F4458-763mm
Roof Support Block - 44x44x210mm QTY 3 - F4444-210mm
Door Block - 28x28x140mm QTY 2 - FS2828-140mm
Eaves Frame - 28x28x2049mm - FS2828-2049mm
Eaves Frame - 28x28x2025mm - FS2828-2025mm
Eaves Frame - 28x28x1149mm Qty 2 - FS2828-1149mm
Eaves Frame - 28x28x1196mm - FS2828-1196mm
Fascia - 12x95x2045mm QTY 2 - S1295-2045mm
Fascia - 12x95x1202mm QTY 2 - S1295-1202mm
Fascia - 12x95x1213mm - S1295-1213mm
Cover Trim - 12x60x1800mm QTY 2 - S1260-1800mm
Cover Trim - 12x40x1918mm QTY 4 - S1240-1918mm
Door Trim Top - 12x60x543mm - S1260-543mm
Door Trim Bottom - 12x60x1040mm - S1260-1040mm
T-Hinges QTY 4 - PI-02-1043
Turn Buttons QTY 3 - PI-07-0034
“L” Brackets QTY 5 - PI-07-0012
Panel Joint Frame - 28x28x1806mm - FS2828-1806mm
Pre Assembly
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
27
28
25

4
25
Step 2
3x50mm Screws
Pre drill
hole
50mm
screw
5
Step 3
3x50mm Screws
Pre drill
hole
50mm
screw
Step 4
The window and plain panels can
be placed either side of the
building.
6x50mm Screws
Pre drill
hole
50mm
screw
1
8
8
26
Step 5
Ensure to screw through the
framing.
28x30mm Screws
Pre drill
hole
30mm
screw

27
24
23
Step 6
5x20mm Screws
1x30mm Black Screw
30mm
screw
20mm
screw
Pre drill
hole
27
13
Step 7
Ensure the doors open
freely and can be locked
with the turn buttons
4x30mm Screws
2x30mm Black Screw
30mm
screw
30mm
screw
Pre drill
hole
12
9
Step 8
6x50mm Screws
50mm
screw
Pre drill
hole
Step 9
4x80mm Screws
80mm
screw
Pre drill
hole

11
10
Step 10
Ensure the roof support bar is level
with the top of the building.
2x80mm Screws
20x30mm Screws
30mm
screw
Pre drill
hole
80mm
screw
Step 11
17x30mm Screws
30mm
screw
Pre drill
hole
Step 12
*It is recommended to cut the felt
sheets using the roof as a template
before xing into place.
21x40mm Screws
40mm
screw
Pre drill
hole
Step 13
20x50mm Screws
50mm
screw
Pre drill
hole
12
28
28

Step 14
80x Felt Tacks
Felt
tacks
HANDLE
WITH CARE
12
3
4
Step 15
12x30mm screws
30mm
screw
Pre drill
hole
Step 16
6x30mm screws
30mm
screw
Pre drill
hole
22
22 22
22
21
21

Step 17
17x40mm screws
40mm
screw
Pre drill
hole
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
