Water-Loo Permabrella User manual

TOOLS REQUIRED
2 - 9/16” Wrenches
1 pair of pliers
1 - 14’ step ladder
PARTS LIST 20’ 12’
& 14’
3’4” Ground Sleeve 1 1
17’ 0” Aluminum Center Pole 1 0
14’ 0” Aluminum Center Pole 0 1
Zinc Plated Steel Bows 14 8
Zinc Plated Steel Braces 14 8
3/8” - 16 x 1” Bolts 14 8
3/8” - 16 x 5” Bolts 2 2
Winch Handle 1 1
Aluminum 1 1
3/8” Slef Locking Nuts 14 8
IMPORTANT *Consult a local utility company prior
to installation. Proper installation and site conditions are
the responibility of the installer. Check for any obstacles
prior to site preparation.
Permabrella
Installation Instructions
WWW.WATERLOOTENT.COM 1-800-537-1193 3105 Airport Blvd. Waterloo IA, 50703
MANPOWER REQUIRED
Two installers are required to install both top and frame
Quantity Per Size
www.waterlootent.com 1-800-537-1193 3105 Airport Blvd. Waterloo IA, 50703

Installing Ground Sleeves
Dig a 15” minimum diameter hole 3’1” deep in either the soil or existing concrete pad. Put in a 3” gravel base to allow for
water drainage.
For Standard Ground Sleeves:
Place the ground sleeve into the hole, making sure the top of the ground sleeve is a minimum of 6” above the nish grade.
Level and brace the ground sleeve, pour in concrete, and allow to set for at least 72 hours.
For Flush Mounted Ground Sleeves:
Place the ground sleeve into the hole, making sure the top of the lower section is set ush with the nish grade. Bolt the top
section to lower section with the included bolts. Level and brace the ground sleeve, pour in concrete, and allow to set for at
least 72 hours. When unit is not in use, remove top section and replace with center plate.
Finish
Grade
3/8” - 16 x 5”
Nut and Bolt (2 Required)
Top section attaches to lower section
Center plate is used to cover lower section when
umbrella is not being used.
Lower section is permanently installed into soil
or existing concrete pad. (see Installing Ground
Sleeve instructions above)
6”
2’ 10”
Finish
Grade
Ground Sleeves
Installation Instructions
www.waterlootent.com 1-800-537-1193 3105 Airport Blvd. Waterloo IA, 50703

Installing the Top and Frame
1. Remove the top cap from the pole.
2. Raise the center pole and slide it into the ground sleeve.
Align the pole and ground sleeve holes, and bolt ino place
using the two 3/8” x 5” bolts. Using the winch handle, crank
the winch clockwise so the lower casting sits approximately 5”
above the ground level.
3. Using the 3/8” - 16x1” bolts and the 3/8” self locking
nuts, attach the braces to the bows, make sure the brace is
centered between the “ears” on the bow and the “hooks” on
the bow and brace are both facing the same direction.
4. From the ground, place the hook end of the brace into the
lower casting, making sure it is secured on the ring. Grasp
the outside end of the bow and slowly “raise” the bow until the
hook is aligned with upper casting. Repeat procedure until all
bows and braces are attached. Make sure each bow and
hinge are lined up vertically between the upper and lower
casting.
Permabrella
Installation Instructions
Top Cap
Step 1 & 2
Step 3
Step 4
Upper Casting
Lower Casting
Ground Sleeve
Brace
Bow
Bow
Upper Casting
Safety Pin Hole
5’

5. Using the step ladder, attach the top cap by sliding it into the
top of the center pole, making sure all the bows are hooked
properly and the holes are aligned. Insert the attached pin to
lock the cap into place. Note: The top cap must be locked into
place or the bows could come loose. Failure to secure the top
cap can result in damage to the Permabrella and may cause
injury.
6. Using the leather patch on the inside of the umbrella top as
a guide, place the top on the frame and position on the trame.
Open the frame slightly, cranking the winch handle clockwise.
Starting with one hook, attach it to the bow and snap the
boot around the bow. Go to the opposite side, and continue
alternating until all hooks and boots have been completed.
Note: A pair of pliers may help in the attachment of the hooks.
7. Finish cranking the unit open until the lower casting is
approximately 1’0” above the hole for the safety pin. Do not
over crank. Insert safety pin attached to the lower casting,
and remove the winch handle.
8. To lower umbrella, remove safety pin. Turn winch handle
counter-clockwise and lower uit slowly until the lower casting
is 6-8 inches above the face plate. Remove the winch handle.
Over cranking in either direction may cause the cable to
become crimped and render the cable ineffective.
9. To remove the unit simply reverse steps 3 through 6.
Maintenance
Periodically check the cable condition and bolts for
tightness. Routine adjustment should be expected. The top
should be removed during the off season. Store the top in a
cool dry area. Never store while wet or damp.
Caution
When high winds are expected, place the unit in the closed
position.
6”
www.waterlootent.com 1-800-537-1193 3105 Airport Blvd. Waterloo IA, 50703

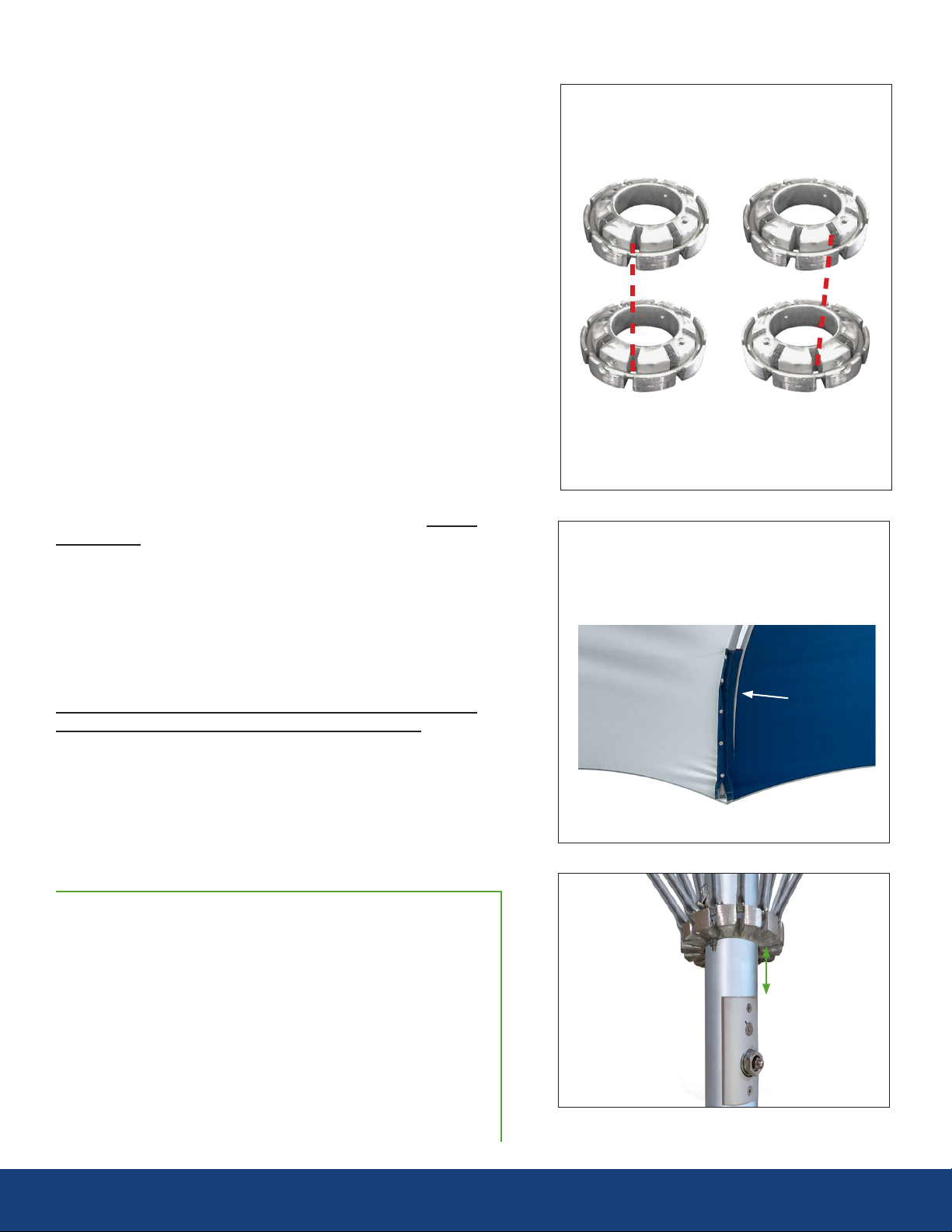

Correct Incorrect
Permabrella Top
Boot
Bow and Brace should be aligned vertically in the
upper and lower castling. Misaligned castings will
cause damage to the cable.
Step 5
Step 6
Step 8
