Waterco Rainbow BRITESTREAM SLI90 User manual

^^^^H[LYJVJVT
This equipment must be installed and serviced by a qualified technician. Improper
installation can create electrical hazards which could result in property damage, serious
injury or death. Improper installation will void the warranty.
Notice to Installer
This manual contains important information about the installation, operation and safe use
of this product. Once the product has been installed this manual must be given to the
owner/operator of this equipment.
WARNING
!
BRITESTREAM SLIM90
FIBREGLASS POOL LIGHT
6^ULY»Z4HU\HS
Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: [email protected]
Web: www.rainbowpoolproducts.com.au

Table of
LED FIBREGLASS POOL/SPA LIGHT INTRODUCTION ----------- 01
LED FIBREGLASS POOL/SPA LIGHT SPECIFICATIONS ---------- 01
LED FIBREGLASS POOL/SPA LIGHT ------------------------------- 02
COMPONENT IDENTIFICATION
INSTALLATION -------------------------------------------------------- 02
LED REPLACEMENT LIGHT INSTALLATION ----------------------- 03
DISCONNECTING THE LED LIGHT --------------------------------- 03
CONNECTING REPLACEMENT LED LIGHT ------------------------ 04
TROUBLE SHOOTING ------------------------------------------------ 05

LED FIBREGLASS POOL/SPA LIGHT INTRODUCTION
Britestream Slim90 has been specically designed for easy installation into breglass pools/
spas. Features include the following:
•Flush mounted with a minimal 14mm projection into pool.
•Super bright LED’s.
•Life span of over 70,000 hours.
•Operates on only 10% of the electrical power of an equivalent halogen light.
Available in multicoloured RGB, blue and white models.

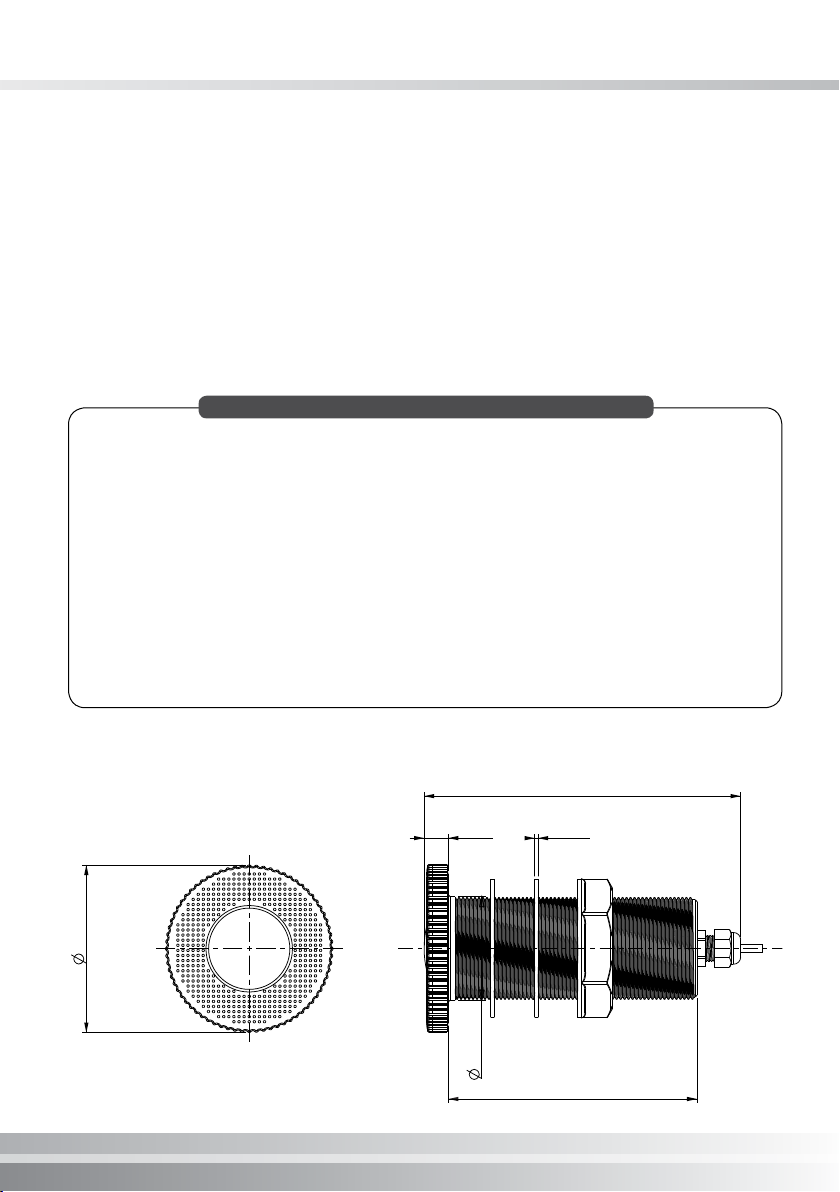

LED FIBREGLASS POOL/SPA LIGHT SPECIFICATIONS
I WN
Waterco Britestream LED Fibreglass Niche Pool Lights
Note: Specication size in Millimeters (mm).
•Ensure all pool/spa lights are installed by a suitably qualified persons (e.g. registered pool builder and/
or qualified electrician), in accordance with AS/NZS 3000:2007 standards.
•This pool/spa light is supplied with a 20m power cable and should not be modified. Cutting an
underwater section of power cable will void the warranty unless done so in conjunction with the
underwater light replacement kit.
•The pool/spa light must be installed not more than 600mm below top of coping, to allow for removal
from pool/spa for servicing.
•The recommended length of power cable that is stored within the light niche is 1m. This enables easy
access without the need for entering the pool/spa water.
•Ensure the light is submerged in water before switching on, to avoid overheating.
•Surrounding area has to be clear and unencumbered to allow for adequate space to service the light.
•When switched off, the light should be left to cool for two minutes before switching on again.
CAUTION
97
183
2
14
144
60

LED FIBREGLASS POOL/SPA LIGHT COMPONENT
IDENTIFICATION
INSTALLATION
•Locate the ideal position within the breglass pool/spa wall surface that best suits the lights
installation ensuring this location is not more than 600mm below top of coping.
•Mark this position and using a 2.5” (63.5mm) holesaw drill a hole in the breglass pool/spa
wall that will allow the light to be tted.
•Remove the 2” BSP threaded nut, ange (outer) & outer gasket from the lights body and the
20m power cable.
•Thread the 20m power cable from the inside of the breglass pool/spa through to the outside
of the pool/spa and insert the pool/spa light body into the 2.5” (63.5mm) hole.
Note: The inner gasket must be positioned between the pool/spa light lens and the breglass
pool/spa surface.
•Thread the 20m power cable into the outer gasket, ange and 2” BSP nut and install on the
exposed threaded light body. Tighten the 2” nut sufciently to ensure the light assembly is
properly secured to the breglass pool/spa wall and will not leak water.
Note: Inspect and repair as necessary the breglass pool/spa walls to ensure the inner & outer
gaskets are able to provide a water tight seal.
Note: It is recommended that the pool/spa light be fully immersed in water & the installation is
inspected for leaks prior to back lling the pool/spa light/s installation area.
•The 20m power cable is now ready for connection to a Waterco single or multi connect pool
light transformer.
Note: For further protection of the power cable the use conduit is an option.
Light Lens
2 x Gaskets 1 x 2” BSP Thread Nut
Gland Nut & Fitting
Light Niche Body

I WN

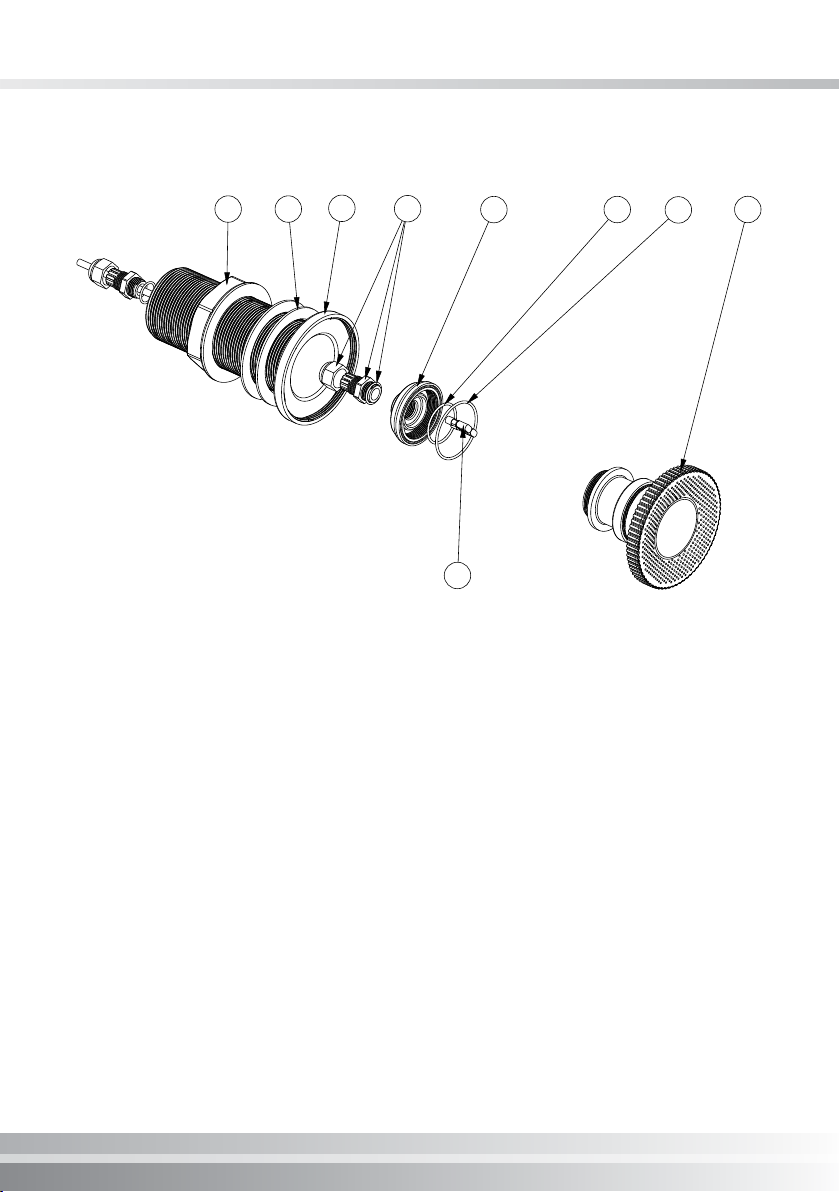

LED REPLACEMENT LIGHT INSTALLATION
Waterco Britestream LED Fibreglass Niche Pool Lights
Disconnecting the LED light
•Disconnect power to light at the circuit breaker.
•Remove the light lens (1) by turning turning the light lens to the left unscrewing from the outer
ange body (7). This will allow the lens assembly to be removed from the pool/spa water, but
will still be connected to the body (7) via the 1m coiled power cord that is stored within the
body (7).
•Remove the black power cable gland nut and Black gland (6) and slide back along power
cable. Unscrew (turn to left) the gland mount cap (5) exposing the two power wires.
Note: These two wires are connected to the LED light assembly via two quick connect electrical
spade connectors (4). These can be either disconnected by pulling apart or simply cutting the
two power wires.
You have know successfully disconnected the existing LED light assembly and are ready to
reconnect a new LED light assembly.
1
2
3
4
5
6
7
89

Connecting replacement LED light
The replacement LED lights are available as white, blue or multicolour RGB models and are
supplied as a complete light assembly with the additional components as follows:
2 x Quick connect spade electrical connectors (4).
1 x gland mount cap (5) with black power cable gland nut and black gland (6).
2 x “o” rings (2 & 3).
1 x Bottle of natural lanoline.
•If not removed, inspect the two existing quick connect electrical connectors (4) on the two
exposed wires of the power cable. These should be replaced if there is any suspicion of
damage.
•If required remove the two quick connect electrical connectors (4) and replace with the 2 x
replacements supplied with the LED replacement light.
Note: The exposed wires from the power cable conduit required length is approx 50mm.
Note: The electrical components inspection and installation of the pool/spa lights should
be carried out by a suitably qualified persons (e.g. registered pool builder and/or qualified
electrician), in accordance with AS/NZS 3000:2007 standards.
•Remove the gland mount cap (5) from the rear of the LED replacement light (unscrew to left).
The black power cable gland nut and black gland (6) are tted into the gland mount cap (5).
Unscrew the black power cable gland nut (5) and place over the power cable and push the
power cable through the black gland (6) and gland cap (5).
Note: Gland nut (6) should not be fully tightened. This will allow for adjustment of power cable.
•If necessary, ensure the 2 x exposed power wires to the replacement LED pool/spa light
are approximately 50mm and then strip the blue and brown wires insulations approximately
10mm. Crimp the two quick connect spade connectors (4) to the stripped 10mm section of
the blue and brown wires.
•Connect the two quick connect spade connectors (4) to connectors provided in the rear cup
section of replacement LED light.
•Squeeze natural lanoline from supplied bottle into rear cap of replacement LED light
completely covering the two quick connect spade connectors and ll to top.
Hint: Submerge the bottle of lanoline into a suitable size vessel and add temperate/warm
water, this will help to soften the lanoline for easier ow and ensure the rear cap is completely
full of lanoline for proper protection of the two quick connect spade connectors.
Slide gland mount cap (5) with black gland (6) to the correct position on the power cable
conduit. Ret the two new “o” rings (2 & 3) to the rear of the replacement LED light and
internally of the gland mount cap (5).
Note: Ensure that both “o’ rings are properly tted into the gland mount cap (5) “o” ring seats/
grooves.

Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: [email protected]
Web: www.rainbowpoolproducts.com.au
I WN
•Secure gland mount cap (5) to the replacement LED light by turning to the right and tighten
to ensure there is a water tight seal, and once again check “o” ring is proper tting.
•Ret black power cable gland nut (6) and tighten to ensure proper sealing and locking the
gland mount cap (5) to correct position.
The replacement LED light is now ready to be retted to the outer ange body (7) already
secured into the breglass pool/spa wall. Ensure to carefully push the 1m coiled power cable
into the outer ange niche body (7) and ret the new replacement LED light & lens assembly (1)
and secure to the light Niche housing (7) by turn till tight to the right.
Congratulations, reconnect power to your light at the circuit breaker and your new Waterco
replacement LED light is ready for use.
TROUBLE SHOOTING
Waterco Britestream LED Fibreglass Niche Pool Lights
FAULT POSSIBLE CAUSE REMEDY
Light not operating - Fuse in transformer blown.
- No power to transformer.
- Fault in electrical wiring.
- Replace fuse.
- Check main fuses in switchboard.
- Electrician to check.
Light very dim and
pulsating
- Mismatch of lamp and
transformer ratings.
- Damaged wiring/ connectors.
- Fit correctly rated transformer*.
- Replace wiring/ connectors.
Main house fuse
blows when light
switched on
- Faulty transformer
- Damaged cable
- Incorrect electrical installation.
- Call electrician to check
installation.
