Waterford WAFF2D2D User manual

Operating Instructions

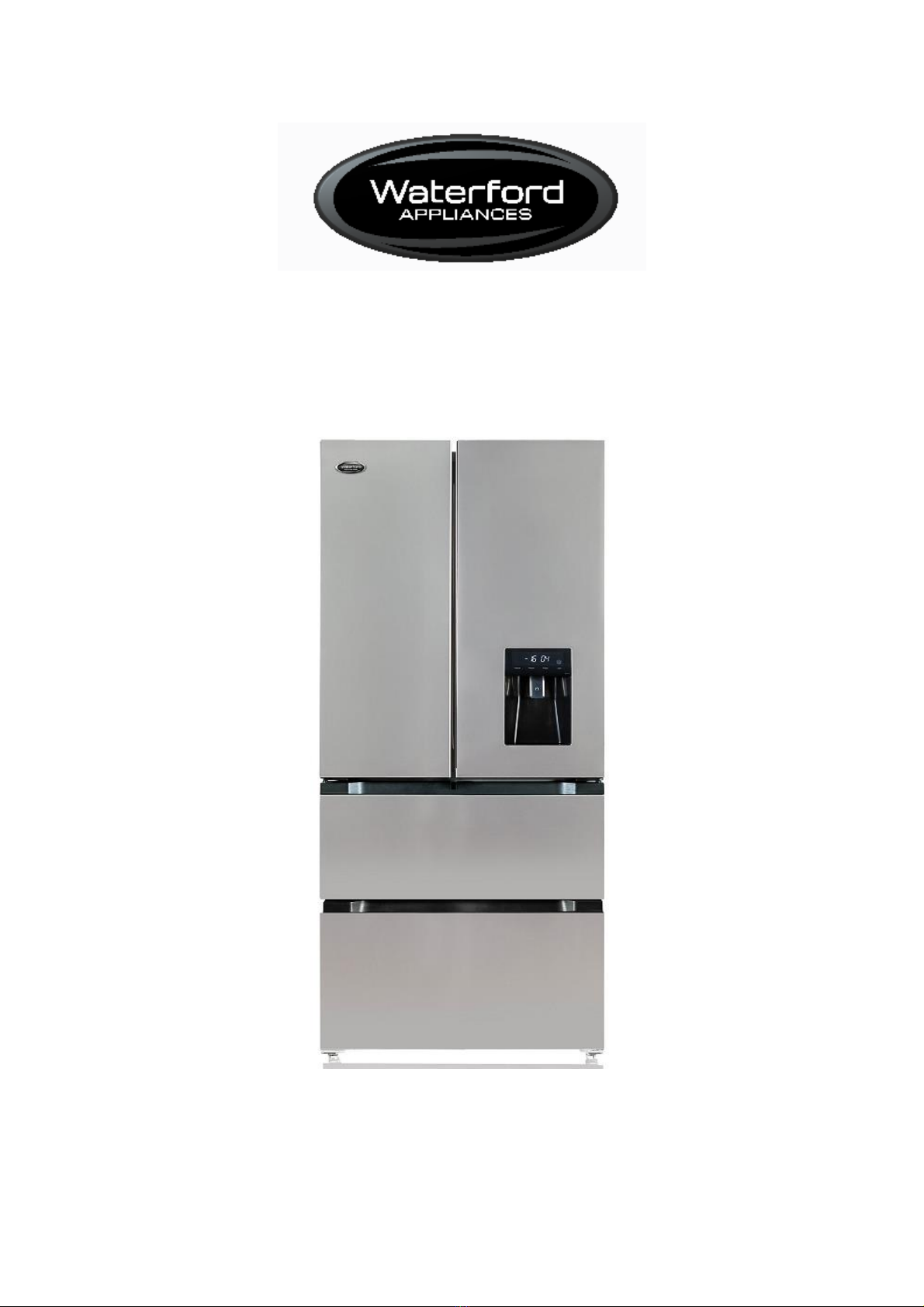

Two Door Two Drawer Refrigerator, Model: WAFF2D2D
Please read the operating instructions carefully before operating.
Please keep it properly for reference.

Waterford Appliances
2
WAFF2D2D
Contents
Warnings ...........................................................................................................................................3
Safety and warning information........................................................................................................6
Basic safety symbols......................................................................................................................6
Appliance connection....................................................................................................................6
Safety and warning information....................................................................................................6
Product Introduction.......................................................................................................................10
Product features..........................................................................................................................10
Product contents.........................................................................................................................10
Product Installation.........................................................................................................................11

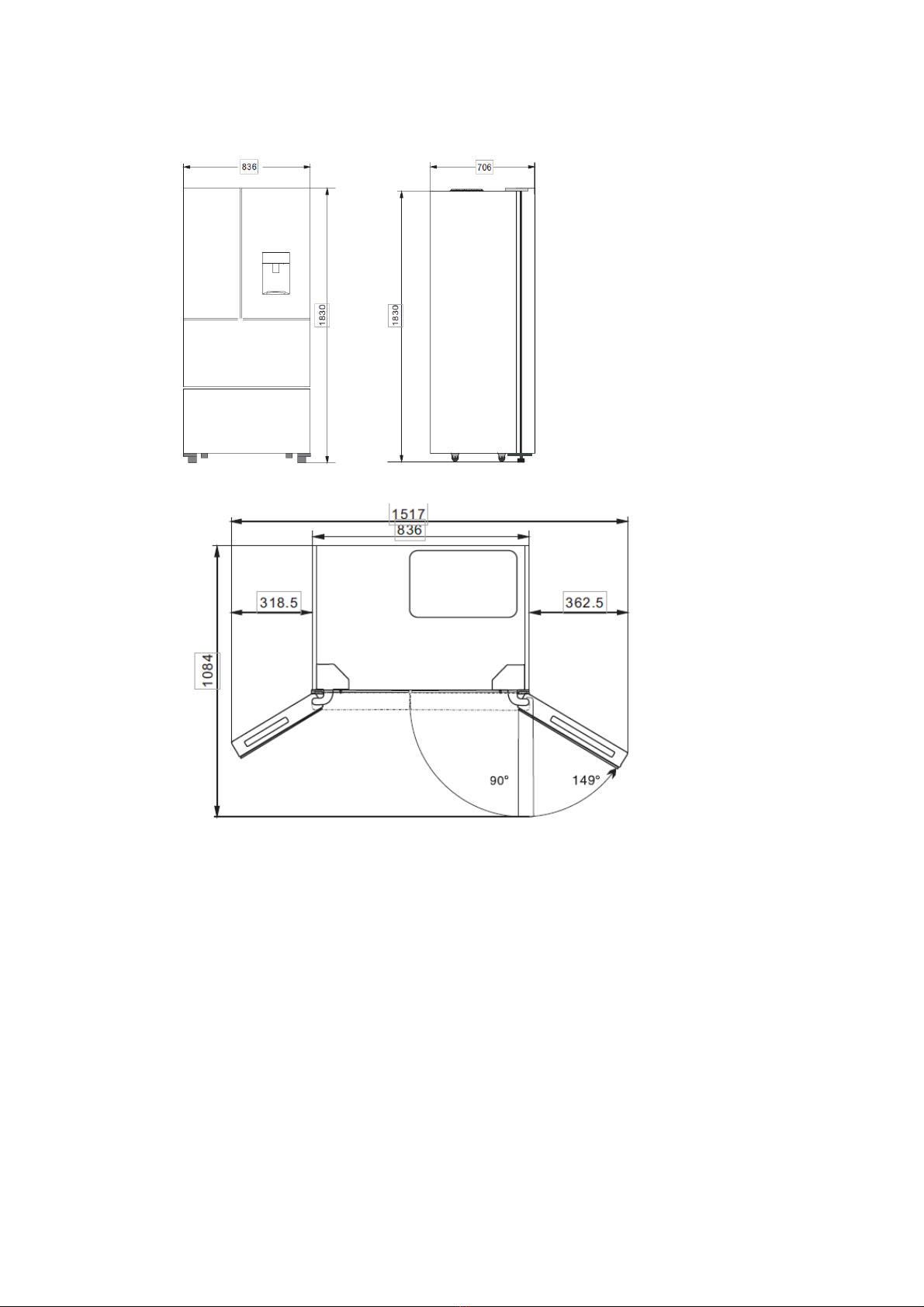

Installation dimension.................................................................................................................11

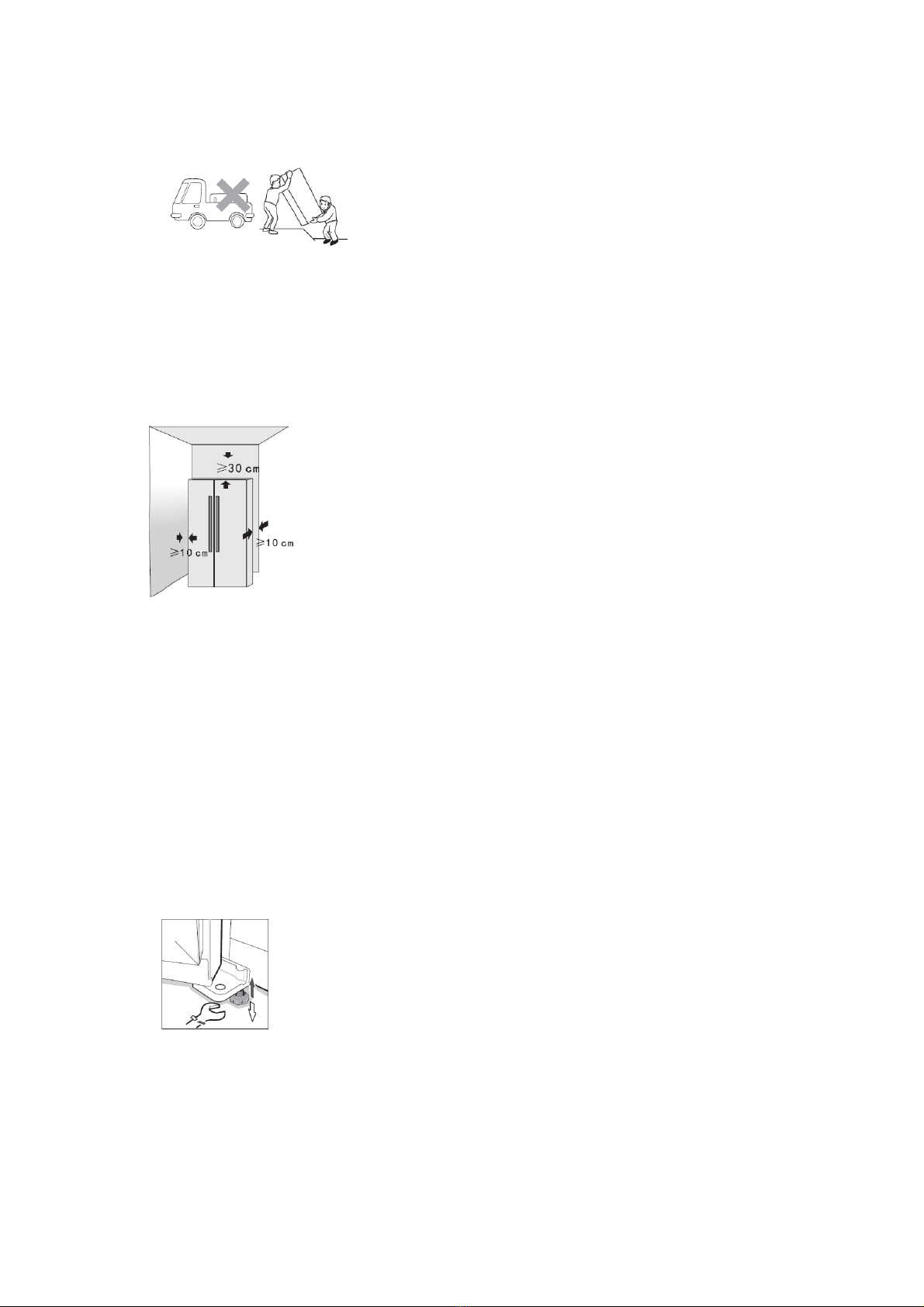

Transport.....................................................................................................................................13
Location.......................................................................................................................................13
Adjust plastic feet........................................................................................................................13
Climate class:...................................................................................................................................14
Operation ........................................................................................................................................14
Before Using................................................................................................................................14
Starting and function setting.......................................................................................................14
Control panel...............................................................................................................................15
Feature selection.........................................................................................................................15
Freezer compartment settings....................................................................................................15
Refrigerator compartment Settings ............................................................................................16
Lock/unlock button.....................................................................................................................16
This product has button lock function.....................................................................................16
Open door alarm.........................................................................................................................17
Fridge compartment switch off/on.............................................................................................17
Refrigerator chamber..................................................................................................................17
Instructions for child lock lever...................................................................................................18

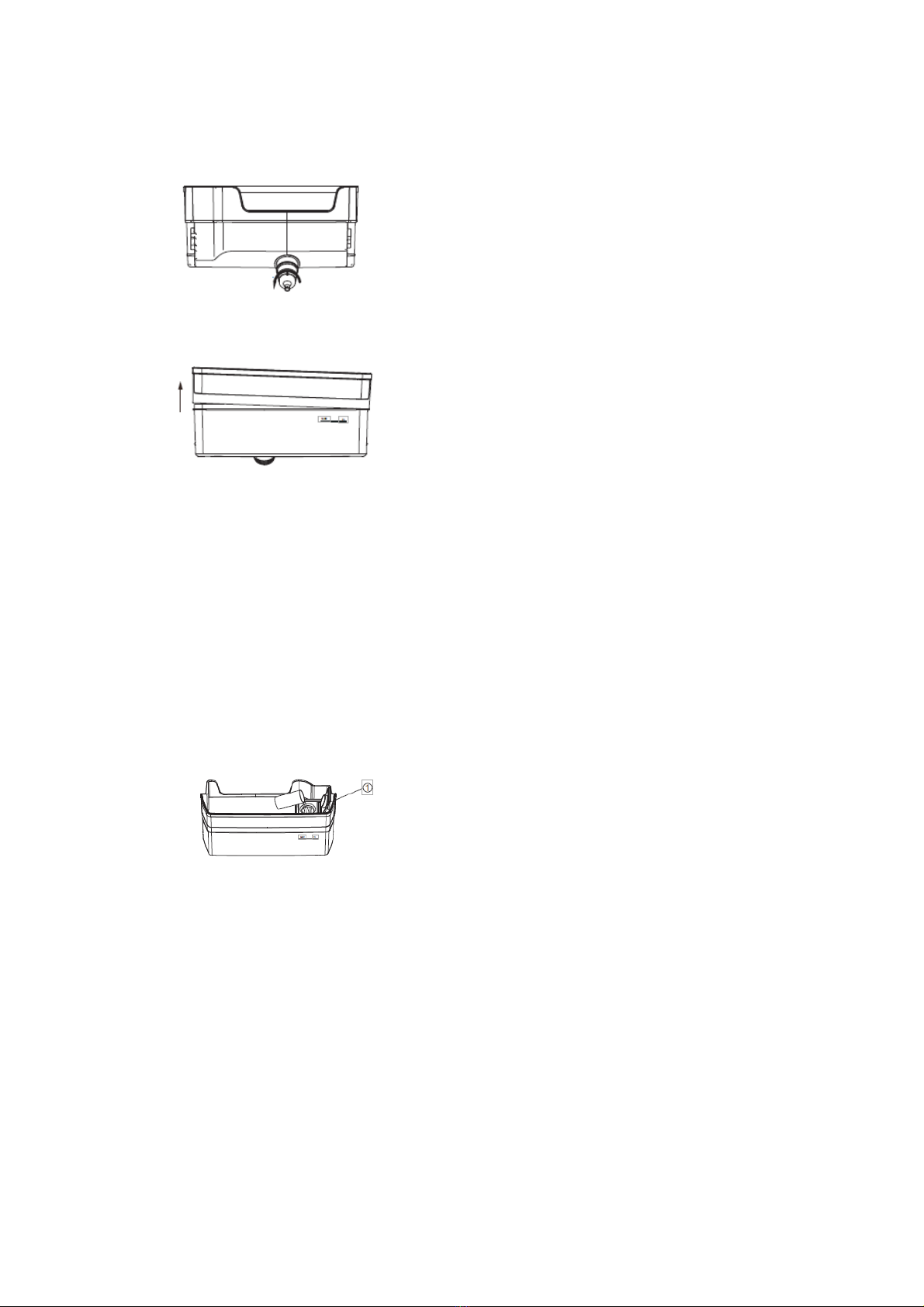

Instructions for water tank assembly..........................................................................................18
Fill the tank with pure drinking water. ........................................................................................19
Freezing chamber........................................................................................................................20
Storage of foods ..........................................................................................................................20
Energy saving tips............................................................................................................................22

Waterford Appliances
3
WAFF2D2D
Storage of food................................................................................................................................22
Maintenance ...................................................................................................................................24
Defrosting....................................................................................................................................24
Cleaning.......................................................................................................................................24
General information....................................................................................................................25
Normal occurrence......................................................................................................................25
Trouble shooting .............................................................................................................................26
Warnings
CAUTION This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by children without
supervision. Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
The refrigerant isobutene(R600a) is contained within the refrigerant circuit of the
appliance, a natural gas
with a high level of environmental compatibility, which
is nevertheless flammable.
During transportation and installation of the appliance, ensure that none of the
components of the refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.

Waterford Appliances
4
WAFF2D2D
Symbol ISO 7010 W021 Warning;
Risk of fire/flammable materials
1. WARNING: The appliance must be positioned so that the plug is accessible.
2. WARNING: If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard.
3. WARNING: Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
4. WARNING: Do not use mechanical devices or
other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
5. WARNING: Do not damage the refrigerant circuit.
6. WARNING: Do not use electrical appliances in side the food storage
compartments of the appliance, unless they are of the type recommended by
the manufacturer.
7. WARNING: This unit is using R600a as the Refrigerant and cyclopentane as
Foaming agent, both are flammable, must be recycled in an appropriate way
and under no circumstances should be burned
8. WARNING: Danger of electrical shock, the yellow-green earthling of this
appliance must be earthed before operation.
9. WARNING: Refrigerator discarded after the need for disposal according to
local lows and regulation.
10. WARNING: The refrigerant and insulation blowing gas are flammable. When
disposing of the appliance, do so only at an authorized waste disposal centre.
Do not expose to flame.
11. WARNING: When positioning the appliance, ensure the supply cord is not
trapped or damaged.
12. WARNING: Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.

Waterford Appliances
5
WAFF2D2D
13. WARNING: To avoid contamination of food, please respect the following
instructions.
–Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
–Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
*Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.
–Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
14.WARNING: Risk of child entrapment. Before you throw away your old refrigerator
or freezer:
* Take off the doors.
* Leave the shelves in place so that children may not easily climb inside.
*Two-star (** ) frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice-cream and making ice cubes.
–One-, two- and three-star compartments are not suitable for the freezing of fresh
food.
*One star ( * ),two star( ** ) and three star( *** ) compartments
are not suitable for the freezing of fresh food.
–If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.
*Please depend on the actual situation of the product.
This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable resume of material resources. To return your
used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmental safe
recycling.

Waterford Appliances
6
WAFF2D2D
Safety and warning information
Basic safety symbols
This guide contains many important safety messages.
Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of
hazards that can kill or hurt you or others or cause damage to the product. All safety
messages will be preceded by the safety alert symbol and the hazard signal word
DANGER, WARNING ,or CAUTION. These words mean:
You will be killed or seriously injured if you don't follow the instructions.
You will be killed or seriously injured if you don't follow the instructions.
Indicates an imminently hazardous situation which, if not avoided, may result in
minor or moderate injury, or product damage only.
Appliance connection
This product is suitable for use on 230V/50Hz supply only, excessive voltage
fluctuations may cause damage to the product, not be used on a supply other than 50Hz.
In order to ensure safety, the appliance is suitable for use on a standard 13A socket
protected by a suitable MCB (miniature circuit breaker). The supply cable must be able to
withstand a current of up to 13A.
To reduce the risk of fire, electric shock, or injury to persons when using your product, basic
safety precautions should be followed, including the following.
Read all instructions before using this appliance.
Safety and warning information
Do not damage the refrigerant circuit.
Refrigerant will cause serious injury when it splashes into eyes. If this should happens please
go to hospital immediately. Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.

Waterford Appliances
7
WAFF2D2D
Do not use electrical appliance inside the food storage chambers of the appliance, unless
they are of the type recommended by the manufacturer.
Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
The refrigerant and insulation blowing gas are flammable. When disposing of the appliance,
do so only at an authorized recycling centre. Do not expose to flame.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.
Children should be supervised to ensure that they do not play with the appliance.
Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas,
spray or cosmetics near or in the fridge. It may cause explosion or fire.
Do not put glassware in freezing chamber or refrigerator chamber air outlet, it may cause
explosion or injury.
Make sure of grounding.
Consult a qualified electrician or service person if the ground-ing instructions are not
completely understood, or if you have doubts on whether the appliance is properly
grounded.
The incorrect grounding may cause breakdown and electric shock.
Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
This appliance is intended for domestic use only.
Safety and warning information
A dedicated electrical outlet should be used.
Using several devices at one outlet may cause fire.
Install the appliance in a dry, well ventilated room.
The appliance should be placed close to a dedicated electrical socket to make it easy to cut
off the power supply in case of emergency.
Do not allow the power plug to face upward or to be squeezed at the back of the fridge.
Water may be flow into or the plug may be damaged, which causes fire or electric shock.
Do not allow the power cord bent or pressed by the heavy object to be damaged. If it is
damaged, it must be replaced by the service agent or a similarly qualified person in order to
avoid a hazard.

Waterford Appliances
8
WAFF2D2D
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
Unplug the power plug when cleaning, handling the interior lamp of the
fridge.
It may cause electric shock or injury.
If the LED lamp is damaged, it must be replaced by the manufacturer, its service agent.
Remove water or dust from the power plug with dry clean cloth, do not use wet hands touch
it and insert it with the ends of the pins securely connected.
Do not touch food or containers at the freezer with wet hands.
It may cause frostbite.
Do not place the heavy object or the dangerous object, cup, flower
vase, cosmetics, medicine or any container with water on the fridge.
It may be dropped to cause injury, fire or electric shock when opening or closing the door.
Do not spray water at the outside or the inside of the fridge or do not clean it with benzene
or thinner.
Safety and warning information
After placing the product in it’s final location wait for at least 5 minutes before connecting
the plug to allow the refrigerant to settle.
Do not use the fridge for non-domestic purpose（storing medicine or testing material, etc）

Waterford Appliances
9
WAFF2D2D
It may cause an unexpected risk such as fire, electric shock, deterioration of stored material
or chemical reaction.
Do not use drier to dry the inside ,nor light a candle to remove odour. It
may cause explosion or fire.
Do not cling to the door or the trays of the door.
The fridge may topple or trap finger. Especially, do not allow the children to do the above.
When gas is leaked, do not touch the fridge or the outlet and ventilate the
room immediately.
The explosion by spark may cause fire or burn.
When the gas is leaked by the severe damage during delivering, installing or using the fridge,
any spark may cause fire or burn.
Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of
the fridge, the heatproof grill (exhaust hole) at the backside.
It may cause electric shock or injury.
Do not put ice in thin crystal cup or ceramic ware. It may break cup or ceramic ware to cause
injury.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
Use the submerged the fridge after checking it.
It may cause electric shock or fire.
Do not install the fridge in the wet place or the place which water or rain splashes.
Deterioration of insulation of electric parts may cause electric leakage. Please check the
fridge regularly.
Do not allow any person except the qualified engineer to disassemble, repair or alter the
fridge.
It may cause injury, electric shock or fire.

Waterford Appliances
10
WAFF2D2D
Product Introduction
Product features
Energy saving and noise reduction
It contains super freeze, energy saving, noise reduction, optimal refrigeration system
to achieve.
Precise temperature control
Microcomputer control system separate to set, control and display the
R-temperature and F-temperature, more
precise control.
Automatic defrosting
Special program to reduce the temperature fluctuation of the fridge, it's for keeping
food fresh.
LED display and touch button
Control board respectively display refrigerator and freezer chamber temperature
setting and functional status; touch button operation is convenient.
Door-opening alarm system
If more than 1 minute door-opening, alarm system will remind you to close the door.
Tempered glass, safe and reliable
Tempered glass, safe and reliable, easy clean and durable.
Easy clean and removable door seal
Door seal is easy clean and removable, and long service life.
Product contents
All figures in this manual are schematic; some features and devices may not be
consistent fully with your refrigerator and specific structure and configuration shall
be subject to the actual product.
The appearance and specifications of the actual product may differ
depending on the model.
