WaterLogic WL200 User manual

WL200 Manual Page 13 - Revision: 4-29-2019

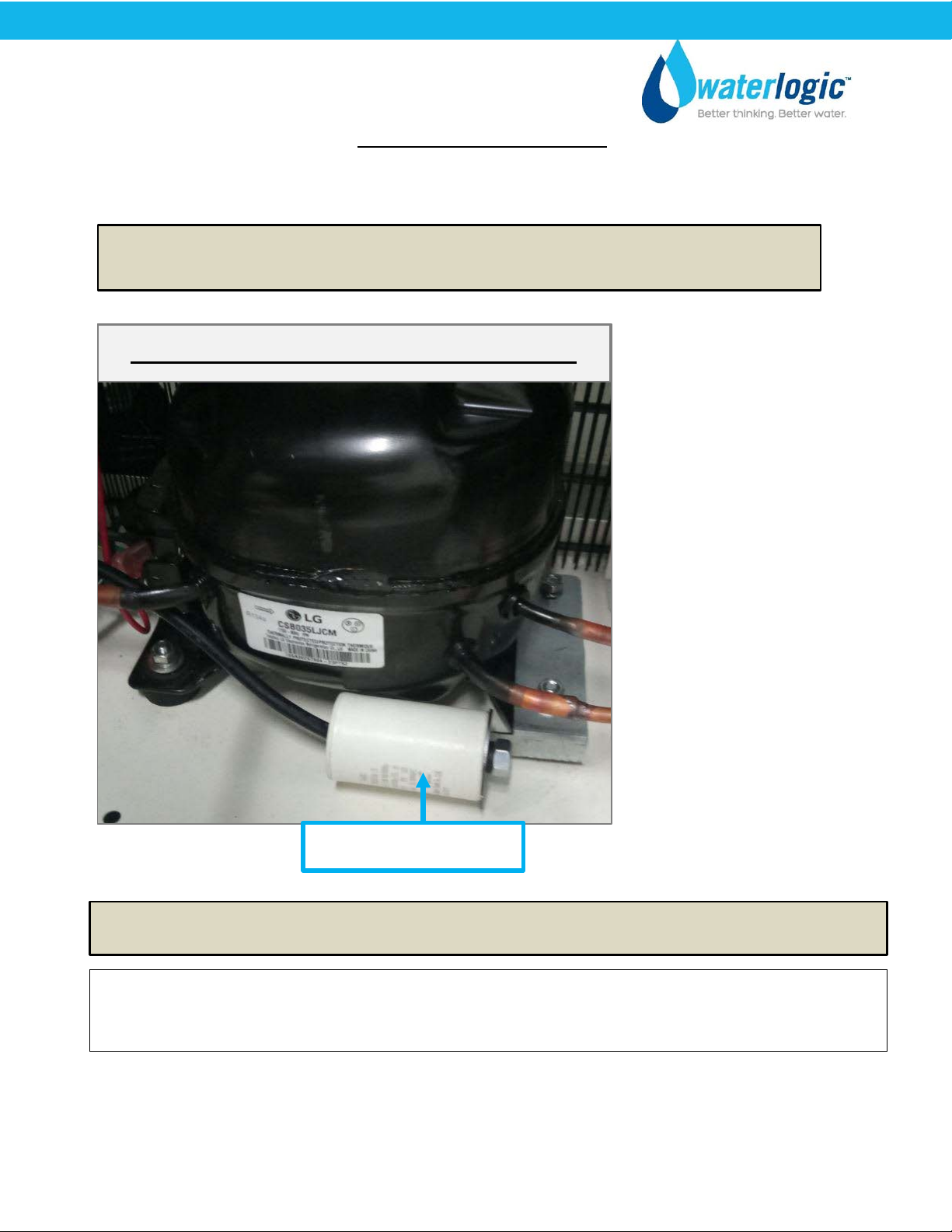

LG COMPRESSOR UPGRADE
*Parts List in this manual updated to reflect these changes.
New LG Compressor 120V R134A 1/8HP CSB035LJCM with external start/run
capacitor.
New LG Compressor with External Start/Run Capacitor
External Capacitor
New LG CSB035 LJCM
Compressor
Repair/Replacement Parts for are
not interchangeable with
older/other compressors.
Older version of LG compressor is
obsolete and no longer available.
Part # CO-0017-L00-00 LG Compressor 120V CSB035LJCM-PTC Relay
Part # CO-0018-L00-00 LG Compressor 120V CSB035LJCM-Overload Protector
Part # CO-0019-L00-00 LG Compressor 120V CSB035LJCM-Capacitor
New LG CSB035LJCM 120V R134A 1/8HP Compressor Repair Parts

WL200 Manual Page 14 - Revision: 4-29-2019
ADJUSTING COLD SET POINT
Cold Water Temperature – Factory Set Point is 41°F (5°C) and can be adjusted to 34°F - 54°F (1.1°C to
12.2°C)
The cold set point can be adjusted by accessing the cold
thermostat adjustment screw under the decal at the rear of the
unit.
Remove the red portion of the Cold Tank Temperature label to
access the adjustment screw.
The factory set point is ~41°F and is indicated by the dot on
sheet metal.
Turning the adjustment screw clockwise to lower the set point
temperature.
Do not adjust past the “Max Cold” position at 3:00 position to
avoid freezing the cold tank.
Turning the adjustment screw counter-clockwise to raise the set
point temperature.

WL200 Manual Page 15 - Revision: 4-29-2019
REPLACEMENT COMPONENTS
Component
WLCP Part No.
Frequency of Replacement
GAC Filter - 10" Carbon Activated
Inline Filter – Optional
*Filter Element PN FT-0038-WLT
FT-0035
Every 6-months or as required. Local
water conditions will determine
proper filter type and maintenance
schedule.
FT-0035-IL-WLT
Carbon Block - 10" CBC 1 Micron
Lead and Cyst Reduction Inline
Filter – Optional
*Filter Element PN FT-0064-WLT
FT-0063
Every 6-months or as required. Local
water conditions will determine
proper filter type and maintenance
schedule.
FT-0063-IL-WLT
Sediment Filter - 10" Sediment
20 Micron Inline Filter – Optional
*Filter Element PN FT-0055-WLT
FT-0053
Every 6-months or as required. Local
water conditions will determine
proper filter type and maintenance
schedule.
FT-0053-IL-WLT
Replacement parts can be obtained from Waterlogic or an Authorized Waterlogic Dealer.
See Parts Layouts, Drawings, and Lists for additional repair parts.
Surface Cleaning
Clean on a regular basis with damp lint free cloth. Never use harsh chemicals (alcohol or acid based)
or abrasive agents on any part of the product to avoid damage. A mild cleaner such as Simple Green
or equivalent is recommended.
DISPOSAL
End of Life
At the end of this product’s life, ensure that it is disposed of in an environmentally friendly manner
which is fully compliant with all Federal/State/Local Requirements and Guidelines.Do not dispose
of this appliance with normal household or business waste.

WL200 Manual Page 16 - Revision: 4-29-2019
WL200 COUNTER TOP DRAWINGS with PART NUMBERS
Wetted Parts

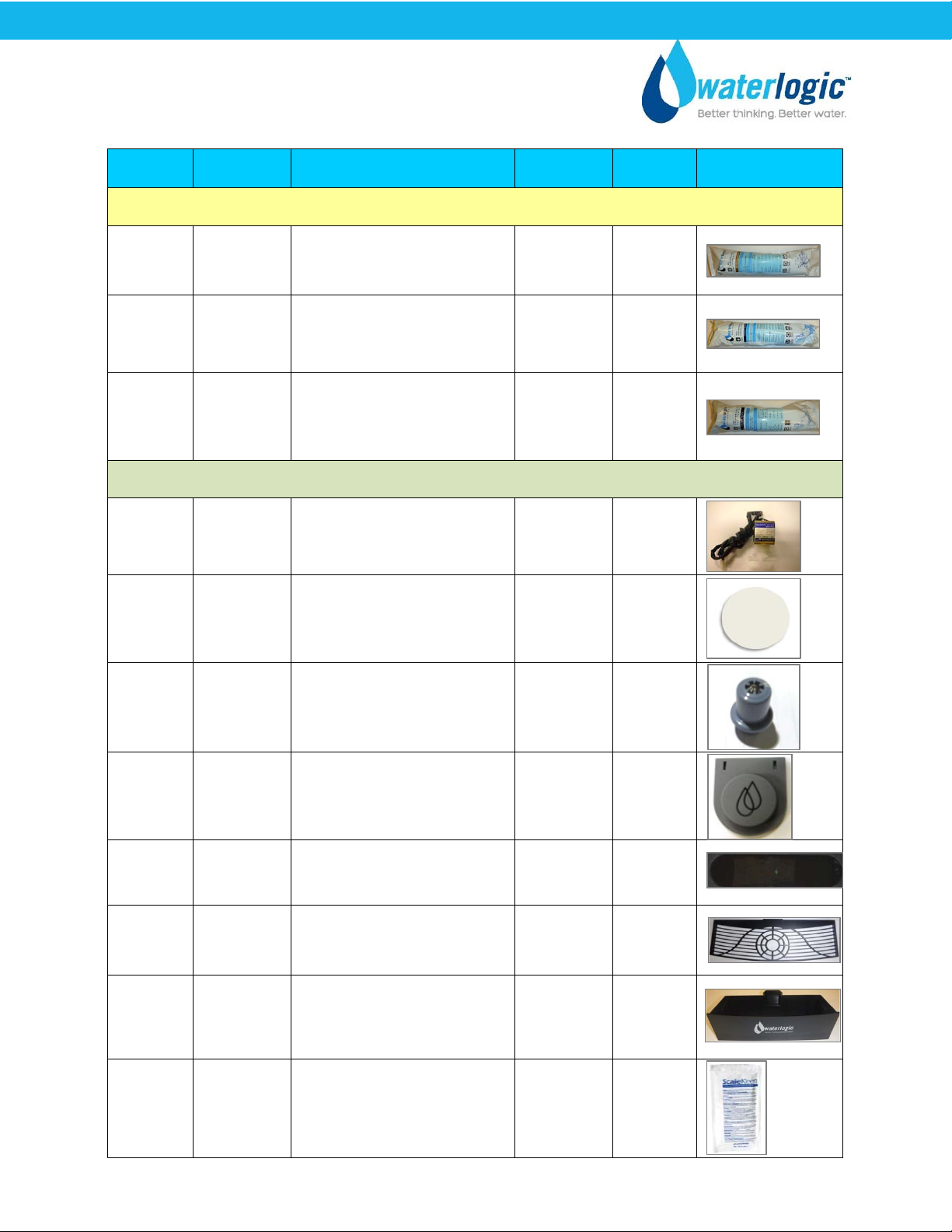

WL200 Manual Page 17 - Revision: 4-29-2019
No
WLCP Part
No.
Description Part No Stocked?
Consumables
Optional FT-0035
GAC Filter - 10" Carbon
Activated Inline Filter - Optional
Filter Element PN FT-0038-WLT
FT-0035-IL-
WLT Yes
Optional FT-0063
Carbon Block - 10" CBC 1-Micron
Lead and Cyst Reduction Inline
Filter - Optional
Filter Element PN FT-0064-WLT
FT-0063-IL-
WLT Yes
Optional FT-0053
Sediment Filter - 10" Sediment
20 Micron Inline Filter
Optional
Filter Element PN FT-0055-WLT
FT-0053-IL-
WLT Yes
Recommended Spare Parts
1 12-1500
Solenoid Valve 500 mm
Recommend stocking 2 each per
every 10 units purchased
PU-4016 Yes
1.1 CU-0001
Solenoid Cushion
Recommend stocking 2 each per
every 10 units purchased
CU-0001 Yes
2 10-3048
Faucet Nipple – Blue with
Screen
Recommend stocking 2 each per
every 10 units purchased
PL-1013 Yes
3 12-8600
Silicon Button Key Mat
Cold Only
Recommend stocking 5 each per
every 10 units purchased
PL-1100 Yes
4 12-8610
Button Label - Cold Only
Recommend stocking 2 each per
every 10 units purchased
LP-7085 Yes
5 12-8150
Drip Tray Grill – Charcoal
Recommend stocking 4 each per
every 10 units purchased
PL-1152 Yes
6 12-8055
Drip Tray - Charcoal with
Waterlogic Logo
Recommend stocking 4 each per
every 10 units purchased
PL-1156 Yes
Not
Shown 01-2076
ScaleKleen
Recommend stocking 2 each per
every 10 units purchased
NA Yes

WL200 Manual Page 18 - Revision: 4-29-2019

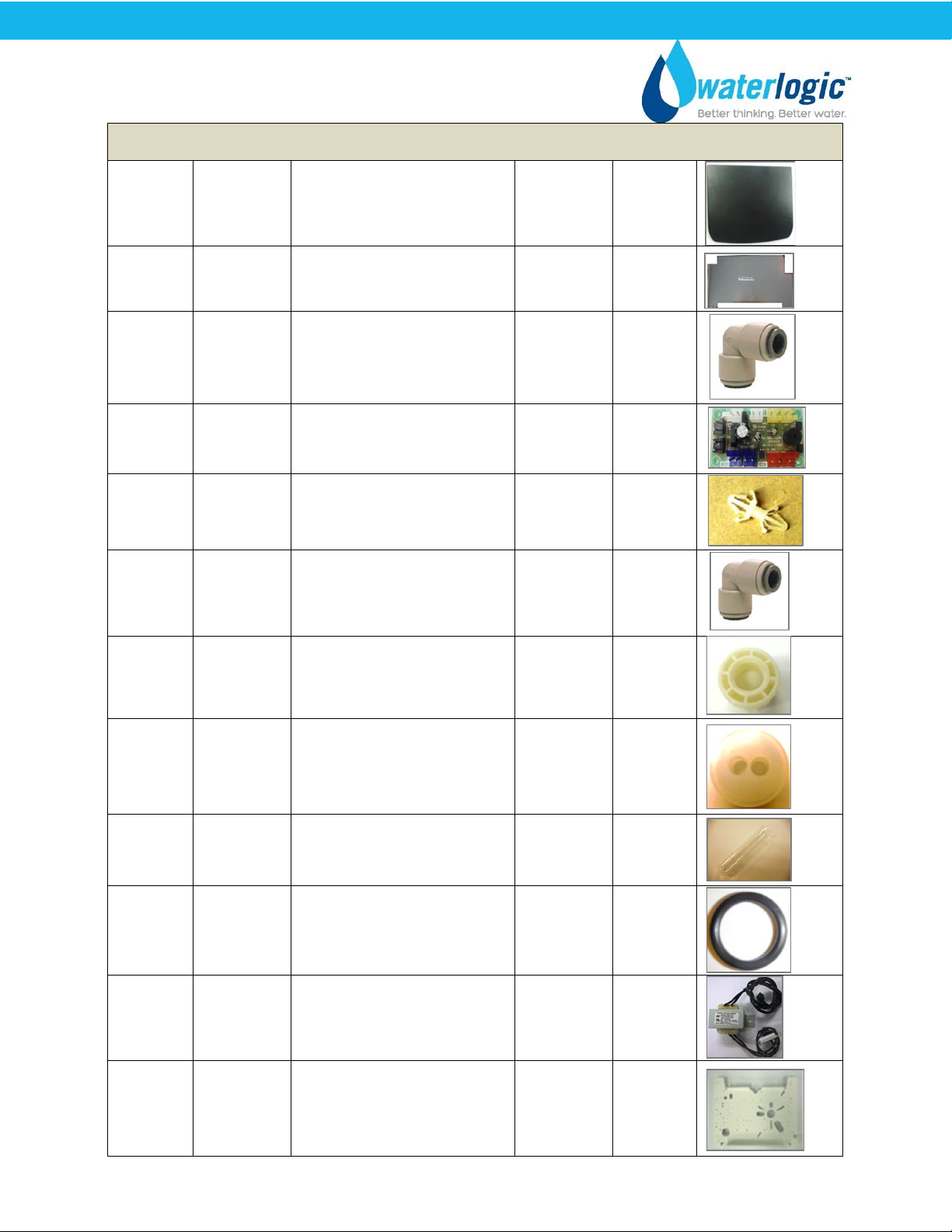

Remaining of Parts
7 12-8060
Flat Top Cover - Charcoal with
Texture
Counter Top Only
PL-1249-CN Yes
8 ST-0049-
L00-00
High Voltage Metal Cover (ETL-
Certification)
Counter Top Only
ST-0049-
L00-00 Yes
9
Purchase
from John
Guest
5/16” x ¼” Reducing Elbow John
Guest P/N PI211008S PU-4007 No
10 NA Leak Detection PCB EN-6111-A No
10.1 10-3017 PCB Stand-off Pin EN-6059 Yes
11
Purchase
from John
Guest
1/4” Union Elbow John Guest
P/N P10308S PU-4008 No
12 12-1210
UV Lamp Retaining Threaded
Nut
Counter Top Only
PL-1128 Yes
13 10-8085 UV Lamp Fixing Rubber (Silicon)
Counter Top Only CT-2001-B Yes
14 NA Quartz Sleeve (100mm)
Counter Top Only CT-2062-CN No
15 10-2500 Black O-Ring for Quartz Sleeve
Counter Top Only CT-2006 Yes
16 12-3117 Power Transformer 120V EL-5003-A Yes
17 12-3165 Upper Shelf
Counter Top Only ST-8150-B Yes

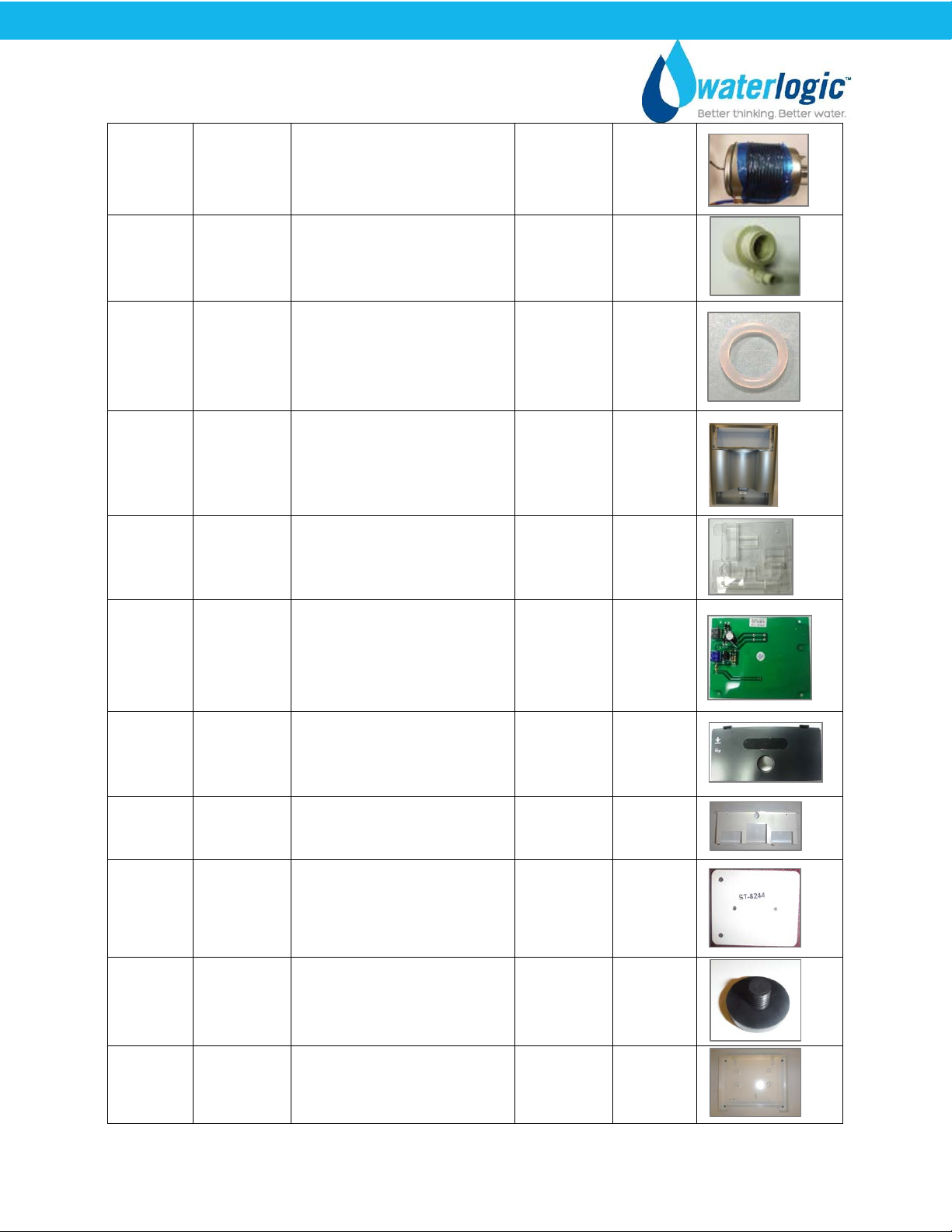

WL200 Manual Page 19 - Revision: 4-29-2019
18 12-3110 2L UV Cold Tank Assembly
Counter Top Only CT-2060 Yes
19 NA Faucet - Cold only PL-1012 Yes
19.1 10-2600
Natural Faucet O-Ring – Silicon
White CT-2007 Yes
20 12-8050 Front Upper Drip Tray Insert
Panel PL-1146 Yes
21 12-8605 PCB Cover PL-1180-CN Yes
22 12-8615 Main PCB EN-6086 Yes
23 NA Front Upper Insert Panel -
Charcoal
PL-0084-
L00-CL No
24 12-3175 Filter Bracket
Counter Top Only ST-8152 Yes
25 12-3195 Leak System Inlet Solenoid
Bracket ST-8244 Yes
26 12-3150 Unit Rubber Feet
Counter Top Only PL-1251-CN Yes
27 12-3170 Bottom Tray
Counter Top Only ST-8151 Yes

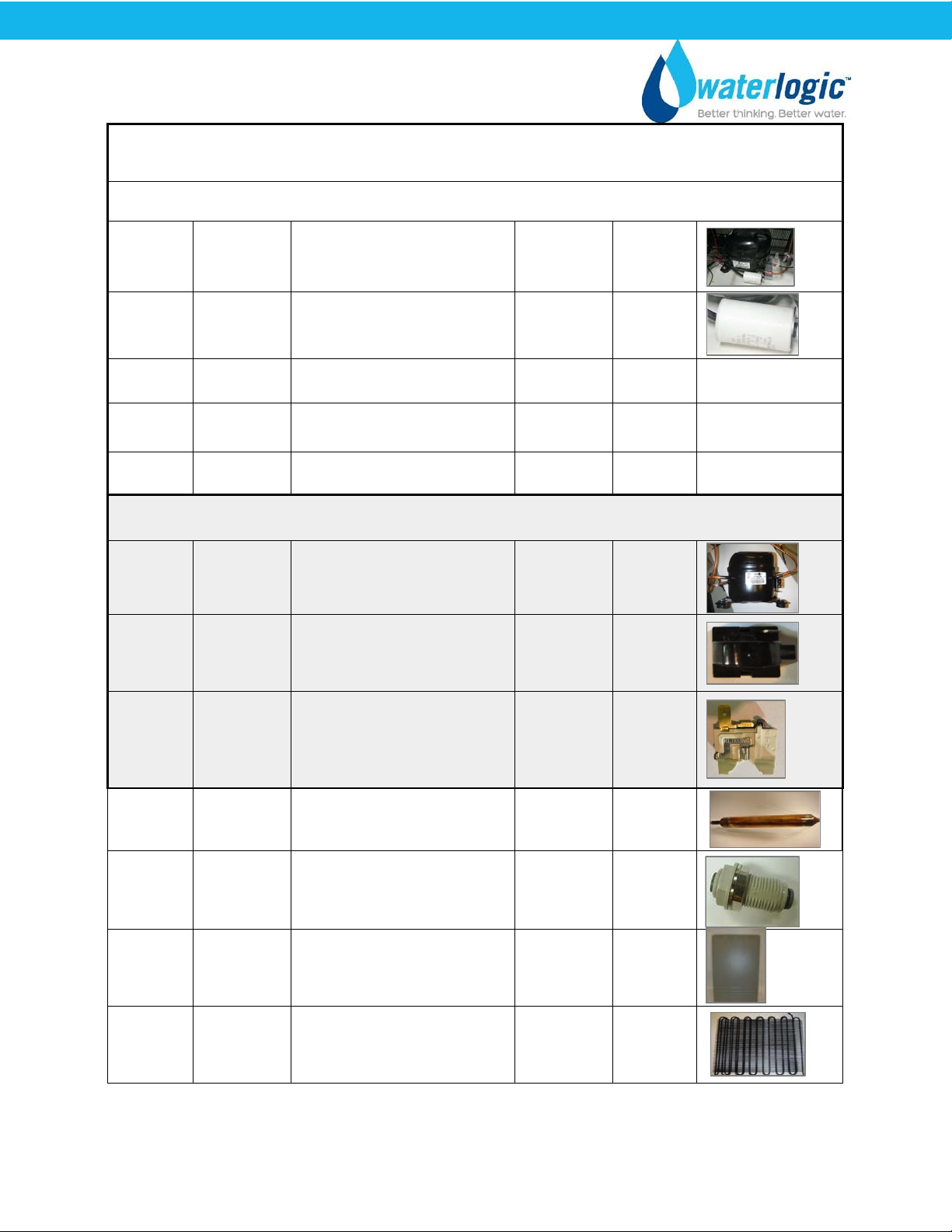

WL200 Manual Page 20 - Revision: 4-29-2019
Verify compressor in machine before ordering parts as the Compressor P/N CO-0020-L00-00
and 10-2200 (CO-0001A) and related parts are not interchangeable.
CO-0020-L00-00 Compressor
34A.1 CO-0020-
L00-00
LG Compressor 120V R134A
CSB035LJCM
CO-0020-
L00-00 Yes
34A.2 CO-0019-
L00-00 Compressor Capacitor CO-0019-
L00-00 Yes
34A.3 ST-0216-
L00-00 Capacitor Bracket ST-0216-
L00-00 Yes
34A.4 CO-0017-
L00-00 PTC Relay CO-0017-
L00-00 Yes
34A.5 CO-0018-
L00-00
Overload Protector CO-0018-
L00-00
Yes
CO-9001-A / 10-2200 Compressor
34B.1 10-2200 Compressor (R134a 1/8HP)
120V/60Hz CO-9001-A Yes
34B.2 10-3003 Compressor Starter Relay CO-9016 Yes
34B.3 10-5018 Compressor Overload CO-9015 Yes
28.1 12-1001 Filter Dryer CO-9008 Yes
29 10-3067 Bulkhead Union ¼” x ¼” John
Guest P/N PI1208S PU-4028 Yes
30 12-8062 Side Panel
Counter Top Only ST-8245 Yes
31 12-3100 Wire Condenser
Counter Top Only CO-9031 Special
Order

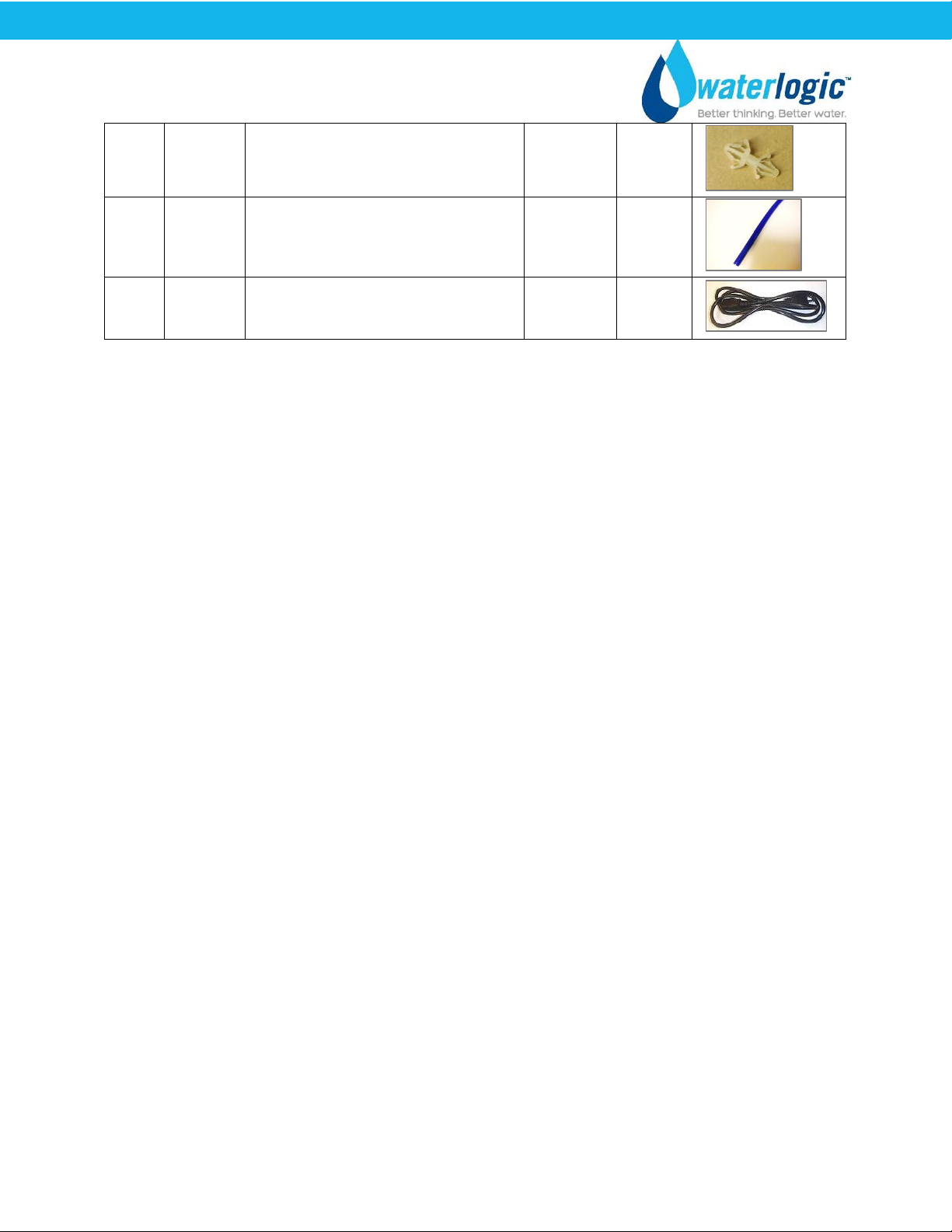

WL200 Manual Page 21 - Revision: 4-29-2019

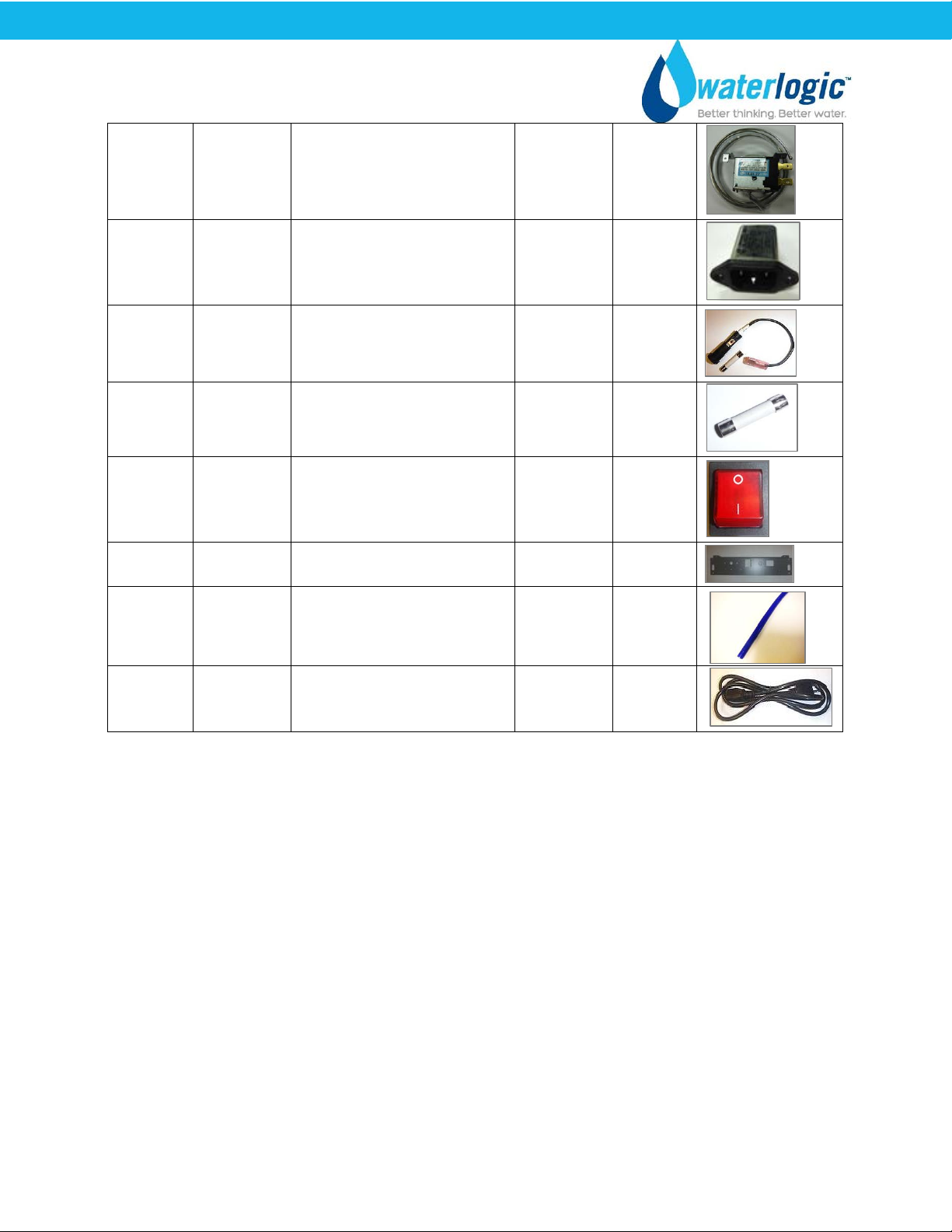

32 12-1101 Cold Tank Thermostat –
included with Cold Tank CT-2016 Yes
33 10-4013
Power Line Noise Filter,
ElectroMagnetic Interference
filter (EMI)
EL-5016 Yes
34 EL-5053 Fuse Holder and Fuse 120V /
15A with One Wire EL-5053 Yes
34.1 10-3013 Fuse 120V / 15A EL-5010 Yes
35 12-5600 Red Power and Compressor
Switch EL-5019-A Yes
36 12-8061 Silver Back Panel
Counter Top Only ST-8216 Yes
37
Purchase
from John
Guest
JG LLD PE Tube - Blue
O.D.1/4"John Guest P/N PE-08-
BI-1000F-B
PU-4031 No
Not
Shown 10-3007 Power Cord – 120V EL-5001-B Yes

WL200 Manual Page 22 - Revision: 4-29-2019
WL200 TOWER DRAWINGS with PART NUMBERS
Wetted Parts

WL200 Manual Page 23 - Revision: 4-29-2019
No
WLCP
Part No.
Description Part No Stocked?
Consumables
Optio
nal FT-0035
GAC Filter - 10" Carbon Activated Inline
Filter - Optional
Filter Element PN FT-0038-WLT
FT-0035-IL-
WLT Yes
Optio
nal FT-0063
Carbon Block - 10" CBC 1-Micron Lead
and Cyst Reduction Inline Filter -
Optional
Filter Element PN FT-0064-WLT
FT-0063-IL-
WLT Yes
Optio
nal FT-0053
Sediment Filter - 10" Sediment 20 Micron
Inline Filter
Optional
Filter Element PN FT-0055-WLT
FT-0053-IL-
WLT Yes
Recommended Spare Parts
1 12-1500 Solenoid Valve 1000 mm PU-4016 Yes
11.1 CU-0001 Solenoid Cushion CU-0001 Yes
1 12-1500
Solenoid Valve 500 mm
Recommend stocking 2 each per every 10
units purchased
PU-4016 Yes
1.1 CU-0001
Solenoid Cushion
Recommend stocking 2 each per every 10
units purchased
CU-0001 Yes
2 10-3048
Faucet Nipple – Blue with Screen
Recommend stocking 2 each per every 10
units purchased
PL-1013 Yes
3 12-8600
Silicon Button Key Mat
Cold Only
Recommend stocking 5 each per every 10
units purchased
PL-1100 Yes
4 12-8610
Button Label - Cold Only
Recommend stocking 2 each per every 10
units purchased
LP-7085 Yes
5 12-8150
Drip Tray Grill – Charcoal
Recommend stocking 4 each per every 10
units purchased
PL-1152 Yes
6 12-8055
Drip Tray - Charcoal with Waterlogic Logo
Recommend stocking 4 each per every 10
units purchased
PL-1156 Yes

WL200 Manual Page 24 - Revision: 4-29-2019
Not
Shown 01-2076
ScaleKleen
Recommend stocking 2 each per every 10
units purchased
NA Yes
Remaining of Parts
7 NA Faucet Cold only PL-1012 No
7.1 10-2600 Natural Faucet O-Ring – Silicon White CT-2007 Yes
8 12-8050 Front Upper Drip Tray Insert Panel PL-1146 Yes
9 12-8605 PCB Cover PL-1180-CN Yes
10 12-8615 PCB for Cold Water EN-6086 Yes
11 NA Front Upper Insert Panel - Charcoal PL-0084-
L00-CL No
12 12-8000 Silver Side Panel
Tower Only ST-8157 Yes
13 12-8058 Side Panel Plastic Handle PL-1123 Yes
14 12-8052 Front Lower Panel
Tower Only PL-1148 Yes
15 12-8053 Front Lower Insert Panel
Tower Only PL-1149 Yes
16 12-8005 Filter Bracket
Tower Only ST-8138 Yes

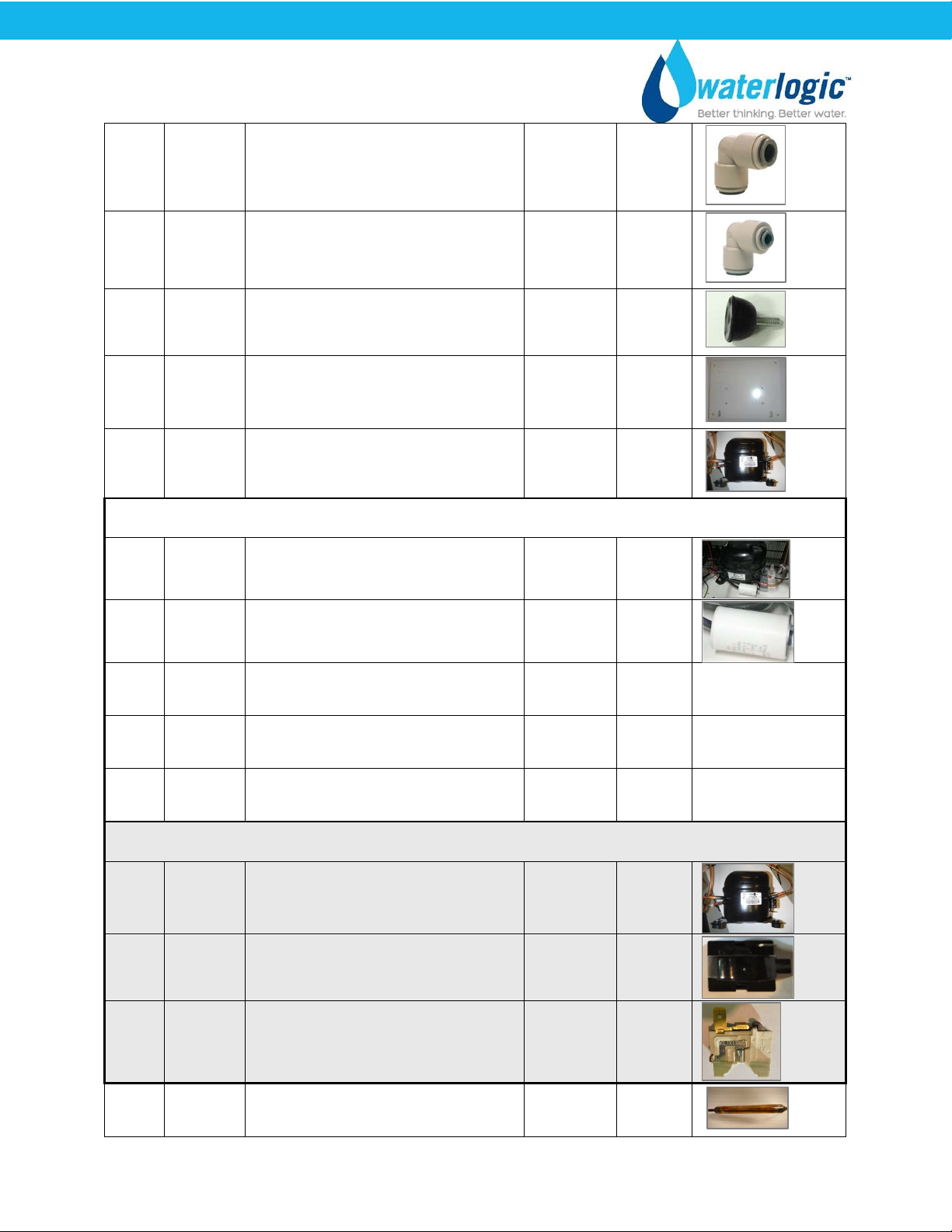

WL200 Manual Page 25 - Revision: 4-29-2019
17
Purchase
from John
Guest
5/16” x ¼” Reducing Elbow John Guest
P/N PI211008S PU-4007 No
18
Purchase
from John
Guest
1/4” Union Elbow John Guest P/N
P10308S PU-4008 No
19 10-3083 Unit Control Rubber Feet
Tower Only ST-8167CN Yes
20 12-8004 Bottom Tray
Tower Only ST-8137 Yes
21 10-2200 Compressor (R134a 1/8HP) 120V/60Hz CO-9001-A Yes
CO-0020-L00-00 Compressor
34A.1 CO-0020-
L00-00
LG Compressor 120V R134A
CSB035LJCM
CO-0020-
L00-00 Yes
34A.2 CO-0019-
L00-00 Compressor Capacitor CO-0019-
L00-00 Yes
34A.3 ST-0216-
L00-00 Capacitor Bracket ST-0216-
L00-00 Yes
34A.4 CO-0017-
L00-00 PTC Relay CO-0017-
L00-00 Yes
34A.5 CO-0018-
L00-00 Overload Protector CO-0018-
L00-00 Yes
CO-9001-A / 10-2200 Compressor
34B.1 10-2200 Compressor (R134a 1/8HP) 120V/60Hz CO-9001-A Yes
34B.2 10-3003 Compressor Starter Relay CO-9016 Yes
34B.3 10-5018 Compressor Overload CO-9015 Yes
21.1 12-1001 Filter Dryer CO-9008 Yes

WL200 Manual Page 26 - Revision: 4-29-2019
22 10-3067 Bulkhead Union ¼” x ¼” John Guest P/N
PI1208S PU-4028-A Yes
23 12-8102 Wire Condenser
Tower Only CO-9027 Special
Order
24 12-8002 Silver Back Panel
Tower Only ST-8135 No
25 12-1101 Cold Tank Thermostat – included with
Cold Tank CT-2016 Yes
26 10-4013 Power Line Noise Filter, ElectroMagnetic
Interference filter (EMI) EL-5016 Yes
27 EL-5053 Fuse Holder and Fuse 120V / 15A with
One Wire EL-5053 Yes
27.1 10-3013 Fuse 120V / 15A EL-5010 Yes
28 12-5600 Red Power and Compressor Switch EL-5019-A Yes
29 12-8054 Top Cover
Tower Only PL-1150 Yes
30 12-1100 4L Single Cold Tank Assembly
Tower Only CT-2017 Yes
31 12-8003 Upper Shelf
Tower Only ST-8136-R2 Yes
32 12-3117 Power Transformer 120V EL-5003-A Yes
33 NA Leak Detection PCB EN-6111-A No

WL200 Manual Page 27 - Revision: 4-29-2019
33.1 10-3017 PCB Stand-off Pin EN-6059 Yes
34
Purchase
from John
Guest
JG LLD PE Tube - Blue O.D.1/4"John
Guest P/N PE-08-BI-1000F-B PU-4031 No
Not
Shown 10-3007 Power Cord – 120V EL-5001-B Yes

WL200 Manual Page 28 - Revision: 4-29-2019
WL200 COUNTER TOP WATER FLOW DIAGRAM

WL200 Manual Page 29 - Revision: 4-29-2019
WL200 TOWER WATER FLOW DIAGRAM
Water In
Solenoid Valve
Condenser
Faucet

WL200 Manual Page 30 - Revision: 4-29-2019

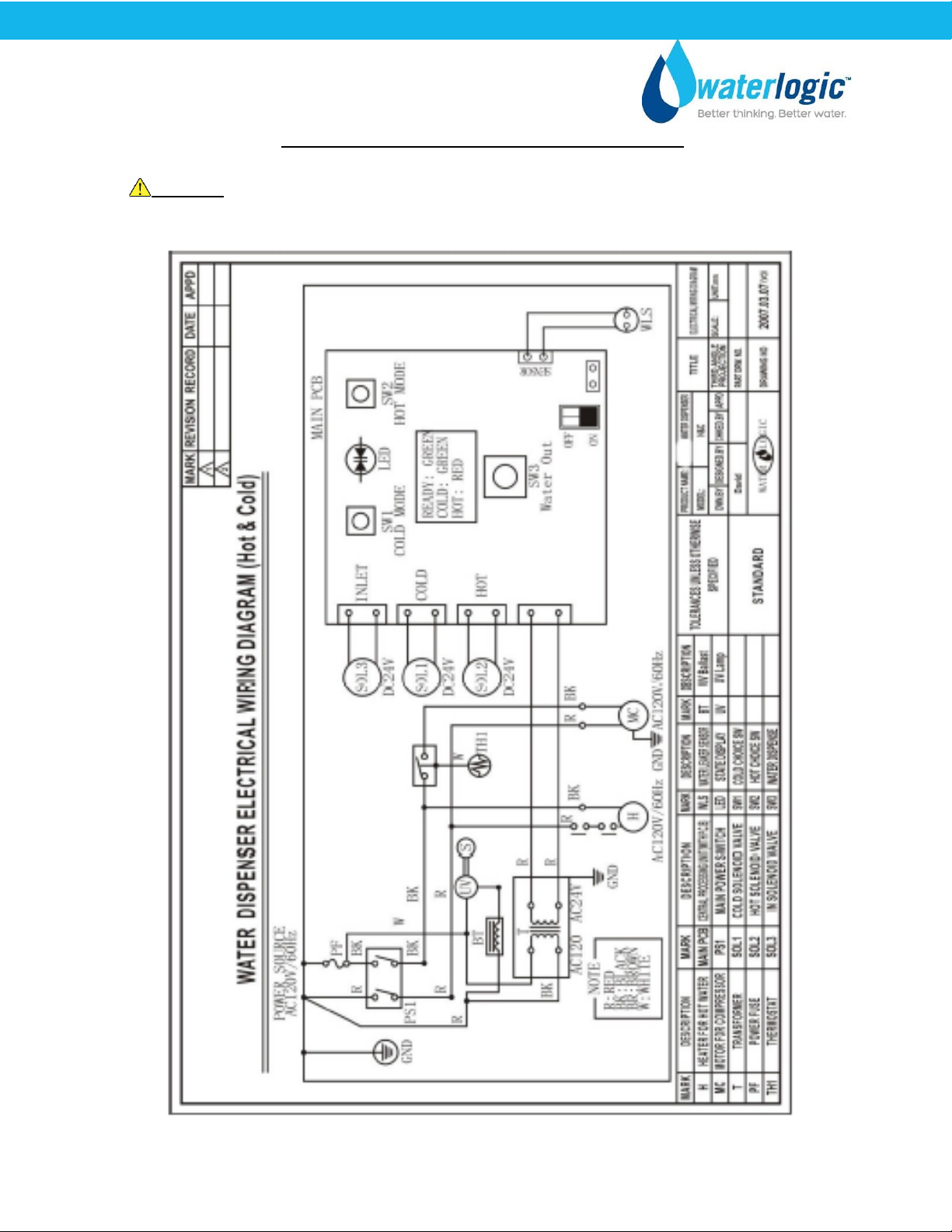

WL200 COUNTER TOP ELECTRICAL DIAGRAM
DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. PCB (Printed Circuit Board) contains High
Voltage. Only trained and qualified technicians should attempt live testing.

WL200 Manual Page 31 - Revision: 4-29-2019
WL200 TOWER ELECTRICAL DIAGRAM
DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. PCB (Printed Circuit Board) contains High
Voltage. Only trained and qualified technicians should attempt live testing.
