WaterLogic S18 User manual

Filtered Undercounter Cooler
Carbonator
4B0004
Product Manual
S18 Undercounter Chiller
Technical Support
[email protected]
[phone]

Introduction and Specification
Page 2 of 16
Contents
Section
Page
Section
Page
Introduction,
Specification
2
Fault Finding
11-12
Installation &
Commissioning
3-6
Spare Parts
13-14
Schematics
7
Removal,
Transportation
and Disposal
15
Cleaning
8-10
Introduction
The S18 UC is a high capacity cooler carbonator. The unit is designed
to deliver a choice of filtered chilled and ambient still water and chilled
carbonated water.
The unit should be isolated from the electricity supply before removal of any
covers. Great care must be employed when working with high pressure
carbon dioxide, and in no cases should the maximum operating pressure of
4bar be exceeded. The over counter unit uses R290 (Care 40, Propane)
refrigerant. Below are some safety warnings which the end user must adopt
to mitigate the risk of unsafe conditions arising.
Specification
Dimensions
D – 19.6” (500 mm)
W – 13.8” (350 mm)
W – 17.8” (454 mm
over filters)
H – 25.2” (640 mm)
Compressor
Huayi
NUY70NRa
This product contains fluorinated
greenhouse gas with a GWP of 1300
in a hermetically sealed system.
Supply
115 Vac 60Hz
Refrigerant
R290, 1.8oz (50g)
Rated Input
920 W
Climatic Class
N
Rated
Current
8A
Potable water
inlet pressure
40 psi (2.76 bar) min
60 psi (4.14 bar) max
CO2
Pressure
55 psi (3.8 bar)
Nominal ice
bank
24 lbs (11 kg)

Installation and Commissioning
Page 3 of 16
CO2 Gas Inlet
1/4” John Guest Speedfit.
Water Inlet
3/8” John Guest Speedfit.
Bath Overflow
1/2” John Guest
Speedfit.
CO2 Gas Inlet
1/4” John Guest Speedfit.
Recirc Return
Recirc Out
Sparkling Out
Still Out
3/8” John Guest Speedfit.
Electrical Inlet
115Vac 60Hz
Power Switch

Installation and Commissioning
Page 4 of 16
• The unit must be installed by a competent person, on a firm level
surface capable of supporting the weight of the machine, when the
bath is filled.
• Make all connections for water (inlet and outlet), gas and electricity,
but do not turn these on at this stage.
o If the recirculation system for this unit is not being utilised the
Outlet and Return can be linked by a length of insulated John
Guest tubing.
• Important: Ventilation openings in the machine must not be blocked
and free movement of air through the unit must be possible.
Inadequate ventilation will shorten the life of the fridge system. Air is
drawn in through the front, sides and bottom of the unit and
exhausted to the rear.
• Ensure that the supplied base guard is fitted to the underside of the
unit.
• Fill the bath with water. To do this remove the lid from the unit and
remove the bath inspection cover. Min and Max water levels are
marked on the front of the unit.
o If the recirculation system is being utilized, then the bath water
will need to be monitored and topped up accordingly as the
recirculation tubing fills up. This will occur during first power on.
• Remove the cover from the filter housing and fit all water filters into
the housing. The filters are a twist and lock design and will lock into
place after a ¼ turn (a clicking sound will be heard, and the red
release tab will spring into its locked position.
• Turn on the CO2 gas supply, ensuring the pressure is set to 55 psi
(3.8 Bar).
• Purge the carbonator can by pulling the ring pull of the pressure
relief valve on top of the can and let gas flow for up to 5 seconds
then close.

Installation and Commissioning
Page 5 of 16
• Before turning on the water supply locate the flush valve at the front
of the filter housing and turn the lever to the ‘Flush Position’. Connect
the clear PVC tubing supplied to the flush outlet and place the other
end of the tubing into an empty bucket or to a drain.
• Turn on the water supply. Water will now begin to flow through the
water filters and the flowmeter will display a flow rate. When the
filters are full, water will flow out of the clear tubing. Initially the water
will contain some sediment from the carbon filtration, this is normal,
allow to flow until clear.
• Once clear, turn the flush valve lever back through 180° into the ‘Unit
Supply Position’. Water will now be directed into the water circuit of
the unit.
• Open the still tap until water flows (this may take a few seconds as
the cooling coil inside the unit fills with water) then close. At this
stage re-fit the lid and filter housing cover.
• Turn on the electrical supply. After a short delay the fridge system
will activate (check for air exhausting to the rear of the machine) and
the carbonator can fill pump will activate; once the can is filled the
pump will automatically switch off.
• To ensure all air is purged from the carbonator can, turn off the
electrical supply and dispense sparkling water until the can is
empty, then allow gas to flow from the dispense tap for 5 secs.
• Restore the electrical supply. The fridge system and can fill pump will
activate as before and the can pump will switch off when the can is
full. When the compressor and fans switch off the unit is ready.
• Depending on the ambient temperature and the temperature of the
incoming water the time required for the fridge system to switch off
can take 3 to 5 hours. In very high ambient conditions (90°F/32°C or
higher) the time required may be over 5 hours.
• Note: If the bath has been filled to the point of overflow,
approximately 17 fl oz (0.5 liters) of water will be displaced as ice
forms in the bath.

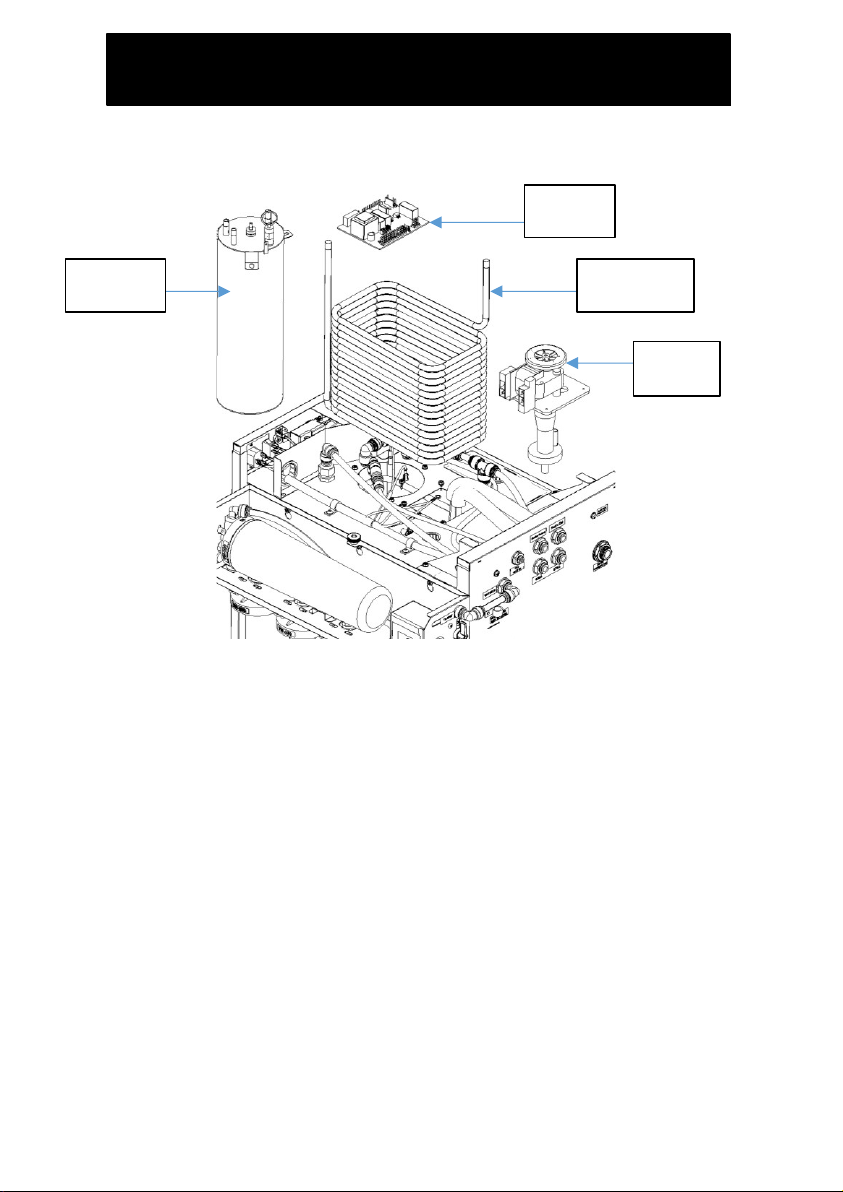

Installation and Commissioning
Page 6 of 16
Mains
Power In &
On/Off
Switch
Control
Board
Carbonator
Can
Pressure
Relief
Valve
Water
Flow
Meter

Schematics
Page 7 of 16
Electrical Circuit
Water Circuit

Cleaning
Page 8 of 16
Important:
The frequency of the following cleaning procedures should be
determined locally and may vary depending on machine usage and
environmental conditions.
• Warm water should be no higher than 113°F.
• After any cleaning procedure, dispense a minimum of 34 fl
oz of water from all taps to ensure any cleaning residue is
flushed out.
Routine Clean - Use the appropriate methods below.
Important: It is recommended that the routine cleaning procedure
be performed at least weekly.
Multi-Purpose Disposable Cloth.
Use the cloth to apply the cleaning agent. Submerge a clean cloth into
the cleaning agent (concentration recommended by manufacturer’s
instructions). Remove the cloth and remove excess water. Clean the
dispense components by wiping the cloth over the entire area re-
submerging the cloth as necessary. Rinse the cloth in clean warm water
and wipe off excess cleaning agent residue and soil. Dry using
disposable paper towels, replace dispense components.
Spraying on Cleaning Agent.
Remove all dispense components. Liberally spray the cleaning agent at
the concentration recommended by the manufacturer onto the dispense
component ensuring that the whole area has been covered. Finish the
cleaning by exchanging the cleaning agent for warm water, remove the
soil with a multi-purpose disposable cleaning cloth and dry the
component with disposable paper towels.
Food Grade Antibacterial Wipe.
Remove the dispense components, wipe the dispense component with
the food grade antibacterial wipe, remove all visible soil. Replace
dispense component.

Cleaning
Page 9 of 16
Deep Clean - Parts in contact with food products
Important: It is recommended that the deep clean procedure be
performed at least monthly.
Remove dispense components, pre clean using a damp multi-purpose
disposable cleaning cloth soaked in warm water.
Soak cloth in cleaning agent solution, remove excess water and clean
dispense components. Using a brush, brush dispense head to dislodge
any dried-on soil. Remove soil with the cloth.
Rinse dispense nozzles with a new multi-purpose disposable cleaning
cloth soaked in warm water until all soil and cleaning agent residues
have been removed.
Soak multi-purpose disposable cleaning cloth in disinfectant solution,
apply to dispense component, ensure that the whole area is wiped.
Leave for 10 minutes. Rinse off disinfectant using multi-purpose
disposable cleaning cloth that has been soaked in clean warm water.
Dry dispense component with disposable paper towels. Refit all
dispense components.
General Cleaning - Parts not in contact with food products
Important: It is recommended that the procedure should be
performed at least every 6 months.
Condenser. At regular intervals, determined by local environmental
conditions, the condenser should be thoroughly cleaned with a small
stiff brush and/or a vacuum cleaner. Do not use screwdrivers or other
sharp implements which may puncture the tubes and damage the fins.
Warning: Failure to clean the condenser can shorten the life of the
compressor causing premature failure of the unit.
Outer Panels. Clean the outside panels, pay particular attention to the
edges of the panels where spillage could have ingressed and the area
around the base of the unit. If necessary, remove the unit and thoroughly
clean around the base and floor.
Sanitization
Important: It is recommended that the procedure is performed
during initial installation and at least every 3 months.

Cleaning
Page 10 of 16
Prepare the Unit
1. Disconnect the electrical power to the unit and isolate from the
water supply.
2. Carefully following the manufacturer’s instructions, prepare a
solution of proprietary sanitizing fluid.
Sanitize the Water System
3. Disconnect flexible water inlet tube from the water supply
and place the end into a container of sanitizing fluid. Flushing
through of sanitising solution can be achieved either using a
pressurised container, or by using a syphon. In the latter case,
the sanitiser fluid needs to be held at a height sufficient to
allow fluid to flow through the chiller. Flush through
approximately 17 fl oz of water to flood the chiller with
sanitizing solution
3. Leave to stand for period recommended by sanitizer
manufacturer
4. Follow Routine Clean procedure to clean dispense pipework.
Recommission the Unit
5. Restore the water supply to the unit and dispense a minimum
of 34 fl oz of water to flush the system of sanitizer.
6. Restore the electrical supply and allow the unit to complete its
cooling cycle.

Fault Finding
Page 11 of 16
Prior to any fault finding, please ensure all water and gas connections
to the chiller are sound and that the incoming water and gas supplies
are turned on. Also ensure that all electrical connections to the chiller
and in the chiller are secure and in good condition, the power is on.
If the above are satisfied, ensure that the chiller has had adequate
time to reach operating temperature.
A status LED is located on the top rear panel and indications are:
Status LED
Normal operation OFF
Water pump timeout ON 1 second - OFF 2 second
Timeout and protection events can be reset by cycling mains power off
then on. The cause of the event should be investigated and corrected.
Symptom
Possible Cause
Corrective Action
No Water
Dispensing
Inlet valve not open.
Check water supply is connected and on.
Check internal isolation valve is open.
Ice bath frozen up.
Check thermostat probe is fully inserted
into the bath.
Check for ice bath contamination, melt ice,
drain bath and refill. If contaminated,
identify & rectify source of contamination.
Check that the thermostat is functioning
correctly. Replace if necessary.
Water pressure regulator
Check water can flow through the
regulator. Replace if necessary.

Fault Finding
Page 12 of 16
No
Carbonated
Water
CO2 pressure (check by
operating pressure relief
valve on carbonator can)
Check CO2 bottle, regulator and non-
return valve. Supply pressure should be
55 psi, adjust or replace as necessary.
Carbonator Can Not Filling
Check carbonator probe for possible
short circuit to ground. Including
moisture on the can lid.
Check LED for pump timeout indication.
If timed out, cycle power off & on then
purge carbonator.
Check supply to water pump (115V
AC), if voltage present & pump
inoperative - replace pump.
If voltage not present & pump is not
timed out, check PCB fuses. If
necessary, replace PCB
Poor
Quality
Carbonation
Incorrect CO2 Pressure
Check CO2 bottle, regulator and non-
return valve. Supply pressure should be
55 psi, adjust or replace as necessary.
Air in Carbonator Can
Purge the carbonator can by operating
the flush switch until empty and CO2 is
dispensed for 5 seconds.
Residue in Carbonator Can
After prolonged use, a surface film can
develop within the carbonator can
preventing good carbonation. This can
be removed by flushing the system
using a solution of citric acid, refer to
cleaning and sanitising instructions.
Carbonator can is overfilled
If pump runs continuously, check
connections to can level probe, if
problem persists replace the PCB.
Warm
Drinks
Compressor not running
Possible overheat. Allow unit to cool.
The compressor will start once the unit
has cooled sufficiently. If the problem
persists investigate possible causes.
Insufficient air flow through
the fridge.
Check that the condenser is not
blocked.
Check that the air filter is not blocked
Check the cooling fans are running.
Fridge failure
If compressor & fans are running and
there is no cooling, return for repair.

Spare Parts
Page 13 of 16
1A6135 – LED
Filter Assembly
1A6139 – Front
Panel
Assembly
3B7870
Side Panel
3B7870
Side Panel
1A6138
Lid
3B7868
Rear Panel
1A6209
Thermostat
3B7886
Base Guard
3B3201
Fan
1A6050
Pump Assy
1A4674 – Pressure
Regulator

Spare Parts
Page 14 of 16
1A6002
Agitator
3B6223
Cooling Coil
1A5811
Carb Can
1A6065
PCB

Removal, Transportation and Disposal
Page 15 of 16
Important: Before removal from the installation, ensure all
electrical, product and gas connections are disconnected.
Disposal of Scrap Units
It is illegal to simply scrap a refrigeration unit. Before a unit can be
scrapped it must first have the gas removed by a specialist using special
equipment. Please contact Vero Water for guidance.
Transportation
Important: This unit must be transported in an upright position
As with all refrigeration systems, irreparable damage can be caused by
laying the unit on its side or even transporting upside down. Where the
unit is transported by a carrier, the carton should always be marked in a
conspicuous manner, the correct upright position in which it must be
handled.
If a unit has been transported incorrectly it should be placed in the
correct upright position and left for 24 hours before attempting to run the
system.
Failure to observe the above precautions could seriously damage the
system, and would void any warranty.

Page 16 of 16
