HOT SPOT®COLLECTION

RELAY

| RHYTHM

| PACE

™

| STRIDE

2022

OWNER’S MANUAL

English French

Spanish

Before you begin reviewing the manual, please take a moment to register your warranty. Doing so will assist us in contacting you for any

important product notification.

Prior to registering, you will need the serial number that is located within the equipment compartment of your HOT SPRING spa.

To register please go to http://www.hotspring.com/hot-tub-owners/hot-tub-product-warranty-registration or simply scan the QR code below:

FOR YOUR RECORDS

Spa Model/Serial Number:

Date Purchased:

Dealer:

Address:

Cover Serial Number:

Accessory Serial Number:

If you have any questions about any aspect of your spa's set-up, operation or maintenance, contact your authorized HOT SPRING

dealership. They are trained professionals who are familiar with the product as well as new spa ownership concerns. Their expertise will

facilitate the enjoyment of your new HOT SPRING spa.

IMPORTANT: WATKINS WELLNESS reserves the right to change specifications, or design, without notification and without incurring any

obligation.

In most cities and counties, permits will be required for the installation of electrical circuits or the construction of exterior

surfaces (decks and gazebos). In addition, some communities have adopted residential barrier codes which may require

fencing and/or self-closing gates on the property to prevent unsupervised access to a pool (or spa) by children under 5 years

of age. Your HOT SPRING spa is equipped with a locking cover that meets the ASTM F1346-91 Standard for Safety Covers

and as a result, is usually exempt from most barrier requirements. As a general practice, your local Building Department will

inform you of any applicable barrier requirements at the time a permit is obtained for the installation of an electrical circuit.

Your HOT SPRING dealer can provide information on which permits may be required.

Watkins Wellness®congratulates you on your decision to enjoy the finest spa available...

Welcome to the growing family of HOT SPRING spa owners.

Important!

HOT SPOT ®

Collection

English French

Spanish

TABLE OF CONTENTS

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS .............................. 1

IMPORTANT SPA INSTRUCTIONS...................................... 3

GETTING STARTED

SPA FEATURES...................................................................... 4

QUICK START-UP INSTRUCTIONS .................................... 5

START-UP ............................................................................... 6

PRIMING THE PUMP(S)........................................................ 7

WATER QUALITY AND MAINTENANCE

BASIC INFORMATION........................................................... 8

HOW TO ADD CHEMICALS TO THE WATER .................... 8

FUNDAMENTALS OF WATER MAINTENANCE

(NON-FROG

SYSTEM)........................................................ 9

FROG WATER CARE SYSTEM.......................................... 10

FROG CARTRIDGE REPLACEMENT

INSTRUCTIONS ................................................................... 10

THE HOT SPRING SPA WATER MAINTENANCE

PROGRAM............................................................................ 10

VACATION WATER CARE INSTRUCTIONS..................... 12

WATER TERMINOLOGY ..................................................... 13

SPA CONTROL PANEL

TEMPERATURE ADJUSTMENT ........................................ 14

JETS OPERATION ............................................................... 14

MULTI COLOR LED LIGHT ................................................. 14

SMART WINTER MODE...................................................... 14

SPA LOCK (PARTIAL/FULL)................................................ 14

MUSIC (WHEN EQUIPPED) ............................................... 14

OPERATIONAL MODES (PACE & STRIDE) ..................... 14

OPERATIONAL MODES (RELAY & RHYTHM)................. 15

DIAGNOSTIC LCD MESSAGE ......................................... 16

JET MENU

RELAY (MODEL REL) ........................................................ 17

RHYTHM (MODEL RHY) ..................................................... 18

PACE (MODEL PAC)............................................................ 19

STRIDE (MODEL STD) ........................................................ 20

SPA CARE AND MAINTENANCE

DRAIN & REFILL INSTRUCTIONS..................................... 21

PREVENTION OF FREEZING ............................................ 21

FILTER SYSTEM .................................................................. 22

FILTER CARTRIDGES REMOVAL & CLEANING ............ 22

CARE OF THE SPA PILLOWS............................................ 22

CARE OF THE EXTERIOR.................................................. 22

CARE OF THE SPA CABINET ............................................ 23

CARE OF THE SPA COVER ............................................... 23

COVER LIFTER SYSTEM ................................................... 23

ELECTRICAL REQUIREMENTS

ELECTRICAL REQUIREMENTS AND

PRECAUTIONS .................................................................... 24

SELECTING THE VOLTAGE FOR YOUR SPA ................. 24

115 VOLT INSTALLATION (20 amp) ................................... 24

115 VOLT CONVERSION (30 amp) .................................... 24

115-230 VOLT CONVERSION (PACE & STRIDE

MODELS) .............................................................................. 25

230 VOLT 30A OR 50A WIRING INSTRUCTIONS............ 25

SERVICE INFORMATION

GENERAL INFORMATION .................................................. 26

GFCI AND HIGH LIMIT THERMOSTAT.............................. 26

MISCELLANEOUS SERVICE INFORMATION.................. 26

ACTS INVALIDATING WARRANTY.................................... 26

DISCLAIMERS...................................................................... 26

WATKINS WELLNESS CUSTOMER SERVICE ............... 27

TROUBLESHOOTING ......................................................... 27

TROUBLESHOOTING ......................................................... 28

SPA SPECIFICATIONS ........................................................ 29

DOOR PANEL REMOVAL.................................................... 30

DOOR PANEL REPLACEMENT ......................................... 30

English French

Spanish

Page 1

Safety Information

SAFETY INFORMATION

IMPORTANT SAFETY

INSTRUCTIONS

(READ AND FOLLOW ALL

INSTRUCTIONS)

AVOIDING THE RISK TO CHILDREN

DANGER - RISK OF CHILD DROWNING

Extreme caution must be exercised to prevent unauthorized access

by children. To avoid accidents, ensure that children cannot use a spa

unless they are supervised at all times.

WARNING

To reduce the risk of injury, do not permit children to use this spa unless

they are closely supervised at all times.

• To reduce the risk of injury, lower water temperatures are

recommended for young children. Children are especially sensitive to

hot water.

• Extreme caution must be exercised to prevent unauthorized access

by children. To avoid accidents, ensure that children cannot use a spa

unless they are supervised at all times.

DO:

• Make sure you always lock the child resistant locks after using the spa

for your children’s safety. Every HOT SPRING spa is equipped with

a locking cover that meets the ASTM F1346-91 Standard for Safety

Covers.

• Test the water temperature with your hand before allowing children to

enter the spa to be sure that it’s comfortable. Children are especially

sensitive to hot water.

• Remind children that wet surfaces can be very slippery. Make sure

that children are careful when entering or exiting the spa.

DON'T:

• Allow children to climb onto the spa cover.

• Allow children to have unsupervised access to the spa.

AVOIDING THE RISK OF

ELECTROCUTION

DANGER - RISK OF ELECTROCUTION

• Connect only to a grounded source.

• Do not bury the power cord. A buried power cord may result in death,

or serious personal injury due to electrocution if direct burial-type cable

is not used, or if improper digging occurs.

• A ground terminal (pressure wire connector) is provided on the control

box inside the unit to permit connection of a minimum No. 8 AWG

solid copper bonding conductor between this point and any metal

equipment, metal water pipe, metal enclosures of electrical equipment,

or conduit within five feet (1.5 m) of the unit as needed to comply with

local requirements.

• Do not operate the audio main controls while inside the spa (if spa is

equipped with an audio component).

• Do not connect any auxiliary components (for example, cable

additional speakers, headphones, additional audio components) to the

audio system unless approved by WATKINS WELLNESS .

• Do not self service audio component by opening spa door as this may

expose dangerous voltage or other risk of injury. Refer all servicing to

qualified service personnel.

• Do not attach an external antennae to a spa audio system unless

installed by a licensed electrician in accordance with Article 810 of the

National Electric Code, ANSI/NFPA 70.

WARNING

• To reduce the risk of electrical shock, replace a damaged cord

immediately. Failure to do so may result in death or serious personal

injury due to electrocution.

• Your spa is provided with a Ground Fault Circuit Interrupter (GFCI)

for user and equipment protection. To ensure proper operation of this

important safety device, test according to the following instructions per

electrical configuration.

• Cord-Connected 115 volt, 20 amp models: The GFCI is located at

the end of the power cord. Before each use, with the unit operating,

push the TEST button. The unit should stop operating and the GFCI

power indicator will go out. Wait 30 seconds and then reset the GFCI

by pushing the RESET button. The GFCI power indicator will turn

on, restoring power to the spa. If the interrupter does not perform in

this manner, there may be an electrical malfunction and with it, the

possibility of an electric shock. Disconnect the power until the problem

has been corrected.

• 115 volt 30 amp hard wired, 230 volt permanently installed or

converted models:

• A ground terminal is provided on the terminal block (TB-1, system

ground terminal) located inside the control box. To reduce the risk

of electric shock, connect this terminal to the grounding terminal

of your electrical service or supply panel with a continuous green,

insulated copper wire. The wire must be equivalent in size to the

circuit conductors supplying the equipment. In addition, a bonding

terminal (pressure wire connector) is provided on the outside of the

control box for bonding to local ground points. To reduce the risk of

electric shock, this connector should be bonded with a No. 8 AWG

solid copper wire to any metal ladders, water pipes, or other metal

within 5 feet (1.5 m) of the spa to comply with local requirements.

The means of disconnection must be readily accessible, but must

be installed at least 5 feet (1.5 m) from the spa.

• Your spa is provided with a suitably rated circuit breaker to open all

ungrounded supply conductors.

• Your spa uses ground fault circuit interrupters in the electrical

subpanel. Before each use of the spa and with the unit operating,

push the TEST button on each breaker. The switch should click

over to the “Trip” position. Wait 30 seconds and reset each GFCI

breaker by switching it completely off and then completely on.

The switch should then stay on. If either of the interrupters does

not perform in this manner, it is an indication of an electrical

malfunction and the possibility of an electric shock. Disconnect the

power until the fault has been identified and corrected.

IMPORTANT: Failure to wait 30 seconds before resetting the GFCI

may cause the spa’s Power Indicator (on the control panel) to blink. If

this occurs, repeat the GFCI test procedure.

English French

Spanish

Page 2 Safety Information

DANGER - RISK OF ELECTRICAL SHOCK

• Install at least 5 feet (1.5 m) from all metal surfaces. A spa may be

installed within 5 feet (1.5 m) of a metal surface if each metal surface

is permanently connected by a minimum No. 8 AWG solid copper

conductor attached to the wire ground connector on the terminal

box that is provided for this purpose if in accordance with National

Electrical Code ANSI/NMFPA70-1993.

• Do not permit any electrical appliances, such as a light, telephone,

radio, or television within 5 feet (1.5 m) of a spa. Failure to maintain

a safe distance may result in death, or serious personal injury due to

electrocution, if the appliance should fall into the spa.

• Install your spa is such a way that drainage is away from the electrical

compartment and from all electrical components.

DO:

• Be sure your spa is connected to the power supply correctly - use a

licensed electrical contractor.

• Disconnect the spa from the power supply before draining the spa or

servicing the electrical components.

• Test the Ground Fault Circuit Interrupter(s) before each use.

• Replace audio components only with identical components (if your spa

is equipped with an audio component).

DON'T:

• Use the spa with the equipment compartment door removed.

• Place electrical appliances within 5 feet (1.5m) of the spa.

• Use an extension cord to connect the spa to its power source. The

cord may not be properly grounded and the connection is a shock

hazard. An extension cord may cause a voltage drop, which will cause

overheating of the jet pump motor and motor damage.

• Attempt to open the electrical control box. There are no user serviceable

parts inside.

RISKS TO AVOID

DANGER - RISK OF INJURY

• To reduce the risk of injury to persons, DO NOT remove suction fittings

(filter standpipes) located in the filter compartment.

• The suction fittings in the spa are sized to match the specific water

flow created by the pump. Never replace a suction fitting with one

rated less than the flow rate marked on the original suction fitting.

• There is a danger of slipping and falling. Remember that wet surfaces

can be very slippery. Take care when entering or exiting the spa.

• Never operate spa if the suction fittings are broken or missing.

• People with infectious diseases should not use the spa.

• Keep any loose articles of clothing, long hair, or hanging jewelry away

from rotating jets or other moving components.

INCREASED SIDE EFFECTS OF MEDICATION

• The use of drugs, alcohol may cause unconsciousness with the

possibility of drowning.

• Persons using medications should consult a physician before using

a spa; some medication may cause a user to become drowsy, while

other medication may affect heart rate, blood pressure, and circulation.

• Persons taking medications which induce drowsiness, such as

tranquilizers, antihistamines, or anticoagulants should not use the spa.

HEALTH PROBLEMS AFFECTED BY SPA USE

• Pregnant women should consult a physician before using spa.

• Persons suffering from obesity, or with a medical history of heart

disease, low or high blood pressure, circulatory system problems, or

diabetes should consult a physician before using spa.

UNCLEAN WATER

• Keep the water clean and sanitized with correct chemical care. The

recommended levels for your HOT SPRING spa are:

With FROG @ease

SmartChlor will maintain

a 0.5-1.0 ppm free

chlorine as long as

water is balanced

Without FROG @ease

Free Available Chlorine:

3.0-5.0 ppm

Bromine:

1.0-2.0 with

minerals

3.0-5.0 without

minerals

Water pH:

7.2-7.8

Calcium Hardness:

50-150 ppm

Total Alkalinity:

40-120 ppm

• Refer to Water Quality and Maintenance section for complete

instructions.

IMPORTANT: Turn on the jet pump for at least ten minutes after adding

ANY spa water chemicals into the filter compartment.

Clean the filter cartridges monthly to remove debris and mineral buildup

which may affect the performance of the hydromassage jets, limit the

flow, or trip the high limit thermostat, which will turn off the entire spa.

AVOIDING THE RISK OF HYPERTHERMIA

Prolonged immersion in hot water can result in HYPERTHERMIA, a

dangerous condition which occurs when the internal temperature of

the body reaches a level above normal 98.6°F (37°C). The symptoms

of hyperthermia include unawareness of impending hazard, failure to

perceive heat, failure to recognize the need to exit the spa, physical

inability to exit the spa, fetal damage in pregnant women, and

unconsciousness resulting in a danger of drowning.

WARNING

The use of alcohol, drugs, or medication can greatly increase the risk of

fatal hyperthermia in hot tubs and spas.

TO REDUCE THE RISK OF INJURY

• The water in the spa should never exceed 104°F (40°C). Water

temperatures between 100°F and 104°F (36°C and 40°C) are

considered safe for a healthy adult. Lower water temperatures are

recommended for extended use (exceeding ten minutes) and for

young children. Extended use can cause hyperthermia.

• Pregnant or possibly pregnant women should limit spa water

temperatures to 100°F (36°C). Failure to do so may result in

permanent injury to your baby.

• Do not use spa immediately following strenuous exercise.

English French

Spanish

Page 3

AVOIDING THE RISK OF SKIN BURNS

• To reduce the risk of injury, before entering a spa the user should

measure the water temperature with an accurate thermometer.

• Test the water with your hand before entering the spa to be sure it’s

comfortable.

SAFETY SIGN

Each HOT SPRING spa is shipped with a SAFETY SIGN in the owner’s

package. The sign, which is required as a condition of Product Listing,

should be permanently installed where it is visible to the users of the

spa. To obtain additional SAFETY SIGNS, contact your HOT SPRING

dealer and request Part #70798.

IMPORTANT

SPA INSTRUCTIONS

The following contains important spa information, and we strongly

encourage you to read and apply them.

DO:

• Use and lock the vinyl cover when the spa is not in use, whether it is

empty or full.

• Follow the Spa Care and Maintenance recommendations stated in this

manual.

• Use only approved accessories and recommended spa chemicals and

cleaners.

DON'T

• Leave the HOT SPRING spa exposed to the sun without water or the

cover in place. Exposure to direct sunlight can cause solar distress of

the shell material.

• Roll or slide the spa on its side. This will damage the siding.

• Lift or drag the vinyl cover by using the cover lock straps; always lift or

carry the cover by using the handles.

• Attempt to open the electrical control box. There are no user

serviceable parts inside. Opening of the control box by the spa owner

will void the warranty. If you have an operational problem, carefully go

through the steps outlined in the Troubleshooting section. If you are not

able to resolve the problem, contact your authorized HOT SPRING

dealer. Many problems can easily be diagnosed over the telephone by

an Authorized Service Technician.

SPA SHELL

Your HOT SPRING spa has an acrylic shell. Stains and dirt generally

will not adhere to your spa’s surface. A soft rag should easily remove

most dirt. Most household chemicals are harmful to your spa’s shell

(see below for detailed information on cleaning agents). Always rinse off

any spa shell cleaning agent with fresh water.

IMPORTANT:

1. The following products are the ONLY approved cleaning agents

for your HOT SPRING spa shell: plain water, HOT SPRING

FRESHWATER Spa Shine, or Soft Scrub®. The use of alcohol or any

other household cleaner other than those listed to clean the spa shell

surface is NOT recommended. DO NOT use any cleaning products

containing abrasives or solvents since they may damage the shell

surface, specifically: Simple Green®, Windex®or Spa Mitt. NEVER

USE HARSH CHEMICALS! Damage to the shell by use of harsh

chemicals is not covered under the warranty. Always rinse off any

spa shell cleaning agent with fresh water.

2. Iron and copper in the water can stain the spa shell if allowed to go

unchecked. Ask your HOT SPRING dealer about a Stain and Scale

Inhibitor to use if your spa has a high concentration of dissolved

minerals. (WATKINS WELLNESS recommends FRESHWATER

Stain & Scale Defense.)

3. Keep all cleaners out of the reach of children and use care when

applying.

Safety Information

SAVE THESE INSTRUCTIONS

English French

Spanish

Page 4

GETTING STARTED

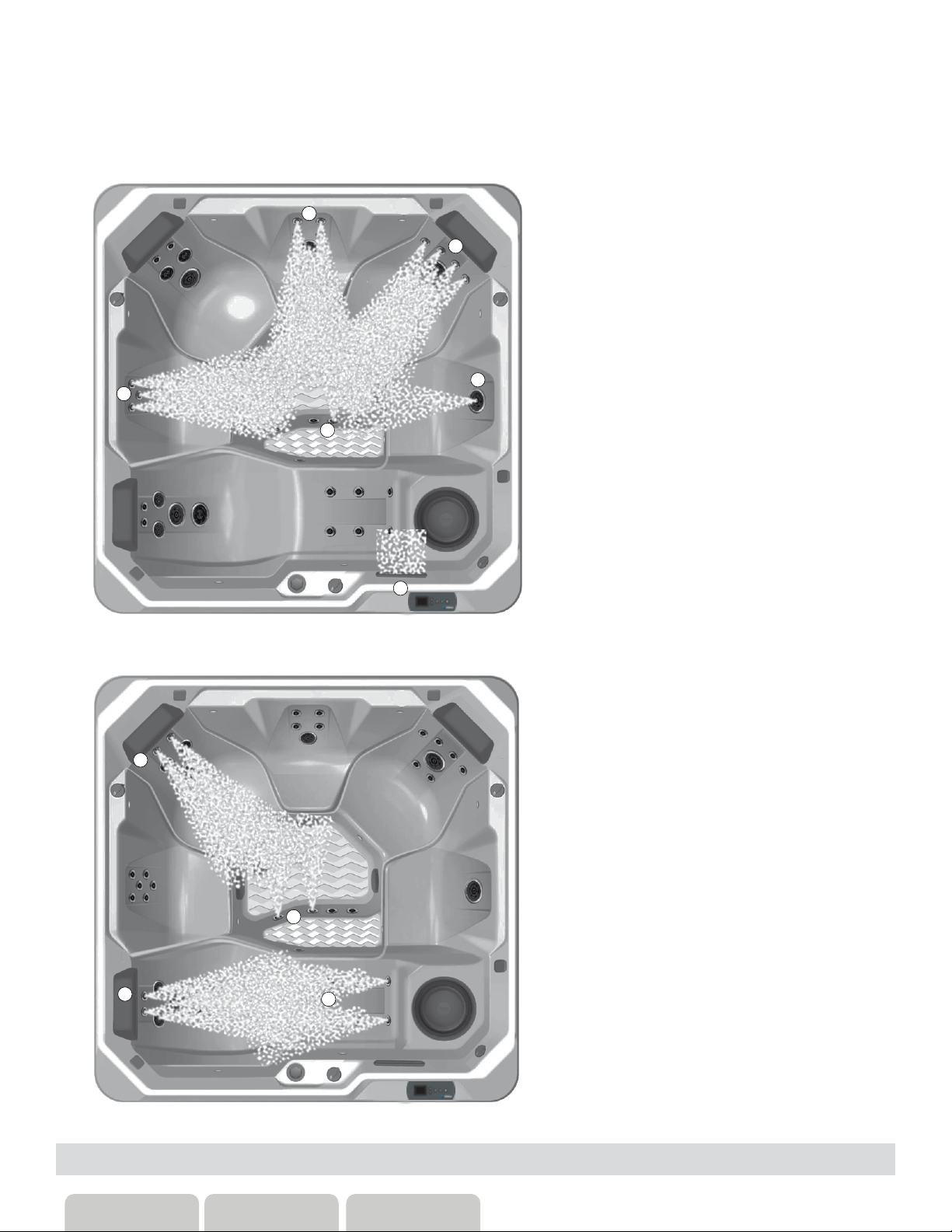

SPA FEATURES

1) Standard LCD Control Panel. The control

panel is accessible from inside or outside the

spa and is designed for ease of use.

2 ) The Diverter (PACE model only, not shown) lets

you divert water to different combinations of jets

by simply turning the lever.

3) The Air Control lever lets you dial in the ideal

amount of air for the Precision®jets.

4) The Water Feature lever adjusts the amount of

water that flows from the available water feature.

5) The XL Directional jet with directional nozzle

provides maximum performance.

6) The XL Rotary jet provides greater flow through

one rotary opening creating a unique massage

pattern.

7) The Standard Rotary jet provides a strong

unique massage.

8) The Standard Directional jet with directional

nozzle provides a strong flow of water.

9) The PRECISION jet with directional

nozzle delivers a therapeutic massage.

10) The Multi-Color LED Points of Light system,

has multiple points of multi-color lighting.

11) The water feature adds beauty to your spa

experience (Not available on the STRIDE

model).

12) Pillow - All spas have at lease one pillow or

more.

13) FROG housing cap.

14) Spa Filter provides the water filtration of the spa.

15) Floor Drain.

16) Spa Suction.

17) An optional 1.5 inch (4 cm) speaker available

on music ready spas (Not available on the

STRIDE model).

Getting Started

15 16

RELAY model shown, your spa may look different.

English French

Spanish

DIRECTIONAL & ROTARY JETS

These jets deliver a great massage to the back and shoulder areas.

These jets may provide either a direct stream, or rotating massage

patterns. The pressure can be adjusted by rotating the faceplate from a

full stream, to shutting the jet completely off. To avoid damage to your

spa’s plumbing and components, do not turn off more than half of these

jets at the same time.

35(&,6,21௘-(76

PRECISION jets are small. They are designed to perform a soft,

soothing massage on your feet, calf, back and shoulders.

The Air Control

levers are used to change the air intensity of a group of PRECISION jets

simultaneously.

AIR CONTROL SYSTEM

AIR CONTROL VALVE: Turning the air control lever to the left position

allows for the same volume of air to flow to all individual jets and

PRECISION jets simultaneously. The jet faceplate on the larger jets is

then used to control the water intensity of each hydromassage jet.

NOTE: Always turn the air control lever to the right position anytime the

spa is not being used. This will help make the spa operate more quietly

and heat more efficiently when the vinyl cover is in place.

WATERFALL VALVE

The RELAY, RHYTHM & PACE spas are equipped with a cascading

water feature. It is activated by pressing the JETS button up to 2 times

when the jets are off and turning the waterfall valve clockwise. The flow

is regulated by turning the valve to the desired position.

When not in use turn the on/off valve to the OFF position.

QUICK START-UP INSTRUCTIONS

BEFORE YOU FILL YOUR SPA

Make sure your spa has been properly installed per all local codes, this

includes the location of the spa, the foundation of the spa as well as the

electrical installation of the spa. Installation instructions in the form of a

Pre-Delivery Instruction booklet can be obtained from either your HOT

SPRING dealer or online at:

www.HotSpring.com/planning-tools/pre-delivery-instructions

DO:

• Know which water treatment system you will be using and make sure

you have necessary chemicals available. Read all of the instructions

that come with the system.

• Have @ease Test Strips or FRESHWATER 5-way Test Strips

Available (depending on your chosen water treatment system).

• Have pH/Alkalinity Up & Down available.

• Know the "Hardness" of your water, contact your dealer to help you

with this information. See Water Quality and Maintenance for more

information.

IMPORTANT: WATKINS WELLNESS does not recommend that

the spa be filled with “softened” water, as this may damage the spa’s

equipment.

• Purchase the Clean Screen

pre-filter to remove unwanted

contaminants from the tap water. This is recommended, not required.

DON'T:

• Power up the spa until it has been filled with water! Power to the spa

automatically activates critical components within the spa, such as

controls, heater, and other systems. If power is supplied to these

components prior to the spa being filled, the components will be

damaged, and this may result in a non-warranty component failure.

• Fill the spa with hot water or cold water with cold water temperature

below 50º F (10º C)! Tripping of the high-limit thermostat may result

causing your spa to stop functioning.

• Use your spa after filling until all of the steps listed below START-UP

are completed!

• Add chlorine if treating your spa with polyhexamethylene biguanide

(Biguanide, PHMB, eg. BaquaSpa®) sanitizer.

Page 5

Getting Started

English French

Spanish

Page 6 Getting Started

START-UP

Your HOT SPRING spa has been thoroughly tested during the

manufacturing process to ensure reliability and long-term customer

satisfaction. A small amount of water may have remained in the

plumbing after testing and, as a result, may have spotted the spa shell

or the spa siding prior to delivery. Before filling the spa, wipe the spa

shell clean with a soft rag.

The following instructions must be read and followed exactly to ensure

a successful start-up or refill.

1. CLOSE DRAIN AND FILL THE SPA with water through the

filter compartment. Your HOT SPRING spa water level should be

maintained at a level one inch above the highest jet in the spa.

NOTE: Remove FROG cap while filling to allow the air to escape the

plumbing lines. Replace FROG cap once filled.

2. AFTER THE SPA HAS BEEN FILLED with water and the

equipment compartment door is secured, power must be applied

to the spa.

• 115 volt model: Connect the GFCI to the waterproof receptacle

and push the RESET button on the GFCI.

• 230 volt models:

Open the door of the electrical subpanel,

reset

the 50 amp GFCI breaker, verify the system is primed. Close

and secure the subpanel door.

3. TO CHECK THE OPERATION OF THE JET SYSTEM and

to purge any remaining air from the heating system:

RELAY &RHYTHM Models:

• Push the JETS 1 button 2 times to run pump on high speed, run

for one minute. Press JETS button one more time to shut the

JETS off.

• Push the JETS 2 button 1 time to run pump on high speed, run

for one minute. Press JETS button one more time to shut the

JETS off.

PACE &STRIDE Models:

• Push the JETS button 2 times to run the jet pump on high

speed, run for one minute. Press JETS button one more time to

shut the JETS off.

Weak or surging jets are an indication of a low water level condition or

clogged filter cartridges.

IMPORTANT: Be sure the air Lever (see illustration in Spa Features

section) is open by turning clockwise until it stops. Combination jet

faces can be turned to completely shut off jet flow, these jets should

be open as well.

4. USING A TEST STRIP AND APPLICABLE CHEMICALS,

adjust Total Alkalinity (TA) to 80 ppm, Calcium Hardness (CH)

to 100 ppm, then spa water pH to between 7.2 and 7.8. These

procedures are listed in the “Water Quality and Maintenance”

section. When using the FROG @ease system it is required to

use the @ease Test Strips.

IMPORTANT: Always add spa water chemicals directly into the

filter compartment with the jet pump on high speed for at least

ten minutes. Adjusting the Total Alkalinity (TA) as the first step is

important, as out-of-balance TA will affect your ability to adjust

the pH correctly and will prevent the sanitizer from operating

effectively.

5. IF USING FROG @ease: Dial a new @ease mineral cartridge

to setting 6 and snap into the top space of the cartridge holder. Dial

@ease SmartChlor Cartridge per the setting chart based on your

gallons (see page 10).

IF USING FROG Bromine Cartridge (Canada Only): Dial the

cartridge to setting 3 and snap into the bottom section of the

cartridge holder. Leave the top section empty.

IMPORTANT: With FROG Bromine Cartridge shock once a week.

WIth FROG @ease, shock once a month or when replacing

a SmartChlor Cartridge. We recommend the FRESHWATER

Chlorine Free Oxidizer (MPS).

6. SUPERCHLORINATE THE SPA WATER by adding 1½

teaspoons of chlorine (sodium dichlor) per 250 gallons (950 liters)

of spa water placing JETS (1) on high (see step 3) and run for 10

minutes then shut pump off.

7. SET THE TEMPERATURE CONTROL, the spa

pre-programmed to reach 100°F (38° C

), and will normally do

so within 18 to 24 hours. You may raise or lower the water

temperature by:

• Pressing the (

button on the control panel to raise the

temperature.

• Pressing the (

button on the control panel to lower the

temperature.

Place the vinyl cover on the spa and allow the water temperature

to stabilize. Make sure you secure the cover in place using the

cover locks. Periodically check the spa water temperature. When

the water temperature climbs above 90°F (32°C), proceed to the

next step.

To prevent tampering, you can lock your desired temperature

setting. Refer to the Operating section for details.

8. IF NOT USING @ease SMARTCHLOR SYSTEM, TEST THE SPA

WATER FOR CHLORINE RESIDUAL. If the residual is between 3

and 5 ppm on the test strips, go on to the next step. If the residual

is less than 3 ppm, place JETS (1) on high (see step 3) and then

retest, add more chlorine as necessary and run for 10 minutes.

IMPORTANT: For Canada, if you are only using the FROG bromine

cartridge, your bromine levels should be between 3.0 - 5.0 ppm.

WARNING:High sanitizer levels can cause discomfort to the

user’s eyes, lungs and skin. Always allow the sanitizer level to fall

to the recommended range before using the spa.

IMPORTANT: Each time the spa is filled with water, you must

remove and reinstall the FROG cap, even if you are not replacing

the cartridge, in order to properly prime the jet pumps.

9. RECHECK the Total Alkalinity (TA) at 80 ppm, Calcium Hardness

(CH) at 100 ppm, then spa water pH at between 7.2 and 7.8. using

a FRESHWATER 5-way test strip or an @ease test strip when

using @ease cartridges .

IMPORTANT: Make sure you adjust your Total Alkalinity first, as

an out-of-balance condition will affect your ability to adjust the pH

correctly, and will prevent the sanitizer from operating effectively.

The spa is ready for use when the spa water has circulated

and the bromine level remains between 1 and 2 ppm or

chlorine level remains between 0.5 and 1 ppm with @ease, or

3-5 ppm with regular chlorine.

10. TEST WATER WEEKLY OR BEFORE EACH TIME

THE SPA IS USED

English French

Spanish

Page 7

Getting Started

PUMP

UNIONS

PUMP

UNIONS

HEATER

UNIONS

PRIMING THE PUMP(S)

Upon filling or refilling the spa, if a pump is operating and water is not flowing

from any of its jets, the pump may not be properly primed. To correct, refer to

the illustration below and perform the following procedures:

• Turn off power to the spa at the breaker and remove the equipment

compartment door.

• Loosen the union on the top of the pump(s) to allow the air to escape. When

water is present, hand-tighten the union.

• Turn power back on, activate the pump and check to make sure union is

tight enough to keep it from leaking. Re-install equipment door.

NOTE: Equipment compartment illustrated below will vary depending on

spa model.

IMPORTANT

THE UNION FITTINGS IN THE EQUIPMENT COMPARTMENT MAY LOOSEN

DURING TRANSPORTATION. TO AVOID LEAKS, PLEASE CHECK TO MAKE

SURE THESE ARE HAND-TIGHT

PRIOR TO FILLING YOUR SPA.

English French

Spanish

Page 8

WATER QUALITY AND

MAINTENANCE

BASIC INFORMATION

It’s important to have clean water. Water maintenance is one of the least

understood, yet most important, areas of spa ownership. Your dealer

can guide you through the process of achieving and maintaining perfect

water in your spa, given your local conditions.

IMPORTANT: Water Terminology can be found at the end of this

section.

• Always read & refer to the owner's manual for complete information.

• Test your water with a test strip once a week, or each time the spa is used.

• @ease users must also use the @ease test strips.

• Add chemicals in small amounts to prevent overdosing the spa.

• Use the spa only when the chlorine level is between 0.5-1.0 ppm

with @ease system, or 1-5 ppm with regular chlorine or manually add

chlorine as needed.

• It is the spa owner's responsibility to prevent over or under

chlorination.

IMPORTANT: Remember to change your water every three to four

months.

Check with your HOT SPRING dealer to determine if water in your

region has unique qualities - such as high metal or mineral content - that

should be addressed.

Your program will depend on your water’s mineral content, how often

you use your spa, and how many people use it.

WATER QUALITY CHART

PARAMETER TARGET MIN - "OK" RANGE - MAX

pH 7.4 7.2 7.8

ALKALINITY 80 ppm 40 ppm 120 ppm

HARDNESS 100 ppm 50 ppm 150 ppm

CHLORINE 3 ppm 1 ppm 5 ppm

CHLORINE WITH @ease 0.5 ppm 1 ppm

Maintaining the water quality and the cleanliness of the filter in your spa

is your responsibility. Keeping the spa water balanced prolongs the life

of the spa components and will make the water more comfortable. Your

dealer can guide you through the process of achieving and maintaining

perfect water in your spa, given your local conditions. Your program will

depend on your water’s mineral content, how often you use your spa,

and how many people use it. WATKINS WELLNESS has developed

several water care systems and products to simplify water care which

are available from authorized HOT SPRING dealers.

HOT SPRING FRESHWATER products Vanishing Act

Calcium Remover

FROG Water Care System CLEAN SCREEN Prefilter

*For more information visit www.hotspring.com/save-water/

CHEMICAL SAFETY

When using chemicals, read the labels carefully and follow directions

precisely. Though chemicals protect you and your spa when used

correctly, they can be hazardous in concentrated form. Always observe

the following guidelines:

• Allow only a responsible person to handle spa chemicals. Keep them

out of the reach of children.

• Accurately measure the exact quantities specified, never more. Do not

overdose your spa.

• Handle all containers with care. Store in a cool, dry, well ventilated

place.

• Always keep chemical containers closed when not in use. Replace

caps on their proper containers.

• Don't inhale fumes, or allow chemicals to come in contact with your

eyes, nose, or mouth. Wash your hands immediately after use.

• Follow the emergency advice on the product label in case of accidental

contact, or if the chemical is swallowed. Call a doctor or the local

Poison Control Center. If a doctor is needed, take the product container

along with you so that the substance can be identified.

• Don't let chemicals get on surrounding surfaces or landscaping. Don't

use a vacuum cleaner to clean up chemical spills.

• Never smoke around chemicals. Some fumes can be highly flammable.

• Don't store any chemicals in the spa equipment compartment.

HOW TO ADD CHEMICALS

TO THE WATER

IMPORTANT: All spa water chemicals (other than FROG cartridges),

including granulated dichlor, MPS, granulated pH increaser or

decreaser, granulated total alkalinity increaser, liquid stain and scale

inhibitor, and liquid defoamer must always be added directly into the

filter compartment while the jet pump is running in its high speed mode,

and it must run for a minimum of ten minutes.

To Administer Spa Water Chemicals:

1. Fold back the cover. Carefully remove and set aside the filter

compartment cover.

2. On your Control Panel:

• Push the JETS button two times for PACE & STRIDE models.

• Push JETS 1 button two times for RELAY & RHYTHM models

3. Carefully measure the recommended amount of chemical and slowly

pour it into the filter compartment. Use care not to splash chemicals

on your hands, in your eyes, on the spa shell surface, or on the spa

cabinet.

4. Replace the filter compartment cover. After ten minutes, shut the Jet

pump off by pressing the JETS (1) button one more time. Close and

secure the cover.

DANGER:

Risk of Drowning: Never leave an open spa unattended!

IMPORTANT: After administering a super chlorination treatment or non-

chlorine shock to your spa, leave the cover open for a minimum of 20

minutes to allow the oxidizer gas to vent. A high concentration of trapped

oxidizer gas which may exist as a result of the shock treatment (not daily

sanitation) may eventually cause discoloration or vinyl degradation to the

bottom of the cover. This type of damage is considered chemical abuse and

is not covered under the terms of the limited warranty.

Water Quality and Maintenance

English French

Spanish

Page 9

FUNDAMENTALS OF WATER

MAINTENANCE (Non-FROG System)

• Testing: Test the water weekly or each time the spa is used with

convenient FRESHWATER 5-way test strips or more accurate liquid/

tablet reagent test kit per instructions. Critical parameters: sanitizer

level, pH, Calcium Hardness (CH), and Total Alkalinity (TA). Store test

equipment in a dark, cool, dry place to maintain potency.

• Water Filtration: The filtration used in HOT SPRING spas helps keep

water clean by circulating sanitizer and removing waste from the spa.

Regularly inspect and clean filters for peak performance.

• Chemical Balance/pH Control: It is important to adjust the primary

water parameters (Total Alkalinity, Calcium hardness, pH) into the

recommended ranges so that they are stabilized or balanced. Balance

the water chemistry every time you fill the spa with new water and then

during the life of that body of

water. Keeping the water in

balance prevents damage by

holding the pH in a safe range

and preventing calcium scale

formation on spa equipment.

A low pH can damage metal

components whereas a high

pH can cause high levels

of calcium to form scale.

Your dealer should provide

a detailed water chemistry

orientation soon after your

new spa is filled for the very

first time.

• The following three water components must be kept in balance to avoid

damage to the spa. Do balance these components in the order they

are listed here as each will help you balance the next using a minimum

amount of chemicals.

1. Calcium Hardness (CH) – CH is the measure of the amount

of dissolved calcium in the water. Low levels can make the

water corrosive and high levels cause scale formation of spa

components. The recommended CH reading is between

50 - 150 ppm. If the CH level is too high, lower it with the

VANISHING ACT calcium remover per instructions. Once in

balance, the CH reading normally remains stable until new water is

added. Great care must be taken when filling the spa from a water

softener to ensure that the calcium remains in balance and avoid

damage to the spa.

2. Total Alkalinity (TA) - TA is a measure of the water’s ability to

resist changes of pH or buffer capacity. A low TA allows the pH

to fluctuate easily. The recommended TA reading is between

40 - 120 ppm. To raise the TA, use FRESHWATER pH/

Alkalinity Up (sodium hydrogen carbonate). To lower the TA, use

FRESHWATER pH/Alkalinity Down (sodium bisulfate). Once the

TA is balanced, it normally remains stable until the next drain/

refill. We recommend you check the TA reading once per month.

Raising/lowering the TA may cause the pH readings to fluctuate

widely. Ignore the pH readings on the test strip while you are

balancing the TA.

3. pH - The pH is the measure of the acidity and alkalinity.

Maintaining the proper pH level will optimize the effectiveness of

the sanitizer, preventing damage to the spa and physical discomfort

for spa users. A low pH dissipates sanitizer, causes corrosion,

and irritates spa users. A high pH level will neutralize sanitizer,

promote scaling and cloud water. The recommended pH reading

is between 7.2 - 7.8. To lower the pH level, use FRESHWATER

pH/Alkalinity Down (sodium bisulfate). To raise the pH level, use

FRESHWATER pH/Alkalinity Up (sodium carbonate).

• Water Conditioners: Spa fill water varies from location to location and

user to user, therefore it is important to consult with your dealer for an

appropriate program.

a. VANISHING ACT – High levels of calcium and some minerals

can be removed from the water with the single use VANISHING

ACT. High calcium levels can cause scale formation on the spa

equipment and shell.

b. CLEAN SCREEN pre-filter –The CLEAN SCREEN pre-flter

should be used at every fill and top-off to remove contaminants

from the fill water, especially iron, copper, and manganese.

Many water sources including well water contain high

concentrations of minerals that can cause staining of the shell

and plastics.

c. Stain and Scale control – For water high in calcium and minerals,

it may be necessary to use an anti-scalant like Stain and Scale

control. As water evaporates from your spa and new water is

added, the amount of dissolved minerals like calcium, copper,

iron, and manganese will increase. (Minimize evaporation by

keeping the cover on the spa whenever possible.) High iron or

copper content in the water may produce green or brown stains

on the spa.

d. Foam Inhibitors - Soap is introduced into the spa water from

users’ bodies and swimming apparel and can cause the spa

water to foam when the jets are used. Low levels of calcium

hardness (soft water) can increase foaming. Although ozone can

oxidize soap residual, it may become necessary to add Foam

Inhibitors to suppress the foam. Excessive soap in the water

may require a water change to resolve.

• Oxidizers: Ozone and Monopersulfate (MPS) are oxidizers used to

prevent the buildup of contaminants, maximize sanitizer efficiency,

minimize combined chlorine, and improve water clarity. They are

to be used in conjunction with EPA registered sanitizers. The

FRESHWATER III high output ozone system uses Corona Discharge

technology to produce a high concentration of ozone which is injected

into the spa water 24 hours per day. FRESHWATER Chlorine-Free

Oxidizer, Monopersulfate (MPS) is a granular oxidizing chemical.

• Sanitizers: Maintaining the recommended residual level of an EPA

registered sanitizer at all times will decrease the occurrence of unsafe

bacteria and viruses in your spa water. The recommended Free

Available Chlorine (FAC), the amount of available chlorine sanitizer,

is 3.0-5.0 ppm or 0.5-1.0 ppm with @ease SmartChlor Chlorine

System. A low FAC can allow bacteria and viruses to grow rapidly in

the warm water, and a high FAC can cause discomfort to the user’s

eyes, lungs, and skin. Each sanitizer carries its own instructions

regarding how much to use and when to add it to the spa water.

Consult your dealer for their recommendations and instructions on

proper sanitizing of the spa.

a. FRESHWATER Concentrated Chlorinating Granules.

b. ௘FROG sanitizing systems (mineral and chlorine) or (bromine for

Canada Only).

c. Sodium Dichloro-s-Triazinetrione (sodium dichlor or chlorine).

d. Brominating Concentrate (one step granular bromine).

e. BaquaSpa®(please consult your BAQUASPA manual for

instructions on the use of this product).

ALKALINE SPA

WATER

(SCALING

ZONE)

ADD pH

DECREASER

TO LOWER

ADD pH

INCREASER

TO RAISE

ACIDIC SPA

WATER

(CORROSIVE

ZONE)

COMFORT

ZONE IDEAL

Water Quality and Maintenance

English French

Spanish

Page 10 Water Quality and Maintenance

IMPORTANT: DO NOT use tri-chlor chlorine, bromo-chloro-dimethyl-

hydantoin (BCDMH), or any type of compressed bromine or chlorine,

acid or any type of sanitizer which is not recommended by WATKINS

WELLNESS.

FROG WATER CARE SYSTEM

THE FROG @ease

MINERAL CARTRIDGE.

This cartridge introduces

minerals into the spa

water, inhibiting bacteria

growth.

THE FROG @ease

SMARTCHLOR

CARTRIDGE. The

recommended chlorine

sanitizer that works in

conjunction with the

FROG Mineral cartridge

to maintain softer, crystal

clear water with up to 75% less chlorine than ordinary dichlor systems.

To monthly “shock treat” your spa, we recommend that you use either

FRESHWATER Chlorine-Free Oxidizer, Monopersulfate (MPS) or

sodium dichlor (chlorine). Sodium dichlor may be a more appropriate

shock for those users that experience heavy bather load conditions.

The following optional products can be used in conjunction with the

FROG Water Care system:

FRESHWATER Chlorine-Free Oxidizer, Monopersulfate (MPS) is

an oxidizing chemical used to prevent the buildup of contaminants,

maximize sanitizer efficiency, and improve water clarity. When used in

conjunction with the FROG system it oxidizes particulates in the spa

water.

IMPORTANT NOTE: FRESHWATER Monopersulfate (MPS) is an

oxidizer, not a sanitizer.

FRESHWATER III high output ozone system is the only ozone

purification system approved for installation in your HOT SPRING

Spa. The FRESHWATER III high output ozone system utilizes CD

technology to produce a higher concentration of ozone than is

produced by a competing chip style CD or ultraviolet light ozone

systems.

NOTE: Refer to the Start-Up instructions of your FROG

@ease

SmartChlor owner's manual, (same for FROG Bromine, Canada

only).

The owner's manual can be found with your FROG starter kit.

It is important to follow the recommended application and maintenance

programs outlined for each product’s use. If the spa is being used over

an extended period or time, such as a whole afternoon or evening,

additional sanitizer will be needed. When using @ease SmartChlor the

use of @ease Test Strips is also required.

NOTE: The FROG @ease Mineral Cartridge or @ease Chlorine

Cartridge are not approved for use in Canada.

TROUBLESHOOTING:

• Check water balance, pH and Total Alkalinity needs to be in the

proper ranges for the @ease In-Line System to work correctly.

• If the SmartChlor Cartridge is Not empty, turn dial setting up

1 number and monitor chlorine levels for a few days while

maintaining water balance. If needed, turn dial up again.

• Check SmartChlor Cartridge and replace if empty.

FROG CARTRIDGE REPLACEMENT

INSTRUCTIONS

The FROG @ease cartridge should be replaced every 3-4 weeks,

depending on User Load (shock spa after replacing the cartridge). The

FROG @ease mineral cartridge should be replaced every 4 months

or when draining and refilling the spa. After refilling the spa with water,

balance the Total Alkalinity (TA), Calcium Hardness (CH) and pH to the

recommended levels. Shock the spa monthly by adding FRESHWATER

Chlorine-Free Oxidizer (MPS) non-chlorine shock or sodium dichlor

(chlorine).

To replace FROG

cartridges, follow these steps:

1. Turn off power to the spa.

2. Unscrew FROG cap on top edge of spa.

3. Push down on handle and turn counter-clockwise.

4. Lift cartridge holder up and out of spa.

5. Remove and discard old cartridges.

6. Turn top cap of new @ease Mineral cartridge to setting #6

(evaluate water in 1 week and adjust as necessary).

7. For @ease SmartChlor cartridge setting, see table below:

@ease

SmartChlor RELAY, RHYTHM, PACE & STRIDE

Setting 2

8. Snap @ease Smartchlor cartridge into the bottom of holder and

snap @ease mineral cartridge into the top.

9. Reinstall cartridge holder into spa, push down, and twist clockwise.

10. Replace FROG cap.

11. Reconnect power to the spa.

USING THE FROG BROMINE CARTRIDGE (BCDMH) (Canada Only).

This is a stand-alone sanitizer that fits inside the FROG In-Line

Sanitizing System that came with your HOT SPRING Spa. Follow steps

1-5 above. Then set the FROG Bromine Cartridge to #3 and snap into

the bottom section of the holder. Lastly, follow steps 9-11 above. When

using a FROG Bromine Cartridge the spa should be shocked once a

week.

IMPORTANT NOTE: Only use the bottom section for this cartridge or

the bromine contents will dispense too quickly. Test your water and

adjust the bromine cartridge daily until the proper range of 3.0 to 5.0 is

established.

WARNING:

High sanitizer levels can cause discomfort to the user’s

eyes, lungs and skin. Always allow the sanitizer level to fall to the

recommended range before using the spa.

THE HOT SPRING SPA WATER

MAINTENANCE PROGRAM

FILLING THE SPA WITH WATER

Use the CLEAN SCREEN Pre-filter to remove unwanted contaminants

such as rust, dirt, detergents, and algae from the fill water. Dissolved

metals, copper, iron, and manganese are also removed. Instructions are

included with the CLEAN SCREEN Pre-filter. Always fill the spa through

the filter compartment. Do not fill your spa using water from a swimming

pool as pool

chemicals are very different from those used in a spa and

can damage your spa.

Very Important! Before using car-

tridges, establish an initial residual of

0.5 - 1.0 ppm free chlorine with FROG

Jump Start

(EPA Reg. No.: 53735-12)

start-up shock, included in this package,

that quickly dissolves with an effervescent fizzing action – one

packet per 500 gallons.

FOR SPAS AND HOTTUBS

Step 1: Prepare the Hot Tub

• This is highly unlikely with

@ease because SmartChlor is

self-regulating. However, if you use

standard test strips, it may appear

that total chlorine is higher than the

free chlorine.

No worries—the strip is measuring

the SmartChlor reserve, which will

shift to free chlorine as needed.

Please always use the @ease Test

Strips that were included with your

System.

Step 2: Set the Cartridges

Step 3: Put the System to Work

Step 4: Routine Hot Tub Care

Troubleshooting

Manufactured by: King Technology

530 11th Ave S, Hopkins, MN 55343 U.S.A.

952-933-6118 • Customer Service 800-222-0169

FAX 952-933-2206 frogproducts.com

In-Line

Sanitizing

System

Operating

Instructions

Cloudy Water or Low-Chlorine Levels High Chlorine Levels

Made in U.S.A. Patents: kingtechnology.com/IP

EPA Est. No.: 071209-AZ-001

E092816553121743R3N 20-48-0193

Remove holder by pushing down

and turning counter clockwise

before pulling out.

Replace blue Mineral Cartridge every four months.

• Discard it in the trash even if it appears to have media left inside.

• Don’t attempt to reuse: the minerals are spent after 4 months.

Replace silver SmartChlor Cartridge when empty.

• Life of cartridge varies depending on hot tub size and number

of users. The SmartChlor Cartridge will last about 3-4 weeks for

an average 400 gallon hot tub.

• Drain water from cartridge to ensure it is empty.

• Discard in trash or recycle.

Set the blue Mineral Cartridge to #6

(hold the bottom and turn the top until

6 appears in the window). No further

adjustments are necessary for the life of

the cartridge.

The In-Line System is made up of:

(A) a cap that is easily distinguish-

able among the ttings on the top

of the hot tub

(B) a cartridge holder that pulls

out of the system

that helps control bacteria in the

water and

(D) an @ease SmartChlor Cartridge

that helps support the minerals

while oxidizing contaminants like

body oils and ammonia compounds

responsible for smelly chloramines.

The cartridges are adjustable to

meet your specic hot tub water

care needs.

@ease

Mineral

Cartridge

Water

Flow

A. Cap

Cartridge

Holder

@ease

SmartChlor

Cartridge

Heat water to the manufacturer’s recommended

temperature.

6. Begin routine hot tub care (see Step 4: Routine Hot

Tub Care) as soon as hot tub is prepared.

Water Balance Guidelines

pH: 7.2 – 7.8

Total Alkalinity: 80 - 120 ppm

Calcium Hardness: 150 - 250 ppm

Total Dissolved Solids: <1500

IMPORTANT: Always follow printed instructions on the balancing

chemical packages. Add balancing chemicals in small increments one at a

time with the jets on and wait 6 hours before testing again and adding any

additional balancing chemicals.

b. Look at the Total Alkalinity reading first. Adjustments

should be made to bring the Total Alkalinity in the range of

80 – 120 ppm prior to making any adjustments to pH even if

it throws pH off further.

a. Take a water sample from the hot

tub and dip an @ease®Test Strip into

it.

Balance water by following STEPS a — d in order.

c. After Total Alkalinity is in range, test for pH. It should be

between 7.2 and 7.8. If higher or lower, add a pH adjuster.

d. Lastly test for Calcium Hardness. It should be between

150 and 250 ppm. If higher, partially drain the hot tub (about 6 inch-

es) and fill with water low in calcium. If lower, add Calcium Increaser.

If balancing takes longer than 2 days, shock the water and

maintain a chlorine level while continuing balancing.

Fill hot tub with fresh water.

Metal

Out

If using source water that is high in

iron or other metals, see your dealer

before filling the hot tub. It may

require the use of a metal control

product.

@ease®is the hot tub sanitizing system+ that takes the guess work out of

water care so you always feel at ease while enjoying your hot tub.

• @ease creates Fresh Mineral Water®that’s cleaner, clearer and softer.

• @ease employs SmartChlor®Technology that knows when and how

much free chlorine is needed so it uses less.

• @ease requires far less shocking – only once a month!

Clean or replace filter

cartridges.

(Follow manufacturer’s instructions).

Slowly insert holder into system (see

diagrams). Line up holder arrow (1)

with system arrow (2). Push down until

holder tabs- 3) go past system tabs (4)

and turn holder to the right (clockwise)

until it stops. To ensure a locked

position, attempt to pull holder up.

If it stays in place, the lock is secure.

Minerals

Bromine or

SmartChlor

Using

the SmartChlor

Cartridge in the

area marked

“Minerals” can

cause over

chlorination

which shortens

cartridge life.

Indent on

cartridges

Raised

area inside

holder,

one for

each

cartridge

-System

Arrow

3-Holder

Tab

1-Holder

Arrow

4-System

Tab

Replace

Cap

Snap the @ease Mineral Cartridge

into the area marked “Minerals” (top

portion) and the @ease SmartChlor

Cartridge into the area marked

“Bromine or SmartChlor” (bottom

portion) making sure to line up

the indentation at the top of the

cartridges with the raised area on

the holder.

DO NOT OPEN CAP WHILE JETS

ARE ON.

Replacing Cartridges

Open cap of In-Line System and

set aside.

@ease Setting Chart

Gallons Setting #

200-250 1

251-300 2

301-450 3

451-600 4

Lubricate in-line holder o-ring twice a year with a silicone

lubricant.

Shock the hot tub with a non-chlorine

shock when you replace the SmartChlor

Cartridge or once a month.

1. Drain and refill hot tub as direct-

ed by your hot tub manufacturer

or every four months when FROG

minerals need to be replaced.

Run filtration system as the

manufacturer recommends

to maintain proper water flow

through the In-Line System.

Regularly test water with @ease

Test Strips and follow directions

in Step 1 for maintaining pH,

Total Alkalinity and Calcium

Hardness.

NOTE: pH is affected by bather load, chemicals used, evapo-

ration and the make-up of your source water so maintaining

water balance regularly is important.

Replace your SmartChlor Cartridges

and the complete @ease system as

directed.

Cut-away view of cartridges

snapped into holder and

placed into the In-Line

System.

Set the silver SmartChlor Cartridge

to the setting that matches your hot

tub size in gallons. SmartChlor will

maintain a low 0.5 to 1.0 ppm chlorine

level as long as the pH stays within 7.2

and 7.8 so there is little need to adjust

the cartridge setting.

If needed, you have two additional

settings to increase output.

In-Line System at

FrogProducts.com

Learn more at frogproducts.com or call 800.222.0169

+@ease System consists of the FROG minerals silver chloride and carbonate used with

0.5 ppm of @ease SmartChlor Cartridge.

The @ease Mineral Cartridge (EPA Reg. No.: 53735-11)

must be used in conjunction with the @ease SmartChlor Cartridge (EPA Reg. No. 53735-14).

* Compared to the minimum ANSI recommended bromine level of 2.0 in a residential hot tub.

@ease Mineral Cartridge

(Blue)

@ease SmartChlor

Cartridge (Silver)

NOTE: Why @ease Test Strips? The SmartChlor cartridge forms a

chlorine reserve that will be inaccurately measured as total chlorine

on other test strips. Unlike conventional chlorine, the SmartChlor

reserve readily shifts to free chlorine as needed, maintaining spa

health with a low level of chlorine.

SmartChlor will maintain a 0.5-1.0 ppm free chlorine

level as long as the water is balanced.

NOTE: Free Chlorine levels are reduced up to 75%*

when using FROG

Minerals.

• Check water balance. pH and Total Alkalinity need to be in the

proper ranges for the @ease In-Line System to work correctly.

•If the SmartChlor Cartridge is not empty, turn dial setting

up 1 number and monitor chlorine levels for a few days while

maintaining water balance. If needed, turn dial up again.

• Check SmartChlor Cartridge and replace if empty—see

instructions under “Replacing Cartridges”.

• Check your calendar. The entire @ease In-Line System, including

the mineral cartridge, needs to be replaced every four months.

Without the minerals, SmartChlor will not be enough to sanitize

the hot tub.

SmartChlor Cartridge Life

• If hot tub is larger than 400 gallons or has significant bather

load, the cartridge life will be shorter.

• You can turn the dial setting down 1 number and monitor

chlorine levels for a few days while maintaining water balance.

If needed, turn dial down again.

A. Cap

@ease

Mineral

Cartridge

@ease

SmartChlor

Cartridge

Holder

Cut-away view of cartridges

snapped into holder and

placed into the In-Line

System.

The In-Line System is made up of:

(A) a cap that is easliy distinguish-

able among the fittings on the top of

the hot tub

(B) a cartridge holder that pulls out

of the system

that helps control bacteria in the

water and

(D) an @ease SmartChlor Cartridge

that helps support the minerals

while oxidizing contaminants like

body oils and ammonia compounds

responsible for smelly chloramines.

The cartridges are adjustable to

mee your specific hot tub water

care needs.

English French

Spanish

Page 11

ADDING CHEMICALS TO THE WATER

All spa water chemicals, including granulated dichlor, MPS, granulated

pH increaser or decreaser, granulated total alkalinity increaser, liquid

stain and scale inhibitor, and liquid defoamer must always be added

directly into the filter compartment while the jet pump is running in its

high speed mode, and it must run for a minimum of ten minutes with the

cover off. Use the Clean button/feature to ensure that the chemicals are

properly mixed when adding.

BUILDING A SANITIZER ROUTINE

During the first month of ownership, measure the sanitizer residual

daily in order to establish a baseline of sanitizer needed vs. spa usage.

Sanitizer needed is the amount of Free Available Chlorine needed to

accommodate the number of users and their combined usage time. For

example, two spa users for twenty minutes every day creates regular

demand on the sanitizer that is used to determine how much sanitizer

to add in order to maintain the proper residual. If the usage pattern

increases dramatically with invited guests, the amount and frequency of

sanitizer required increases dramatically.

PERFORMING SUPER CHLORINATION/

NON-CHLORINE SHOCK TREATMENT

A weekly or monthly super chlorination (1.5 tsp dichlor/250 gal (950

liters)) or shock (4tbs mps/250 gal (950 liters)) may be required of your

chosen sanitation program. Increasing chlorine to 5 ppm for 24-48 hours

removes excess waste and chloramines from the water. Sodium dichlor

is 6x stronger than MPS and may be a more appropriate for those users

that experience heavy bather load conditions. Operate all jets and leave

the cover open for a minimum of 20 minutes to allow the oxidizer gas

to vent to prevent damage and discoloration to the cover and pillows

after administering a super chlorination or shock to your spa. This type

of damage is considered chemical abuse and is not covered under the

terms of the limited warranty.

IMPORTANT

: Always allow the Free Available Chlorine to fall below 5

ppm before using your spa.

DANGER: Never leave an open spa unattended, especially if

there are children present

EVERFRESH WATER CARE SYSTEM

(OPTIONAL)

The EVERFRESH water care system is comprised of the following

products:

• CLEAN SCREEN Pre-filter

• FRESHWATER Concentrated Chlorinating Granules, Sodium Dichlor

• FRESHWATER Chlorine-Free Oxidizer, Monopersulfate (MPS

• FRESHWATER III high output ozone system

• FRESHWATERAg+Silver Ion purifier

The EVERFRESH system introduces silver ions into the spa water via

erosion of silver infused beads which inhibits bacteria growth. When

combined with MPS, or chlorine, waste is oxidized and removed from

the water. It is important to follow the recommended application and

maintenance programs outlined for each product’s use. If the spa is

being used over an extended period of time, such as a whole afternoon

or evening, additional sanitizer will be needed.

Required: Weekly Super Chlorinate/Shock the spa to reactivate the

silver ion cartridge, allow the release of silver ions, and quickly destroy

any remaining contaminants. Without this weekly shock treatment, the

silver ion cartridge may stop releasing silver ions into the water.

IMPORTANT: Use only Dichlor sanitizer. Silver is not compatible with

bromine and biguanides. Don't use a water clarifier. Clarifiers will cause

the spa water to become cloudy.

MANUAL CHLORINE (SODIUM DICHLOR)

WATKINS WELLNESS recommends the use of FRESHWATER

Concentrated Chlorinating Granules (sodium dichlor) for sanitizing the

water. Sodium dichlor is preferred because it is totally soluble, dissolves

quickly, and is nearly pH neutral. The recommended Free Available

Chlorine (FAC), the amount of available chlorine sanitize the spa, 3.0-5.0

ppm.

If the FAC is too low: Increase the FAC by adding granulated sodium

dichlor.

If the FAC is too high: Allow time to pass and the FAC level will

naturally drop over time.

If the spa smells of chlorine: super chlorinate or shock the spa FAC

chlorine does not have an odor whereas combined spent chlorine

(chloramines) has a strong chlorine odor that can be eliminated by

shocking the water.

IMPORTANT: There are several forms of stabilized chlorine available

for use in spas and swimming pools. It is extremely important to choose

one specifically designed for spas. Use of an incorrect product such

as tri-chlor which has a very low pH (2.6) and dissolves too quickly in

hot water, results in extremely high levels of chlorine that WILL cause

damage to your spa. Use of a liquid or compressed bromine/chlorine

or unapproved sanitizer WILL damage your spa and is specifically not

covered under the terms of the limited warranty.

Water chemistry damage is not covered by the warranty. The chemical

levels and water quality in the spa are under your direct control.

With proper basic care, the spa will provide many years of hot water

relaxation. If you are unsure about any chemical or its usage in the spa,

contact your Authorized Dealer, or WATKINS WELLNESS.

DO:

• Add all chemicals slowly into the filter compartment with the jet pump

operating for ten minutes.

• Use special care if using baking soda to clean either the interior or

exterior plastic surfaces.

IMPORTANT: WATKINS WELLNESS DOES NOT recommend the

use of any floating chemical dispenser. Damage to the spa shell or

components caused by a floating chemical dispenser is specifically not

covered under the terms of the limited warranty. Floating dispensers can

become trapped in one area and cause an over-sanitization or release

large chunks of sanitizer that can very quickly chemically burn the shell

and cover.

DON'T:

• Use compressed sanitizers.

• Use a floater type sanitization system as a low or no maintenance

solution to your spa maintenance program.

• Use a sanitizer which is not designed for spas.

• Use swimming pool (muriatic) acid to lower pH.

• Broadcast or sprinkle the chemicals onto the water surface. This

method may cause chemically-induced spa surface blistering (chemical

abuse).

Water Quality and Maintenance

English French

Spanish

Page 12 Water Quality and Maintenance

OZONE MAINTENANCE

Reduced or no ozone bubbles coming from heater return (clogged

ozone injector) or no ozone, clean the injector:

1. Place 16 ounces (.5 liter) of white vinegar into a cup or bucket.

2. Carefully loosen the long tubing attached to the bottom of the

ozonator, located in the equipment compartment.

DANGER: Place the end of the tubing into the vinegar, making

certain that the end of the tubing sits at the bottom of the container.

3. Run the spa until all 16 ounces (.5 liter) of the vinegar are gone.

This should allow

an ample flow of vinegar to be run through the

injector and clear the blockage.

4. Reinstall the tubing to the bottom of the ozonator.

VACATION WATER CARE

INSTRUCTIONS

If you plan to be away from home, follow these instructions to ensure

that the water quality of your spa is maintained:

SHORT TIME PERIODS (3-5 DAYS):

1. Adjust the pH by following the instructions outlined in the Water

Quality and Maintenance section.

2. Sanitize the water by following the shock procedures also listed in

the Water Quality and Maintenance section.

3. Lock your cover in place using the cover locks.

4. Upon your return, sanitize the water by following the shock

procedures, and balance the pH.

LONG TIME PERIODS (5-14 DAYS):

Prior to leaving:

1. At least one day before you leave, set the temperature to its

lowest level. This setting should represent an approximate water

temperature of 80°F (27°C)

IMPORTANT: Spa water oxidizers such as sodium dichlor (chlorine)

maintain their level of effectiveness substantially longer in warm water

80°F

(27°C)

than in hot water 101°F to 104°F (38°C - 40°C).

2. Adjust the pH as required. Sanitize the water by following the shock

procedures.

Upon your return:

3. Sanitize the water by following the shock procedures. Return the set

temperature to its original setting. The spa water will be safe for you

to use once the Free Available Chlorine residual level has dropped

below 5.0 ppm.

IMPORTANT: If you will not be using your spa for an extended period

of time (in excess of 14 days) and an outside maintenance service

(or neighbor) is not available to assist with the water maintenance,

draining or winterizing of the spa is recommended. Spas equipped

with our FRESHWATER III ozone system can extend this to 4 weeks.

The FRESHWATER III ozone system does not guard against possible

freezing damage, however.

SUPPLEMENTAL WATER MAINTENANCE

Proper water sanitation and mineral balance (pH control) are absolutely

essential for a complete spa water maintenance program. Here are two

other popular water additives that are optional:

Mineral Deposit Inhibitors

As water evaporates from your spa and new water is added, the amount

of dissolved minerals will increase. (Minimize evaporation by keeping

the cover on the spa whenever possible.) The spa water may eventually

become “hard” (Calcium Hardness too high) enough to damage the

heater by calcifying its surface. Proper pH control can minimize this.

Normal soap build-up will require water replacement regularly enough

that mineral deposits normally are not a problem.

Occasionally, high iron or copper content in the water may produce

green or brown stains on the spa. A stain and scale inhibitor may help to

reduce these metals.

IMPORTANT: Well water may contain high concentrations of minerals.

The use of a low water volume, extra-fine pore water filter (in-line pre-

filter such as the CLEAN SCREEN pre-filter) will help to remove many

of the larger particles during the filling of the spa. In-line pre-filters can be

purchased at your local HOT SPRING dealer.

Foam Inhibitors

Spa water requires changing due to the buildup of soap in the water.

Typically, soap will cause the spa water to foam when the jets are used.

Soap is introduced into the spa water from two sources: users’ bodies,

which retain a soap residual after showering, and swimming apparel,

which retains soap after washing.

Foam inhibitors can suppress foam, but cannot remove soap from the

water. Soap is very difficult to remove from the water because soap is

not oxidized by any chemical added to the spa. Only ozone can oxidize

soap.

Eventually the soap build-up in the water will be concentrated, resulting

in an unclean feeling on the bather’s skin, which is impossible to remedy.

When this occurs, it’s time to drain and refill the spa. Depending on the

soap input, the water should last about four months before needing to be

drained.

English French

Spanish

Page 13

Water Quality and Maintenance

WATER TERMINOLOGY

The following chemical terms are used in this Water Quality and

Maintenance section. Understanding their meaning will help you to

better understand the water maintenance process.

Bromamines: Compounds formed when bromine combines with

nitrogen from body oils, urine, perspiration, etc. Unlike chloramines,

bromamines have no pungent odor, and are effective sanitizers.

Bromine: A halogen sanitizer (in the same chemical family as chlorine).

Bromine is commonly used in stick, tablet, or granular form.

Calcium Hardness: The amount of dissolved calcium in the spa water.

This should be approximately 50 -150 ppm. High levels of calcium can

cause cloudy water and scaling. Low levels can cause harm to the spa

equipment.

Chloramines: Compounds formed when chlorine combines with

nitrogen from body oils, urine, perspiration, etc. Chloramines can cause

eye irritation as well as having a strong odor. Unlike bromamines,

chloramines are weaker, slower sanitizers.

Chlorine: An efficient sanitizing chemical for spas. WATKINS

WELLNESS recommends the use of sodium dichlor-type granulated

chlorine. This type is preferred because it is totally soluble and nearly pH

neutral.

Chlorine (or Bromine) Residual: The amount of chlorine or bromine

remaining after chlorine or bromine demand has been satisfied. The

residual is, therefore,

the amount of sanitizer which is chemically available to

kill bacteria, viruses and algae.

Corrosion: The gradual wearing away of metal and plastic spa parts,

usually caused by chemical action. Generally, corrosion is caused by low

pH or by

water with levels of TA, CH, pH or sanitizer which are outside the

recommended ranges.

Halogen: Any one of these five elements: fluorine, chlorine, bromine,

iodine, and astatine.

MPS: Monopersulfate is the non-chlorine oxidizer used with the

FRESHWATERAg+ silver ion purification system. Not a sanitizer.

Nitric Acid: The formulation of nitric acid, a highly corrosive chemical,

is a byproduct of the ozone generating process. Nitric acid is produced

in very small quantities and is readily dissolved in the water stream with

ozone.

Oxidizer: The use of an oxidizing chemical is to prevent the buildup of

contaminants, maximize sanitizer efficiency, minimize combined chlorine

and improve water clarity. See MPS and Ozone.

Ozone: Ozone is a powerful oxidizing agent which is produced in

nature and artificially by man. Ozone forms no byproducts, oxidizes

chloramines, and will not alter the water’s pH.

pH: The measure of the spa water’s acidity and alkalinity. The

recommended pH for the spa water is 7.2 to 7.8. Below 7.0 (considered

neutral), the spa water is too acidic and can damage the heating system.

Above 7.8, the water is too

alkaline and can result in cloudy water, and

scale formation on the shell and heater.

ppm: The abbreviation of “parts per million”, the standard measurement

of chemical concentration in water. Identical to mg/l (milligrams per liter).

Reagent: A chemical material in liquid, powder, or tablet form for use in

chemical testing.

Sanitizer: Sanitizers are added and maintained at recommended

residuals to protect bathers against pathogenic organisms which can

cause disease and infection in spa water.

Scale: Rough calcium-bearing deposits that can coat spa surfaces,

heaters, plumbing lines, and clog filters. Generally, scaling is caused by

mineral content combined with high pH. Additionally, scale forms more

readily at higher water temperatures.

Super-Chlorination: Also known as “shock treatment.” Super-

Chlorination is a process of adding significant doses of a quick dissolving

sanitizer (“dichlor” is recommended) to oxidize non-filterable organic

waste and to remove chloramines and bromamines.

Total Alkalinity (TA): The amount of bicarbonates, carbonates, and

hydroxides present in spa water. Proper total alkalinity is important for

pH control. If the TA is too high, the pH is difficult to adjust. If the TA is

too low, the pH will be difficult

to hold at the proper level. The desired

range of TA in spa water is 40 to 120 ppm.

English French

Spanish

Page 14

SPA CONTROL PANEL

Initial start-up - When the spa is first powered up, the control system

begins a 2 minute Startup Mode. Different codes will display on the

screen. Once Startup Mode completes, the actual temperature is

displayed on the screen for the 1 pump models and a time/actual

temperature is displayed for the 2 pump models. The spa will then

begin to heat and maintain the water temperature and the first filter

cycle will start with a 2 minute purge cycle for the second pump for

2 pump models. Your spa has

been designed so that it will

automatically heat the water to

the factory set temperature of

100°F (38°C) unless you set the

spa to a different temperature. If power is

disconnected from the spa, it will automatically revert back to the last

saved set temperature when power is reapplied. Depending on your spa

model you will either have a one pump or two pump control panel as

illustrated.

TEMPERATURE ADJUSTMENT

The temperature can only function between 80°F - 104°F (26.5°C -

40°C). The last measured temperature will constantly display on LCD.

Press the Up or Down buttons to display the set temperature

and indicator . Each time either button is pressed again, the set

temperature will increase or decrease depending on which button is

pressed. After five seconds, the LCD will automatically display the

current spa temperature.

The "Heat" indicator lights up when heating. It flashes when there is

a request for more heat. Once set temperature is reached the indicator

shuts off, on the 230 volt models only the low speed of the jet pump

turns off after 30 seconds (if not in filter cycle).

JETS OPERATION

2 pump models:

Firmly press the Jets (1) button once to activate

the low speed of the pump and again for the high speed. Firmly press

the Jets (1) button again to turn off the pump. If left running the low or

high speed pump will automatically turn off after 1 hour. The "Jets"

indicator light above the button will blink when the jet pump is on

low speed and is solid on high speed. Press the Jets (2) button once to

activate jet pump 2 on high and press a second time to turn jet pump 2

off.

1 pump models: Press the Jets button once to turn the pump on low

speed, a second time for high speed and a third time to turn off the pump.

MULTI COLOR LED LIGHT

Press the Light button once to turn on the light, the light indicator next

to the button is lit when the light is on. Press the button again to turn

the light off. Every time the light is quickly turned off and on, a new light

mode will appear. The sequence is as follows: White, Red, Green, Blue,

Red, Purple, Yellow, Aqua, Amber, color wheel 1, color wheel 2. The last

light mode used will come back on when the light is turned off for more

than 2 seconds.

NOTE: If left on, the light will automatically turn off after 4 hours of

operation.

SMART WINTER MODE

The Smart Winter Mode (SWM) is used to prevent water from freezing

in the plumbing of the spa. As soon as there is a risk of freezing, this

protection automatically kicks in. The SWM protection will turn back

off only after 24 hours without a risk of freezing. During this 24 hour

period, the Smart Winter Mode icon remains on; the icon blinks when

the purge is active.

SPA LOCK (PARTIAL/FULL)

Press and hold both the Up and Down buttons for 5 seconds to activate

a partial spa lock, LocP is displayed for a few seconds. In partial mode

only the jets and light buttons will function, the temperature can not

be changed and the LocP will display if temp up/down is pressed.

Press and hold both the Up and Down buttons for 10 seconds to

activate a full spa lock, LocF is displayed for a few seconds. In full mode

none of the functions are accessible. LocF will display for a few seconds

if any button is pressed.

To remove partial or full lock, simply press and hold both the Up and

Down buttons for 5 seconds and ULoc will display.

MUSIC (WHEN EQUIPPED)

You spa is equipped with a Bluetooth music sound system that requires

a bluetooth device to pair up with the the spa. To pair the spa and

Bluetooth device:

• Go to the Bluetooth settings on your device and find in.stream 2 and

press connect.

• Enter pin 5555 and press pair to sync your device. You are now ready

to play audio from your device.

OPERATIONAL MODES (PACE & STRIDE ONLY)

FILTER CYCLES

There are two filter cycles: the first cycle (F1) starts right after power up

and the second cycle (F2) will start 12 hours later. The default duration

for the first filter cycle is 1 hour, and 30 minutes for the second cycle.

Filter cycles (on 230 volt models) only run at low speed. The “Filter”

indicator lights up when a filter cycle is on. The duration of each filter

cycle can be modified.

ADJUSTING PRESET FILTER CYCLES

Filter duration is programmable between 0.5 and 6 hours in 30 minute

increments (0.5 hours) for both filter cycles. To program the cycle

times:

1. Press and hold Mode button for 5 seconds until F1 is displayed.

2. Press the Up +/Down - buttons to adjust the cycle time for F1.

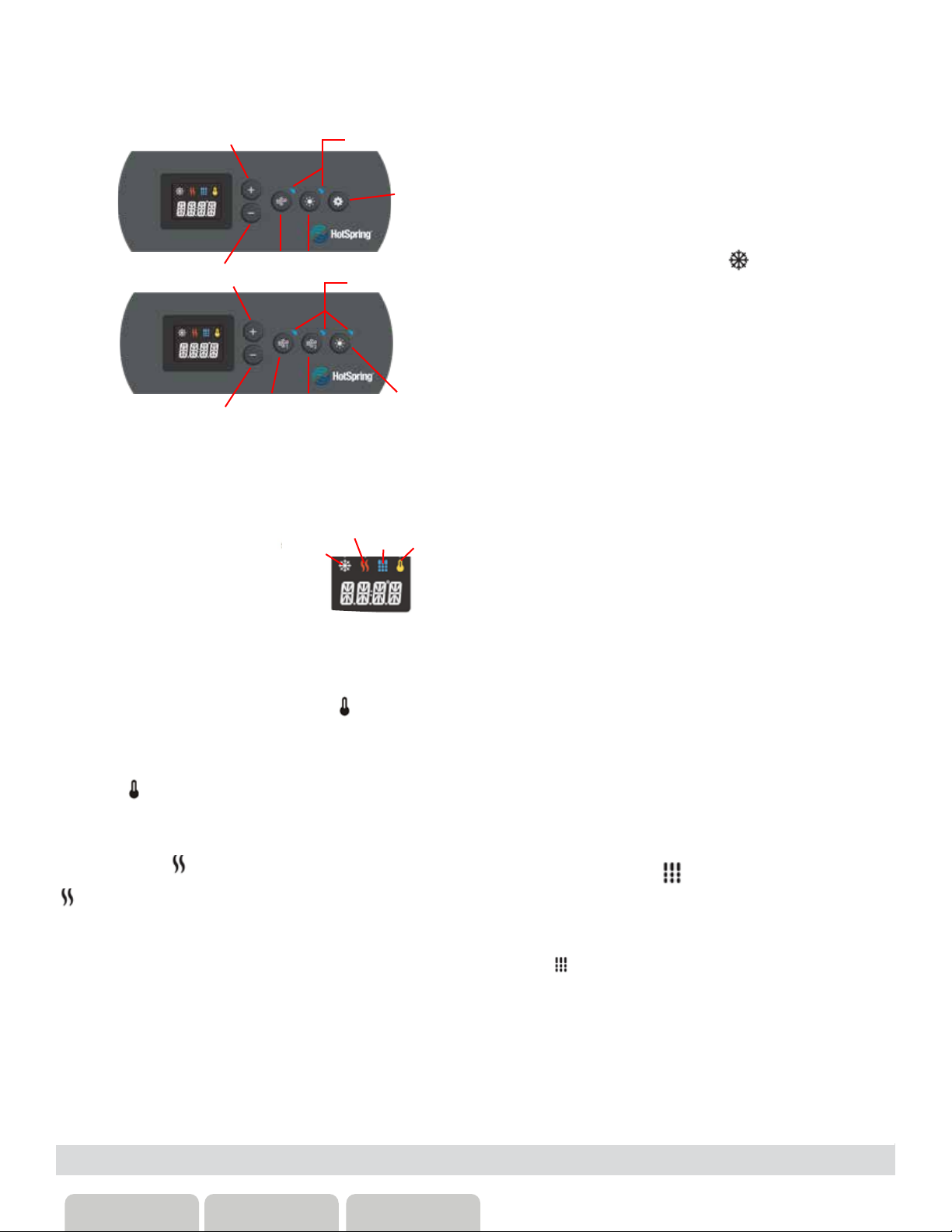

Spa Control Panel

Indicator Lights

Temp Down

Temp Up

Temp Down

Temp Up

Jets Light

Jets 1 Jets 2 Light

2 PUMP

RELAY &

RHYTHM

1 PUMP

PACE &

STRIDE

Smart Winter

Mode

Heater Filter Set

Point

Mode

English French

Spanish

Page 15

3. Press the Mode button to store the F1 cycle and move to the F2

cycle.

4. Press the Up +/Down - button to adjust the cycle time for F2.

5. Wait 15 seconds to allow the exit timer to expire and store the

setting.

IMPORTANT: To reset the first filter cycle "start time", skip step 5 and

continue pressing the Mode button until the actual temperature is

displayed. Powering down of the spa will also reset the first filter start

time.

ILTER CYCLE SUSPENSION

The filter cycle will be suspended every time a jet pump or light is

activated manually during the filter cycle time. The suspension will end

10 minutes after the completion of the manual use. The jet pump will

continue to run when the spa heater is on.

STANDARD MODE (St)

The Standard Mode is the default operational mode preset from the

factory. In order to program the spa to operate and change into other

modes you must enter the programming mode to make the change.

Standard mode is programmed to maintain the desired temperature

with periodic water circulation (sampling) to sample water

temperature and heat the water to the set temperature.

NOTE: Water sampling will turn the jet pump on and circulate the water

for up to a couple of minutes then turn back off.

ECONOMY MODE (EC): The spa will not heat. Water sampling

only done during the filter cycle.

SLEEP MODE (SL): The spa will only heat during the filter

cycles. Water sampling only done during the filter cycle.

QUIET MODE

(nt)

Keeps the jet pump from running (water sampling) after the F2

filter cycle is complete for up to 11.5 hours. You can set this mode

between 0.5 hours and 11.5 hours in half hour increments.

NOTE: Freeze Protection (Smart Winter Mode) will assert as necessary

during any mode.

To enter the programming screen and toggle between Standard,

Economy, Sleep and Quiet Modes the following is required:

1. Press and hold the Mode button for 5 seconds.

2. Press the Mode button several times until St or nt is

displayed.

3. Use the Temp Up or Down button to choose between

the Modes.

St = Standard Mode, EC = Economy Mode, SL =

Sleep Mode, and nt = Quiet Mode.

4. Wait 15 seconds to allow the exit timer to expire and

store the setting.

To Program the Quiet Mode the following is required:

Once in the nt mode, press the

Mode

button then press the Up/Down

button to change the amount of time you do not want the jet pump to

come on between F2 and F1.

FAHRENHEIT/CELSIUS SETTING

To change water temperature display to either Fahrenheit or Celsius,

press and hold

Mode

button for 5 seconds until F1 is displayed. Press

the

Mode

button several times until F or C is displayed. Press the Up/

Down button to change. Wait 15 seconds to allow the exit timer to expire

and store the setting.

OPERATIONAL MODES (RELAY & RHYTHM ONLY)

SETTING THE CLOCK

Enter the program menu by holding down the Light button for 5 seconds.

The display will show the current clock setting with the hour flashing.

Your system is set to a 12-hour time. An additional dot is lit between the “:”

separation of hours and minutes to serve as an AM indicator.

Setting the hour: Use the Up/Down button to adjust the hour. Press the

Light button to jump to the next parameter, the minutes.

Setting the minutes: Use the Up/Down button to adjust the minutes. Press

the Light button to jump to the next parameter, the filter cycles.

NOTE: If your spa loses power the clock will need to be reset once power

is regained.

FILTER CYCLES

Program the start time, duration and frequency of your filter cycles. The

default duration for the filter cycles is 1 hour (2 times per day spread out

by 12 hours) if the clock is not set and will start at 12. Filter cycles only

run at low speed, however, the second pump will purge for a minute first

during each filter cycle . The “Filter” indicator lights up when a filter

cycle is on. The duration of each filter cycle can also be modified.

SETTING THE FILTER CYCLES

To program the filter cycle start time, duration and frequency the

following is required:

1. Press and hold Light button for 5 seconds until clock hour is

displayed (this time should already be programmed, press

Light button two more times until FSxx is displayed where xx

represents the hour to set the filter cycle.

2. Press the Up +/Down - button to adjust the clock time for the

first filter cycle to start (on the hour only) a small dot . after FS

indicates AM and a non small dot indicates PM.

3. Press the Light button to store the cycle start time and move to

Fdxx the duration of the filter cycle(s) where xx represents the

length of filter cycle time in hours

4. Press the Up +/Down - button to adjust the duration (how long

to run the filter cycle) from 0 = no filtration to 24 = continuous

filtration. 0 is NOT recommended.

NOTE: The set duration will be the same time length for each frequency.

5. Press the Light button to store the duration and move to FFxx

the frequency of the filter cycle(s) where xx represents the

amount of times the filter cycle should come on.

6. Press the Up +/Down - button to adjust the frequency (how

many filter cycles within a 24 hour period). The amount of

frequencies allowed will depend on how long the duration is

set to since there are only 24 hours in a day (example: if the

duration is set to 13 hours or more than only 1 frequency can be

set, 9 - 12 hour duration only 2 frequencies can be set. In other

words the duration times the frequency must be 24 or less.

7. Wait 15 seconds to allow the exit timer to expire and store the

setting.

Spa Control Panel

English French

Spanish

Page 16 Spa Control Panel

WARNING! SHOCK HAZARD! NO USER SERVICEABLE PARTS.

Do not attempt service of the control box. Contact Customer Service at 800-999-4688 (Extension 8432) for assistance. Follow all owner manual power

connection instructions. Installation must be performed by a licensed electrician and all grounding connections must be properly installed.

DIAGNOSTIC LCD MESSAGE

Message Meaning Action Required

No message on display.

Power has been cut off to the spa.

The control panel will be disabled until power returns. Spa settings will

be preserved until next power up.

HL The system has shut the heater off because the

temperature at the heater has reached 122°F (50°C).

Do not enter the water!

DO NOT ENTER THE WATER. Remove the spa cover and allow the

water to cool down, then shut power off and power your spa up again

to reset the system. If spa does not reset, shut off the power to the spa

and call your Hot Spring Dealer.

AOH Temperature inside the equipment compartment is too

high 194°F (90°C), causing the internal temperature in

the control system to increase above normal limits.

Open equipment compartment and wait until error clears.

PRR A problem is detected with the temperature probe. Call your Hot Spring Dealer.

OH The water temperature in the spa has reached 108°F

(42°C). Do not enter the water!

Remove the spa cover and allow the water to cool down to a lower

temperature. Call your Hot Spring Dealer if problem persists.

UPL No low level configuration software has been installed

into the system.

Call your Hot Spring Dealer.

FLO No water flow is detected by the control system but flow

is expected.

Make sure that the jet pump is running and water is flowing; check and

clean filters; make sure water valves are open; make sure spa has a

proper water level. If problem persists, call your Hot Spring Dealer.

SETTING ECONOMY MODE

In Economy mode you are able to lower the set temperature of the spa

by 20º F (11º C) during a certain period of day which is adjustable as

well as the length of time. One of the main reasons you might want to

enable this feature at night is to limit the amount of times the spa will

automatically turn on either because of calling for heat or sampling the

water for temperature.

NOTE: If the Economy Mode set time is enabled during a filter cycle, the

filter cycle will NOT come on during the enabled time.

To enable the economy mode:

1. Press and hold Light button for 5 seconds until clock hour is

displayed, press Light button several more times until EPx is

displayed, x representing the state of the mode (0=disabled,

1=enabled)

2. Press the Up +/Down - button to either enable or disable the

economy mode.

3. Press the Light button again to set the Economy Start time. The

display will show ESxx where "xx" represents the hour at which

the economy mode will become active. Press the Up +/Down -

button to set the hour you want the mode to be enabled.

A dot after the ES represents AM.

NOTE: The time may be set, however, if Economy is disable - 0,

the Economy Mode feature will Not come on.

4. Press the Light button again to set the Economy Duration time.

The display will show Edxx, "xx" representing how long (in hours)

you want the economy mode to be ON. Use the Up/Down buttons

to adjust the amount of hours.

FAHRENHEIT/CELSIUS SETTING

To change water temperature display to either Fahrenheit or Celsius,

press and hold Light button for 5 seconds until clock hour is displayed,

press Light button several more times until F or C is displayed. Press the

Up/Down button to change. Wait 15 seconds to allow the exit timer to

expire and store the setting.

English French

Spanish

Page 17

JET MENU

RELAY (MODEL REL)

Jet Pump 1

A. 4 PRECISION Jets and 1 Standard Directional Jet

B. 6 PRECISION Jets and 1 XL Directional Jet

C. 1 XL Rotary Jet

D. 1 Water feature.

E. 6 PRECISION Jets

F. 2 PRECISION Jets

Jet Pump 2

A. 2 PRECISION Jets, 2 Standard Rotary Jets and 1 XL

Directional Jet

B. 6 PRECISION Jets

C. 2 PRECISION Jets, 2 Standard Directional Jets, 1 XL

Directional jet and 1 XL Rotary Jet

D. 2 PRECISION Jets

Jet Menus

English French

Spanish

This manual suits for next models

Table of contents

Other Watkins Wellness Hot Tub manuals

Watkins Wellness

Watkins Wellness HotSpring Hot Spot TX User manual

Popular Hot Tub manuals by other brands

HoMedics

HoMedics JetSpa Elite JET-2 Instruction manual and warranty information

CalderaSpas

CalderaSpas Utopia Series Cantabria Pre-delivery instructions

Aquatic

Aquatic MILLENNIUM 9 AI9mIl7700 Specifications

CalderaSpas

CalderaSpas paradise series owner's manual

Avandeo

Avandeo MONACO manual

Aquatic

Aquatic LUXEAIR 25 ai25lux7240 Specification sheet

American Standard

American Standard Cadet 2773.018 parts list

Cannon

Cannon BAHAMA owner's manual

Conair

Conair BTS4C Series Instruction booklet

Artesian Spas

Artesian Spas Island Spas Series owner's manual

Belmint

Belmint BEL-FSWH manual

Dynasty Spas

Dynasty Spas SC-MP-DY1 Quick reference card

Aquatic

Aquatic SYMPHONY 10 None Specification sheet

American Standard

American Standard Cadet 2773E parts list

Aquatic

Aquatic Serenity Studio 17 Specification sheet

Aquatic

Aquatic AI7242RUO Specification sheet

WDT

WDT Soldos V3 Operating and installation instructions

Jacuzzi

Jacuzzi BELLAVISTA 5 Specification sheet

Watkins Wellness HotSpring Hot Spot Relay User manual

Popular Hot Tub manuals by other brands
