Watson Marlow Pumps 530 Series User manual

530 S/SN Operating Manual
m-530sn-gb-02 1
Contents
1 Declaration of conformity 4
2 Declaration of incorporation 5
3 When you unpack your pump 6
3.1 Unpacking your pump 6
3.2 Packaging disposal 6
3.3 Inspection 6
3.4 Components supplied 6
3.5 Storage 6
4 Information for returning pumps 7
5 Peristaltic pumps - an overview 8
6 Warranty 9
7 Safety notes 10
8 Pump specifications 13
8.1 Specification ratings 13
8.2 Weights 13
8.3 Pumphead options 14
9 Good pump installation practice 15
9.1 General recommendations 15
9.2 Dos and don'ts 16
10 Pump operation 17
10.1 Keypad Layout and Key IDs 17
10.2 Starting and stopping 18
10.3 Using up and down keys 18
10.4 Maximum speed 18
10.5 Change rotation direction 18
11 Connecting to a power supply 19
11.1 Conductor colour coding 20
12 Start-up check list 21
13 Switching the pump on for the first time 22
13.1 Selecting the display language 22
13.2 First-time start-up defaults 23

2 m-530sn-gb-02
14 Switching the pump on in subsequent power cycles 25
15 Mode menu 26
16 Manual 27
16.1 START 27
16.2 STOP 28
16.3 INCREASING AND DECREASING FLOW RATE 28
16.4 MAX FUNCTION (Manual mode only) 29
17 Flow calibration 30
17.1 Setting the flow calibration 30
18 MemoDose mode 33
18.1 To configure MemoDose 33
18.2 Set flow rate 34
18.3 Resume interrupted doses 35
18.4 Master dose 36
18.5 Manual dosing 40
19 Main menu 41
19.1 Security settings 42
19.2 General settings 51
19.3 Control settings 61
19.4 Help 62
20 Troubleshooting 63
20.1 Error codes 63
20.2 Technical support 64
21 Drive maintenance 65
22 Drive spares 66
23 Pumphead replacement 67
23.1 Pumphead replacement 67
24 Tube replacement 68
24.1 Continuous tubing 68
24.2 Tube elements 69
25 Ordering information 71
25.1 Pump part numbers 71
25.2 Tubing and element part numbers 72
25.3 Pumphead spares 76
25.4 Pumping accessories 78
26 Performance data 80
26.1 Performance curves 80

27 Trademarks 85
28 Disclaimers 86
29 Publication history 87
m-530sn-gb-02 3

4 m-530sn-gb-02
1 Declaration of conformity
Watson-Marlow Limited
Falmouth
Cornwall
TR11 4RU
England
1. 530 Cased pumps (Models: S, SN, U, UN, Du, DuN, Bp, BpN)
2. Manufacturer:
Watson Marlow Ltd
Bickland Water Road
Falmouth
TR11 4RU
UK
3. This declaration of conformity is issued under the sole responsibility of the manufacturer
4. All models and versions of the 530 series of cased peristaltic pump with all approved pump
heads, tubing and accessories.
5. The object of the declaration described above is in conformity with the relevant Union
harmonisation legislation:
Machinery Directive 2006/42/EC
EMC Directive 2014/30/EC (from 20th April 2016) and 2004/108/EC (until 19th April 2016)
ROHS Directive 2011/65/EU
6. Harmonised standards used:
BS EN61010-1:2010 third edition Safety requirements for electrical equipment for
measurement, control, and laboratory use Part 1: General requirements
EN61326-1:2013 Electrical equipment for measurement, control and laboratory use – EMC
requirements Part 1: General requirements
BS EN 60529:1992+A2:2013 Degrees of protection provided by enclosures (IP code)
7. Intertek Testing and Certification Ltd, No: 3272281, performed compliance testing to BS EN
61010-1:2010, IEC 61010-1:2010, UL 61010-1:2010 and CAN/CSA C22.2 Bo 6101010-
1:2010 and issued certification of compliance to these standards.
Signed for and behalf of:
Watson Marlow Ltd
Falmouth, 6th January 2016
Simon Nicholson, Managing Director, Watson-Marlow Limited
EC Declaration of Conformity

2 Declaration of incorporation
Watson-Marlow Ltd
Falmouth
Cornwall
TR11 4RU
England
In accordance with the Machinery Directive 2006/42/EC that if this unit is to be installed into a machine
or is to be assembled with other machines for installations, it shall not be put into service until the
relevant machinery has been declared in conformity.
We hereby declare that:
Peristaltic Pump
Series: 530 cased pumps
the following harmonised standards have been applied and fulfilled for health and safety
requirements:
Safety of Machinery – EN ISO 12100
Safety of Machinery – Electrical Equipment of Machines BS EN 60204-1
Quality Management System – ISO 9001
and the technical documentation is compiled in accordance with Annex VII(B) of the Directive.
We undertake to transmit, in response to a reasoned request by the appropriate national authorities,
relevant information on the partly completed machinery identified above. The method of transmission
shall be by mail or email.
The pump head is incomplete and must not be put into service until the machinery into which it is to be
incorporated has been declared in conformity with the provisions of the Directive.
Person authorised to compile the technical documents:
Andrew Green, Design & Engineering Director, Watson-Marlow Ltd.
Place and date of declaration: Watson-Marlow Ltd, 31.07.2015
Responsible person:
Simon Nicholson, Managing Director, Watson-Marlow Ltd
Declaration of Incorporation
m-530sn-gb-02 5

6 m-530sn-gb-02
3 When you unpack your pump
3.1 Unpacking your pump
Unpack all parts carefully, retaining the packaging until you are sure all components are present and in good
order. Check against the components supplied list, below.
3.2 Packaging disposal
Dispose of packaging materials safely, and in accordance with regulations in your area. The outer carton is
made of corrugated cardboard and can be recycled.
3.3 Inspection
Check that all components are present. Inspect components for damage in transit. If anything is missing or
damaged, contact your distributor immediately.
3.4 Components supplied
530 Components
•530 pump drive unit, fitted with 520R2 or other pumphead if specified as a pump
•The designated power cable (attached to the pump drive unit)
•A 520N module providing pump ingress protection to IP66, NEMA 4X, if a 530SN, 530UN, 530DuN
or 530BpN.
Note: the module is attached for transit, but must be removed to allow wiring up, voltage selection
and fuse inspection and then re-affixed before the pump is operated.
•Product safety information booklet incorporating quick start manual
3.5 Storage
This product has an extended shelf life. However, care should be taken after storage to ensure that all parts
function correctly. Please observe the storage recommendations and use-by dates which apply to tubing you
may wish to bring into service after storage.

4 Information for returning pumps
In compliance with the UK Health and Safety at Work Act and the Control of Substances Hazardous to Health
Regulations, you are required to declare the substances which have been in contact with product(s) you
return to Watson-Marlow or it subsidiaries or distributors. Failure to do so will cause delays. Please ensure
that you email us this information and receive a RGA (Returned Goods Authorisation) before you despatch
the product(s). A copy of the RGA form must be attached to the outside of the packaging containing the
product(s).
Please complete a separate decontamination certificate for each product and attach it to the outside of the
packaging containing the product(s). A copy of the appropriate decontamination certificate can be
downloaded from the Watson-Marlow website at www.wmftg.com
You are responsible for cleaning and decontaminating the product(s) before return.
m-530sn-gb-02 7

8 m-530sn-gb-02
5 Peristaltic pumps - an overview
Peristaltic pumps are the simplest possible pump, with no valves, seals or glands to clog or corrode. The fluid
contacts only the bore of a tube, eliminating the risk of the pump contaminating the fluid, or the fluid
contaminating the pump. Peristaltic pumps can operate dry without risk.
How they work
A compressible tube is squeezed between a roller and a track on an arc of a circle, creating a seal at the point
of contact. As the roller advances along the tube, the seal also advances. After the roller has passed, the
tube returns to its original shape, creating a partial vacuum which is filled by fluid drawn from the inlet port.
Before the roller reaches the end of the track, a second roller compresses the tube at the start of the track,
isolating a packet of fluid between the compression points. As the first roller leaves the track, the second
continues to advance, expelling the packet of fluid through the pump’s discharge port. At the same time, a
new partial vacuum is created behind the second roller into which more fluid is drawn from the inlet port.
Backflow and siphoning do not occur, and the pump effectively seals the tube when it is inactive. No valves
are needed.
The principle may be demonstrated by squeezing a soft tube between thumb and finger and sliding it along:
fluid is expelled from one end of the tube while more is drawn in at the other.
Animal digestive tracts function in a similar way.
Suitable applications
Peristaltic pumping is ideal for most fluids, including viscous, shear-sensitive, corrosive and abrasive fluids,
and those containing suspended solids. They are especially useful for pumping operations where hygiene is
important.
Peristaltic pumps operate on the positive displacement principle. They are particularly suitable for metering,
dosing and dispensing applications. Pumps are easy to install, simple to operate and inexpensive to maintain.

6 Warranty
Watson-Marlow Ltd ("Watson-Marlow") warrants this product to be free from defects in materials and
workmanship for five years from the date of shipment, under normal use and service.
Watson-Marlow's sole responsibility and the customer's exclusive remedy for any claim arising out of the
purchase of any product from Watson-Marlow is, at Watson-Marlow's option: repair, replacement or credit,
where applicable.
Unless otherwise agreed in writing, the foregoing warranty is limited to the country in which the product is
sold.
No employee, agent or representative of Watson- Marlow has the authority to bind Watson-Marlow to any
warranty other than the foregoing unless in writing and signed by a director of Watson-Marlow. Watson-
Marlow makes no warranty of the fitness of its products for a particular purpose.
In no event:
i. shall the cost of the customer's exclusive remedy exceed the purchase price of the product;
ii. shall Watson- Marlow be liable for any special, indirect, incidental, consequential, or exemplary
damages, however arising, even if Watson- Marlow has been advised of the possibility of such
damages.
Watson-Marlow shall not be liable for any loss, damage, or expense directly or indirectly related to or arising
out of the use of its products, including damage or injury caused to other products, machinery, buildings, or
property. Watson- Marlow shall not be liable for consequential damages, including without limitation, lost
profits, loss of time, inconvenience, loss of product pumped, and loss of production.
This warranty does not obligate Watson-Marlow to bear any costs of removal, installation, transportation, or
other charges which may arise in connection with a warranty claim.
Watson-Marlow shall not be responsible for shipping damage of returned items.
Conditions
oProduc ts must be returned by pre- arrangement to Watson- Marlow, or a Watson- Marlow approved
service centre.
oAll repairs or modifications must have been made by Watson-Marlow Ltd, or a Watson-Marlow approved
service centre or with the express permission in writing of Watson-Marlow, signed by a manager or
director of Watson-Marlow.
oAny remote control or system connections must be made in accordance to Watson- Marlow
recommendations.
oAll PROFIBUS systems must be installed or certified by a PROFIBUS approved installation engineer.
Exceptions
oConsumable items including tubing and pumping elements are excluded.
oPumphead rollers are excluded.
oRepairs or service necessitated by normal wear and tear or by lack of reasonable and proper
maintenance are excluded.
oProducts which, in the judgement of Watson-Marlow, have been abused, misused, or subject to
malicious or accidental damage or neglect are excluded.
oFailure caused by electrical surge is excluded.
oFailure caused by incorrect or sub-standard system wiring is excluded.
oDamage by chemical attack is excluded.
oAncillaries such as leak detectors are excluded.
oFailure caused by UV light or direct sunlight.
oAny attempt to disassemble a Watson-Marlow product will invalidate the product warranty.
Watson-Marlow reserves the right to amend these terms and conditions at any time.
m-530sn-gb-02 9

10 m-530sn-gb-02
7 Safety notes
This safety information should be used in conjunction with the rest of this operating manual.
In the interests of safety, this pump and pumphead should only be used by competent, suitably trained
personnel after they have read and understood the manual and considered any hazard involved. If the pump
is used in a manner not specified by Watson-Marlow Ltd, the protection provided by the pump may be
impaired. Any person who is involved in the installation or maintenance of this equipment should be fully
competent to carry out the work. In the UK this person should also be familiar with the Health and Safety at
Work Act 1974.
This symbol, used on the pump and in the manual, means: Caution,
refer to accompanying documents.
This symbol, used on the pump and in the manual, means: Do not
allow fingers to contact moving parts.
This symbol, used on the pump and in the manual, means: Caution,
hot surface.
This symbol, used on the pump and in the manual, means: Caution,
risk of electric shock.
This symbol, used on the pump and in the manual, means: Personal
Protective Equipment (PPE) must be worn.
This symbol, used on the pump and in the manual, means: Recycle
this product under the terms of the EU Waste Electrical and Electronic
Equipment (WEEE) Directive.
Fundamental work with regard to lifting, transportation, installation,
starting-up, maintenance and repair should be performed by qualified
personnel only. The unit must be isolated from mains power while
work is being carried out. The motor must be secured against
accidental start-up.

Some pumps weigh more than 18kg (the exact weight depends on the
model and pumphead - see on the pump). Lifting should be performed
according to standard Health and Safety guidelines. Finger recesses
are built into the sides of the lower shell for convenience in lifting; in
addition, the pump can conveniently be lifted by grasping the
pumphead and (where fitted) the 'N' module at the rear of the pump.
There is a user-replaceable type fuse in the fuse holder in the centre
of the switch-plate at the back of the pump. In some countries, the
mains power plug contains an additional replaceable fuse.
There are no user-serviceable fuses or parts inside this pump.
This pump must be used only for its intended purpose.
The pump must be accessible at all times to facilitate operation and maintenance. Access points must not be
obstructed or blocked. Do not fit any devices to the drive unit other than those tested and approved by
Watson-Marlow. Doing so could lead to injury to persons or damage to property for which no liability can be
accepted.
The pump's main plug is the disconnecting device (for isolating the motor drive from the mains supply in an
emergency). Do not position the pump so that it is difficult to disconnect the mains plug.
If hazardous fluids are to be pumped, safety procedures specific to
the particular fluid and application must be put in place to protect
against injury to persons.
This product does not comply with the ATEX directive and must not be
used in explosive atmospheres.
Ensure the chemicals to be pumped are compatible with the
pumphead, lubricant (where applicable), tubing, pipework and
fittings to be used with the pump. Please refer to the chemical
compatibility guide which can be found at: www.wmftg.com/chemical.
If you need to use the pump with any other chemical please contact
Watson-Marlow to confirm compatibility.
m-530sn-gb-02 11

12 m-530sn-gb-02
Pump will start as soon as power is applied if Auto restart is on and
pump was running when power was disconnected.
There are moving parts inside the pumphead. Before opening the tool-
unlockable guard or tool-unlockable track, ensure that the following
safety directions are followed:
1. Ensure the pump is isolated from the mains power.
2. Ensure that there is no pressure in the pipeline.
3. If a tube failure has occurred, ensure that any fluid in the
pumphead has been allowed to drain to a suitable vessel,
container or drain.
4. Ensure that appropriate Personal Protective Equipment (PPE) is
worn.
Primary operator protection from rotating parts of the pump is
provided by the pumphead safeguard. Note that safeguards differ,
depending on the type of pumphead. See the pumphead section of the
manual.

8 Pump specifications
8.1 Specification ratings
Operating temperature 5C to 40C (41F to 104F)
Storage temperature 530: -40C to 70C (-40F to 158F)
Humidity (non-condensing) 80% up to 31C (88F) decreasing linearly to 50% at 40C (104F)
Maximum altitude 2000m (6560ft)
Power consumption 530: 135VA
Supply voltage Filtered 100-120V/200-240V 50/60Hz 1pH
Maximum voltage fluctuation +/-10% of nominal voltage. A well regulated electrical mains supply
is required along with cable connections conforming to the best
practice of noise immunity
Full load current 530: <0.6A@ 230V; <1.25A @ 115V
Fuse rating 530: Ceramic, 5x20mm, 2.5A, 250V AC, Time Delay
Installation category
(overvoltage category)
II
Pollution degree 2
IP IP31 to BS EN 60529 if supplied with N module then IP66 to BS EN
60529. Equivalent to NEMA 4X to NEMA 250 *(indoor use - protect
from prolonged UV exposure)
dB rating 530: < 70dB (A) @ 1m
Control ratio 530: 0.1-220rpm (2200:1)
Maximum speed 530: 220rpm
8.2 Weights
530 Drive only + 520R, 520R2 + 520REL,520REM,
520REH
+ 505L
IP31 9.7kg 21lb 6oz 10.6kg 23lb 5oz 10.5kg 23lb 3oz 12.2kg 26lb 14oz
IP66 10.6kg 23lb 5oz 11.5kg 25lb 5oz 11.4kg 25lb 2oz 13.1kg 28lb 13oz
Weights warning
Some pumps weigh more than 18kg (the exact weight depends on the
model and pumphead - see on the pump). Lifting should be performed
according to standard Health and Safety guidelines. Finger recesses
are built into the sides of the lower shell for convenience in lifting; in
addition, the pump can conveniently be lifted by grasping the
pumphead and (where fitted) the 'N' module at the rear of the pump.
m-530sn-gb-02 13

14 m-530sn-gb-02
8.3 Pumphead options

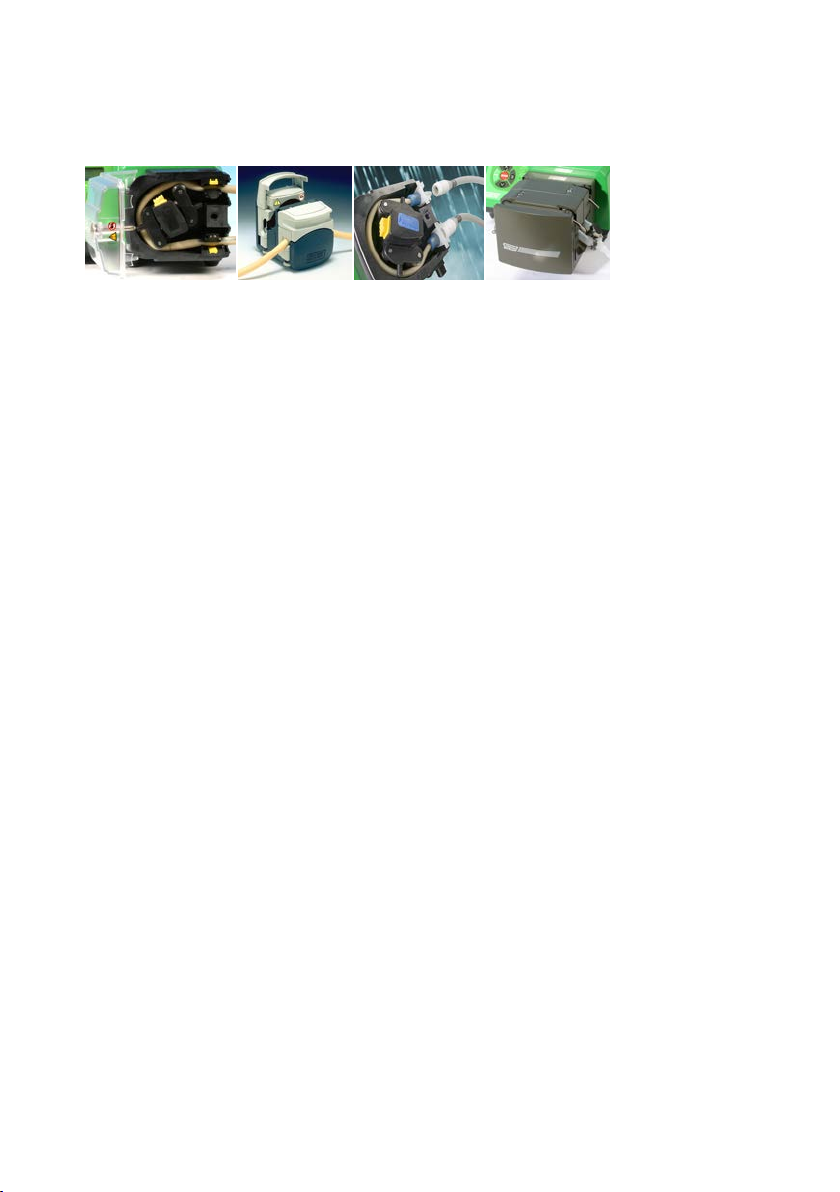

530 pump range
520R, 501RL, 313, 314, 505L, 505BA, 505CA, 314MC, 318MC:

9 Good pump installation practice
9.1 General recommendations
It is recommended that the pump is sited on a flat, horizontal, rigid surface, free from excessive vibration, to
ensure the correct lubrication of the gearbox and correct pumphead operation. Allow a free flow of air around
the pump to ensure that heat can be dissipated. Ensure that the ambient temperature around the pump does
not exceed the recommended maximum operating temperature.
The STOP key on pumps supplied with a keypad will always stop the pump. However, it is recommended that
a suitable local emergency stop device is fitted into the mains supply to the pump.

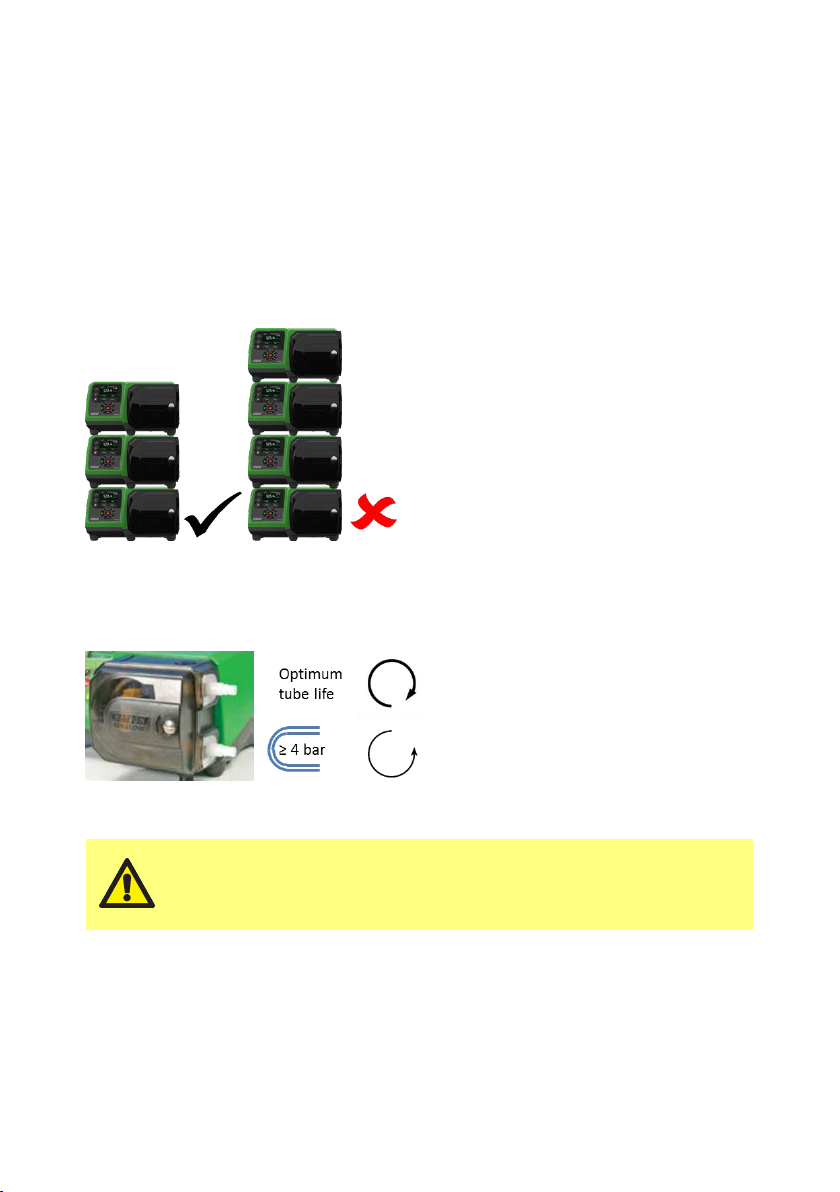

Do not stack the pumps more than the recommended maximum number. When the pumps are stacked,
ensure that the ambient temperature around all the pumps in the stack does not exceed the recommended
maximum operating temperature.
The pump may be set up so that the direction of rotor rotation is clockwise or counter-clockwise, whichever
is convenient.
Please note, however, that for some pumpheads the tube life will be greater if the rotor rotates clockwise;
and that performance against pressure will be maximised if the rotor rotates counter-clockwise. To achieve
pressure in some pumpheads the pump must rotate counter-clockwise.
Peristaltic pumps are s elf- priming and self- sealing against backflow. No valves are required in inlet or
discharge line, except those specified as below.
Users must fit a non-return valve between the pump and the
discharge pipework to avoid the sudden release of pressurised fluid
in the event of a pumphead or tube failure. This shall be fitted
immediately after the discharge of the pump.
Valves in the process flow must be opened before the pump operates. Users are advised to fit a pressure
relief device between the pump and any valve on the discharge side of the pump to protect against damage
caused by accidental operation with the discharge valve closed.
m-530sn-gb-02 15

16 m-530sn-gb-02
9.2 Dos and don'ts
lDo not build a pump into a tight location without adequate airflow around the pump.
lDo keep delivery and suction tubes as short and direct as possible - though ideally not shorter than one
metre - and follow the straightest route. Use bends of large radius: at least four times the tubing
diameter. Ensure that connecting pipework and fittings are suitably rated to handle the predicted pipeline
pressure. Avoid pipe reducers and lengths of smaller bore tubing than the pumphead section, particularly
in pipelines on the suction side. Any valves in the pipeline must not restrict the flow. Any valves in the flow
line must be open when the pump is running.
lDo ensure that on longer tube runs at least one metre of smooth bore, flexible tubing is connected to the
inlet and discharge port of the pumphead to help to minimise impulse losses and pulsation in the pipeline.
This is especially important with viscous fluids and when connecting to rigid pipework.
lDo use suction and delivery pipes equal to or larger than the tubing diameter bore. When pumping
viscous fluids use pipe runs with a bore several times larger than the pump tube.
lDo site the pump at or just below the level of the fluid to be pumped if possible. This will ensure flooded
suction and maximum pumping efficiency.
lDo run at slow speed when pumping viscous fluids. Flooded suction will enhance pumping performance,
particularly for materials of a viscous nature.
lDo recalibrate after changing tubing, fluid or any connecting pipework. It is also recommended that the
pump is recalibrated periodically to maintain accuracy.
lDo not pump any chemical not compatible with the tube or pumphead.
lDo not run the pump with no tube or element fitted to the pumphead.
lDo not strap the control and mains cable together.
lDo ensure if your product has an N module, that the module is fitted with the seals intact and properly
located. Ensure that the holes for the cable glands are properly sealed to maintain the IP/NEMA rating.
lIf your pump is a PROFIBUS variant do ensure that it is installed in accordance with PROFIBUS
installation guidelines.
lDo not allow tight bends in any PROFIBUS signal cable.
Tube selection: The chemical compatibility guide published on the Watson Marlow website is for guidance. If
in any doubt about the compatibility of a tube material and the duty fluid, request a Watson- Marlow tube
sample card for immersion trials.
When using Marprene or Bioprene continuous tubing, do re-tension the tube after the first 30 minutes of
running.

10 Pump operation

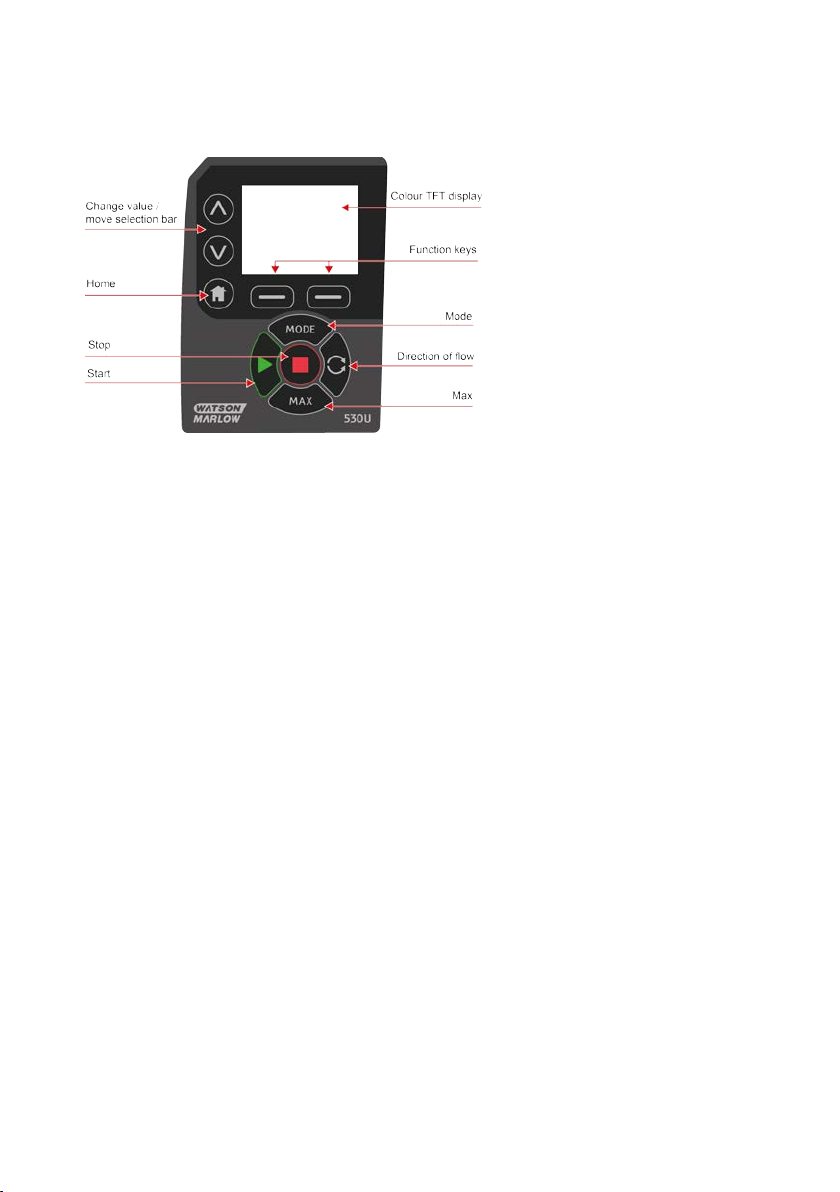

10.1 Keypad Layout and Key IDs
HOME key
When the HOME key is pressed it will return the user to the last known operating mode. If modifying pump
settings when the HOME key is pressed, it will disregard any setting changes and return you to the last
known operating mode.
FUNCTION keys
FUNCTION keys, when pressed, will perform the function displayed on the screen directly above the relevant
function key.
∧and ∨keys
These keys are used to change the programmable values within the pump. These keys are also used to move
the selection bar up and down in the menus.
MODE key
To change modes or mode settings, press the MODE key. The MODE key can be pressed at any time to enter
the mode menu. If modifying pump settings when the MODE key is pressed, it will disregard any setting
changes and return you to the MODE menu.
m-530sn-gb-02 17

18 m-530sn-gb-02
10.2 Starting and stopping
10.3 Using up and down keys
10.4 Maximum speed
10.5 Change rotation direction

11 Connecting to a power supply
A well regulated electrical mains supply is required along with cable connections conforming to the best
practice of noise immunity. It is not recommended to site these drives alongside 'dirty' electrical mains
devices, such as 3- phase contactors and inductive heaters without special attention being paid to
unacceptable mains-borne noise.
Set the voltage selector to 115V for 100-120V 50/60Hz supplies or
230V for 200-240V 50/60Hz supplies. Always check the voltage
selector switch before connecting to the mains supply or the pump
will be damaged.
Make suitable connection to an earthed single-phase mains electricity supply.
If the pump type is one with an 'N' module, the voltage selector is not visible
while the module is in place. It is mounted in the switch plate at the rear of the
pump, protected from water by the 'N' module. The module must be removed to
allow access to the switch plate. Do not switch the pump on unless you have
checked that it is set to suit your power supply by removing the module and
inspecting the switch and then refitting the module.
1. 2. 3.
4. 5. 6.
7. 8. 9.
10.
We recommend using a commercially available supply voltage surge
suppression where there is excessive electrical noise.
m-530sn-gb-02 19

20 m-530sn-gb-02
Ensure that all power supply cables are adequately rated for the
equipment.
The pump must be positioned so that the disconnection device is
easily accessible when the equipment is in use.
11.1 Conductor colour coding
Conductor type European colour North American colour
Line Brown Black
Neutral Blue White
Ground Green/Yellow Green
