Watson Marlow Pumps 530 Pn Installation guide

530 Pn/PnN Installation, operating, and maintenance manual
m-530pn-en-09 02-02-22 1
Contents
1 Certification 3
1.1 Declaration of conformity 4
1.2 Declaration of incorporation 5
2 When you unpack your pump 6
2.1 Unpacking your pump 6
2.2 Packaging disposal 6
2.3 Inspection 6
2.4 Components supplied 6
2.5 Storage 6
3 Information for returning pumps 7
4 Peristaltic pumps - an overview 7
5 Warranty 8
6 Safety notes 9
7 Pump specifications 12
7.1 Weights 13

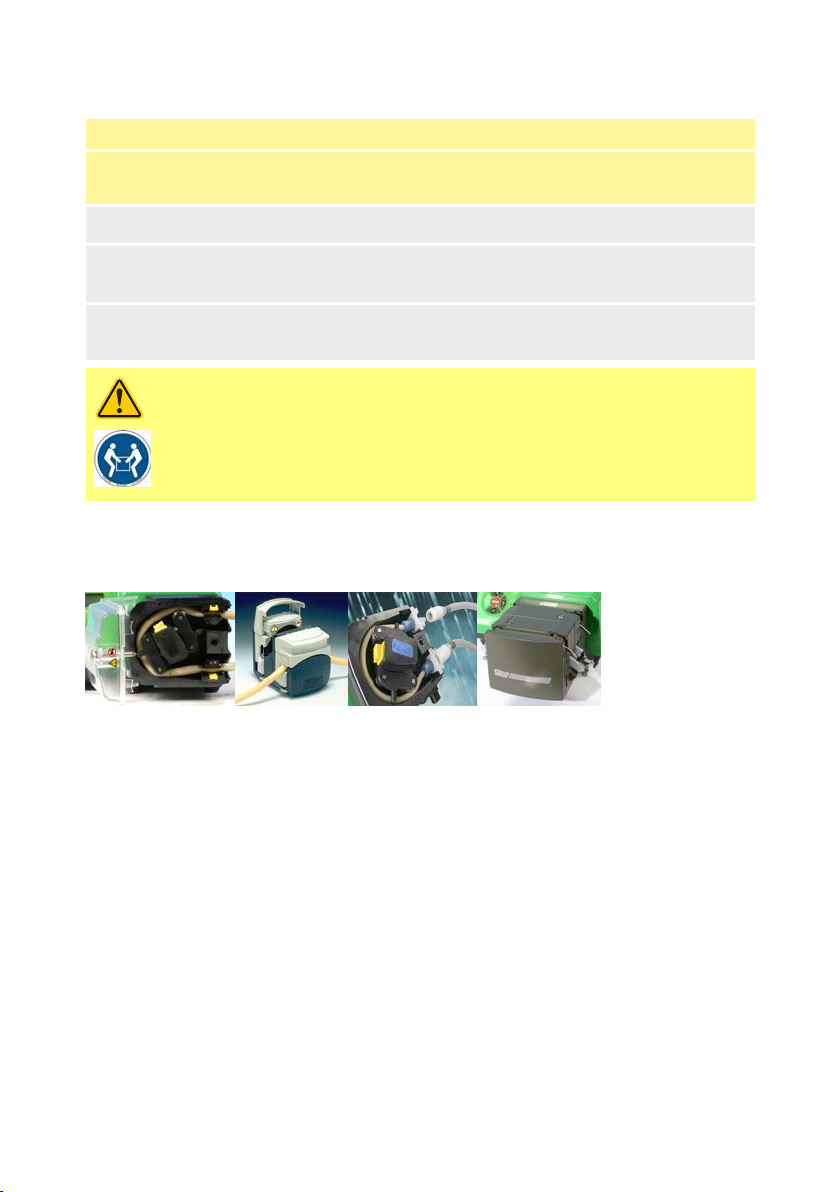

7.2 Pumphead options 13
8 Good pump installation practice 14
8.1 General recommendations 14
8.2 Dos and don'ts 15
9 Pump operation 16

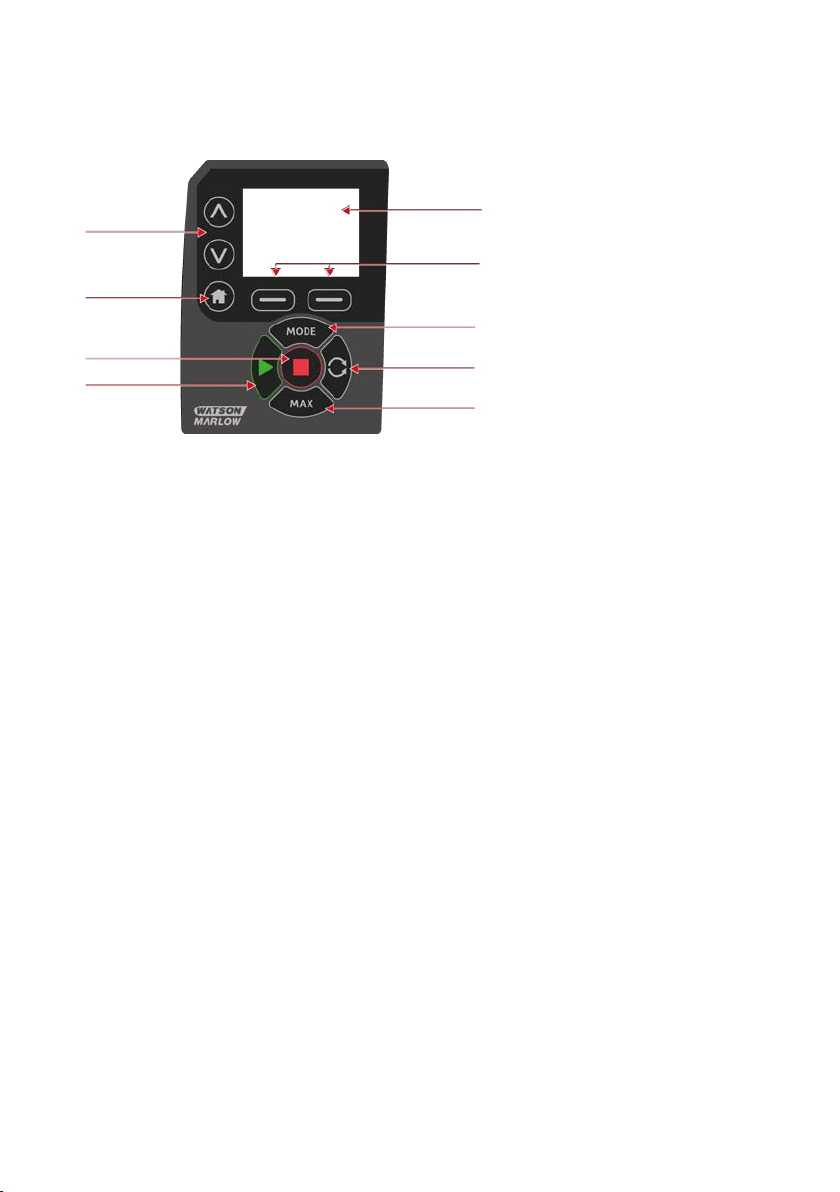

9.1 Keypad layout and key IDs 16

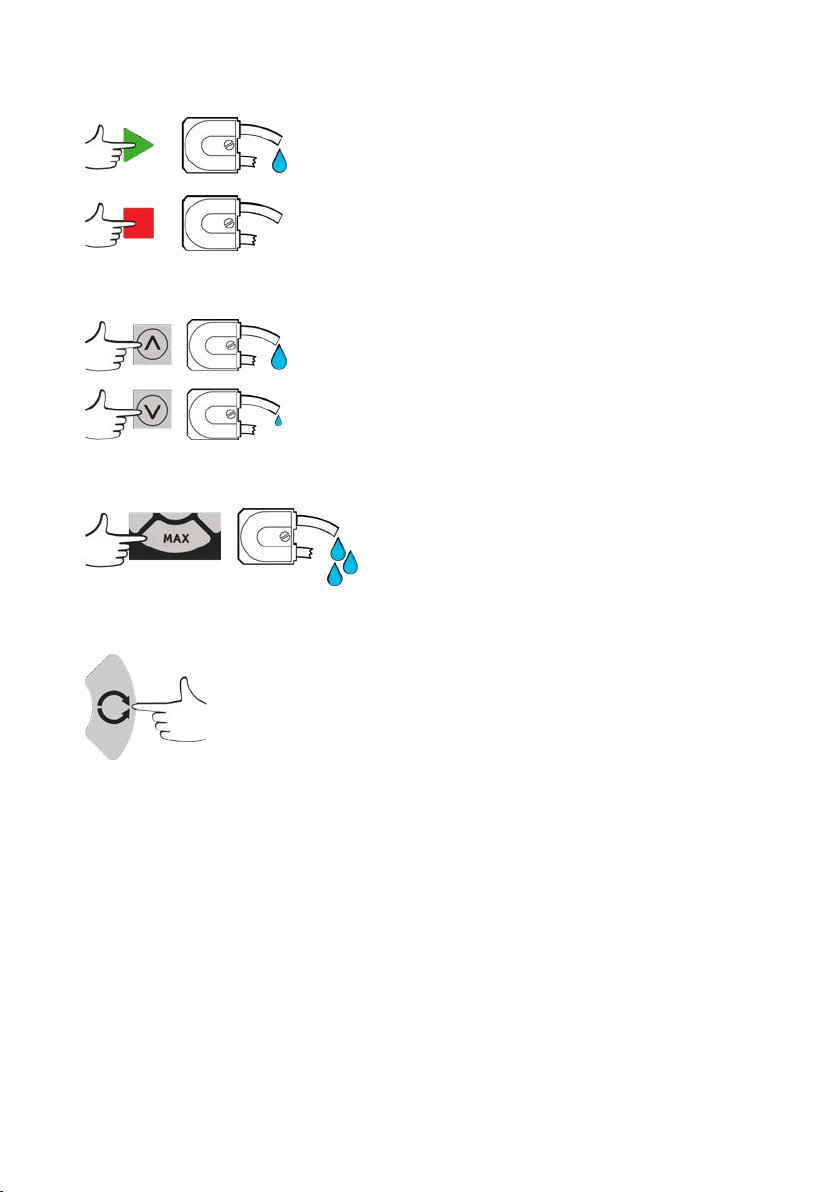

9.2 Starting and stopping 17
9.3 Using up and down keys 17
9.4 Maximum speed 17
9.5 Change rotation direction 17
10 Connecting to a power supply 18
10.1 Conductor colour coding 19

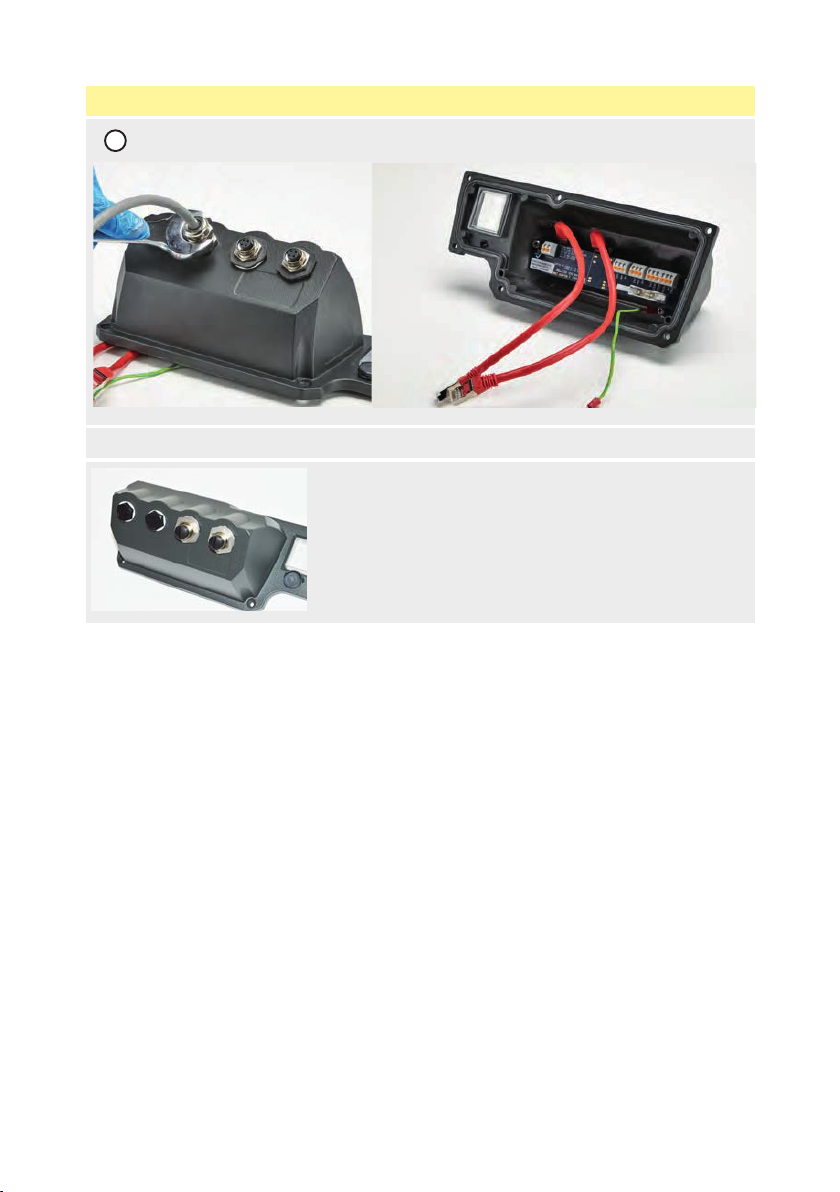

10.2 Wiring the NEMA module - PROFINET® pumps 19
11 Start-up check list 21
12 PROFINET® control wiring 21
12.1 Features on the rear of the pump 22
12.2 RJ45 connections 23
12.3 Control wiring 23

12.4 N Module and F Module 27
12.5 Input/output connectors 30
12.6 PROFINET® pump external interface parameters 32
12.7 Network topology 33
13 Switching the pump on for the first time 36
13.1 Selecting the display language 36
13.2 First-time start-up defaults 38
14 Switching the pump on in subsequent power cycles 40
15 Main menu 41
15.1 Security settings 42
15.2 General settings 52
15.3 Change mode 65
15.4 Control settings 66
15.5 Configure inputs 67
15.6 Help 72
16 Mode menu 73
17 Manual 74
17.1 Start 74
17.2 Stop 75
17.3 Increasing and decreasing flow rate 75
18 Flow calibration 77
18.1 Setting the flow calibration 77
19 PROFINET® mode 80
19.1 Behaviour on start up 80
19.2 Configure PROFINET® settings 80
19.3 PROFINET®mode 85
19.4 Pump parameters 85
19.5 GSDML compatibility guide 93
20 Dispense mode 94
20.1 Create a new recipe or edit a recipe 94
20.2 Create a new batch or edit a batch 98
20.3 Set the active batch 102
20.4 Start dispensing 104
20.5 Dispense settings 106
20.6 Dispense time delays diagram 110
21 Dispense with PROFINET® control 110
22 Sensors 110
22.1 Sensor wiring 111
22.2 Setting up the sensors 112
22.3 Start up delay 117
2 m-530pn-en-09 02-02-22

22.4 Generic sensors 118
22.5 Flow sensor reading 132
23 Troubleshooting 133
23.1 Error codes 133
23.2 Technical support 134
24 Drive maintenance 135
25 Drive spares 136
26 Pumphead replacement 137
26.1 520R pumphead replacement 137
27 Tube replacement 138
27.1 Continuous tubing 138
27.2 Tube elements 139
28 Ordering information 141
28.1 Pump part numbers 141
28.2 Tubing and element part numbers 142
28.3 Pumphead spares 146
29 Performance data 148
29.1 Performance curves 148
30 Trademarks 153
31 Disclaimers 154
32 Publication history 155
33 List of tables and figures 156
33.1 Tables 156
33.2 Figures 157
Original instructions
The original instructions for this manual have been written in English. Other language versions of this
manual are a translation of the original instructions
1 Certification
Certification documents follow on the next pages.
m-530pn-en-09 02-02-22 3

1.1 Declaration of conformity
Watson-Marlow Limited
Falmouth
Cornwall
TR11 4RU
England
1. 530 Cased pumps (Models: S, SN, U, UN, Du, DuN, Bp, BpN, En, EnN, Pn, PnN)
630 Cased pumps (Models: S, SN, U, UN, Du, DuN, Bp, BpN, En, EnN, Pn, PnN)
730 Cased pumps (Models: SN, UN, DuN, BpN, EnN, PnN)
2. Manufacturer:
Watson Marlow Ltd
Bickland Water Road
Falmouth
TR11 4RU
UK
3. This declaration of conformity is issued under the sole responsibility of the manufacturer
4. All models and versions of the 530, 630 and 730 series of cased peristaltic pump with all
approved pump heads, tubing and accessories.
5. The object of the declaration described above is in conformity with the relevant Union
harmonisation legislation:
Machinery Directive 2006/42/EC
EMC Directive 2014/30/EC
ROHS Directive 2015/863
6. Harmonised standards used:
BS EN61010-1:2010 third edition Safety requirements for electrical equipment for
measurement, control, and laboratory use Part 1: General requirements
EN61326-1:2013 Electrical equipment for measurement, control and laboratory use – EMC
requirements Part 1: General requirements
BS EN 60529:1992+A2:2013 Degrees of protection provided by enclosures (IP code)
7. Intertek Testing and Certification Ltd, No: 3272281, performed compliance testing to UL
61010-1:2012 and CSA C22.2#61010-1-12:2012 and issued certification of compliance to
these standards.
Signed for and behalf of:
Watson Marlow Ltd
Falmouth, December 2020
Simon Nicholson, Managing Director, Watson-Marlow Limited
EC Declaration of Conformity
4 m-530pn-en-09 02-02-22

1.2 Declaration of incorporation
Watson-Marlow Ltd
Falmouth
Cornwall
TR11 4RU
England
In accordance with the Machinery Directive 2006/42/EC that if this unit is to be installed into a machine
or is to be assembled with other machines for installations, it shall not be put into service until the
relevant machinery hasbeen declared in conformity.
We herebydeclare that:
Peristaltic Pump
Series: 530,630 and 730 cased pumps
the following harmonised standards have been applied and fulfilled for health and safety
requirements:
Safety of Machinery – EN ISO 12100
Safety of Machinery – Electrical Equipment of Machines BS EN 60204-1
Quality Management System – ISO 9001
and the technical documentation is compiled in accordance with Annex VII(B) of the Directive.
We undertake to transmit, in response to a reasoned request by the appropriate national authorities,
relevant information on the partly completed machinery identified above. The method of transmission
shall be by mail or email.
The pump head is incomplete and must not be put into service until the machinery into which it is to be
incorporated has been declared in conformity with the provisions of the Directive.
Person authorised to compile the technical documents:
Nancy Ashburn, Head of Design & Engineering, Watson-Marlow Ltd
Place and date of declaration: Watson-Marlow Ltd, 20.04.2020
Responsible person:
Simon Nicholson, Managing Director, Watson-Marlow Ltd
Declaration of Incorporation
m-530pn-en-09 02-02-22 5

2 When you unpack your pump
2.1 Unpacking your pump
Unpack all parts carefully, retaining the packaging until you are sure all components are present and
in good order. Check against the components supplied list, below.
2.2 Packaging disposal
Dispose of packaging materials safely, and in accordance with regulations in your area. The outer
carton is made of corrugated cardboard and can be recycled.
2.3 Inspection
Check that all components are present. Inspect components for damage in transit. If anything is
missing or damaged, contact your distributor immediately.
2.4 Components supplied
530 Components
l530 pump drive unit, fitted with pumphead if specified as a pump
lThe designated power cable (attached to the pump drive unit)
lA 530N module providing pump ingress protection to IP66, NEMA 4X, if a PnN.
lNote: the module is attached for transit, but must be removed to allow wiring up, voltage
selection and fuse inspection and then re-affixed before the pump is operated.
lProduct safety information booklet incorporating quick start manual
2.5 Storage
This product has an extended shelf life. However, care should be taken after storage to ensure that all
parts function correctly. Please observe the storage recommendations and use-by dates which apply
to tubing you may wish to bring into service after storage.
6 m-530pn-en-09 02-02-22

3 Information for returning pumps
Before returning products, they must be thoroughly cleaned/decontaminated. The declaration
confirming this should be completed and returned to us in advance of the item being shipped.
You are required to complete and return a decontamination declaration stating all fluids that have
been in contact with the equipment being returned to us.
On receipt of the declaration, we will issue a Returns Authorisation Number. We reserve the right to
quarantine or refuse any equipment that is not displaying a Returns Authorisation Number.
Please complete a separate decontamination declaration for each product and use the correct form
that denotes the location you wish to return the equipment to. A copy of the appropriate
decontamination declaration can be downloaded from the Watson- Marlow website at
www.wmftg.com/decon.
If you have any queries then please contact your local Watson- Marlow representative for further
assistance at www.wmftg.com/contact.
4 Peristaltic pumps - an overview
Peristaltic pumps are the simplest possible pump, with no valves, seals or glands to clog or corrode.
The fluid contacts only the bore of a tube, eliminating the risk of the pump contaminating the fluid, or
the fluid contaminating the pump. Peristaltic pumps can operate dry without risk.
How they work
A compressible tube is squeezed between a roller and a track on an arc of a circle, creating a seal at
the point of contact. As the roller advances along the tube, the seal also advances. After the roller has
passed, the tube returns to its original shape, creating a partial vacuum which is filled by fluid drawn
from the inlet port.
Before the roller reaches the end of the track, a second roller compresses the tube at the start of the
track, isolating a packet of fluid between the compression points. As the first roller leaves the track,
the second continues to advance, expelling the packet of fluid through the pump’s discharge port. At
the same time, a new partial vacuum is created behind the second roller into which more fluid is
drawn from the inlet port.
Backflow and siphoning do not occur, and the pump effectively seals the tube when it is inactive. No
valves are needed.
The principle may be demonstrated by squeezing a soft tube between thumb and finger and sliding it
along: fluid is expelled from one end of the tube while more is drawn in at the other.
Animal digestive tracts function in a similar way.
Suitable applications
Peristaltic pumping is ideal for most fluids, including viscous, shear-sensitive, corrosive and abrasive
fluids, and those containing suspended solids. They are especially useful for pumping operations
where hygiene is important.
Peristaltic pumps operate on the positive displacement principle. They are particularly suitable for
metering, dosing and dispensing applications. Pumps are easy to install, simple to operate and
inexpensive to maintain.
m-530pn-en-09 02-02-22 7

5 Warranty
Watson- Marlow Limited ("Watson- Marlow") warrants this product to be free from defects in materials and
workmanship for five years from the date of shipment, under normal use and service.
Watson-Marlow's sole responsibility and the customer's exclusive remedy for any claim arising out of the purchase of
any product from Watson-Marlow is, at Watson-Marlow's option: repair, replacement or credit, where applicable.
Unless otherwise agreed in writing, the foregoing warranty is limited to the country in which the product is sold.
No employee, agent or representative of Watson-Marlow has the authority to bind Watson-Marlow to any warranty
other than the foregoing unless in writing and signed by a director of Watson-Marlow. Watson-Marlow makes no
warranty of the fitness of its products for a particular purpose.
In no event:
i. shall the cost of the customer's exclusive remedy exceed the purchase price of the product;
ii. shall Watson-Marlow be liable for any special, indirect, incidental, consequential, or exemplary damages,
however arising, even if Watson-Marlow has been advised of the possibility of such damages.
Watson-Marlow shall not be liable for any loss, damage, or expense directly or indirectly related to or arising out of the
use of its products, including damage or injury caused to other products, machinery, buildings, or property. Watson-
Marlow shall not be liable for consequential damages, including without limitation, lost profits, loss of time,
inconvenience, loss of product pumped, and loss of production.
This warranty does not obligate Watson-Marlow to bear any costs of removal, installation, transportation, or other
charges which may arise in connection with a warranty claim.
Watson-Marlow shall not be responsible for shipping damage of returned items.
Conditions
oProducts must be returned by pre-arrangement to Watson-Marlow, or a Watson-Marlow approved service
centre.
oAll repairs or modifications must have been made by Watson- Marlow Limited, or a Watson- Marlow
approved service centre or with the express permission in writing of Watson-Marlow, signed by a manager
or director of Watson-Marlow.
oAny remote control or system connections must be made in accordance to Watson- Marlow
recommendations.
oAll PROFINET® systems must be installed or certified by a suitably trained installation engineer.
Exceptions
oConsumable items including tubing and pumping elements are excluded.
oPumphead rollers are excluded.
oRepairs or service necessitated by normal wear and tear or by lack of reasonable and proper maintenance
are excluded.
oProducts which, in the judgement of Watson-Marlow, have been abused, misused, or subject to malicious or
accidental damage or neglect are excluded.
oFailure caused by electrical surge is excluded.
oFailure caused by incorrect or sub-standard system wiring is excluded.
oDamage by chemical attack is excluded.
oAncillaries such as leak detectors are excluded.
oFailure caused by UV light or direct sunlight.
oAll ReNu pumpheads are excluded
oAny attempt to disassemble a Watson-Marlow product will invalidate the product warranty.
Watson-Marlow reserves the right to amend these terms and conditions at any time.
8 m-530pn-en-09 02-02-22

6 Safety notes
This safety information should be used in conjunction with the rest of this operating manual.
In the interests of safety, this pump and pumphead should only be used by competent, suitably
trained personnel after they have read and understood the manual and considered any hazard
involved. If the pump is used in a manner not specified by Watson-Marlow Limited, the protection
provided by the pump may be impaired. Any person who is involved in the installation or
maintenance of this equipment should be fully competent to carry out the work. This person should
also be familiar with all relevant health and safety protocols, regulations and guidance.
This symbol, used on the pump and in the manual, means: An appropriate
safety instruction should be followed or caution to a potential hazard exists.
This symbol, used on the pump and in the manual, means: Do not allow fingers
to contact moving parts.
This symbol, used on the pump and in the manual, means: Caution, hot
surface.
This symbol, used on the pump and in the manual, means: Caution, risk of
electric shock.
This symbol, used on the pump and in the manual, means: Personal Protective
Equipment (PPE) must be worn.
This symbol, used on the pump and in the manual, means: Recycle this product
under the terms of the EU Waste Electrical and Electronic Equipment (WEEE)
Directive.
Within the 630 and 730 pumps there are thermal fuses which self-reset; if they
trip, error code "Err17 Under Voltage" is displayed.
m-530pn-en-09 02-02-22 9

Fundamental work with regard to lifting, transportation, installation, starting-
up, maintenance and repair should be performed by qualified personnel only.
The unit must be isolated from mains power while work is being carried out.
The motor must be secured against accidental start-up.
Some pumps weigh more than 18kg (the exact weight depends on the model
and pumphead - see on the pump). Lifting should be performed according to
standard Health and Safety guidelines. Finger recesses are built into the sides
of the lower shell for convenience in lifting; in addition, the pump can
conveniently be lifted by grasping the pumphead and (where fitted) the N
Module at the rear of the pump.
There is a user-replaceable fuse located at the rear of the pump. Some country
specific mains plugs contain an additional replaceable fuse. Fuses must be
replaced with parts with the same rating.
There are no user-serviceable fuses or parts inside this pump.
Note - the mains power supply cable is supplied hardwired into the pump and
is not customer replaceable.
Observe voltage selector switch setting for your region
IP66 pumps are supplied with a mains plug. The gland at the NEMA Module
end of the cable is IP66 rated. The mains plug at the opposite end of the cable
is NOT IP66 rated. It is the user's responsibility to ensure that the connection
to the mains supply is IP66 rated.
This pump must be used only for its intended purpose.
The pump must be accessible at all times to facilitate operation and maintenance. Access points must
not be obstructed or blocked. Do not fit any devices to the drive unit other than those tested and
approved by Watson-Marlow. Doing so could lead to injury to persons or damage to property for
which no liability can be accepted.
The pump's main plug is the disconnecting device (for isolating the motor drive from the mains
supply in an emergency). Do not position the pump so that it is difficult to disconnect the mains plug.
If hazardous fluids are to be pumped, safety procedures specific to the
particular fluid and application must be put in place to protect against injury
to persons.
10 m-530pn-en-09 02-02-22

This product does not comply with the ATEX directive and must not be used in
explosive atmospheres.
Ensure the chemicals to be pumped are compatible with the pumphead,
lubricant (where applicable), tubing, pipework and fittings to be used with the
pump. Please refer to the chemical compatibility guide which can be found at:
www.wmftg.com/chemical. If you need to use the pump with any other
chemical please contact Watson-Marlow to confirm compatibility.
If the Auto Restart feature is enabled it may cause the pump to start as soon
as power is turned on.
Auto Restart only affects operation of Manual mode and PROFINET® mode.
If Auto Restart is enabled the "!" Symbol is shown on the screen to warn users
that the pump may operate without any manual intervention (pump resumes
with previous settings).
Do not use Auto Restart for more than:
•1 mains power start per 3 minutes
We recommend remote control where a high number of starts is required.
If the pump is configured to Dispense or PROFINET® mode it will respond to
remote commands at any time including immediately after power on. The
pump may operate without any manual intervention (e.g. a remote setpoint
could start the pump with no key press required).
There are moving parts inside the pumphead. Before opening the tool-
unlockable guard or tool-unlockable track, ensure that the following safety
directions are followed:
1. Ensure the pump is isolated from the mains power.
2. Ensure that there is no pressure in the pipeline.
3. If a tube failure has occurred, ensure that any fluid in the pumphead
has been allowed to drain to a suitable vessel, container or drain.
4. Ensure that appropriate Personal Protective Equipment (PPE) is worn.
Primary operator protection from rotating parts of the pump is provided by the
pumphead safeguard. Note that safeguards differ, depending on the type of
pumphead. See the pumphead section of the manual.
m-530pn-en-09 02-02-22 11

7 Pump specifications
Table 1 - Specification ratings
Operating temperature 5 °C to 40 °C (41 °F to 104 °F)
Storage temperature 530: -40 °C to 70 °C (-40 °F to 158 °F)
Humidity (non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104
°F)
Maximum altitude 2000 m (6560 ft)
Power Rating 530: 135 VA
Supply voltage 100-120V/200-240V 50/60Hz 1pH (Subject to regional cord sets
and supply)
Maximum voltage fluctuation
+/-10 % of nominal voltage. A well regulated electrical mains
supply is required along with cable connections conforming to
the best practice of noise immunity.
Full load current 530: <0.6 A @ 230 V; <1.25 A @ 115 V
Fuse rating T2.5AH250V (5x20mm)
Installation category
(overvoltage category) II
Pollution degree 2
IP
530: IP31 to BS EN 60529, if supplied with N module then IP66 to
BS EN 60529. Meets the requirements of NEMA 4X to NEMA 250 *
(indoor use - protect from prolonged UV exposure)
dB rating
530: < 70 dB (A) @ 1 m
Control ratio 530: 0.1-220 rpm (2200:1)
Maximum speed 530: 220 rpm
12 m-530pn-en-09 02-02-22

7.1 Weights
Table 2 - Weights
530 Drive only + 520R, 520R2 + 520REL,520REM, 520REH,
520RET + 505L
kg lboz kg lboz kg lb oz kg lb oz
IP31 9.7 21 6 10.6 23 5 10.5 23 3 12.2 26
14
IP66 10.6 23 5 11.5 25 5 11.4 25 2 13.1 28
13
Some pumps weigh more than 18kg (the exact weight depends on the model
and pumphead - see on the pump). Lifting should be performed according to
standard Health and Safety guidelines. Finger recesses are built into the sides
of the lower shell for convenience in lifting; in addition, the pump can
conveniently be lifted by grasping the pumphead and (where fitted) the
module at the rear of the pump.
7.2 Pumphead options
Figure 1 - 530 pump range
520R, 520R2, 520REH, 520REL, 520REM, 520RET, 505L, 505CA, 313, 314, 314MC and 318MC.
m-530pn-en-09 02-02-22 13

8 Good pump installation practice
8.1 General recommendations
It is recommended that the pump is sited on a flat, horizontal, rigid surface, free from excessive
vibration, to ensure the correct lubrication of the gearbox and correct pumphead operation. Allow a
free flow of air around the pump to ensure that heat can be dissipated. Ensure that the ambient
temperature around the pump does not exceed the recommended maximum operating temperature.
The STOP key on pumps supplied with a keypad will always stop the pump. However, it is
recommended that a suitable local emergency stop device is fitted into the mains supply to the pump.
Do not stack the pumps more than the recommended maximum number. When the pumps are
stacked, ensure that the ambient temperature around all the pumps in the stack does not exceed the
recommended maximum operating temperature.
Figure 2 - Pump stacking
The pump may be set up so that the direction of rotor rotation is clockwise or counter-clockwise,
whichever is required.
Please note, however, that for some pumpheads the tube life will be greater if the rotor rotates
clockwise; and that performance against pressure will be maximised if the rotor rotates counter-
clockwise. To achieve pressure in some pumpheads the pump must rotate counter-clockwise.
Optimum
tube life
≥ 4 bar
Figure 3 - Rotor direction
Peristaltic pumps are self-priming and self-sealing against backflow. No valves are required in inlet or
discharge line, except those specified as below.
Users must fit a non-return valve between the pump and the discharge
pipework to avoid the sudden release of pressurised fluid in the event of a
pumphead or tube failure. This shall be fitted immediately after the discharge
of the pump.
Valves in the process flow must be opened before the pump operates. Users are advised to fit a
pressure relief device between the pump and any valve on the discharge side of the pump to protect
against damage caused by accidental operation with the discharge valve closed.
14 m-530pn-en-09 02-02-22

8.2 Dos and don'ts
lDo not build a pump into a tight location without adequate airflow around the pump.
lDo keep delivery and suction tubes as short and direct as possible - though ideally not
shorter than one metre - and follow the straightest route. Use bends of large radius: at least
four times the tubing diameter. Ensure that connecting pipework and fittings are suitably
rated to handle the predicted pipeline pressure. Avoid pipe reducers and lengths of smaller
bore tubing than the pumphead section, particularly in pipelines on the suction side. Any
valves in the pipeline must not restrict the flow. Any valves in the flow line must be open
when the pump is running.
lDo ensure that on longer tube runs at least one metre of smooth bore, flexible tubing is
connected to the inlet and discharge port of the pumphead to help to minimise impulse
losses and pulsation in the pipeline. This is especially important with viscous fluids and when
connecting to rigid pipework.
lDo use suction and delivery pipes equal to or larger than the tubing diameter bore. When
pumping viscous fluids use pipe runs with a bore several times larger than the pump tube.
lDo site the pump at or just below the level of the fluid to be pumped if possible. This will
ensure flooded suction and maximum pumping efficiency.
lDo run at slow speed when pumping viscous fluids. Flooded suction will enhance pumping
performance, particularly for materials of a viscous nature.
lDo recalibrate after changing tubing, fluid or any connecting pipework. It is also
recommended that the pump is recalibrated periodically to maintain accuracy.
lDo not pump any chemical not compatible with the tube or pumphead.
lDo not run the pump with no tube or element fitted to the pumphead.
lDo not strap the control and mains cables together.
lDo ensure if your product has an N module, that the module is fitted with the seals intact
and properly located. Ensure that the holes for the cable glands are properly sealed to
maintain the IP/NEMA rating.
Tube selection: The chemical compatibility guide published on the Watson Marlow website is for
guidance. If in any doubt about the compatibility of a tube material and the duty fluid, request a
Watson-Marlow tube sample card for immersion trials.
When using Marprene or Bioprene continuous tubing, do re- tension the tube after the first 30
minutes of running.
m-530pn-en-09 02-02-22 15

9 Pump operation
9.1 Keypad layout and key IDs
Change value /
move selection bar
Home
Stop
Start
Mode
Function keys
Colour TFT display
Direction of ow
Max
Figure 4 - Keypad layout and key IDs
HOME key
When the HOME key is pressed it will return the user to the last known operating mode. If modifying
pump settings when the HOME key is pressed, it will disregard any setting changes and return you to
the last known operating mode.
FUNCTION keys
FUNCTION keys, when pressed, will perform the function displayed on the screen directly above the
relevant function key.
∧and ∨keys
These keys are used to change the programmable values within the pump. These keys are also used
to move the selection bar up and down in the menus.
MODE key
To change modes or mode settings, press the MODE key. The MODE key can be pressed at any time
to enter the mode menu. If modifying pump settings when the MODE key is pressed, it will disregard
any setting changes and return you to the MODE menu.
16 m-530pn-en-09 02-02-22

9.2 Starting and stopping
Figure 5 - Starting and stopping
9.3 Using up and down keys
Figure 6 - Using up and down keys
9.4 Maximum speed
Figure 7 - Maximum speed
9.5 Change rotation direction
Figure 8 - Change rotation direction
m-530pn-en-09 02-02-22 17

10 Connecting to a power supply
A well regulated electrical mains supply is required along with cable connections conforming to the
best practice of noise immunity. It is not recommended to site these drives alongside electrical
devices that may generate mains-borne noise, for example 3-phase contactors and inductive heaters.
Set the voltage selector to 115V for 100-120V 50/60Hz supplies or 230V for
200-240V 50/60Hz supplies. Always check the voltage selector switch before
connecting to the mains supply or the pump will be damaged.
Make suitable connection to an earthed single-phase mains electricity
supply.
If the pump type is one with an N Module, the voltage selector is not visible while the
module is in place. It is mounted in the switch plate at the rear of the pump, protected
from water by the N Module. The module must be removed to allow access to the switch
plate. Do not switch the pump on unless you have checked that it is set to suit your power
supply by removing the module and inspecting the switch and then refitting the module.
1. 2.
3. 4.
Figure 9 - Voltage selector
We recommend using a commercially available supply voltage surge and/or
noise suppression where there is excessive electrical noise.
Ensure that all power supply cables are adequately rated for the equipment.
Only use with supplied power cable.
The pump must be positioned so that the disconnection device is easily
accessible when the equipment is in use. The pump's power input plug is the
disconnecting device (for isolating the motor drive from the power supply in
an emergency).
18 m-530pn-en-09 02-02-22

IP66 pumps are supplied with a mains plug. The gland at the NEMA Module
end of the cable is IP66 rated. The mains plug at the opposite end of the cable
is NOT IP66 rated. It is your responsibility to ensure that the connection to the
mains supply is IP66 rated.
10.1 Conductor colour coding
Table 3 - Conductor colour coding
Conductor type European colour North American colour
Line Brown Black
Neutral Blue White
Ground Green/Yellow Green
10.2 Wiring the NEMA module - PROFINET® pumps
The NEMA 4X modules fitted to 530, 630 and 730 PnN cased pumps have two pairs of wiring ports.
Two M16 ports are provided, together with glands to seal circular cross-section cables ranging in
diameter from 4mm to 10mm (5/32in to 13/32in.) PROFINET connection is via the two M12
connectors mounted to the rear of the NEMA module.
Figure 10 - Earth screening of control cables onPROFINET® NEMAmodule
1
Control cable earth screening connected to Earth terminal (J6) on adapter PCB when plastic cable
gland is used.
m-530pn-en-09 02-02-22 19

Figure 10 - Earth screening of control cables onPROFINET® NEMAmodule
2
No additional control cable earth screening required when EMCgland is used.
NEMAmodule with conductive mounting kit (for connecting
screen to earth for PROFINET®).
20 m-530pn-en-09 02-02-22
