Watsons Pigeon Hole MS0652 User manual

Pigeon Hole - Shelf Unit
Dimensions
Width - 90.5cm
Depth - 24cm
Height - 151cm
Important – Please read these instructions fully before starting assembly
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts please email us.

1
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Care and maintenance
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
Glue safety - Take care when using glue, please follow the advice below

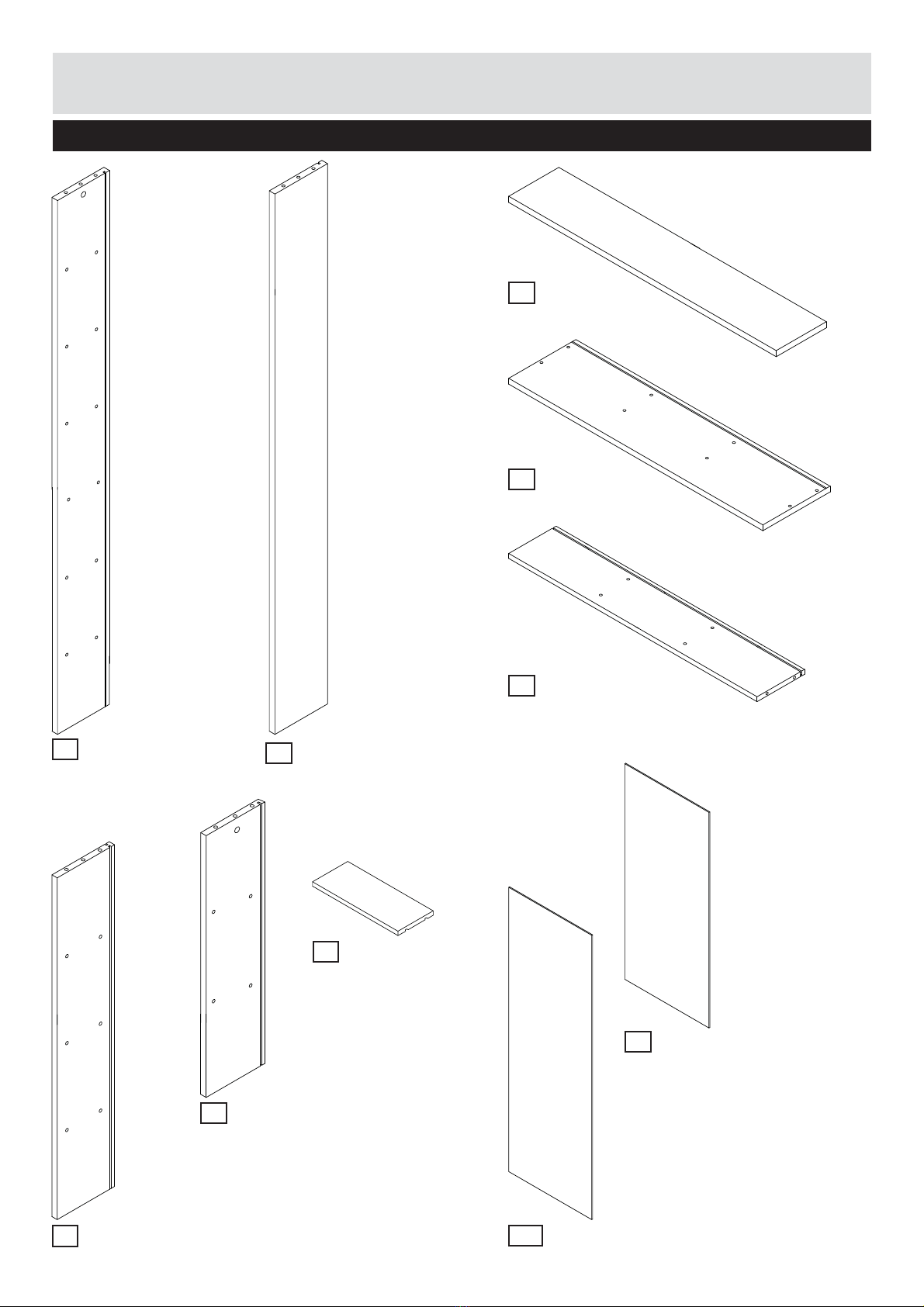

Components - Panels
Please check you have all the panels listed below
2
Left side
(147.5 x 16.7 cm)
B
Top
(90.1 x 16.9 cm)
A
Right side
(147.5 x 16.7 cm)
C
Centre top upright x 2 ( 83.6 x 16.3 cm)
E
Base
(90.1 x 23.9 cm)
D
Centre bottom upright x 2
(62.4 x 16.3 cm)
F
Shelf x 15
(28 x 14.8 cm)
H
Middle shelf
(87 x 16.5 cm)
G
Top back panel x 3 (84.5 x 28.9 cm)
I
Bottom back panel x 3
(63.3 x 28.9 cm)
J
If you have damaged or missing components,
email us.

3
Please check you have all the fittings listed below
Camlock screw x 4
Ruler - Use this ruler to help correctly identify the screws
Tools required
1
2cm Dowel x 60
5
Double ended camlock x 2
2
Screw cap x 4
8
Camlock nut x 8
3
Glue x 2
9
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
3cm Dowel x 8
6
5.7cm Screw x 12
4
5cm Dowel x 4
7
Components - Fittings
Crosshead screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Small
hammer
Ruler/tape
measure
Drill
Eye protection
(when using a
hammer or glue)
7mm Suitable drill bit
(for use with wall plug)
Back fixing x 8
11
1.9cm Screw x 8
12
Wall strap x 2
10
3
If you have damaged or missing components,
email us

4
Assembly Instructions
Step 1
Preparation
a: Insert four 2cm
wooden dowels 5into
shelf H. (using a dab of
glue 9on the ends)
Repeat for all 15 shelves.
b: Insert two 3cm
wooden dowels 6into
centre top upright E.
(using a dab of glue 9on
the ends)
Insert two 5cm wooden
dowels 7into centre top
upright E. (using a dab
of glue 9on the ends)
Align the arrow on the
camlock nut 3with
the edge of centre top
upright E. (towards the
closest edge where the
double ended camlock
2or camlock screw 1
will be inserted)
Repeat for second centre
top upright E.
H
a:
5
9
5
5
5
6
6
7
7
E
3
3
9
9
b:
3
edge

Assembly Instructions

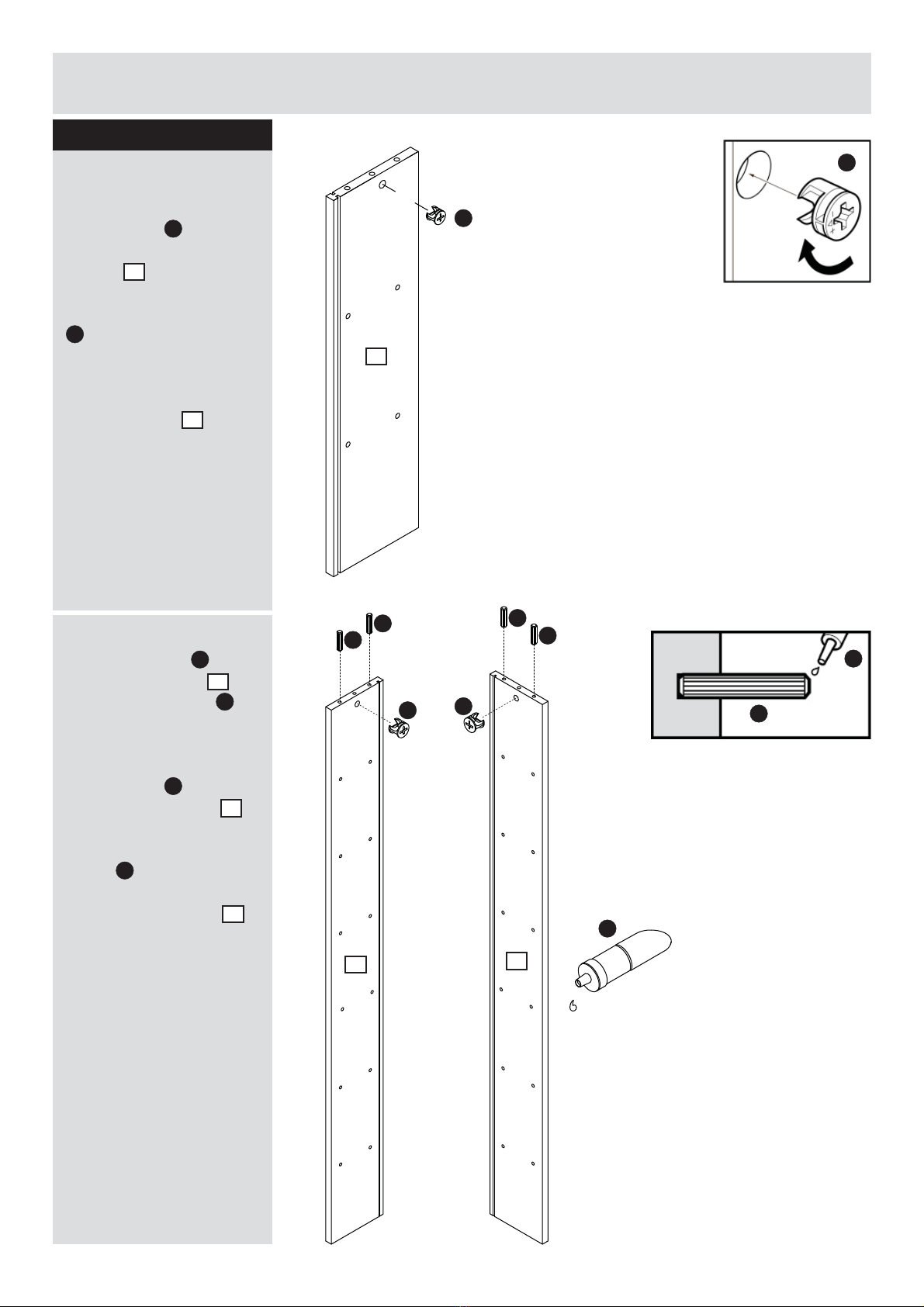

Step 1 cont.
Preparation
c: Align the arrow on the
camlock nut 3with the
edge of centre bottom
upright F(towards the
closest edge where the
double ended camlock
2will be inserted)
Repeat for second centre
bottom upright F.
d: Insert 2 x 3cm
wooden dowels 6into
centre top upright B.
(using a dab of glue 9on
the ends)
Align the arrow on the
camlock nut 3with
the edge of left side B
(towards the closest
edge where the camlock
screw 1will be inserted)
Repeat for right side C.
5
F
3
c:
BC
33
6
66
6
d:
9
9
6
edge
3

6

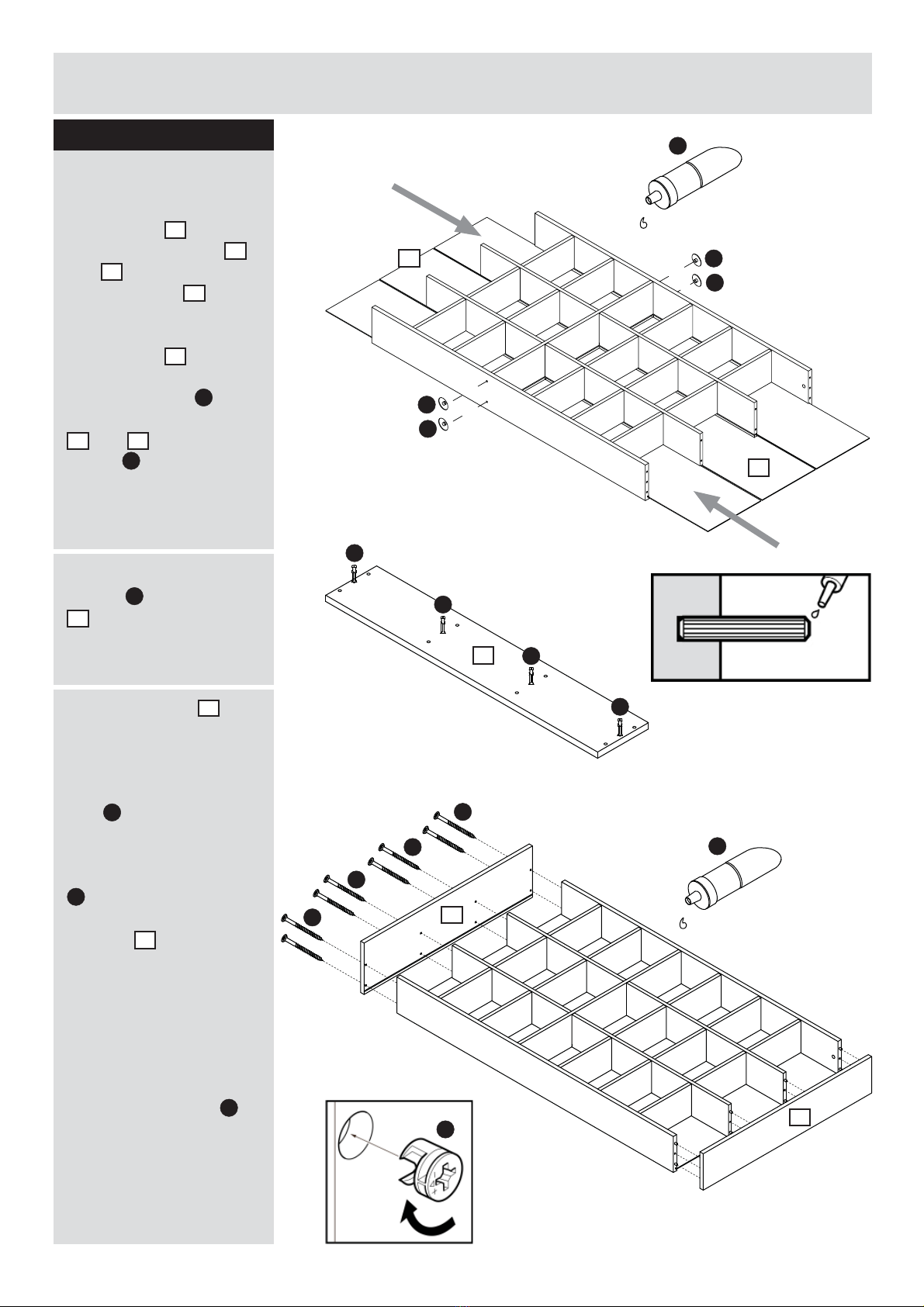

Assembly Instructions
Step 2
Main assembly
e: Insert the shelves H
into the centre bottom
upright Fslotting the
wooden dowels 6into
the holes as shown (using
a dab of glue 9on the
ends)
You have now created
the bottom shelf section.
f: Insert the shelves
Hinto the centre top
upright Eslotting the
wooden dowels 6into
the holes as shown (using
a dab of glue 9on the
ends)
You have now created
the top shelf section.
F
e:
F
H
H
H
H
H
H
9
9
f:
H
H
H
H
H
H
H
H
H
E
E
9

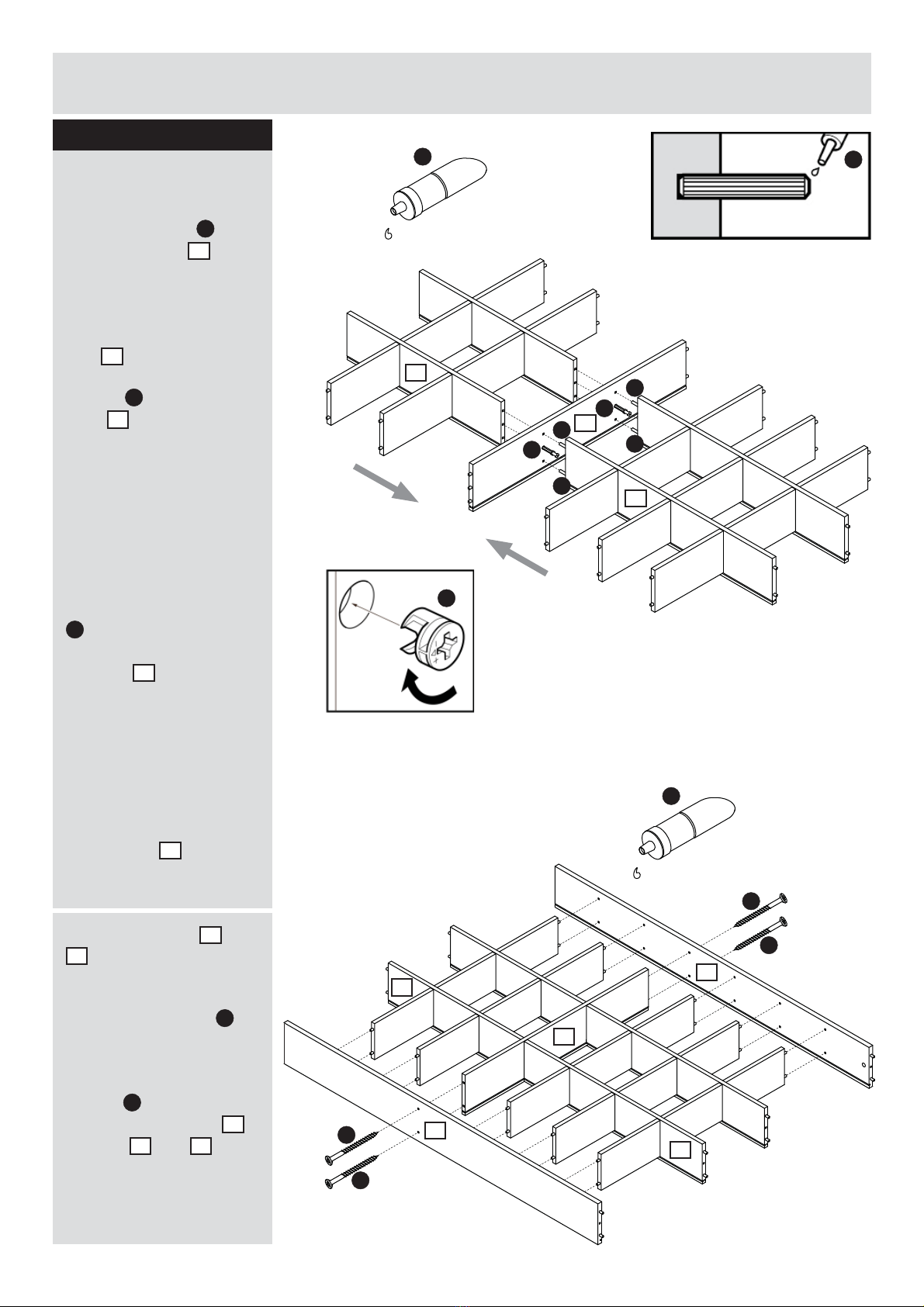

Assembly Instructions
Step 2 cont.
Main assembly
g: Slot the two double
ended camlocks 2into
the centre shelf Gas
shown.
Slot the assembled top
shelf section (containing
part E- using the end
with the 5cm wooden
dowels 7) onto centre
shelf Gas shown.
NOTE: Make sure the
grooves for the back
panels are all nearest
to the floor. You may
need two people for
this step.
Rotate the camlock nuts
3(that were inserted in
earlier into the centre top
uprights E) clockwise
for about 1/4 to 1/2 a
turn or until the bolt
“connects” with the
screw and is secure.
Repeat to attach the
bottom shelf section to
centre shelf G.
h: Slot the sides Band
Conto the assembled
shelf section using the
pre-inserted dowels
(using a dab of glue 9on
the ends)
Fix into place using two
screws 4on each side
into the centre shelf G
through Band C.
7
2
g:
G
7
7
7
7
2
E
F
h:
E
F
C
B
9
9
9
4
4
4
4
G
TOP
BOTTOM
TOP
BOTTOM
3
edge

8
Assembly Instructions
Step 2
Main assembly
i: Slide the three bottom
back panels Jinto the
grooves in the sides B
and Cuntil they slot into
the centre shelf G.
Repeat for the three top
back panels I.
Add screw caps 8over
the screws in the sides
Band C(using a dab
of glue 9if desired)
j: Insert four camlock
screws 1into the top
A.
k: Insert the top Aonto
the assembled frame
slotting the camlock
screws and dowels as
shown (using a dab of
glue 9on the ends of
the dowels)
Rotate the camlock nuts
3(that were inserted in
earlier into the centre top
uprights E) clockwise
for about 1/4 to 1/2 a
turn or until the bolt
“connects” with the
screw and is secure.
Secure the base onto the
bottom of the unit using
eight 5.7cm screws 4as
shown.
9
I
J
TOP
BOTTOM
8
i:
j:
k:
A
8
8
8
1
1
1
1
A
TOP
BOTTOM
9
4
4
4
4D
3
edge

Assembly Instructions
Step 3
Securing back panel
Lift the unit into an
upright position, this
should take two persons
to do safely. Make sure
the item is square - that
all corner are 90 degrees.
Insert twelve back fixings
11 onto each of the six
back panels Iand J
where they join with the
unit edges and centre
shelf - sliding under the
edge panel as shown.
Fix 11 with screws 12
once in position.
Securing to the wall
For added security you
can attach this unit to
your wall using wall strap
and fixings 10.
Measure the distance
between the fixing
holes in the top of the
unit A. Transpose this
measurement to the wall
making sure the marks
are level. Drill holes
suitable for your wall
plugs. Tap wall plugs into
drilled holes. Attach unit
to wall using panel A
and wall fixing straps 10.
Note: make sure you
use wall plugs suitable
for your type of wall.
Assembly is complete.
9
Step 4
10
10
12
11
12
11
10
slot the
plastic lip
on part 11
under the
edge of
the frame
If you need any help or have damaged or missing parts, email us.

10

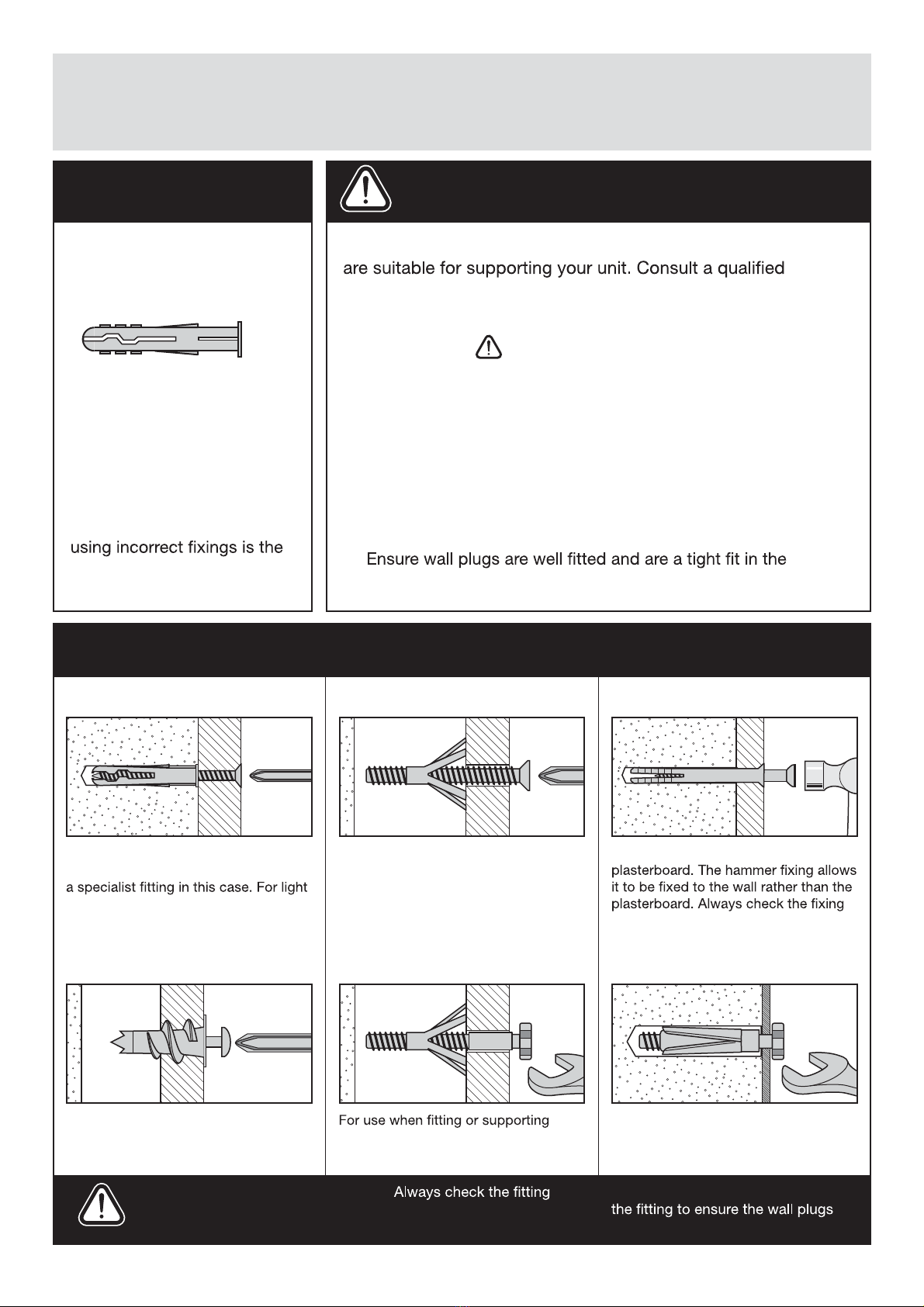

A Guide to - Wall Mounting & Fixings
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety:
and location to ensure your safety
in and around the home.
Fitting: From time to time check
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5:
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
responsibility of the installer.
