Watts AERCO Benchmark Platinum 750 User manual

Heating and Hot Water Solutions
AERCO International, Inc. • 100 Oritani Drive • Blauvelt, NY 10913
USA: T: [phone] • Toll Free: [phone] • AERCO.com
Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST
© 2021 AERCO
Reference Manual
Benchmark®Platinum Boilers
with Edge®[ii] Controller
Natural Gas, Propane Gas and Dual Fuel
Modulating & Condensing Boilers
Models 750 through 6000
Other documents for this product include:
OMM-0136, GF-210 Installation and Startup Manual
OMM-0137, GF-211 Operation-Service Manual
OMM-0139, GF-213 Edge Controller Manual
TAG-0019, GF-2070 Boiler Application Guide
TAG-0022, GF-2050 Vent-Combustion Air Guide
TAG-0047, GF-2030 Benchmark Gas Guide
TAG-0048, GF-2060 Benchmark Power Guide
Applies to serial numbers:
G-21-0075 and above
OMM-0138_D • GF-212 • 2/24/2021
Disclaimer
The information contained in this manual is subject to change without notice
from AERCO International, Inc. AERCO makes no warranty of any kind with
respect to this material, including, but not limited to, implied warranties of
merchantability and fitness for a particular application. AERCO International is
not liable for errors appearing in this manual, not for incidental or
consequential damages occurring in connection with the furnishing,
performance, or use of these materials.

Benchmark Platinum with Edge [II]: Reference Manual
CONTENTS
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 2of 91
Table Of Contents
TABLE OF CONTENTS...........................................................................................2
SECTION 1: SAFETY PRECAUTIONS ...................................................................3
1.1 WARNINGS & CAUTIONS .....................................................................................................................3
1.2 EMERGENCY SHUTDOWN...................................................................................................................4
1.3 PROLONGED SHUTDOWN...................................................................................................................4
SECTION 2: BENCHMARK 750 & 1000 PART LIST...............................................5
SECTION 3: BENCHMARK 1500 & 2000 PART LIST...........................................17
SECTION 4: BENCHMARK 2500 & 3000 PART LIST...........................................31
SECTION 5: BENCHMARK 4000 & 5000N PART LIST ........................................53
SECTION 6: BENCHMARK 5000 & 6000 PART LIST...........................................73
SECTION 7: SENSOR RESISTANCE CHART........................................................89

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 1: SAFETY PRECAUTIONS
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 3of 91
SECTION 1: SAFETY PRECAUTIONS
1.1 WARNINGS & CAUTIONS
Installers and operating personnel MUST, at all times, observe all safety regulations. The
following warnings and cautions are general and must be given the same attention as specific
precautions included in these instructions. In addition to all the requirements included in this
AERCO Instruction Manual, the installation of units MUST conform with local building codes, or,
in the absence of local codes, ANSI Z223.1 (National Fuel Gas Code Publication No. NFPA-54)
for gas-fired boilers and ANSI/NFPASB for LP gas-fired boilers. Where applicable, the equipment
shall be installed in accordance with the current Installation Code for GasBurning Appliances and
Equipment, CSA B149.1, and applicable Provincial regulations for the class; which should be
carefully followed in all cases. Authorities having jurisdiction should be consulted before
installations are made.
IMPORTANT!
This Instruction Manual is an integral part of the product and must be maintained in legible
condition. It must be given to the user by the installer and kept in a safe place for future reference.
WARNING!
•Do not use matches, candles, flames, or other sources of ignition to check for gas leaks.
•Fluids under pressure may cause injury to personnel or damage to equipment when released.
Be sure to shut off all incoming and outgoing water shutoff valves. Carefully decrease all
trapped pressures to zero before performing maintenance.
•Before attempting to perform any maintenance onthe unit, shut off allgas and electricalinputs
to the unit.
•The exhaust vent pipe of the unit operates under a positive pressure and therefore must be
completely sealed to prevent leakage of combustion products into living spaces.
•Electrical voltages up to 120 VAC (BMK750 –2000), 208 or 480 VAC (BMK2500 –
BMK3000), 480 VAC (BMK4000 & 5000N), or 208, 480 or 575 VAC (BMK5000 & 6000) and
24 volts AC may be used in this equipment. Therefore the cover on the unit’s power box
(located behind thefrontpanel door) must be installed at all times, except during maintenance
and servicing.
•A single-pole switch for single phase units and three-pole switch for three phase units must
be installed on the electrical supply line of the unit. The switch must be installed in an easily
accessible position to quickly and safely disconnect electrical service. Do not affix switch to
unit sheet metal enclosures.
CAUTION!
•Many soaps used for gas pipe leak testing are corrosive to metals. The piping must be rinsed
thoroughly with clean water after leak checks have been completed.
•DO NOT use this boiler if any part has been under water. Call a qualified service technician
to inspect and replace any part that has been under water.

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 1: SAFETY PRECAUTIONS
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 4of 91
1.2 EMERGENCY SHUTDOWN
If overheating occurs or the gas supplyfails to shut off, close themanualgas shutoff valve (Figure
1-1) located external to the unit.
NOTE:
The Installer must identify and indicate the location of the emergency shutdown manual gas valve
to operating personnel.
Figure 1-1: Manual Gas Shutoff Valve
In addition, to ensure safety an emergency shutdown procedure that addresses the following
points should be designed and implement at the site:
•For automatically operated unattended boilers located in a boiler room, provide a manually
operated remote shutdown switch or circuit breaker located just inside or outside each boiler
room door. Design the system so activation of the emergency shutdown switch or circuit
breaker will immediately shut off the fuel supply to the unit(s).
•For automatically operated unattended boilers in a location other than a boiler room, provide a
manually operated remote shutdown switch or circuit breaker marked for easy identification at a
location readily accessible in the event of boiler mis-operation.
•Design the system so activation of the emergency shutdown switch or circuit breaker will
immediately shut off the fuel.
•For boilers monitored and/or operated from a continuously occupied control room, provide an
emergency shutdown switch in the control room that is hard-wired to immediately shut off the
fuel upon activation.
1.3 PROLONGED SHUTDOWN
If there is an emergency, turn off the electrical power supply to the AERCO boiler and close the
manual gas valve located upstream from the unit. The installer must identify the emergency shut-
off device.
If the unit is being shut down for an extended period of time, such as a year or more, complete
the instructions in Section 8.12: Shutting Boiler Down For Extended Period in the Benchmark
PLATINUM-Edge: Operation-Service Manual (OMM-0137 , GF-211).
When returning a unit to service after a prolonged shutdown, it is recommended that the
instructions in Section 4: Initial Startup Procedures and Section 5: Safety Device Testing of the
Benchmark PLATINUM-Edge: Operation-Service Manual (GF-211) be performed to verify
that all system-operating parameters are correct.
VALVE
OPEN
VALVE
CLOSED

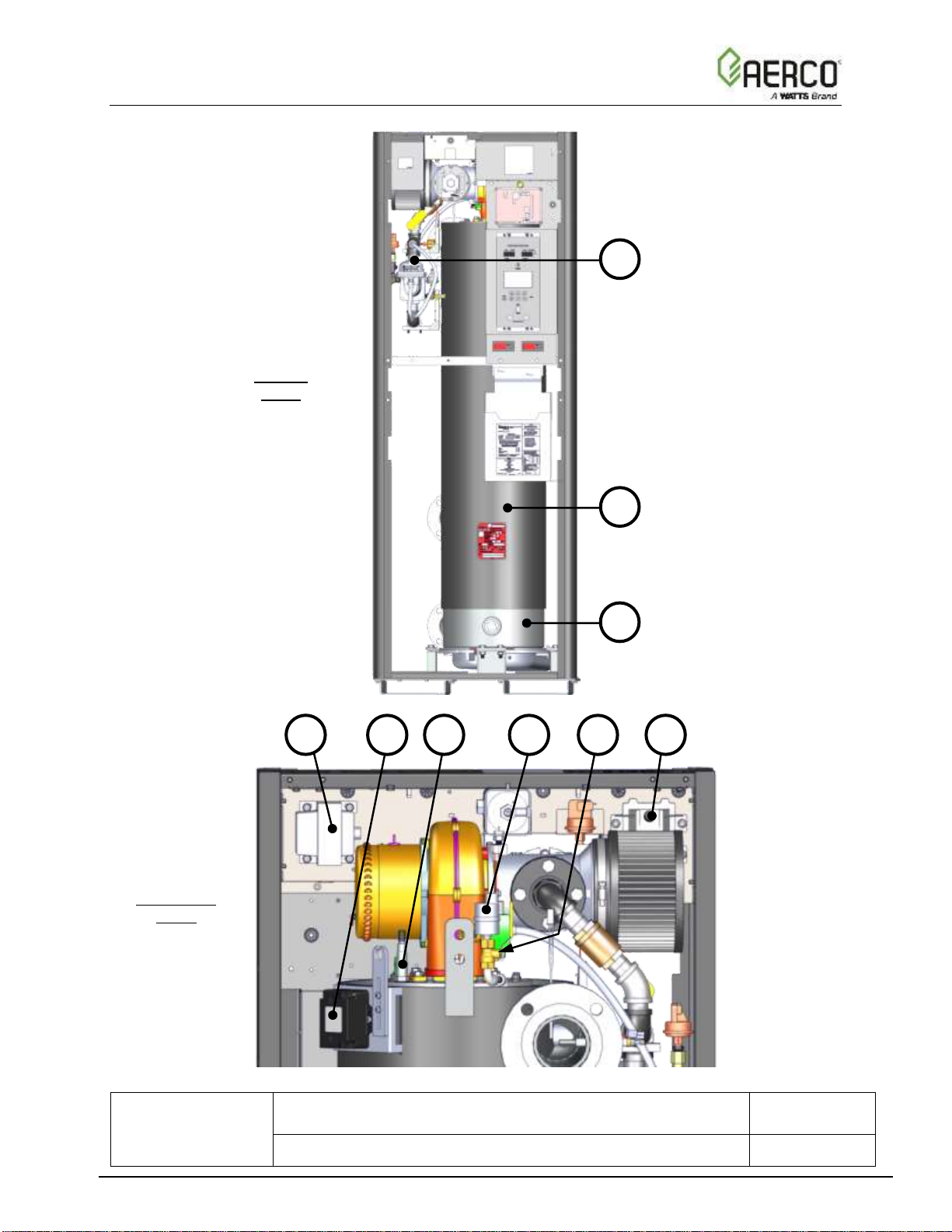

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 5of 91

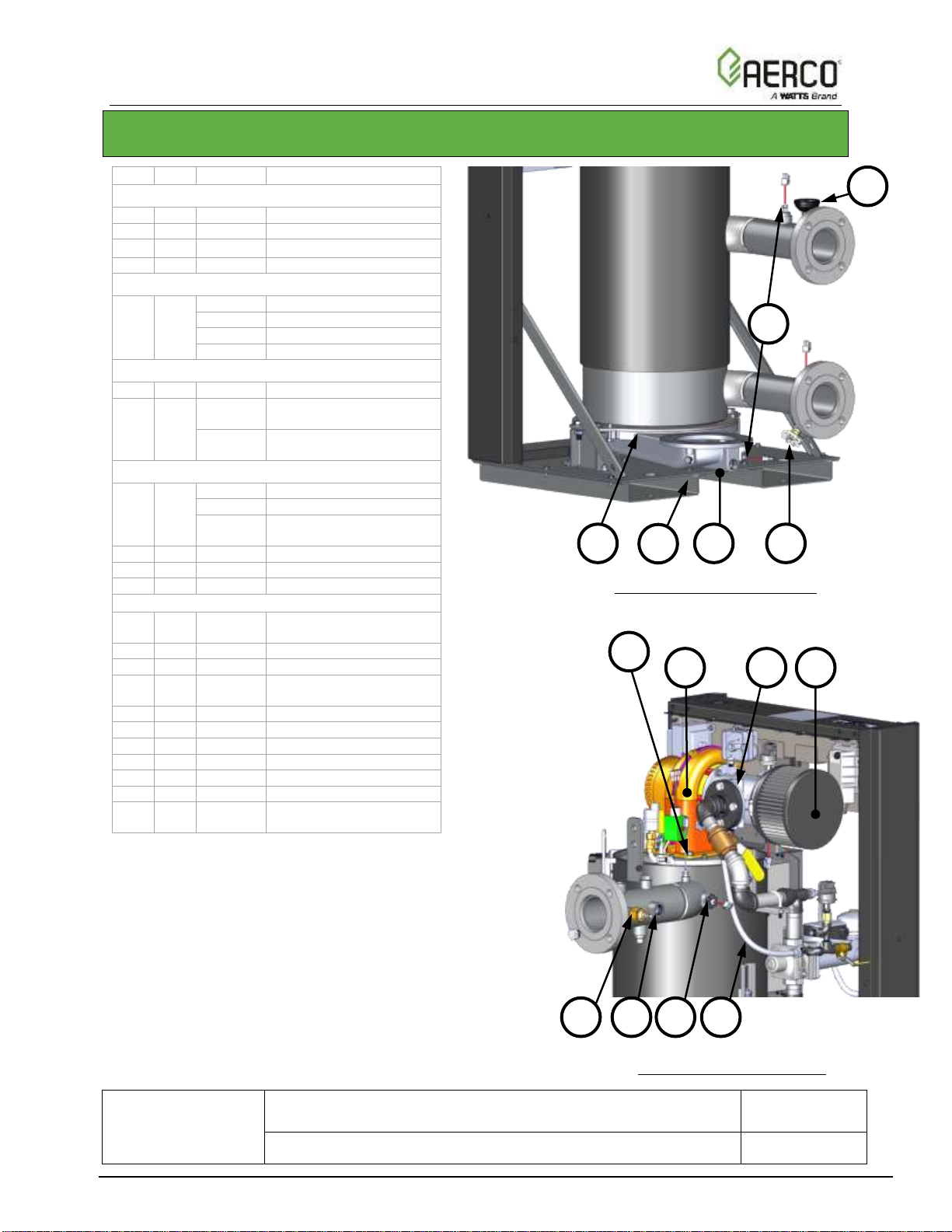

SECTION 2: BENCHMARK 750 & 1000 PART LIST
Item #
Qty
Part #
Description
EXHAUST MANIFOLD
1
1
43086
Exhaust Manifold
2
1
84045
Seal: Exhaust Manifold
3
1
9-22
Pipe Plug: 1/4" NPT: Steel
4
1
92094
Boiler Drain Valve: 3/4 “

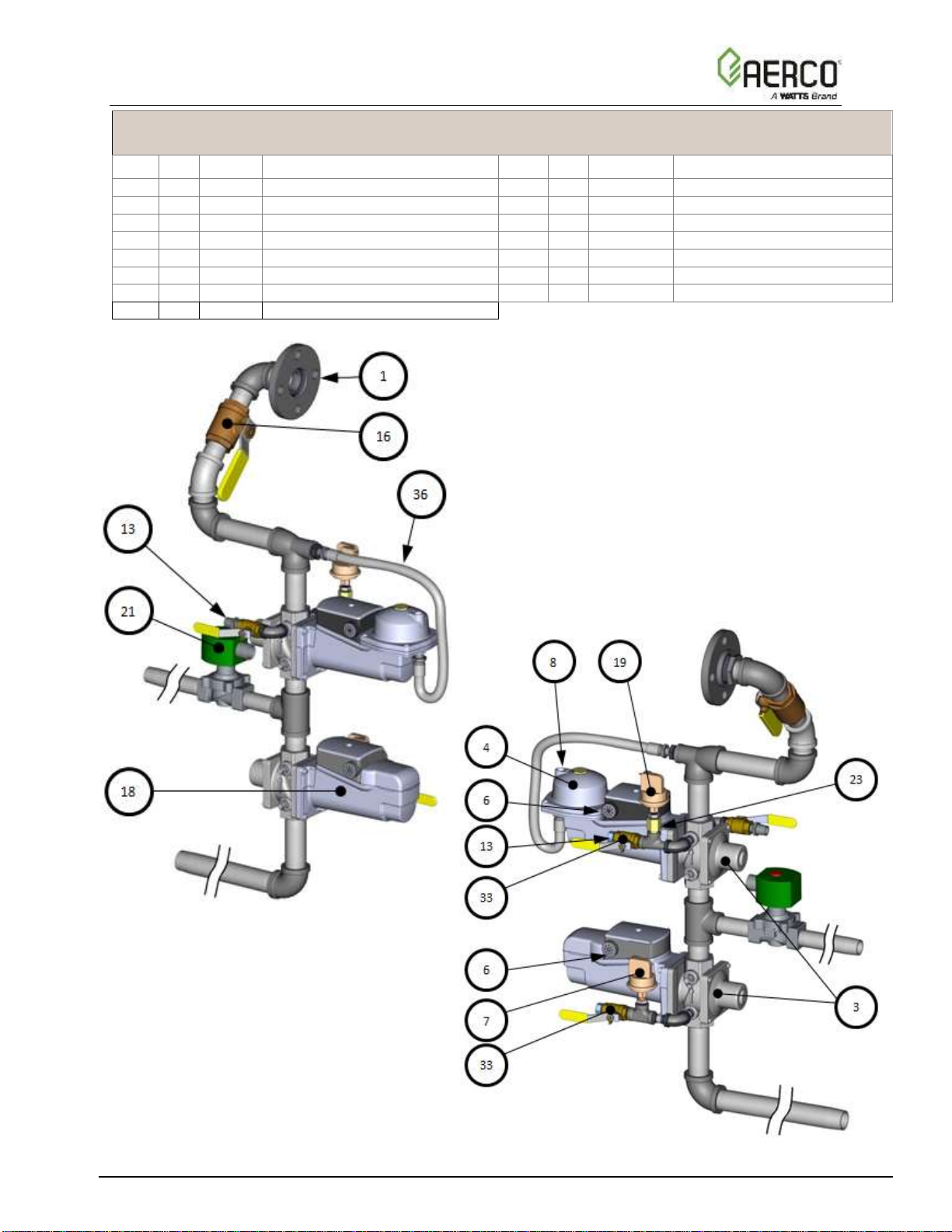

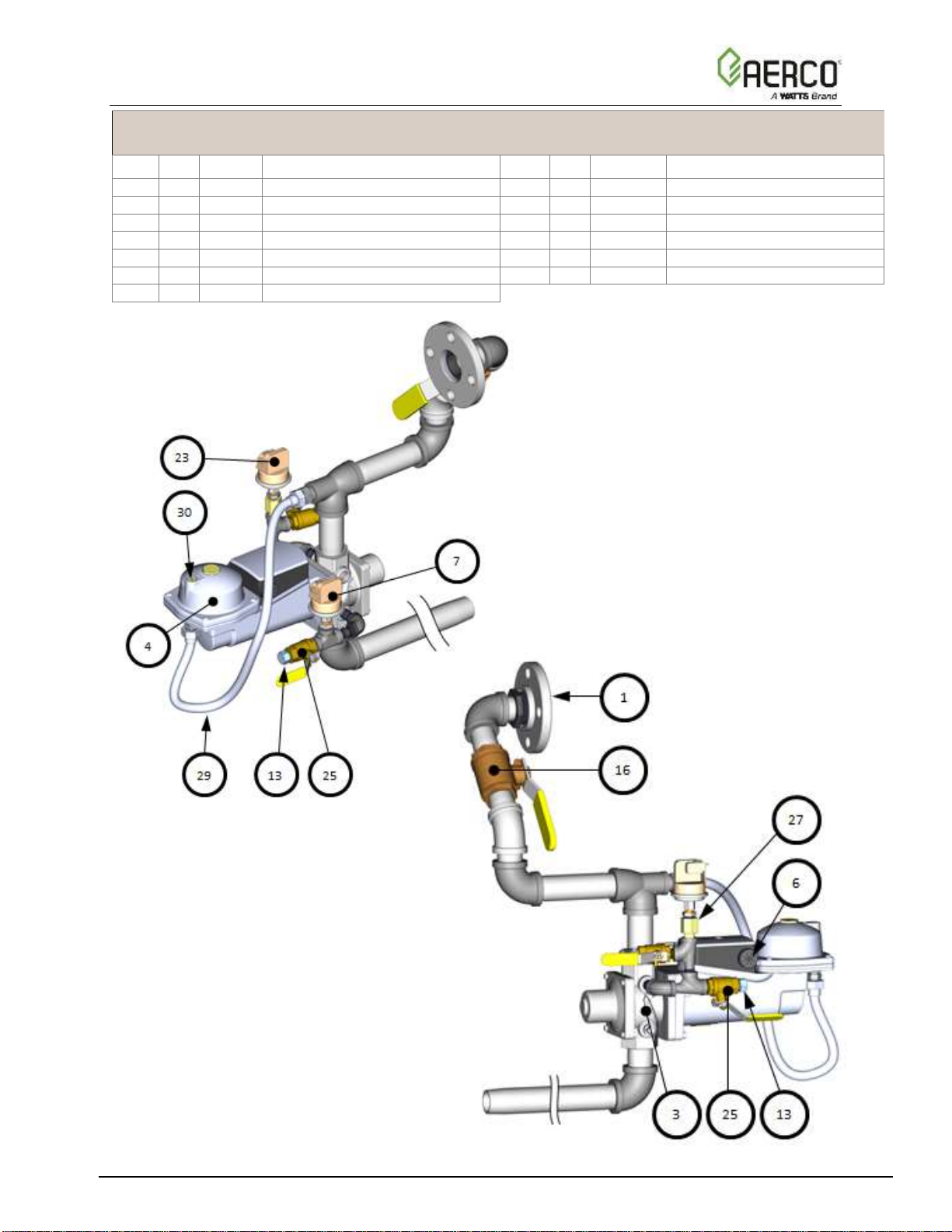

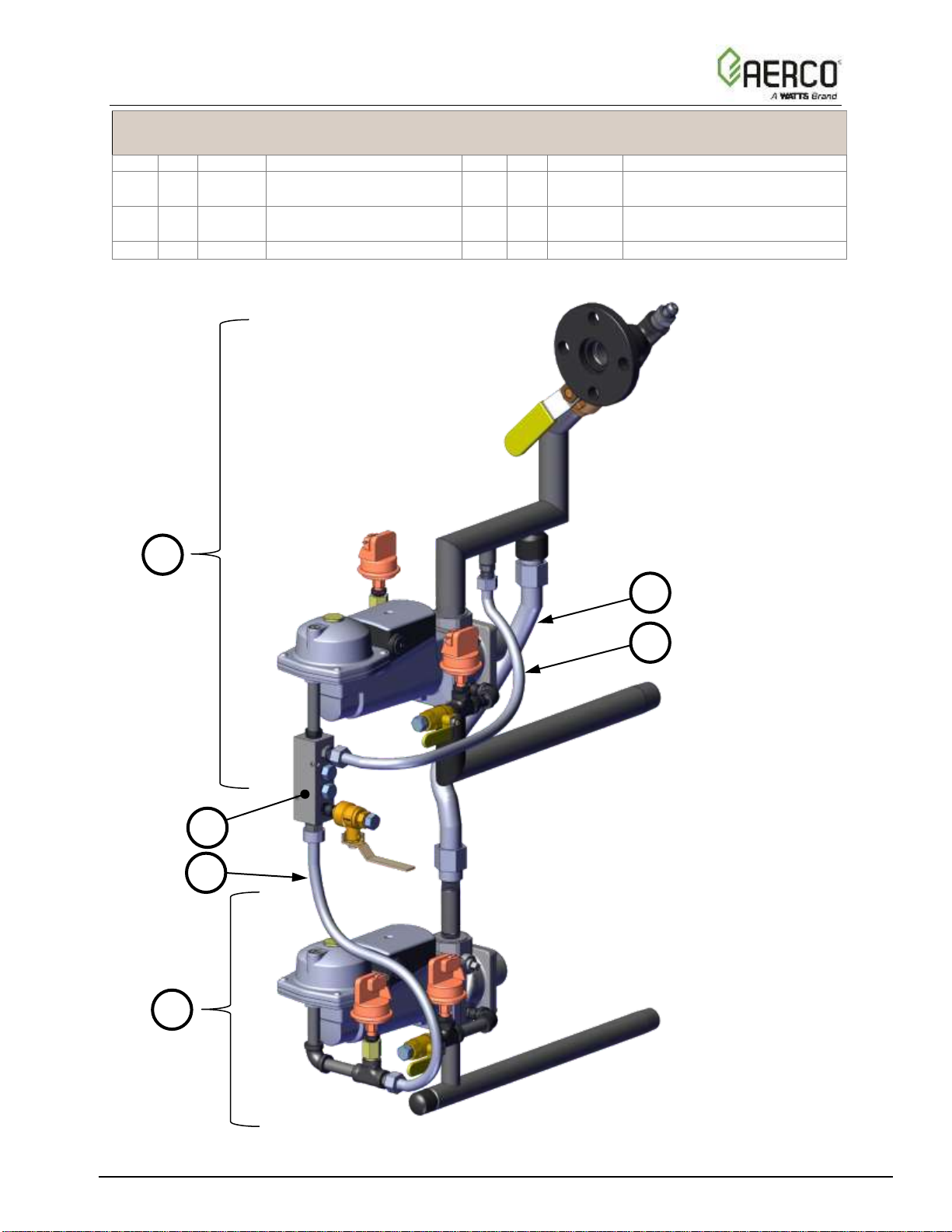

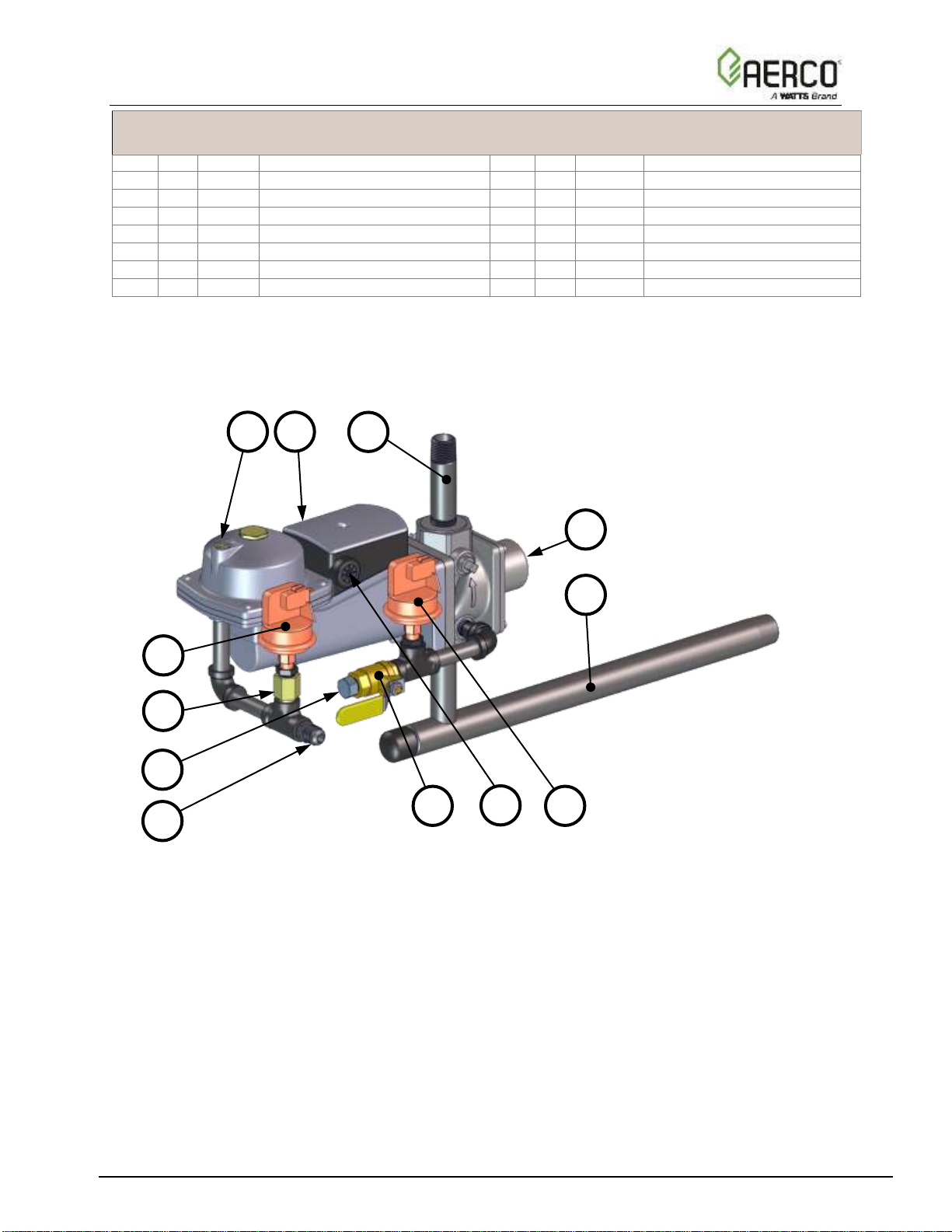

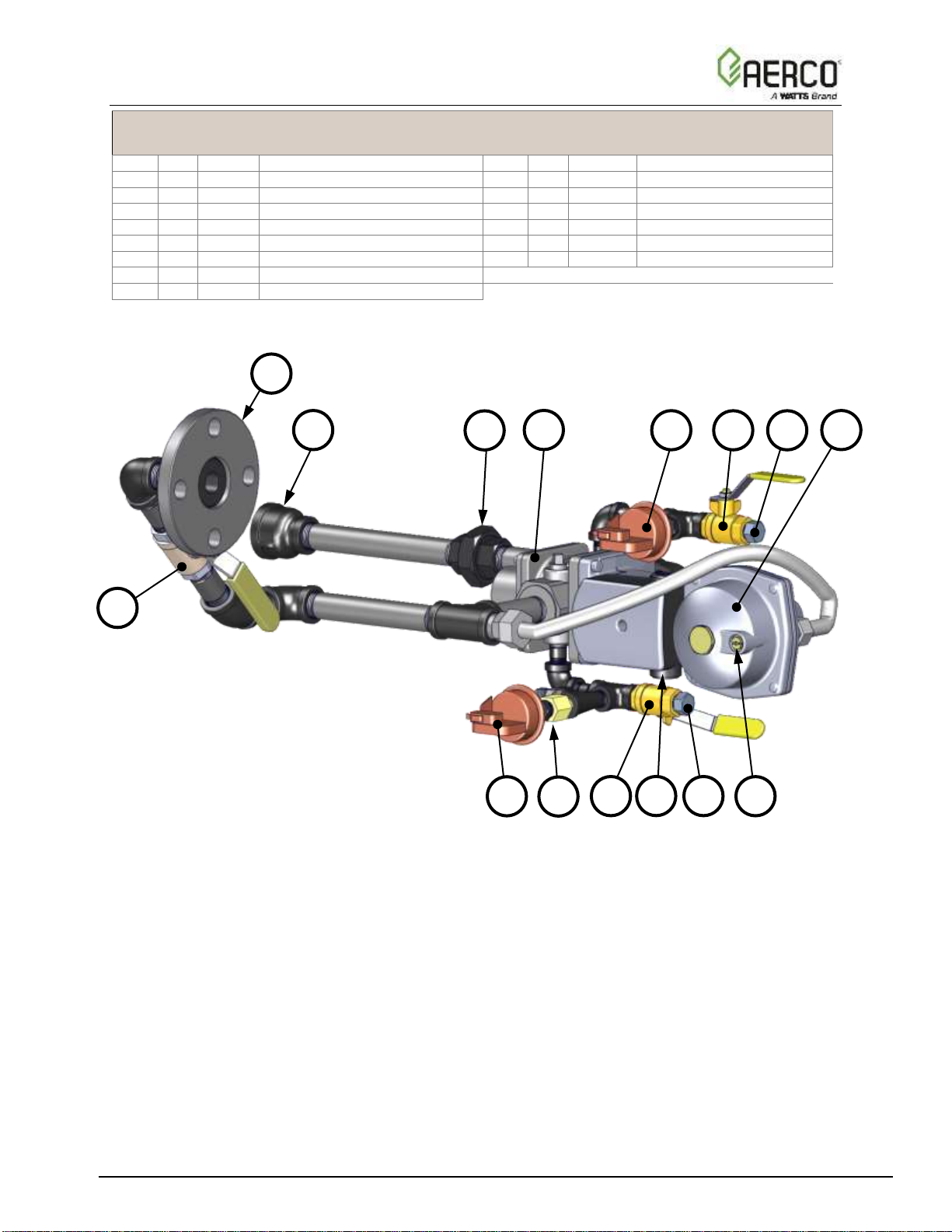

GAS TRAIN ASSEMBLIES (See full diagram below)
5
1
22322
FM Gas Train Assy.
22323
DBB Gas Train Assy.
22331
Propane Gas Train Assy.
22429
Duel Fuel Gas Train
HEAT EXCHANGER
6
1
80080
Insulation: Shell
7
1
58179-7
BMK 750 Dual Inlet Heat
Exchanger
58179-8
BMK 1000 Dual Inlet Heat
Exchanger
BURNER-BLOWER (See full diagram below)
8
1
26022-1
Burner-Blower, BMK 1000
26022-2
Burner-Blower, BMK 750
26022-3
Burner-Blower, BMK 750 &
1000 Propane
9
1
81155
Gasket: 1 1/4" Pipe Flange
10
1
59139
Air Filter: 6" X 4.5 LG
11
1
97087-20
Flexible Gas Tube 20"
CONTROLS
12
4
61051
Directly Immersed
Temperature Sensor, PT-1000
13
1
58132 
Thermowell
14
1
69126 
Low Water Cutoff
15
1
65212
Power Transformer 110/120 to
24 VAC
16
1
64081
ECU (for O2Sensor)
17
1
59178
Vent: Air 1/8 NPT
18
1
123863
Valve: Ball 1/8" NPT
19
1
61026
O2Sensor
20
1
65085
Ignition Transformer
21
1
67009
Dial Thermometer
22
1
61056
Temperature Sensor, Dual
Thermocouple
Replacement Kit and/or Catalog number
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark Platinum 750 –1000 Part List
1/15/2021
29434-TAB rev G
Sheet 1 of 5
12
21
UPPER LEFT-REAR VIEW
1
4
2
3
8
14
12
13
9
10
11
22
LOWER RIGHT-REAR VIEW

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 6of 91
5
6
7
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark Platinum 750 –1000 Part List
1/15/2021
29434-TAB rev G
Sheet 2 of 5
19
16
15
20
17
18
TOP-REAR
VIEW
FRONT
VIEW

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 7of 91

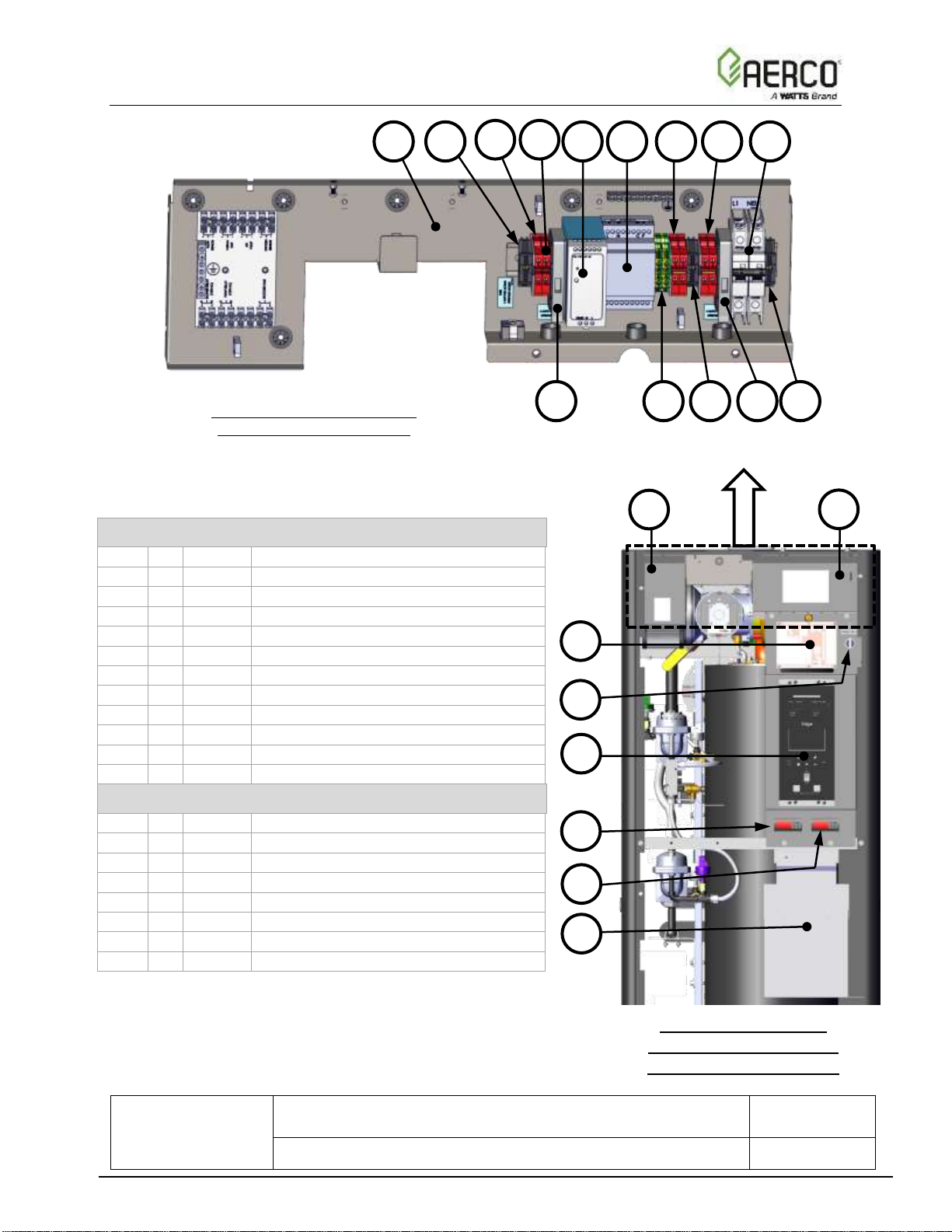

POWER PANEL P/N 69315-1
Item #
Qty
Part #
Description
1
1
30170
Power Panel
2
3
69141
DIN Rail End Stop
3
1
65213
Terminal Block, Yellow
4
1
65194
Terminal Block, Red
5
1
65231
12V Power Supply
6
1
65156
Flame Rod Signal Amplifier
7
2
65121
Terminal Block, White
8
2
65120
Terminal Block, Black
9
1
60037
2 Pole Circuit Breaker
10
2
65118
Fuse Terminal
11
2
65122
Terminal Ground Block
FRONT VIEW (Front panel removed)
12
1
25090
Connection Panel Cover –LEFT SIDE
13
1
25089
Power Panel Cover –RIGHT SIDE
14
1
64141
I/O Board, Edge
15
1
63341-1
Fuel Selector Switch (DUAL FUEL ONLY)
16
1
69344-1
Edge [ii] Control Panel
17
1
64157
Temperature Limit Control, Auto Reset
18
1
64155
Temperature Limit Control, Manual Reset
19
1
33248
Literature Pocket
8
7
5
9
4
6
3
2
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark Platinum 750 –1000 Part List
1/15/2021
29434-TAB rev G
Sheet 3 of 5
PARTIAL FRONT VIEW
DUAL FUEL UNIT SHOWN
FRONT PANEL REMOVED
POWER PANEL P/N 69315-1
WITH COVERS REMOVED
10
2
11
2
10
12
14
16
17
19
18
1
13
15

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 8of 91

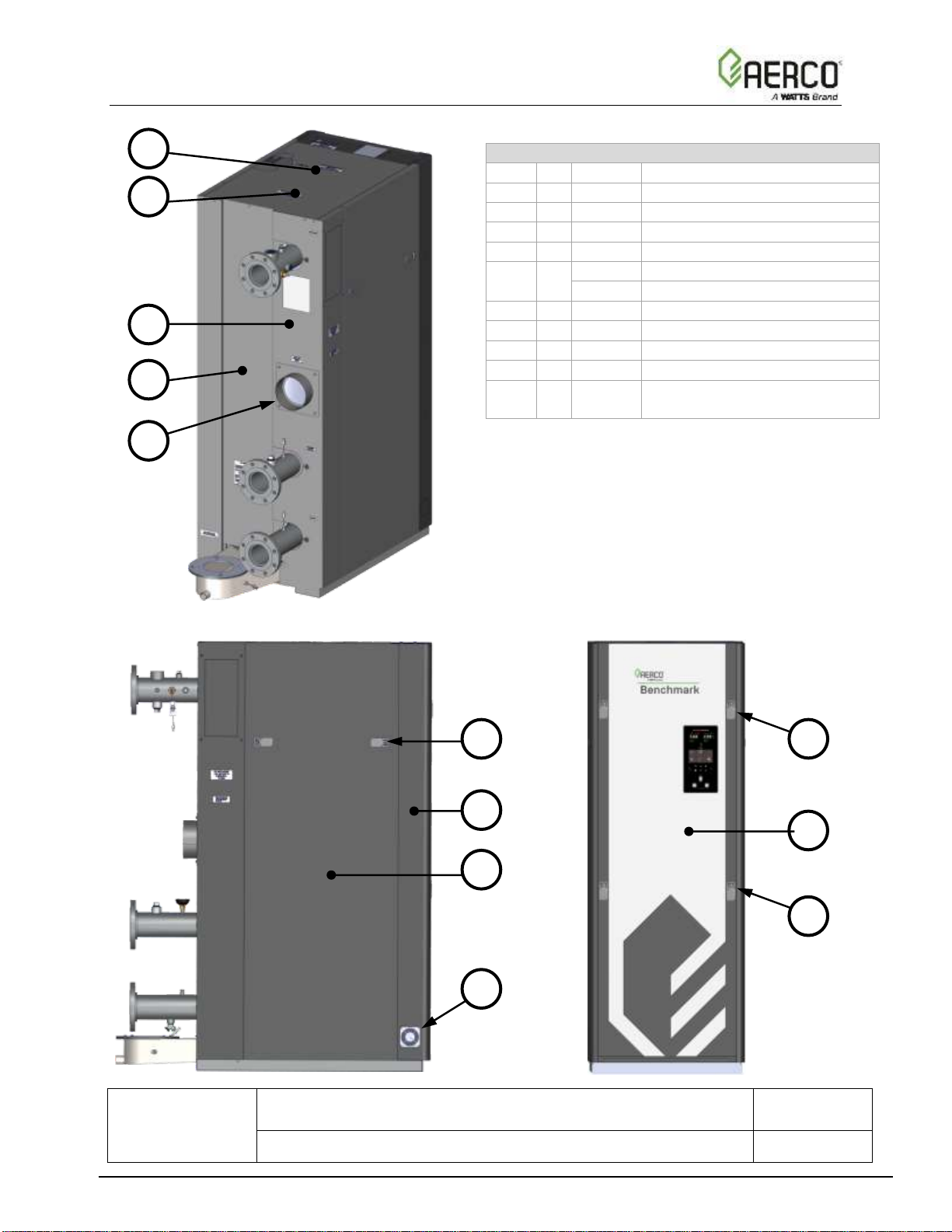

ENCLOSURE PANELS
Item #
Qty.
Part #
Description
1
1
37154
TOP COVER ASSY
2
1
50010
LATCH: DRAW
3
1
50011
KEEPER: DRAW LATCH
4
1
37155
PANEL: LEFT
5
1
39217
AIR INLET ADAPTER: 6" PVC
6
6
59133
LATCH: COMPRESSION
7
1
25086
FRONT PANEL
8
1
25087
FRONT FRAME ASSY.
9
1
37156
PANEL: RIGHT
* EXHAUST ADAPTERS AVAILABLE
Part #
Description
24286
6” Connection to PVC Exhaust
39006-TAB
6” Connection to PolyPro Exhaust, only
for DuraVent vents
2
1
3
5
4
9
8
6
7
6
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark Platinum 750 –1000 Part List
1/15/2021
29434-TAB rev G
Sheet 4 of 5
*

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 9of 91
Benchmark 750/1000 Spare Parts Kit P/N 58037
Part
Number
Description
58037-1
30 PSI
Apollo
58037-2
50 PSI
Conbraco
58037-3
75 PSI
Apollo
58037-4
100 PSI
Watts
58037-5
150 PSI
Watts
58037-6
60 PSI
Watts
58037-7
125 PSI
Watts
58037-8
160 PSI
Kunkle
24286
6” Exhaust Kit
1
1
1
1
1
1
1
1
24441
Condensate Trap Assy.
1
1
1
1
1
1
1
1
92006-5
Ball Valve, 1”
1
1
1
1
1
1
1
1
123675-5
Tridicator 0-75 psi
1
1
123675-6
Tridicator 0-200 psi
1
1
1
1
123675-7
Tridicator 0-300 psi
1
1
92014
Pres. Rel. Valve 3/4” 50 PSI
1
92015-13
Pres. Rel. Valve 3/4” 60 PSI
1
92015-15
Pres. Rel. Valve 3/4” 100 PSI
1
92015-16
Pres. Rel. Valve 3/4” 125 PSI
1
92015-20
Pres. Rel. Valve 3/4” 75 PSI
1
92015-484
Pres. Rel. Valve 3/4” 160 PSI
1
92015-361
Pres. Rel. Valve 3/4” 30 PSI
1
123659
Pres. Rel. Valve 3/4” 150 PSI
1
9-234
¾” Close Nipple
1
1
1
1
1
1
1
Wiring Harnesses (not shown)
Part #
Description
Part #
Description
63083-1
HARNESS: O2SENSOR
63220
HARNESS: I/O, 40 PIN RIBBON CABLE
63121
HARNESS: 12V POWER SOURCE
63221
HARNESS: I/O, 30 PIN RIBBON CABLE
63122
CABLE: GROUND #12
63226
HARNESS: OVERTEMP
63150
HARNESS: FLAME ROD
63227
HARNESS: OPERATING LIMIT
63184
POWER BOX “INPUT POWER”CABLE
63229-1
HARNESS: THERMOCOUPLE
63185
POWER BOX “RETURN POWER”CABLE
63231
HARNESS: CONTROL POWER
63215-1
HARNESS: SENSOR (Blue)
63232
HARNESS: I/O BOARD 12 VDC POWER
63216-1
HARNESS: SHELL (Red)
63233
HARNESS: PLUG
63217-1
HARNESS: GAS TRAIN (Yellow)
65220
IGNITION CABLE
63218-1
A/F VALVE HARNESS (Green)
Additional Benchmark 750/1000 Kits Available
Part #
Description
Part #
Description
27086-1 
ACTUATOR: SSOV w/o P.O.C. SWITCH
24669-1
BMK 1000 A/F Valve FRU Kit
64048 
SSOV WITH PRESSURE REGULATOR
24669-2
BMK 750 A/F Valve FRU Kit
58061 
BLOWER
24669-3
BMK 750/1000 PROPANE A/F Valve FRU Kit
92084-6
MOTORIZED SEQUENCING VALVE
Replacement Kit and/or Catalog number
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark Platinum 750 –1000 Part List
1/15/2021
29434-TAB rev G
Sheet 5 of 5

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 10 of 91
Benchmark 750-1000 FM Gas Train
P/N 22322 rev C –10/20/2020
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
95026
1.25" NPT 125#: THREADED FLANGE
16
1
92006-5
VALVE: BALL 1" NPT
3
1
92036
VALVE: SSOV 1" NPT
23
1
61002-12
HIGH GAS PRESSURE SWITCH 4.7" W.C.
4
1
64048 
ACTUATOR: SSOV w/ REGULATOR
25
2
92077
BALL VALVE, 1/4" NPT MXF BRASS
6
2
12951-2
BUSHING: CONTROL BOX
27
1
99017
SNUBBER: PRESSURE: 1/4"
7
1
61002-1
LOW PRESSURE SWITCH: 2.6" W.C. FALL N.O.
29
1
97087-20
TUBE: FLEXIBLE GAS 20" (50.8 cm) LG
9
1
63217-1
HARNESS: GAS TRAIN (not shown)
30
1
99015
DAMPING ORIFICE: SSOV
13
2
9-22
PIPE PLUG: 1/4" NPT: STEEL
Replacement Kit and/or Catalog number

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 11 of 91
Benchmark 750-1000 DBB Gas Train
P/N 22323 rev C –7/22/2020
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
95026
1.25" NPT 125#: THREADED FLANGE
18
1
27086-1 
ACTUATOR: SSOV w/o P.O.C. SWITCH
3
2
92036
VALVE: SSOV 1" NPT
19
1
61002-12
HIGH GAS PRESSURE SWITCH 4.7" W.C.
4
1
64048 
ACTUATOR: SSOV w/ REGULATOR
21
1
GP-122774 
VALVE: VENT 3/4" NPT
6
4
12951-2
BUSHING: CONTROL BOX
23
1
99017
SNUBBER: PRESSURE: 1/4"
7
1
61002-1
LOW PRESSURE SWITCH: 2.6" W.C. FALL N.O.
33
3
92077
BALL VALVE, 1/4" NPT MXF BRASS
8
1
99015
DAMPING ORIFICE: SSOV
36
1
97087-20
TUBE: FLEXIBLE GAS 20" (50.8 cm) LG
13
3
9-22
PIPE PLUG: 1/4" NPT: STEEL
37
1
63043
HARNESS, GAS TRAIN (not shown)
16
1
92006-5
VALVE: BALL 1" NPT
Replacement Kit and/or Catalog number

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 12 of 91
BMK 750-1000 1/2" PROPANE Gas Train
P/N 22331 rev C –1/8/2021
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
95026
THREADED FLANGE: 1.25" NPT 125#
26
1
63217-1
HARNESS, GAS TRAIN (not shown)
2
1
92103
VALVE: SSOV 1/2" NPT
28
1
93474
REDUCING COUPLING 1 X 1/2"
3
1
64048 
ACTUATOR: SSOV w/ REGULATOR
30
1
99017
SNUBBER: PRESSURE: 1/4"
11
1
93420
UNION 1/2" NPT FEMALE BLACK MI
31
1
97087-20
TUBE, FLEXIBLE GAS 20"
12
2
9-22
PIPE PLUG: 1/4" NPT: STEEL
32
1
99015
DAMPING ORIFICE: SSOV
23
2
12951-2
BUSHING: CONTROL BOX
33
1
61002-17
High Gas Pressure Switch, 7.5” W.C.
24
1
92006-3
VALVE: FULL PORT BALL 1/2" NPT BRASS
34
1
61002-21
Low Gas Pressure Switch, 2.6” W.C.
25
3
92077
BALL VALVE, 1/4" NPT MXF BRASS
Replacement Kit and/or Catalog number
2
23
32
3
30
25
1
24
11
28
33
25
12
12
34

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 13 of 91
BMK 750-1000 DUAL FUEL Gas Train
P/N 22429 rev A –11/30/2020
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
22322-2
BMK 1000 & 750 FM Gas Train
NATURAL GAS
4
1
97087-16
Flex Hose, 16",
2
1
22331-2
Gas Train, BMK 750 & 1000
PROPANE
5
1
97087-12
Flex Hose, 12",
3
1
41041-5
Gas Manifold Assy
6
1
97117
Flex Hose, BMK 750/1000 Dual Fuel
1
6
2
3
5
4

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 14 of 91
Benchmark 750-1000 NATURAL GAS Gas Train
P/N 22322-2 rev C –10/20/2020 –component of DUAL FUEL Gas Train 22429
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
95026
1.25" NPT 125#: Threaded Flange
25
92077
Ball Valve, 1/4" NPT MXF Brass
3
1
92036
Valve: SSOV 1" NPT
27
1
99017
Snubber: Pressure: 1/4"
4
1
64048 
Actuator: SSOV w/ Regulator
30
1
99015
Damping Orifice: SSOV
6
2
12951-2
Bushing: Control Box
32
1
22437
FM Inlet Welded Assy.
8
1
59228-1
Male Adapter 3/8OD Flare x 1/4” NPT
33
1
22438
FM Gas Train Connection
9
1
63217-1
Gas Train Harness: (not shown)
34
1
61002-15
High Gas Pressure Switch 7.0" W.C.
13
2
9-22
Pipe Plug: 1/4" NPT: STEEL
35
1
61002-2
Low Pressure Switch: 5.2" W.C.
16
1
92006-5
Ball Valve: 1" NPT
Replacement Kit and/or Catalog number
27
16
1
3
4
13
25
30
32
6
8
33
35
34

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 15 of 91
BMK 750-1000 PROPANE Gas Train
P/N 22331-2 rev C –1/8/2021 –component of DUAL FUEL Gas Train 22429
Item
Qty
Part #
Description
Item
Qty
Part #
Description
2
1
92103
Valve: SSOV 1/2" NPT
26
1
63217-1
Gas Train Harness: (not shown)
3
1
64048 
Actuator: SSOV w/ Regulator
30
1
99017
Snubber: Pressure: 1/4"
12
1
9-22
Pipe Plug: 1/4" NPT
32
1
99015
Damping Orifice: SSOV
16
1
90105
Nipple, 1/2"
35
1
61002-3
High Gas Pressure Switch 2.6" W.C.
20
1
59228-1
Male Adapter 3/8OD Flare x 1/4” NPT
36
1
22436
Propane Inlet
23
2
12951-2
Bushing: Control Box
37
1
61002-2
Low Pressure Switch: 5.2" W.C.
25
1
92077
Ball Valve, 1/4" NPT MXF Brass
3
36
2
16
32
23
12
35
30
20
37
25

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 2: BENCHMARK PLATINUM 750 & 1000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 16 of 91
Benchmark 750-1000 Burner, Blower, Air/Fuel Valve
P/N 26022-TAB rev B –10/27/2020
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
See Table
A/F VALVE ASSY
12
1
60011-4
SWITCH ASSY: BLOWER PROOF
2
1
58061 
BLOWER: AMETEK 8.9"
13
3
53033
WASHER: CLOCKING
3
1
42140
PLATE: BURNER
14
1
46026
BURNER
4
1
81143
GASKET: BURNER
17
1
61002-5
BLOCKED INLET SWITCH -4.5" W.C.
5
1
81064
GASKET: BLOWER
18
1
59171
REFLECTOR: SIGHT GLASS
6
1
59104
OBSERVATION PORT
19
1
61026
O2SENSOR
7
1
24277
STAGED IGNITION ASSY.
23
1
58023 
IGNITOR-INJECTOR
8
1
24356-1 
FLAME ROD
24
1
61051
DIRECTLY IMMERSED TEMPERATURE
SENSOR, PT-1000
9
1
88004
O-RING #2-244 BUNA-N
25
1
9-22
PLUG: HEX HD 1/4" NPT
10
1
81048
GASKET: FLAME ROD LOW NOx
Replacement Kit and/or Catalog number
6
8
10
18
23
13
2
3
4
5
7
19
24
25
9
12
1
17
14
Item 1 –A/F VALVE ASSEMBLY
Part #
Description
21005-1
BMK 1000
21005-2
BMK 750
21005-3
BMK 750/1000 PROPANE
21005-5
BMK 750/1000 DUAL FUEL

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 3: BENCHMARK PLATINUM 1500 & 2000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 17 of 91
SECTION 3: BENCHMARK 1500 & 2000 PART LIST
Item #
Qty
Part #
Description
EXHAUST MANIFOLD
1
1
39187
EXHAUST MANIFOLD
2
1
81165
EXHAUST MANIFOLD SEAL
3
1
9-22
Pipe Plug - Exhaust Manifold
4
1
92094
Boiler Drain Valve: 3/4 “
GAS TRAIN ASSEMBLIES (See full diagram below)
5
1
22314
BMK 1500 Standard Gas Train
22315
BMK 1500-2000 DBB Gas Train
22316
BMK 1500/2000 Dual Fuel Gas Train
22317
BMK 1500/2000 Dual Fuel DBB Gas Train
HEAT EXCHANGER
6
1
80089
Insulation: Shell
7
1
58179-9
BMK 1500 Heat Exchanger –Dual Inlet
5817910
BMK 2000 Heat Exchanger –Dual Inlet
BURNER-BLOWER-A/F Valve (See full diagram below)
8
1
26021-TAB
Burner-Blower Assy.
9
1
88003
O-Ring, #2-339
10
1
59138
Air Filter, 6”
11
1
97087-72
Flex Gas Tube 72" (1.83 m)
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark Platinum 1500 & 2000 Part List
8/3/2020
29437-TAB rev D
Sheet 1 of 5
1
4
2
6
7
9
10
11
8
3
12
5

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 3: BENCHMARK PLATINUM 1500 & 2000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 18 of 91
CONTROLS
12
3
61051
Directly Immersed Temperature Sensor,
PT-1000
13
1
58132 
Thermowell
14
1
69126 
Low Water Cutoff
15
1
65212
Power Transformer 120 TO 24 VAC
16
1
64081
ECU (for O2Sensor)
17
1
59178
Vent: Air 1/8 NPT
18
1
123863
Valve: Ball 1/8" NPT
19
1
61026
O2Sensor
20
1
65085
Ignition Transformer
21
1
61056
Temperature Sensor, Dual Thermocouple
Replacement Kit and/or Catalog number
TOP-REAR VIEW
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark Platinum 1500 & 2000 Part List
8/3/2020
29437-TAB rev D
Sheet 2 of 5
14
13
21
12
2
TOP- LEFT REAR VIEW
17
15
18
20
19
16

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 3: BENCHMARK PLATINUM 1500 & 2000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 19 of 91
ENCLOSURE PANELS
Item #
Qty
Part #
Description
1
1
37159
TOP PANEL: FRONT
2
1
37160
TOP PANEL: BACK
3
1
37158
BACK PANEL: LEFT
4
1
37157
BACK PANEL: RIGHT
5
1
39215
8" AIR INLET ADAPTER, BMK 2000
39218
6" AIR INLET ADAPTER, BMK 1500
6
4
59133
LATCH, COMPRESSION
7
1
25087
FRONT FRAME ASSEMBLY
8
2
30155
SIDE PANEL
9
1
25086
FRONT PANEL ASSEMBLY
10
1
65147
EBM 12VDC AXIAL VENT FAN
(Dual Fuel only)
5
1
2
3
4
6
7
8
10
9
6
6
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark Platinum 1500 & 2000 Part List
8/3/2020
29437-TAB rev D
Sheet 3 of 5

Benchmark Platinum with Edge [II]: Reference Manual
SECTION 3: BENCHMARK PLATINUM 1500 & 2000 PART LIST
OMM-0138_D • GF-212 •2/24/2021 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 20 of 91
POWER PANEL P/N 69315-2
Item #
Qty
Part #
Description
1
1
30170
Power Panel
2
4
69141
DIN Rail End Stop
3
1
65213
Terminal Block, Yellow
4
1
65194
Terminal Block, Red
5
1
65231
12V Power Supply
6
1
65156
Flame Rod Signal Amplifier
7
2
65121
Terminal Block, White
8
2
65120
Terminal Block, Black
9
1
60037
2 Pole 20 Amp Circuit Breaker
10
2
65118
Fuse Terminal
11
2
65122
Terminal Ground Block
FRONT VIEW (Front panel removed)
12
1
25090
Connection Panel Cover
13
1
25089
Power Panel Cover
14
1
64141
I/O Board, Edge
15
1
63035-1
Fuel Selector Switch –DUAL FUEL ONLY
16
1
69344-1
Edge [ii] Control Panel
17
1
64157
Temperature Limit Control, Auto Reset
18
1
64155
Temperature Limit Control, Manual Reset
19
1
33248
Literature Pocket
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark Platinum 1500 & 2000 Part List
8/3/2020
29437-TAB rev D
Sheet 4 of 5
POWER PANEL P/N 69315-2
WITH COVERS REMOVED
PARTIAL FRONT VIEW
FRONT PANEL REMOVED
1
8
7
10
5
2
11
9
2
6
2
10
3
4
12
14
16
17
19
18
15
13
