Watts Aerco Benchmark Platinum Series User manual

Reference Manual
Benchmark®Platinum Boilers
With Edge Controller
Natural Gas, Propane Gas and Dual Fuel
Modulating & Condensing Boilers
Models 750 through 6000
Other documents for this product include:
OMM-0136, GF-210 Installation and Startup Manual
OMM-0137, GF-211 Operation-Service Manual
OMM-0139, GF-213 Edge Controller Manual
TAG-0019, GF-2070 Boiler Application Guide
TAG-0022, GF-2050 Vent-Combustion Air Guide
TAG-0047, GF-2030 Benchmark Gas Guide
TAG-0048, GF-2060 Benchmark Power Guide
Applies to serial numbers:
G-19-0300 and above – BMK 750 – 3000
N-19-0100 and above – BMK 5000 & 6000
OMM-0138_B • GF-212 • 7/16/2019

Benchmark Platinum with Edge Controller: Reference Manual
CONTENTS
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 2of 79
Table Of Contents
SECTION 1: SAFETY PRECAUTIONS ...................................................................3
1.1 WARNINGS & CAUTIONS .....................................................................................................................3
1.2 EMERGENCY SHUTDOWN...................................................................................................................4
1.3 PROLONGED SHUTDOWN...................................................................................................................4
SECTION 2: BENCHMARK 750 & 1000 PART LISTS.............................................5
SECTION 3: BENCHMARK 1500 & 2000 PART LISTS.........................................15
SECTION 4: BENCHMARK 2500 & 3000 PART LISTS.........................................27
SECTION 5: BENCHMARK 5000 & 6000 PART LIST...........................................45
SECTION 6: SENSOR RESISTANCE CHART........................................................61
SECTION 7: WIRING DIAGRAMS .....................................................................63
7.1 BENCHMARK 750 – 2000 SCHEMATICS ...........................................................................................63
7.2 BENCHMARK 2500 – 3000 SCHEMATICS .........................................................................................67
7.3 BENCHMARK 5000 – 6000 SCHEMATICS .........................................................................................71

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 1: SAFETY PRECAUTIONS
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 3of 79
SECTION 1: SAFETY PRECAUTIONS
1.1 WARNINGS & CAUTIONS
Installers and operating personnel MUST, at all times, observe all safety regulations. The
following warnings and cautions are general and must be given the same attention as specific
precautions included in these instructions. In addition to all the requirements included in this
AERCO Instruction Manual, the installation of units MUST conform with local building codes, or,
in the absence of local codes, ANSI Z223.1 (National Fuel Gas Code Publication No. NFPA-54)
for gas-fired boilers and ANSI/NFPASB for LP gas-fired boilers. Where applicable, the
equipment shall be installed in accordance with the current Installation Code for Gas Burning
Appliances and Equipment, CSA B149.1, and applicable Provincial regulations for the class;
which should be carefully followed in all cases. Authorities having jurisdiction should be
consulted before installations are made.
IMPORTANT!
This Instruction Manual is an integral part of the product and must be maintained in legible
condition. It must be given to the user by the installer and kept in a safe place for future
reference.
WARNING!
•Do not use matches, candles, flames, or other sources of ignition to check for gas leaks.
•Fluids under pressure may cause injury to personnel or damage to equipment when
released. Be sure to shut off all incoming and outgoing water shutoff valves. Carefully
decrease all trapped pressures to zero before performing maintenance.
•Before attempting to perform any maintenance on the unit, shut off all gas and electrical
inputs to the unit.
•The exhaust vent pipe of the unit operates under a positive pressure and therefore must be
completely sealed to prevent leakage of combustion products into living spaces.
•Electrical voltages UP TO 120 VAC (BMK 750 – 2000) OR 208, 460 OR 575 VAC (BMK 2500 –
6000) may be used in this equipment. Therefore the cover on the unit’s power box (located
behind the front panel door) must be installed at all times, except during maintenance and
servicing.
•A single-pole switch for single phase units and three-pole switch for three phase units must
be installed on the electrical supply line of the unit. The switch must be installed in an easily
accessible position to quickly and safely disconnect electrical service. Do not affix switch to
unit sheet metal enclosures.
CAUTION!
•Many soaps used for gas pipe leak testing are corrosive to metals. The piping must be
rinsed thoroughly with clean water after leak checks have been completed.
•DO NOT use this boiler if any part has been under water. Call a qualified service technician
to inspect and replace any part that has been under water.

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 1: SAFETY PRECAUTIONS
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 4of 79
1.2 EMERGENCY SHUTDOWN
If overheating occurs or the gas supply fails to shut off, close the manual gas shutoff valve
(Figure 1-1) located external to the unit.
NOTE:
The Installer must identify and indicate the location of the emergency shutdown manual gas
valve to operating personnel.

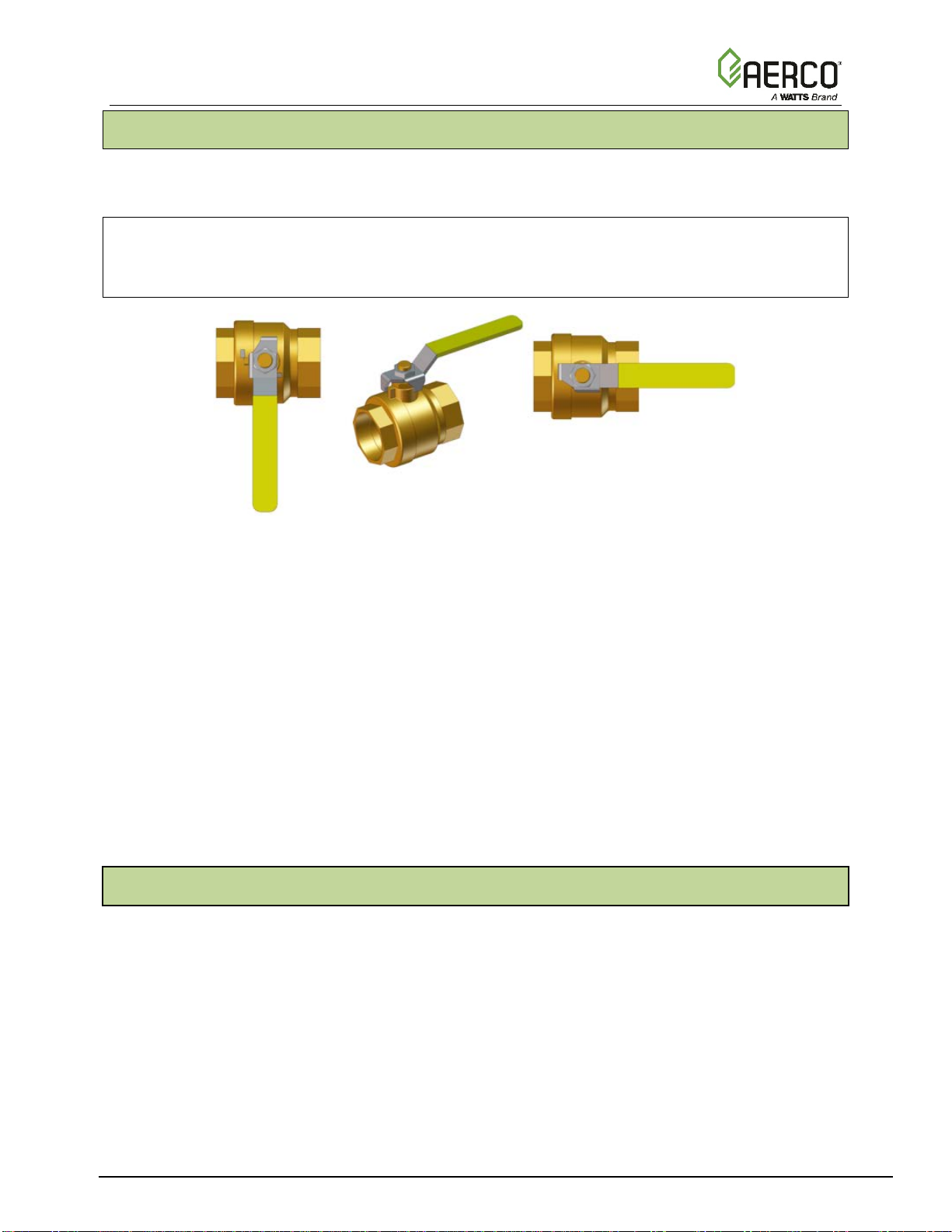

Figure 1-1: Manual Gas Shutoff Valve
In addition, to ensure safety an emergency shutdown procedure that addresses the following
points should be designed and implement at the site:
•For automatically operated unattended boilers located in a boiler room, provide a manually
operated remote shutdown switch or circuit breaker located just inside or outside each boiler
room door. Design the system so activation of the emergency shutdown switch or circuit
breaker will immediately shut off the fuel supply to the unit(s).
•For automatically operated unattended boilers in a location other than a boiler room, provide a
manually operated remote shutdown switch or circuit breaker marked for easy identification at a
location readily accessible in the event of boiler mis-operation.
•Design the system so activation of the emergency shutdown switch or circuit breaker will
immediately shut off the fuel.
•For boilers monitored and/or operated from a continuously occupied control room, provide an
emergency shutdown switch in the control room that is hard-wired to immediately shut off the
fuel upon activation.
1.3 PROLONGED SHUTDOWN
If there is an emergency, turn off the electrical power supply to the AERCO boiler and close the
manual gas valve located upstream from the unit. The installer must identify the emergency
shut-off device.
If the unit is being shut down for an extended period of time, such as a year or more, complete
the instructions in Section 8.12: Shutting Boiler Down For Extended Period in the Benchmark
PLATINUM-Edge: Operation-Service Manual (OMM-0137 , GF-211).
When returning a unit to service after a prolonged shutdown, it is recommended that the
instructions in Section 4: Initial Startup Procedures and Section 5: Safety Device Testing of the
Benchmark PLATINUM-Edge: Operation-Service Manual (GF-211) be performed to verify
that all system-operating parameters are correct.
VALVE
OPEN
VALVE
CLOSED

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 5of 79

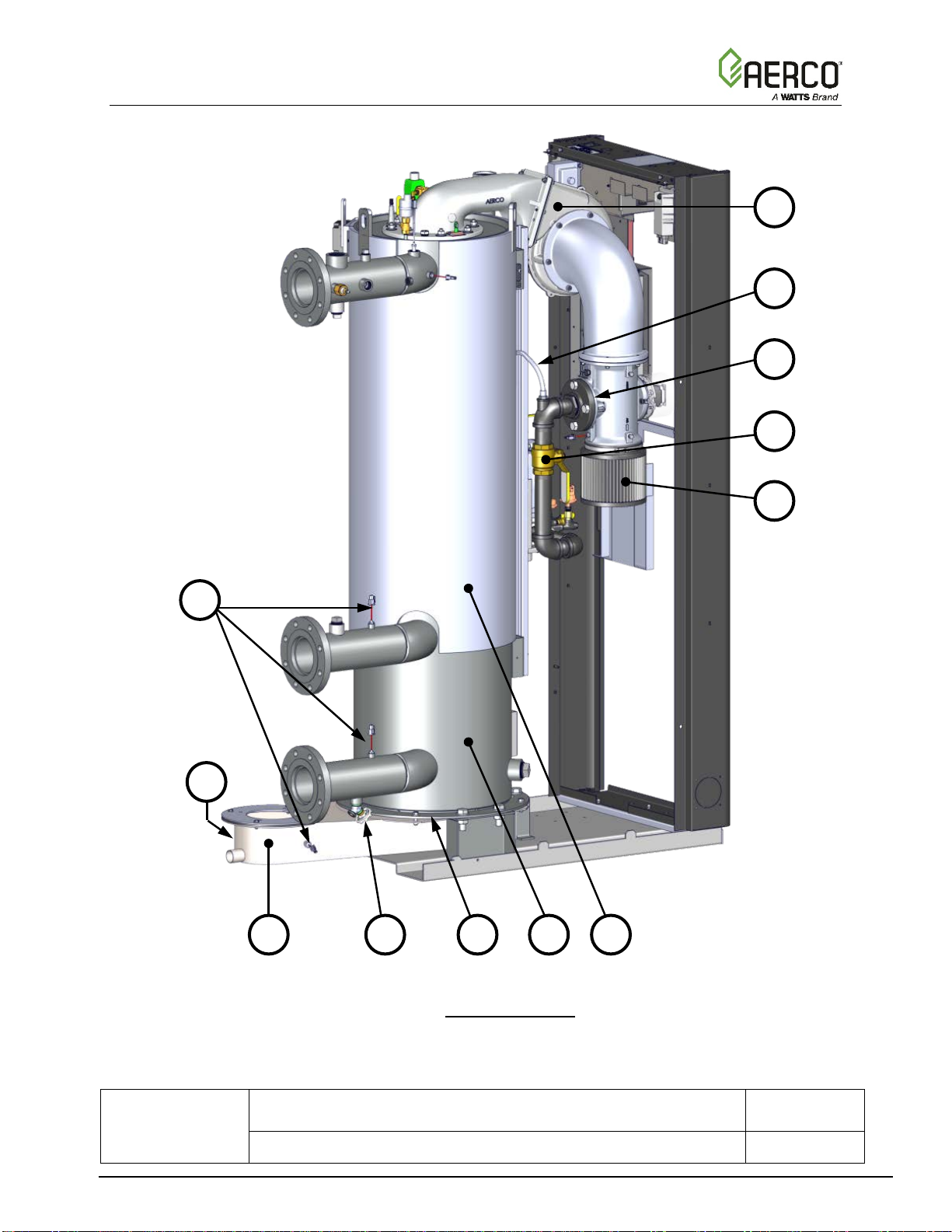

SECTION 2: BENCHMARK 750 & 1000 PART LISTS
Item #
Qty
Part #
Description
EXHAUST MANIFOLD
1
1
43086
Exhaust Manifold
2
1
84045
Seal: Exhaust Manifold
3
1
9-22
Pipe Plug: 1/4" NPT: Steel
4
1
92094
Boiler Drain Valve: 3/4 “

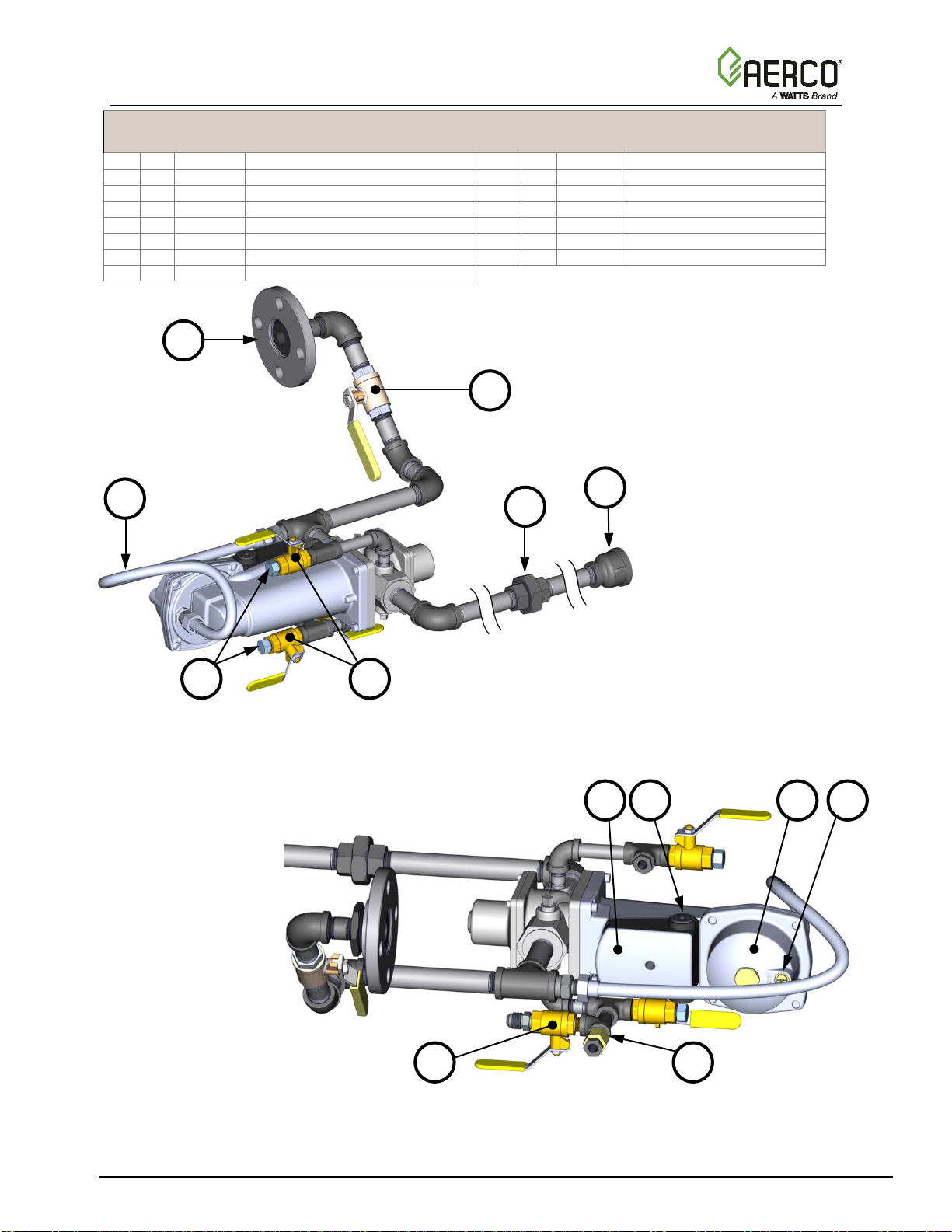

GAS TRAIN ASSEMBLIES (See full diagram below)
5 1
22322
FM Gas Train Assy.
22323
DBB Gas Train Assy.
22331
Propane Gas Train Assy.
HEAT EXCHANGER
6
1
80080
Insulation: Shell
7 1
28317
BMK 750 Dual Inlet Heat
Exchanger
28249
BMK 1000 Dual Inlet Heat
Exchanger
BURNER-BLOWER (See full diagram below)
8 1
26022-1
Burner-Blower, BMK 1000
26022-2
Burner-Blower, BMK 750
26022-3
Burner-Blower, BMK 750 & 1000
Propane
9
1
81155
Gasket: 1 1/4" Pipe Flange
10
1
59139
Air Filter: 6" X 4.5 LG
11
1
97087-20
Flexible Gas Tube 20"
CONTROLS
12
4
61051
Temperature Sensor, PT-1000
13
1
58132

Thermowell
14
1
69126 
Low Water Cutoff
15
1
65212
Power Transformer 110/120 to
24 VAC
16
1
64081
ECU (for O2Sensor)
17
1
59178
Vent: Air 1/8 NPT
18
1
123863
Valve: Ball 1/8" NPT
19
1
61026
O2Sensor
20
1
65085
Ignition Transformer
21
1
67009
Dial Thermometer
22 1 61056
Temperature Sensor, Dual
Thermocouple
Replacement Kit and/or Catalog number
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark 750 – 1000 Part List 4/26/2019
29434-TAB rev C Sheet 1 of 5
12
21
UPPER LEFT-REAR VIEW
1
4
2
3
8
14
12
13
9
10
11
22
LOWER RIGHT-REAR VIEW

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 6of 79
5
6
7
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark 750 – 1000 Part List 4/26/2019
29434-TAB rev C Sheet 2 of 5
19
16
15
20
17
18
TOP-REAR
VIEW
FRONT
VIEW

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 7of 79

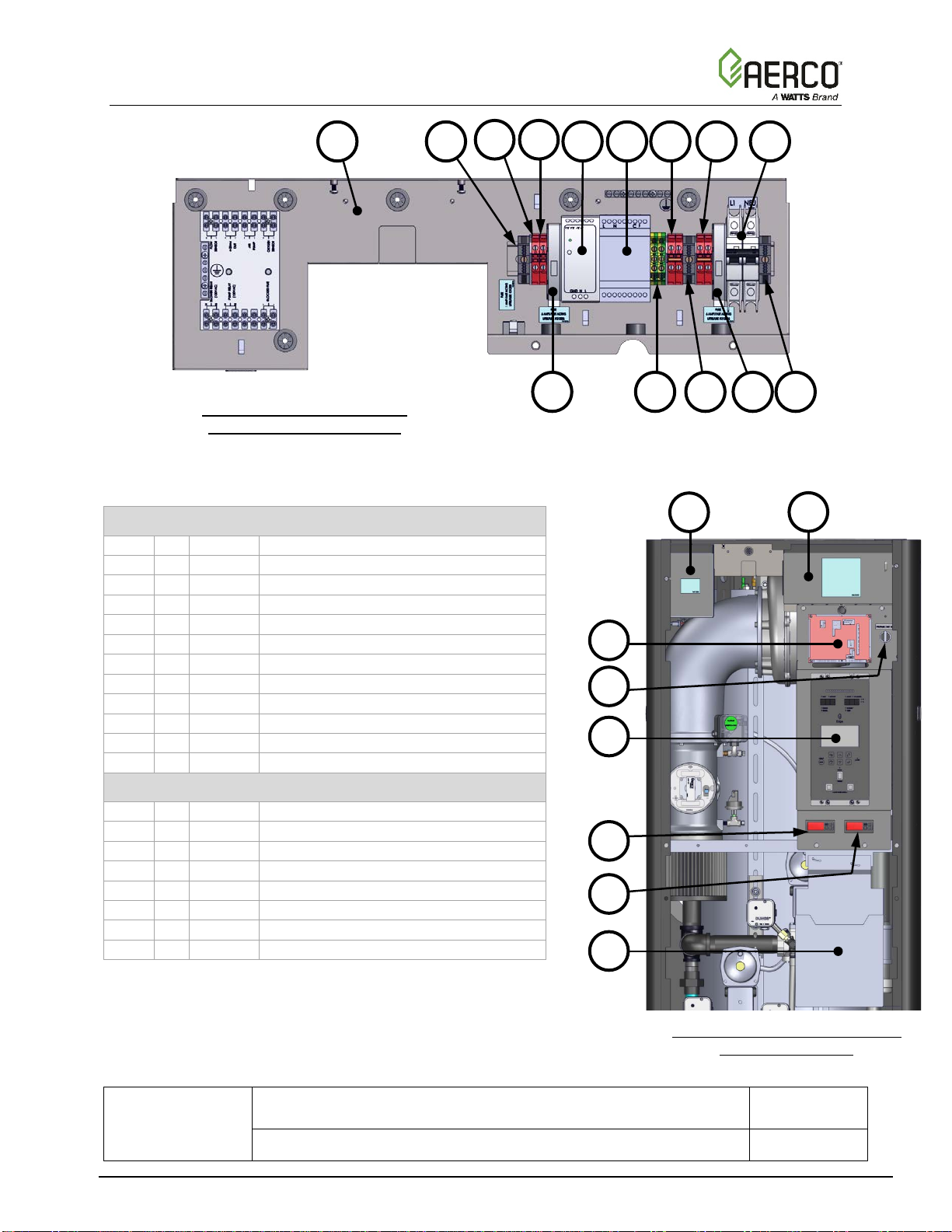

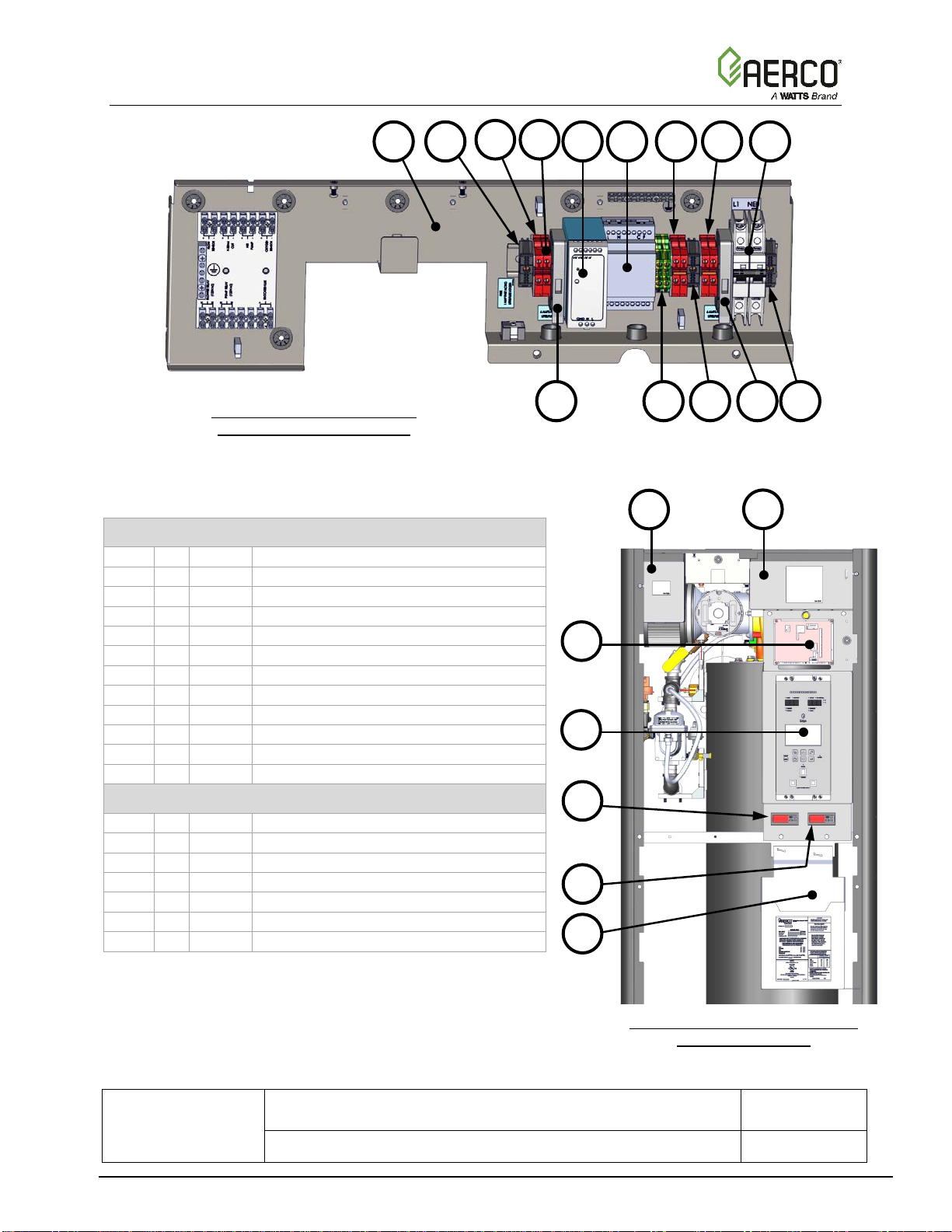

POWER PANEL P/N 69315-1
Item #
Qty
Part #
Description
1
1
30170
Power Panel
2
3
69141
DIN Rail End Stop
3
1
65213
Terminal Block, Yellow
4
1
65194
Terminal Block, Red
5
1
65231
12V Power Supply
6
1
65156
Flame Rod Signal Amplifier
7
2
65121
Terminal Block, White
8
2
65120
Terminal Block, Black
9
1
60037
2 Pole Circuit Breaker
10
2
65118
Fuse Terminal
11
2
65122
Terminal Ground Block
FRONT VIEW (Front panel removed)
12
1
25090
Connection Panel Cover – LEFT SIDE
13
1
25089
Power Panel Cover – RIGHT SIDE
14
1
64141
I/O Board, Edge
15
1
64142
Edge Control Panel
16
1
64157
Temperature Limit Control, Auto Reset
17
1
64155
Temperature Limit Control, Manual Reset
18
1
33248
Literature Pocket
8
7
5
9
4
6
3
2
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark 750 – 1000 Part List 4/26/2019
29434-TAB rev C Sheet 3 of 5
PARTIAL FRONT VIEW FRONT
PANEL REMOVED
POWER PANEL P/N 69315-1
WITH COVERS REMOVED
10
2
11
2
10
13
12
14
15
16
18
17
1

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 8of 79

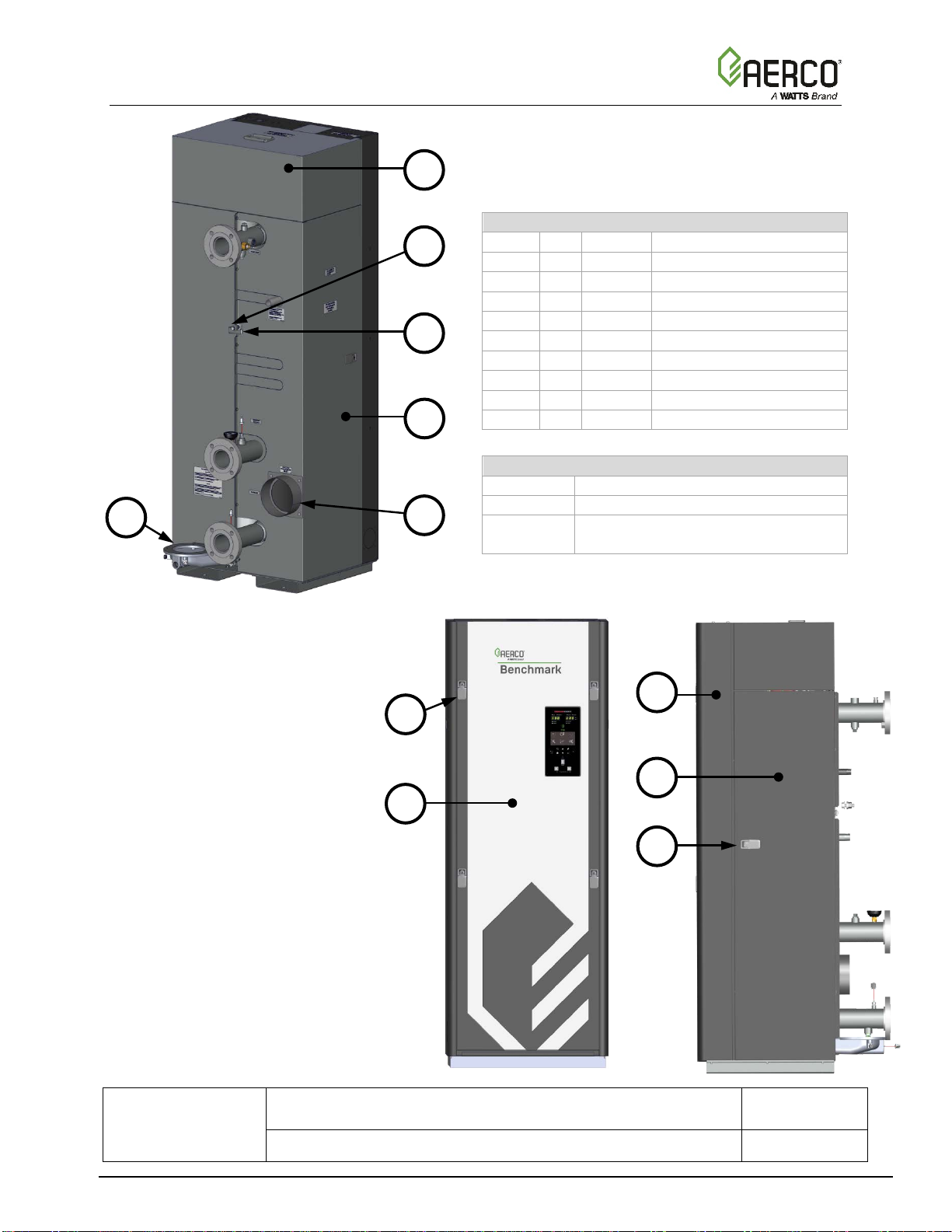

ENCLOSURE PANELS
Item #
Qty.
Part #
Description
1
1
37154
TOP COVER ASSY
2
1
50010
LATCH: DRAW
3
1
50011
KEEPER: DRAW LATCH
4
1
37155
PANEL: LEFT
5
1
39217
AIR INLET ADAPTER: 6" PVC
6
6
59133
LATCH: COMPRESSION
7
1
25086
FRONT PANEL
8
1
25087
FRONT FRAME ASSY.
9
1
37156
PANEL: RIGHT
* EXHAUST ADAPTERS AVAILABLE
Part #
Description
24286
6” Connection to PVC Exhaust
39006-TAB
6” Connection to PolyPro Exhaust, only
for DuraVent vents
2
1
3
5
9
8
4
6
7
6
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark 750 – 1000 Part List 4/26/2019
29434-TAB rev C Sheet 4 of 5
*

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 9of 79
Benchmark 750/1000 Spare Parts Kit P/N 58037
Part
Number Description
58037-1
30 PSI
Apollo
58037-2
50 PSI
Conbraco
58037-3
75 PSI
Apollo
58037-4
100 PSI
Watts
58037-5
150 PSI
Watts
58037-6
60 PSI
Watts
58037-7
125 PSI
Watts
58037-8
160 PSI
Kunkle
24286
6” Exhaust Kit
1
1
1
1
1
1
1
1
24441
Condensate Trap Assy.
1
1
1
1
1
1
1
1
92006-5
1” Ball Valve
1
1
1
1
1
1
1
1
123675-2
Tridicator 0-75 psi
1
1
123675-3
Tridicator 0-200 psi
1
1
1
1
123675-4
Tridicator 0-300 psi
1
1
92014
Pres. Rel. Valve 3/4” 50 PSI
1
92015-13
Pres. Rel. Valve 3/4” 60 PSI
1
92015-15
Pres. Rel. Valve 3/4” 100 PSI
1
92015-16
Pres. Rel. Valve 3/4” 125 PSI
1
92015-20
Pres. Rel. Valve 3/4” 75 PSI
1
92015-484
Pres. Rel. Valve 3/4” 160 PSI
1
92015-361
Pres. Rel. Valve 3/4” 30 PSI
1
123659
Pres. Rel. Valve 3/4” 150 PSI
1
9-234
¾” Close Nipple
1
1
1
1
1
1
1
Wiring Harnesses (not shown)
Part #
Description
Part #
Description
63083-1
HARNESS: O2SENSOR
63220
HARNESS: I/O, 40 PIN RIBBON CABLE
63121
HARNESS: 12V POWER SOURCE
63221
HARNESS: I/O, 30 PIN RIBBON CABLE
63122
CABLE: GROUND #12
63226
HARNESS: OVERTEMP
63150
HARNESS: FLAME ROD
63227
HARNESS: OPERATING LIMIT
63184
POWER BOX “INPUT POWER” CABLE
63229-1
HARNESS: THERMOCOUPLE
63185
POWER BOX “RETURN POWER” CABLE
63231
HARNESS: CONTROL POWER
63215-1
HARNESS: SENSOR (Blue)
63232
HARNESS: I/O BOARD 12 VDC POWER
63216-1
HARNESS: SHELL (Red)
63233
HARNESS: PLUG
63217-1
HARNESS: GAS TRAIN (Yellow)
65220
IGNITION CABLE
63218-1
A/F VALVE HARNESS (Green)
Additional Benchmark 750/1000 Kits Available
Part #
Description
27086-1

ACTUATOR: SSOV w/o P.O.C. SWITCH
64048

SSOV WITH PRESSURE REGULATOR
58061

BLOWER
92084-6
MOTORIZED SEQUENCING VALVE
Replacement Kit and/or Catalog number
AERCO International,
Inc. Blauvelt, NY
10913
Benchmark 750 – 1000 Part List 4/26/2019
29434-TAB rev C Sheet 5 of 5

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 10 of 79
Benchmark 750-1000 FM Gas Train
P/N 22322 rev A – 5/11/2018
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
95026
1.25" NPT 125#: THREADED FLANGE
16
1
92006-5
VALVE: BALL 1" NPT
3
1
92036
VALVE: SSOV 1" NPT
23
1
61002-12
HIGH GAS PRESSURE SWITCH 4.7" W.C.
4
1
64048

ACTUATOR: SSOV w/ REGULATOR
25
3
92077
1/4" NPT MXF BRASS BALL VALVE
6
2
12951-2
BUSHING: CONTROL BOX
27
1
99017
SNUBBER: PRESSURE: 1/4"
7
1
61002-1
LOW PRESSURE SWITCH: 2.6" W.C. FALL N.O.
29
1
97087-20
TUBE: FLEXIBLE GAS 20" (50.8 cm) LG
9
1
63217-1
HARNESS: GAS TRAIN (not shown)
30
1
99015
DAMPING ORIFICE: SSOV
13
2
9-22
PIPE PLUG: 1/4" NPT: STEEL
Replacement Kit and/or Catalog number

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 11 of 79
Benchmark 750-1000 DBB Gas Train
P/N 22323 rev A – 5/11/2018
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
95026
1.25" NPT 125#: THREADED FLANGE
18
1
27086-1 
ACTUATOR: SSOV w/o P.O.C. SWITCH
3
2
92036
VALVE: SSOV 1" NPT
19
1
61002-12
HIGH GAS PRESSURE SWITCH 4.7" W.C.
4
1
64048

ACTUATOR: SSOV w/ REGULATOR
21
1
GP-122774

VALVE: VENT 3/4" NPT
6
4
12951-2
BUSHING: CONTROL BOX
23
1
99017
SNUBBER: PRESSURE: 1/4"
7
1
61002-1
LOW PRESSURE SWITCH: 2.6" W.C. FALL N.O.
33
3
92077
1/4" NPT MXF BRASS BALL VALVE
8
1
99015
DAMPING ORIFICE: SSOV
36
1
97087-20
TUBE: FLEXIBLE GAS 20" (50.8 cm) LG
13
2
9-22
PIPE PLUG: 1/4" NPT: STEEL
37
1
63043
HARNESS, GAS TRAIN (not shown)
16
1
92006-5
VALVE: BALL 1" NPT
Replacement Kit and/or Catalog number

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 12 of 79
BMK 750-1000 PROPANE Gas Train
P/N 22331 rev A – 5/11/2018
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
95026
THREADED FLANGE: 1.25" NPT 125#
25
3
92077
1/4" NPT MXF BRASS BALL VALVE
2
1
92103
VALVE: SSOV 1/2" NPT
26
1
63217-1
HARNESS, GAS TRAIN (not shown)
3
1
64048 
ACTUATOR: SSOV w/ REGULATOR
28
1
93474
REDUCING COUPLING 1 X 1/2"
11
1
93420
UNION ½" NPT FEMALE BLACK MI
30
1
99017
SNUBBER: PRESSURE: 1/4"
12
2
9-22
PIPE PLUG: 1/4" NPT: STEEL
31
1
97087-20
TUBE, FLEXIBLE GAS 20"
23
2
12951-2
BUSHING: CONTROL BOX
32
1
99015
DAMPING ORIFICE: SSOV
24
1
92006-3
VALVE: FULL PORT BALL 1/2" NPT BRASS
1
24
28
11
25
12
2
25
30
23
32
3
31

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 13 of 79
Benchmark 750-1000 Burner, Blower, Air/Fuel Valve
P/N 26022-TAB rev A – 5/11/2018
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1 1
21005-1
A/F VALVE ASSY, BMK 1000
10
1
81048
GASKET: FLAME ROD LOW NOx
21005-2
A/F VALVE ASSY, BMK 750
12
1
60011-4
SWITCH ASSY: BLOWER PROOF
21005-3
A/F VALVE ASSY, 750/1000 PROPANE
13
3
53033
WASHER: CLOCKING
2
1
58061

BLOWER: AMETEK 8.9"
14
1
46026
BURNER
3
1
42140
PLATE: BURNER
17
1
61002-5
BLOCKED INLET SWITCH -4.5" W.C.
4
1
81143
GASKET: BURNER
18
1
59171
REFLECTOR: SIGHT GLASS
5
1
81064
GASKET: BLOWER
19
1
61026
O2SENSOR
6
1
59104
OBSERVATION PORT
23
1
58023

IGNITOR-INJECTOR
7
1
24277
STAGED IGNITION ASSY.
24
1
61051
TEMPERATURE SENSOR, PT-1000
8
1
24356-1

FLAME ROD
25
1
9-22
PLUG: HEX HD 1/4" NPT
9
1
88004
O-RING #2-244 BUNA-N
Replacement Kit and/or Catalog number
2
3
4
5
6
7
8
10
14
18
19
24
23
25
13
9
12
1
17

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 2: BENCHMARK 750 & 1000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 14 of 79
(This page intentionally blank)

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 3: BENCHMARK 1500 & 2000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 15 of 79
SECTION 3: BENCHMARK 1500 & 2000 PART LISTS
Item #
Qty
Part #
Description
EXHAUST MANIFOLD
1
1
39187
EXHAUST MANIFOLD
2
1
81165
EXHAUST MANIFOLD SEAL
3
1
9-22
Pipe Plug - Exhaust Manifold
4
1
92094
Boiler Drain Valve: 3/4 “
GAS TRAIN ASSEMBLIES (See full diagram below)
5 1
22314
BMK 1500 Standard Gas Train
22315
BMK 1500-2000 DBB Gas Train
22316
BMK 1500/2000 Dual Fuel Gas Train
22317
BMK 1500/2000 Dual Fuel DBB Gas Train
HEAT EXCHANGER
6
1
80089
Insulation: Shell
7 1
28613
BMK 1500 Heat Exchanger – Dual Inlet
28614
BMK 2000 Heat Exchanger – Dual Inlet
BURNER-BLOWER-A/F Valve (See full diagram below)
8
1
26021-TAB
Burner-Blower Assy.
9
1
88003
O-Ring, #2-239, 1 1/4" Pipe Flange
10
1
59138
Air Filter, 6”
11
1
97087-72
Flex Gas Tube 72" (1.83 m)
CONTROLS
12
3
61051
Temperature Sensor, PT-1000
13
1
58132 
Thermowell
14
1
69126 
Low Water Cutoff
15
1
65212
Power Transformer 120 TO 24 VAC
16
1
64081
ECU (for O2Sensor)
17
1
59178
Vent: Air 1/8 NPT
18
1
123863
Valve: Ball 1/8" NPT
19
1
61026
O2Sensor
20
1
65085
Ignition Transformer
21
1
61056
Temperature Sensor, Dual Thermocouple
Replacement Kit and/or Catalog number
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark 1500 & 2000 Part List 4/29/2019
29437-TAB rev B Sheet 1 of 5
TOP-REAR VIEW
14
13
21
12
TOP- LEFT REAR
VIEW
17
15
18
20
19
16

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 3: BENCHMARK 1500 & 2000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 16 of 79
LEFT-REAR VIEW
1
4
2
6
7
9
10
11
8
3
12
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark 1500 & 2000 Part List 4/29/2019
29437-TAB rev B Sheet 2 of 5
5

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 3: BENCHMARK 1500 & 2000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 17 of 79
ENCLOSURE PANELS
Item #
Qty
Part #
Description
1
1
37159
TOP PANEL: FRONT
2
1
37160
TOP PANEL: BACK
3
1
37158
BACK PANEL: LEFT
4
1
37157
BACK PANEL: RIGHT
5 1
39215
8" AIR INLET ADAPTER, BMK 2000
39218
6" AIR INLET ADAPTER, BMK 1500
6
4
59133
LATCH, COMPRESSION
7
1
25087
FRONT FRAME ASSEMBLY
8
2
30155
SIDE PANEL
9
1
25086
FRONT PANEL ASSEMBLY
10 1 65147
EBM 12VDC AXIAL VENT FAN
(Dual Fuel only)
5
6
7
8
1
2
3
4
10
9
6
6
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark 1500 & 2000 Part List 4/29/2019
29437-TAB rev B Sheet 3 of 5

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 3: BENCHMARK 1500 & 2000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 18 of 79
POWER PANEL P/N 69315-2
Item #
Qty
Part #
Description
1
1
30170
Power Panel
2
4
69141
DIN Rail End Stop
3
1
65213
Terminal Block, Yellow
4
1
65194
Terminal Block, Red
5
1
65231
12V Power Supply
6
1
65156
Flame Rod Signal Amplifier
7
2
65121
Terminal Block, White
8
2
65120
Terminal Block, Black
9
1
60037
2 Pole 20 Amp Circuit Breaker
10
2
65118
Fuse Terminal
11
2
65122
Terminal Ground Block
FRONT VIEW (Front panel removed)
12
1
25090
Connection Panel Cover
13
1
25089
Power Panel Cover
14
1
64141
I/O Board, Edge
15
1
63035-1
Fuel Selector Switch – DUAL FUEL ONLY
16
1
64142
Edge Control Panel
17
1
64157
Temperature Limit Control, Auto Reset
18
1
64155
Temperature Limit Control, Manual Reset
19
1
33248
Literature Pocket
1
8
7
10
5
2
11
9
2
6
2
10
3
13
12
14
16
17
19
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark 1500 & 2000 Part List 4/29/2019
29437-TAB rev B Sheet 4 of 5
18
POWER PANEL P/N 69315-2
WITH COVERS REMOVED
15
PARTIAL FRONT VIEW FRONT
PANEL REMOVED
4

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 3: BENCHMARK 1500 & 2000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 19 of 79
Benchmark 1500 - 2000 Spare Parts Kits
Part #
Description
123540
External 2” Ball Valve
24441
Condensate Trap
Benchmark 1500 Spare Parts Kits P/N 58088-TAB Benchmark 2000 Spare Parts Kits P/N 58087-TAB
Kit No. Description
Pressure
Relief
Valve
Pressure/
Temp
Gauge
Kit No. Description Pressure
Relief Valve
Pressure/
Temp
Gauge
58088-C30 30 PSI (207 kPa) KIT (CONBRACO) 92023-1 123675-5 58087-1 30 PSI (207 kPa) 123620-W30 123675-5
58088-C50 50 PSI (345 kPa) KIT (CONBRACO) 92023-2 123675-5 58087-2 50 PSI (345 kPa) 123620-W50 123675-5
58088-C60 60 PSI (414 kPa) KIT (CONBRACO) 92023-3 123675-6 58087-3 75 PSI (517 kPa) 123620-W75 123675-6
58088-C75 75 PSI (517 kPa) KIT (CONBRACO) 92023-4 123675-6 58087-4 100 PSI (689 kPa) 123620-W100 123675-6
58088-C100 100 PSI (689 kPa) KIT (CONBRACO) 92023-5 123675-6 58087-5 150 PSI (1034 kPa) 123620-W150 123675-7
58088-C125 125 PSI (862 kPa) KIT (CONBRACO) 92023-6 123675-6 58087-6 60 PSI (414 kPa) 123620-W60 123675-6
58088-C150 150 PSI (1034 kPa) KIT (CONBRACO) 92023-7 123675-7 58087-7 125 PSI (862 kPa) 123620-W125 123675-6
58088-W30 30 PSI (207 kPa) KIT (WATTS) 92023-8 123675-5 58087-8 160 PSI (1103 kPa) 123620-K160 123675-7
58088-W50 50 PSI (345 kPa) KIT (WATTS) 92023-9 123675-5 58087-9 40 PSI (276 kPa) 92015-45 123675-5
58088-W60 60 PSI (414 kPa) KIT (WATTS) 92023-10 123675-6
58088-W75 75 PSI (517 kPa) KIT (WATTS) 92023-11 123675-6
58088-W100 100 PSI (689 kPa) KIT (WATTS) 92023-12 123675-6
58088-W125 125 PSI (862 kPa) KIT (WATTS) 92023-13 123675-6
58088-W150 150 PSI (1034 kPa) KIT (WATTS) 92023-14 123675-7
58088-K160 160 PSI (1103 kPa) KIT (KUNKLE) 92023-15 123675-7
OTHER ACCESSORIES / KITS
92084-6
MOTORIZED SEQUENCING VALVE (Optional, not shown)
27086-1
ACTUATOR: SSOV w/o P.O.C. SWITCH – FRU Kit
64048
SSOV WITH PRESSURE REGULATOR – FRU Kit
Benchmark 1500 & 2000 Wiring Harnesses (not shown)
Part #
Description
Part #
Description
63057-1
HARNESS: BLOWER POWER
63220
HARNESS: I/O, 40 PIN RIBBON CABLE
63083-1
HARNESS: O2SENSOR
63221
HARNESS: I/O, 30 PIN RIBBON CABLE
63121
HARNESS: 12V POWER SOURCE
63226
HARNESS: OVERTEMP
63122
CABLE: GROUND #12
63227
HARNESS: OPERATING LIMIT
63134
VENT FAN POWER WIRE – DUAL FUEL ONLY
63229-2
HARNESS: THERMOCOUPLE
63150
HARNESS: FLAME ROD
63231
HARNESS: CONTROL POWER
63184
POWER BOX “INPUT POWER” CABLE
63232
HARNESS: I/O BOARD 12 VDC POWER
63185
POWER BOX “RETURN POWER” CABLE
63233
HARNESS: PLUG
63215-2
HARNESS: SENSOR (Blue)
63134
VENT FAN POWER WIRE – DUAL FUEL ONLY
63216-2
HARNESS: SHELL (Red)
63239
HARNESS: Dual Fuel Add-On – DUAL FUEL ONLY
63217-2
HARNESS: GAS TRAIN (Yellow)
65220
IGNITION CABLE
63218-2
A/F VALVE HARNESS (Green)
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark 1500 & 2000 Part List 4/29/2019
29437-TAB rev B Sheet 5 of 5

Benchmark Platinum with Edge Controller: Reference Manual
SECTION 3: BENCHMARK 1500 & 2000 PART LIST
OMM-0138_B• GF-212 • 7/16/2019 Technical Support •[phone] •Mon-Fri, 8 am - 5 pm EST Page 20 of 79
Benchmark 1500-2000 Standard Gas Train – NATURAL GAS
P/N 22314 rev C – 7/18/2018
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
123542
FLANGE 2" 125# 2"NPT
18
1
61002-11
LOW GAS PRESSURE SWITCH 3.6" W.C.
9
1
64048

ACTUATOR, SSOV w/ REGULATOR
21
1
97087-20
FLEX HOSE, 20"
10
2
12951-2
BUSHING, CONTROL BOX
23
1
63217-2
GAS TRAIN HARNESS (Not Shown)
11
3
92077
1/4" NPT MXF BRASS BALL VALVE
27
1
124150
VALVE, SSOV 1-1/2" NPT
13
4
9-22
PIPE PLUG, 1/4" NPT, STEEL
29
1
93382
2'' NPT CAP
16
1
99017
SNUBBER, PRESSURE, 1/4"
30
1
92006-7
VALVE, BALL BRASS 1-1/2" NPT
17
1
61002-12
HIGH GAS PRESSURE SWITCH 4.7" W.C.
31
1
9-294
UNION, 2" NPT 300#
Replacement Kit and/or Catalog number
