Watts tekmar 289 User manual

IOM-T-289
Installation, Operation and Maintenance Manual
Smart Boiler Control 289
Please read carefully before proceeding with
installation. Your failure to follow any attached
instructions or operating parameters may lead to the
product’s failure.
Keep this Manual for future reference.

2
Table of Contents
Important Safety Information .........................3
Radio Frequency Statement .........................4
Installation .......................................5
Installation Location .............................5
Wiring Schematic ...............................6
Wiring Instructions ..............................7
Testing the Sensor Wiring .........................9
User Interface ...................................12

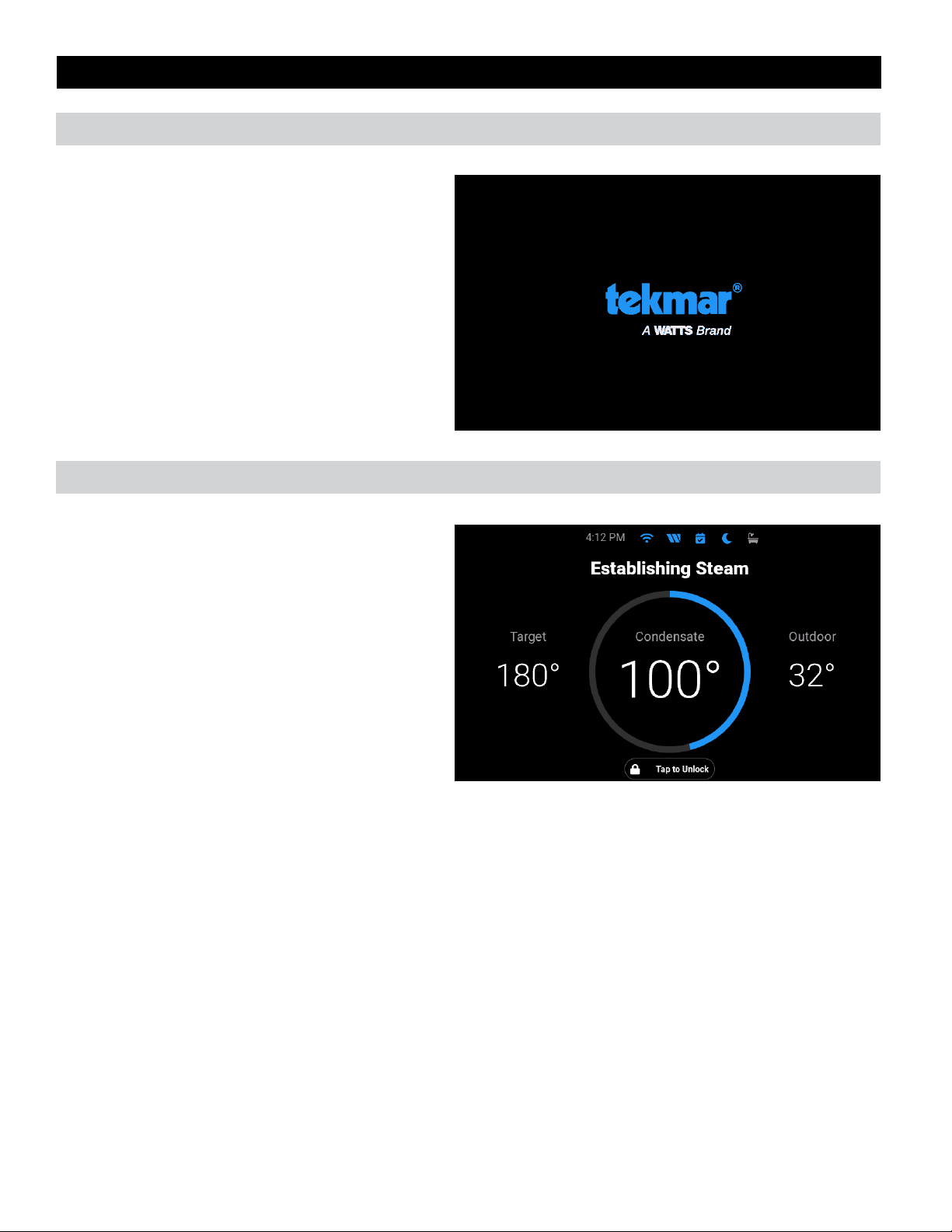

Power On ....................................12
Lock Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Home Screen .................................13
Status Icons ..................................13
System Inputs Screen...........................14
System Outputs Screen .........................14

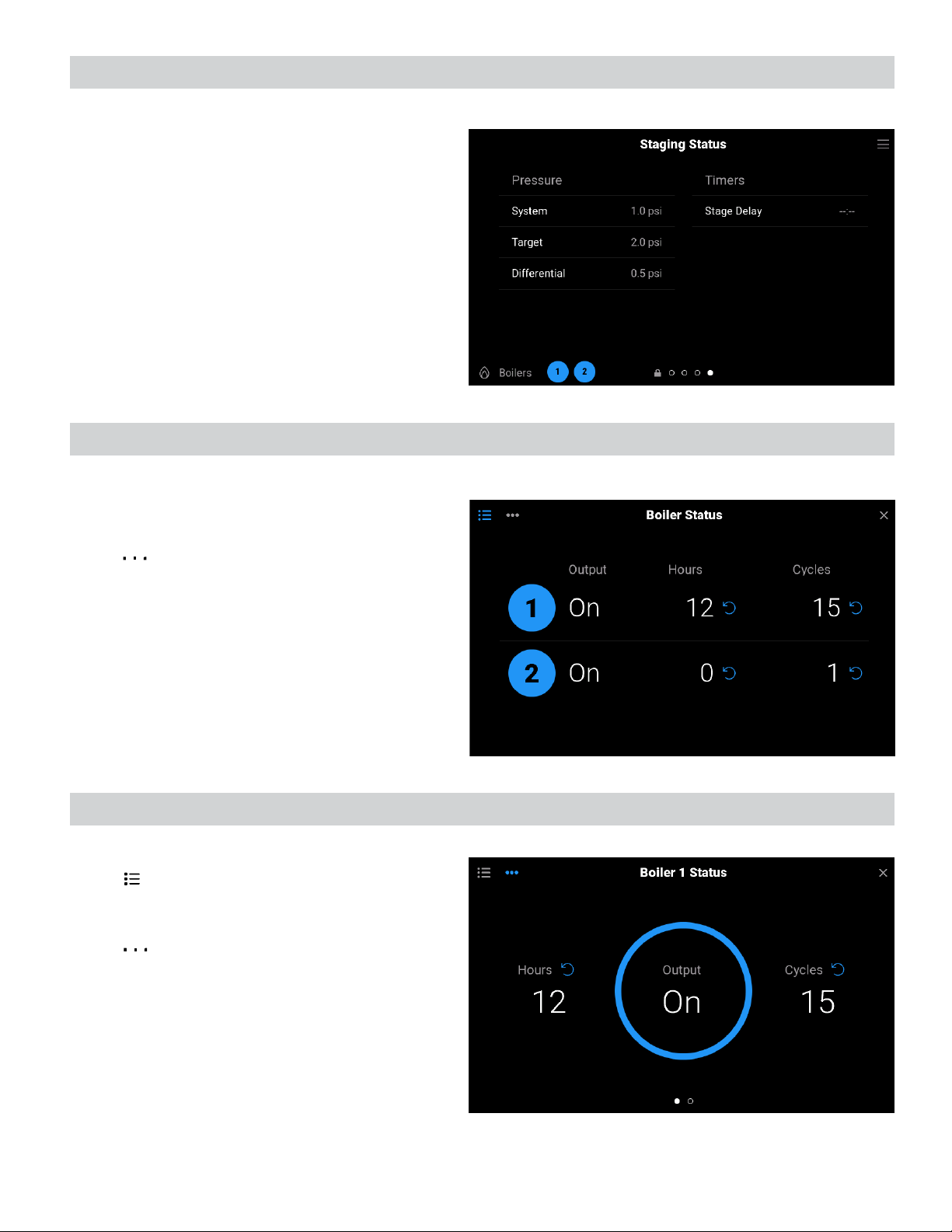

Staging Status ................................15
Boiler Status List Screen .........................15
Boiler Status Carousel Screen.....................15
Reset Boiler Hours or Cycles Screen................16
Menu Screen .................................16
Navigation....................................16
Menus .........................................17
Home Screen .................................17
Settings (1 of 5)................................18
Settings (2 of 5)................................19
Settings (3 of 5)................................20
Settings (4 of 5)................................21
Settings (5 of 5)................................22
Schedule Menu................................23
Notifications Menu .............................24
Overrides Menu ...............................24
About Menu ..................................25
Help Menu ...................................25
Sequence of Operation ............................26
Central Heating Operation........................26
Time and Date ................................29
Schedule.....................................30
Domestic Hot Water Operation ....................31
Combustion Air Damper Operation .................31
Boiler Operation ...............................31
Troubleshooting ..................................32
Errors and Alerts (1 of 3) .........................32
Errors and Alerts (2 of 3) .........................33
Errors and Alerts (3 of 3) .........................34
Technical Data ...................................36
Limited Warranty and Product Return Procedure .........36

3
Important Safety Information
It is your responsibility to ensure that this control is safely
installed according to all applicable codes and standards.
tekmar®is not responsible for damages resulting from
improper installation and/or maintenance.
To avoid serious personal injury and damage to the equipment:
• Read Manual and all product labels BEFORE
using the equipment. Do not use unless you
know the safe and proper operation of this
equipment.
• Keep this Manual available for easy access by
all users.
• Replacement Manuals are available at
tekmarControls.com
This is a safety-alert symbol. The safety alert
symbol is shown alone or used with a signal word
(DANGER, WARNING, or CAUTION), a pictorial
and/or a safety message to identify hazards.
When you see this symbol alone or with a signal
word on your equipment or in this Manual, be alert
to the potential for death or serious personal injury.
This pictorial alerts you to electricity, electrocution,
and shock hazards.
Double insulated.
This symbol identifies hazards which, if not
avoided, could result in death or serious injury.
This symbol identifies hazards which, if not
avoided, could result in minor or moderate injury.
This symbol identifies practices, actions, or
failure to act which could result in property
damage or damage to the equipment.
• Improper installation and operation of this control could
result in damage to the equipment and possibly even
personal injury or death.
• This control is not intended for use as a primary limit
control. Other controls that are intended and certified as
safety limits must be placed into the control circuit.
Do not attempt to service the control. There are no user
serviceable parts inside the control. Attempting to do so
voids warranty.

4
Radio Frequency Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his
own expense.
This device complies with part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The antenna used for this radio must be properly installed and maintained and must provide a separation distance of at least
7.9 inches (20 cm) from all persons.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de license. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre
le fonctionnement.

5
Installation
Installation Location
When choosing the location for the control, consider the following:
• Keep dry. Avoid potential leakage onto the control.
RH ≤ 90% to 104°F (40°C).
Non-condensing environment.
• Avoid contact with water and other liquids; failure to keep
dry may impact control’s operations.
• Do not expose to operating temperatures beyond 32-104°F
(0-40°C)
• Provide adequate ventilation.
• Keep away from equipment, appliances or other sources of
electrical interference.
• Provide easy access for wiring, viewing, and adjusting the
display screen.
• Mount approximately 5 ft. (1.5 m) off the finished floor.
• Locate the control near pumps and/or zone valves if possible.
• Provide a solid backing to mount the enclosure to. For
example: plywood, studs, etc
• Use the conduit knockouts provided on the upper, lower,
back and sides of the enclosure.

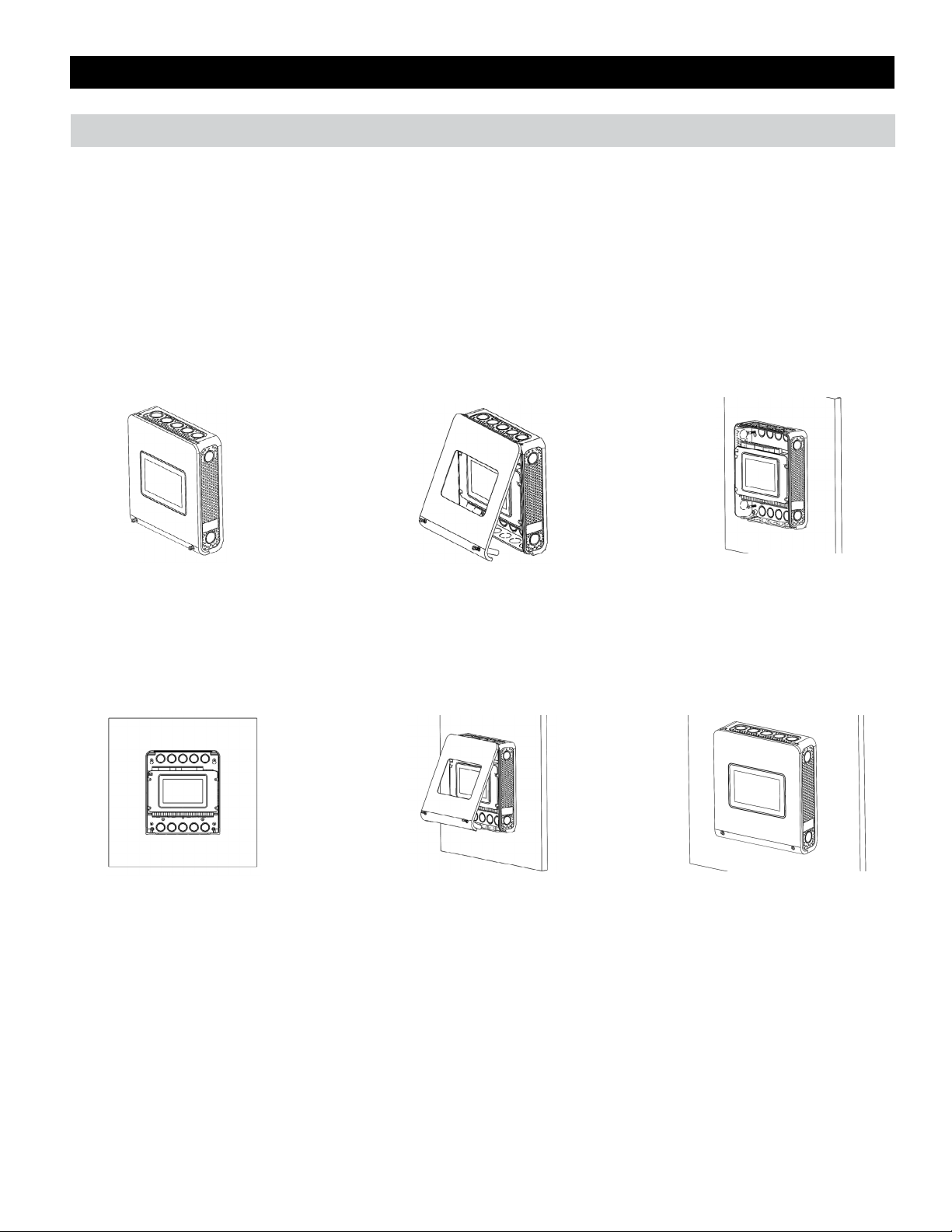

Use a Phillips screwdriver to remove
the two screws on the cover.
Pull the front cover towards you. The
top of the cover will pivot on a hinge.
Remove the cover by releasing the
pivot hooks.
Mount the enclosure to a wall using
#6 wood screws in the four mounting
holes. Use screw anchors if drilling
into masonry.
Use the 24 knock-outs to install
connecting conduits and cabling to
the control.
To install the cover, hook the top
of the cover to the enclosure, then
pivot the bottom to shut.
Use a Phillips screwdriver to fasten
the two bottom screws.

6
Wiring Schematic
This section provides a wiring schematic for the control.
• Before wiring, ensure all power is turned off and take all
necessary precautions.
• Sensor wiring may be extended to a total length of
500 feet (152 m) using 18 AWG solid conductor wire.
• Strip all wiring to a length of 3⁄8in. or 10 mm for all terminals.
• A circuit breaker or power disconnect that provides power
to the control should be located nearby and clearly labeled.
• Refer to the current and voltage ratings at the back of this
brochure before connecting devices to this control.
• Only qualified personnel should install or service the control.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGER
DANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT LNG
As with any electrical product, care should be taken to
guard against the potential risk of fire, electric shock, and
injury to persons

7
Wiring Instructions
This section explains how to wire individual devices to the Smart Steam Control 289. Please refer to technical data table on pg 36
for sensors that are included in the standard packaging of the Smart Steam Control 289.

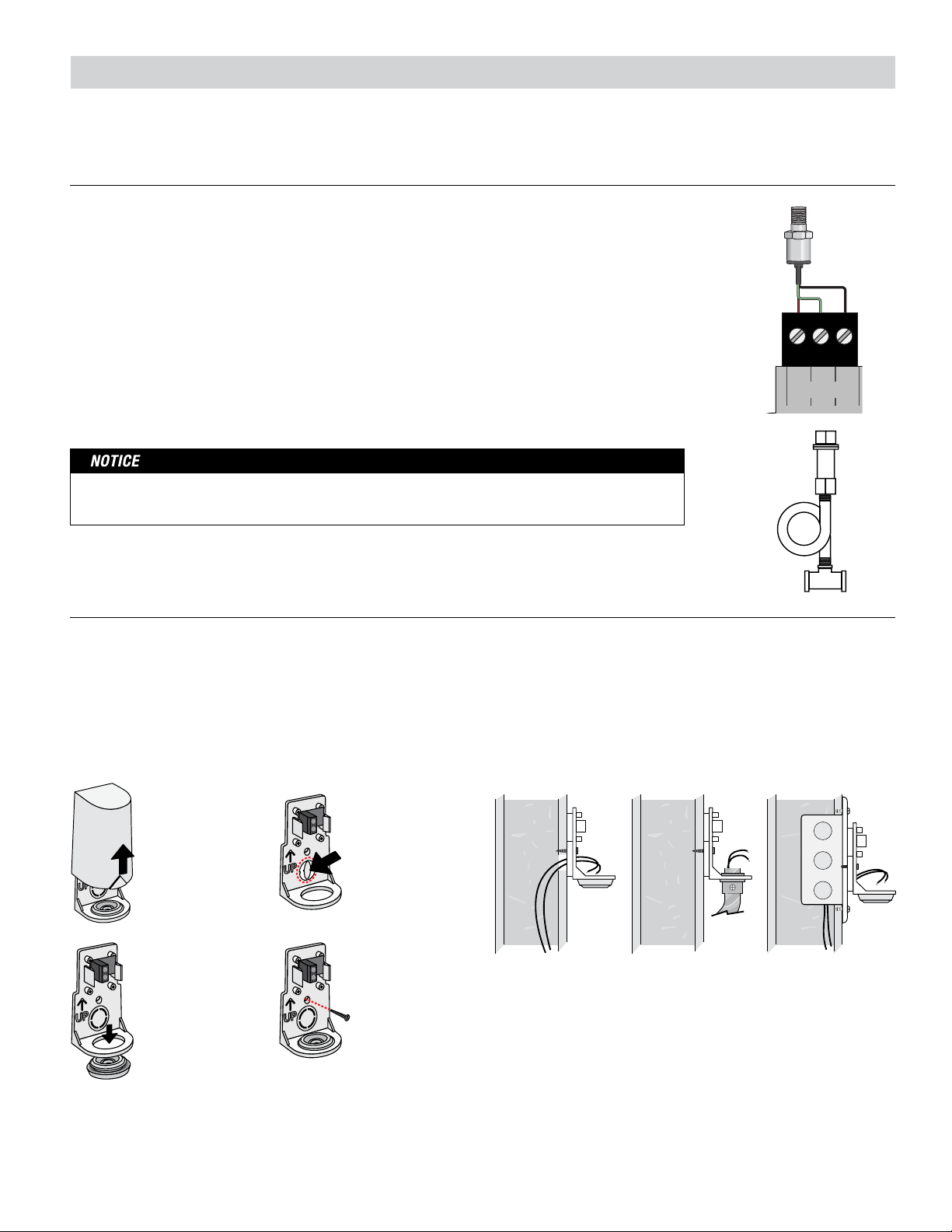

Pressure Sensor 089 (Terminals 1, 2, 3)
An optional Pressure Sensor 089 (sold separately) can connect to the 289 to provide staging
for a second steam boiler and to monitor steam pressure up to 15 psi (104 kPa). The pressure
sensor requires the installation of the following on the steam riser pipe:
• Tee with a ¼"-18 NPT port
• ¼" brass pigtail
• ¼" x 1⁄8" reducing elbow
Thread the 089 into the reducer coupling. The pigtail protects the sensor diaphragm from
premature failure.
• Connect the Red reference voltage wire to terminal 1.
• Connect the Green pressure signal wire to terminal 2.
• Connect the Black power common wire to terminal 3.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGER
DANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens
Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT LNG
The Pressure Sensor 089 must be installed downstream of a ¼" steam gauge siphon (pigtail)
to prevent premature failure.
Outdoor Sensor 070 (Terminals 4, 5)
• The 070 can be mounted directly onto a wall with the
wiring entering through the back or bottom of the enclosure.
Do not mount the 070 with the conduit knockout facing
upwards as rain could enter the enclosure and damage
the sensor.
• In order to prevent heat transmitted through the wall from
affecting the sensor reading, it may be necessary to install
an insulating barrier behind the enclosure.
• The 070 should be mounted on a wall which best represents
the heat load on the building (a northern wall for most buildings
and a southern facing wall for buildings with large south
facing glass areas). The 070 should not be exposed to heat
sources such as ventilation or window openings.
• The 070 should be installed at an elevation above the
ground that will prevent accidental damage or tampering.
Remove
cover by
sliding
upwards
away from
the base.
S1
S1
To wire from
the back,
remove the
knock-out in
the sensor
base.
S1
S1
If using
conduit,
remove the
flexible plug
from the base
bottom.
S1
S1
Attach the
base to
the wall,
soffit or
electrical
box.

8
• Connect 18 AWG or similar wire to the two terminals provided
in the enclosure and run the wires from the sensor to the
control. Do not run the wires parallel to telephone or power
cables. If the sensor wires are located in an area with strong
sources of electromagnetic interference (EMI), shielded cable
or twisted pair should be used or the wires can be run in a
grounded metal conduit. If using shielded cable, the shield
wire should be connected to the Com terminal on the
control and not to earth ground.
• Replace the cover of the sensor enclosure.
• Connect the 2 wires from the outdoor sensor to the Out
Sens terminals on the 294 (terminals 4 and 5).
S1
S1
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGERDANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT LNG
Mounting the Universal Sensors
These sensors are designed to mount on a pipe or in a
temperature immersion well.
The Universal Sensor should be placed downstream of a pump
or after an elbow or similar fitting. This is especially important if
large diameter pipes are used as the thermal stratification within
the pipe can result in erroneous sensor readings. Proper sensor
location requires that the fluid is thoroughly mixed within the
pipe before it reaches the sensor.
Strapped to Pipe
The Universal Sensor can be strapped directly to the pipe
using the cable tie provided. Insulation should be placed
around the sensor to reduce the effect of air currents on the
sensor measurement.
Immersion Well
If a Universal Sensor is mounted onto 1" diameter L type cop-
per pipe, there is approximately an 8 second delay between a
sudden change in water temperature and the time the sensor
measures the temperature change. This delay increases con-
siderably when mild steel (black iron) pipe is used. In general,
it is recommended that a temperature well be used for steel
pipe of diameter greater than 11⁄4". Temperature wells are also
recommended when large diameter pipes are used and fluid
stratification is present. If the well is not a snug fit on the sen-
sor tube, use the heat transfer paste. Apply paste to the sides
of the sensor and place a pea-sized globule on the sensor tip.
Push the sensor into the well and when it bottoms out, press
firmly. The paste will be forced up the sides of the well.
Conduit Connection
The Universal Sensor and Universal Sensor Enclosure 080
(sold separately) are specifically designed to mount onto a
3⁄8" ID temperature well that is supplied with an end groove.
To install the well, plumb a ‘tee’ into the pipe and fix the well
into the ‘tee’. The 080 enclosure has a 7⁄8" back knockout that
must be removed and fitted over the temperature well. The
Universal Sensor is then inserted into the well and the retaining
clip supplied with the enclosure is snapped onto the well end
groove. If the well has a threaded end, the installer must sup-
ply a standard threaded conduit retaining ring. The two wires
from the sensor are connected to the terminal block provided
in the enclosure. The other side of the terminal block is used to
connect wires from the control.
Bottom of
Enclosure 080
Universal
Sensor
Cable Tie
Sensor
Well
Retaining
Clip
Universal
Sensor
Condensate Sensor (Terminals 6, 7)
The included Universal Sensor 071 measures the condensate return temperature. This sensor should be
installed on the return on the furthest radiator or on the condensate return line in the mechanical room.
• Connect the wires to the condensate sensor terminals 6 and 7.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGERDANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT LNG

9
Flue Sensor
An optional Flue Sensor 069 can be installed on the boiler flue to measure the flue gas temperature. It is not
possible to have both a flue sensor and an indoor sensor installed at the same time as they share the same
auxiliary sensor input.
• Connect the wires to the Aux sensor terminals 8 and 9.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGER
DANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT
Indoor Sensor
An optional Indoor Sensor 076, 077, or 084 can be installed to measure the ambient temperature in a hallway
or apartment unit. It is not possible to have both a flue sensor and an indoor sensor installed at the same time
as they share the same auxiliary sensor input.
• Connect the wires to the Aux sensor terminals 8 and 9.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGERDANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT LNG
TEMPERATURE RESISTANCE TEMPERATURE RESISTANCE TEMPERATURE RESISTANCE TEMPERATURE RESISTANCE
°F °C Ω°F °C Ω°F °C Ω°F °C Ω
-50 -46 490,813 20 -7 46,218 90 32 7,334 160 71 1,689
-45 -43 405,710 25 -4 39,913 95 35 6,532 165 74 1,538
-40 -40 336,606 30 -1 34,558 100 38 5,828 170 77 1,403
-35 -37 280,279 35 229,996 105 41 5,210 175 79 1,281
-30 -34 234,196 40 426,099 110 43 4,665 180 82 1,172
-25 -32 196,358 45 722,763 115 46 4,184 185 85 1,073
-20 -29 165,180 50 10 19,900 120 49 3,760 190 88 983
-15 -26 139,403 55 13 17,436 125 52 3,383 195 91 903
-10 -23 118,018 60 16 15,311 130 54 3,050 200 93 829
-5 -21 100,221 65 18 13,474 135 57 2,754 205 96 763
0-18 85,362 70 21 11,883 140 60 2,490 210 99 703
5-15 72,918 75 24 10,501 145 63 2,255 215 102 648
10 -12 62,465 80 27 9,299 150 66 2,045 220 104 598
15 -9 53,658 85 29 8,250 155 68 1,857 225 107 553
Testing the Sensor Wiring
A good quality test meter capable of measuring up to 5,000 kΩ
(1 kΩ = 1000 Ω) is required to measure the sensor resistance.
In addition to this, the actual temperature must be measured
with either a good quality digital thermometer, or if a thermom-
eter is not available, a second sensor can be placed alongside
the one to be tested and the readings compared.
First measure the temperature using the thermometer and
then measure the resistance of the sensor at the control.
The wires from the sensor must not be connected to the con-
trol while the test is performed. Using the chart below, estimate
the temperature measured by the sensor. The sensor and
thermometer readings should be close. If the test meter reads
a very high resistance, there may be a broken wire, a poor
wiring connection or a defective sensor. If the resistance is very
low, the wiring may be shorted, there may be moisture in the
sensor or the sensor may be defective. To test for a defective
sensor, measure the resistance directly at the sensor location.
Do not apply voltage to a sensor at any time as damage
to the sensor may result.
Call customer service if you need assistance with technical details.

10

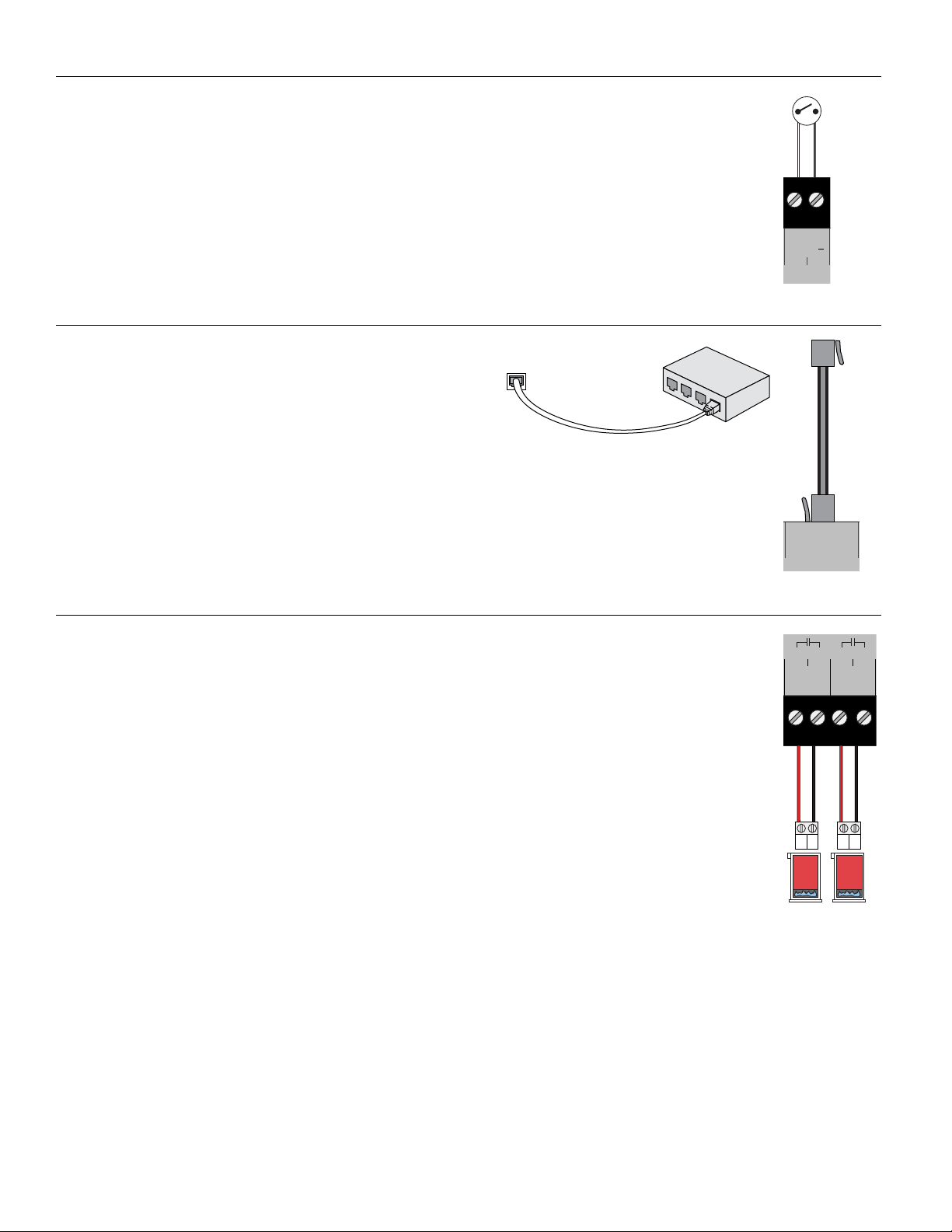

DHW Call (Terminals 10, 11)
If the DHW sensor option is not used, a call for indirect domestic hot water can come from an aquastat
connected to terminals 10 and 11. The DHW Call can be volt free or up to 24 V (ac).
• Connect the DHW Call terminals 10 and 11 to the DHW tank aquastat.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGERDANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens
Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT LNG
Ethernet (Terminal 12)
The control can connect to the Internet through 10 or 100 Mbps
Ethernet.
• Connect the Ethernet RJ-45 port on terminal 12 to the build-
ing Local Area Network (LAN) router or network switch using
Category 5 cable.
tekmar is not responsible for failure of alerts due to connectivity
issues, power issues, or improper installation.
RJ45
Boiler Enable (Terminals 13 to 16)
A steam boiler enable requiring up to 230 V (ac) 5 A, 1/3 hp can be enabled through the TT contacts.
• For Boiler 1 connect the Boiler Enable terminals 13 and 14 to the boiler TT contacts.
• For Boiler 2 connect the Boiler Enable terminals 15 and 16 to the boiler TT contacts.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGERDANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT LNG
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGER
DANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT
LNG

11
Combustion Air (C.A.) Damper (Terminals 17, 18)
A C.A. damper requiring up to 230 V (ac) 5 A, 1/3 hp can be switched through terminals
17 and 18.
For 24 V(ac) actuators:
• Connect the power supply red (R) to terminal 17.
• Connect a wire from terminal 18 to the R on the combustion air damper.
• Connect the C on the combustion air damper to the power source common C.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGER
DANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
TT TT
C
G
R
RCG
For 120 V(ac) actuators:
• Connect the power Line (L) to terminal 17.
• Connect a wire from terminal 18 to the Line on the combustion air damper.
• Connect the neutral (N) on the combustion air damper to the power source common C.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGER
DANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
TT TT
N
G
L
LNG
Input Power (Terminals 19, 20
Provide a 15 Amp circuit for the input power.
• Connect the 115 V (ac) line wire (L) to terminal 19.
• Connect the neutral wire (N) to terminal 20.
FCC ID: 2AHQR-11500A
Contains FCC ID:
2AC7Z-ESP32WROOM32E
QOQMGM12P0
Contains IC ID:
21098-ESPWROOM32E
5123A-MGM12P0
CAN ICES-3 (A)/NMB-3(A)
Class 2 Circuits
Input Power:
115 V (ac) ±10%, 60 Hz, 4 W
Relays:
230 V (ac), 5 A, 1/3 hp
Calls:
24 V (ac) or Short
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Use Copper Conductors Only
Wi-Fi: 802.11b/g/n, 2.4GHz
12
10/100
Ethernet
14
13
Boiler 1
Enable
1615
Boiler 2
Enable
1817
Comb
Air Relay
2019
Power
N
DANGER
DANGER
To Reduce the Risk of Electric
Shock - Do not connect to a
circuit operating at more than
150 volts to ground.
Pour réduire les risques
d'électrocution choc - ne pas
raccorder à un circuit
fonctionnant à plus de 150 V à
la terre.
L
54
Outdoor
76
Cond
Sensor
98
Aux
Sensor
1110
DHW
231
Ref In Gnd
Pressure Sens Call
+
Sensor
H2065A
Smart Steam Control 289
For product literature:
Pour la documentation
du produit:
tekmarControls.com
tektra 1150-02
Designed and assembled
in Canada
N
G
L
TT TT

12
User Interface
Power On
• When first powered on, the tekmar logo appears.
• If the display does not turn on, please contact your tekmar
sales representative or technical support for assistance.
Lock Screen
• When first powered on, the tekmar logo appears
followed by the lock screen.
• By default the control is not locked and does not require
a passcode.
• Press “Tap to Unlock”, and enter your passcode
if necessary.
• A custom passcode can be set through the Security
menu. This is an optional feature.
• If the custom passcode is lost, the master passcode
is 0289.

13
Home Screen
Press to
Go to
Menu
Status Icons
Press to
Go to Boiler
Status and
Stats
Swipe Right
to Lock
Swipe Left for
Inputs and
Status
Status Icons
ETHERNET
Blue indicates connection to Ethernet.
WI-FI
Blue indicates connection to Wi-Fi.
WATTS ONSITE
Blue indicates connection to the Watts®
OnSite cloud service.
SCHEDULE
Blue indicates the programmable
schedule is on.
SUN
When displayed, it indicates the
schedule is in the occupied period.
MOON
When displayed, it indicates the sched-
ule is in the unoccupied period.
DHW
Blue indicates that there is a domestic
hot water call.
NOTIFICATIONS
When displayed, it indicates an error or
warning notification is present.
Illuminated Blue if Boiler in On

14
System Inputs Screen
Heating Calls
• The Room Target displays the desired room temperature
when an indoor sensor is available.
• Early Start is in effect when the dot is green. This is available
when an indoor sensor is available.
• Boost is in effect when the dot is green. This is available
when there is no indoor sensor.
• Smart Setback is in effect when the dot is green.
• Domestic Hot Water dot is green when there is a DHW
heating call.
Sensors
• The outdoor temperature is used to calculate the heat on
time of the steam boiler using outdoor air reset.
• The optional condensate return temperature is used to
determine when steam is established at the furthest radiator.
• The optional indoor temperature is used to provide
indoor temperature feedback for the heat on time.
• The optional pressure sensor is used for monitoring and
operating the second stage boiler.
System Outputs Screen
• When an output is turned on (relay closed), the dot
is green.
• When an output is turned off (relay open), the dot
is gray.
• When Warm Weather Shut Down (WWSD) is in effect,
the dot is green.
• Manual override are displayed. In normal operation the
override will display “AUTO”.

15
Staging Status
• The staging status is only available when the control is
configured to operate two boilers.
• The system pressure displays the pressure sensor reading.
• The pressure target is the setpoint that the second
steam boiler is shut off.
• The pressure differential is amount of pressure drop
from the target at which the second boiler turns on.
• The stage delay is a timer that must elapse before the
second boiler is turned on once the pressure differential
condition has been met.
Boiler Status List Screen
• Press ellipsis to go to the Boiler Status Carousel
screen
• The circle in blue indicates that the boiler is firing. An
empty circle indicates off.
• The boiler run time hours is displayed. Press the rotate
circle button to zero the hours.
• The boiler on-off cycles are displayed. Press the rotate
circle button to zero the cycle count.
Boiler Status Carousel Screen
• Press to go to the Boiler Status List Screen
• Swipe left to view higher number boilers
• Swipe right to view lower number boilers
• Press ellipsis to go to the Boiler Status Carousel
screen
• The circle in blue indicates that the boiler is firing. An
empty circle indicates off.
• The boiler run time hours is displayed. Press the rotate
circle button to zero the hours.
• The boiler on-off cycles are displayed. Press the rotate
circle button to zero the cycle count.

16
Reset Boiler Hours or Cycles Screen
• Press check mark to zero the hours or cycle count.
• Press X to cancel.
Menu Screen
Navigation
BACK
Go back a level without saving
HOME
Go to Home screen without saving
SAVE
Saves the new setting value
CLEAR
Clears the boiler hours or cycles to 0
SKIP
Skip step in Setup Wizard or Wi-Fi Setup
BEGIN
Begin the Setup Wizard.
NEXT
Go to the next step
SAVE
CLEAR
SKIP
BEGIN
NEXT

17
Menus
Home Screen
Parameter Range Description
HOME SCREEN
CONDENSATE -32 to 266°F
(-55.0 to 65.0°C)
The condensate return temperature.
OUTDOOR -67 to 149°F
(-35.0 to 130°C)
The outdoor air temperature.
TARGET 100 to 220°F
(38.0 to 104.5 °C)
The condensate return must reach the steam established target to the Heat On cycle.
PRESSURE 0.0 to 15.0 psi
(0 to 105 kPa)
The steam system pressure.
TIME REMAINING
(HEAT ON)
00:00:00 to
02:00:00
The time that the boiler is on during the heating cycle.
TIME REMAINING
(HEAT OFF)
00:00:00 to
02:00:00
The time that the boiler is off during the heating cycle.
SYSTEM INPUTS
ROOM TARGET 35 to 100°F
(1.5 to 38.0°C)
The desired room temperature when an indoor sensor is installed.
BOOST Off or On Dot is green when Boost is active.
EARLY START Off or On Dot is green when Early Start is active.
SMART SETBACK Off or On Dot is green when Smart Setback is active.
DOMESTIC HOT
WATER Off or On
Dot is green when DHW call is active.
OUTDOOR -67 to 149°F
(-35.0 to 130°C)
The outdoor air temperature.
CONDENSATE -32 to 266°F
(-55.0 to 65.0°C)
The condensate return temperature.
INDOOR 35 to 100°F
(1.5 to 38.0°C)
The indoor sensor temperature.
PRESSURE 1.0 to 15.0 psi
(0 to 105 kPa)
The steam system pressure.
SYSTEM STATUS
COMBUSTION AIR Off or On Dot is green when combustion air damper is open.
WARM WEATHER
SHUT DOWN Off or On
Dot is green when warm weather shut down is in effect.
OVERRIDE Auto, Hand, Max
Heat, Off
The manual override status.

18
Parameter Range Description
STAGING STATUS
SYSTEM 0.0 to 15.0 psi
(0 to 105 kPa)
The system steam pressure.
TARGET 1.0 to 15.0 psi
(0 to 105 kPa)
The pressure that shuts off the second boiler.
DIFFERENTIAL 0.1 to 5.0 psi
(7 to 35.0 kPa)
The pressure below the target to turn on the second boiler.
STAGE DELAY 0.0 to 40.0
minutes
The time delay must elapse to 0.0 to turn on the second boiler.
BOILER STATUS
BOILER 1 OR 2
HOURS
0 to 999999
hours
The number of hours the boiler has fired.
BOILER 1 OR 2
CYCLES
0 to 999999
cycles
The number of boiler on/off cycles.
Settings (1 of 5)
Parameter Range Description
UNITS
TEMPERATURE °F or °C
Default: °F
Units for display of temperature.
PRESSURE psi or kPa
Default: psi
Units for display of pressure.
DATE AND TIME
24-HOUR TIME Off or On
Default: Off
Selects a 24 hour time clock.
SET
AUTOMATICA LLY
Off or On
Default: On
Automatic synchronizes the time with the Internet.
TIME ZONE
North American Time
Zones
Default: Eastern
Select from Newfoundland, Atlantic, Eastern, Central, Mountain, Pacific, Alaska,
Hawaii time zones.
DATE Month, Day, Year Set the current date. Available when setting time manually.
TIME Hours, Minutes, AM/PM Set the current time. Available when setting time manually.
DAYLIGHT
SAVINGS
Off or On
Default: On
Select if daylight savings time is locally observed.
INTERNET
CONNECTION
TYPE
Off, Ethernet, Wi-Fi
Default: Off
Select the Internet connection.
WI-FI NETWORK Scans for all available
networks
Select the desired Wi-Fi network SSID. Then enter the Wi-Fi password.
WI-FI SECURITY
TYPE
None, WPA2-Personal,
WPA2-Enterprise
Default: WPA2-Personal
Select the type of Wi-Fi security. WPA2-Enterprise requires a RADIUS authentication
server using PEAPv0/EAP-MSCHAPv2. This is available when setting the
Wi-Fi manually.
WI-FI USER 32 character name
User the WPA2-Enterprise user name. Available when configuring Wi-Fi to use
WPA2-Enterprise.

19
Settings (2 of 5)
Parameter Range Description
WI-FI PASSWORD 32 character password Enter the Wi-Fi password. Available when configuring a Wi-Fi network.
WATTS ONSITE Register or Deregister Register the control with Watts OnSite to use the web or mobile apps.
IP
CONFIGURATION
DHCP or Static
Default: DHCP
Select if the control should receive an automatic IP address from the router DHCP
server or use a static IP address.
IP ADDRESS
0.0.0.0 to
255.255.255.255
Default: 192.168.0.1
Set the static IP address. Available when IP Configuration is Static.
SUBNET MASK
0.0.0.0 to
255.255.255.255
Default: 255.255.255.0
Set the static IP address. Available when IP Configuration is Static.
ROUTER
0.0.0.0 to
255.255.255.255
Default: 192.168.1.1
Set the router or gateway IP address. Available when IP Configuration is Static.
DNS 1
0.0.0.0 to
255.255.255.255
Default: 0.0.0.0
Set the control’s primary DNS. 0.0.0.0 uses the factory default DNS servers.
DNS 2
0.0.0.0 to
255.255.255.255
Default: 0.0.0.0
Set the control’s secondary DNS. 0.0.0.0 uses the factory default DNS servers.
Parameter Description
INTERNET INFO
Use this menu to troubleshoot connectivity to the local area network and Internet.
TIME Coordinated Universal Time
SSID Wi-Fi network name
BSSID Router’s ID number
SECURITY None, WPA2 Personal, WPA2 Enterprise
SIGNAL STRENGTH Wi-Fi signal strength
MAC MAC address of Wi-Fi or Ethernet adapter
IP ADDRESS Control’s IP address
SUBNET MASK Control’s IP subnet
GATEWAY Router’s IP address
DNS1 Control’s DNS
DNS2 Control’s DNS
INTERNET Internet connectivity status
IOT Watts cloud status
ID Control’s ID number

20
Settings (3 of 5)
Parameter Range Description
HEATING CALLS > CENTRAL HEATING
ROOM
OCCUPIED
35 to 100°F
(2.0 to 38.0°C)
Default: 70°F (21.0°C)
Set the desired room air temperature during the occupied periods.
ROOM
UNOCCUPIED
35 to 100°F
(2.0 to 38.0°C)
Default: 65°F (18.5°C)
Set the desired room air temperature during the unoccupied periods.
This item is only available when Schedule > Device Schedule is On.
BOILER START
PERCENTAGE
0 to 50%
Default: 0%
Set the starting boiler run time percent for the heating curve.
BOILER DESIGN
PERCENTAGE 0 to 100%
Set the boiler run time percentage on the coldest day of the year.
OUTDOOR START
TEMPERATURE
35 to 100°F
(2.0 to 38.0°C)
Default: 70°F (21.0°C)
Set the starting outdoor temperature for the heating curve.
OUTDOOR DESIGN
TEMPERATURE
-60 to 45°F
(-51.0 to 7.0°C)
Default: 10°F (-12.0°C)
Set the coldest outdoor air temperature for the heating curve for the coldest day
of the year.
AUTO CYCLE Off or On
Default: Off
Select if the control should automatically determine the cycle length.
MANUAL CYCLE 20 to 100 minutes
Default: 60 minutes
Manually set the cycle length.
WARM WEATHER
SHUT DOWN
Off or On
Default: Off
Select if the control should shut down the central heating based on the outdoor
air temperature.
WARM WEATHER
SHUT DOWN
OCCUPIED
35 to 100°F
(2.0 to 38.0°C)
Default: 70°F (15.5°C)
Set the outdoor air temperature at which the central heating is shut off during the
occupied period.
WARM WEATHER
SHUT DOWN
UNOCCUPIED
35 to 100°F
(2.0 to 38.0°C)
Default: 60°F (21.0°C)
Set the outdoor air temperature at which the central heating is shut off during the
unoccupied period.
HEATING CALLS > DOMESTIC HOT WATER
DHW HEATING Off or On
Default: On
Select if the control responds to domestic hot water heating calls.
DHW UNOCCUPIED Off or On
Default: Off
Select if the DHW tank is heated during the unoccupied period.
BOILER MENU (SAME FOR BOILER 1 AND 2)
BOILER AVAILABLE Off or On
Default: Off
Select if the boiler is available as part of the firing sequence. The boiler should be
set Off if not in use or the boiler is off line for maintenance.
FIRE DELAY 10 to 180 seconds
Default: 30 seconds
Set the fire delay time. This is the time duration from when the control provides an
enable signal to when the boiler completes ignition.
BOILER HIGH
OUTPUT
10 to 9990 MBTU/h
Default: 250 MBTU/h
Set the boiler burner’s BTU output at full fire. Units are in thousands of BTUs per hour.
BOILER FUEL NG Gas, LP Gas, Oil,
Electric, Wood
Set the boiler’s fuel type.
