Wave Idea Bitstream 3X User manual

AN003 : Bitstream 3X – Mackie/Logic control emulation
Table of contents
Requirements........................................................................................................................................2
Overview of the Mackie/Logic control available controls................................................................... 2
List of controls emulated by the Bitstream X................................................................................
Entering the Mackie/Logic control mode.............................................................................................
Leaving the Mackie/Logic control mode............................................................................................. 4
Emulation in details.............................................................................................................................. 4
MIDI exclusive systems...................................................................................................................4
Display information......................................................................................................................... 4
Emulated controls............................................................................................................................ 5
Example using Ableton Live 5 / 6........................................................................................................ 8
Example using Logic Pro/Express V7................................................................................................11

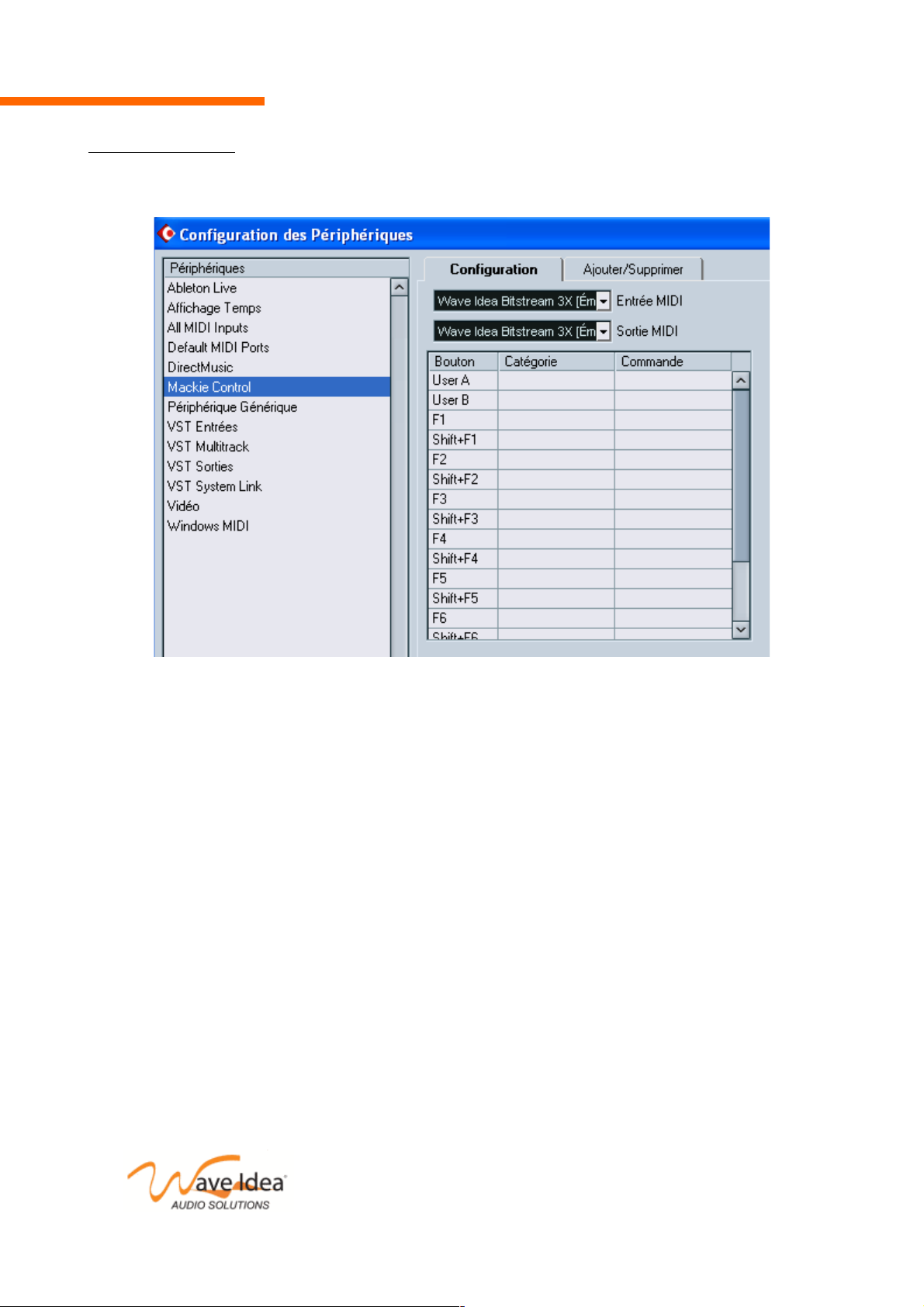

Example using Cubase SX ................................................................................................................ 12
Downloading the Mackie/Logic control library................................................................................. 15
Download and Install the configuration software..........................................................................15
Setup the configuration software to communicate with the Bitstream X.................................... 15
Download the global and realtime parameters to the Bitstream X.............................................. 17
Download the whole assignments to the Bitstream X................................................................. 17
MIDI parameters of the Mackie control library version ................................................................. 19
www.waveidea.com
Rev 1.5 - Page 1

AN003 : Bitstream 3X – Mackie/Logic control emulation
The purpose of this application note is to describe the implementation of the Mackie/ ogic control emulation
in the Bitstream 3X
Requirements
This document only concerns owners of Bitstream 3X featuring built-in ROM V1.6 or higher, for older
versions, please contacts Wave Idea in order to know how to get an up to date firmware version.
To check Bitstream 3X ROM version, please refer to the user’s manual.
It is also necessary to download the Mackie_control_v3.bs3 library file to the Bitstream 3X (download is done
using the Bitstream 3X configuration software)
See the end of this document to know how to program the Bitstream 3X with the Mackie library file using the
configuration software.

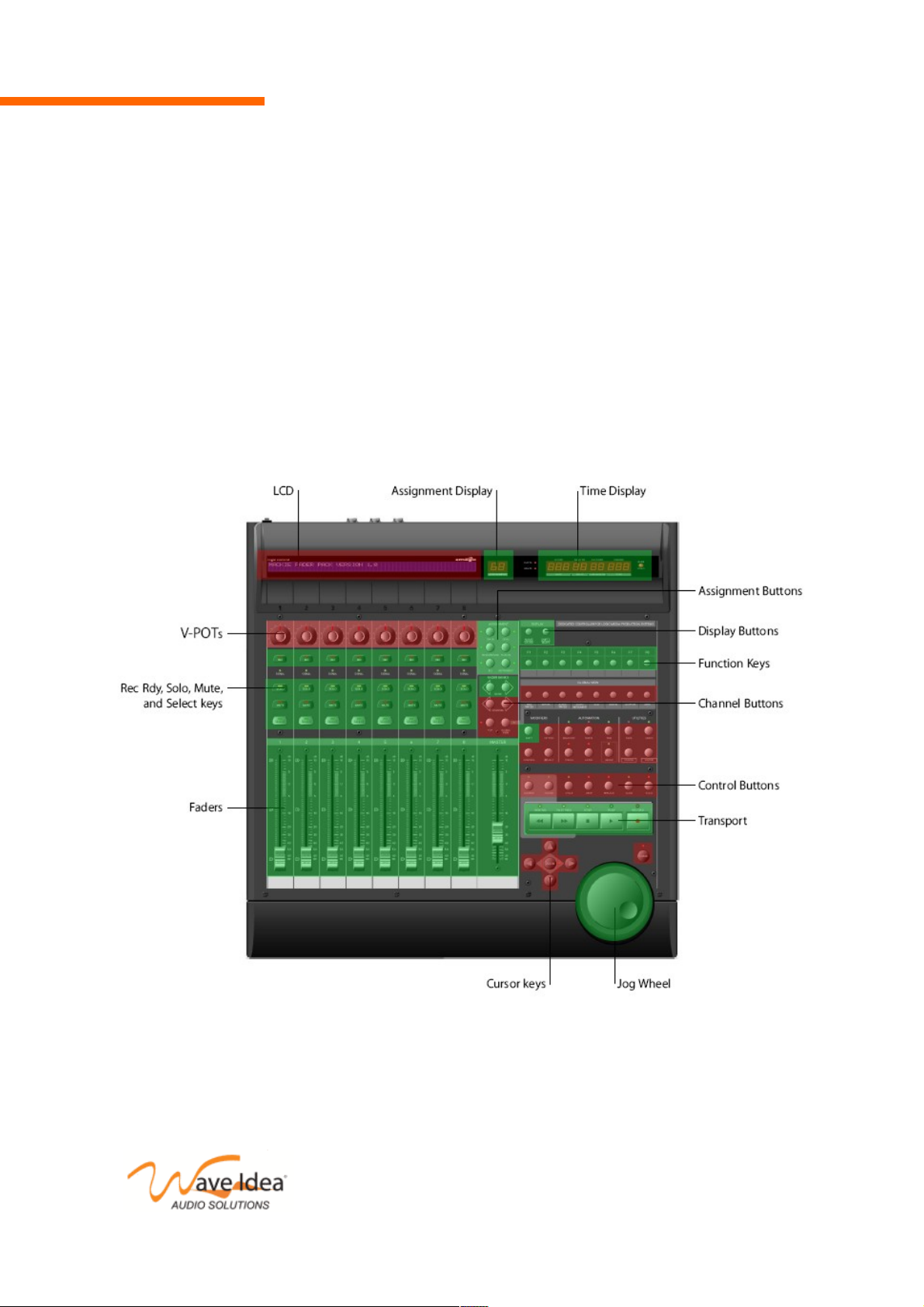

Overview of the Mackie/Logic control available controls
The red areas are currently not emulated by the Bitstream 3X (some of them should be emulated in future
firmware versions).
The green areas are emulated by the Bitstream 3X.
www.waveidea.com
Rev 1.5 - Page 2

AN003 : Bitstream 3X – Mackie/Logic control emulation
List of controls emulated by the Bitstream 3X
Mackie control itstream 3X control Emulation
CD - -
Assignment display Display √
Time display Display √
V-pots - -
V-select buttons Programmable buttons (group 4) √
Assignment buttons Programmable buttons (group 5) √
Display buttons Programmable buttons (group 6) √
Function keys Programmable buttons (group 7) √
Fader banks /R Group buttons √
Channel buttons - -
Control buttons - -
Transport buttons Transport buttons √
Jog wheel Endless encoder (while encoder button pressed) √
Cursor keys - -
Faders 1-8 Faders √
Rec/Rdy buttons Programmable buttons (group 0) √
Solo buttons Programmable buttons (group 1) √
Mute buttons Programmable buttons (group 2) √
Select buttons Programmable buttons (group 3) √
Master fader Cross-fader √
Faders feedback Faders with hook mode enabled √
In addition to the above controls, the Bitstream 3X emulates the different SYSEXs received and transmitted
by the Mackie/ ogic Control to perform connection with the Host computer.
From the firmware version 1.6 and higher, the Mackie control communication is done on MIDI Out 1 and
USB Out 1, while all other controls of the Bitstream 3X are generating standard Ccs on MIDI Out 2 and USB
Out 2.
Entering the Mackie/Logic control mode
To Enter into the Mackie control emulation operating mode, simply press the Bitstream 3X “mode” button
until the CD displays “Mackie Control”.
To Enter into the ogic control emulation operating mode, simply press the Bitstream 3X “mode” button until
the CD displays “ ogic Control”.
The following screen copy indicates the new displayed parameters while the Bitstream X is in
Mackie control mode
www.waveidea.com
Rev 1.5 - Page
Mackie control mode
and individual
controls strings
8 channels
metering
Master level
Assignment
display (2 digits)
Time display
(10 digits)

AN003 : Bitstream 3X – Mackie/Logic control emulation
All the other information displayed on the above screen are common to the other Bitstream 3X operating
modes, these other displayed parameters are described in the Bitstream 3X user manual.
Please note the Bitstream 3X must contain the Mackie_control_V3.bs3 library file to properly emulate the
Mackie/ ogic control.
Leaving the Mackie/Logic control mode
To exit from the Mackie or ogic control emulation operating mode, simply press the Bitstream 3X “mode”
button until the CD displays another operating mode of the Bitstream 3X.
Emulation in details
Here is a list and explanation of the Mackie/ ogic control emulation by the Bitstream 3X.
All the following controls are sent/received on MIDI Out 1 and USB Out 1.
The others controls of the Bitstream 3X that are not emulating Mackie/ ogic controls are sent on MIDI Out 2
and USB Out 2, these controls send standard Ccs, please refer to the Mackie control library file to know what
Ccs are assigned to these controls.
MIDI exclusive systems
The Bitstream 3X emulates the Mackie/ ogic control Sysexs used to communicate with the host computer.
Among these Sysexs, the following Ids have been implemented:
Received Host Connection Reply
Go Offline
Firmware Version request
Transmitted Host Connection Query
Host Connection Confirmation
Firmware Version reply
Display information
The Bitstream 3X emulates the Mackie/ ogic control displays as follow:
Time display
Fully implemented, the Bitstream 3X displays the timing information sent by the host. The format displayed is
similar to the Mackie/ ogic control :
000.00.00.000
Assignment display
Fully implemented, the Bitstream 3X displays the assignment display of the Mackie/ ogic control. The format
www.waveidea.com
Rev 1.5 - Page 4

AN003 : Bitstream 3X – Mackie/Logic control emulation
is similar to the Mackie/ ogic control, 2 digits 7 segments are displayed on the Bitstream 3X CD
Pn
CD display
Not implemented in the current firmware version
Channels metering
The Bitstream 3X displays all 8 channels metering information. These information represent the peak level
information sent by the host.
The Bitstream 3X decrease these peak levels information with a decay time of 300ms, as mentioned in the
Mackie/ ogic control specification.
Master fader level
The Bitstream 3X displays the master fader level. It is not a part of the Mackie/ ogic control specification but
very useful. This information is displayed on the bottom right of the Bitstream 3X CD.
eds information
Not implemented in the current firmware version
V-pots led rings
Not implemented in the current firmware version
Emulated controls
The Bitstream 3X emulates the Mackie/ ogic control controls as follow:
V-pots
Not implemented in the current firmware version
Channel faders 1-8
The Bitstream 3X faders 1-8 emulate these controls. This emulation is available on the 21 groups of the
Bitstream 3X.
Master fader 9
The Bitstream 3X crossfader emulates this control. This emulation is available on the 21 groups of the
Bitstream 3X.
Please note the crossfader generates a single MIDI event while the Bitstream 3X is in Mackie/ ogic mode.
www.waveidea.com
Rev 1.5 - Page 5

AN003 : Bitstream 3X – Mackie/Logic control emulation
Rec-Rdy buttons 1-8
The Bitstream 3X programmable buttons emulate these controls. This emulation is available on the group 0
of the Bitstream 3X.
The behavior of the Bitstream 3X programmable buttons has been set to “push” mode as the Mackie/ ogic
control buttons (as opposed to the “toggle” button behavior)
Solo buttons 1-8
The Bitstream 3X programmable buttons emulate these controls. This emulation is available on the group 1
of the Bitstream 3X.
The behavior of the Bitstream 3X programmable buttons has been set to “push” mode as the Mackie/ ogic
control buttons (as opposed to the “toggle” button behavior)
Mute buttons 1-8
The Bitstream 3X programmable buttons emulate these controls. This emulation is available on the group 2
of the Bitstream 3X.
The behavior of the Bitstream 3X programmable buttons has been set to “push” mode as the Mackie/ ogic
control buttons (as opposed to the “toggle” button behavior)
Select buttons 1-8
The Bitstream 3X programmable buttons emulate these controls. This emulation is available on the group 3
of the Bitstream 3X.
The behavior of the Bitstream 3X programmable buttons has been set to “push” mode as the Mackie/ ogic
control buttons (as opposed to the “toggle” button behavior)
Cursor keys
Not implemented in the current firmware version
Jog wheel
The Bitstream 3X endless encoder emulates this control while the Bitstream 3X encoder button is pressed.
This emulation is available on the 21 groups of the Bitstream 3X.
Please note the endless encoder generates a MIDI event while the Bitstream 3X is in Mackie/ ogic mode
and while the Bitstream 3X encoder button is pressed (as opposed to all other modes)
Bitstream 3X encoder button pressed and encoder turned : The Bitstream 3X will emulate the Mackie/ ogic
control jogwheel.
Bitstream 3X encoder button NOT pressed and encoder turned : The Bitstream 3X will NOT emulate the
Mackie/ ogic control jogwheel, the Bitstream 3X encoder will be used as a selector function, as all other
Bitstream 3X operating modes.
Transport buttons
The Bitstream 3X transport buttons emulate these controls. This emulation is available on the group 0 of the
Bitstream 3X.
www.waveidea.com
Rev 1.5 - Page 6

AN003 : Bitstream 3X – Mackie/Logic control emulation
Display buttons
The Bitstream 3X programmable buttons emulate these controls. This emulation is available on the group 6
of the Bitstream 3X.
The behavior of the Bitstream 3X programmable buttons has been set to “push” mode as the Mackie/ ogic
control buttons (as opposed to the “toggle” button behavior)
Function keys
The Bitstream 3X programmable buttons emulate these controls. This emulation is available on the group 7
of the Bitstream 3X.
The behavior of the Bitstream 3X programmable buttons has been set to “push” mode as the Mackie/ ogic
control buttons (as opposed to the “toggle” button behavior)
V-select buttons
The Bitstream 3X programmable buttons emulate these controls. This emulation is available on the group 4
of the Bitstream 3X.
The behavior of the Bitstream 3X programmable buttons has been set to “push” mode as the Mackie/ ogic
control buttons (as opposed to the “toggle” button behavior)
Assignment buttons
The Bitstream 3X programmable buttons emulate these controls. This emulation is available on the group 5
of the Bitstream 3X.
The behavior of the Bitstream 3X programmable buttons has been set to “push” mode as the Mackie/ ogic
control buttons (as opposed to the “toggle” button behavior)
Fader eft-Right bank buttons
The Bitstream 3X Up and Down buttons emulate these controls while the Bitstream 3X current function is
'Group'.
When changing group on the Bitstream 3X, Fader eft right bank change MIDI events are sent by the
Bitstream 3X ( eft = Down / Right = Up)
Channel bank buttons
The Bitstream 3X programmable buttons emulate these controls. This emulation is available on the group 6
of the Bitstream 3X.
The behavior of the Bitstream 3X programmable buttons has been set to “push” mode as the Mackie/ ogic
control buttons (as opposed to the “toggle” button behavior)
Control buttons
Not implemented in the current firmware version
Shift button
The Bitstream 3X SHIFT button emulates this control
www.waveidea.com
Rev 1.5 - Page 7

AN003 : Bitstream 3X – Mackie/Logic control emulation
Faders feedback
The Bitstream 3X emulates faders feedback feature of the Mackie/ ogic control.
When faders are updated directly from the software ( ogic, Ableton ive, ...) the new value is sent to the
Bitstream 3X. The controller will update the new fader position and set the fader as unhooked so there will be
no jump in value as soon as the physical fader will be updated again.

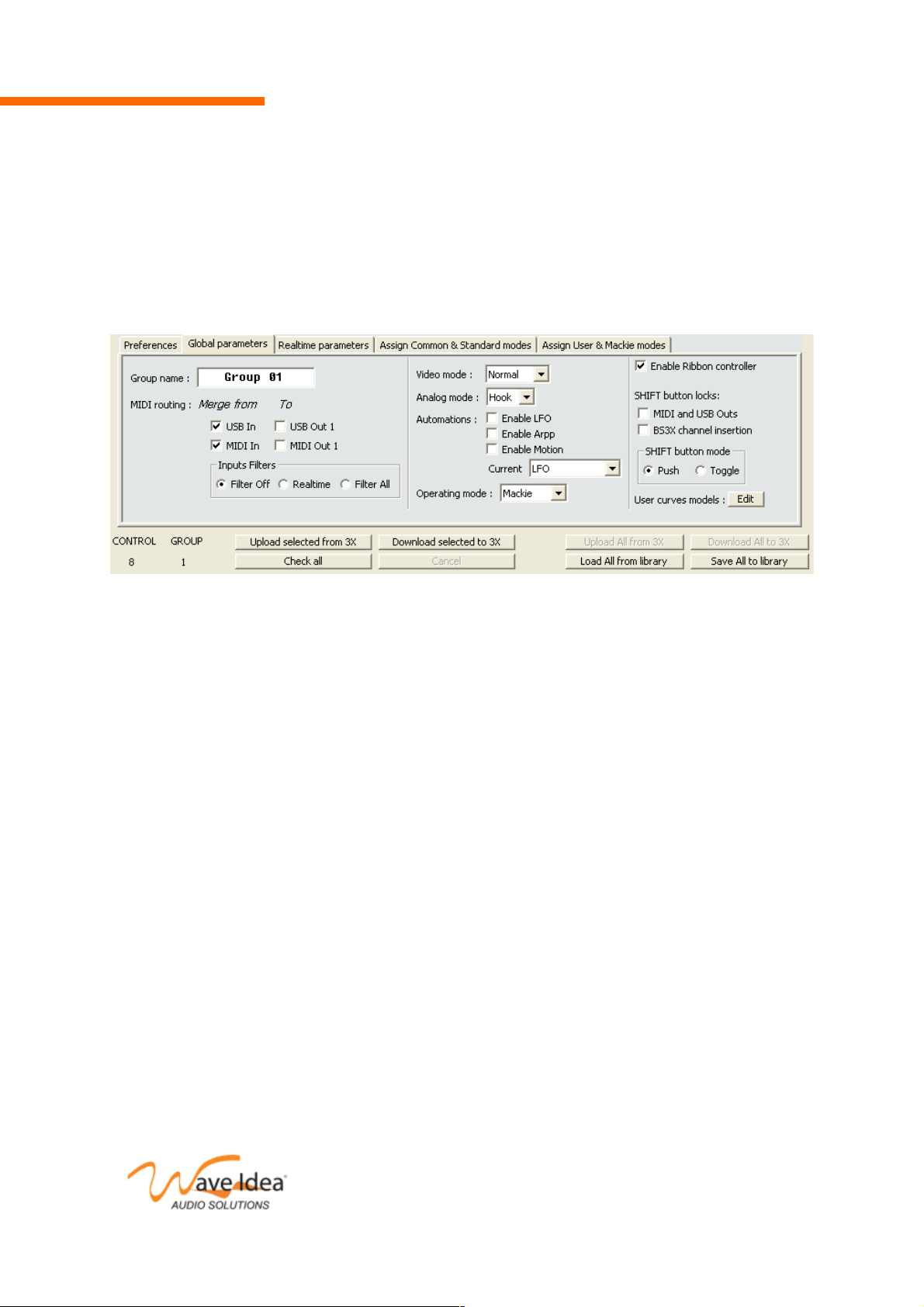

This feature can be enabled/disabled from the configuration software as well as from the controller menus.

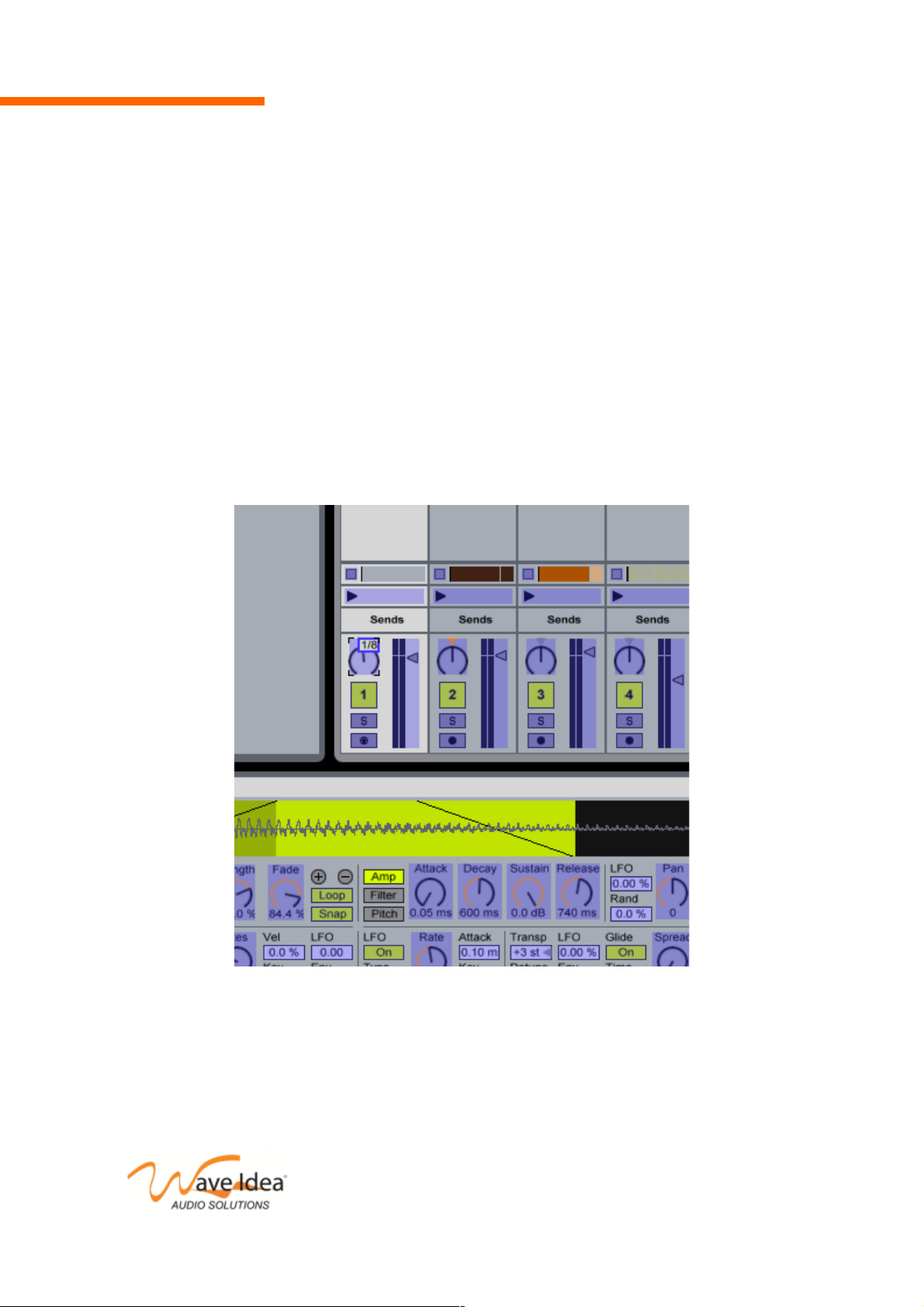

Example using Ableton Live 5 / 6
Ableton ive is compatible with the Mackie Control mode. You can use the Bitstream 3X Mackie emulation
mode to control Ableton ive.
Please note the V-pots of the Mackie control are not emulated by the Bitstream 3X because of the different
nature of the controls (Bitstream pots are analog potentiometers, on the other hand, Mackie pots are endless
encoders). The Bitstream cannot emulate these V-Pots.
When using the Bitstream 3X in Mackie mode and connected to Ableton ive, the parameters mentioned in
this document are already programmed, while the other parameters need to be assigned directly from
Ableton ive (Edit MIDI map).
In this way, the Bitstream 3X will emulate several controls of the Mackie, it will also generate standard Ccs to
control the other non-assigned parameters in Ableton ive.
Another advantage of using the Mackie mode to control ive is the audio channels metering and time
information that are displayed on the Bitstream 3X CD.
Ableton ive configuration
Open the preference menu in Ableton ive and select the MIDI configuration tab.
On the screen shot below, we can see the Bitstream 3X USB port 1 has been selected as the active MIDI
input for remote controls (this allows to mix the Mackie control mode with the User defined mode of the
Bitstream 3X)
No MIDI sync has been selected since it is already implicit to the Mackie control mode.
In the menu at the bottom of the windows, the Mackie control mode has been selected, and MIDI In and MIDI
Out selected are the USB port 1 In and Out of the Bitstream 3X.
www.waveidea.com
Rev 1.5 - Page 8

AN003 : Bitstream 3X – Mackie/Logic control emulation
Ableton Live 5
www.waveidea.com
Rev 1.5 - Page 9

AN003 : Bitstream 3X – Mackie/Logic control emulation
Ableton ive 6
In the two above screenshots, Input and Output associated to the Mackie control are “WaveIdea Bitstream
3X”, and not “Wave Idea Bitstream 3X [2]” which is dedicated to the non emulated controls
In order to avoid any MIDI loopback (resulting in MIDI overflow), the Bitstream 3X MIDI merger output
connected to Ableton ive must be disabled (this is already the case if the Mackie library file has been
downloaded to the Bitstream 3X)
From the Bitstream 3X menus : MIDI Config -> MIDI Merge -> Merger Outputs -> USB Out 1 -> Off
Please note if you are using the MIDI Output instead of the USB output, the merger configuration described
above must be changed accordingly.
www.waveidea.com
Rev 1.5 - Page 10

AN003 : Bitstream 3X – Mackie/Logic control emulation
Once this configuration has been done, it is not finished yet. At this phase, the controller should be able to
control the sequencer of Ableton ive (from the transport functions of the Bitstream 3X), also the time
information should be displayed as well as the audio channels metering, faders and other emulated functions
should work.
To complete the configuration, standard MIDI assignments can be performed from ive using the earn
mode (Edit MIDI map), as follow :
Click on MIDI Map from Ableton ive, then select the control to map, then move the control you want to
assign on the Bitstream 3X. Ableton ive should display the controller received and it becomes automatically
assigned.
Repeat the above for all additional controls to assign.
Please not these manual assignments are received from the USB or/and MIDI outs 2 of the Bitstream 3X
(while the USB or/and MIDI outs 1 are dedicated to controls emulating Mackie/ ogic)
Example using Logic Pro/Express V7
ogic is compatible with the Mackie Control mode or the ogic control mode. You can use the Bitstream 3X
ogic emulation mode to control ogic.
www.waveidea.com
Rev 1.5 - Page 11

AN003 : Bitstream 3X – Mackie/Logic control emulation
Please note the V-pots of the ogic control are not emulated by the Bitstream 3X because of the different
nature of the controls (Bitstream pots are analog potentiometers, on the other hand, ogic pots are endless
encoders). The Bitstream cannot emulate these V-Pots.
When using the Bitstream 3X in ogic mode and connected to ogic, the parameters mentioned in this
document are already programmed, while the other parameters need to be assigned directly from ogic
(Controller assignments window).
In this way, the Bitstream 3X will emulate several controls of the ogic control, it will also generate standard
Ccs to control the other non-assigned parameters in ogic.
Another advantage of using the ogic mode to control ogic is the audio channels metering and time
information that are displayed on the Bitstream 3X CD.
ogic configuration
Go to the control surface setup windows, if the ogic control is not listed in the auto-detected surface, simply
press the Bitstream 3X mode button until you reach the ogic control mode.
ogic should automatically recognizes the Bitstream 3X as a ogic control surface.
Now the ogic control configuration is done, and all sliders, buttons, transport buttons, master fader, channel
metering, time code and so on should work properly.
To manually assign the other controls of the Bitstream 3X that are not emulated (rotary knobs for instance),
simply open the control surface controller assignments windows, click “learn” and move one of the controls of
the Bitstream 3X.
Repeat the above operation for all controls you want to assign and save your configuration.
Example using Cubase SX
Cubase is compatible with the Mackie Control mode or the ogic control mode. You can use the Bitstream
3X Mackie emulation mode to control Cubase.
Please note the V-pots of the Mackie control are not emulated by the Bitstream 3X because of the different
nature of the controls (Bitstream pots are analog potentiometers, on the other hand, ogic pots are endless
encoders). The Bitstream cannot emulate these V-Pots.
When using the Bitstream 3X in Mackie mode and connected to Cubase, the parameters mentioned in this
document are already programmed, while the other parameters need to be assigned directly from Cubase
(Controller assignments window).
In this way, the Bitstream 3X will emulate several controls of the Mackie control, it will also generate standard
Ccs to control the other non-assigned parameters in Cubase.
Another advantage of using the Mackie mode to control Cubase is the audio channels metering and time
information that are displayed on the Bitstream 3X CD.
www.waveidea.com
Rev 1.5 - Page 12

AN003 : Bitstream 3X – Mackie/Logic control emulation
Cubase configuration
Go to the MIDI devices list and add a Mackie control device.
Select MIDI/USB In 1 and MIDI/USB Out 1 to connect this device.
Now the Mackie control configuration is done, and all sliders, buttons, transport buttons, master fader,
channel metering, time code and so on should work properly.
To manually assign the other controls of the Bitstream 3X that are not emulated (rotary knobs for instance),
simply go to the MIDI devices list and add a Generic MIDI device.
Connect this generic MIDI device to the MIDI/USB input 2, since all non emulated controls of the Bitstream
are generating MIDI on USB Out 2.
Once this configuration is done, you can start to add controls, the top part of the following windows allows to
define the type of events that are received from the Bitstream 3X MIDI Out 2, here must be selected
standard Continuous controllers (Ccs), the channels and numbers must be set according to the library
Mackie control that has been downloaded to the Bitstream 3X.
To know the Ccs channels and numbers, please refer to the annex of this document, all Ccs generated by
the non emulated controls are mentioned.
www.waveidea.com
Rev 1.5 - Page 1

AN003 : Bitstream 3X – Mackie/Logic control emulation
The above screen illustrates the configuration of Cubase SX for all controls that are not emulated by the
Mackie control mode.
4 knobs have been added, the first knob (Knob 0) is configured to receive MIDI continuous controllers on
channel 1, number 0, Knob 1 is configured to receive MIDI continuous controllers on channel 2, number 0,
and so on.
The bottom part of the window allows to assign these added knobs to the parameters you want to control in
Cubase, for instance FX1 Track Plug VST.
Repeat the above operation for all controls you want to assign and save your configuration.
www.waveidea.com
Rev 1.5 - Page 14

AN003 : Bitstream 3X – Mackie/Logic control emulation
Downloading the Mackie/Logic control library
You need to use the configuration software to download the Mackie/ ogic control library to the Bitstream 3X.
This step by step guide is not specific to the Mackie/ ogic control library but can be used to download any
library to the Bitstream 3X.
Download and Install the configuration software
The configuration software can be downloaded for free from the WaveIdea website, at the Bitstream 3X
download area : http://www.waveidea.com/en/products/bitstream_3x/downloads.php
Depending on your computer, you can download the Mac, Win, or inux version.
For further information regarding how to install the software, please refer to the documentation.
etup the configuration software to communicate with the Bitstream 3X
The configuration software can be launched from the Start menu on Windows, or clicking the application file
on Mac.
Once launched, go to the preference panel and configure the different fields as follow :
MIDI In and Out devices where the Bitstream is currently attached must be selected.
If you have installed the Bitstream 3X Xp drivers, you will see the above MIDI peripherals, otherwise you will
see “USB audio device” strings.
Be sure the “Ignore MIDI assignments ...” and “Ignore LCD strings ...” are UNCHECKED before you
start programming or uploading. (These two options are used to prevent the software from
downloading/uploading MIDI or CD assignments), they should be left unchecked by default.
In addition, be sure the group range is not limited (from 0 to 20 for 21 groups), so all 21 groups of the
Bitstream 3X will be properly programmed/uploaded.
As soon as the above configuration is done, click on “connect to bs3x” button, if the communication is
properly set, the Bitstream 3X information will be displayed as follow :
www.waveidea.com
Rev 1.5 - Page 15

AN003 : Bitstream 3X – Mackie/Logic control emulation
You can now load the library file you want to download to the Bitstream 3X. All the available libraries are
located under the Bitstream 3X configuration software folder, under the sub folder “lib”.
To load the library file, click on the library file menus and select open.
Please note you can select any library file .bs3 to be downloaded to the Bitstream 3X.
www.waveidea.com
Rev 1.5 - Page 16

AN003 : Bitstream 3X – Mackie/Logic control emulation
Download the global and realtime parameters to the Bitstream 3X
Once the communication is properly established, you can download the global and realtime parameters to
the Bitstream 3X.
Select the Global or Realtime parameters panel and click “Download selected to 3x”
Once the button is clicked, all realtime and global parameters will be downloaded to the Bitstream 3X, please
note the Bitstream 3X display indicates the global and realtime parameters are being programmed.
Download the whole assignments to the Bitstream 3X
Once the global and realtime parameters have been downloaded, you can download the MIDI and CD
assignments to the Bitstream 3X.
MIDI and CD assignments are the configuration of all controls of the Bitstream 3X, as opposed to the
configuration of global and realtime parameters, these assignments are available and independent for each
of the controls of the Bitstream 3X.
Select the “Assign common ..” or “Assign User & Mackie ..” panel and click “Download All to 3x”
Once the button is clicked, all assignments for all the 21 groups will be downloaded to the Bitstream 3X,
please note the Bitstream 3X display indicates the assignments are being programmed.
Downloading the whole assignments on all 21 groups requires about 1 minute.
www.waveidea.com
Rev 1.5 - Page 17

AN003 : Bitstream 3X – Mackie/Logic control emulation
Alternatively you can download a single control to the Bitstream 3X, simply select it using your mouse and
click “Download selected to 3x”
Please note the Mackie control library can be updated with your own assignments, the provided file
corresponds to a minimal library that can be updated by your own requirements.
www.waveidea.com
Rev 1.5 - Page 18

AN003 : Bitstream 3X – Mackie/Logic control emulation
MIDI parameters of the Mackie control library version 3
The following information are generated from the Bitstream 3X configuration software, these information
indicate the Ccs numbers and other MIDI events assigned to the Mackie/ ogic control library version 3
* BITSTREAM 3X ASSIGNMENTS SUMMARY *
ibrary file: C:\Program Files\Wave Idea\Bitstream 3X Configuration software V1.3\lib\mackie_ctrl_v3.bs3
Date: 2006-12-14
***** TRANSPORT BAR *****
Control 00 [Rec button] >> [MIDI] 905F00
Control 01 [Play button] >> [MIDI] 905E00
Control 02 [Backward button] >> [MIDI] 905B00
Control 03 [Stop button] >> [MIDI] 905D00
Control 04 [Forward button] >> [MIDI] 905C00
***** Mackie grp 00 *****
Control 05 [Ribbon controller] >> [ CD] CC # 005 [MIDI] B00500
Control 06 [Joystick X] >> [ CD] CC # 006 [MIDI] B00600
Control 07 [Joystick Y] >> [ CD] CC # 007 [MIDI] B00700
Control 08 [Knob 0 (row 0 - col 0)] >> [ CD] CC#000 Channel 1 [MIDI] B00000
Control 09 [Knob 1 (row 0 - col 1)] >> [ CD] CC#000 Channel 2 [MIDI] B10000
Control 10 [Knob 2 (row 0 - col 2)] >> [ CD] CC#000 Channel 3 [MIDI] B20000
Control 11 [Knob 3 (row 0 - col 3)] >> [ CD] CC#000 Channel 4 [MIDI] B30000
Control 12 [Knob 4 (row 0 - col 4)] >> [ CD] CC#000 Channel 5 [MIDI] B40000
Control 13 [Knob 5 (row 0 - col 5)] >> [ CD] CC#000 Channel 6 [MIDI] B50000
Control 14 [Knob 6 (row 0 - col 6)] >> [ CD] CC#000 Channel 7 [MIDI] B60000
Control 15 [Knob 7 (row 0 - col 7)] >> [ CD] CC#000 Channel 8 [MIDI] B70000
Control 16 [Knob 8 (row 1 - col 0)] >> [ CD] CC#001 Channel 1 [MIDI] B00100
Control 17 [Knob 9 (row 1 - col 1)] >> [ CD] CC#001 Channel 2 [MIDI] B10100
Control 18 [Knob 10 (row 1 - col 2)] >> [ CD] CC#001 Channel 3 [MIDI] B20100
Control 19 [Knob 11 (row 1 - col 3)] >> [ CD] CC#001 Channel 4 [MIDI] B30100
www.waveidea.com
Rev 1.5 - Page 19

AN003 : Bitstream 3X – Mackie/Logic control emulation
Control 20 [Knob 12 (row 1 - col 4)] >> [ CD] CC#001 Channel 5 [MIDI] B40100
Control 21 [Knob 13 (row 1 - col 5)] >> [ CD] CC#001 Channel 6 [MIDI] B50100
Control 22 [Knob 14 (row 1 - col 6)] >> [ CD] CC#001 Channel 7 [MIDI] B60100
Control 23 [Knob 15 (row 1 - col 7)] >> [ CD] CC#001 Channel 8 [MIDI] B70100
Control 24 [Knob 16 (row 2 - col 0)] >> [ CD] CC#002 Channel 1 [MIDI] B00200
Control 25 [Knob 17 (row 2 - col 1)] >> [ CD] CC#002 Channel 2 [MIDI] B10200
Control 26 [Knob 18 (row 2 - col 2)] >> [ CD] CC#002 Channel 3 [MIDI] B20200
Control 27 [Knob 19 (row 2 - col 3)] >> [ CD] CC#002 Channel 4 [MIDI] B30200
Control 28 [Knob 20 (row 2 - col 4)] >> [ CD] CC#002 Channel 5 [MIDI] B40200
Control 29 [Knob 21 (row 2 - col 5)] >> [ CD] CC#002 Channel 6 [MIDI] B50200
Control 30 [Knob 22 (row 2 - col 6)] >> [ CD] CC#002 Channel 7 [MIDI] B60200
Control 31 [Knob 23 (row 2 - col 7)] >> [ CD] CC#002 Channel 8 [MIDI] B70200
Control 32 [Knob 24 (row 3 - col 0)] >> [ CD] CC#003 Channel 1 [MIDI] B00300
Control 33 [Knob 25 (row 3 - col 1)] >> [ CD] CC#003 Channel 2 [MIDI] B10300
Control 34 [Knob 26 (row 3 - col 2)] >> [ CD] CC#003 Channel 3 [MIDI] B20300
Control 35 [Knob 27 (row 3 - col 3)] >> [ CD] CC#003 Channel 4 [MIDI] B30300
Control 36 [Knob 28 (row 3 - col 4)] >> [ CD] CC#003 Channel 5 [MIDI] B40300
Control 37 [Knob 29 (row 3 - col 5)] >> [ CD] CC#003 Channel 6 [MIDI] B50300
Control 38 [Knob 30 (row 3 - col 6)] >> [ CD] CC#003 Channel 7 [MIDI] B60300
Control 39 [Knob 31 (row 3 - col 7)] >> [ CD] CC#003 Channel 8 [MIDI] B70300
Control 40 [Slider 0 (col 0)] >> [ CD] Fader 1 [MIDI] E00000
Control 41 [Slider 1 (col 1)] >> [ CD] Fader 2 [MIDI] E10000
Control 42 [Slider 2 (col 2)] >> [ CD] Fader 3 [MIDI] E20000
Control 43 [Slider 3 (col 3)] >> [ CD] Fader 4 [MIDI] E30000
Control 44 [Slider 4 (col 4)] >> [ CD] Fader 5 [MIDI] E40000
Control 45 [Slider 5 (col 5)] >> [ CD] Fader 6 [MIDI] E50000
Control 46 [Slider 6 (col 6)] >> [ CD] Fader 7 [MIDI] E60000
Control 47 [Slider 7 (col 7)] >> [ CD] Fader 8 [MIDI] E70000
Control 48 [Crossfader ] >> [ CD] Master fader [MIDI] E80000
Control 49 [Crossfader R] >> [ CD] CC # 049 [MIDI] B03100
Control 50 [Backward[Shift]] >> [ CD] Record [MIDI] 905F00
Control 51 [Forward[Shift]] >> [ CD] Play [MIDI] 905E00
Control 52 [Stop[Shift]] >> [ CD] Rewind [MIDI] 905B00
Control 53 [Play[Shift]] >> [ CD] Stop [MIDI] 905D00
Control 54 [Rec[Shift]] >> [ CD] fast fwd [MIDI] 905C00
Control 55 [Joystick button] >> [ CD] CC # 055 [MIDI] B03700
www.waveidea.com
Rev 1.5 - Page 20
