Waves system Mp 903 Assembly instructions

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

MANUAL

MP 903

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 1 -

TABLE OF CONTENTS

1 – Safety instructions P2

2–Productsinformation P5

3–Presentationand connections P6

4 – Hard disk installation or change P8

5–File creation and transfer P9

6 – Player operation and settings P17

7 - RS232 serial link P21

AppendixA:Specifications P23

AppendixB:Programmingmanagementsoftware P24

AppendixD: Remote software P30

AppendixE:Directorycreationsoftware P30

ID-ALproductsareexclusivelymanufacturedbyWavesSystem

LAVILLE EN BOIS - 44830 BOUAYE - FRANCE

Sales and information: +33 2 40 78 22 44

E-mail:[email protected]

Web site: http://www.id-al.com and www.wsystem.com

Technical department: +33 2 40 78 22 48

[email protected]

Technicalsupport:

For a detailed list of the technical support options, we suggest you to visit our site

www.id-al.com.

Information in this manual is subject to change without notice and do not represent any commitment from

Waves System. The equipment described in this manual is supplied under condition of the terms of

license specifying the legal use conditions. This manual can’t be reproduced or used, in whole or in part,

in any form and by any mean, for other use than private, without the written permission from Waves

System.

ID-AL and MP903 are trademarks of Waves System.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 2 -

WARNING:DONOTEXPOSETOMOISTUREANDDUST!

Unplug the power cord before any intervention!

FORYOURSAFETY,PLEASEREADCAREFULLYTHISOPERATIONMANUALBEFOREUSINGYOUR

PLAYER.

1. SAFETY INSTRUCTIONS

1.1 CE marking

The CE marking is on the ID plate, at the back of the product. It means this product complies with the low

voltage CE directive, according the EN 55022 standard, and the EMC directive 61000-4-x.

1.2 Directives

• Electro-magnetic compatibility (EMC) and low voltage directive requirements are satisfied.

1.3 Overview

• The user’s manual forms an integral part of the unit. It must be kept close to the unit. Precise observance

of these instructions is a pre-condition to use the unit for the intended purpose and for its correct

operation.

This user’s manual must be passed on to any future purchaser or operator.

The staff would receive instructions concerning the correct use of the product.

• Safety for the operator as well as trouble-free operation of the unit is only ensured if use is made of

original equipment parts. Moreover, use may only be made of those accessories that are specified in the

technical documentation or that have been expressly approved by the manufacturer. The manufacturer

cannot guarantee for the safety or proper functioning of the unit in the case where accessories or

consumables are used which are not supplied by the manufacturer.

• The warranty doesn’t cover damages caused by use of accessories or consumables which are not

supplied by the manufacturer.

• The manufacturer only regard himself as being responsible for the equipment with regard to safety,

reliability and proper functioning if assembly, re-settings, changes or modifications, extensions and

repairs have been carried out by the manufacturer or a company authorized by the manufacturer and if

the equipment is used in conformity with the operating instructions written in this manual.

• The MP903 player complies with the applicable technical safety standards at the date of print. All rights

reserved for electrical diagrams, procedures, mentioned names and equipments.

• No reproduction, in whole or in part, without the written permission from Waves System.

1.4 General safety instructions

This equipment left our facilities in perfect conditions of operation. In order to maintain these conditions,

for safety and to avoid any risk of injury, the user must imperatively follow the safety instructions and

read the ´Warning!´ notes in this manual.

This equipment, manufactured by Waves System, has been so designed that any danger is virtually

excluded provided it is used according to its purpose. However, for safety reasons, we are obliged to

point out the following measures:

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 3 -

• When operating this appliance, observe all local rules and enforced regulations!

The homologation shall be invalid if any modification or alteration is made on the appliance. Operating

modified appliances may lead to a penal suit. In the interest of the safety of work, the manager and the

operator will be responsible for respecting the instructions.

• Retain all packing material in case the device must be shipped. Take care that it does not fall into the

hands of children. Only the original packing guarantees optimal safety of the appliance during transport.

Should it be necessary to ship the product during the guarantee period, Waves System will not accept

claims for damage arising during the transport from using incorrect packing material!

• This product is dedicated to broadcasting music. It may only be operated by trained or knowledgeable

personnel who can handle the device correctly.

• Before every use, the operator must check the functional safety and the condition of the appliance.

• The operator must be knowledgeable in the operation of the appliance.

• This device must not be used in places with potential explosion risk. Moreover, it must not be used in an

environment favouring combustion neither in a wet or excessively hot or cold place.

1.5 Safety instructions against risks pertaining to electrical current

• The appliance must be connected to a grounded AC power outlet or a correctly wired CEE AC outlet.

• Before connecting the appliance, verify that the power supply voltage and frequency match the

specifications indicated on the appliance.

• Before powering, check that the appliance and the cables are not damaged. Damaged cables and

connections must be immediately replaced.

• Never leave power cords enter in contact with other cables! Handle the power cord and all the cables

connected to a power supply with extreme care.

• Always connect the power supply last. Check that the power switch is ´off’ before connecting the

appliance to mains supply. The mains outlet must be accessible after installation.

• Check the appliance and its power cord from time to time.

Unplug the power supply if you don’t use the appliance anymore or for maintenance.

• Always grasp only the plug on the power supply cord. Never pull the cable to unplug.

• Power supply, repairs and maintenance must be done by qualified personnel.

• Do not switch the appliance on and off in short intervals, as this may reduce its life, especially

concerning the hard disk.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 4 -

1.6 - Conditions of use :

• This product has been designed for indoor use only.

• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the device

switched off until it has reached room temperature.

• Do not shake the device. Avoid brute force when installing or operating the device.

• When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,

moisture or dust. There should not be any cables lying around, for your own safety and that of bystand-

ers.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 5 -

2. PRODUCT INFORMATION

2.1 Correct usage

The MP903 player is designed for automatically broadcasting music or sound files.

Correct usage implies observation of the instructions in this manual as well as observing the require-

ments concerning installation.

2.2 Incorrect usage

Any other use beyond this is considered as incorrect usage. The manufacturer will not be liable for any

damage resulting from incorrect usage. The operator carries all risks.

2.3CONTENTS

MP3player MP903.

External power supply and power cord.

USBA/B link cable.

User’s manual.

2.4TECHNICALSPECIFICATIONS

MP3player -ModelMP903

Nominal electrical values for the external power supply

Voltage (V) 100-240

Frequency (Hz) 50-60

Nominal electrical values for the player

DC (V) 12

2.5INSTALLATION

The apparatus must be set up in a dry and dust-free room.

2.6ELECTRICALCONNECTION

Before use, compare mains voltage with that

specified on model plate.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 6 -

3. PRESENTATION

1 Microphone input

Connect here a static microphone.

2 USB link

Connect the player and your computer with the USB cable. You can use a PC or an Apple MAC. This link

allows you to transfer, rename, delete and move all your files from any file management software. The

player’s hard disk is recognized as an additional hard disk by the computer.

3 Auxiliary input

Line level input. Connect here external equipment, e.g. a CD player. Its sound will be mixed with the

player’s sound and the microphone’s sound. Allows talk over.

4 Phones output

Connect here your headphones.

5 Main audio output

Connect this stereo output, left and right, to your sound system. You can connect the MP903 to a Hi-Fi set

or to a powerful public address system.

6 Gain control

Adjust your microphone gain in order to obtain the right sound level compared to the player.

7 Talk Over

Press this button if you want to talk over music with your microphone. When you speak in the micro-

phone, the music level is automatically reduced and immediately come back at the end of your sentence.

When the talk over function is not activated, the microphone sound is mixed with the main program

without changing its level.

8 and 9 Bass and Treble controls

Adjust the microphone tone to match your voice timbre.

1 2 345

6 7 8 9 10 11

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 7 -

10 Auxiliary level

Set the input level for the equipment connected to this input in order to obtain the desired sound level.

11 Output level

Adjust the main output level with this button. It affects the two device outputs (upper panel and side

panel). It also affects the headphones sound level.

1 Power supply

Connect here you external power supply unit. You can also connect an external 12V battery. Observe

the battery polarity. An inversion between the poles (+ and –) could destroy the equipment. In case of

inversion or use of a faulty power supply unit, the consequences are not covered by the warranty.

2 Additional audio outputs

Connect these 2 outputs, left and right, to your sound system. You can connect the MP903 to a Hi-Fi set

or a public address system.

3 RS 232 serial link and infrared

A) RS 232 serial link

This link has two functions:

1 – Updating your player’s software.

New features could be released in the future and, to obtain them, you’ll be able to download new

firmware versions from our site: www.id-al.com (see chapter 7).

2 –Remote controlling your player through this RS232 link

You can send commands to your MP903 from a computer, an external remote control or an automated

system.

B) Infrared receiver

Connect here an infrared sensor in order to remotely control your player (see chapter 8).

123

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 8 -

4. HARD DISK INSTALLATION OR CHANGE

4. Hard disk installation

If you purchased your player without hard disk or if you want to upgrade the installed one, you need a

Philips screwdriver.

Before any intervention, you must imperatively switch off your player and unplug the mains supply. If you

don’t feel comfortable doing this operation, contact a qualified specialist or an authorized service station.

1 – With the screwdriver, unscrew the 6 screws holding the cover.

2 – Lift off and remove the cover.

3 – If a hard disk is already there, unscrew the 4 screws holding it. Gently lift off the disk then disconnect

the IDE interface cable. Avoid brute force.

4 – Install a new hard disk (formatted or not – you can format it with your computer through the USB link).

Warning: you must configure your hard disk as “ MASTER ”. Read the hard disk manufacturer’s docu-

mentation to set configuration jumper(s) in “MASTER ” position.

5 – Connect the 44 pin connector. Warning: this connector is not keyed. Be careful not to make a mistake.

An inversion, a shift or a bad position could damage your player and the hard disk. In case of bad

connection, the consequences are not covered by the guaranty.

6 – Place the hard disk in front of the holes and secure it with the 4 screws.

7 – Replace the case cover and secure it with the 6 screws.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 9 -

5. FILES CREATION AND TRANSFER

5.1 USB transfer

The MP903 has a fast USB interface to manage the player's hard disk from a computer. When the player

is connected to a PC or a MAC, its hard disk is seen as an external hard disk with the same management

options than an internal one. You may use any type of file management software like Windows Explorer

or else.

USBmode:

1 – If the player is currently playing, press Stop. .

2 – Press the Option button. .

3 - Press or to scroll menus until the USB transfert option appears.

4 – Press to confirm the option. Mode USB

5 – Connect the USB cable to your computer if it’s not already done.

6 - Under Windows 2000, XP or MAC OS 9/X, the hard disk is immediately detected by your system. It

becomes usable as data hard disk with all the desired transfer, delete or move possibilities.

You can click on the small icon in the lower right corner of your screen to check if the driver is present.

A window would open with the names of the different USB devices connected. You would see the

player’s hard disk.

Note: Under Windows 98SE, you’ll need to install a specific

driver, downloadable on our site: www.id-al.com.

Transfer example using Windows Explorer:

1 - Open Windows Explorer (Windows file manager)

2 – Search MP3 files on your hard disk or CD ROM or any other

media.

3 – Select the files to be copied and transfer them in one of the MP903 player’s directories.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 10 -

Precautions:

- Do not save files at the root of the player’s hard disk. They won’t be seen and could

disorder other files reading,

- Imposed directories must have their name written in upper case letters,

- Avoid creating empty directories,

- Rigorously organize your files and directories,

- A corrupted file could cause erratic play and static noise,

- The player manages only one level of directories. Do not create subdirectories.

4 – Search and select the files on your hard disk.

5 – Copy the selected files

in the desired directory.

6 – You must then switch

off your player to exit USB

mode.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 11 -

5.2 Directories use:

Some names are reserved for the system and must not be

used. You can manually create these directories or use

small utility software you’ll find on our site, www.id-al.com,

to automatically create all the default directories.

(Description at the end of this manual).

SONG:default directorycontainingallyourtracks.Itsname

must be written with uppercase (capital) letters.

Tip: This directory will serve as a “tank”. You can use

only this directory and place all your music inside.

IN: The “IN” directory gathers all the intervention files

together. It will contain files used by the timer message,

files launched from the optional inputs/outputs module,

infrared commands and various external commands.

Note : You will place in the "IN" directory all files called by

the programs. Name are "Txxx.mp3"

xxx = number from 001 and 255. (see programming

software chapter)

F001 to F255: Directories called by the programs to

customize music during a day. (see programming software

chapter)

F001 to F255 are also called by the "A" to "I" key at the front of the MP903

F001 = A / F002 = B / F003 = C .... F009 = I

Warning: all imposed names must be written with upper case (capital) letters.

Itis recommendedto deleteanyunused orempty directory.

For the other directories, you may use any desired name.

We suggest you to very strictly organize your hard disk in order to quickly find your titles. You can create

directories per musical genre, artist name, year, broadcasting date or any other personal organization.

Tip: You may use only one unique directory, “SONG”, insert thousand of titles inside, and let the player

pick up one song at a time for random playing.

Sub-directories :

With the V3 firmware, it is now possible to use sub-directories to organize the

music files but they will only be read by the file transfer software in USB mode.

The sub-directories will not be displayed on the LCD of the player and they will

be "transparent" : you will be able to navigate amongst the music files as if

sub-direcotries did not exist.

The use of sub-directories is highly recommanded for directories which include

more than 1000 files in order to reduce the searching delay between tracks.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 12 -

5.3 Hard disk formatting

If the installed disk is not formatted, it won’t be recognized by the player and won’t be able to complete

its booting procedure. In this case, you must format the hard disk from your computer. If your disk is

already formatted, you can skip this chapter.

Before switching on your player, press the button and keep it pressed. Then switch on your player

with the front switch. After a few seconds, you’ll see this message appearing:

MODE USB in the player’s display. You can then release the button.

Connect your USB cable if it’s not already done. Your computer will then detect a new device. (See point

6 in the previous paragraph)

Use a hard disk management utility to create a main partition and format your hard disk in FAT32. You can

use the «Format» function in Windows Explorer. Take care as it’s often necessary to create a partition

before being able to format the hard disk. This operation is a little bit difficult and we suggest you to use

dedicated software.

Under Windows 98SE, you can use the “FDISK” software in the MSDOS windows to create a partition.

Be careful, this is a delicate operation. In case of mistake, you could destroy all the data on your main

hard disk.

Under Windows 2000, use the Disk manager from the Control panel. Don’t hesitate to open the Windows

Help menu or to be helped by a specialist.

Please note that, in Windows 2000 or XP, the disk manage-

ment utility is not able to format in FAT32 a hard disk greater

than 32GB.

Never use a NFTS formatting.

If you have a hard disk greater than 32GB, you have to use

other software. Numerous commercial tools exist, but also

Sharewares and Freewares.

If you don’t have this kind of software, we suggest you to use

the SwissKnife Freeware that you can download on our site.

This utility software will allow you to create any kind of parti-

tion and formatting without size limitation.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 13 -

Choose the heading “Partition and Quick Format”. Select the player’s hard disk in the USB directory and

set the parameters like here after:

- Partition type: Primary

- File System: FAT32

- Volume Label: The name you want for the disk. For example “MP903”

- Set the formatting capacity to maximum (setting at the right of the pie)

Click then on “Create” and restart your computer. Your hard disk is now ready to receive data.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 14 -

5.4 How to create your own MP3 files?

To build up your music library, you can use your own Audio CD. For this, you must convert it in MP3 files

in order for them to be transferred in the player. Many softwares are available to create, extract and

encode sound.

The most complete and most professional is “Sound Forge from SONY/Sonic Foundry”. This software

has all the sound editing tools you could need.

Free CDex software

You can also use the free “CD ex” soft-

ware to very simply extract and en-

codeAudio CDs. Cdex allows to record

audio tracks from Compact-Discs and

save them to MP3 or WAV format. It can

extract parts of tracks or convert WAV

files in MP3 files. It also has the basic

functions to play CD and supports the

CDDB protocol (identifying your CD’s

tracks via Internet).

Downloadable on www.id-al.com

Quick user’s guide for CDex.

1 – Launch the program and select the

Option menu to configure the software.

General

You can leave all the default settings.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 15 -

This has no effect on the player, as it doesn’t manage ID3 tags.

- Adjust volume (normalize) if the Audio CD is incorrectly mastered (too low or too high volume). This will

avoid future volume discrepancies between files.

It’s a better choice to activate normalization to avoid sound level changes in your musical library.

Filename

- Format: Up to your wishes, this set the format for the file and directory names that will be created

starting from the CD’s information. In order to know the various formats, click on the «?» button. You can

name your files as you want. Don’t forget that this name will be the one displayed on the player. For a

better reading comfort, avoid too long names.

CDROM

This configuration menu manages the CD player from your PC as well as the way to rip the Audio CD. If

it’s not correctly configured, you’ll have no sound. It’s a better choice not to change too much settings in

this page.

Encoder

- Codec used to encode the file extracted from the CD. You have different choices and, it’s up to you to

choose a codec or another (depend-

ing on compression, rendering, size,

loss on signal, etc). We chose here

the MP3 format.

- Select Lame MP3 Encoder (version

1.26 engine 3.91 MMX) or higher, still

the best MP3 encoder (up to today)

with a good operational speed and

rendering final quality.

- Encoding options:

Bitrate: Applied bit rate or interval,

depending of the encoding type. We

suggest a value of 128 (minimal and

maximal). You can choose other val-

ues to match the desired sound qual-

ity. The player can read any file from

8kBd to 320kBd. 128 kBd allows a

compression factor of 10 (it means

the file size will be 10 times smaller on the disk) without noticeable quality loss.

- Flag: Private - Checksum - Original - Copyright

Avoid changing these parameters.

- Quality: Encoding output quality, or preset selection. R3Mix Preset is a good compromise.

- Méthode VBR: VBR method. Avoid this encoding type.

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 16 -

CDDB

CDDB is an Audio CD database. When you insert a CD in the CD player, the CD ID is scanned and after

a query to a CDDB server on internet, the player will receive information about the artist, the album and

the tracks titles. With this function, you don’t have to enter names with your keyboard.

2 - Validate your options and insert an Audio CD

Insert anAudio CD in the CD player. Immediately, CDex will connect to local CDDB in search of the Audio

CD. If this Audio CD is unknown, the player will search information in the internet CDDB if you’re

connected to internet. You can then skip to the next phase.

3 – CD ripping

It’s time now for CD ripping. Select all the desired tracks. Click on the second icon in the right raw

track(s)->MPEG , or select the menu "Conversion => Extract CD tracks in MPEG format. You can also

extract only a part of the CD.

Ripping will be done in two steps.

A - Extraction

CDex will search music on the Audio CD and will save it in a temporary directory. Progress is shown in

a status bar.

B - Encoding

As for extraction, CDex then encodes the extracted files you chose, one by one, in MP3 format.

Depending on CD, player (and its extraction speed) and of course your computer performances, full

ripping of your Audio CD will take more or less time. Generally, a full CD is extracted and encoded in 10

to 15 minutes.

4 – Retrieve MP3 files in the destination folder and transfer them in your player.

Note: You can download Sound Forge demo version or a full version of CDex on our site: www.id-al.com

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

- 17 -

6 – PLAYER OPERATION AND SETTINGS

The MP903 player can be considered as a kind of juke-box able to contain hundred hours of music. Its

operation is quite similar to a CD player’s operation.

Basic functions are simple and intuitive.

6.1 Stop mode (no play)

Goes back to the root directory

Validates the selected directory

Previous directory if at the root

Previous song if in a directory

Next directory if at the root

Next song if in a directory

No function

Previous directory if in a directory

Next directory if in a directory

Recalls Option menu (see later point 6.3).

6.2 Play mode

Play / Pause

Stop

Previous song

Next song

Next directory

Previous directory

Volume and tone settings. Press several times to scroll parameters.

Press then and to increase or decrease the value for the selected parameter.

Dummy

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

6.3 Option menu

Opens option menu. The option menu can’t be opened in play mode.

and Changes option.

and Changes option’s parameter.

Validates

AUTOPLAY :

ON - At power on, the player automatically enters play mode, using the «SONG» directory.

OFF - At power on, the player is in standby mode.

MODE :

RND - Random mode. Your tracks are randomly played.

SEQ - Sequential mode. Your tracks are played according to their transfer order.

REP - Repeat mode. The selected file is played in loop.

SIN - Single mode. The selected file is played once then a new command is awaited.

RS232 :

ON - Allows firmware updates and external command reception (computer, automated system,

remote control).

OFF - No transfer can be made via this link.

TIMER MSG :

ON - Allows the player to use the programs (see programming software chapter)

OFF - No programs

TIME : Date and time setting.

HD INFO :

Display the hard disk information. (capacity, format ...)

Transfert USB :

To enter USB mode in order to manage hard disk from your computer. You have to switch off

your player to exit USB mode.

Note: in “standby” mode (no play) and after 60 seconds, current date and time are displayed.A dot at the

left of the time digits means that timer is active.

Password

ON - Password is actived

OFF - Password is desactived

- 18 -

® Waves System V 3.x - 2004

I.D. AL - MP903 - Professional MP3 audio player - ManualI.D. AL - MP903 - Professional MP3 audio player - Manual

I.D. AL - MP903 - Professional MP3 audio player - Manual

To change password, press the key and "New Pswd" will be displayed. Select now your

combination, pressing 4 keys of your choice.

In some cases, you may want to protect your programming or forbid unauthorized users to copy or edit

your musical contents. You can protect this Option menu with a password you can customize and

change at will. Password is made of a 4 keys combination to enter in a precise order from the 8 keys of

the keyboard.

RETAINYOUR PASSWORD.

When you exit the Option menu, your password is activated and you must now enter it to access the

Optionmenu.

What to do if you lost your password?

There is no way to recover a password. The only solution is a complete reset of the player. In this case,

you’ll loose all your programming and settings. This initialization doesn’t affect data stored on the hard

disk.

To reset the player and retrieve the factory settings, you must first switch off the player. Press and keep

pressed the key then switch on the player. The “Reset Factory” message is displayed. Release the

key and wait several minutes. Your player will then be ready to operate with its factory configuration and

the password will be erased.

Tip: To be sure that nobody could copy your data, think to lock the “RS232” link in “OFF” position. So,

even with an external remote, it won’t be possible to launch the USB mode and therefore to access the

hard disk.

Note: in “standby” mode (no play) and after 60 seconds, current date and time are displayed. A dot at the

left of the time digits means that timer is active.

6.4 Directly call of a title from the keyboard

At any time, you can call a file in the currently played directory. In order to do so, files you want to be

played must be numbered this way:

xxxxx title name.mp3

xxxxx = a number between 00001 and 65000

Example:

00001 Elton John – Song for Guy.mp3

32458 Queen – We are the champions.mp3

01276 The Beatles - Let it Be.mp3

00145 Ludwig van Beethoven - Symphonies N5.mp3

Be careful, you can call a file only if it is located in the currently played directory. If this

directory doesn’t exist, the player will play another file, randomly selected.

- 19 -

Table of contents

Other waves system MP3 Player manuals

waves system

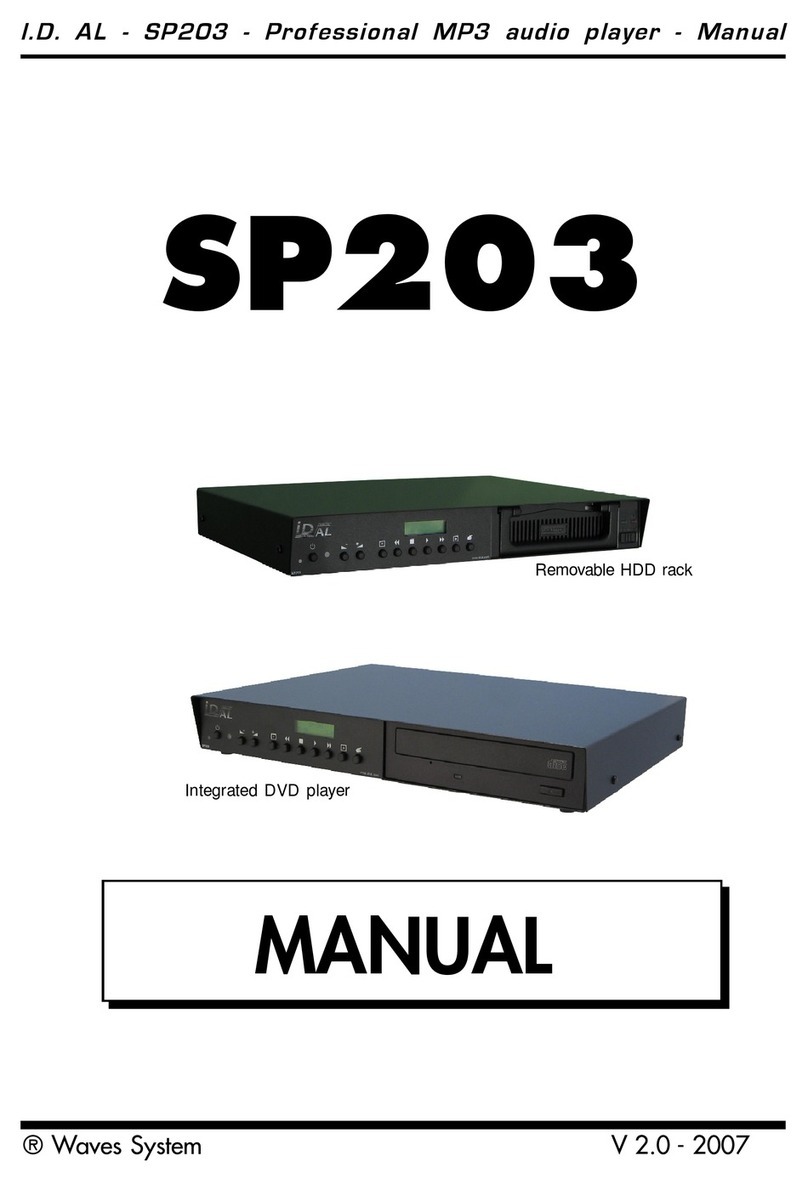

waves system Sp203 User manual

Popular MP3 Player manuals by other brands

Elsässer

Elsässer 85950 Installation and instruction manual

Memorex

Memorex MMP8563 Specifications

Compaq

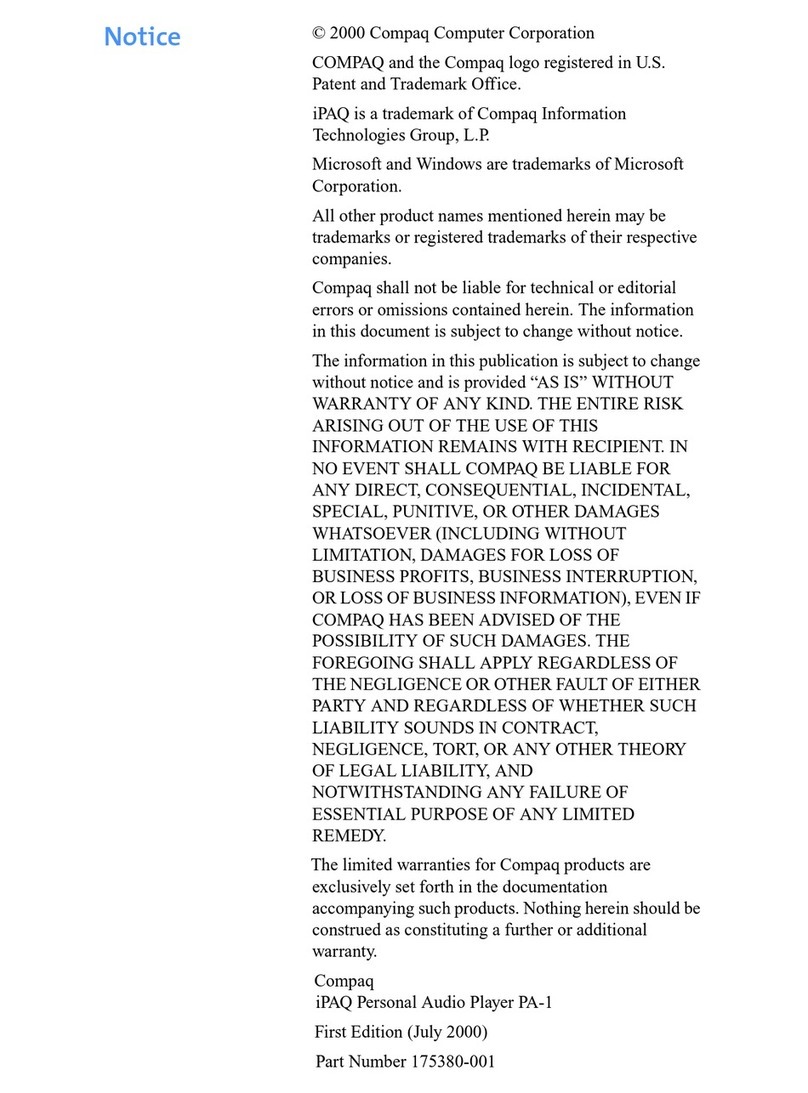

Compaq iPAQ PA-1 user guide

Sony

Sony Walkman NWZ-W273S Service manual

Philips

Philips SA126/05 user manual

Philips

Philips GoGear SA3CNT08 user manual

Oregon Scientific

Oregon Scientific MP 130 user manual

Coby

Coby MP-C941 Troubleshooting

SanDisk

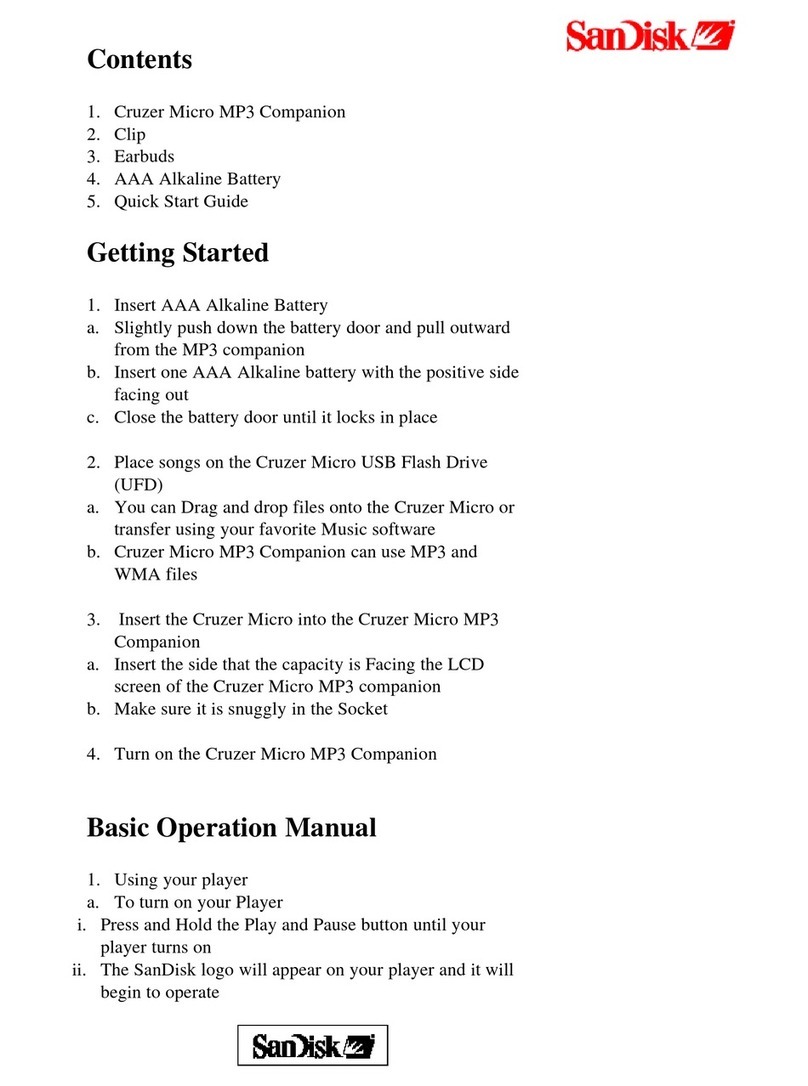

SanDisk SDMX11R-002GK-A57 - Sansa Clip 2 GB MP3... user guide

Slick

Slick MP82 owner's manual

LENCO

LENCO XEMIO-145 brochure

Philips

Philips ACT200 product manual

Philips

Philips SA2845/02 user manual

Vivax

Vivax BS-251 Instruction manuals

RCA

RCA CTM-980723-KS5 user guide

TrekStor

TrekStor iBeat Rock user manual

ETL

ETL mpiko manual

Archos

Archos 2 Vision quick guide

waves system MP 903 Assembly instructions

Popular MP3 Player manuals by other brands
