Webb WEER38 User manual

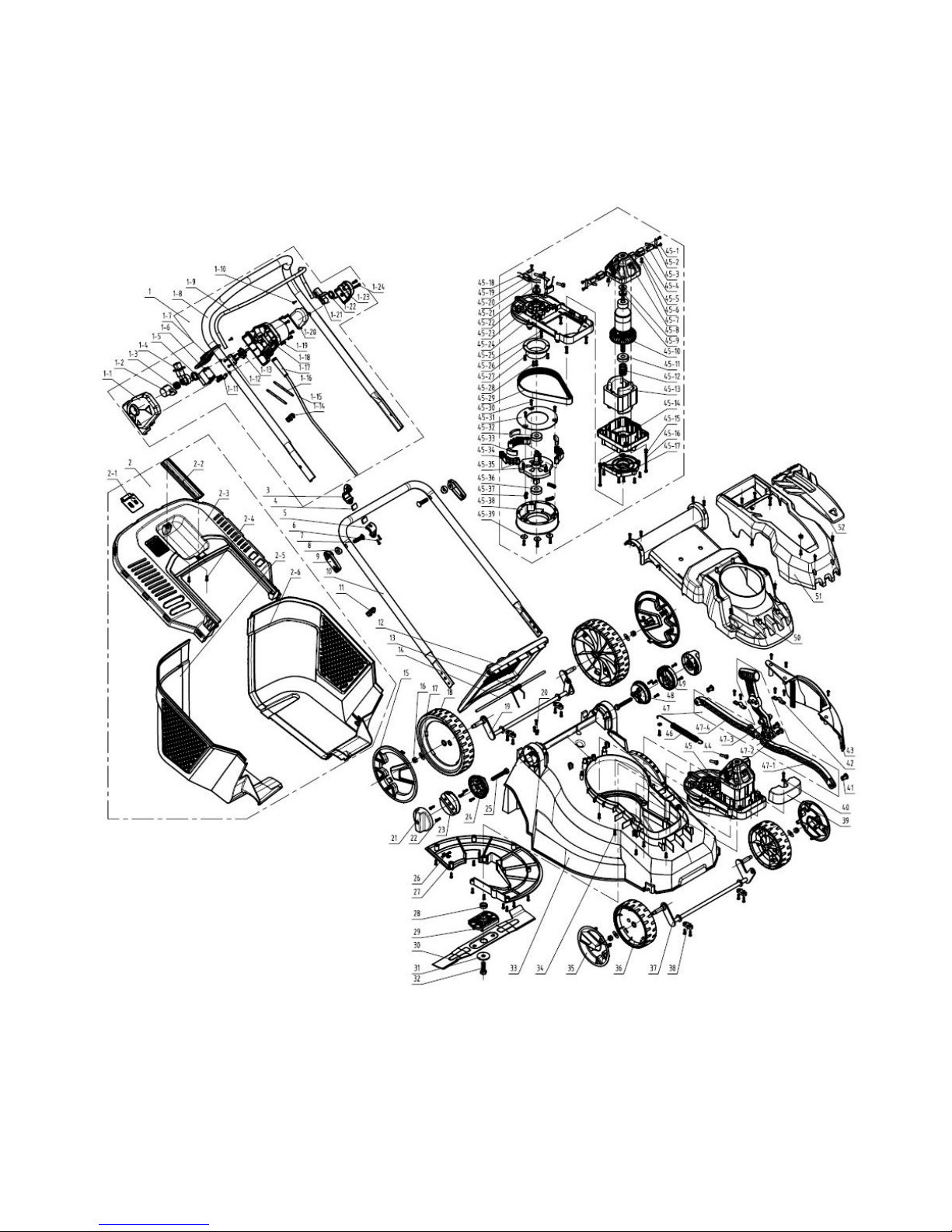

OPERATOR’S MANUAL AND PARTS LIST
ELECTRIC LAWNMOWER - WEER38
Spares & Support: 01793 333212
www.webblawnmower.co.uk
Before use please read & understand this manual, paying particular
attention to the safety instructions.
22/02/2013 v1

1
2
7
4
6
10
11
12
13
8
9
5
3

ELECTRIC LAWNMOWER
WARNING! Read this manual and general safety instructions carefully
before using the appliance, for your own safety. Your power tool should
only be passed on together with these instructions.
1 DESCRIPTION (FIG. 1)
2. Brake lever
1. Handle
3. Starter button
4. Handle knob and bolt
5. Cable hook
6. Lower handle
7. Upper handle
8. Grassbag
9. Volume indicator
10. Height adjustment handle
11. Motor cover
12. Wheels
13. Lower handle set knob
2 PACKAGE CONTENT LIST
Remove all packaging materials.
Remove remaining packing and package inserts (if included).
Check that the package contents are complete.
Check the appliance, the power cord, the power plug and all accessories for transportation
damage.
Keep the packing materials for as long as possible preferably until the end of the warranty
period.
WARNING: Packaging materials are not toys! Children must not play with
plastic bags! There is a danger of suffocation!
1 x manual
1 x collection box
2 x cable clip
2 x fixed knobs and screws
1 x hook
If any parts are missing or damaged, please contact your dealer.
3 SYMBOLS
In this manual and/or on the machine the following symbols are used:
Read the operation and service instruction manual carefully. Be
thoroughly familiar with the controls and the proper use of the
equipment.
Never mow while people, especially children, or pets are nearby.
WARNING! Do not put hands or feet near or under rotating parts. Keep
clear off the discharge opening at all times. The blades continue to rotate
after the unit is switched off.
Always disconnect your machine from the electrical supply before
clearing, inspecting or adjusting any part of it, or if the supply cable has
become damaged or entangled
1400W
WEER38
1

Always keep the electrical supply cable away from the blades -be aware
of its position at all times.
Never operate the machine in the rain or in damp or wet conditions.
Moisture creates an electrical shock hazard.
Class II - The machine is double insulated; an earthing wire is therefore
not necessary.
In accordance with essential requirements of the European directive(s)
Wait until all machine components have completely stopped before
touching them. The blades continue to rotate after the machine is
switched off, a rotating blade can cause injury.
4 GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to heed warnings and follow instructions
may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions
for future reference. The term "power tool" in the safety warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless) power tool.
4.1 Working area
Keep the working area clean and well lit. Untidy and dark areas can lead to accidents.
Do not operate power tools in potentially explosive surroundings, for example, in the
presence of inflammable liquids, gases or dust. Power tools create sparks which may
ignite the dust or fumes.
Keep children and bystanders at a distance when operating a power tool. Distractions can
cause you to lose control of it.
4.2 Electrical safety
Always check that the power supply corresponds to the voltage on the
rating plate.
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce
the risk of a lethal electric shock.
Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and
refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.
Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will
increase the risk of a lethal electric shock.
Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of a lethal electric shock.
When operating a power tool outdoors, use an extension cable suitable for outdoor use.
Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.
If operating a power tool in a damp location is unavoidable, use a power supply protected
by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric
shock.
2

4.3 Personal safety
Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention when operating a power tool may result in serious
personal injury.
Use safety equipment. Always wear eye protection. Using safety equipment such as
non-skid safety shoes will reduce the risk of personal injury.
Avoid accidental starts. Ensure the switch is in the off position before inserting the plug.
Carrying power tools with your finger on the switch or plugging in power tools when the
switch is in the on position increasesthe likelihood of accidents occurring.
Remove any adjusting keys or spanners before turning on the power tool. A spanner or
key left attached to a rotating part of the power tool may result in personal injury.
Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable
you to retain control over the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from the power tool. Loose clothes, jewellery or long hair can become
entangled in the moving parts.
If you are connecting devices for dust extraction and collection facilities, please ensure
that they are attached and used correctly. Using such devices can reduce dust-related
hazards.
4.4 Power tool use and care
Do not expect the power tool to do more than it can. Use the correct power tool for what
you want to do. A power tool will achieve better results and be safer if used for the purpose
for which it was designed.
Do not use the power tool if the switch does not turn it on and off. A power tool with a broken
switch is dangerous and must be repaired.
Disconnect the plug from the power source before making adjustments, changing
accessories, or storing power tools. This reducesthe risk of starting the power tool
accidentally.
Store power tools, when not in use, out of the reach of children and do not allow people
who are not familiar with the power tool or these instructions to operate it. Power tools are
potentially dangerous in the hands of untrained users.
Maintenance. Check for misalignment or jammed moving parts, breakages or any other
feature that might affect the operation of the power tool. If it is damaged, the power tool
must be repaired. Many accidents are caused by using poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to jam and are easier to control.
Use the power tool, accessories and cutting tools, etc. in accordance with these
instructions and in the manner intended for the particular type of power tool, taking into
account the working conditions and the work which needs to be done. Using a power tool
in ways for which it was not intended can lead to potentially hazardous situations.
4.5 Service
Your power tool should be serviced by a qualified specialist using only genuine spare
parts from the manufacturer. This will ensure that it meets the required safety standards.
3

5 ADDITIONAL SAFETY INSTRUCTIONS FOR LAWN MOWERS
WARNING: Failure to obey a safety warning can result in serious injury to
yourself or to others. Always follow the safety precautions to reduce the
risk of fire, electric shock and personal injury. Save instruction manuals
and review frequently to ensure safe operation and to instruct others who
may use this tool.
WARNING: The operation of any tool can result in foreign objects being
thrown into your eyes, which can result in eyes severely damaged. Before
beginning power tool operation, always wears safety goggles or safety
glasses with side shields and a full face shield when needed. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard
safety glasses with side shield.
Never allow children or people unfamiliar with these instructions to use the lawnmower.
Local regulations may restrict the age of the operator.
Never mow while people, especially children or pets, are nearby.
The operator or user is responsible for accidents or hazards occurring to other people or
their property, involving the lawnmower.
Do not operate the lawnmower when barefoot or wearing open sandals, always wear
substantial footwear and trousers.
Thoroughly inspect the area where the lawnmower is to be used and remove all stones,
sticks, wires, bones and other foreign objects.
Before use, always visually inspect to see that the blades, blade bolts and cutter
assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to
keep them balanced.
Mow only in daylight or in good artificial light.
Avoid operating the lawnmower in wet grass, where feasible.
Walk, never run.
Never operate the appliance with defective guards or shields, or without safety devices, for
example deflectors and/or grass catchers in place.
Mowing on banks can be dangerous:
−Do not mow excessively steep slopes.
−Always be sure of your footing on slopes or wet grass.
−Mow across the face of slopes – never up and down.
−Exercise extreme caution when changing direction on slopes.
−Use extreme caution when stepping back or pulling the lawnmower towards you.
−Never mow by pulling the mower towards you.
Stop the blades if the lawnmower has to be tilted for transportation,when crossing
surfaces other than grass and when transporting the lawnmower to and from the area to
be mowed.
4

Do not tilt the machine when starting or switching on the motor, except if the machine has
to be tilted for starting in long grass. In this case, do not tilt it more than absolutely
necessary and tilt only the part which is away from the operator. Always ensure that both
hands are in the operating position before returning the machine to the ground.
Switch on the lawnmower according to instructions and with feet well away from the
blades.
Do not put hands or feet near or under rotating parts.
Keep clear of the discharge chute at all times.
Never pick up or carry the lawnmower while the motor is running.
Remove the plug from the socket:
−Whenever you leave the machine.
−Before clearing a blockage.
−Before checking, cleaning or working on the lawnmower.
−After striking a foreign object. Inspect the lawnmower for damage and make any necessary
repairs. Check immediately if the lawnmower starts to vibrate abnormally.
Keep all nuts, bolts and screws tight to be sure that the lawnmower is in safe working
condition.
Check the grass catcher frequently for wear or deterioration.
Replace worn or damaged parts before use.
Do not to connect a damaged cord to the supply or touch a damaged cord before it is
disconnected from the supply. A damaged cord can lead to contact with live parts.
Do not to touch the blade before the machine is disconnected from the supply and the
blade have come to a complete stop.
Keep power cords away from the blade. The blade can cause damage to the cords
and lead to contact with live parts.
Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.New users should
be given supervision or instruction concerning use of the appliance and should read this
manual.
If the external flexible cable or cord is damaged, it must be replaced by the manufacturer
or an authorised service agent to ensure safe use.
Follow the instructions for safe use, including the recommendation that it must be supplied
with a Residual Current Device (RCD) with a tripping current of not more than 30 mA.
Completely uncoil your power cable before use to prevent over heating and loss of
mower efficiency. When tidying away the cable, wind it carefully to avoid kinking.
Before use check the supply and power cord for signs of damage or ageing. If the
cord becomes damaged during use, disconnect the cord from the supply immediately.
Do not cross roads or gravel paths with the machine still running.
6 ASSEMBLY
Some parts of the lawnmower have been dismantled for transport. The screws, wheels,
handwheels, cable clips and screwdrivers are to be found in plastic bags. Assembly is simple
if you follow these instructions:
6.1 Grass collection box.
Assemble the 2 halves and fix them together.
Lift the rear flap and attach the grass box to the mower.
6.2 Lower handle
Loosen the lower handle set knob (13) on both sides, adjust the lower handle to the
correct position, then tighten the lower handle sets knobs.
5

6.3 Upper handle
Slide the cable restraint hook (5) onto the upper handle (7).
Position the upper handle over the lower handle and align the holes. Push the securing
bolts through the holes. Screw on the securing knobs and hand tighten.
Hold the cable against the lower handle and pull gently upwards. Fix into position using
cable clips.
Note: for storage purposes, the handle is foldable.
7 OPERATION
Before connecting to the mains supply, always check the switch is in the
off position!
7.1 Starting/stopping your lawnmower
Do not start the mower if it is standing in long grass.
Press and hold the starter button located on the switch box.
Hold the starter button and lift the brake lever upwards towards the handle and hold in
this position.
The motor will now start.
Release the starter button.
6

To stop the mower simply, release the brake lever and the mower will stop.
ATTENTION : After switching off, the cutting blade will go on turning for a
few seconds, make sure the blade has come to a complete standstill.
CAUTION: Do not rapidly switch off and on.
7.2 Adjusting the cutting height
Make sure your machine is switched off and the blade has come to a
complete standstill before adjusting the cutting height.
ATTENTION: The blades continue to rotate for a few seconds after the
machine is switched off, a rotating blade can cause injury.
Your lawnmower is equipped with a central height adjustment system, offering:
6 height settings: 20mm, 30mm, 40mm, 50mm, 60mm and 70mm
Select the cutting height by locking the lever in the desired position.
Note : For the first cut of the season, a high cutting position should be selected.
7.3 Mowing / Cutting the grass
Select a cutting height to suit the actual height of the grass. If necessary, mow the same
section several times so that no more than 4cm is removed at once.
Place the lawnmower on the edge of the lawn, close to the
power supply. Work away from that point.
Alter the position of the cable at each turn, move it to the
already cut side.
When mowing, do not allow the motor to work toohard.
If the rotating speed drops toomuch (you will hear that
the motor sound changes) stop mowing and change the
mowing height to a higher position to avoid damaging
your mower.
NOTE: The motor is protected by a safety overload switch
7.4 Empty the grass box
To prevent the ejector opening / blade becoming clogged and unnecessary overloading of the
motor, empty the grass box once it is full.
7.5 Hours of operation
Observe your national and regional regulations relating to noise which may specify hours
during which a lawn mower may be operated.
7

8 TECHNICAL DATA
Power supply
Power consumption
No load speed
Cutting width (mowing circle) :
Cutting heights 20-70mm (6 Positions)
Grass box capacity 35 L
9 NOISE
Noise values measured according to relevant standard. (K=3)
Acoustic pressure level LpA 81.6dB(A)
Acoustic power level LwA 96 dB(A)
ATTENTION! The sound power level may exceed 85 dB(A), in this case
individual hearing protection should be worn.
aw (Vibration) 1,509 m/s2 K = 1,5 m/s2
10 MAINTENANCE AND STORAGE
■Make sure all fasteners (screws, nuts, etc.) are always fullytightened so that you can work
safely with the mower.
■Check the grass boxfor wear and tear at regular intervals.
■Replace any worn or damaged parts.
■Regular care of your lawnmower will not only increase its service life but will also facilitate
the easy mowing of your lawn. Clean the lawnmower with brushes or cloths. Do not use
any solvents or water to remove dirt. Always switch off the motor and remove the power
plug before carrying out any maintenance and cleaning work.
■The part most susceptible to wear and tear in the machine is the blade. Check the
condition of the blade and its fastener at regular intervals. If the blade is worn, it must be
replaced or sharpened. If the mower vibrates excessively, this means that the blade is
either not balanced correctly or has been bent out of shape by knocks, in which case it
must be repaired or replaced.
10.1 Replacing the blade
Always disconnect the power plug and check on the run-on display that the
motor is off before you inspect the blade.
CAUTION ! Rememberthat the blade will continueto rotate for a few seconds even after the
motor has been switched off. Never try to stop the blade. Make sure at regular intervals that
the blade is securely attached, in good condition and sharp. Sharpen or replace the blade
when necessary.
If the blade strikes an object while mowing, stop the lawnmower and wait until the blade has
come to a standstill. Then check the condition of the blade and the blade fixing screw. Ifthese
have been damaged or loose, they must be replaced immediately.
220~240 V / 50 Hz
1400 W
3000 rpm
380mm
Model 500090
aw (Vibration) 3,839 m/s2 (R) K = 1,5 m/s2
aw (Vibration) 3,798 m/s2 (L) K = 1,5 m/s2
8

At the start of each season, check the condition of the blade, the connection cable and all
electrical connections.
If repairs are necessary, please contact one of our customer service centres.
Use only original spare parts for maintenance work.
10.2 Storage:
Always clean your mower before storage. Store your mower in a clean, dry environment.
To avoid mould on remaining contents, make sure the grass bag is empty and dry.
You can fold the handlesto save space, loosen the 2 clamps on each side of the handle and
bend the upper handle part towards the front of the machine.
Long term storage: apply some environmentally friendly oil on the mower blade to prevent it
from rusting.
Have your blade sharpened after mowing season, so your machine is ready for the new
season.
11 TROUBLE SHOOTING
Warning: Switch off and remove the plug from the mains before performing any action repairs.
SYMPTOM POSSIBLE CAUSE REMEDY
Handle not in
position Lower handle knobs not seated properly.
Handle knobs not tightened.
Adjust the height of the handle and
make sure the knobs are seated
properly.
Tighten handle knobs.
Mower not
starting Power cord not connected to the mower
plug
Power cord not
connected to power source.
Tripped circuit breaker in the
house.
Motor control switch
defective.
Reconnect the cord and use the cord
retainer to keep the cord close to the
motor/blade control.
Connect the power cord to a live
230V, 50Hz AC receptacle.
Reset house circuit breaker. If it trips
again, call a qualified electrician.
Have motor control switch replaced
by an authorized service centre.
Mower is cutting
grass unevenly
Lawn is rough,uneven or the
cutting height is not set
properly.
Raise the cutting height to a higher
setting.
Mower not
mulching
properly
Wet grass clipping sticking
to the underside of the deck. Wait until the grass dries before mowing.
Mower hard to
push High grass, rear of mower housing and blade dragging
in heavy grass, or cutting
height too low.
Raise the cutting height.
Mower
vibrating at
higher speeds
Blade is unbalanced.
Bent motor shaft. Have repaired by an authorized service centrebefore restarting.
Stop the motor, disconnect the power
source, and inspect for damage.
Have repaired by an authorized
service centrebefore restarting.
Important: Wear safety gloves when handling the blade.
At the end of the season, perform a general inspection of your lawnmower and remove any
grass and dirt which may have accumulated.
9

12ENVIRONMENT
Should your machine need replacement after extended use, do not put it in the
domestic waste but dispose of it in an environmentally safe way.
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
10
UK PLUG REPLACEMENT
The fuse in the main plug of your garden power tool should
always be replaced with one of identical rating.
Check the voltage given on your garden power tool matches
the supply voltage.The garden power tool is supplied with
a fitted plug, however if you should need to fit a new plug
follows the instruction below.
IMPORTANT:
The wires in the mains lead are coloured in accordance with
the following code:
Blue – Neutral
Brown – Live.
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the
terminal which is marked with N.
The wire which is coloured brown, must be connected to
the terminal, which is marked with the letter L.
Warning: Never connect live or neutral wires to the earth
terminal of the plug. A 13AMP (BS1363/A) plug must be
used and a 13AMP fuse must be fitted.
NOTE: If a moulded plug is fitted and has to be removed
take great care in disposing of the plug and severed cable,
it must be destroyed to prevent engaging into a socket.
If the supply cord is damaged it must be replaced by a
service agent in order to maintain the machine safely.
13
13

PARTS DIAGRAM AND LIST

ItemNo PartNo Description Qty ItemNo PartNo Description Qty
1 WE1101 SwitchBoxAssembly 1 34 WE11034 SelfTappingScrew5*16 5
11 WE11011 SwitchBoxTopCover 1 35 WE11035 FrontWheelTrim 2
12 WE11012 SwitchButton 1 36 WE11036 FrontWheel 2
13 WE11013 SwitchSpring 1 37 WE11037 FrontAxleAssembly 1
14 WE11014 SwitchSupport 1 38 WE11038 WheelShaftFixedPlate 4
15 WE11015 SwitchTorsionalSpring 1 39 WE11039 Weight 1
16 WE11016 Switch 1 40 WE11040 BrakeWasher 2
17 WE11017 CableHook 1 41 WE11041 PlasticWasher 2
18 WE11018 UpperHandle 1 42 WE11042 AdjusterHandleClamp 2
19 WE11019 BrakeLever 1 43 WE11043 AdjusterHandleSideCover 1
110 WE110110 SelfTappingScrew3*10 4 44 WE11044 Pin 2
111 WE110111 CableClamp 1 45 WE11045 Motor 1
112 WE110112 FixedPlate 1 451 WE110451 SelfTappingScrew3*12 6
113 WE110113 Plug 1 452 WE110452 BrushHolderClamp 2
114 WE110114 LineHook 1 453 WE110453 CarbonBrush 2
115 WE110115 ElectricCable 1 454 WE110454 BrushHolder 2
116 WE110116 ConnectingWire 2 455 WE110455 HexNut 2
117 WE110117 PowerSleeve 1 456 WE110456 Washer 4
118 WE110118 SwitchBoxBottomCover 1 457 WE110457 MotorRearSupport 1
119 WE110119 SelfTappingScrew4*14 9 458 WE110458 Washer 1
120 WE110120 HandleRightCover 1 459 WE110459 Bearing627Z 1
121 WE110121 LeverSupport 1 4510 WE1104510 RotaryAssembly 1
122 WE110122 TorsionSpring 1 4511 WE1104511 Bearing6201Z 1
123 WE110123 HandleLeftCover 1 4512 WE1104512 SmallPulley 1
124 WE110124 SelfTappingScrew4*20 1 4513 WE1104513 Capacitor 1
2 WE1102 CollectionBoxAssembly 1 4514 WE1104514 Frame 1
21 WE11021 CollectionBoxFullIndicator 1 4515 WE1104515 SpringWasher 2
22 WE11022 CollectionBoxHandle 1 4516 WE1104516 Screw 2
23 WE11023 CollectionBoxCover 1 4517 WE1104517 CoverPlate 1
24 WE11024 SelfTappingScrew4*14 2 4518 WE1104518 Clamp 2
25 WE11025 CollectionBoxRight 1 4519 WE1104519 Inductor 1
26 WE11026 CollectionBoxLeft 1 4520 WE1104520 Pin 2
3 WE1103 ClampUpper 1 4521 WE1104521 JumpRing 1
4 WE1104 ClampWasher 2 4522 WE1104522 Bearing608Z 1
5 WE1105 ClampLower 1 4523 WE1104523 Capacitance 1
6 WE1106 SelfTappingScrew3*15 1 4524 WE1104524 MotorSupport 1
7 WE1107 SquareNeckBolt 2 4525 WE1104525 Washer 4
8 WE1108 PlasticWasher 2 4526 WE1104526 CombinationScrew4*20 4
9 WE1109 Knob 2 4527 WE1104527 FrictionSleeve 1
10 WE11010 LowerHandle 1 4528 WE1104528 SelfTappingScrew4*14 7
11 WE11011 CableClamp 1 4529 WE1104529 Belt 1
12 WE11012 RearCover 1 4530 WE1104530 SelfTappingScrew5*16 8
13 WE11013 RearCoverTorsionSpring 1 4531 WE1104531 CoverPlate 1
14 WE11014 RearCoverShaft 1 4532 WE1104532 Bearing6002 1
15 WE11015 RearWheelTrim 2 4533 WE1104533 Frictionsleeve 3
16 WE11016 SelfLockingNut 4 4534 WE1104534 Brakeshore 3
17 WE11017 Washer 4 4535 WE1104535 PulleyBush 1
18 WE11018 RearWheel 2 4536 WE1104536 Bearing6003Z 1
19 WE11019 RearAxleAssembly 1 4537 WE1104537 SpeedRegulatorSpring 3
20 WE11020 CableClamp 1 4538 WE1104538 LargePulley 1
21 WE11021 LowerKnob 2 4539 WE1104539 BrakeWasher 3
22 WE11022 SelfTappingScrew5*16 13 46 WE11046 AdjustorSpring 1
23 WE11023 LeftGearAdjuster 1 47 WE11047 HeightAdjustorAssembly 1
24 WE11024 LeftGearFixed 1 471 WE110471 HeightAdjustorLever 1
25 WE11025 HexScrew8*55 2 472 WE110472 PlasticPin 2
26 WE11026 Guideboard 1 473 WE110473 HeightAdjustorHandle 1
27 WE11027 SelfTappingScrew4*14 39 474 WE110474 AdjustorLever 1
28 WE11028 OutputShaftSleeve 1 48 WE11048 RightGearFixed 1
29 WE11029 BladeFixedPlate 1 49 WE11049 RightGearAdjustor 1
30 WE11030 Blade 1 50 WE11050 MotorCover 1
31 WE11031 BladeClamp 1 51 WE11051 UpperCover 1
32 WE11032 BladeBolt 1 52 WE11052 TopCover 1
33 WE11033 PlasticDeck 1

GUARANTEE
This product is guaranteed against manufacturing
defects for a period of 24 months. This does not
cover the product where the fault is due to misuse,
abuse, use in contravention of the instructions, or
where the product has been the subject of
unauthorised modifications or alterations. This
warranty only covers domestic use and will be void
if the tool is used for a commercial application.
In the event of a problem with the product within
the guarantee period, please contact Customer
Service on 01793 333212 or email:
[email protected]
If the issue cannot be resolved over the telephone
or by email, you may be referred to your local
approved service dealer.
Please keep your sales receipt as proof of
purchase
Your statutory rights remain unaffected.
Guarantor: Handy Distribution SN3 4NS

EC Declaration of Conformity
We, Importer
Handy Distribution
SN3 4NS
Declare that the product
Designation: 1400w Electric Lawnmower
Model: WEER38
Complies with the following directives:
2006/42/EC - Machinery Directive
2006/95/EC – Low Voltage Directive
2004/108/EC - Electromagnetic Compatibility Directive
2000/14/EC, Annex VI - Noise Emission in the Environment by Equipment for
Use Outdoors Directive.
The conformity assessment procedure followed was in accordance with
Directive 2006/42/EC
Name of the Notified Body: TÜV SÜD Industrie Service GmbH, Westendstrasse 199, 80686 München,
Deutschland
- Guaranteed Sound Power Level: 96 dB (A)
Standards and technical specifications referred to:
2004/108/EC - EN 55014-1/2006/A1: 2009, EN 55014-2:1997/A1: 2001/A2: 2008,
EN 61000-3-2: 2006/A1 :2009/A2: 2009, EN 61000-3-11: 2000, EN61000-4-7 :2002, IEC 61000-4-2,
IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11, IEC 61000-4-13
2006/42/EC – EN 50366, EN 60335-1 :2002 + A11: 2004, A1: 2004 + A12: 2006 + A2: 2006 + A13 :2008 +
A14: 2010, EN 60335-1/A14: 2010, EN 60335-2-77: 2010, EN 62233: 2005, 2008
CR 1030-1: 1995, EN 62335-2-77: 2010, EN ISO 354 :1993, EN ISO 3767-1, EN ISO 3767-3, EN ISO 3767-5,
ISO 3864, EN ISO 4871: 1996, EN ISO 11201: 1995, 1996, EN ISO 11688-1: 1998, EN ISO 11691: 1995, EN
ISO 11820: 1996, EN ISO 12100-2: 2003, EN ISO 13857: 2008, EN ISO 20643: 2005, EN ISO 3744: 1995,
UNE-EN 50075, IEC60034-1, IEC 60068-2-2, IEC 60068-2-32, IEC 60068-2-75, IEC 60083:1975, IEC 60112,
IEC 60127, 60227 IEC 41, 60227 IEC 52, 60227 IEC 53, IEC 60238, 60245 IEC 86, 60245 IEC 51,
60245 IEC 53, 60245 IEC 57, 60245 IEC 87, 60245 IEC 88, IEC 60249-2-4, IEC 60249-2-5, IEC 60309-2,
IEC 60320-1, IEC 60320-2-2, IEC 60320-2-3, IEC 60384-14, IEC 60417-5036, IEC 60529, IEC 60664-1,
IEC 60664-3, IEC 60695-2-2, IEC 60695-2-11, IEC 60695-2-12, IEC 60695-2-13, IEC 60695-10-2, IEC 60695-
11-10, IEC 60730-1, IEC 60730-2-8, IEC 60884-1, IEC 60906-1, IEC 60990, IEC 60999-1, , IEC 61032, IEC
61058-1, IEC 61180-1, IEC 61558-1, IEC 61558-2-6, IEC 61770, IEC 68-2-32, ISO4046:1978, ISO9772
2006/95/EC – EN 62233: 2005, 2008
2000/14/EC, Annex VI - EN ISO 3744:1995
2005/88/EC
ZEK01.2-08:2008
Authorised signatory and technical file holder
Date: 19/03/2013
Signature:
Name / title: Mr. Simon Belcher / Managing Director
Hobley Drive, Stratton St Margaret, Swindon, Wiltshire, SN3 4NS.

Warranty Registration Form
Please go to www.webblawnmowers.co.uk select registration and complete the
registration for your machine.
(Alternatively please fill in this form and return to the address above.)
Owner’s Name: …………………..…………………………………………………………………..................
Address: ………………………………………………………………………………………......................... …………………………… Postcode:………………….. Telephone No.: ……..……………................ Email Address: ……………………...................................... Agent/ Dealer: ……………………........................................
Product: ....................................................... Model: .................................................................. Serial No: ....................................... ............. Engine No:…….....................................................
Date of Purchase: ......................................... Date of Delivery: ......................................... (Warranty Commences From Date of Delivery)
Webb Lawnmowers, Hobley Drive, Swindon, SN3 4NS, United Kingdom. Telephone: [phone] Fax: [phone] E-mail: [e-mail] www.webblawnmowers.co.uk

Webb Lawnmowers Hobley Drive Stratton St Margaret Swindon Wiltshire SN3 4NS
