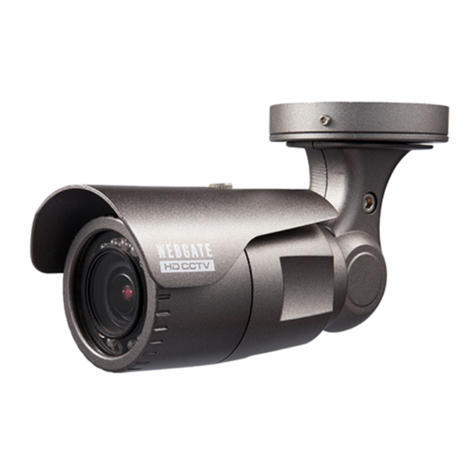

WebGate C1080BL-IR48-AF User manual

1
Caution for installation and usage
1. Check Frame rate setting based on power frequency
- Set Frame rate to 25Hz if your region is using 50Hz(PAL) power frequency, or set to
30Hz for 60Hz(NTSC) region. (OSD : System Frame rate).
2. Shutter mode setup based on installation environment
-INDOOR : Controls brightness for the best video quality at indoor environment.
-OUTDOOR : Controls brightness for the best video quality at outdoor environment.
-INDOOR/OUTDOOR-ANTI BLUR : Improves the motion blurring phenomenon than
Indoor/Outdoor mode under dark environment but the brightness decreases relatively.
3. DC12V or AC24V(500mA over) power adapter must be used.
4. Please contact to qualified service personnel in case of product damage. Do not
attempt to repair product by yourself.
5. Please avoid external shock and vibration on the product.
6. Do not install product under excessive heat or cold environment. (recommended
operation temperature is 0°C~50°C)
7. Do not target lens to the sun. Image sensor might be damaged
8. Do not open the product under any circumstances, it could void the warranty. Natural
disaster like lightning, flood will need charge for repair.
English

2
Feature
HD-SDI video digital signal
HD-SDI(High Definition Serial Digital Interface) is non-compressed digital signal for
broadcasting, and there is no quality loss of high definition images.
2MP, Full HD high resolution picture quality
Full HD(1920x1080) provides 6 times higher resolution than SD level camera, and more
clear video image can be achieved through 1/3”, 2Megapixel progressive CMOS.
High performance under low light environment
High performance quality can be achieved under low light environment by optimizing the
image handling technology on CMOS sensor.
(B/W : 0.0005 Lux / Color : 0.2Lux@50IRE, F.1.2, 3100K, DSS OFF)
Indoor/Outdoor function
Minimizes the motion blur of object from slowly moving person(Indoor) to fast moving
vehicle(outdoor) by optimizing the signal processing and controls brightness automatically
to perform the best video image
3D-DNR
3D-DNR function efficiently removes video noise in dark environment, and shows clear
image as a result.
True Day & Night function
Camera senses the surrounding brightness automatically, and insert/remove the IR-CUT
filter to get the best sensitivity performance.
WDR/BLC/ACE/HLC
Under backlight condition, you can select the most suitable function among WDR, BLC,
ACE and HLC.
Auto Focusing function
Auto Focusing function performs Correct and Quick focusing of camera by just one click.
After the power is turned on, camera can judge reasonable brightness to execute Auto
Focusing. If the environment is bright enough, it performs Auto focusing, meanwhile it
keeps previous focus condition if the environment is dark.
Privacy support
Camera can support up to 28 privacy masking areas.
OSD control and F/W upgrade
OSD control and Firmware upgrade of camera can be achieved from PC or Webgate DVR
through RS485 communication.

3
Supplied accessories
Please check if all the supplied accessories are included.
Camera
Installation / User Manual
Monitoring Cable(IR18)
Hood Screw(IR18)
Screw & Plastic Anchor
L Wrench
Hood(IR48)
Hood(IR18)
Product description
Camera installation
Auto Iris connector wiring
1) Move joystick shortly to enter Manual Focusing mode.
2) Move joystick up(Tele) or down(Wide) to adjust the angle of view.
3) Push the center of joystick shortly to exit Manual Focusing mode then push again
shortly one more time to activate Auto Focusing function for exact focus.
No
Name
1
Camera
2
Camera Hood
3
RS485 Port
4
Power input connector
5
Video output BNC connector

4
<Note>
1) To adjust exact focus, the image will enlarge 2 times bigger under Auto Focusing mode.
2) In case of AF models, Zoom Tracking function will work together with zoom control under
Manual Focusing mode. But this function will work normally when the focus is adjusted
well before zoom control.
Notice for Auto Focus operation
Following conditions might make failure of auto focusing .
1. When there are changes of the scene while Auto Focus is working(sudden movement,
appearance or disappearance).
2. When there are sudden change of the brightness.
3. When shooting low contrast image.
4. When there is strong light in the scene.
5. When there is foreign substance on the lens.
6. If auto focusing is failed, please try to adjust focus manually or try auto focus again
with the scene which have strong contrast.
Monitor connection
1. Use coaxial cable to connect camera with monitor.
2. Monitor needs to support SDI.
3. If monitor does not have SDI input connector, you may use additional SDI to HDMI
converter.
Cautions when you connect BNC cable
The impedance of BNC connector should be 75Ω.
If 50Ωconnector is used, the transmission distance will be reduced approx. 10m.
Caution in cable selection
The maximum transmission distance of HD-SDI will vary depending on cable manufacturer
and installation environment. Please refer to the below table to select suitable coaxial cable.
Cable type
Transmission distance
Purpose
2V
about 100M
For analog signal
4C-FB(T), 4C-HFB(T), RG59
about 150M
High-foamed, double or triple
shielded cable is recommended
5C-FB(T), 5C-HFB(T), L-6CHD,
RG6
about 200M
Dedicated cable for HD-SDI

5
Power connection
Adapter should be DC12V or AC24V. But in case use DC power,
Please be careful in the polarity when connect power.
OSD control and Firmware upgrade using RS485 communication
1. Connect Webgate’s HD-SDI DVR with camera through RS485.
2. Configure PTZ settings such as Protocol(C1080), Baudrate, Address in DVR.
3. Run HD Camera Upgrade program then enter IP address of DVR which is connected to
camera and enter channel number of camera.
- PC for Firmware upgrade and DVR need to be connected with network.
- HD Camera Upgrade program and firmware can be downloaded from Webgate’s
website.
4. Select a Firmware and click Load button. Then firmware upgrade will proceed and the
camera will reboot automatically after completion.
- Image will stop until boot completes.
- If image stops over 1min, select Aux1 of selected channel to reboot camera again.
5. After firmware upgrade, DVR or CMS(Control Center) can change camera configuration
by controlling camera’s OSD menu remotely.
<Note>
1) All setting values will be initialized in case of F/W upgrade.
How to use OSD menu
OSD menu function
If pressing MENU button over 1 sec continuously, OSD menu will be shown.
- If OSD menu is not closed, it will be closed automatically in 1 minute. (Changed
configuration value will not be saved)
- Bold font with underline means factory default.

6
OSD MENU
Function
MANUAL
FOCUSING
Move joystick shortly to activate Manual Focusing mode
- Zoom Tracking function will be activated when control Zoom. But this
function will work normally when the focus is adjusted well before
zoom control.
- If you do not exit the menu, it will be closed automatically in 2 second.
LENS
DC
This menu is activated only in AF models. Focus can be
adjusted by automatically or manually
- PWR-ON AF : After power is turned on, camera
judges the ambient brightness. If the brightness is
enough, it performs Auto Focusing automatically, but
if the brightness is not enough, it keeps the previous
focus condition.
- Correct AF : Camera performs focusing over the full-
range (it takes max. 40seconds)
- Quick AF : If the angle of view and focus is roughly
adjusted condition, Quick AF performs fast focusing.
But, if the focus is vague condition, Quick AF may
not show good result. (it takes max. 10seconds)
- Manual : Move joystick to up(Tele), down(Wide),
left(Near),right(Far) to adjust angle and
focus manually.
DAY
&
NIGHT
Color
Maintains Color(Day) mode regardless brightness.
B&W
Maintains B&W(Night) mode regardless brightness.
Auto
In accordance with brightness, camera switches Color
mode and B&W mode automatically.
- LUX LEVEL(LOW, MIDDLE, HIGH) : This value is the
standard for Day & Night switching. If high is
selected, camera will turn to Night(B/W) mode at
higher LUX level than MIDDLE or LOW.
- ANTI HUNT(LOW, MIDDLE, HIGH) : This value is the
standard for threshold of Day & Night switching.
Higher setting value will reduce the flickering by
IR-CUT filter switching caused from misjudgment.
- DELAY TIME(3~30sec) : Judgment period for Day &
Night switching
EXPOSURE
BRIGHTNESS
(8, 0~20)
Adjust the brightness of image.
The more High value it has, the more bright image it
shows
SHUTTER
- Indoor : controls brightness to show the best video
quality at indoor environment.
- Outdoor : controls brightness to show the best video

7
quality at outdoor environment.
- Indoor-Anti Blur : It shows better anti-blur
performance at dark indoor environment, but the
brightness level decrease a little.
- Outdoor-Anti Blur : It shows better anti-blur
performance at dark outdoor environment, but the
brightness level decrease a little.
- Manual : It fixes shutter speed within 1/30 ~ 1/60000.
ANTI-FLICKER
Removes Flicker problem due to the discordance of
light frequency.
DSS
(OFF, x2~x10)
At night time or very dark condition, it accumulates
the amount of light into the image pixels and provides
more clear video image. But the higher setting value
may make more severe motion blur accordingly.
AGC
(7, 1~10)
It will amplify video gain according to the light
condition, but it will also increase noise level.
COLOR
AWB
- AUTO : This mode automatically adjusts color white
balance between 1,700°K ~ 11,000°K.
- PRESET : Shoot a white paper in front of camera and
press MENU button then white balance working will
stop suitable for the condition. You must do this
process again if light condition is changed.
- MANUAL : User can select color temperature among
3300°K, 4300°K, 7600°K and adjust the details by
KELVIN, R-GAIN and B-GAIN value.
CHROMA
(10, 0~20)
Adjust Chroma level.
SHARPNESS
(5, 0~10)
Adjust sharpness. The higher value will show more
clear video image
H-MIRROR
Mirror image. Left and right will be reversed
V-MIRROR
Flip image. Up and down will be reversed.
Digital ZOOM
Zoom image by 16 steps. (1~16)
PRIVACY
This is for privacy zone masking
- ZONE NO : Supports total 28 areas (0~27)
- ZONE OP : Whether to use or not of selected area
- X, Y-POS : Set the X,Y start position of an area
- X, Y-SIZE : Set the width and height of an area
- COLOR(WHT,YEL,CYN,GRN,MAG,RED,BLU,BLK) : Select
color for masking.
- TRANS(0~4) : Set transparency of masking.
SHADING
Before execute the SHADING function, shoot a white

8
DET
paper in front of the camera, and do SHADING DET. If
not, abnormal video might be output.
SHADING
It compensates the difference of light caused by lens.
To use this function, you should run Shading DET
function first at System menu.
WDR
This 3D backlight compensation function allows bright and dark area to
be seen clearly together.
- WDR WGT(0~4) : Select image mix ratio. The higher value, the bright
part of the image appear more clearly
BLC
Back light compensation function.
- BLC LEVEL(LOW, MIDDLE, HIGH) : Set BLC level.
- BLC OSD : Displays BLC area on the screen.
- BLC POS-X, Y : Set X, Y start position.
- BLC SIZ-X,Y : Set Width and Height size.
- MASK : If there is very bright portion inside BLC area, this portion can
be removed from the calculation of BLC compensation. This brightness
level for masking can be decided by below MASK LEVEL.
- MASK LEVEL(0~10) : Set brightness level for Masking.
HLC
High Light Compensation. If there is very bright portion inside a scene,
camera can mask the portion, and the portion is removed from the
calculation for exposure control.
- LEVEL(5, 0~10) : Set the brightness level for masking.
- Color : Set masking color
ACE
(ON, OFF)
Adaptive Contrast Enhancement. Enhances image quality by raising the
brightness of dark areas.
DNR
(LOW, MIDDLE, HIGH)
Reduce image noise under low light condition
FRAMERATE
(25Hz, 30Hz)
Power frequency 60Hz(NTSC) : 30Hz(fps) video output
Power frequency 50Hz(PAL) : 25Hz(fps) video output
SYSTEM
MODEL
Displays model name
CAM ID
Max. 8 digits for camera name.
Supports alphanumeric and some special characters
RS485 ID
Set ID for RS485
VERSION
Displays firmware version
VIDEO
Full-Scale(BT 709), Comp-Scale(BT 601) support
RESOLUTION
Set output resolution (1080p/720p).
DIGITAL OUT
/
IR-LED
Provides control signal output for sub light which is
synchronized with image process.
-Smart IR : When IR-LED is activated at darkness
condition, the intensity of IR-LED is automatically

9
controlled according to the distance with target
object (Activated only at IR models)
- DURATION(0~20) : Set the one cycle duration of TTL
signal output (unit : msec)
- POLARITY : Set the output level of TTL signal.
(0 : 0V , 1 : 3.3V)
* Output cycle is decided by 30Hz/25Hz.
BAUDRATE
(9600, 57600)
Set RS485 communication speed.
RESET
Makes all setting values to factory default condition
EXIT
SAVE&EXIT
Save configuration and exit menu.
EXIT
Without saving configuration, exit menu.
If there is no further action in menu, after 1 minute,
OSD menu will exit without saving changes.
Product Specification
Model
C1080BL-IR48-AF / C1080BL-IR18-AF
Video
Sensor Type
1/3”2.1Megapixel CMOS
Total Pixels
1920(H) x 1080(V) = 2.1M pixels
Scanning System
Progressive Scan
Min
Illumination
B/W
0.0005Lux@50IRE, F1.2, 3100K, DSS(OFF), AGC(10)
Color
0.2Lux@50IRE, F1.2, 3100K, DSS(OFF), AGC(10)
Lens
Lens
DC iris, 2.8mm~10mm, F1.2, IR Corrective Mega
Pixel Lens
type
DC Auto Iris
Video Output
Output
1(BNC 1.0 Vp-p, 75Ω)
Resolution
1080p 30fps / 25fps
HD-SDI
SMPTE 292M compatible
Distance
approx. 200m of RG6, 150m of RG59
Video
Control
Control Method
OSD(Internal Joystic), DVR, CMS(Control Center)
Filter
True Day & Night
AGC
1 ~ 10 steps
Mirror
Horizontal / Vertical
WDR
OFF, 0 ~ 4 setup
BLC
OFF, LOW, MIDDLE, HIGH
ACE
OFF, ON
DNR
OFF, LOW, MIDDLE, HIGH
DSS
OFF, x2 ~ x10

10
White Balance
AUTO, PRESET, MANUAL
Electric Shutter
INDOOR, OUTDOOR, INDOOR-ANTI BLUR,
OUTDOOR-ANTI BLUR, MANUAL(12 steps),
ANTI-FLICKER ANTI-FLICKER
Digital Zoom
0 ~ 16 steps
Lens Shading
OFF, ON
HLC
0 ~ 10 steps
Privacy
OFF/ON (28 Zones )
Smart IR
OFF/ON
Control Interface
RS485
Upgrade Firmware / OSD Control
Strobe for external light
TTL level(3.3v)
Electricity
Power
Consumption
C1080BL-IR18-AF
DC 12V ± 10%, 4W / AC 24V ± 10%, 6W
C1080BL-IR48-AF
DC 12V ± 10%, 5W / AC 24V ± 10%, 8W
Mechanical
Dimension
C1080BL-IR18-AF
88(W) x 118(H) x 198(D) mm
C1080BL-IR48-AF
120(W) x 140(H) x 254(D) mm
Weight
C1080BL-IR18-AF
720g
C1080BL-IR48-AF
1600g
Environments
Operation Temp. / Humidity
0 ºC ~ 50 ºC / 0%RH ~ 80%RH
Certifications
Certifications
KC, FCC, CE, RoHS

11
Dimension (unit : mm)
C1080BL-IR18-AF
C1080BL-IR-48-AF

12
Warranty
Product name
HD-SDI Camera
Warranty term
Model name
C1080BL-IR48-AF, 1080BL-IR18-AF
2 years after
purchase
Date of purchase
20 - -
Warranty term
20 - -
Serial number
Customer’s address
Name
Contact
Address of shop(Company name)
Name
Contact
◈Please fill out vacant area before sending products.
★For customer service ★
Please read this manual again before requesting customer service.
Any simple malfunctions due to customer’s misunderstanding on the product could be
resolved by customer.
How to request service?
Please inform details of malfunctions correctly.
Free or non free repair will be decided based on details of warranty card.
WebGate Division Daemyung Enterprise Co., Ltd.
6F Hanlim Venture Town B/D 689-6, Geumjeong Dong, Gunposi, Gyeonggido,Korea
Main : TEL : [phone]
Client Service : TEL : [phone]
The damages caused from following conditions will be repaired by customer’s cost.
1. Any damage comes from customer’s carelessness
2. When improper power is entered
3. When you repair unit by yourself
4. Any damage comes from natural disaster like lightning, flood, etc.
5. Consumable parts replacement

13
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense. Modifications not expressly
approved by the manufacturer could void the user’s authority to operated
the equipment under FCC rules.
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking on the product, accessories or literature indicates that the
product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the end
of their working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote
the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased
this product or their local government office, for details of where and how
they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with
separate battery return systems.)
This marking on the battery, manual or packaging indicates that the
batteries in this product should not be disposed of with other household
waste at the end of their working life. Where marked, the chemical
symbols Hg, Cd or Pb indicate that the battery contains mercury,
cadmium or lead above the reference levels in EC Directive 2006/66. If
batteries are not properly disposed of, these substances can cause harm
to human health or the environment.
To protect natural resources and to promote material reuse, please
separate batteries from other types of waste and recycle them through
your local, free battery return system.

14

15
설치 및사용시 주의사항
1. 전원 주파수에 따른 Framerate 설정 확인
전원 주파수가 50Hz(PAL)인지역은 Framerate를25Hz로60Hz(NTSC) 지역은 30Hz로
설정되었는지 확인하시기 바랍니다. (OSD : Framerate)
2. 설치 환경에 따른 셔터모드 설정
-INDOOR : 실내 환경에서 최적의 화질을 갖도록 밝기를 제어합니다.
-OUTDOOR : 실외 환경에서 최적의 화질을 갖도록 밝기를 제어합니다..
- INDOOR/OOUTDOOR-ANTI BLUR : 어두운 환경에서 INDOOR/OUTDOOR 모드보다
영상끌림 현상은 개선시켜주고 밝기는 다소 어두워집니다.
3. 전원 연결 시아답터는 DC12V 또는 AC24V(500mA 이상)를사용해야 합니다.
4. 카메라 이상 또는 고장 발생시 직접 수리하지 마시고 구입처에 연락 하십시오.
5. 제품 또는 렌즈를 떨어트리거나 강한 충격, 진동을 피해주십시오.
6. 너무 뜨겁거나 추운곳에 설치하지 마십시오. 50°C 이상의 고온이나 0°C 미만의 저온인
장소에서 사용하면 화질의 저하나 고장의 원인이 됩니다.
7. 카메라 렌즈를 태양이나, 강한 광선에 직접 노출 시키면 제품에 손상을 줄수있으므로
주의하시기 바랍니다.
8. 임의로 분해된 제품에 대해서는 품질 보증을 적용하지 않으며 낙뢰 등의 자연재해
또는 설치 부주의로 인한 제품 손상은 보증 기간이라도 유상 A/S 처리 됩니다.
한국어

16
특징
HD-SDI 비디오 디지털 신호
HD-SDI(High Definition Serial Digital Interface)는방송용 비압축 디지털 신호로, 아날로그
카메라 대비 영상 손실이 없기 때문에 깨끗한 고화질 동영상을 전송할 수있습니다.
2M, Full HD 고해상도 화질
1/3인치 200만화소 프로그레시브 CMOS 소자 채용으로 SD급카메라 보다 해상도가 6배
뛰어난 Full HD(1920x1080) 해상도 및선명한 화질을 구현합니다.
최고 성능의 저조도
CMOS 센서에 대한 영상처리 기술의 최적화로 저조도에서 우수한 성능의 화질을
구현합니다. (흑백 : 0.0005 Lux / 컬러 : 0.2Lux@50IRE, F.1.2, 3100K, DSS OFF)
INDOOR/OUTDOOR 기능
신호처리 기능을 최적화 하여 저속으로 움직이는 사람부터(Indoor) 고속으로 움직이는
자동차까지(Outdoor) 영상끌림(Motion Blur)을최소화 하고 밝기를 자동으로 제어하여
선명한 영상을 구현합니다.
3D-DNR
3D-DNR 기술을 적용하여 저조도의 노이즈를 효과적으로 제거하여 어두운 곳에서도
선명하고 뚜렷한 영상을 보여줍니다.
True Day & Night 기능
주간과 야간상황을 자동으로 판단하여 그상황에 적합한 IR-Cut 필터로 전환되어 최적의
상태를 유지합니다.
WDR/BLC/ACE/HLC
강력한 자동 역광보정 기능으로 역광 상황에서 명부와 암부의 차이가 큰영상에 대해서
밝은 곳과 어두운 부분을 선택적으로 밝기를 조절하여 언제나 깨끗하고 선명한 영상을
구현합니다.
Auto Focusing 기능
자동초점 조절기능으로 한번의 클릭만으로 정확하고(Correct AF) 빠르게(Quick AF)
포커스를 맞춥니다. 또한 전원 인가 시적정한 밝기를 판단하여 밝으면 자동으로 Auto
Focusing 기능을 실행하고 어두우면 Auto Focusing을실행 하지 않고 이전 포커스 상태를
유지합니다.(Power-On AF)
Privacy 지원
설치 장소에 따라 총28개의 PRIVACY 영역으로 설정 가능하도록 보안성을 제공합니다.
OSD 제어 및F/W 업그레이드
DVR과RS485 통신을 통해 원격지 PC에서 OSD 제어 및F/W를업그레이드 할수
있습니다

17
구성품
제품구입시 공급된 구성품이 포함되어 있는지를 확인합니다.
C1080BL-IR48-AF
C1080BL-IR18-AF
Installation / User Manual
Monitoring Cable(IR18)
Hood Screw(IR18)
Screw & Plastic Anchor
L Wrench
Hood(IR48)
Hood(IR18)
제품 설명
카메라 설치
Auto Focus 설정방법
1) 조이스틱 방향키를 짧게 움직여 Manual Focusing 모드로 들어갑니다.
2) 조이스틱을 상(Tele) 또는 하(Wide) 방향으로 움직여 원하는 화각을 맞춥니다.
3) 조이스틱 중심부를 짧게 눌러 Manual Focusing 모드를 나온 다음 다시 한번 짧게
조이스틱 중심부를 짧게 누르면 Auto Focusing 기능이 실행되어 정확히 포커스를
맞춥니다.
No
명칭
1
카메라
2
후드
3
RS485
4
전원 입력단자
5
영상 출력단자

18
<Note>
1) Auto Focusing 모드 진입 시정확한 포커스 조정을 위하여 영상이 2배로 확대 됩니다.
2) Manual Focusing 모드에서 Zoom 제어 시Zoom Tracking 기능이 동작 합니다.
단, 해당 기능은 포커스가 맞춰진 상태에서만 정상적으로 동작합니다.
Auto Focus 동작 시주의사항
다음과 같은 경우 초점 설정 기능이 오동작 할수있습니다.
1. Auto Focus 동작 시피사체의 변화(급격한 움직임, 출연 또는 사라짐)가있을 경우
주의 하시기 바랍니다.
2. Auto Focus 동작 시급격한 휘도 변화의 경우 주의 하시기 바랍니다.
3. 낮은 Contrast의영상의 경우 주의 하시기 바랍니다..
4. 강한 광원이 전면이나 주변에 있을 경우 주의 하시기 바랍니다.
5. 렌즈에 이물질이 있을 경우 주의 하시기 바랍니다.
6. Auto Focus 동작이 어려운 환경의 경우 촬영하는 장소에 Contrast가강한 물체를 놓고
시도하거나, Manual로Focus를맞춰야 합니다.
모니터 연결
1. 제품과 모니터를 연결하는 케이블은 동축케이블을 사용하여야 합니다.
2. 모니터는 SDI를지원하는 모니터를 사용 하여야 합니다
3. SDI 지원 모니터가 없을 경우 HDMI 컨버터를 이용하여 LCD모니터(HDMI 입력지원)등
에서도 영상 출력이 가능합니다..
BNC 커넥터 연결 시주의사항
BNC 커넥터의 임피던스는 75Ω을 사용하여야 합니다.
50Ω커넥터를 사용할 경우 전송거리가 약10m 가량 줄어들 수있습니다.
케이블 선택 시주의사항
HD-SDI 최대 전송거리는 케이블 제조사 및설치 환경에 의해 달라질 수있습니다. 동축 케
이블을 선택할 때아래 표를 참조용으로 활용 바랍니다.
케이블 종류
전송거리
용도
2V
약100M
아날로그 신호용 케이블
4C-FB(T), 4C-HFB(T), RG59
약150M
고발포 케이블, 2중(또는 3중) 차폐 권장
5C-FB(T), 5C-HFB(T), L-6CHD, RG6
약200M
HD-SDI 전용 케이블

19
전원의 연결
전원 연결 시아답터는 DC12V 또는 AC24V를사용해야 합니다.
단, DC 전원으로 접속 시에는 극성에 주의하여 연결 하시기 바
랍니다.
RS485 통신을 이용한 OSD 제어 및F/W 업그레이드 방법
1. DVR과카메라를 RS485로연결 합니다.
2. DVR에서 Protocol(C1080), Baudrate, Address등의 PTZ 설정을 합니다.
3. HD Camera Upgrade 프로그램을 실행하여 카메라가 연결된 DVR의IP 및업그레이드
할카메라의 채널을 선택합니다.
- F/W를업그레이드 할PC와DVR이네트워크로 연결되어 있어야 합니다.
- HD Camera Upgrade 프로그램 및F/W는홈페이지에서 다운 받을 수있습니다.
4. 업그레이드 할펌웨어를 선택 후Load 버튼을 누르면 펌웨어가 업그레이드되고 카메
라가 리부팅 됩니다.
- 부팅이 완료될 때까지 영상이 멈춥니다.
- 영상 멈춤 현상이 1분이상 지속될 될경우 DVR에서 해당 채널의 Aux1을실행하여 다
시한번 카메라를 리부팅합니다.
5. 업그레이드가 완료되면 원격지에서 DVR 및CMS(Control Center)를이용하여 카메라의
설정을 변경 할수있습니다.
<Note>
1) F/W를업그레이드 할경우 설정이 초기화 됩니다.
메뉴 사용
OSD 메뉴 동작 설명
MENU 버튼을 1초이상 길게 누르면 OSD 설정 메뉴가 표시 됩니다.
- 메뉴를 종료하지 않을 경우 1분후자동 종료됩니다.(단, 변경된 설정은 저장되지 않음)
- Bold 및밑줄 표시된 값은 공장초기화 값입니다.
OSD 메뉴
동작 설명
MANUAL
FOCUSING
조이스틱의 방향키를 짧게 움직이면 Manual Focusing 모드가 활성화
됩니다.

20
- Zoom 제어 시Zoom Tracking 기능이 동작합니다. 단. 해당 기능은
포커스가 맞춰진 상태에서만 정상 동작합니다.
- 수동 종료하지 않을 경우 2초후자동 종료됩니다.
LENS
DC
- PWR-ON AF : 전원 인가 시적정한 밝기를 판단하여
밝으면 자동으로 Auto Focusing 기능을 실행하고
어두우면 Auto Focusing을실행 하지 않고 이전
포커스 상태를 유지합니다
- Correct AF : 포커스 영역 전구간을 검색하여
정확하게 포커스를 맞춥니다. (최대 40초소요)
- Quick AF : 화각 및포커스를 대략적으로 맞춘
상태에서 Quick AF를실행하면 빠르게 포커스를
맞춥니다. 단, 포커스가 심하게 틀어져 있는 경우 못
맞출 수도 있습니다. (최대 10초소요)
- Manual : 조이스틱을 상(Tele), 하(Wide), 좌(Near),
우(Far)로움직여 화각 및포커스를 수동 으로
맞춥니다.
DAY
&
NIGHT
Color
밝기에 관계없이 Color(Day) 모드가 유지 됩니다.
B&W
밝기에 관계없이 B&W(Night) 모드가 유지 됩니다.
Auto
밝기에 따라 Color 모드와 B&W 모드가 자동
전환됩니다.
- LUX LEVEL(LOW, MIDDLE, HIGH) : 조도의 기준값
을설정하는 기능으로 HIGH 방향으로 갈수록
조도값이 높은(밝은) 상태에서 NIGHT(B/W) 모드로
전환 됩니다.
- ANTI HUNT(LOW, MIDDLE, HIGH) : Threshold 값을
설정하는 기능으로 HIGH 방향으로 갈수록 영상
깜빡임 증상을 줄입니다.
- DELAY TIME(3~30sec) : 조명 조건의 최소 유지
시간을 설정 합니다..
EXPOSURE
BRIGHTNESS
(8, 0~20)
영상의 밝기를 설정 합니다.
값이 높을수록 영상이 밝아집니다.
SHUTTER
- INDOOR : 실내 환경에서 최적의 화질을 갖도록
밝기를 제어합니다.
- OUTDOOR : 실외 환경에서 최적의 화질을 갖도록
밝기를 제어합니다.
- INDOOR-Anti Blur : 어두운 환경에서 INDOOR
모드보다 영상끌림 현상은 개선시켜주고 밝기는
다소 어두워집니다.
- OUTDOOR-ANTI BLUR : 어두운 환경에서 OUTDOOR
모드보다 영상끌림 현상은 개선시켜주고 밝기는
다소 어두워집니다.
- MANUAL : 1/30 ~ 1/60000 내에서 고정된 셔터값을
