MANUAL SWEEPER
OWNER’S MANUAL
WARNING: Read carefully and understand all
INSTRUCTIONS before operating. Failure to follow the
safety rules and other basic safety precautions may result
in serious personal injury.
Item #545010

Thank you very much for choosing a NORTHERN TOOL + EQUIPMENT CO., INC. Product! For
future reference, please complete the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This machine is designed for certain applications only. Northern Tool + Equipment cannot be
responsible for issues arising from modification. We strongly recommend this machine is not
modified and/or used for any application other than that for which it was designed. If you have
any questions relative to a particular application, DO NOT use the machine until you have first
contacted Northern Tool + Equipment to determine if it can or should be performed on the
product.
For technical questions please call 1-800-222-5381.
INTENDED USE
Sweeping on the courtyard, path, lane, and on warehouse floors and other workrooms.
TECHNICAL SPECIFICATIONS & PACKING LIST
Item Description
Container capacity 9 1/4 Gallons (35L)
Recommended operating speed 13,123 Ft/H (4Km/H)
Operating width 31 1/2 in. (80cm)
Wheels 8 7/8in. (22.5cm)
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury.
WARNING: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS
WORK AREA
•Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause
accidents.
•Do not use your sweeper where there is a risk of causing a fire or an explosion; e.g. in the
presence of flammable liquids, gasses, or dust.
•Keep children and bystanders away while operating the sweeper. Distractions can cause you
to lose control, so visitors should remain at a safe distance from the work area.
Page of 72

Page of 73
•Be aware of all power lines, electrical circuits, water pipes and other mechanical hazards in
your work area, particularly those hazards below the work surface hidden from the operator’s
view that may be unintentionally contacted and may cause personal harm or property damage.
•Be alert of your surroundings. Using this sweeper in confined work areas may put you
dangerously close to cutting tools and rotating parts.
PERSONAL SAFETY
•Before use, check to make sure all the parts are in good working order.
•Stay alert, watch what you are doing and use common sense when operating the sweeper. Do
not use the sweeper while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating the sweeper may result in serious personal injury.
•Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving
parts.
•Use safety apparel and equipment. Use safety goggles or safety glasses with side shields
which comply with current national standards, or when needed, a face shield. Use as dust mask
in dusty work conditions. This applies to all persons in the work area. Also use non-skid safety
shoes, hardhat, gloves, dust collection systems, and hearing protection when appropriate.
•Do not overreach. Keep proper footing and balance at all times.
•Remove adjusting keys or wrenches before connecting to the power supply or turning on the
tool. A wrench or key that is left attached to a rotating part of the tool may result in personal injury.
TOOL USE AND CARE
•Do not force the sweeper. The sweeper does a better and safer job when used in the manner
for which it is designed. Plan your work, and use the correct tool for the job.
•Store sweeper properly. When sweeper is not is use, store it in a dry, secure place out of the
reach of children. Inspect for good working condition prior to storage and before re-use.
ASSEMBLY
1. Take the sweeper from the package.
2. Take the round brushes out of the package.
3. Affix the round brushes to the front of the machine using a screw for each (each side gets a round
brush).
4. Unfold the push handle to its open position. Affix the handle to the plates at the back of machine
using 2 nuts.
OPERATION
1. When using the sweeper outdoors, sweep in the direction of air as much as possible.
2. Adjust the height of the sweeper by turning the adjustable switch on the top (Part# 39) to a
suitable position: Clockwise to raise the height, counterclockwise to lower the height.
3. Don’t rush the job. Work slowly, especially when you are changing directions.
4. You can operate the sweeper going up or down a slope in the approximate vertical direction.
However, do not work on an incline of more that 20°
MAINTENANCE

Page of 74
•Maintain your sweeper. It is recommended that the general condition of your sweeper be
examined before it is used. Keep your sweeper in good repair by adopting a program of
conscientious repair and maintenance in accordance with the recommended procedures found in
this manual. Have necessary repairs made by qualified service personnel.
•Cleaning. Use only soap and a damp cloth to clean the outside of your sweeper. Many
household cleaners are harmful to plastics and other insulation. Never let liquid get inside a tool.
•Keep metal parts dry to minimize corrosion.

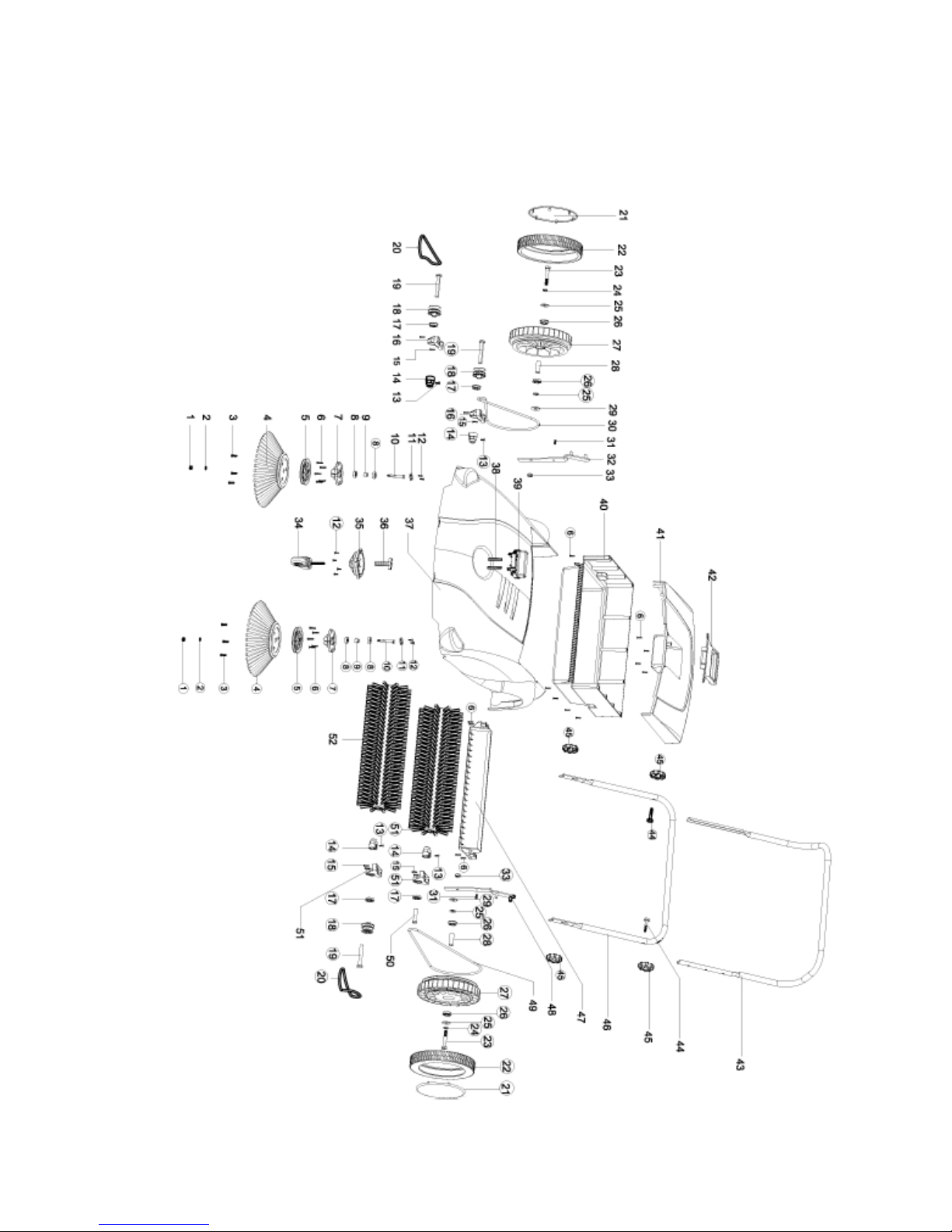

DIAGRAM & PARTS LIST
Page of 75

Page of 76
Part# Description Qty. Part# Description Qty.
1 M6 lock nut 2 27 Inner wheel 2
2 Ф6 cushion 2 28 Steel cover 2
3 Screw 6 29 Cushion 2
4 Round brush 2 30 Rubber band 1
5 Wheel 2 31 M6 × 8 screw 2
6 Screw 29 32 Right metal parts 1
7 Brush support 2 33 M10 nut 2
8 608 bearing 4 34 Universal wheel 1
9 Bearing cover 2 35 Wheel pallet 1
10 Bearing spindle 2 36 Up-down spindle 1
11 Bearing 2 37 Body 1
12 Screw 8 38 Metal bolt 2
13 Screw 4 39 Height adjustable switch 1
14 Roller connector 4 40 Upper cover 1
15 screw 8 41 Down cover 1
16 Roller support-R 2 42 Handle 1
17 Punch bearing 4 43 Push handle 1
18 Band roller 3 44 M8 × 30screw 2
19 Roller spindle 3 45 Handle fixation 4
20 Rubber band 2 46 Front push handle 1
21 Wheel cover 2 47 Wall 1
22 Wheel 2 48 Left metal parts 1
23 M10 × 65 hex screw 2 49 Rubber band 1
24 Ф10 spring cushion 2 50 Roller spindle 1
25 Cushion 4 51 Roller support-L 2
26 Punch spindle 4 52 Roller 2
For replacement parts and technical questions, please call 1-800-222-5381.

WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains
chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to filter out microscopic particles.
WARRANTY
One-Year Limited Warranty
Distributed by
Northern Tool + Equipment Co., Inc.
2800 Southcross Drive West
P.O. Box 1499 Burnsville, MN 55337-0499
Made in China
