OWNER’S MANUAL
FOR
ASPIRATION / FILTRATION
VACUUM SYSTEM
MODELS:
2511 & 2515
Welch Rietschle Thomas
7301 North Central Avenue
Skokie, IL 60077
Phone: [phone]
Fax: [phone] (Technical Support)
Fax: [phone] (Ordering)
E-Mail: [email protected] Part No. 67-1772R1.1
Web-Page: www.welchvacuum.com Printed in USA
For outside of U.S. and Canada, contact your local
Rietschle Thomas sales office, see back page
Approval Agency’s
Warning
Not recommended for pumping acid,
base or organic vapors or gases.

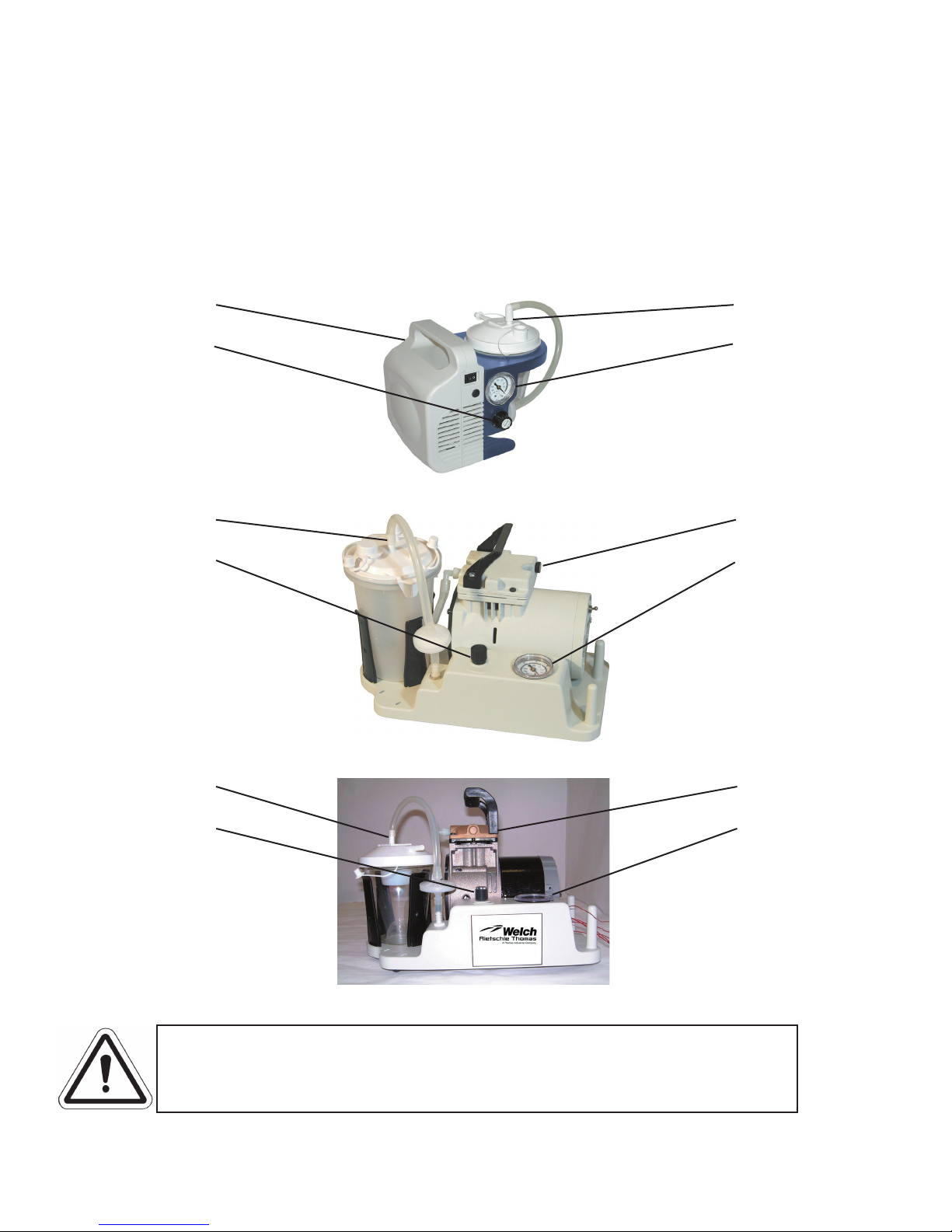

Model 2515B-75Model 2511B-75 / 2511C-75 Model 2515C-75

INSTRUCTION
WARNING AND CAUTION
PLEASE READ BEFORE OPERATION
While reading your manual, please pay close attention to areas labeled:
WARNING AND CAUTION.
The description of each is found below.
WARNING
Warnings are given where failure to observe instruction could result
in injury or death to people.
CAUTION
Cautions are found where failure to observe the instruction could result
in damage to the equipment, associated equipment and process.
These units confirm to the SI International system of units of measurement.
The following symbols (with recommendation of IEC1010 ) of warning will be found on the pump.
Caution - refer to accompanying documents
Caution - risk of electrical shock
Caution - hot surface
Double Insulated
OFF (Power)
ON (Power)
WARNING
Motor includes a self resetting thermal cutout and the pump could
restart without actuation under fault condition.
2

TABLE OF CONTENTS
Section 01 - SAFETY INFORMATION
1.10 Caution To Prevent Injury
1.20 Caution To Reduce Risk Of Electrical Shock
1.30 Warning To Reduce Risk Of Electrocution
1.40 Danger To Reduce Risk Of Explosion Or Fire
Section 02 - INSTALLATION
2.10 Introduction
2.20 Unpacking
2.30 Pump Mounting
2.40 Pump Location
2.50 Intake And Discharge Provision
2.60 Electrical Power
2.70 Vacuum Connection
2.80 Vacuum Gauges
2.90 Traps
Section 03 - OPERATION
3.10 Starting Procedures
3.20 Leak Detection
3.30 Operating Pressure Range
3.40 Shutdown Procedures
Section 04 - MAINTENANCE
4.10 Maintenance Procedures
Section 05 - TROUBLESHOOTING
5.10 Vacuum Problems
5.20 Pressure Problems
5.30 Trouble Shooting Guide For 2515
5.40 Trouble Shooting Guide For 2511 And 2515
Section 06 - SPECIFICATION
6.10 Specification Table
Section 07 - WARRANTY
Section 08 - EXPLODED VIEWS AND PARTS LIST

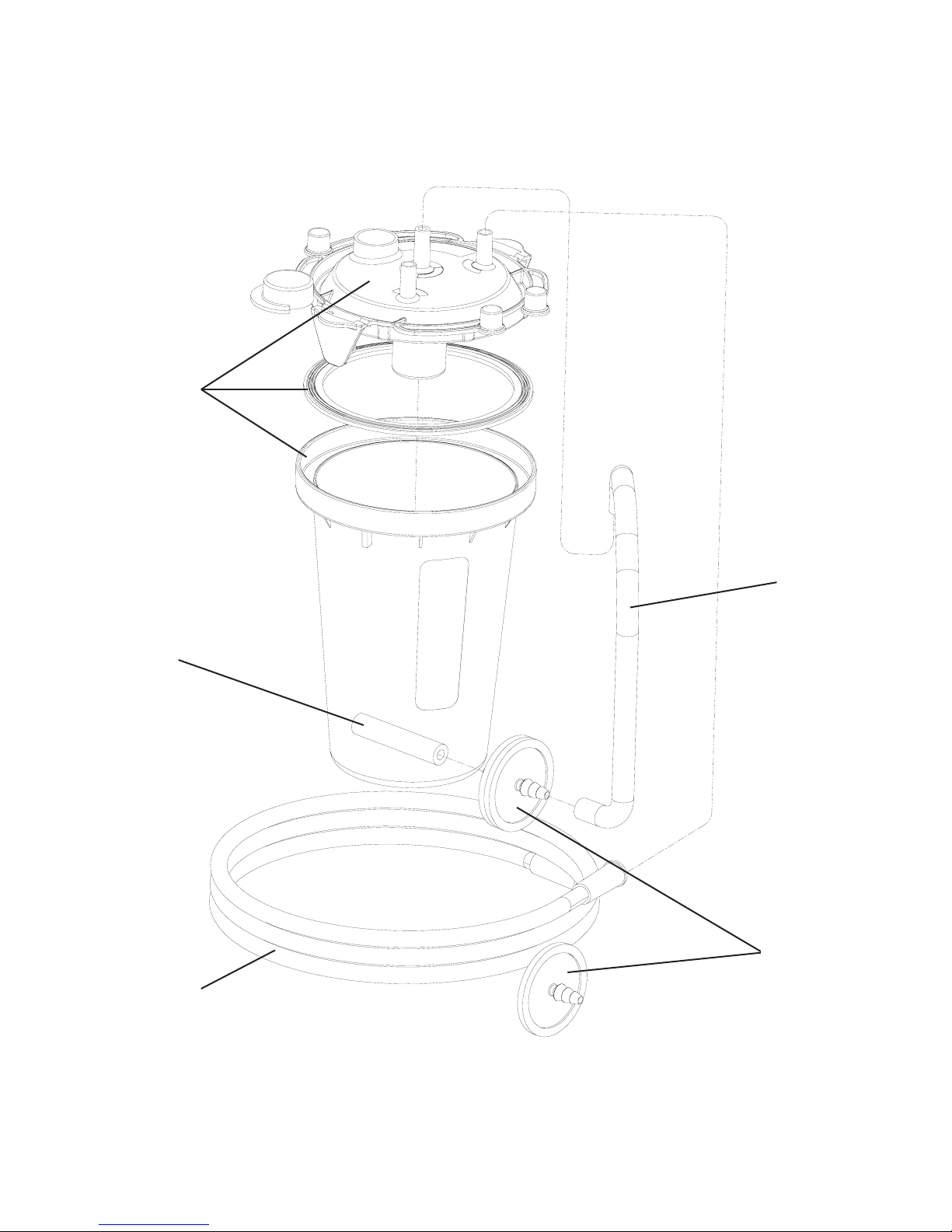

8.10 Exploded View And Parts List For 2511B-75 / 2511C-75 / 2511C-76

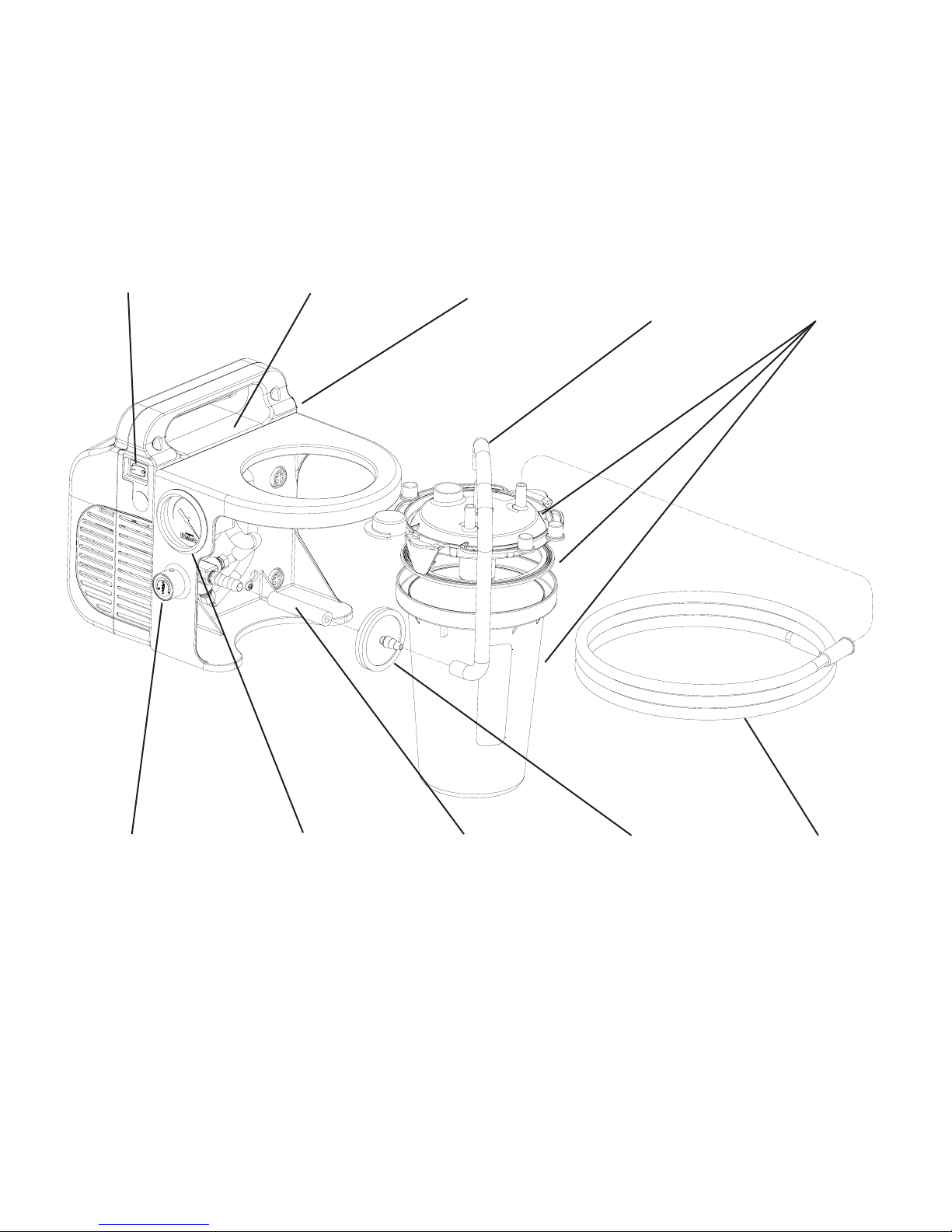

8.11 Exploded View And Parts List For 2515B-75 / 2515C-75 / 2515C-76

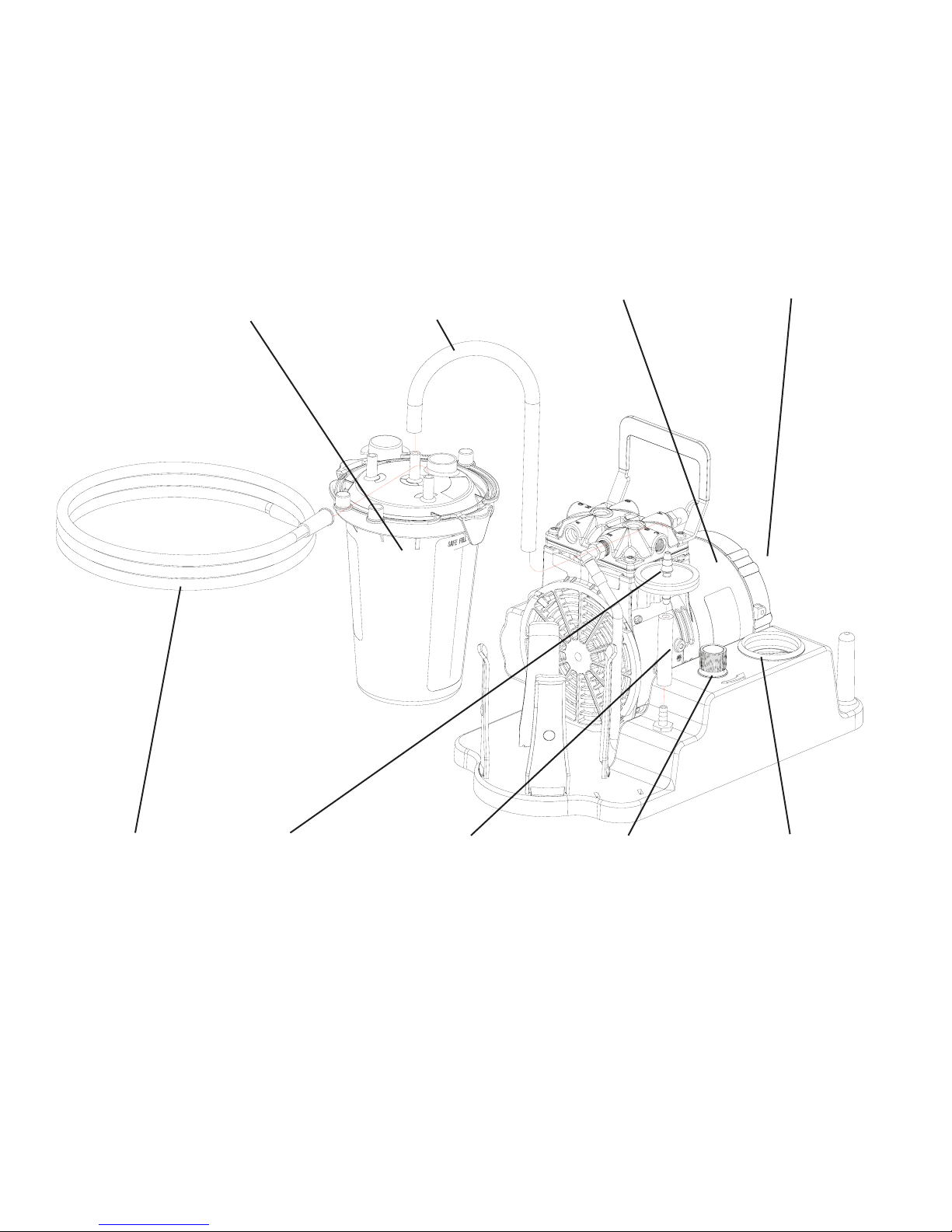

8.12 Exploded View And Parts List For 1475K-20
Section 09 - KITS AND ACCESSORIES
3

SECTION 1: SAFETY INFORMATION
1.10 Caution: To Prevent Injury...
1.11 Never operate this product if it has a damaged cord or plug. If it is not working properly, has been
dropped, damaged or has fallen into water, please return the product to a Welch service center for
examination and repair.
1.12 Keep the cord away from heated surfaces. All electrical products generate heat. To avoid serious burns
never touch unit during or immediately after operation.
1.13 Never block any air openings or place it on a soft surface where the openings may be blocked.
The air openings are for ventilation of the motor inside the housing. Keep all air openings free of lint,
dirt and other foreign objects.
1.14 Models 2511 and 2515 are thermally protected and can automatically restart when the protector resets.
Always disconnect power source before servicing.
1.15 Never drop or insert fingers or any other object into any openings.
1.16 Do not operate this product where oxygen is being administered.
1.17 Wear safety glasses and goggles when operating this product. Never point any air nozzle or air sprayer
toward another person or any part of the body.
1.18 Use only in well ventilated areas.
1.19 Do not use any tools or attachments without first determining maximum air pressure for that tool
or attachment (applies to model 2511 only). Be sure to properly identify intake and discharge
before using pump. See Section 2.50.
WARNING
Do not fill the collection jar above the safe fill level line
indicated on the jar.
1.20 Caution: To Reduce Risk Of Electrical Shock...
1.21 Do not disassemble. Disassembly or attempted repairs if accomplished incorrectly can create electrical
shock hazard. Refer servicing to qualified service agencies only.
1.22 115V unit is supplied with a three pronged plug.
Be sure to connect pump to a properly grounded outlet only.
1.30 Warning: To Reduce Risk Of Electrocution...
1.31 Do not use this product in or near area where it can fall or be pulled into water or other liquids.
1.32 Do not reach for this product if it has fallen into liquid. Unplug immediately.
1.33 Never operate this product outdoors in the rain or in a wet area.
1.40 Danger: To Reduce Risk Of Explosion or Fire...
1.41 Do not use this pump in or near explosive atmospheres or where aerosol (spray) products are being used.
1.42 Do not pump anything other than atmospheric air.
1.43 Do not pump combustible liquids or vapors with this product or use in or near an area where flammable
or explosive liquids or vapors may exist.
1.44 Do not use this product near flames.
WARNING
Failure to observe the above safety precautions could result
in severe bodily injury, including death in extreme cases.
4

SECTION 2: INSTALLATION
2.10 Introduction
2.11 This manual has been compiled not only for the care and maintenance of the Welch Aspiration/Filtration
Vacuum System now in your possession, but as a helpful reference and guide to prevent many problems
which may occur if used improperly.
2.20 Unpacking
2.21 Carefully remove the Aspiration/Filtration Vacuum System from the shipping case. Preserve all
paperwork for future reference. If damage has occurred from shipment a claim must be filed with the
carrier immediately; preserve the shipping carton for inspection by the carrier. If you are required to
communicate with your dealer or Welch Vacuum, be sure to include your order numbers for quick
identification. Do not return the pump to the factory without first calling for a returned goods number.
2.30 Pump Mounting
2.31 Rubber feet are attached to the pump. Rubber feet are excellent for applications involving a
semi-flexible surface such as a bench top; they help to isolate noise and eliminate creeping.
All Aspiration/Filtration Vacuum Systems should be mounted on a horizontal plane.
2.40 Pump Location
2.41 The Aspiration/Filtration Vacuum System should be located preferably in a clean, dry, and well
ventilated area. Please be sure not to block the ventilation holes located on the motor housing. The
system should be placed where the surrounding temperature remains between 10°C and 40°C
(50°F and 104°F). Always check to insure the location chosen is protected from direct or indirect
moisture contact. Welch recommends that the pump be installed at the highest point within the system
to prevent possible water condensate from entering the pump. The pump should be located as closely to
its system in order to utilize it most efficiently.
WARNING
The motor is thermally protected and will automatically restart unexpectedly
when the overload device resets. Don’t pump flammable or explosive gases or
vapors or operate this pump in an atmosphere containing flammable or
explosive gases or vapors.
5

2.50 Intake And Discharge Provision
2.51 The vacuum regulator and vacuum dial gauge is attached to the collection jar. The vacuum regulator
allows the vacuum level to be set between roughly atmospheric pressure and the maximum vacuum
allowed for the pump model. The collection jar and hydrophobic filter keeps water from accidentally
being drawn into the unit. The regulator allows discharge pressure to be set between atmospheric and
the maximum possible for the pump model. Model 2511 is equipped with a pressure port.
Note: Adjusting the vacuum regulators will affect the performance of the pump.
WARNING
Never block the discharge port. If the exhaust is blocked, pressure will build-up
in the pump above its rated operating pressure.
Be sure to call Welch technical service prior to start up at 847-676-8800 if you have any questions.
IntakePressure / Exhaust
Model 2511B-75 & 2511C-75
Discharge / ExhaustIntake
Model 2515B-75
Vacuum GaugeVacuum Regulator
Vacuum Regulator Vacuum Gauge
6
Model 2515C-75
Intake
Vacuum Regulator
Discharge / Exhaust
Vacuum Gauge

2.60 Electrical Power
2.61 Power Source Review
Review the power source and the motor rating to be sure they agree in voltage, phase, and frequency.
Serious damage may occur to the motor if it is connected to an improper voltage. All Welch pumps must
be grounded. Grounding reduces the risk of electric shock in the event of an electrical short circuit.
The plug must be plugged into a properly grounded outlet. Consult your local electrical codes if you
have doubts.
2.62 Overload Protection (Model 2515)
Motor thermal overload protection is made available by the motor manufacturer as an aid to minimize
motor failure. Overload protection is a standard feature on both 50 and 60 Hz single-phase-motors.
The motors have automatic overload protection. Automatic reset protection is designed to reset itself
after a predetermined cooling period. If the fault to the drive remains unaltered, the motor will cycle on
and off until the fault is corrected.
2.63 Servicing of Double-Insulated Product (Model 2511)
In a double-insulated product, two systems of insulation are provided instead of grounding.
No grounding means is provided on a double-insulated product, nor should a means for grounding
to be added to the product. Servicing of a double-insulated product requires extreme care and knowledge
of the system and should be done only by qualified service personnel. Replacement parts for the
double-insulated product must be identical to those parts in the product.
2.64 Classification And Symbol Glossary
2.70 Vacuum Connection
2.71 For best results, Welch recommends the length of the tubing between the pump and the chamber be
kept as small as possible.
2.80 Vacuum Gauges
2.81 All Aspiration/Filtration Vacuum Systems come with dial vacuum gauges. The vacuum gauge gives
negative pressure - That is pressure below atmospheric. The reference point for the gauge is
atmospheric pressure.
2.90 Traps
2.91 The need for a Trap
The pumps will handle humid air. All wetted aluminum parts are treated for corrosion protection from
moisture. All other wetted parts are stainless steel. A plastic trap with a float valve is attached to the
regulator assembly to prevent water condensate from accidentally being ingested into the pump.
See figure below.
WARNING
The pump is not recommended for pumping acid, base or organic vapors
or gases. Serious damage to the pump will shorten the pump’s service life.
In addition, pumping flammable vapors or gases can lead to serious safety
hazard leading to fire or explosion.
Filtration Manifold
Model 2515
7

SECTION 3: OPERATION
3.10 Starting Procedures
3.11 Starting aWelch Aspiration/Filtration Vacuum System
Before attaching the pump to a system, familiarize yourself with the function and action of the
Aspiration/Filtration Vacuum System that you have acquired. Review the power requirements as
described in Section 2.60. Welch recommends running the pump for a few minutes to warm it up, before
use. The warm-up improves the pumps ability to handle humid air. Set the device on a level, sturdy
surface so the controls can be easily reached and adjusted. Connect one end of the application tubing
to the lid vacuum port.
Note: The in-line hydrophobic filter is designed to prevent foreign material from being
drawn into the device. Pump performance may decrease if the hydrophobic filter gets wet or
build up of forgein materialsor Medfilter occurs. It may be necessary to periodically change
the hydrophobic filter
CAUTION
Do not move this device with a full collection jar.
1. Be sure that the power switch is in the OFF (down) position. Plug in the device and turn the
switch to the ON (up) position.
2. Block the application tube leading from the collection jar and allow the gauge to reach stable
vacuum level.
3. Set vacuum level by turning the regulator knob counter-clockwise to increase vacuum or
clockwise to decrease vacuum..
Note: This procedure should be performed each time you use this device.
3.12 Cleaning The Device
1. Make sure the ON/OFF switch is in the OFF (down) position.
2. Unplug the device from the wall outlet and allow suction level to drop.
3. Remove the application tube from the lid vacuum port. Tubing should be cleaned after every use.
Run hot water through it. Soak in a solution of one part of vinegar to three parts hot water
for 20 minutes. Rinse with hot tap water and air dry.
4. Remove the pump tubing from the top of the jar lid.
5. Remove the jar from the holder and place on a firm, flat surface. Release the tabs and lift the lid
from the jar.
6. Wash the jar, gasket, lid and tube in a hot water/dishwashing detergeant solution and rinse with
hot tap water. Soak in a solution of one part of vinegar to three parts hot water for 20 minutes.
Rinse with hot tap water and air dry.
7. Wipe the outside of the case with a clean, damp cloth after each use.
3.20 Leak Detection
3.21 The importance of eliminating all leaks in a vacuum system is obvious. The pump must remove this
added volume of leaked gas to maintain the desired vacuum. Leaks for these pumps can be located by
slightly pressuring the system and painting the suspected area with a thick soap solution. Escaping air
will produce soap bubbles.
8

3.30 Operating Pressure Range
3.31 Aspiration/Filtration Vacuum Systems are designed to be run from slightly below atmospheric to their
maximum vacuum level on the intake side. The pumps also may be run from atmospheric to their
maximum rated pressure rating (Model 2511 only). Consult the Specification Table for the ratings of
your specific model (See Section 6, Specifications).
3.40 Shutdown Procedures
3.41 After use, Welch recommends the pump be run for about 2 minutes disconnected from the vacuum
process. The air pumped through the mechanism will purge out water vapor or droplets of water
condensate that may have formed on the inside of the pump. This purge of the pump mechanism helps
prevent corrosion.
SECTION 4: MAINTENANCE
4.10 Maintenance Procedures
4.11 Maintaining a Welch Aspiration/Filtration Vacuum System
These units are 100% oil-free. The pump employs a non-lube piston and cylinder. No maintenance is
necessary for the bearings. All bearings are sealed and permanently lubricated. Lubrication should not
be attempted. The units are built for continuous duty operation with the quietness and durability of a
diaphragm, but with piston performance.
4.12 Hydrophobic Filter Replacement
Change the filter whenever foreign material is drawn into it or if you notice a reduction in vacuum level.
1. Disconnect the long tube from the fitting on top of the jar lid.
2. Gently pull the hydrophobic filter off of the short tube, that is connected to the
regulator inlet port, and then remove the long tube from the hydrophobic filter .
3. With the green dot facing down, push the new hydrophobic filter into the short tube,
that is connected to the regulator inlet port, then push the long tube.
4. Connect the long tube to the green dot facing barb, and then connect to the fitting
on top of the jar lid.
9

SECTION 5: TROUBLESHOOTING
5.10 VACUUM PROBLEMS
5.11 Leakage, contamination, and unusual outgassing are the general causes of problems associated with
poor vacuum. To operate at maximum efficiency, a system must be thoroughly clean. If the system
is completely clean and free from leaks and unwarranted vacuum problems still exist, the pump should
be checked. A simple criterion for the condition of the pump is the determination of its maximum
vacuum capability. This can be accomplished by blocking of the intake and reading the vacuum level on
the gauge (See Section 2.80).
5.20 PRESSURE PROBLEMS
5.21 Leakage and contamination are the general causes of problems associated with poor pressure.
To operate at maximum efficiency a system must be thoroughly clean. If the system is completely
clean and free from leaks and unwarranted pressure problems still exist, the pump/compressor should be
checked by a service technician.
5.30 TROUBLE SHOOTING GUIDE FOR 2515
Trouble Shooting Guide continous on next page.
10
Poor Poor Loud
Pumping
V
acuum Unit Possible Cause Corrective Action
S
pee
d
X X X Damaged Valves Replace flapper Valves
X X X Debris in Valves Remove debris and check
for valve damage
X X X Damaged Gasket Replace Gasket
X X X Loose Head Screw Tighten Head Screw
X X X Loose Fitting Tighten Fitting

5.40 TROUBLE SHOOTING GUIDE FOR 2511 / 2515
11
Symptoms Possible Cause Remedies
Reduced/low 1. Clogged hydrophobic 1. Replace the filter
vacuum filter. following directions in
this manual. (Section 4.12)
2. Regulator improperly 2. Set regulator vacuum
set. level following operating
instructions.
3. Air leak. 3. Check the tubing and
connectors for possible leaks.
Attach, tighten or replace.
4. Jar lid gasket not 4. Be sure the jar lid and
secured to jar. gasket fit tightly on the jar.
Device does 1. Power cord not 1. Plug in the power cord.
not start plugged in.
2. Defective switch. 2. Contact your service
center or distributor. (See back page)
3. Vacuum still exists 3. Disconnect tubing from the
in system. collection jar to
release vacuum.
Reconnect tubing and
turn on the device.
Gauge reads 1. Faulty gauge. 1. Contact your service
incorrectl
y
center for repair [phone].
Device runs but 1. Gauge tubing not 1. Check the tubing and
gauge reads connected or is connectors for possible leaks.
zero leaking. Attach, tighten or replace.
Device stops 1. Device overheated. 1. Unplug device and allow to
running during cool for 10 minutes. Plug in
use and restart.
2. Blown fuse or circuit 2. Replace fuse or reset
breaker in household breaker.
circuit.
3. Low voltage to device. 3. Too many motor operated
appliances on same circuit.

SECTION 6: SPECIFICATION
6.10 SPECIFICATION TABLE
Cat. No. 2511B-75 2511C-75 2511C-76 2515B-75 2515C-75 2515C-76
Free Air Displacement CFM (L/min) 0.39(11) 0.32(9.2) 0.39(11) 1.2(34) 1.0(28) 1.2(34)
Maximum Vacuum in. Hg
Ultimate Vacuum Torr (mbar)
Dimensions L x W x H in. (cm)
Shipping Weight, lbs
Electrical Requirements 115V, 60
Hz
230V,
50Hz
100V,
50/60Hz
115V, 60
Hz
230V,
50Hz
100V,
50/60Hz
6.4 19
27.2
219(292) 70(93)
11.0 x 8.3 x 10.0 ( 28 x 21 x 25.5) 14.8 x 8.3 x 10.0 (37.5 x 21 x 25.5)
21.3
Model 2511 Model 2515
12

SECTION 7: WARRANTY
Warranty Information
Model No. Serial No. Date Purchased Name Company Address
Zip
City State Code Phone No. Purchased From Application For any additional information/literature needed, please check below: ❑ Laboratory Catalog❑ Industrial Catalog
Belt Drive Belt Drive Direct Drive Direct Drive
Dry Pumps Dry Pumps Accessories Accessories
Other
IMPORTANT
Please Read Carefully Before Operating
This Welch®Vacuum Pump
UNPACKING
Inspect the pump carefully. If any damage has occurred, file claim with the carrier immediately. Save the
shipping container for carrier to inspect.
OPERATING PUMP
Refer to the enclosed Instruction/Operation Manual for all information to properly operate and maintain the pump.
WARRANTY
This Welch Vacuum product is warranted to be free from defects in material and workmanship. The liability
of Welch Rietschle Thomas under this warranty is limited to servicing, adjusting, repairing or replacing any
unit or component part which in the judgment of Welch Rietschle Thomas has not been misused, abused or
altered in any way causing impaired performance or rendering it inoperative. No other warranties are
expressed or implied. The method of executing this warranty: servicing, adjusting, repairing or replacing shall
be at the discretion of Welch Rietschle Thomas. Vacuum pumps that have been used for any period, however
short, will be repaired under this warranty rather than replaced.
The warranty is effective for one year from the date of original purchase when:
1. The warranty card has been completed and returned.
2. The product is returned to the factory or other designated service centers, freight prepaid.
3. The product in our judgment is defective through no action or fault of the user.
If the product has become defective through misuse, abuse, or alteration, repairs will be billed regardless of
the age of the product. In this event, an estimate of the repair costs will be submitted and authorization of
these charges will be required before the product is repaired and returned.
To reduce additional charges and delays either within or outside of the warranty period, contact Welch
Rietschle Thomas @ [phone] for a return authorization number. Products without a return authoriza-
tion number will be refused by our receiving department. Before shipping, properly pack the pump, insure it
against loss or damage, and on the outside of the pump packaging and the packing slip write in the return
authorization number. Pumps damaged due to improper packaging are the customer’s responsibility.
67-1577
13

SECTION 8: EXPLODED VIEW & PARTS LIST
8.10 Model 2511B-75 / 2511C-75 / 2511C-76
PUMPON/OFF SWITCH
REGULATOR
KNOB
VACUUM GAUGE SHORT
TUBING
LONG
TUBING
APPLICATION
TUBING
HYDROPHOBIC
FILTER
PRESSURE PORT COLLECTION
JAR
14

8.11 Model 2515B-75 / 2515C-75 / 2515C-76
COLLECTION
JAR
LONG
TUBING
APPLICATION
TUBING
HYDROPHOBIC
FILTER
PUMP ON/OFF SWITCH
REGULATOR
KNOB
VACUUM GAUGESHORT
TUBING
15

8.12 Model 1475K-20
COLLECTION
JAR
LONG
TUBING
APPLICATION
TUBING
HYDROPHOBIC
FILTER
SHORT
TUBING
16

SECTION 9: KITS AND ACCESSORIES
9.10 REPAIR KITS
9.11 Repair Kit for Model 2515
Service Seal Gasket
Description Kit Kit
2515K-01 2515K-02
Connecting Rod Assembly #1 1 -
Handle Screw #2 2 -
Head Screw #3 4 -
Head O-Ring #4 1 1
Valve Plate Assembly #5 1 -
Cylinder O-Ring #6 1 1
17

9.20 VACUUM ACCESSORIES
9.21 Table for Vacuum Accessories
Description Welch Kit
Adapter S.S. 40mm
1475K-01
8-Channel Adapter S.S. 40mm
1475K-02
1-Channel Adapter for dispoable tips, w/o ejector
1475K-03
Rubber Adapter for Pasteur pipettes
1475K-04
8-Channel Adapter for dispoable tips, w/ejector
1475K-05
Adapter S.S. 150mm
1475K-06
4-Channel Adapter S.S. 40mm
1475K-07
Adapter S.S. 280mm
1475K-08
1-Channel Adapter for dispoable tips, w/ejector
1475K-09
Vacuboy Hand Operator w/ 1-Channel Adapter S.S.
1475K-10
18

9.30 ELECTRICAL ACCESSORIES
9.31 Table for Electrical Accessories
9.40 REPLACEMENT ACCESSORIES
9.41 Table for Replacement Accessories
Description Welch Kit
115V 60Hz - Maintained on/off footswitch
1430A
115V 60Hz - Variable on/off footswitch
1430B
90-230V 50/60Hz - Variable on/off footswitch
with IEC connections
1430C
19
Description Welch Kit
Aspiration Kit - Includes: 6 ft tubing, 2000ml Autoclavable
jar w/lid, and two hydrophobic filters
1475K-20
ten hydrophobic filters
1475K-21

Welch Rietschle Thomas
Vacuum Pump Repair Facility
7301 North Central Avenue
Skokie, IL 60077
Phone: [phone]
Fax: [phone] (Technical Support)
Fax: [phone] (Ordering)
Copyright© 1997-2004 Welch Rietschle Thomas
Welch is registered trademarks of Welch Rietschle Thomas
