Welotec TK100 User manual

TK100
Version:
v1.0.0
Date:
12.10.2023

Contents
1 TK100 Series ‑ Introduction 3
1.1 Contentchecklist ............................................ 4
1.2 Productinformation........................................... 5
2 Installation Manual 6
2.1 Typicaluse................................................ 6
2.2 Connectionplan............................................. 6
2.3 Fastinternetconnection......................................... 7
2.4 Resettofactorysettings......................................... 12
2.5 Factorydefaultsettings:......................................... 15
3 System 16
3.1 Preparation ............................................... 16
3.2 System.................................................. 18
3.3 BasicSetup................................................ 18
3.4 Time ................................................... 19
3.5 AdminAccess .............................................. 19
3.6 SystemLog................................................ 21
3.7 ConfigurationManagement....................................... 21
3.8 Scheduler ................................................ 22
3.9 Upgrade ................................................. 22
3.10 ...................................................... 23
3.11 Reboot .................................................. 23
3.12 Logout .................................................. 23
4 Network 24
4.1 Cellular.................................................. 24
4.2 WAN/LANSwitch............................................. 26
4.3 LinkBackup ............................................... 31
4.4 VRRP ................................................... 31
4.5 IPPassthrough.............................................. 33
4.6 StaticRoute ............................................... 33
5 Services 34
5.1 DHCPService .............................................. 34
5.2 DNS.................................................... 35
5.3 DNSRelay ................................................ 35
5.4 DDNS(DynamicDNS) .......................................... 36
5.5 SMS.................................................... 38
5.6 TraicManager ............................................. 40
5.7 AlarmManager.............................................. 40
6 Firewall 42
6.1 Basic ................................................... 42
6.2 Filtering ................................................. 42
6.3 ContentFiltering............................................. 43
6.4 PortMapping............................................... 43
6.5 VirtualIPMapping............................................ 44
6.6 DMZ.................................................... 45
6.7 MAC‑IPBundling............................................. 46
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 1

6.8 NAT.................................................... 46
7 QoS 47
7.1 IPBWLimit................................................ 47
8 VPN 48
8.1 IPSecSettings .............................................. 48
8.2 IPSecTunnels .............................................. 49
8.3 GRETunnels ............................................... 51
8.4 L2TPClients ............................................... 52
8.5 PPTPClients ............................................... 54
8.6 OpenVPNTunnels ............................................ 56
8.7 OpenVPNAdvanced ........................................... 58
8.8 CertificateManagement......................................... 59
8.9 ZeroTier ................................................. 60
9 Tools 61
9.1 PING ................................................... 61
9.2 Traceroute ................................................ 62
9.3 LinkSpeedTest ............................................. 62
9.4 TCPDUMP ................................................ 63
10 Application 64
10.1 SMART‑EMS ............................................... 64
11 Status 65
11.1 System.................................................. 65
11.2 Modem.................................................. 65
11.3 TraicStatistics ............................................. 66
11.4 Alarm................................................... 66
11.5 NetworkConnections .......................................... 66
11.6 RouteTable ............................................... 67
11.7 DeviceList ................................................ 68
11.8 Log .................................................... 68
11.9 ThirdPartySoware........................................... 68
12 Technical Data 70
12.1 Deviceproperties ............................................ 70
12.2 Environmentalrequirements ...................................... 70
12.3 Radiofrequencies ............................................ 70
13 Support 73
14 CE Declaration 74
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 2

1 TK100 Series ‑ Introduction
Copyright notice
Copyright © 2018 Welotec GmbH All rights reserved.
Duplication without authorization is not permitted.
Trademarks
Welotec is a registered trademark of Welotec GmbH. Other trademarks mentioned in this manual are the property
of their respective companies.
Legal notice
The information in this document is subject to change without notice and is not binding for Welotec GmbH.
It is possible that this user manual contains technical or typographical errors. Corrections are made regularly with‑
out being pointed out in new versions.
Technical support contact information
Welotec GmbH
Zum Hagenbach 7
48366 Laer
Tel.: [phone]
Fax.: [phone]
[Email: [email protected]om]
Description
The TK100 series industrial routers provide stable, high‑speed connectivity between remote devices and customer
sites over LAN and (depending on model) LAN or 3G/4G networks. They can operate in a voltage range of 9 to 36
V DC and have a temperature range of ‑20°C to 70°C with a relative humidity of 95%, ensuring high stability and
reliability under severe conditions. The TK100 can be used on the workstation or mounted on DIN rails.
TK100 series products support VPN (IPSec/PPTP/L2TP/GRE/SSL VPN), which guarantees secure connections be‑
tween remote devices and customer sites.
Important safety notice:
This product is not suitable for the following applications:
• Areas where radio applications (such as cell phones) are not allowed
• Hospitals and other places where the use of cell phones is not allowed
• Gas stations, fuel depots and places where chemicals are stored
• Chemical plants or other locations with explosion hazards Metal surfaces that can weaken the radio signal level
WEEE notice
The European Directive on Waste Electrical and Electronic Equipment (WEEE), which came into force on February
13, 2003, has led to major changes with regard to the reuse and recycling of electrical equipment.
The main objective of this directive is to prevent waste from electrical and electronic equipment and to promote
reuse, recycling and other forms of recovery. The WEEE logo (see figure on the le) on the product or packaging
indicates that the product must not be disposed of with other household waste. You are responsible for disposing of
all discarded electrical and electronic equipment at appropriate collection points. Separate collection and sensible
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 3

recycling of your electronic waste helps to use natural resources more sparingly. In addition, proper recycling of
waste electrical and electronic equipment ensures human health and environmental protection.
For more information on disposal, recycling, and collection points for waste electrical and electronic equipment,
contact your local municipality, waste disposal companies, the distributor, or the manufacturer of the equipment.
1.1 Content checklist
Each TK100 wireless router is delivered in a package with standard accessories. Additional accessories can be or‑
dered. Check the contents of your package carefully and if anything is missing or damaged, contact your sales
partner from Welotec GmbH.
Scope of delivery:
Standard accessories:
Accessories Quantity Description
TK100‑Router 1 TK100 series industrial router
Network cable 1 Network cable CAT5, 1,5 Meter
Manual 1 Data medium with manual
License terms 1 “Third Party Soware Notifications and Licenses”
Power supply
Terminal block 1 2‑pole terminal for power supply
Components set (depending on model)
Product Quan‑
tity
Description
TK100‑Router 1 TK100 series industrial router
Network cable 1 Network cable CAT5, 1,5 Meter
Cellular an‑
tenna
1 5 m Magnetic base antenna 2G/3G/4G
Manual 1 Data medium with manual
License terms 1 “Third Party Soware Notification and Licenses”
Power supply
1 Table power supply, input 100‑240 V AC, output 12 V DC (for TK100), incl. 2‑pole
terminal block
1 Plug, European standard
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 4

1.2 Product information
1.2.1 Environmental requirements
Operating temperature: ‑20 to 70°C
Relative humidity during operation: 5 to 95 % (non‑condensing)
Storage temperature: ‑40 to +85°C
1.2.2 Power supply
Power supply: 1 terminal strip (2‑pole) incl. voltage socket and serial connection
Input voltage: 9 ‑ 36 V DC
1.2.3 Physical properties
Housing: steel, protection class IP30
Weight: 259 g
Dimensions (mm): 90 x 90 x 25 mm
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 5

2 Installation Manual
2.1 Typical use
With TK100 series routers, you can connect devices to the Internet with Ethernet, via GPRS/HSUPA/ UMTS/LTE. To
ensure security and uninterrupted access, the TK100 series supports VPN connections, enabling remote access and
secure data transmission over the Internet.
2.2 Connection plan
Interface Description
Power connection 9 ‑ 36 V DC
Ethernet ports Two 10/100 Base‑TX RJ45‑Ports
Antenna connection (mobile radio) SMA (f)
SIM card slot Two slots for SIM card insertion
2.2.1 Meaning of the LED lights
Power Status Mobile Meaning
O O O Turned o
On O O System error
On On O The module or SIM card is not recognized
On On Flashing Dial up
On On On Dial up successful
On Flashing On System upgrade
On Flashing‑>On O Reset
Signal strength
Color Signal strength
Red Signal 0 ‑ 10
Yellow Signal 11 ‑ 20
Green Signal 21 ‑ 30
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 6

2.3 Fast internet connection
2.3.1 Inserting the SIM card
Open the TC router SIM/UIM slot at the top of the device and insert the SIM card into the card holder.
2.3.2 Antenna installation
Aer installing the TK100, connect the antenna and screw the antenna tight. Place the antenna where a good signal
strength is achieved.
Note: Position and angle may aect signal strength.
2.3.3 Power supply
Connect the power supply included in the package to the device and check whether the LED display for “Power”
lights up. Contact Welotec technical support if no indicator lights up. You can configure the TK100 when the power
indicator is flashing.
2.3.4 Connecting
Connect the TK100 to the PC:
1. Connect the Ethernet cable of the TK100 to the PC.
2. Then one LED indicator of the RJ45 interface lights up green and the other indicators flash.
2.3.5 Connecting the TK router device to the PC for the first
time
The TK100 router can assign IP addresses for the PC automatically. Set up the PC so that IP addresses are retrieved
automatically via DHCP. (Basis is the Windows operating system):
1. Open the Control Panel, double‑click the “Network and Sharing Center” icon to open the “Network and Sharing
Center” screen.
2. Click “LAN Connection” and open the “Status of LAN Connection” screen:
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 7

3. Click “Properties” and open the LAN connection properties screen:
1. Select “Internet Protocol Version 4 (TCP/IPv4)”, click the “Properties” button, and check if your PC can obtain IP
and DNS address automatically. (You can also set up the PC in the subnet: 192.168.2.0/24, e.g. IP: 192.168.2.10,
netmask: 255.255.255.0, default gateway: 192.168.2.1)
By clicking “OK”, the TK router assigns an IP address to the PC: 192.168.2.X, and the gateway: 192.168.2.1 (the
default address of the TK100).
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 8

Aer configuring the TCP/IP protocols, you can use the ping command to check whether the connection between
the PC and the router is established without errors. The following is an example of running the ping command
under Windows 7 :
Windows key+R ‑> enter “cmd” ‑> Enter key ‑> enter “Ping 192.168.2.1” ‑> Enter key For this display:
The connection between the PC and the router has been established correctly.
In the following example there are errors:
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 9

The connection is not working properly and you should go through the instructions again and check your settings.
2.3.6 Configuring the TK100 (Optional)
Aer you have performed the steps described in the previous chapter, you can configure the router:
1. Open any Internet browser (e.g. Google Chrome) and enter the default IP address of the router:
[http://192.168.2.1*.*] The following login page opens:
Enter the user name (default: adm) and password (default: 123456), and then click “Login” to open the configura‑
tion screen.
If you want to set your own IP for the router: Click Network >LAN.
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 10

Change the IP address to 192.168.1.254, for example.
Click “Apply” and the following screen will be displayed:
The IP address of the TK100 has been changed. So that you can now access the configuration page again,
the PC must be set up in the same subnet, for example: 192.168.1.10/24 – Then enter the changed IP address
(192.168.1.254) in your browser.
2.3.7 Connecting the TK router to the Internet
Perform the following configuration steps to establish a connection between the TK100 and the Internet.
Click Network > Cellular, and enable the function with Enable:
Check the entries and select a preset network provider under SIM1 Network Provider, or add a self‑created profile
of a provider:
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 11

You can obtain the APN, dial‑in number, user name and password from your local network provider. Ask them for
the details.

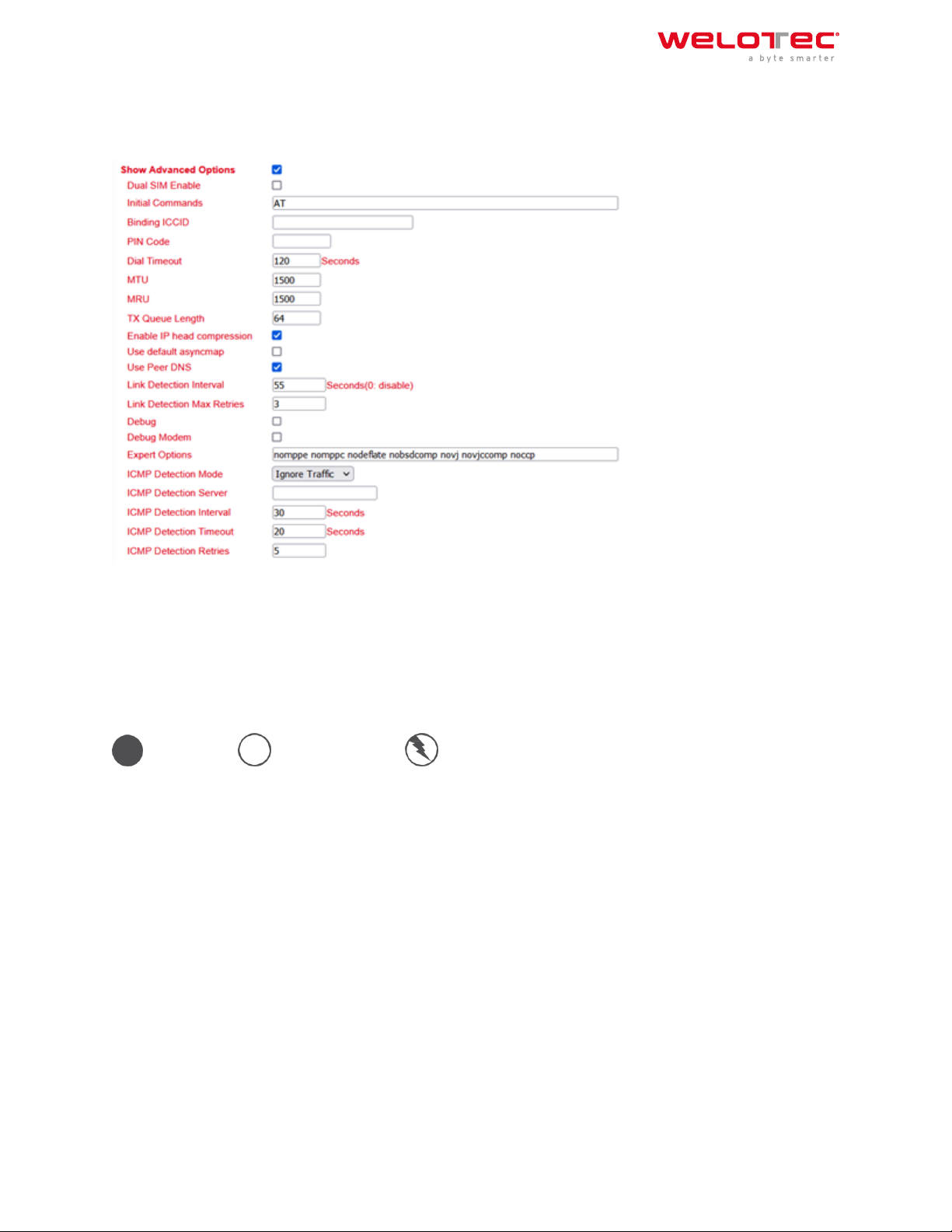

Via Show Advanced Options you can make further settings, such as the PIN code if it is set on the SIM card.
If you have set the correct configuration, the TK100 can now connect to the Internet. Open an Internet browser,
type “[www.welotec.com][www.welotec.com]” and the Welotec website will open.
2.4 Reset to factory settings
2.4.1 Hardware method
= LED leuchtet = LED leuchtet nicht = LED blinkt
1. Press the RESET key while turning on the TK100:
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 12

2. As soon as the Status LED lights up (approx. 15 seconds aer switching on), release the RESET button:
3. Aer a few seconds, the Status LED light will stop glowing. Now press the RESET button again:
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 13

4. The Status LED light will then flash, indicating that the reset to the default setting was successful.
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 14

2.4.2 Web method
1.) Log in to the TK100 web‑based user interface and select System > Config Management:
2.) Click Restore default configuration to reset the TK100 to its factory settings. Aer that the router will be re‑
booted.
2.5 Factory default settings:
•IP: 192.168.2.1
•Netmask: 255.255.255.0
•Username: adm
•Password: 123456
•Serial Parameter: 115200‑N‑8‑1
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 15

3 System
The TK‑100 Router must be properly configured before use. This chapter describes the web‑based configuration.
3.1 Preparation
First connect your devices to the TK100 via cable or hub (switch) and set the IP address for the PC and TK100 in
the same subnet, e.g.: set the PC IP address to 192.168.2.2, netmask: 255.255.255.0, gateway (default IP of TK100:
192.168.2.1):
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 16

Open an Internet browser and enter the IP address of the TK100: [http://192.168.2.1][http://192.168.2.1*.*] (de‑
fault IP of the TK100).
On the following login page, you must log in as an administrator. Enter the user name and password (default:
adm/123456).
Click on “Login” to open the configuration page.
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 17

3.2 System
The system settings include the following 9 areas: Basic Setup, Time, Admin Access, System Log, Config Manage‑
ment, Scheduler, Upgrade, Reboot and Logout.
3.3 Basic Setup
In the Basic Setup you can change the language of the menu and the host name. This menu item can be accessed
via System > Basic Setup.
Parameter Name Description Standard
Language Set language for configuration page English
Host Name Hostname TK100 Router
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 18

3.4 Time
In this menu item the system time of the router can be adjusted. It is also possible to set up a time server (NTP Time
Server) to automatically keep the system time up to date.
Name Description Standard
Router Time Router time 2017‑08‑01 16:00:00
PC Time Time of the PC (or the time
of the device connected to the
router)
The Sync Time button can be used to syn‑
chronize the time with the connected de‑
vice.
Timezone Set time zone Selectable time zone
Auto Daylight Savings Time Automatic changeover summer
time/winter time
Disabled
Auto Update Time Time of the automatic time up‑
date
Disabled
NTP Time Servers (aer en‑
abling the “Auto Update Time”
option)
Setting for NTP time server
(maximum three entries)
pool.ntp.org
3.5 Admin Access
In this area you can change or adjust important settings, such as the password of the administrator or the port
assignment for access to the router. These settings can be reached via System > Admin Access.
Welotec GmbH
Zum Hagenbach 7
48366 Laer
www.welotec.com
[e-mail]
[phone] Page 19
