DSL-526B - Port Forwarding Guide
This document will detail how to configure Port Forwarding on the DSL-526B.

D-Link Technical Support –How to configure Port Forwarding on the DSL-526B.Page 2of 8
NOTE:
It is recommended that your PC is configured with a Static IP when
using Port Forwarding. See page 5 - how to configure Windows 7 with a
static IP.

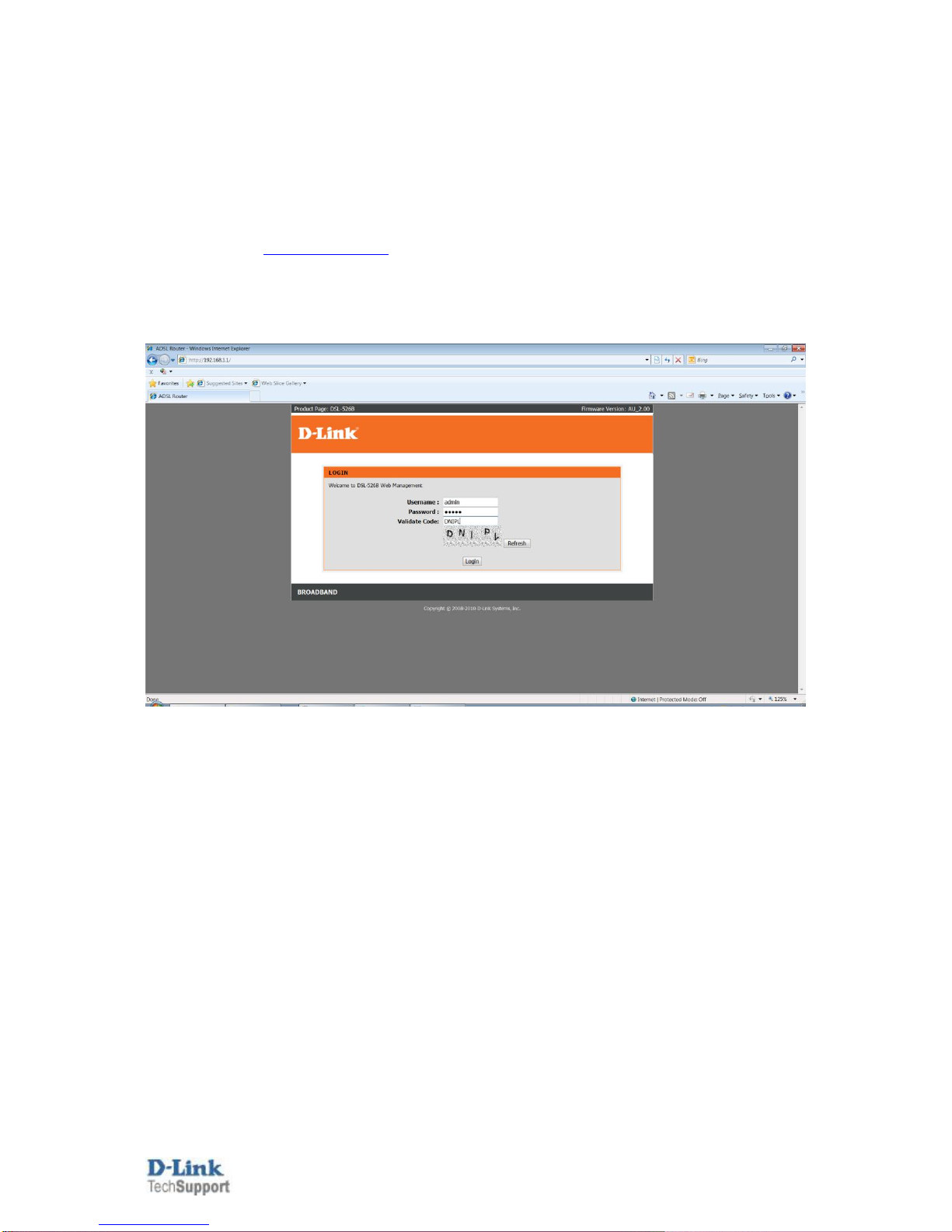

1. Log in to the modem with the computer connected to the modem via Ethernet.
-URL: http://192.168.1.1 (default)
-Username: admin
-Password: admin (default)
-Validate Code: (randomly generated)

D-Link Technical Support –How to configure Port Forwarding on the DSL-526B.Page 3of 8

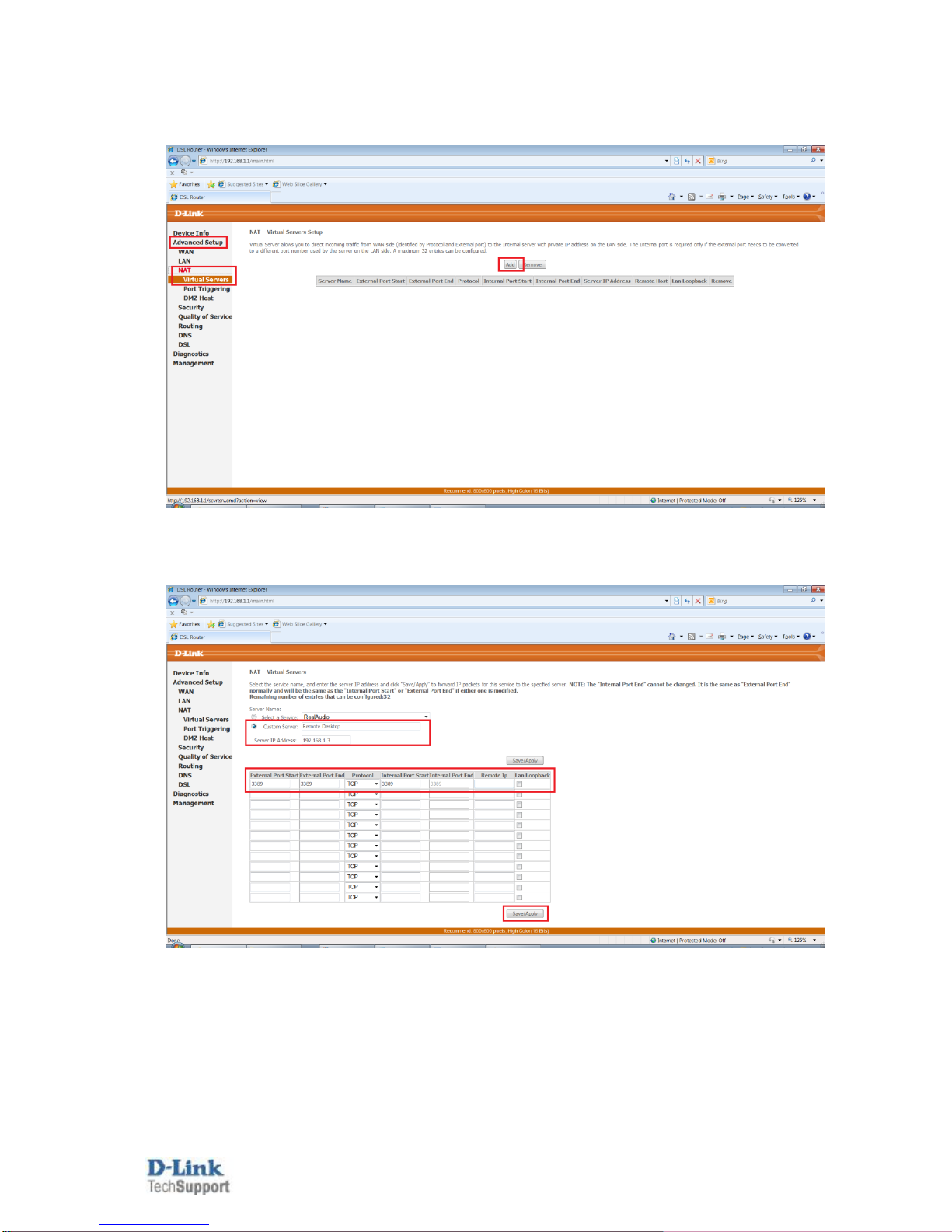

2. Select the ADVANCED SETUP button from the left menu.
3. Select NAT from the sub-menu followed by select VIRTUAL SERVERS from the list.
4. Select ADD to create a new rule.
5. Select CUSTOM SERVER
6. Name the rule with the name of the service your creating the rule for, such as Remote
Desktop in this example.
7. Enter the Remote Desktop port number (3389) in the External Port Start and External Port
End. (The Internal Ports will auto fill).

D-Link Technical Support –How to configure Port Forwarding on the DSL-526B.Page 4of 8
8. Select SAVE/APPLY to save the changes.

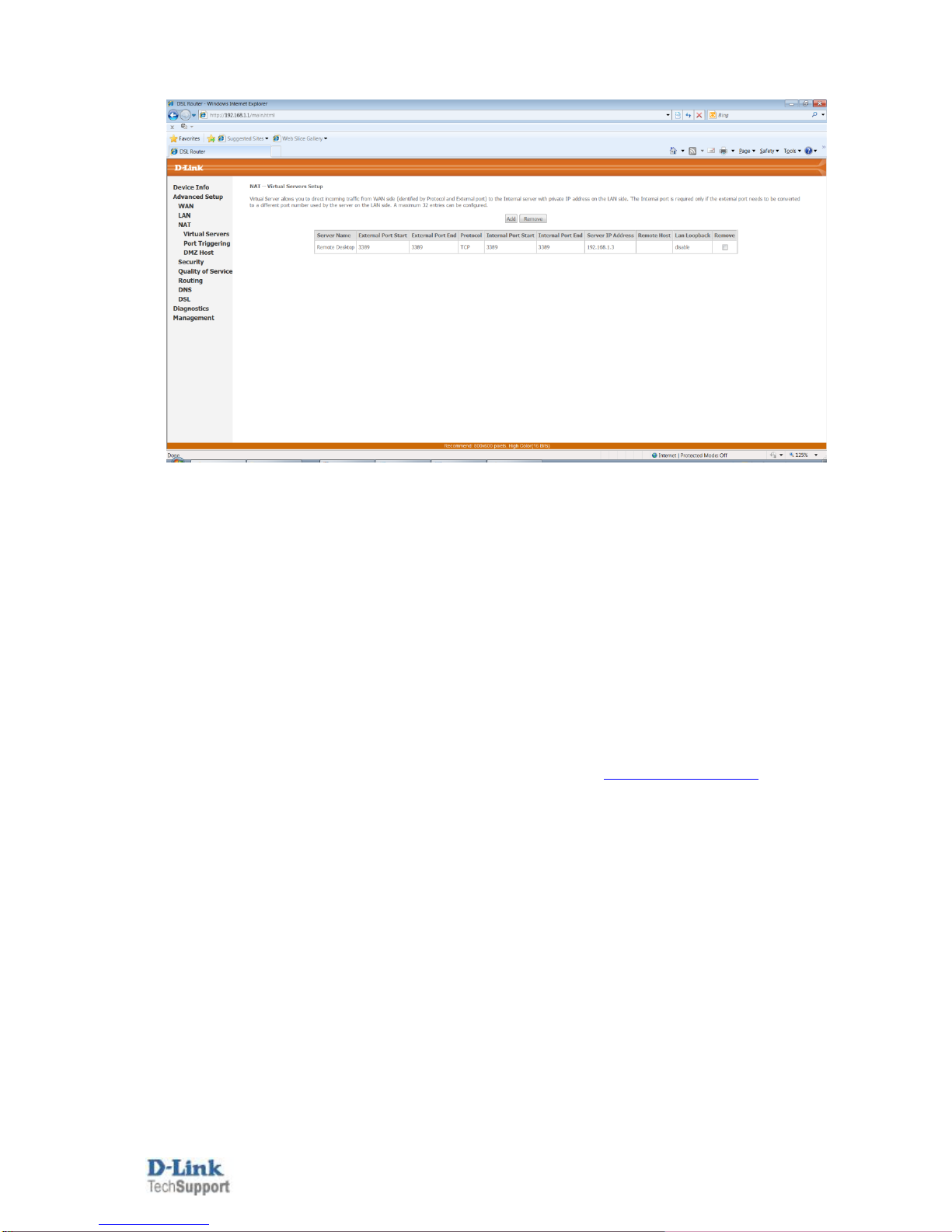

9. The page will return to the Virtual Servers entries table with your new rule.
NOTE:
If you have multiple PC’s you wish to enable a service such as Remote Desktop
on, you will need to create a different External Port Start and End for each PC
e.g.
-PC 1: 3389 (External) / 3389 (internal)
-PC2: 3390 (External) / 3389 (Internal)
-PC3: 3391 (External) / 3389 (Internal)
-To check whether the port is successfully forwarded, go to www.canyouseeme.org and
enter the ‘external port’ used in your port forwarding rule and click Submit. It will return
with a Success or Error message.

D-Link Technical Support –How to configure Port Forwarding on the DSL-526B.Page 5of 8
How to configure Windows 7 with a static IP Address.

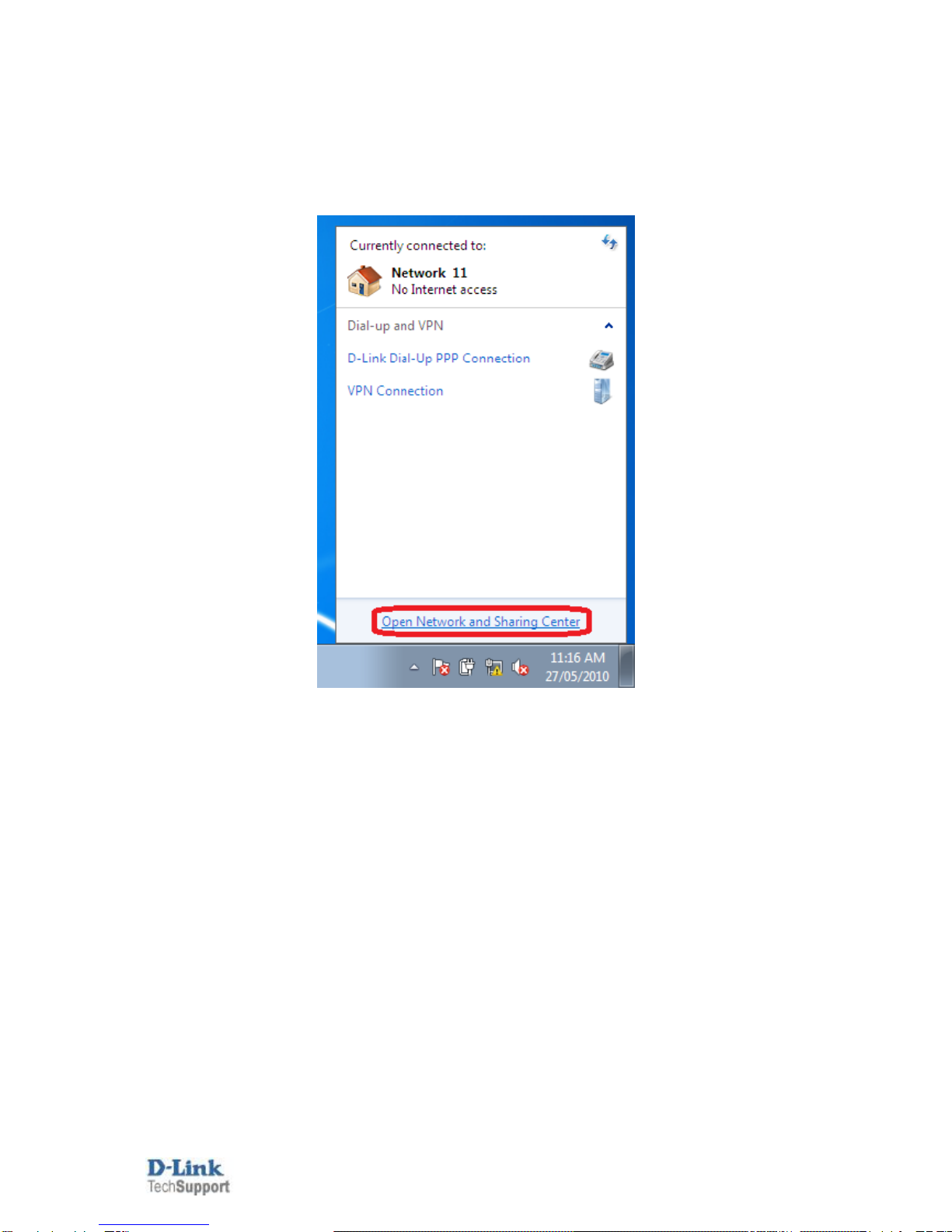

1. Click the ‘Network’ icon in the windows task tray.
2. Select Open Network and Sharing Center

D-Link Technical Support –How to configure Port Forwarding on the DSL-526B.Page 6of 8

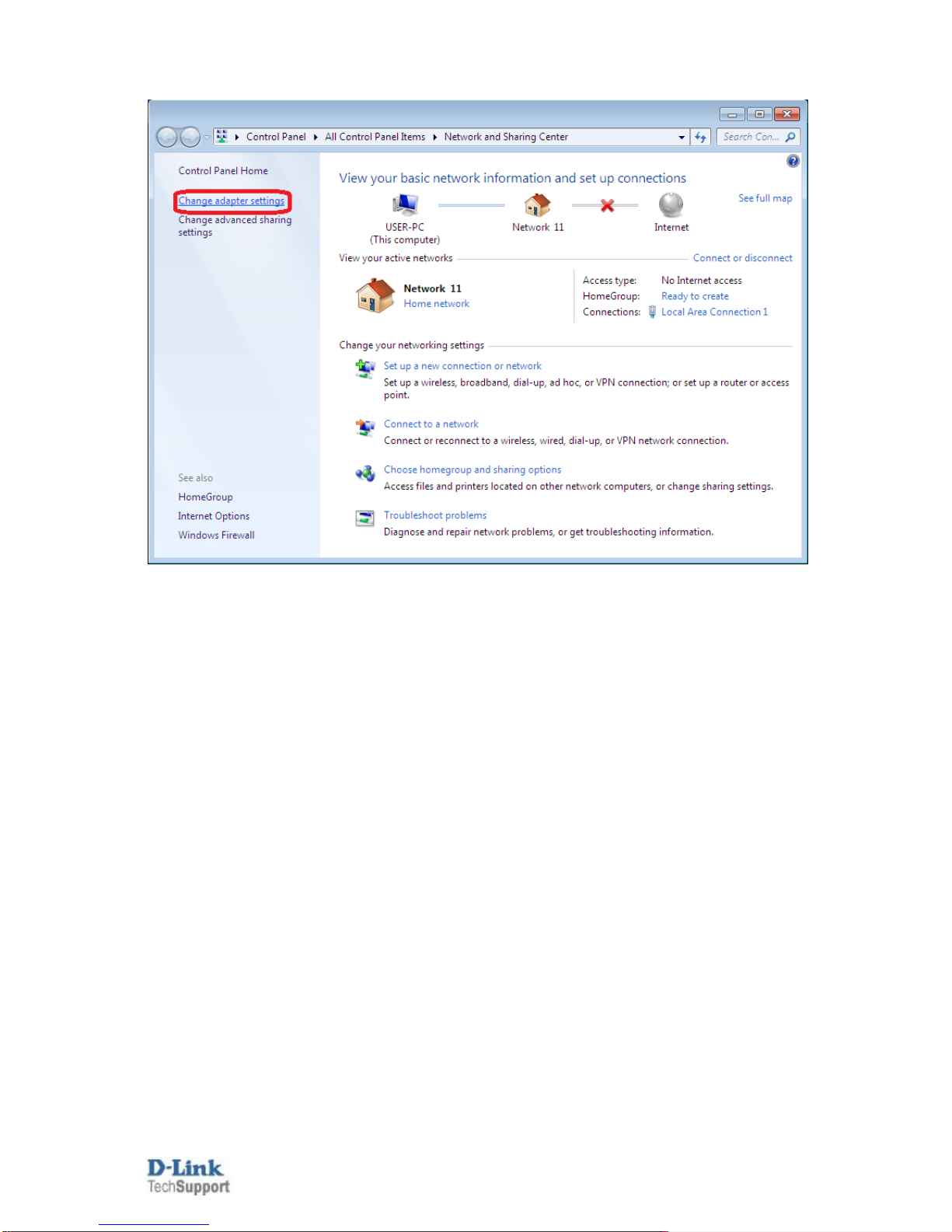

3. Select Change Adapter Settings from the left menu panel.

D-Link Technical Support –How to configure Port Forwarding on the DSL-526B.Page 7of 8

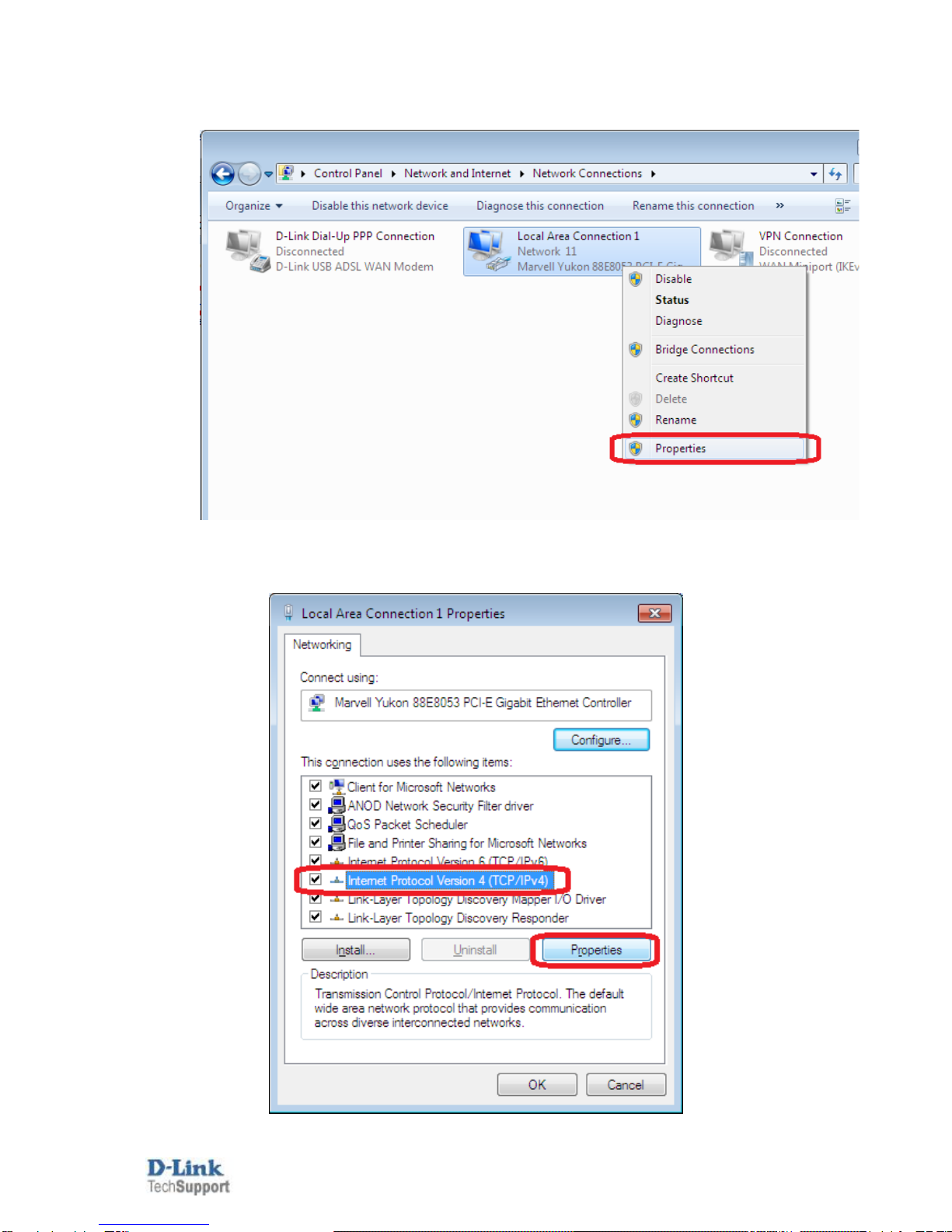

4. Right Click the icon of the adapter which you are using to access the Internet e.g. Local Area
Connection (Wired) or Wireless Network Connection (Wireless) and select Properties.
5. Select Internet Protocol Version 4 (TCP/IPv4) and click the Properties button.

D-Link Technical Support –How to configure Port Forwarding on the DSL-526B.Page 8of 8

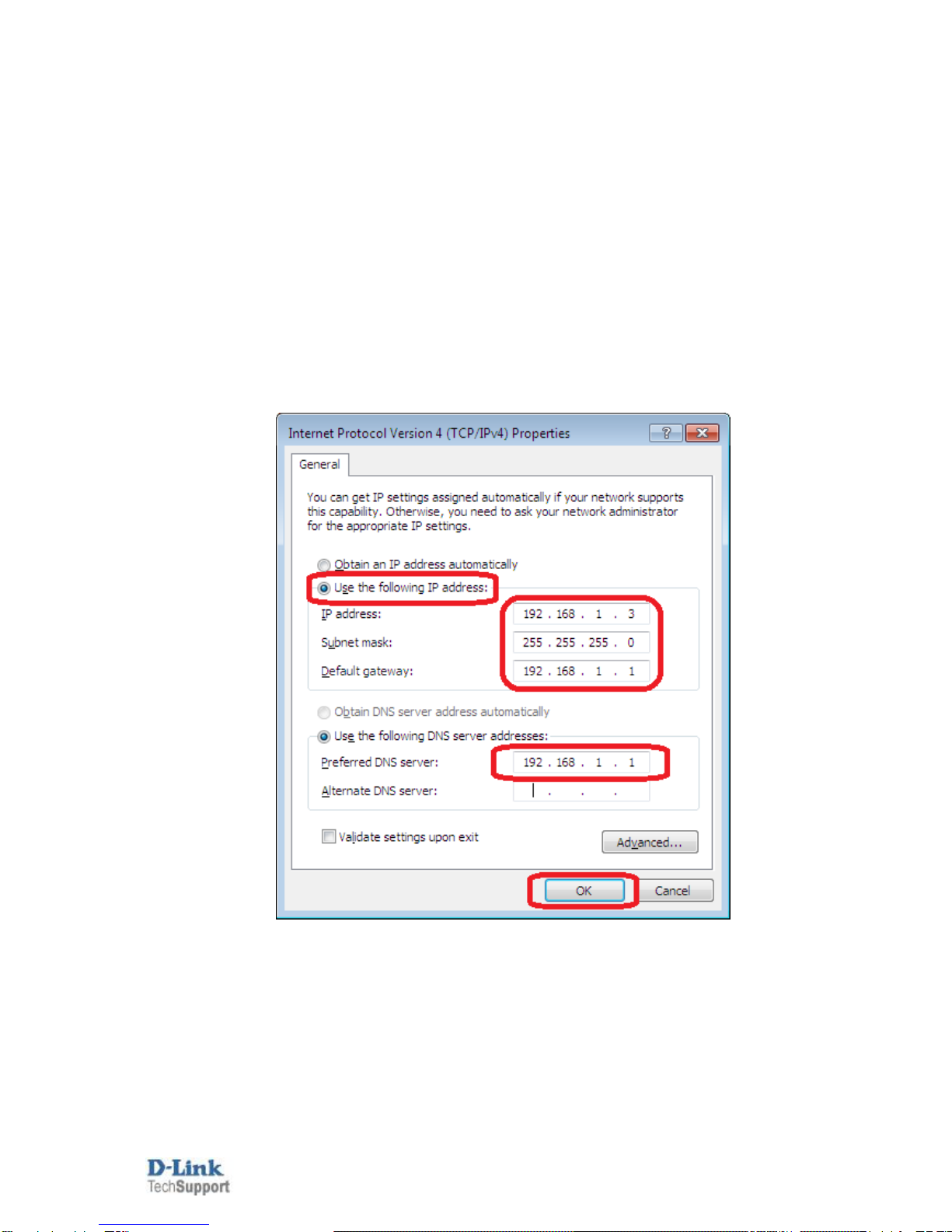

6. Select the radio button beside Use the following IP address:
-Enter the static IP you wish to assign your PC. It will need to be in range of your router
LAN subnet e.g. 192.168.1.x
-In this example, the modem LAN IP is 192.168.1.1 and therefore 192.168.1.3 is used for
this particular PC’s IP Address
-Subnet mask: automatically filled for the user
-Default Gateway: 192.168.1.1 (modem IP address)
-DNS Servers: in this example the modem is used as the Primary DNS server (192.168.1.1).
However this can be assigned with your ISP’s DNS or alternative DNS servers.
7. Click OK to save and activate the changes, followed by OK or CLOSE on the window
following.
