Wenshing WS-CQE-CCDL User manual

Wireless Digital CCDL CameraWireless Digital CCDL Camera
Wireless Digital USBH ReceiverWireless Digital USBH Receiver
2.4GHz GFSK Hopping
Model:WS-CQE-CCDL(Wireless Digital CCDL Camera)
Model:WS-VIDEO-USBH(Wireless Digital USBH Receiver)
WENSHING Confidential
Do Not Distribution

Vision HistoryVision History
Version Date Changes
V1.01
V1.01
V1.01
V1.01
Nov.01,2010
Dec.15,2010
Jan.17,2011
Feb.11,2011
1 Edition
2 Edition
3 Edition
4 Edition
st
st
st
st
V2.01 Aug.17,2011 5 Edition
st
WENSHING Confidential
Do Not Distribution

Content
Important Event
Definition of Parts
Specification
Dimension Diagram
Manipulating the Wireless Digital CCDL Camera
Wireless Digital CCDL Camera and Wireless Digital USBH Receiver
FCC Consistent Declaration(U.S.A. Only)
Declaration
Warranty
Wireless Digital CCDL Camera
Wireless Digital USBH Receiver
Wireless Digital CCDL Camera
Wireless Digital USBH Receiver
RF Spec
Operating Environment
Wireless Digital CCDL Camera
Wireless Digital USBH Receiver
Turn On
Pair
Recharge
Install
Setup
Pair
Application
Internet Surveillance
Abnormal Test
Administrative Regulations on Low Power Radio Waves Radiated Devices
Important Event
Definition of Parts
Specification
Dimension Diagram
Manipulating the Wireless Digital CCDL Camera
Wireless Digital CCDL Camera and Wireless Digital USBH Receiver
FCC Consistent Declaration(U.S.A. Only)
Administrative Regulations on Low Power Radio Waves Radiated Devices
1
1
2
2
3
3
3
3
4
5
6
6
7
9
19
21
25
6
26
28
28
WENSHING Confidential
Do Not Distribution

Important EventImportant Event P. 1
1
.D
2 This product should be in this brochure by the instructions of the types and rated voltage power
under the current proper use. If violation of this statement by the safety records of the supply
operation, I am afraid our company cannot afford any of the responsibility.
3 Do not self-decomposition, alteration, repair of the products also will cause fire, electric shock, fault,
and dangerous. In addition, their decomposition, alteration, repair the product, failure is not within the
scope of warranty.
4 The products are not waterproof, so please do not use and touch water. Take off and on also please
note. Rain, spray, drinks, steam, sweat may be a failure.
5 Use of this product, please be sure to use according to the statement recorded by the use of methods
to operate. Please do not violate particular attention to the matter reminded to use.
6 Please respect this statement recorded by the note. When consumers in contravention of this
statement recorded note of the operation, I am afraid our company could not shoulder any
responsibility.
7 Products are defective, the Company will be responsible for free to amend the flaws, or to the
same flawless product or its equivalent products in exchange. However, the Company does not
assume based on the requirements of the flaw and loss responsibility.
8 The Company reserves the right to retain without notice to users of the cases, the product of
hardware / software (version upgrade) is with the right to edit.
、
、
、
、
、
、
、
、
This product is in general use for the equipment on the premise of the development, design,
manufacture o not use that require high security purposes, such as machinery or medical, aviation
equipment, machinery and transport-related deaths are directly or indirectly related to the system.
Declaration
Warranty
This product provides different frequency for user selection to meet different
telecommunication regulation and FCC/NCC on different countries.
The warranty time is within one year from purchased date. The warranty scope are used in
normal situation and none vandalism. (Some function harmful out of warranty scope and
Vandalism are Un-warranty).
Declaration
Warranty
Un-warranty Scope Description
1Because the natural disaster, accident or human factor to cause the bad damage.
2 Violate the product instruction manual to cause the damage of the products.
3 The improper assemble causes damage.
4 The products used the unsanctioned accessory to cause damaged.
5 Overstep the allowed used environment to cause the products damaged.
、
、
、
、
、
Un-warranty Scope Description
Contact Us
WENSHING ELECTRONICS CO., LTD.
No.82, Chong De St. 11054 Shin Yi Dist., Taipei, Taiwan
Tel: +886-2-27353055
Fax: +886-2-27328813
Contact Us
WENSHING Confidential
Do Not Distribution

Definition of PartsDefinition of Parts P. 2
●Wireless Digital CCDL Camera●Wireless Digital CCDL Camera
●Wireless Digital USBH Receiver●Wireless Digital USBH Receiver
WENSHING Confidential
Do Not Distribution

Specification P. 3
●Wireless Digital CCDL Camera●Wireless Digital CCDL Camera
Dimension: 111.8mm(L) * 61.8mm(W) * 58.5mm(H)
Weight: 543g
Sensor:1/ ”CCD sensor3
Lens: Manual DC 3.5~8mm Varifocal Auto Iris Lens, F1.4
Omni directional Microphone
Battery: Built in 3 mA Li-ion battery000
Operation period: 1 hour
Power supply: B Type Mini USB DV 5V/1A
●Wireless Digital USBH Receiver●Wireless Digital USBH Receiver
Dimensions: 71.3mm(L) * 42mm(W) * 36.1mm(H)
Weight: 100.28g
Support system: Microsoft Windows 2000/XP/Vista/WIN7
Resolution:
4-split screen: 5~8 frames at 320x240(QVGA)
Single screen: 10~16 frames at 640x480(VGA)
●RF Spec●RF Spec
Frequency ISM 2400~2483MHz hopping:
Transmission Power 0mW (24dBm):25
Modulation Mode GFSK:
●Operating Environment●Operating Environment
Operating Temperature 0 ~+50:℃ ℃
Memorizing Temperature -10 ~+60:℃ ℃
●Certification●Certification
FCC Wireless Digital USBH Receiver:OYQWSVIDEOUSB
NCC Wireless Digital USBH Receiver:CCAB10LP5660T5
WENSHING Confidential
Do Not Distribution

P. 4
Dimension DiagramDimension Diagram
●Wireless Digital CCDL Camera●Wireless Digital CCDL Camera
Bottom View
Top View
Side View
WENSHING Confidential
Do Not Distribution

P. 5
●Wireless Digital USBH Receiver●Wireless Digital USBH Receiver
Dimension DiagramDimension Diagram
35.9mm
42mm
71.5mm
25.6mm
SIDE VIEW TOP VIEW
BOTTOM VIEW
SIDE VIEW
WENSHING Confidential
Do Not Distribution

P. 6
Manipulating the Wireless Digital CCDL CameraManipulating the Wireless Digital CCDL Camera
●Turn On●Turn On
●Pair●Pair
●Recharge●Recharge
Plug in the USBH charger here.
Press to turn on the device, after successfully connected with the “Wireless
Digital USBH Receiver” (Hereinafter called USBH Receiver), Lamp/Setup will
then turn into blue. Once failed to connect or beyond the received range,
flashes once 2 seconds. As below fig (Fig 1)Lamp/Setup
While the “Wireless Digital CCDL Camera” (Hereinafter called Camera) is under
the standby mode, press and last for 4 seconds, will
then continuously flash in blue. Meanwhile, click the pairing button on the PC
screen to process pairing. After Camera was successfully paired with USBH
Receiver, will steadily keep in blue, and images from that camera
will be displayed simultaneously on the pc screen. Once Camera was failed to be
paired with USBH Receiver, flashes once 2 seconds. Users may
follow the described steps to make pairs again. As below fig (Fig 1)
Lamp/Setup Lamp/Setup
Lamp/Setup
Lamp/Setup
While turns into yellow, it means the Camera is running out of battery. Users
may now plug in the USBH charger, and will turn into red during recharging
The Camera should be recharged for 3 hours before first-time used, and should
be recharged for 1 hour when the battery is low.
.
On / Off
Power 5V
Blue Pairing
Red Charge
Green Low Battery
Lamp/Setup
Antenna
Digital Wireless Camera
WS-CAMERA-CCD1
WENSHING Confidential
Do Not Distribution

Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver P. 7
●Install●Install
(Fig 1.2)
1.1 Open the “USB Wireless Digital Video” folder. As below fig (Fig 1.1)
(Fig 1.1)
1.2 Click Setup.exe to process installing procedure. As above (fig. 1.2).
1.3 Click “Next”. As below fig (Fig 1.3)
(Fig 1.3)
1.4 Choose “I accept the terms of the license agreement”, and click “Next”. As
above fig (Fig 1.4)
(Fig 1.4)
Next
Next
Select
WENSHING Confidential
Do Not Distribution

P. 8
(Fig 1.5) (Fig 1.6)
(Fig 1.7) (Fig 1.8)
1.6 Click “Install”. As above fig (Fig 1.6)
1.7 Choose “Yes, I want to restart my computer now.” click “Finish”, and restart
the computer. As below fig (Fig 1.7)
1.8 Plug in “USBH Receiver”, the icon, which is circled will appear on the lower
right side of the desktop. As above fig (Fig 1.8)
,

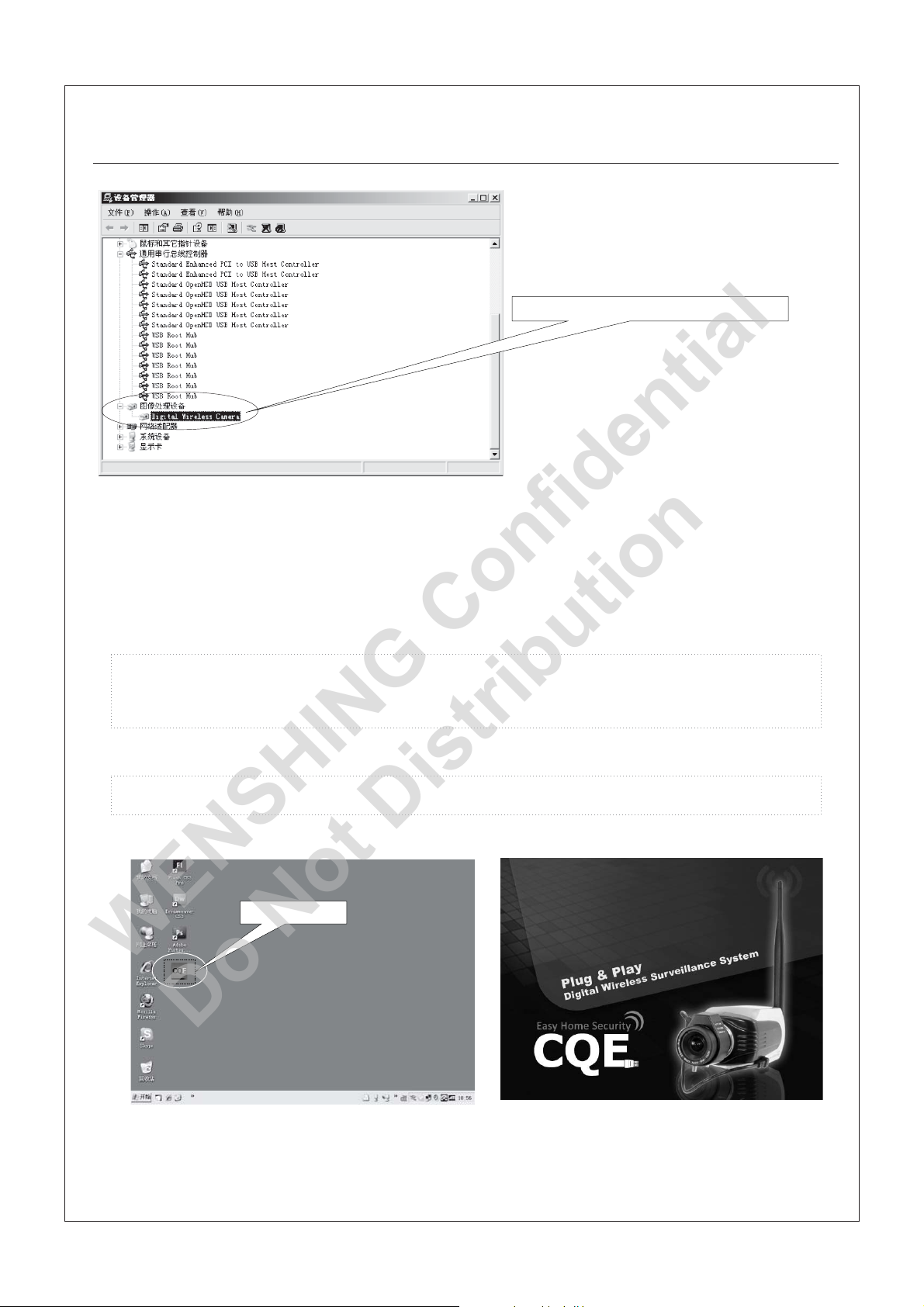

1.9 Open up the Task Manager, as long as the “Digital Wireless CCDL Camera”
as circled shows up, it means this “Wireless Digital USBH Receiver” has
successfully connected to the computer. As below fig (Fig 1.9)
Next Install
Finish
Select
USB Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
1.5 Click “Next”. As above fig (Fig 1.5)
WENSHING Confidential
Do Not Distribution

P. 9
(Fig 1.9)
(Fig 2.1) (Fig 2.2)
●Set up●Set up
2.1 Click the “CQE” shortcut to start up the software. As below fig (Fig 2.1)
2.2 Download the program. As below fig (Fig 2.2)
Digital Wireless Camera
CQE
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
WENSHING Confidential
Do Not Distribution

Stamd by
192.168.2.9
2011-01-05
16 35 21::
Snapshot
Detect
Web Server
Setup
Playback
1
2
3
4
P. 1 0
(Fig 2.3)
Minimized Adjustment Close
Image Display
Camera 1~4 switch
Snapshot
Detect
Web server
Setup
Playback
4-split screen
Full screen
Image size switch
Open Folders
Signal Intensity
Pair
Time
Date
IP
2.3 Enter into the surveillance system. As below fig (Fig 2.3)
2.4 Click to enter into System Settings. As below fig (Fig 2.4)
(Fig 2.4) (Fig 2.5)
System
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Setup
WENSHING Confidential
Do Not Distribution

P. 11
2.5 Start up Options. As above fig (Fig 2.5)
Check “Start Detecting” to start up the detecting function.
Check “Start Web Server” to start up the Web server function
When the “Detect” and “Web Server” on step 2.3 were been chosen,
“Setup” is not able to be clicked and modify its content. Setup” will be
able to be
Clicked until “Detect” and “Web Server” were not been chosen.
.
“

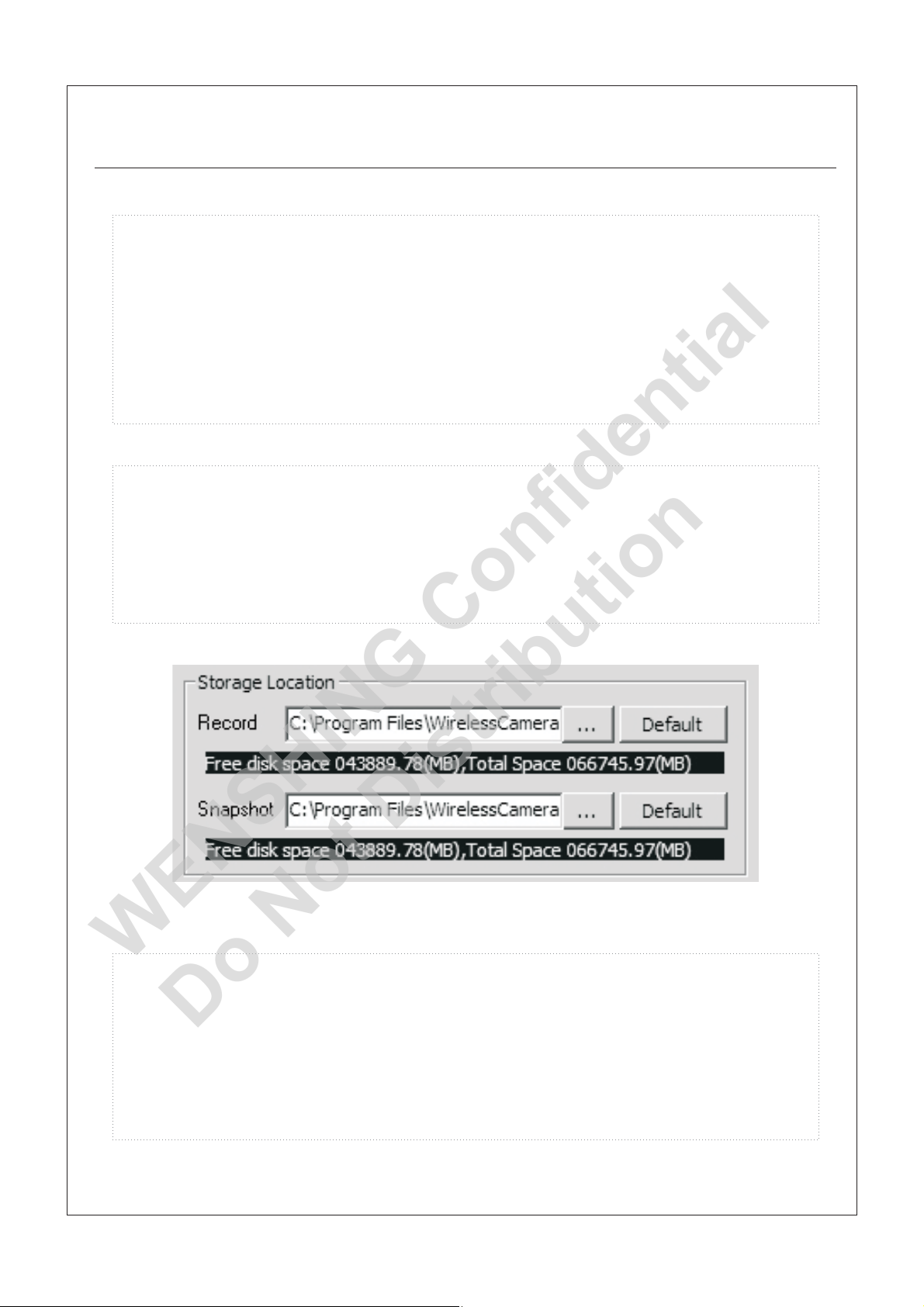

2.6 Storage Location. As below fig (Fig 2.6)
Record: choose location to store videos
Snapshot: choose location to store pictures
Click “…” to set up a new file.
Click “Default” to store files in default folder.
(Fig 2.6)
2.7 Web Server. As below fig (Fig 2.7)
IP Address: The PC searches user's IP automatically
Port: Default7788
Account: Account name was been set automatically
MMS Server: Port Default 8080
Channel: choose Enable to work the MMS Server.
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
WENSHING Confidential
Do Not Distribution

P. 1 2
(Fig 2.7) (Fig 2.8)
(Fig 2.9) (Fig 2.11)
2.8 Mail Server (Users may key in information based on reality) . As above fig
(Fig 2.8)
SMTP: set by user
E-mail: set by user
Account: set by user
Password: set by user
2.9 After the setting, click “Test”, then the Information pops out. as shown below
(Fig. 2.9).
2.10 Click “Confirm” to enter into a testing mail.
2.11 The followed information pops out after few seconds, it means the
testing mail was failed to be sent seconds. As above fig (Fig 2.11)
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless
Digital USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless
Digital USBH Receiver
Test
WENSHING Confidential
Do Not Distribution

P. 1 3
(Fig 2.12)
(Fig 2.14) (Fig 2.15)
2.12 Keep clicking “Test” until the followed information pops out to inform the
testing mail has been sent successfully. As below fig (Fig 2.12)
(Fig 2.13)
2.13 Check “Enable” in the Recurring Recording section, and set the
Recurring Ratio to“10”. As above fig (Fig 2.13)
2.14 After the setting, click “Apply” to save the memory. As below fig (Fig 2.14)
Apply
2.15 Click “Setting”, and enter into the Camera Settings part. As above fig (Fig
2.15)
Setting
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
WENSHING Confidential
Do Not Distribution

P. 1 4
(Fig 2.16)

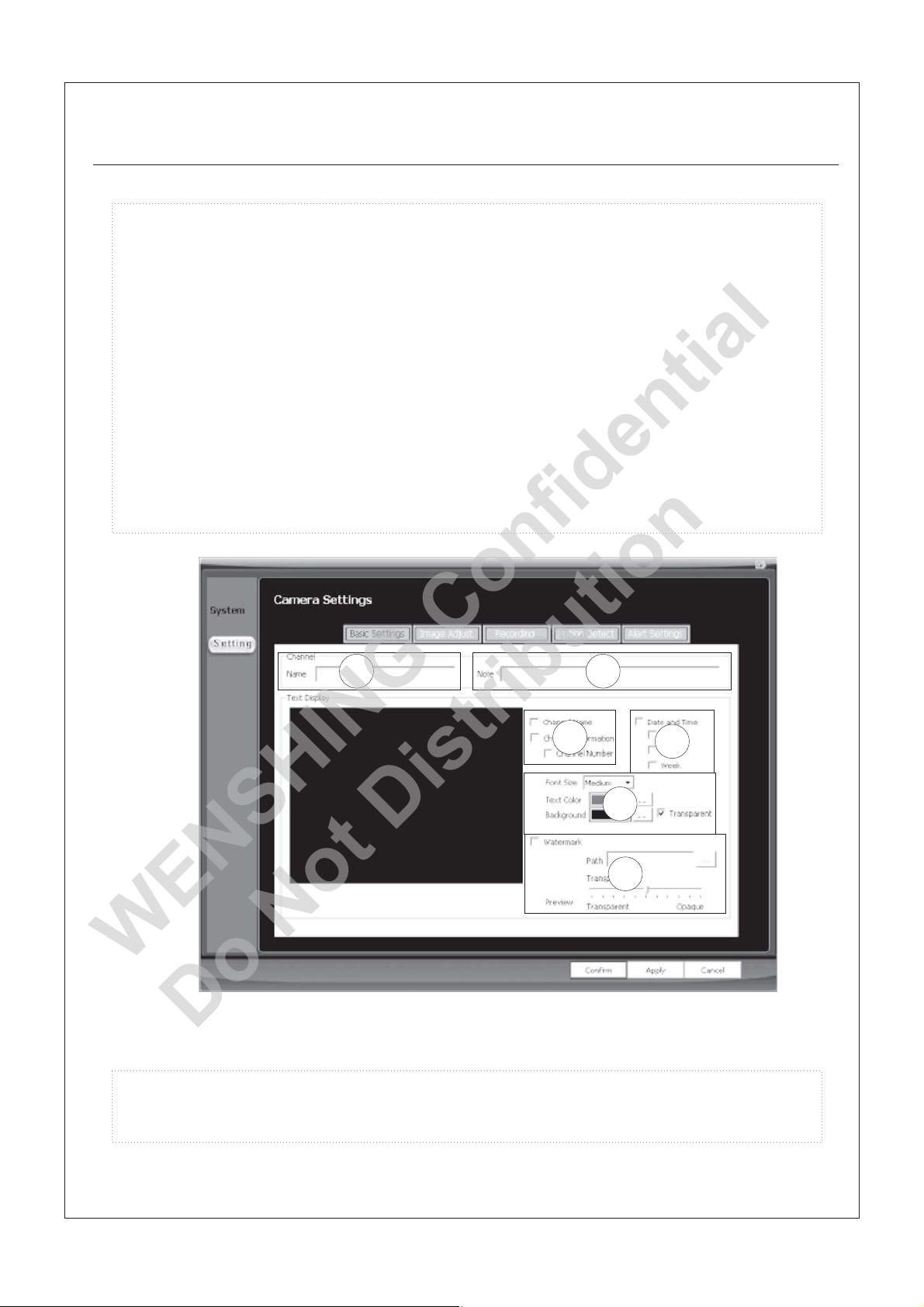

2.16 Enter the screen shown above (fig. 2.15) to reconfigure “Basic Settings”,
as shown below (fig. 2.16).
Name: set to be "myCh01"
Note:set to be “abc”
Select “Channel Name” to show“myCh01” on the screen. (users may
change the definition)
Check “Date and Time”, and select Date” / Time” / Week” as needed to
display on the screen.
Set up the size and color of fonts, and color of background.
Check “Watermark” to add the watermark. Click“…”to choose from user's
documents, and adjust the
①
②
③
④
⑤
⑥
12
34
5
6
2.17 Click “Image Adjust” to enter into the image Adjust section. As below fig
(Fig 2.17)
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
WENSHING Confidential
Do Not Distribution

P. 1 5
Image Adjust
(Fig 2.17)
2.18 Set up parameters
Brightness
Saturation
Gamma
AC Frequency
Flip horizontal
Flip Vertical
Rotate
Rotation Angle
①
②
③
④
⑤
⑥
⑦
⑧
(Fig 2.18)
2
1
3
4
5678
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless
Digital USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless
Digital USBH Receiver
WENSHING Confidential
Do Not Distribution

P. 1 6
(Fig 2.19)
2.19 Full-time/Triggered mode recording: Click “Recording” and follow the
set-up instruction below. As below fig (F ig 2.19)
Set the dimension: 640x480. There are 320x240 or 160x120 two options
in addition.
Adjust the Quality.
Select “Record (During Detection)” in the Surveillance Mode, which
means surveillance and recording function exist simultaneously.
Select Triggered. (the other option “Full-time” means recording
continuously)
①
②
③
④
Recording
1
234
Apply

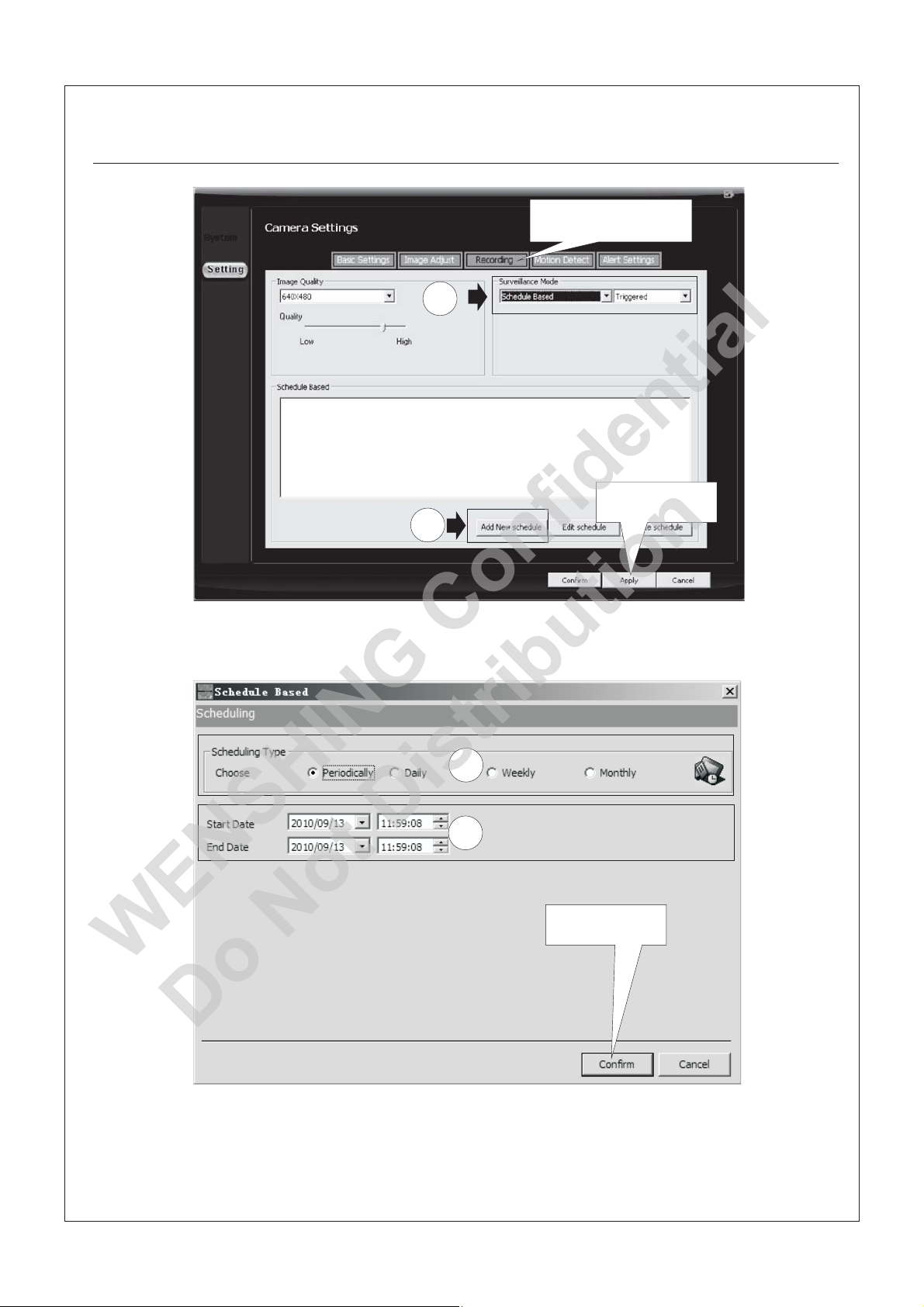

2.20 Schedule Record: Click on “Recording”, and follow hint 1 and 2 which
choose “Schedule Based” and then “Triggered” in the surveillance Mode.
After that, click “Add New schedule”. When the page on the lower side
appears, choose “Scheduling Type” in circle 3, and set up “Start Date” and
“End Date” in circle 4. Click “Apply” and “Confirm” to memorize the setting.
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
WENSHING Confidential
Do Not Distribution

P. 1 7
(Fig 2.20)
1
2
Recording
Apply
(Fig 2.20-1)
3
4
Confirm
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
Pairing/Operation Method of Wireless Digital CCDL Camera and Wireless Digital
USBH Receiver
WENSHING Confidential
Do Not Distribution
This manual suits for next models
1
Table of contents
Other Wenshing Digital Camera manuals
