WePresent WP-820 User manual

Wireless Presentation Adaptor
(Model Name:WP-820)
User’s Manual
Version: 2.0 Date: Sep. 04, 2008

2
Table of Contents
1.
Overview .....................................................................................................3
2. Quick Start .................................................................................................4
3. Client Utility ..............................................................................................8
3.1 Starting Program .................................................................................8
3.2 Login ........................................................................................................9
3.3 Buttons Description ............................................................................9
3.4 Start/Stop Presentation .................................................................11
3.5 Start / Stop Playing Video .............................................................12
3.6 Open Admin Web Page ....................................................................13
3.7 Searching Server ...............................................................................13
3.8 Repeat………………………………………………………….….…. 14
3.9 Make wePresent Token ...................................................................14
3.10 Magnifier Option………………………………………….……….. 16
3.11 System Information .....................................................................17
3.12 wePresent for PDA ........................................................................18
3.13 Exit Program ...................................................................................18
4 wePresent for MAC Client……………………………………….. 18
5. Web Management .................................................................................20
5.1 Home Page ...........................................................................................20
5.2 Download Software ..........................................................................21
5.3 Conference Control ...........................................................................22
5.4 Login Web Admin ..............................................................................24
5.5 System Status .....................................................................................24
5.6 Network Setup ...................................................................................25
5.7 Projection Setup ................................................................................27
5.8 Change Passwords ............................................................................28
5.9 Reset to Default .................................................................................28
5.10 Firmware Upgrade ........................................................................29
5.11 Reboot System ...............................................................................30
5.12 Logout ................................................................................................31

3
1.Overview
wePresent is a must-have device for your meeting room! It turns your existing
"wired" projector into a "high-end wireless" projector. With the revolutionary
Plug-and-Show, 4-to-1 split screen and PDA wireless projection features,
wePresent makes every of your presentation and meeting efficient and
successful.
Plug & Show
With the accompanied Plug & Show USB Token, wireless presentation becomes
easy! Just link your PC/Laptop to wePresent (through WLAN or Ethernet),
plug the token into a USB port, and in seconds, your screen will be wireless
projected to the connected projector!
4-to-1 Split Screen Projection
With this 4-to-1 split screen feature, up to four PC screens can be projected to
one projector in the same time. Thus you can easily do side-by-side
comparison from four PC / PDAs to increase meeting productivity!
PDA wireless Projection
You don't have to bring the laptop for business presentation anymore. Just
connect your PDA phone to wePresent through WiFi, and start your
professional and stylish presentation right away!
Conference control
wePresent supports Conference Control function for easily moderating the
conference. The conference moderator can control projection from connected
PCs through a web-based control page. So you can streamline your
meeting/presentation to be more fluent and in order.
Magnifier feature
wePresent supports Magnifier feature for codec-free video clips watching
experience. By drag and drop the video into magnifier capture region, you will

4
be able to watch the video on big screen with best experience.
Macintosh wireless Projection
wePresent supports Mac client connected and projected wirelessly. By
launching the Mac client software that stored in accompanied USB token,
wePresent provide the same experience to Mac user to utilize the wireless
presentation feature.
¾Features
■Support Windows Vista, XP, 2000 and Mobile 5/6
■Plug and Show! No installation required … just plug in the
accompanied token to a USB port, and hassle free presentation can be
started in seconds.
■4-to-1 split screen projection! Turn one projector into four, increase
meeting productivity right away.
■PDA wireless projection! PC-less stylish presentation becomes
possible!
■Conference control! Allows moderators to streamline grand meetings.
■Provide session security login, wireless WEP key and Gatekeeper
function to protect presentation contents and keep good security to
office networks.
■Provide magnifier feature to enlarge small video region to playback
with full screen.
■Provide media playback feature, support music and video streaming.
■Support Macintosh version 10.4 and above. (Projection feature)
2.Quick Start
1) Connect projector VGA cable to wePresent box VGA connector and turn on
projector power.

5
2) Turn on wePresent box.
♦When Projector shows the default menu on the screen as below, it
indicates the wePresent box is ready now.
3) Make sure your PC WLAN is enabled already, and connect your PC with
wePresent box.
4) Open your browser and it will redirect to wePresent main page automatically,
or you can enter the IP address to access the WPS web home page.
♦The default IP address of wePresent is 192.168.100.10 or refers to
the IP address shown on the left corner of projector screen.

6
5) Download the client software. Please select the” Windows Vista / XP /
2000” or ”Windows Mobile 5.0” and execute the installation program.
♦ After install the program, wePresent shortcut will come out on the PC
screen.

7
6) Make sure your personal firewall allows wePresent software to pass
through.
7) Enter the LOGIN CODE and
♦You can see the login code on the projector screen
8) Click the “Play” button to start projection!

8
3.Client Utility
3.1 Starting Program
After you download wePresent Windows program via web page successfully,
then follow below steps to start.
1) Click wePresent icon to execute the program.
2) Program start to search for wePresen box automatically,
3) If wePresent box founded then “Login Code” dialog box will be pop up on
the PC screen.
zSearching for wePresent box
zwePresent box is founded and enter login code to start.

9
3.2 Login
1) After “Login Code” dialog box shown, enter login code to start presentation.
2) You can see the login code shown on the projector screen.
3.3 Buttons Description
1) After login successfully, you will see main UI of wePresent application.

10
2) Click following buttons to manipulate wePresent Application.
Presentation Mode
Video Mode
Project desktop screen to Full screen or split screen
Full Screen projection
Project to Split #1
Project to Split #2
Project to Split #3
Project to Split #4
Pause projecting
Stop projecting
Magnifier
Server Login Code
While projecting in progress, this icon is blinking
Start Playing Video
Stop Playing Video

11
Open Video File
Audio volume
Audio volume strength bar
Video time bar
While playing video, it will be blinking
Function menu
Minimize the program
Exit the program
3.4 Start/Stop Presentation
Click to project desktop (Full screen or split screen)
Click to stop presentation.
Click to pause presentation, which will hide any activities of your PC
screen.
Click to enable the magnifier feature. System will enlarge and playback
the image within the red rectangle to full screen in higher frame rate.
Ps1.To enable this feature, you need to install Magnifier component first which
is stored in the USB token.
Ps2.You need to draw and resize the video size to fit into this rectangle.

12

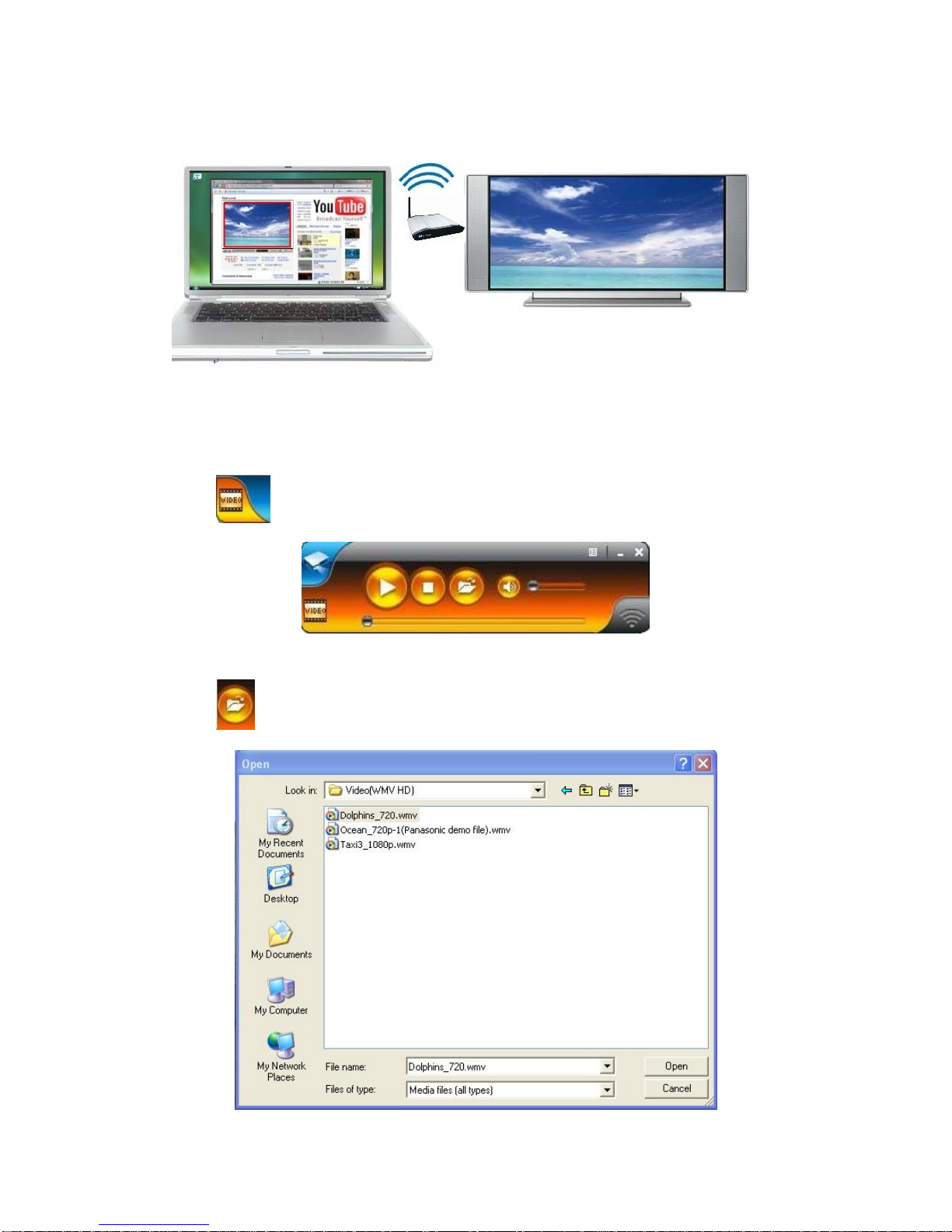

3.5 Start / Stop Playing Video/Music
Click to switch to Video Mode.
Click to open the video file and submit to play it.

13
* Supported Video Format: MPG, MPEG, DAT, VOB, WMV9, ASF, MP3, WAV.

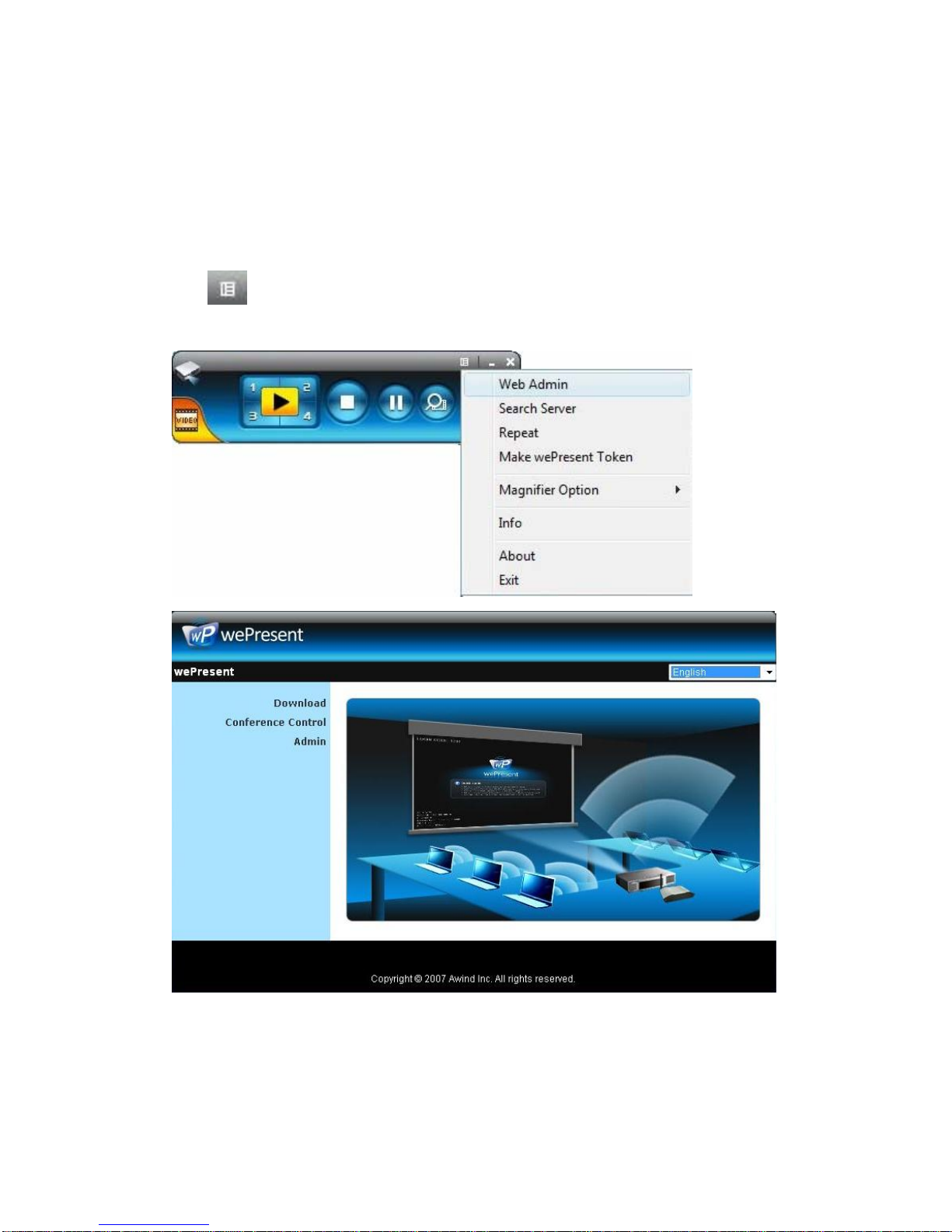

3.6 Open Admin Web Page
Click to open function menu and select “Web Admin” management web
page. The web page detailed functions will be described on next chapter.
3.7 Searching Server
Click “Search Server” to search for wePresent box.

14
3.8 Repeat

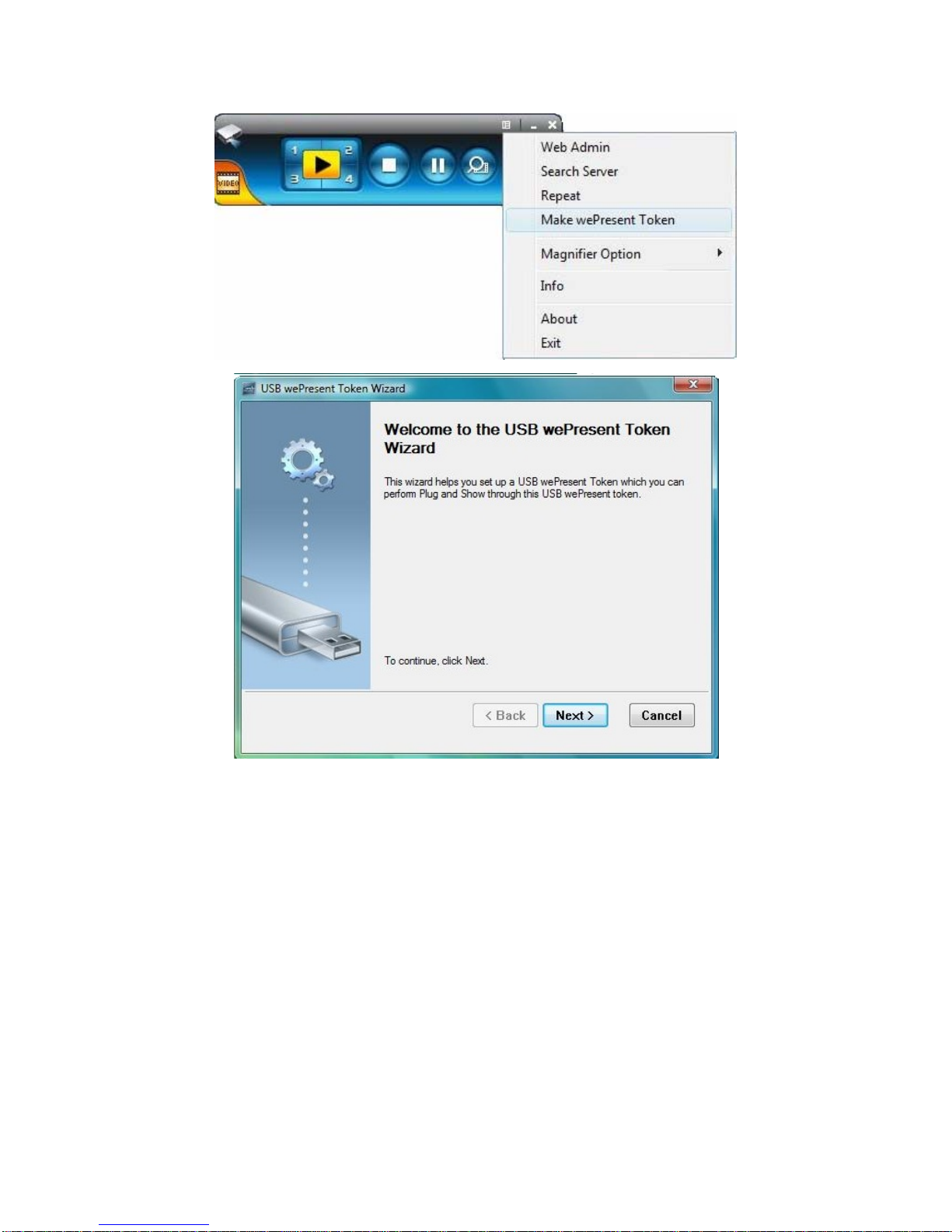

3.9 Make wePresent Token
Click “Make wePresent Token” to make a USB wePresent Token, please follow
the steps with the wizard:

15

16
3.10Magnifier Option
Click “Magnifier option” to change the aspect ratio of captured video region
with magnifier feature.

17
3.11System Information
Click “Info” to show system information. It includes product model name, IP
address and other information.

18
3.12wePresent for PDA
To project your PDA screen with wePresent, please follow the steps:
1) Enable your WiFi and connect to wePresent
2) Open the browser and enter Server IP address to download wePresent
client software for PDA version.
3) Install wePresent client software.
4) Launch wePresent software and enter the login code.
5) Start Projection.
3.13Exit Program
Click to exit this program.

19
4.wePresent for Mac Client
To project your Mac screen with wePresnet, please follow the steps:
1) Enable your WiFi and connect to wePresne device.
2) Execute wePresent client software for Mac.
3) Launch wePresent software and enter the login code.

20
4) Start Projection.
5.Web Management
5.1 Home Page
1. Make sure your PC connect to wePresent box successfully.
2. Open your browser, it will enter wePresent home page automatically.
3. If not, enter your IP address on the browser, you can see the IP on the
projector screen.
4. The default IP is 192.168.100.10
