Westinghouse PHN644DU User manual

user manual
Induction Hob
PHN644DU
PHN744DU
PHN944DU

Electrolux. Thinking of you.
Westinghouse. We are part of the Electrolux family.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Installation instructions 4
Product description 6
Operating instructions 8
Helpful hints and tips 10
Care and cleaning 11
What to do if… 12
Environment concerns 13
Warranty 13
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appli-
ance, carefully read the supplied instruc-
tions. The manufacturer is not responsible if
an incorrect installation and use causes in-
juries and damages. Always keep the in-
structions with the appliance for future ref-
erence.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
Warning! Risk of suffocation, injury or
permanent disability.
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a per-
son who is responsible for their safety.
• Do not let children play with the appli-
ance.
• Keep all packaging away from children.
• Keep children and pets away from the
appliance when it operates or when it
cools down. Accessible parts are hot.
• If the appliance has a child safety device,
we recommend that you activate it.
INSTALLATION
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction supplied
with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to a
door or under a window. This prevents
hot cookware to fall from the appliance
when the door or the window is opened.
• If the appliance is installed above drawers
make sure that the space, between the
bottom of the appliance and the upper
drawer, is sufficient for air circulation.
• Make sure that the ventilation space of 5
mm, between the worktop and the front
of the below unit, is free. The warranty
does not cover damages caused by the
lack of an adequate ventilation space.
• The bottom of the appliance can get hot.
We recommend to install a non-combus-
tile separation panel under the appliance
to prevent access to the bottom.
Electrical connection
Warning! Risk of fire and electrical
shock.
• All electrical connections must be made
by a qualified electrician.
• Before wiring make sure the mains termi-
nal is not live.
2 westinghouse

• Make sure the appliance is installed cor-
rectly. Loose and incorrect plug and
socket connections can make the termi-
nal become too hot.
• The appliance must be installed correctly
to ensure anti-shock protection.
• Cables from other electrical appliances
must not touch the hot surface of the ap-
pliance.
• Do not let the electricity bonds tangle.
• Use a strain relief clamp on cable.
• Use the correct mains cable.
• Make sure there is no damage to the
mains plug and to the mains cable. Con-
tact the Service or an electrician to
change a damaged mains cable.
• The electrical installation must have an
isolation device which lets you discon-
nect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
USE
Warning! Risk of injury, burns or
electric shock.
• Use this appliance in a household envi-
ronment.
• Do not change the specification of this
appliance.
• Do not use an external timer or a sepa-
rate remote-control system to operate
the appliance.
• Do not let the appliance stay unattended
during operation.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Set the cooking zone to “off” after each
use. Do not rely on the pan detector.
• Do not use the appliance as a work sur-
face or as a storage surface.
• If there is a crack on the surface, discon-
nect power supply to prevent the electri-
cal shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the in-
duction cooking zones when the appli-
ance is in operation.
Warning! Risk of fire or explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or heat-
ed objects away from fats and oils when
you cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature
than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not try to extinguish a fire with water.
Disconnect the appliance and cover the
flame with a lid or a fire blanket.
Warning! Risk of damage to the
appliance.
• Do not keep hot cookware on the control
panel.
• Do not let cookware to boil dry.
• Be careful not let objects or cookware fall
on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appli-
ance.
• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass ceramic. Always
lift these objects up when you have to
move them on the cooking surface.
CARE AND CLEANING
Warning! Risk of damage to the
appliance.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
westinghouse 3

INSTALLATION INSTRUCTIONS
Warning! Refer to "Safety information"
chapter.
Before the installation, note down
the serial number (Ser. Nr.) from the
rating plate. The rating plate of the
appliance is on its lower casing.
PNC: 949163124
Made in China Model: PHN644DU
APP NO.: 55GADD5AU
AU APP NO.: S/91
S NO.: 50Hz 7.4 KW
220 - 240 V AC
~ 220 - 240 V
PNC: 949163193
Made in China Model: PHN944DU
APP NO.: 55GCDD5AU
AU APP NO.: S/91
S NO.: 50Hz 7.4 KW
220 - 240 V AC
~ 220 - 240 V
PNC: 949163199
Made in China Model: PHN744DU
APP NO.: 55GADD5AU
AU APP NO.: S/91
S NO.: 50Hz 7.4 KW
220 - 240 V AC
~ 220 - 240 V
BUILT-IN APPLIANCES
• Only use the built-in appliances after you
assemble the appliance into correct built-
in units and work surfaces that align to
the standards.
CONNECTION CABLE
• Use the correct mains cable of type
H05BB-F Tmax 90°C (or higher) for a sin-
gle phase or two phase connection.
• Replace the damaged mains cable with a
special cable (type H05BB-F Tmax 90°C
or higher). Speak to your local Service
Centre.

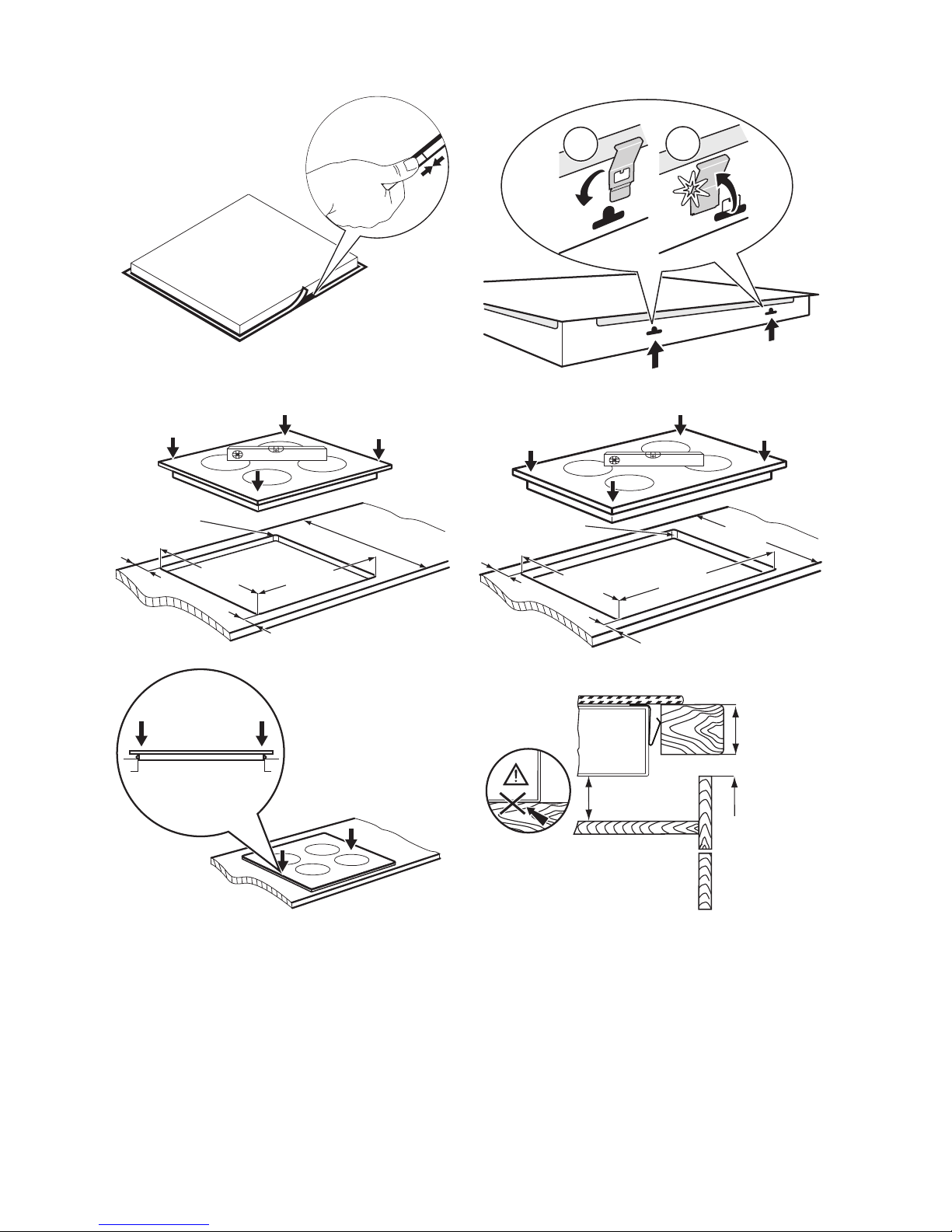

TO ATTACH THE SEAL.
• Clean the worktop in the area of the cut
out section.
• Bond the seal stripe supplied on the low-
er edge of the appliance along the outer
edge of the glass ceramic. Do not extend
it. Let stay the cut ends in the middle of
one side. When, you cut it to length (add
some mm), push the two ends together.
ASSEMBLY
min.
50mm
min.
50mm
min.
500mm
min.
5mm
4 westinghouse

12
PHN644DU/PHN744DU
==
490+1mm 560+1mm
600mm
R 5mm
PHN944DU
600mm
490+1mm 880+1mm
==
R 5mm
min.
25 mm
min.
5 mm
min.
20 mm
westinghouse 5

min.
38 mm
min.
5 mm
If you use a protection box (the addi-
tional accessory
1)
), the front airflow
space of 5 mm and protective floor di-
rectly below the appliance are not nec-
essary.
You can not use the protection box if
you install the appliance above an
oven.
PRODUCT DESCRIPTION
GENERAL OVERVIEW
PHN644DU
210 mm
180 mm
145 mm
145 mm
1 2 3
45
1Induction cooking zone 1400 W, with
Power function 1800 W (minimum
cookware diameter =125 mm).
2Induction cooking zone 1800 W, with
Power function 2800 W (minimum
cookware diameter =145 mm).
3Induction cooking zone 1400 W, with
Power function 1800 W (minimum
cookware diameter =125 mm).
4Control panel
5Induction cooking zone 2300 W, with
Power function 3100 W (minimum
cookware diameter =180 mm).
1) The protection box accessory may not be available in some countries. Please contact your local supplier.
6 westinghouse

PHN744DU
210 mm
180 mm
145 mm
145 mm
1 2 3
45
1Induction cooking zone 1400 W, with
Power function 1800 W (minimum
cookware diameter =125 mm).
2Induction cooking zone 1800 W, with
Power function 2800 W (minimum
cookware diameter =145 mm).
3Induction cooking zone 1400 W, with
Power function 1800 W (minimum
cookware diameter =125 mm).
4Control panel
5Induction cooking zone 2300 W, with
Power function 3200 W (minimum
cookware diameter =180 mm).
PHN944DU
1 2
35 4
145 mm
145 mm
180 mm
210 mm
1Induction cooking zone 1400 W, with
Power function 1800 W (minimum
cookware diameter =125 mm).
2Induction cooking zone 1800 W, with
Power function 2800 W (minimum
cookware diameter =145 mm).
3Induction cooking zone 1400 W, with
Power function 1800 W (minimum
cookware diameter =125 mm).
4Control panel
5Induction cooking zone 2300 W, with
Power function 3100 W (minimum
cookware diameter =180 mm).
CONTROL PANEL LAYOUT
21
89 7
3 4 5 6
Use the sensor fields to operate the appliance. The displays, indicators and
sounds tell which functions operate.
sensor field function
1
It activates and deactivates the appliance
westinghouse 7

sensor field function
2
It activates the Power function
3
A heat setting display It shows the heat setting
4
Cooking zones' indicators of timer It shows for which zone you set the time
5
The timer display It shows the time in minutes
6
/ It increases or decreases the heat setting
7
/ It increases or decreases the time
8
It selects the cooking zone
9
It locks/unlocks the control panel
HEAT SETTING DISPLAYS
Display Description
The cooking zone is deactivated.
The Keep Warm function operates.
- The cooking zone operates.
The Automatic Heat-up function operates.
The cookware is incorrect or too small, or there is no cookware on the
cooking zone.
There is a malfunction.
A cooking zone is still hot (residual heat).
The Lock/Child Safety device operates.
The Power function operates.
The Automatic Switch-Off operates.
RESIDUAL HEAT INDICATOR
Warning! The risk of burns from
residual heat!
The induction cooking zones make the heat
necessary for cooking directly in the bottom
of the cookware. The glass ceramic is hot
from the heat of the cookware.
OPERATING INSTRUCTIONS
ACTIVATION AND DEACTIVATION
Touch for 1 second to activate or deac-
tivate the appliance.
AUTOMATIC SWITCH OFF
The function deactivates the appliance
automatically if:
•All cooking zones are deactivated ( ).
• You do not set the heat setting after you
activate the appliance.
• You spill something or put something on
the control panel for more than 10 sec-
onds, (a pan, a cloth, etc.). The sound
operates some time and the appliance
deactivates. Remove the object or clean
the control panel.
• The appliance become too hot (e.g.
when, a saucepan boils dry). Before you
use the appliance again, the cooking
zone must be cool.
• You use not correct cookware. The sym-
bol comes on and the cooking zone
deactivates automatically after 2 minutes.
• You do not deactivate a cooking zone or
change the heat setting. After some time,
comes on and the appliance deacti-
vates. See the table.
8 westinghouse

The times of Automatic Switch Off
The heat setting - - -
The cooking
zone deacti-
vates after
6 hours 5 hours 4 hours 1.5 hours
THE HEAT SETTING
Touch to increase the heat setting.
Touch to decrease the heat setting. The
display shows the heat setting. Touch
and at the same time to deactivate the
cooking zone.
AUTOMATIC HEAT UP
You can get a necessary heat setting in a
shorter time if you activate the Automatic
Heat Up function. This function sets the
highest heat setting for some time (see the
illustration), and then decreases to the nec-
essary heat setting.
To start the Automatic Heat Up function for
a cooking zone:
1. Touch . The symbol comes on
in the display.
2. Immediately touch . The symbol
comes on in the display.
3. Immediately touch again and again
until the necessary heat setting comes
on. After 3 seconds comes on in the
display.
To stop the function touch .
1
2
3
4
5
6
7
8
9
10
11
0
123456789
POWER FUNCTION
The Power function makes more power
available to the induction cooking zones.
The Power function is activated for 10 mi-
nutes at most. After, that the induction
cooking zone automatically sets back to
highest heat setting. To activate, touch
, comes on. To deactivate, touch or
.
POWER MANAGEMENT
The power management divides the power
between two cooking zones in a pair (see
the illustration). The power function increa-
ses the power to the maximum level for one
cooking zone in the pair. Automatically de-
creases the power in the second cooking
zone to a lower level. The display for the re-
duced zone change between two levels.
TIMER
Use the Count Down Timer to set how long
the cooking zone operates for only this one
time.
Set the Timer after the selection of the
cooking zone.
You can set the heat setting before or after
you set the timer.
•To set the cooking zone:touch
again and again until the indicator of a
necessary cooking zone comes on.
•To activate or change the Timer:
touch or of the timer to set the
westinghouse 9

time (
00
-
99
minutes). When the indi-
cator of the cooking zone starts to flash
slow, the time counts down.
•To deactivate the Timer: set the cook-
ing zone with and touch to deacti-
vate the Timer. The remaining time
counts back to
00
. The indicator of the
cooking zone goes out.
•To see the remaining time: set the
cooking zone with . The indicator of
the cooking zone starts to flash quickly.
The display shows the remaining time.
When the time comes to an end, the sound
operates and
00
flashes. The cooking zone
deactivates.
•To stop the sound: touch
You can use the Timer as a minute mind-
er while the cooking zones do not operate.
Touch . Touch or to set the time.
When the time comes to an end, the sound
operates and
00
flashes
•To stop the sound: touch
LOCK
When the cooking zones operate, you can
lock the control panel, but not . It pre-
vents an accidental change of the heat set-
ting.
First set the heat setting.
To start this function touch . The symbol
comes on for 4 seconds.
The Timer stays on.
To stop this function touch . The heat
setting that you set before comes on.
When you stop the appliance, you also stop
this function.
THE CHILD SAFETY DEVICE
This function prevents an accidental opera-
tion of the appliance.
To activate the child safety device
•Activate the appliance with . Do not
set the heat settings.
•Touch for 4 seconds. The symbol
comes on.
•Deactivate the appliance with .
To deactivate the child safety device
•Activate the appliance with . Do not
set the heat settings. Touch for 4
seconds. The symbol comes on.
•Deactivate the appliance with .
To override the child safety device for
only one cooking time
•Activate the appliance with . The sym-
bol comes on.
•Touch for 4 seconds. Set the heat
setting in 10 seconds. You can operate
the appliance.
• When you deactivate the appliance with
, the child safety device operates
again.
HELPFUL HINTS AND TIPS
Use the induction cooking zones with
correct cookware.
COOKWARE FOR INDUCTION
COOKING ZONES
Important! For induction cooking zones a
strong electro-magnetic field creates the
heat in the cookware very quickly.
Cookware material
•correct: cast iron, steel, enamelled steel,
stainless steel, the bottom made of multi-
layer (with correct mark from a manufac-
turer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is correct for an induction
hob if …
• ... some water boils very quickly on a
zone set to the highest heat setting.
• ... a magnet pulls on to the bottom of the
cookware.
The bottom of the cookware must
be as thick and flat as possible.
Cookware dimensions: induction
cooking zones adapt to the dimension
of the bottom of the cookware auto-
matically to some limit.
THE NOISES DURING OPERATION
If you can hear
• crack noise: cookware is made of differ-
ent materials (Sandwich construction).
10 westinghouse

• whistle sound: you use one or more
cooking zones with high power levels and
the cookware is made of different materi-
als (Sandwich construction).
• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not refer
to appliance malfunction.
ENERGY SAVING
• If it is possible, always put the lids on
the cookware.
•Putcookwareona cooking zone be-
fore you start it.
THE EXAMPLES OF COOKING
APPLICATIONS
The data in the table is for guidance only.
Heat
set-
ting
Use to: Time Hints
1 Keep warm the food you cooked as re-
quired
Put a lid on a cookware
1-2 Hollandaise sauce, melt: butter, choco-
late, gelatine
5-25
min
Mix from time to time
1-2 Solidify: fluffy omelettes, baked eggs 10-40
min
Cook with a lid on
2-3 Simmer rice and milkbased dishes,
heating up ready-cooked meals
25-50
min
Add the minimum twice as much
liquid as rice, mix milk dishes part
procedure through
3-4 Steam vegetables, fish, meat 20-45
min
Add some tablespoons of liquid
4-5 Steam potatoes 20-60
min
Use max. ¼ l water for 750 g of po-
tatoes
4-5 Cook larger quantities of food, stews
and soups
60-150
min
Up to 3 l liquid plus ingredients
6-7 Gentle fry: escalope, veal cordon bleu,
cutlets, rissoles, sausages, liver, roux,
eggs, pancakes, doughnuts
as nec-
essary
Turn halfway through
7-8 Heavy fry, hash browns, loin steaks,
steaks
5-15
min
Turn halfway through
9Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep-fry chips
The Power function is best to heat up large
quantities of water.
Information on acrylamides
Important! According to the newest
scientific knowledge, if you brown food
(specially the one which contains starch),
acrylamides can pose a health risk. Thus,
we recommend that you cook at the lowest
temperatures and do not brown food too
much.
CARE AND CLEANING
Clean the appliance after each use.
Always use cookware with clean bottom.
Scratches or dark stains on the glass-
ceramic cause no effect on how the
appliance operates.
westinghouse 11

To remove the dirt:
1. – Remove immediately: melted plas-
tic, plastic foil, and food with sugar. If
not, the dirt can cause damage to
the appliance. Use a special scraper
for the glass . Put the scraper on the
glass surface at an acute angle and
move the blade on the surface .
–Remove after the appliance is
sufficiently cool: limescale rings ,
water rings, fat stains, shiny metallic
discolorations. Use a special cleaning
agent for glass ceramic or stainless
steel.
2. Clean the appliance with a moist cloth
and some detergent.
3. At the end rub the appliance dry
with a clean cloth.
WHAT TO DO IF…
Problem Possible cause and remedy
You cannot activate the appli-
ance or operate it.
• Activate the appliance again and set the heat setting in 10 sec-
onds.
• You touched 2 or more sensor fields at the same time. Only
touch one sensor field.
• The Child Safety Device or the Lock or Stop+Go operates. See
the chapter Operating instruction.
• There is water or fat stains on the control panel. Clean the con-
trol panel.
A Sound operates and the ap-
pliance deactivates.
A sound operates when the ap-
pliance is deactivated.
You put something on one or more sensor fields. Remove the ob-
ject from the sensor fields.
The appliance deactivates. You put something on the . remove object from the sensor
field.
The residual heat indicator
does not comes on.
The cooking zone is not hot because it operated only for a short
time. If the cooking zone should be hot, speak to the service cen-
tre.
The Automatic Heat Up func-
tion does not operate.
• There is still residual heat on the cooking zone. Let the cooking
zone become sufficiently cool.
• The highest heat setting is set. The highest heat setting has the
same power as the Automatic Heat Up function.
The heat setting changes be-
tween two levels.
The Power management is activated. See the section Power
management.
The sensor fields become hot. The cookware is too large or you out it too near to the controls.
Put large cookware on the rear cooking zones if it is necessary.
comes on The Automatic Switch Off operates. Deactivate the appliance and
activate it again.
comes on • No cookware on the cooking zone. Put cookware on the cook-
ing zone.
• Not correct cookware. Use the correct cookware.
• The diameter of the bottom of the cookware is too small for the
cooking zone. Move cookware to a smaller cooking zone.
and number comes on. There is an error in the appliance.
Disconnect the appliance from the electrical supply for some
time. Disconnect the fuse from the electrical system of the house.
Connect again. If comes on again, speak to the service cen-
tre.
12 westinghouse

Problem Possible cause and remedy
comes on There is an error in the appliance, because a cookware boils dry.
The protection against become too hot for the cooking zone op-
erates. The Automatic Switch Off operates.
Deactivate the appliance. Remove the hot cookware. After, ap-
proximately 30 seconds activate the cooking zone again.
should go out of the display, residual heat indicator can stay. Let
the cookware become sufficiently cool and check it with the sec-
tion Cookware for the induction cooking zone.
If you tried the above solutions and cannot
repair the problem, speak to your dealer or
the customer service. Give the data from
the rating plate, three digit letter code for
the glass ceramic (it is in the corner of the
glass surface) and an error message that
comes on.
Make sure, you operated the appliance cor-
rectly. If not the servicing by a customer
service technician or dealer will not be free
of charge, also during the warranty period.
The instructions about the customer service
and conditions of guarantee are in the guar-
antee booklet.
ENVIRONMENT CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
PACKAGING MATERIAL
The packaging materials are friendly to
the environment and can be recycled.
The plastic components are identified
by marking: >PE<,>PS<, etc. Discard
the packaging materials as household
waste at the waste disposal facilities in
your municipality.
WARRANTY
FOR SALES IN AUSTRALIA AND NEW
ZEALAND
APPLIANCE: BUILT-IN OVEN, COOKTOP
AND FREESTANDING COOKER
This document sets out the terms and
conditions of the product warranties
for Electrolux Appliances. It is an im-
portant document. Please keep it with
your proof of purchase documents in a
safe place for future reference should
you require service for your Appliance.
1. In this warranty
a) ‘acceptable quality’ as referred to in
clause 10 of this warranty has the
same meaning referred to in the
ACL;
b) ‘ACL’ means Trade Practices
Amendment (Australian Consumer
Law) Act (No.2) 2010;
c) ‘Appliance’ means any Electrolux
product purchased by you accom-
panied by this document;
d) ‘ASC’ means Electrolux’ authorised
serviced centres;
e) ‘Electrolux’ means Electrolux Home
Products Pty Ltd of 163 O’Riordan
Street, Mascot, NSW 2020, ABN 51
004 762 341 in respect of Applian-
ces purchased in Australia and
Electrolux (NZ) Limited of 3-5 Niall
Burgess Road, Mount Wellington, in
westinghouse 13

respect of Appliances purchased in
New Zealand;
f) ‘major failure’ as referred to in
clause 10 of this warranty has the
same meaning referred to in the
ACL and includes a situation when
an Appliance cannot be repaired or
it is uneconomic for Electrolux, at its
discretion, to repair an Appliance
during the Warranty Period;
g) ‘Warranty Period’ means:
– where the Appliance is used for
personal, domestic or household
use (i.e. normal single family use)
as set out in the instruction man-
ual, the Appliance is warranted
against manufacturing defects in
Australia for 24 months and in
New Zealand for 24 months, fol-
lowing the date of original pur-
chase of the Appliance;
– where the Appliance is used for
commercial purposes (including
being used to directly assist a
business or where the Appliance
is used in a multi-family commu-
nal or share type environment),
the Appliance will then be warran-
ted against manufacturing de-
fects in Australia for 3 months
and in New Zealand for 3
months, following the date of
original purchase of the Appli-
ance.
h) ‘you’ means the purchaser of the
Appliance not having purchased the
Appliance for re-sale, and ‘your’ has
a corresponding meaning.
2. This warranty only applies to Applian-
ces purchased and used in Australia or
New Zealand and is in addition to (and
does not exclude, restrict, or modify in
any way) any non-excludable statutory
warranties in Australia or New Zealand.
3. During the Warranty Period Electrolux
or its ASC will, at no extra charge if
your Appliance is readily accessible for
service, without special equipment and
subject to these terms and conditions,
repair or replace any parts which it con-
siders to be defective. Electrolux or its
ASC may use remanufactured parts to
repair your Appliance. You agree that
any replaced Appliances or parts be-
come the property of Electrolux. This
warranty does not apply to light globes,
batteries, filters or similar perishable
parts.
4. Parts and Appliances not supplied by
Electrolux are not covered by this war-
ranty.
5. You will bear the cost of transportation,
travel and delivery of the Appliance to
and from Electrolux or its ASC. If you
reside outside of the service area, you
will bear the cost of:
a) travel of an authorised representa-
tive;
b) transportation and delivery of the
Appliance to and from Electrolux or
its ASC,
In all instances, unless the Appliance is
transported by Electrolux or an Electro-
lux authorised representative, the Appli-
ance is transported at the owner’s cost
and risk while in transit to and from
Electrolux or its ASC.
6. Proof of purchase is required before
you can make a claim under this war-
ranty.
7. You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or work-
manship. Electrolux is not liable in the
following situations (which are not ex-
haustive):
a) the Appliance is damaged by:
– accident
– misuse or abuse, including failure
to properly maintain or service
– normal wear and tear
– power surges, electrical storm
damage or incorrect power sup-
ply
– incomplete or improper installa-
tion
– incorrect, improper or inappropri-
ate operation
– insect or vermin infestation
– failure to comply with any addi-
tional instructions supplied with
the Appliance;
b) the Appliance is modified without
authority from Electrolux in writing;
c) the Appliance’s serial number or
warranty seal has been removed or
defaced;
14 westinghouse

d) the Appliance was serviced or re-
paired by anyone other than Elec-
trolux, an authorised repairer or
ASC.
8. This warranty, the contract to which it
relates and the relationship between
you and Electrolux are governed by the
law applicable where the Appliance
was purchased. Where the Appliance
was purchased in New Zealand for
business purposes the Consumer
Guarantee Act does not apply.
9. To the extent permitted by law, Electro-
lux excludes all warranties and liabilities
(other than as contained in this docu-
ment) including liability for any loss or
damage whether direct or indirect aris-
ing from your purchase, use or non use
of the Appliance.
10. For Appliances and services provided
by Electrolux in Australia, the Applian-
ces come with a guarantee by Electro-
lux that cannot be excluded under the
Australian Consumer Law. You are en-
titled to a replacement or refund for a
major failure and for compensation for
any other reasonably foreseeable loss
or damage. You are also entitled to
have the Appliance repaired or re-
placed if the Appliance fails to be of ac-
ceptable quality and the failure does
not amount to a major failure. The ben-
efits to you given by this warranty are in
addition to your other rights and rem-
edies under a law in relation to the Ap-
pliances or services to which the war-
ranty relates.
11. At all times during the Warranty Period,
Electrolux shall, at its discretion, deter-
mine whether repair, replacement or re-
fund will apply if an Appliance has a val-
id warranty claim applicable to it.
12. For Appliances and services provided
by Electrolux in New Zealand, the Ap-
pliances come with a guarantee by
Electrolux pursuant to the provisions of
the Consumer Guarantees Act, the
Sale of Goods Act and the Fair Trading
Act.
13. To enquire about claiming under this
warranty, please follow these steps:
a) carefully check the operating in-
structions, user manual and the
terms of this warranty;
b) have the model and serial number
of the Appliance available;
c) have the proof of purchase (eg an
invoice) available;
d) telephone the numbers shown be-
low.
14. You accept that if you make a warranty
claim, Electrolux and its ASC may ex-
change information in relation to you to
enable Electrolux to meet its obligations
under this warranty.
Important Notice
Before calling for service, please ensure that the steps listed in point 13 above have been
followed.
FOR SERVICE
or to find the address of your
nearest state service centre in
Australia
Please call 13 13 4 9
For the cost of a local call (Australia on-
ly)
SERVICE AUSTRALIA
ELECTROLUX HOME
PRODUCTS
www.electrolux.com.au
FOR SPARE PARTS
or to find the address of your
nearest state spare parts cen-
tre in Australia
Please call 13 13 50
For the cost of a local call (Australia on-
ly)
FOR SERVICE
or to find the address of your
nearest authorised service cen-
tre in New Zealand
Free call 0800 10 66 10
(New Zealand only)
SERVICE NEW ZEALAND
ELECTROLUX HOME
PRODUCTS
www.electrolux.co.nz
FOR SPARE PARTS
or to find the address of your
nearest state spare parts cen-
tre in New Zealand
Free call 0800 10 66 20
(New Zealand only)
westinghouse 15

www.westinghouse.com.au
892930505-G-512011
