Westinghouse WGen5300DFv User manual

USER MANUAL
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call customer
service at 855-944-3571.

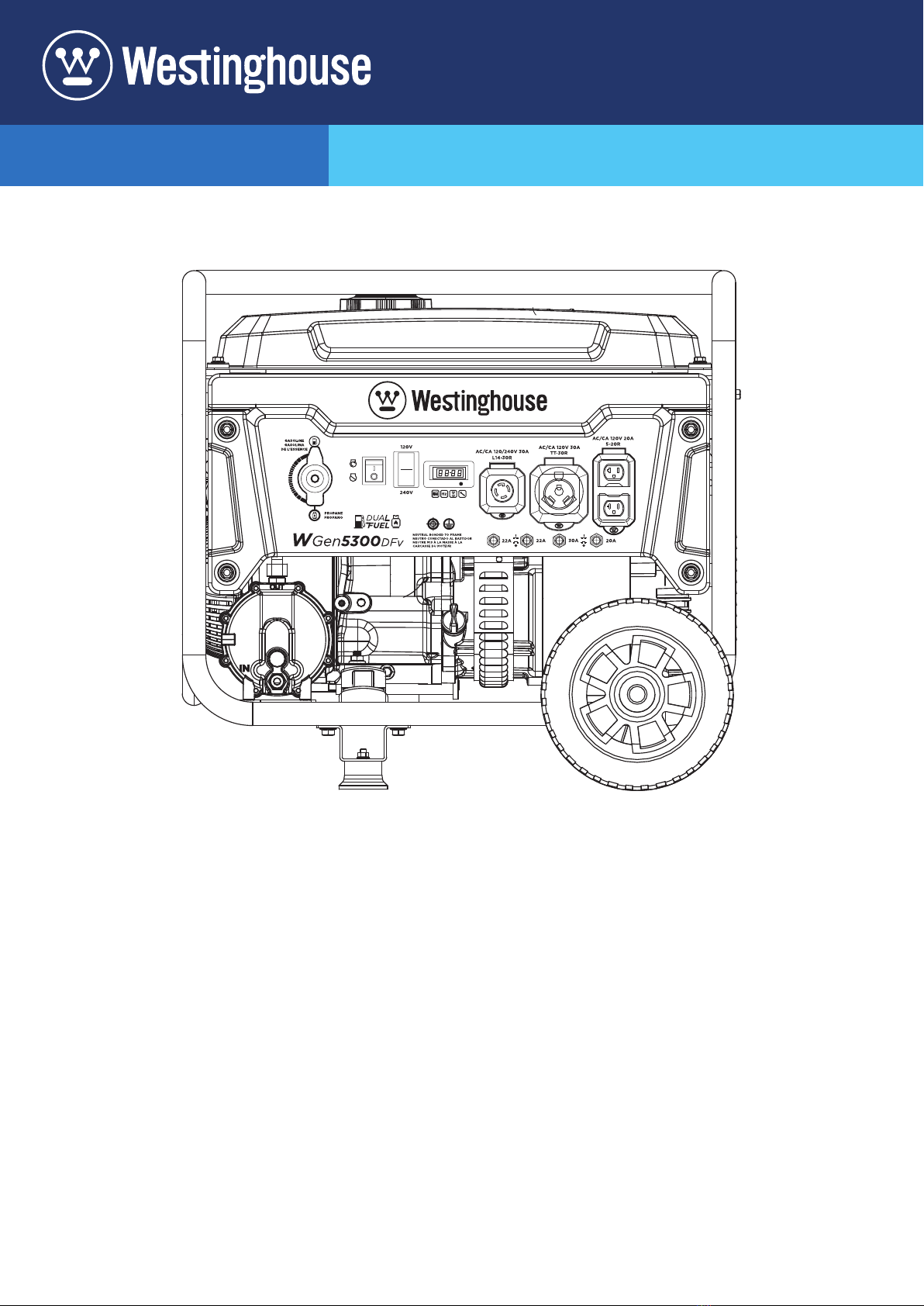

WGen5300DFv
Dual Fuel Portable Generator
Gasoline: 5300 Running Watts | 6600 Peak Watts
Propane: 4800 Running Watts | 5800 Peak Watts

2 | Westinghouse Outdoor Power Equipment, LLC
WARNING: Operating, servicing, and maintaining
this equipment can expose you to chemicals including
engine exhaust, carbon monoxide, phthalates, and lead,
which are known to the State of California to cause
cancer and birth defects or other reproductive harm. To
minimize exposure, avoid breathing exhaust, and wear
gloves or wash your hands frequently when servicing
this equipment. For more information go to www.
P65warnings.ca.gov.
DISCLAIMERS
All information, illustrations, and specications in
this manual were in effect at the time of publishing.
The illustrations used in this manual are intended as
representative reference views only. We reserve the right
to make any specication or design change without notice.
ALL RIGHTS RESERVED
All rights reserved. No reproduction allowed in any form
without written permission from Westinghouse Outdoor
Power Equipment, LLC.
DANGER
Read this manual before using or performing
maintenance on this product. Failure to follow
the instructions and safety precautions in this
manual can result in serious injury or death.
SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
DISCLAIMERS.........................................................................2
ALL RIGHTS RESERVED........................................................2
SPECIFICATIONS....................................................................3
SAFETY
SAFETY DEFINITIONS............................................................4
SAFETY SYMBOLS.................................................................4
SAFETY INSTRUCTIONS .......................................................5
SAFETY LABELS ....................................................................8
COMPONENTS
CONTROL PANEL COMPONENTS.........................................9
GENERATOR COMPONENTS..............................................10
ASSEMBLY
CARTON CONTENTS ........................................................... 11
INSTALL FEET AND WHEELS ..............................................11
INITIAL OIL FILL ....................................................................12
FUEL ......................................................................................12
CONNECT A LPG/PROPANE TANK......................................14
OPERATION
GENERATOR LOCATION......................................................15
GROUNDING.........................................................................15
FUEL SELECTOR SWITCH ..................................................16
BREAK-IN PERIOD ...............................................................16
BEFORE STARTING THE GENERATOR..............................17
STARTING THE ENGINE: GASOLINE..................................17
STARTING THE ENGINE: PROPANE ...................................17
SWITCHING FUEL SOURCES..............................................17
STOPPING THE ENGINE......................................................18
FREQUENCY OF USE ..........................................................18
AC CIRCUIT BREAKERS ......................................................18
GENERATOR CAPACITY ......................................................18
POWER MANAGEMENT.......................................................19
EXTENSION CORDS ............................................................19
TRANSPORTING...................................................................20
MAINTENANCE
MAINTENANCE SCHEDULE ................................................21
MAINTENANCE REMINDERS ..............................................21
MAINTENANCE REPLACEMENT PARTS ............................21
AIR FILTER MAINTENANCE.................................................21
ENGINE OIL LEVEL CHECK .................................................22
ENGINE OIL CHANGE ..........................................................22
SPARK PLUG MAINTENANCE .............................................23
SPARK ARRESTOR SERVICE..............................................23
STORAGE..............................................................................23
FUEL VALVE MAINTENANCE ..............................................25
VALVE CLEARANCE .............................................................25
TROUBLESHOOTING
TROUBLESHOOTING ...........................................................26
EXPLODED VIEW AND PARTS LIST
EXPLODED VIEW A ..............................................................28
EXPLODED VIEW B ..............................................................30
SCHEMATICS
SCHEMATICS........................................................................33
ESPAÑOL...............................................................................34
FRANÇAIS .............................................................................62
INTRODUCTION

Westinghouse Outdoor Power Equipment, LLC | 3
INTRODUCTION
SPECIFICATIONS
Specications
Running Watts: 5300 Gas / 4800 Propane
Peak Watts: 6600 Gas / 5800 Propane
Rated Voltage: 120V/240V
Rated frequency: 60 Hz @ 3600 RPM
Phase: Single phase
Total Harmonic
Distortion: ≤ 23%
Engine Displacement: 274 cc
Starting Type: Recoil
Fuel Capacity: 4.7 Gallons (18 Liters)
Fuel Type:
Unleaded gasoline
87–93 octane*
HD-5 Propane
Oil Capacity: 0.74 Quart (0.7 Liter)
Oil Type: SAE 10W-30
Spark Plug: 97109 (F7TC)
Spark Plug Gap: 0.024 – 0.032 in.
(0.60 – 0.80 mm)
Valve Intake
Clearance:
0.0031 – 0.0047 in.
(0.08 – 0.12 mm)
Valve Exhaust
Clearance:
0.0051 – 0.0067 in.
(0.13 – 0.17 mm)
AC Grounding System: Neutral bonded to frame
Voltage Regulator: AVR
Alternator Type: Brushed
Maximum Ambient
Temperature: 104°F (40°C)
Certications: • EPA
• CARB
*Ethanol content of 10% or less. DO NOT use E15 or E85.
UPDATES
The latest User Manual for your Westinghouse
generator can be found under our support tab. https://
westinghouseoutdoorpower.com/pages/manuals
Or scan the following QR code with your smartphone
camera to be directed to the link.
NOTICE
This product is designed and rated for continuous
operation at ambient temperatures up to 104°F (40°C).
If needed, this product can be operated at temperatures
ranging from 5°F (15°C)–122°F (50°C) for short periods.
If the product is exposed to temperatures outside of this
range during storage, it should be brought back within
this range before operation. This product must ALWAYS
be operated outdoors in a well-ventilated area and far
away from doors, windows, and other vents.
Maximum wattage and current are subject to and
limited by such factors as fuel BTU content, ambient
temperature, altitude, engine conditions, etc. Maximum
power decreases about 3.5% for each 1,000 feet above
sea level, and will also decrease about 1% for each 10°F
(6°C) above 60°F (16°C) ambient temperature.
PRODUCT REGISTRATION
For trouble-free warranty coverage, it is important to
register your Westinghouse generator.
You can register by:
• Completing and mailing the product registration card
included in the carton.
• Registering your product online at:
https://westinghouseoutdoorpower.com/pages/
warranty-registration
• Scan the following QR code with your smartphone
camera to be directed to the mobile registration link.
• Sending the following product information to:
Westinghouse Outdoor Power
Warranty registration
777 Manor Park Drive
Columbus, OH 43228
For Your Records
Date of Purchase:
Model Number:
Serial Number:
Place of Purchase:
IMPORTANT: Keep your purchase receipt for trouble-free
warranty coverage.

4 | Westinghouse Outdoor Power Equipment, LLC
SAFETY
SAFETY DEFINITIONS
The words DANGER, WARNING, CAUTION, and
NOTICE are used throughout this manual to highlight
important information. Make sure that the meanings of this
safety information is known to all who operate, perform
maintenance on, or are near the generator.
This safety alert symbol appears
with most safety statements. It
means attention, become alert, your
safety is involved! Read and
abide by the message that follows
the safety alerts symbol.
DANGER
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
Indicates a situation which can cause damage
to the generator, personal property, and/or the
environment, or cause the equipment to operate
improperly.
Note: Indicates a procedure, practice or condition
that should be followed for the generator to function
in the manner intended.
SAFETY SYMBOLS
Follow all safety information contained in this manual
and on the generator.
Symbol Description
Safety Alert Symbol
Electrocution Hazard
Asphyxiation Hazard
Burn Hazard. DO NOT touch hot surfaces.
Electrical Shock Hazard
Fire Hazard
Maintain Safe Distance
Lifting Hazard
Read Manufacturer’s Instructions
DO NOT Operate in Wet Conditions
Ground. Consult with electrician to
determine grounding requirements before
operation.
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
DANGER
NEVER use inside a home
or garage, EVEN IF doors
and windows are open.
Only use OUTSIDE and far
away from windows, doors,
and vents.
SAFETY

Westinghouse Outdoor Power Equipment, LLC | 5
SAFETY INSTRUCTIONS
Living Area
Basement
Crawlspace
Entryway
Porch
Mud Room
Garage
CO Detectors
in living areas
Exhaust (CO)
Only use OUTSIDE and
FAR AWAY from windows,
doors, and vents.
E
X
H
A
U
S
T
CORRECT USAGE
Example location to reduce risk of carbon monoxide poisoning
ONLY use outside and downwind, far away from windows,
doors and vents. Direct exhaust away from occupied spaces
INCORRECT USAGE
Do not operate in any of the
following locations:
Near any door, window, or vent
• Garage
• Basement
• Crawl Space
• Living Area
• Attic
• Entry Way
• Porch
• Mudroom
NOTICE
Install battery-powered carbon monoxide detectors or
plug-in carbon monoxide detectors with battery back-up
in living areas.
DANGER
Fire and electrocution hazard. DO NOT connect to
a building’s electrical system unless the generator
and transfer switch have been properly installed and
the electrical output has been veried by a qualied
electrician. The connection must isolate the generator
power from utility power and must comply with all
applicable laws and electrical codes.
DANGER
Electrocution hazard. NEVER use the generator in
a location that is wet or damp. NEVER expose the
generator to rain, snow, water spray, or standing water
while in use. Protect the generator from all hazardous
weather conditions. Moisture or ice can cause a short
circuit or other malfunction in the electrical circuit.
SAFETY

6 | Westinghouse Outdoor Power Equipment, LLC
GENERAL SAFETY PRECAUTIONS
• NEVER use the generator to power medical support
equipment.
• DO NOT operate the generator when you are tired or
under the inuence of drugs, alcohol, or medication.
• DO NOT use generator with electrical cords which are
worn, frayed, bare, or otherwise damaged.
• All electrical tools and appliances operated from this
generator must be properly grounded by use of a third
wire or be double-insulated.
• When this generator is used to supply a building wiring
system the generator must be installed by a qualied
electrician and connected to a transfer switch as a
separately derived system in accordance with NFPA 70,
National Electrical Code.
• If you begin to feel sick, dizzy, or weak while using
the generator, move to fresh air IMMEDIATELY. See a
doctor, as you can have carbon monoxide poisoning.
• Only use OUTSIDE and far away from windows, doors,
and vents as recommended by the US Department
of Health and Human Services Centers for Disease
Control and Prevention. Your specic home and/or wind
conditions may require additional distance.
• While operating and storing, keep at least ve feet
of clearance on all sides of the generator, including
overhead. Allow the generator to cool a minimum of 30
minutes before storage. Heat created by the mufer and
exhaust gases could be hot enough to cause serious
burns and/or ignite combustible objects.
• DO NOT touch the mufer or engine. They are very
HOT and will cause severe burns. DO NOT put body
parts or any ammable or combustible materials in the
direct path of the exhaust.
• ALWAYS remove any tools or other service equipment
used during maintenance away from the generator
before operating.
• Avoid skin contact with engine oil or gasoline. Wear
protective clothing and equipment. Wash all exposed
skin with soap and water.
• A transfer switch must be installed by a licensed
electrician approved by the authority having jurisdiction.
The installation must comply with all applicable laws
and electrical codes.
FUEL SAFETY
• Store fuel in a container approved for gasoline.
• DO NOT smoke when lling the generator with gasoline.
• DO NOT allow the generator’s gas tank to overow
when lling.
• Shut down the engine and allow it to cool for two
minutes before adding gasoline or oil to the generator.
• NEVER remove the fuel cap when the generator is
running. Shut off the engine and allow the unit to cool
at least two minutes. Remove the fuel cap slowly to
release pressure, keep fuel from escaping around the
cap, and to avoid the heat from the mufer igniting fuel
vapors. Tighten the fuel cap securely after refueling.
• Wipe spilled fuel from the unit.
• NEVER attempt to burn off spilled fuel.
• NEVER overll the fuel tank. Leave room for fuel to
expand. Overlling the fuel tank can result in a sudden
overow of gasoline and result in spilled gasoline
coming in contact with HOT surfaces.
• Spilled fuel can ignite. If fuel is spilled on the generator,
wipe up any spills immediately. Dispose of rag properly.
Allow area of spilled fuel to dry before operating the
generator.
• Wear eye protection while refueling.
• NEVER use gasoline as a cleaning agent.
• Store any containers containing gasoline or LPG/
propane in a well-ventilated area, away from any
combustibles or source of ignition.
GASOLINE AND GASOLINE VAPOR (GAS)
DANGER
Fire and explosion hazard. Gasoline and LPG/propane
are highly explosive and ammable and can cause
severe burns or death.
• In case of a gas re, DO NOT attempt to extinguish
the ame if the fuel tank valve is in the ON position.
Introducing an extinguisher to a generator with an open
fuel valve could create an explosion hazard.
• Gas has a distinctive odor, this will help detect potential
leaks quickly.
• Gas vapors can cause a re if ignited.
• Gasoline is a skin irritant and needs to be cleaned up
immediately if it comes in contact with the skin.
SAFETY

Westinghouse Outdoor Power Equipment, LLC | 7
SAFETY
LIQUID PETROLEUM GAS (LPG/PROPANE)
WARNING
Fire and explosion hazard. NEVER use a gas container,
LPG/propane connector hose, LPG/propane tank or any
other fuel item that appears to be damaged.
CAUTION
Fire and explosion hazard. Only use approved LPG/
propane tanks with an Overlling Prevention Device
(OPD) valve. ALWAYS keep the tank in a vertical position
with the valve on top and placed at ground level on a
at surface. DO NOT allow tanks to be near any heat
source. When transporting and storing, turn the propane
tank valve to the fully closed position and disconnect the
tank. Make sure to ALWAYS cover the generator inlet
and tank outlet with protective plastic caps.
• LPG/Propane is highly ammable and explosive.
• Flammable gas under pressure can cause a re or
explosion if ignited.
• LPG/Propane can settle in low places because it is
heavier than air.
• LPG/Propane has a distinctive odor added to help
detect potential leaks.
• ALWAYS keep a LPG/Propane tank in an upright
position.
• When exchanging LPG/propane tanks, be sure the tank
valve is the same type.
• In case of a LPG/propane re, DO NOT attempt to
extinguish unless the fuel supply can be shut off safely.
• LPG/propane will burn the skin. Prevent skin contact at
all times.
• Keep the propane tank away from the generator
exhaust.
• Large (500–1000 gallon) LPG/propane tanks will
require a certied plumber to install the fuel line to
the generator and the loose regulator is not used (the
regulator that is attached to the fuel tank). The pressure
as measured at the regulator mounted to the generator
must be 7” to 14” of water column. A certied plumber
must ensure that the pressure is correct or install a step
down regulator if needed.
WARNING
Fire and explosion hazard. If there is a strong smell of
propane while operating the generator, fully close the
LPG/propane tank valve immediately. Once the propane
is off, use soapy water to check for leaks on the hose
and connections on the tank valve and the generator.
DO NOT smoke or light a cigarette or check for leaks
using any open ame source such as a match or lighter.
If a leak is found, contact a qualied technician to inspect
and repair the LPG/propane system before using the
generator.
When starting the generator:
• Make sure that the fuel cap, air lter, spark plug, fuel
lines, and exhaust system are properly in place.
• If you spill any gasoline on the tank, allow it to fully
evaporate before operating.
• Make sure the generator and LPG/propane tank are on
a at surface before operating.
• If there is a propane odor DO NOT start the unit because
there may be a potential leak. NEVER place a LPG/
propane tank near the engine exhaust.
When transporting or servicing the generator:
• Make sure the LPG/propane tank and LPG/propane
hose are not attached to the generator.
• Disconnect the spark boot to prevent accidental starting.
When storing the generator:
• Store away from sparks, open ames, pilot lights, heat,
and other sources of ignition.
• DO NOT store gas or a LPG/propane tank near
furnaces, water heaters, or any other appliances that
produce heat or have automatic ignitions.

8 | Westinghouse Outdoor Power Equipment, LLC
SAFETY
SAFETY LABELS
2
10
5
6
4
9
8
3
27 4cc
5311BRev01
120/240V
44/22A GAS
40/20A LPG
WGen5300DFv
5300W GAS
4800W LPG
6500W GAS
5800W LPG
Made in Vietnam
Fabriqué en Viêt Nam
1
Serial Number
Número de serie
Numéro de série
CAUTION
PRECAUCIÓN
ATTENTION
HOTSURFACES
SUPERFICIESCALIENTES
AUXSURFACES CHAUDES
PELIGRODEHUMOSTÓXICOS. Los motores en funcionamiento emiten
monóxidodecarbono,un gas venenoso inodoro que puede causar
náuseas,desmayosola muerte. No arranque el motor en interiores o en
unáreacerrada,incluso si las ventanas y puertas están abiertas.
WARNING/ADVERTENCIA/AVERTISSEMENT
11
11 3
5
66
78
10
9
1
2
85 MINIMUM OCTANE
85 MÍNIMO OCTANE
85 MINIMUM OCTANE
4.7
GALLON TANK
GALÓN TANE
GALLON RÉSERVOIR
18�LITER/LITRO/LITRE
7
WARNING/ADVERTENCIA/AVERTISSEMENT
FORELECTRICALEQUIPMENTONLY
FORUSEINA WEATHERPROTECTED
WELLVENTILATEDAREA
NEUTRALBONDEDTOFRAME
SOLOPARAEQUIPOSELÉCTRICOS
PARAUSOENUN ÁREA BIEN
VENTILADAPROTEGIDAPORELCLIMA
NEUTROVINCULADOALMARCO
POURMATÉRIELÉLECTRIQUESEULEMENT
POURUTILISATIONDANSUN ENDROIT BIEN
VENTILÉETPROTÉGÉECONTRE LES
INTEMPÉRIESNEUTRERELIÉAU CHÂSSIS
4

Westinghouse Outdoor Power Equipment, LLC | 9
COMPONENTS
COMPONENTS
CONTROL PANEL COMPONENTS
5
4
2
1
3
8
6
7
7
9
11 10
1. Fuel Selector Switch: Used to select gas or propane
operation.
2. Run/Stop Switch: Push to Run position to start or
Stop position to shut the generator off.
3. Voltage Selector Switch: Select 120V or 240V. Turn
generator OFF before switching voltage. When
operating at 240V only the L14-30R receptacle is
operational.
4. Data Center: Toggle to show voltage, frequency,
total hour meter, and run/maintenance timer.
5. 120/240 Volt AC, 30 Amp NEMA L14-30R Twist
Lock Receptacle: Receptacle can supply either
120V or 240V output.
6. 120 Volt AC, 30 Amp NEMA TT-30R Receptacle:
Receptacle can supply a maximum of 30 Amps.
7. 120 Volt AC, 20 Amp Duplex NEMA 5-20R
Receptacles: Receptacles can supply a maximum of
20 Amps.
8. 20 Amp AC Circuit Breaker: Circuit breaker limits
the current that can be delivered through the NEMA
5-20R receptacles to 20 Amps.
9. 30 Amp AC Circuit Breaker: Circuit breaker limits
the current that can be delivered through the TT-
30R receptacle to 30 Amps.
10. 22-Amp Circuit Breakers: Each circuit breaker
limits the current that can be delivered through
each 120 Volt leg on L14-30R to 22amps.
11. Ground Terminal: The ground terminal is used to
externally ground the generator.
DATA CENTER
Run Time/Maintenance:
Displays current run time.
Resets to zero when shut
down. Maintenance
reminder displayed
when required.
Frequency (Hz):
Displays power output
frequency in Hertz.
Voltage:
Displays current voltage
output.
Lifetime Hours:
Displays the lifetime run
hours.
Mode Button
METER V-F-T
Maintenance Codes:
P25: Change engine oil
P50: Clean air filter,
Change engine oil
P100: Change engine oil,
clean air filter, replace
fuel filter
Push the Mode button to cycle through
the data display modes.

10 | Westinghouse Outdoor Power Equipment, LLC
COMPONENTS
GENERATOR COMPONENTS
Oil drain
bolt
Oil dipstick/
filler neck
Fuel cap
Fuel gauge
Muffler/spark arrestor
Carbon canister
Carburetor
Alternator
cover
Control panel
Recoil
Starter
Air filter
Fuel tank
valve
LPG/Propane
inlet
Spark plug
Serial number
Choke lever

Westinghouse Outdoor Power Equipment, LLC | 11
ASSEMBLY
ASSEMBLY
CARTON CONTENTS
CAUTION
Weight hazard. ALWAYS have assistance when lifting
the generator.
1. Carefully open the carton.
2. Remove and save the carton contents.
3. Remove and discard the packing tray.
4. Unfold the top of the plastic bag enclosing the generator.
5. Carefully cut the vertical corners of the carton to access
the generator.
6. Recycle or dispose of the packaging materials properly.
CARTON CONTENTS
• User manual
• Quick Start Guide
• LPG/propane hose with regulator
• Bottle of SAE 10W-30 oil
• Oil Funnel
• Spark plug wrench
• Wrench
• Wheel and mounting foot components:
Item Quantity
• Mounting foot 2
• Flange bolt, M8 4
• Wheel 2
• Axle pin 2
• Washer 2
• Cotter pin 2
If any parts are missing, contact our service team at
[email protected] or call 1-855-944-3571.
INSTALL FEET AND WHEELS
NOTICE
Assembling the generator will require lifting the unit on
one side. Install the mounting feet and wheel before
adding fuel or oil.
1. Place generator on a at surface.
2. Tip the generator on a piece of cardboard or other soft
material to protect the frame paint and prevent the
generator from sliding.
3. With the included wrench, install the mounting feet to
the frame as shown.
Mounting foot
Bolt, M8
4. Install the wheels as shown.
Axle pin
Wheel
Cotter pin
Washer
Note: The wheels are only intended for hand transport.
The wheels are not suitable for towing the generator
either on or off-road.

12 | Westinghouse Outdoor Power Equipment, LLC
INITIAL OIL FILL
NOTICE
THIS GENERATOR HAS BEEN SHIPPED WITHOUT
OIL. DO NOT attempt to crank or start engine before
it has been properly serviced with recommended oil.
Failure to add engine oil before starting will result in
serious engine damage.
NOTICE
Use of 2-stroke/cycle oil or other unapproved oil types
can cause severe engine damage that is not covered
under warranty.
The included, recommended oil type for typical use is
10W-30 engine oil. If running the generator in extreme
temperatures, refer to the following chart.
-20 0 20 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Synthetic
10W-405W-30
1. On a level surface, remove the oil dipstick.
2. Using the supplied funnel and oil, add oil into oil ller
neck.
Note: As residual oil from the factory may remain in the
engine, add the oil incrementally near the end of the
bottle to prevent overlling the engine. See Engine
Oil Level Check in the Maintenance section.
3. Wipe the oil dipstick clean. Replace the oil dipstick and
hand-tighten.
FUEL
WARNING
Fire and explosion hazard. NEVER use a gasoline
container, gasoline tank, propane connector hose,
propane tanks, or any other fuel item that is broken, cut,
torn or damaged.
DANGER
Fire and explosion hazard. DO NOT overll fuel tank. Fill
only to the red ll ring located in the in-tank fuel screen
lter. Overlling may cause fuel to spill onto engine
causing a re or explosion hazard.
DANGER
Fire and explosion hazard. NEVER refuel the generator
while the engine is running. ALWAYS turn the engine off
and allow the generator to cool for two minutes before
refueling.
NOTICE
E85 E15
DO NOT use E15 or E85 fuel in
this product. Engine or equipment
damage caused by stale fuel or
the use of unapproved fuels (such
as E15 or E85 ethanol blends) is
not covered by warranty. Only use
unleaded gasoline containing up to
10% ethanol.
FUEL REQUIREMENTS
• CLEAN, FRESH, unleaded gasoline, 87–93 octane.
• Up to 10% ethanol (gasohol) is acceptable (where
available; non-ethanol fuel is recommended).
• DO NOT use E85 or E15.
• DO NOT use a gas oil mix.
• DO NOT modify the engine to run on alternate fuels.
• DO NOT fuel indoors.
• DO NOT create a spark or ame while fueling.
USING FUEL STABILIZER
Adding a fuel stabilizer (not included) extends the usable
life of fuel and helps prevent deposits from forming that
can clog the fuel system. Follow the manufacturer’s
instructions for use.
ALWAYS mix the correct amount of fuel stabilizer to
gasoline in an approved gasoline container before fueling
the generator. Run the generator for ve minutes to allow
the stabilizer to treat the entire fuel system.
ASSEMBLY

Westinghouse Outdoor Power Equipment, LLC | 13
ASSEMBLY
FILLING THE FUEL TANK
1. Turn the generator OFF and allow to cool for a minimum
of two minutes before fueling.
2. Place the generator on level ground in a well-ventilated
area.
3. Clean area around fuel cap and remove the cap slowly.
NOTICE
Only ll the tank from an approved gasoline container.
Make sure the gasoline container is internally clean and
in good condition to prevent fuel system contamination.
4. Slowly add the recommended fuel. DO NOT overll. Fill
only to the red maximum ll ring on the fuel screen lter
visible in the ller neck.
Maximum
Fuel Level
Screen
Filter
Fuel Cap
5. Install the fuel cap.
NOTICE
Fuel can damage paint and plastic. Use caution when
lling the fuel tank. Damage caused by spilled fuel is not
covered under warranty.
NOTICE
Clean the fuel screen lter of debris before and after
each fueling. Remove the fuel screen lter by slightly
compressing it while removing it from the fuel tank.

14 | Westinghouse Outdoor Power Equipment, LLC
CONNECT A LPG/PROPANE TANK
NOTICE
• The LPG/propane tank can be of any capacity but the
tank must conform to the standard as listed in Fuel
Safety section.
• Propane tanks that use liquid withdrawal system can
not be used on these models.
• Verify the re-qualication date on the tank has not
expired.
• DO NOT use included LPG/propane hose for any
other appliances.
NOTICE
• All new tanks must be purged of air and moisture
prior to lling. Used tanks that have not been plugged
or kept closed must also be purged. The purging
process should be done by a propane supplier (Tanks
from an exchange supplier should have been purged
and lled properly).
• ALWAYS position the tank so the connection between
the valve and the gas inlet will not cause sharp bends
or kinks in the hose.
WARNING
Explosion hazard. DO NOT start generator if you smell
propane. ALWAYS fully close the propane tank valve and
disconnect the LPG/propane hose from the generator
when not in use.
1. Turn the generator OFF and place on a at surface in a
well ventilated area.
2. Verify that the propane tank valve is in the fully closed
position.
3. Remove the cover on the generator propane inlet valve.
4. Use your ngers to hand thread the LPG/propane hose
(included) to the propane inlet on the generator.
IMPORTANT: DO NOT use thread seal tape or any other
type of sealant to seal the LPG/propane
hose connection.
5. Tighten the LPG/propane hose connector to the
generator with a 19 mm or adjustable wrench. DO NOT
over-tighten.
Torque: 5-10 lb-ft.
LPG/Propane
Inlet
6. Remove the safety plug or cap from the propane tank
valve and attach the other end of the hose to the LPG/
propane connector on the tank. Hand-tighten.
7. Turn the propane tank valve to the fully open position.
Check all connections for leaks by wetting the ttings
with a solution of soap and water. Bubbles which appear
or bubbles which grow indicate that a leak exists. If a
leak exists at a tting, turn the propane tank valve to
the fully closed position and tighten the tting. Open the
propane tank valve and recheck the tting with the soap
and water solution. If the leak continues or if the leak
is not at a tting then DO NOT use the generator and
contact customer service.
IMPORTANT: Keep the propane tank valve in the fully
closed position unless in use.
ASSEMBLY

Westinghouse Outdoor Power Equipment, LLC | 15
OPERATION
OPERATION
GENERATOR LOCATION
Read and understand all safety information before starting
the generator.
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
DANGER
NEVER use inside a home
or garage, EVEN IF doors
and windows are open.
Only use OUTSIDE and far
away from windows, doors,
and vents.
NEVER operate the generator inside any building, including
garages, basements, crawlspaces, sheds, enclosure, or
compartment, including the generator compartment of a
recreational vehicle.
DANGER
Electrocution hazard. NEVER use the generator in
a location that is wet or damp. NEVER expose the
generator to rain, snow, water spray, or standing water
while in use. Protect the generator from all hazardous
weather conditions. Moisture or ice can cause a short
circuit or other malfunction in the electrical circuit. Using
a generator or electrical appliance in wet conditions,
such as rain or snow, or near a pool or sprinkler system,
or when your hands are wet, could result in electrocution
WARNING
Fire hazard. Only operate the generator on a solid, level
surface. Operating the generator on a surface with loose
material such as sand or grass clippings can cause debris
to be ingested by the generator that could block cooling
vents or the air intake system. Allow the generator to
cool for 30 minutes before transport or storage.
The generator should be on a at, level surface at all times
(Even while not in operation). The generator must have
at least 5 ft. (1.5 m) of clearance from all combustible
material.
DO NOT operate the generator in the back of a SUV,
camper, trailer, truck bed (regular, at, or otherwise), under
stairs, next to walls or buildings, or in any other location
that will not allow for adequate cooling of the generator
and/or the mufer. DO NOT contain generators during
operation.
DANGER
Asphyxiation hazard. Place the generator in a well-
ventilated area. DO NOT place the generator near vents
or intakes where exhaust fumes could be drawn into
occupied or conned spaces. Carefully consider wind
and air currents when positioning the generator.
GROUNDING
WARNING
Shock hazard. Failure to properly ground the generator
can result in electric shock.
NOTICE
Only use grounded 3-prong extension cords, tools, and
appliances, or double-insulated tools and appliances.
The generator neutral is bonded to the frame. There is a
permanent conductor between the generator (stator wire)
and the frame. If this generator will be used only with cord
and plug equipment connected to the receptacles mounted
on the generator, National Electric Code does not require
that the unit be grounded. However, other methods of
using the generator may require grounding to reduce the
risk of shock or electrocution.
Before using the ground terminal, consult a qualied
electrician, electrical inspector, or local agency having
jurisdiction for local codes or ordinances that apply to the
intended use of the generator.
DISCONNECTING THE BONDED NEUTRAL
The bonded neutral should only be removed under specic
circumstances. Consult a qualied electrician to determine
if your situation requires disconnecting the bonded neutral.
1. Remove the alternator cover.
2. Remove the bonded jumper wire and reinstall the nut.
Neutral ground wire
Bonded jumper wire
3. Remove the nut securing the neutral ground wire and
attach the bonded jumper wire. Reinstall the nut.

16 | Westinghouse Outdoor Power Equipment, LLC
Neutral ground wire
Bonded jumper wire
4. Reinstall the alternator cover.
IMPORTANT: Apply a new “NEUTRAL UNBONDED”
Label over the “NEUTRAL BONDED TO
FRAME” label on the front of the control
panel.
HIGH ALTITUDE OPERATION
Engine power is reduced the higher you operate above sea
level. Output will be reduced approximately 3.5% for every
1000 feet of increased altitude from sea level.
High altitude adjustment is required for operation at
altitudes over 5,000 ft. (1524 m). Operation without this
adjustment will cause decreased performance, increased
fuel consumption, and increased emissions. Operation of
the engine at altitudes below 2,000 ft. (762 m) with the high
altitude kit is not recommended.
High Altitude Carburetor Kit Part# 518965
High Altitude DF Regulator: Part# 518516
Note: You must purchase both the Dual Fuel Regulator
and Carburetor Kit for proper high altitude operation.
VOLTAGE SELECTOR SWITCH
The 120V/240V selector switch, which gives the user the
ability to double the amperage in the generator for more
demanding applications. The voltage selector switches the
dual 120V AC windings of the generator to produce 120V
or 240V. If a 240V appliance is connected to the 4-prong
L14-30R receptacle, the switch must be in the “240V”
position. The 120V only outlets will not output power when
the Voltage Selector is in the 240V position.
WARNING
Only change the Voltage Selector Switch with the
generator OFF. DO NOT switch the voltage while the
generator is running or powering appliances.
FUEL SELECTOR SWITCH
Position the fuel selector switch on the front control panel
to the desired fuel choice.
Turn the fuel selector switch fully upward for gasoline
operation.
Turn the fuel selector switch fully downward for propane
operation.
BREAK-IN PERIOD
For proper break-in, DO NOT exceed 50% of the rated
running watts (2650 watts) during the rst ve hours of
operation.
Vary the load occasionally to allow stator windings to heat
and cool and help seat the piston rings.
OPERATION

Westinghouse Outdoor Power Equipment, LLC | 17
BEFORE STARTING THE GENERATOR
Verify that:
• The generator is placed in a safe, appropriate location.
• The generator is on a dry, at, and level surface.
• The engine is lled with oil.
• All loads are disconnected.
DANGER
Fire and explosion hazard. DO NOT move or tip the
generator during operation.
STARTING THE ENGINE: GASOLINE
1. Verify that fuel is in the gas tank.
2. Turn the fuel selector switch on the control panel to
gasoline operation.
3. Turn the fuel tank valve to the ON position.
ON
OFF
Note: If cold starting, move the choke lever to the ON
position.
4. Push the Run/Stop switch to the Run position.
5. Firmly grasp and pull the recoil handle slowly until you
feel increased resistance, then pull rapidly.
6. After starting, allow the engine to run for several seconds
then move the Choke lever to the fully OFF position.
STARTING THE ENGINE: PROPANE
DANGER
Fire and explosion hazard. ALWAYS turn the propane
tank valve to the fully closed position if not running the
generator on propane.
1. Make sure the LPG/propane hose is correctly connected
to the generator and propane tank.
2. Turn the fuel selector switch to propane operation.
3. Fully open the valve on the propane tank.
Note: If cold starting, move the choke lever to the ON
position.
4. Push the Run/Stop switch to the Run position.
5. Firmly grasp and pull the recoil handle slowly until you
feel increased resistance, then pull rapidly.
6. After starting, allow the engine to run for several seconds
then move the Choke lever to the fully OFF position.
SWITCHING FUEL SOURCES
DANGER
Fire and explosion hazard. DO NOT add gasoline to
the fuel tank or connect the LPG/propane hose to the
generator while the generator is in operation.
The fuel source can be switched while the engine is
running if a propane tank is connected to the generator
BEFORE operation.
GASOLINE TO PROPANE
IMPORTANT: Load capacity is reduced when running
on propane. Make sure the generator can
supply enough (running) and surge (starting)
watts for the items you are powering before
switching to propane.
1. Fully open the valve on the propane tank.
2. Turn the fuel selector switch to propane operation.
3. Turn the fuel tank valve to the OFF position.
OPERATION

18 | Westinghouse Outdoor Power Equipment, LLC
OPERATION
PROPANE TO GASOLINE
1. Turn the fuel tank valve to the ON position.
2. Turn the fuel selector switch to gasoline operation.
3. Turn the propane tank valve to the fully closed position.
Note: When switching to propane operation the engine
may run rough for a few seconds while it purges
gasoline in the carburetor.
If the engine stops when switching fuel sources, disconnect
all loads then restart the unit on the fuel source of choice.
STOPPING THE ENGINE
1. Turn off and unplug all connected electrical loads.
IMPORTANT: NEVER start or stop the generator with
electrical devices connected.
2. Let the generator run with no load for several minutes to
stabilize internal temperatures of the engine.
3. Push the Run/Stop switch to the Stop position.
Note: Alternately, if the generator is used infrequently, turn
the fuel tank valve to the OFF position to limit the
residual fuel remaining in the carburetor oat bowl.
The engine will stop when fuel in the carburetor and
fuel line is exhausted.
4. If operating on propane, turn the propane tank valve to
the fully closed position.
FREQUENCY OF USE
If the generator will be used on an infrequent or intermittent
basis (more than one month before next use), refer to the
Storage section of this manual for information regarding
fuel deterioration.
AC CIRCUIT BREAKERS
The circuit breakers will automatically switch OFF if there
is a short circuit or a signicant overload of the generator
at each receptacle.
If an AC circuit breaker switches OFF automatically,
check that the appliance is working correctly and it does
not exceed the rated load capacity of the circuit before
resetting the AC circuit breaker ON.
Push to Reset
ON
OFF
Circuit Breakers
GENERATOR CAPACITY
NOTICE
DO NOT overload the generator’s capacity. Exceeding
the generator’s wattage/amperage capacity can damage
the generator and/or electrical devices connected to it.
Make sure the generator can supply enough continuous
(running) and surge (starting) watts for the items you will
power at the same time.
The total power requirements (Volts x Amps = Watts) of all
appliances connected must be considered. Appliance and
power tool manufacturers usually list rating information
near the model or serial number.
To determine power requirements:
1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This
is the amount of power the generator must produce
to keep the items running. See the wattage reference
chart.
3. Estimate how many surge (starting) watts you will need.
Surge wattage is the short burst of power needed to
start electric motor-driven tools or appliances such as a
circular saw or refrigerator. Because not all motors start
at the same time, total surge watts can be estimated by
adding only the item(s) with the highest additional surge
watts to the total rated watts from step 2.
Example:
Tool or Appliance Running
Watts*
Starting
Watts*
RV Air Conditioner (11,000 BTU) 1010 1600
TV (Tube Type) 300 0
RV Refrigerator 180 600
Radio 200 0
Light (75 Watts) 300 0
Coffee Maker 600 0
2590 Total
Running
Watts*
1600
Highest
Starting
Watts*
Total Running Watts 2590
Highest Starting Watts + 1600
Total Starting Watts Needed 4190
*Wattages listed are approximate. Verify actual wattage.

Westinghouse Outdoor Power Equipment, LLC | 19
POWER MANAGEMENT
To prolong the life of the generator and attached devices,
use care when adding electrical loads to the generator.
There should be nothing connected to the generator
outlets before starting the engine. The correct and safe
way to manage generator power is to sequentially add
loads as follows:
1. With nothing connected to the generator, start the
engine as described in this manual.
2. Plug in and turn on the rst load, preferably the largest
load you have.
3. Permit the generator output to stabilize (engine runs
smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
Wattage Reference
Tool or Appliance
Estimated
Running
Watts*
Estimated
Starting
Watts*
Incandescent Lights
(4 Quantity x 75 Watts) 300 0
TV (Tube Type) 300 0
Sump Pump (1/3 hp) 800 1300
Refrigerator or Freezer 700 2200
Well Pump (1/3 hp) 1000 2000
Furnace (1/2 hp) 800 2350
Radio 200 0
Drill (3/8”, 4 amps) 440 600
Circular Saw
(Heavy Duty, 7-1/4”) 1400 2300
Miter Saw (10”) 1800 1800
Table Saw (10”) 2000 2000
*Wattages listed are approximate. Verify actual wattage.
EXTENSION CORDS
WARNING
Asphyxiation hazard. Extension cords running directly
into the home increase the risk of carbon monoxide
poisoning through any openings. If an extension cord
running directly into your home is used to power indoor
items, there is a risk of carbon monoxide poisoning to
people inside the home. ALWAYS use battery-powered
carbon monoxide detector (s) that meet current UL 2034
safety standards when running the generator. Regularly
check the detector (s) battery.
WARNING
Asphyxiation hazard. When operating the generator with
extension cords, make sure the generator is located in
an open, outdoor area, far away from occupied spaces
with exhaust pointed away.
WARNING
Fire and electrocution hazard. NEVER use worn or
damaged extension cords. Damaged or overloaded
extension cords could overheat, arc, and burn resulting
in death or serious injury.
Before connecting an AC appliance or power cord to the
generator:
• Use grounded 3-prong extension cords, tools, and
appliances, or double-insulated tools and appliances.
• Make sure the tool or appliance is in good working
order. Faulty appliances or power cords can create a
potential for electric shock.
• Make sure the electrical rating of the tool or appliance
does not exceed the rated power of the generator or the
receptacle being used.
OPERATION

20 | Westinghouse Outdoor Power Equipment, LLC
EXTENSION CORD SIZING
Only use grounded 3-prong extension cords marked for
outdoor use that are rated for the electrical load.
1
1
6
Total
Amperage
Up to 10A
Up to 15A
Up to 20A
Up to 50 FT (15 M)
6
Minimum Gauge, Outdoor Rated
Up to 100 FT (30 M)
Up to 30A
Up to 35A
8
10
10
12 8
8
6
6
TRANSPORTING
CAUTION
Weight hazard. ALWAYS have assistance when lifting
the generator.
• Allow the generator to cool a minimum of 30 minutes
before transporting.
• If operating on propane, turn the propane tank valve to
the fully closed position.
• Disconnect the LPG/propane hose from the generator
and propane tank.
• Replace all protective covers on the generator control
panel.
• Only use the generator’s xed frame to lift the unit or
attach any load restraints such as ropes or tie-down
straps. DO NOT attempt to lift or secure the generator
by holding onto any of its other components.
• Keep the unit level during transport to minimize the
possibility of fuel leakage or, if possible, drain the fuel
or run the engine until the fuel tank is empty before
transport.
CAUTION
Fire hazard. DO NOT up-end the generator or place it on
its side. Fuel or oil can leak and damage to the generator
may occur.
OPERATION
