Wet Sounds WWX-DZ-BT User manual

WWX-DZ-BT
HIGH PERFORMANCE AUDIOWETSOUNDS.COM
Dual Zone Bluetooth Source Unit
Owner's Manual

Wet Sounds Dual Zone Bluetooth Controller Owner’s Manual
1
THANK YOU FOR CHOOSING WET SOUNDS FOR
YOUR HIGH PERFORMANCE AUDIO SYSTEM!
The WWX-DZ-BT is an easy to operate Bluetooth Source
Controller with two zones of output that can be linked or
controlled independently.
Please take a moment to read the instruction manual &
connection guide before starting the installation. If you
have any questions or concerns, please contact your
local Authorized Wet Sounds Dealer or Wet Sounds Tech
Support at 877-938-7757.
FCC INFORMATION This device complies with part 15 of the FCC
Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference in a residential installation.

Wet Sounds Dual Zone Bluetooth Controller Owner’s Manual
2

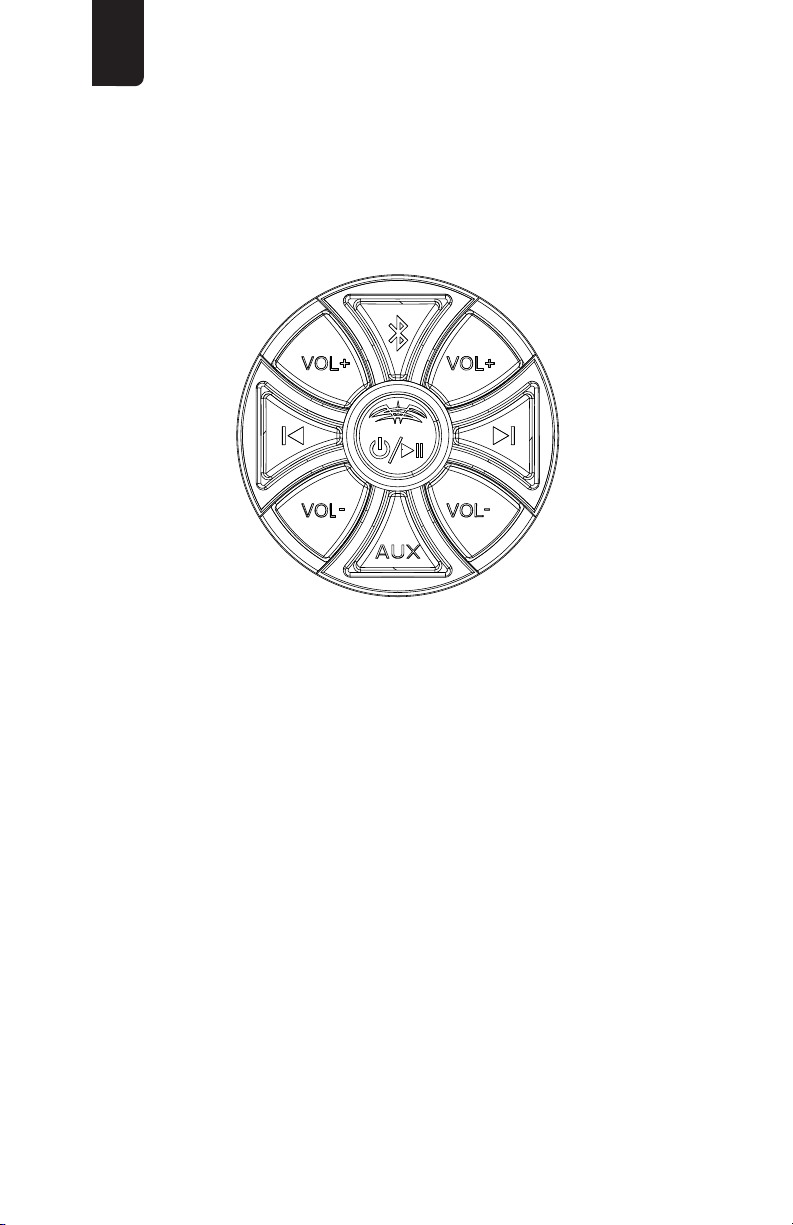

FEATURES
DIMENSIONS
•Control Volume +/-, Track Fwd/Prev, Pause & Aux In
•Zones can be controlled independently or together
•3.5mm Zone Output and Aux Input Connections
•Amplifier Remote Turn-on Output
•Sealed Construction designed for Marine Applications
•Mounting only requires a 1-1/8” hole
Retaining nut
Retaining nut

Wet Sounds Dual Zone Bluetooth Controller Owner’s Manual
3
MOUNTING INSTRUCTIONS
BLUETOOTH PAIRING INSTRUCTIONS
STEP 1: Locate desired location. Please refer to dimen-
sions and check for clearance prior to cutting or drilling.
STEP 2: Drill or cut 1-1/8” hole.
STEP 3: Route wires through hole and then retaining nut.
STEP 4: Hand tighten retaining nut while holding the
control panel in desired position.
STEP 1: Turn on WWX-DZ-BT
STEP 2: If not already paired with another learned
device, the WWX-DZ-BT will automatically enter
pairing mode, which is indicated by the backlight flash-
ing BLUE.
STEP 3: From you phone’s Bluetooth pairing menu, find
the WWX-DZ-BT and connect to it.
You are now paired to the WWX-DZ-BT. If you would like
to pair to a new device, press and hold the button
which will put unit in pairing mode.

Wet Sounds Dual Zone Bluetooth Controller Owner’s Manual
4

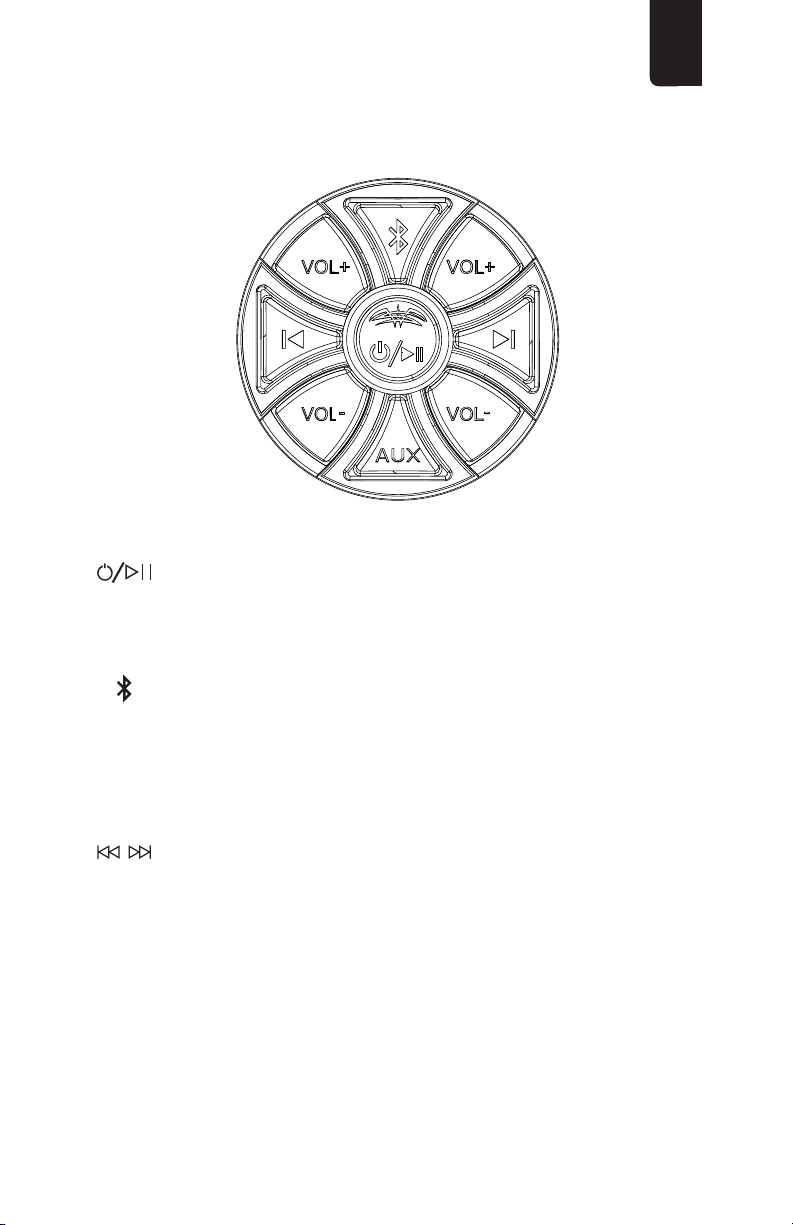

OPERATING INSTRUCTIONS
POWER/PLAY/PAUSE
VOLUME CONTROLS
VOL- / VOL+
BLUETOOTH
TRACK CONTROLS
AUX INPUT
When unit is powered o, press and hold to power on. When unit is on and con-
nected to Bluetooth audio source, short press will play and pause media. Press and
hold will power the unit o.
Operates audio level of Zones. When zones are unlinded, the volume buttons on
the left operate Zone 1 and buttons on the right operate Zone 2. When unlinked,
the Zone 2 buttons will illuminate RED.
To Link, press and hold both VOL+ at the same time. When linked, the buttons
will flash and all four volume buttons will illuminate BLUE. In this state, the volume
of both zones will increase and decrease in volume together when either of the
volume controls are used. If the zones are at dierent levels when linked, the dier-
ence in levels will be mainained while linked.
To Unlink, press and hold both VOL- at the same time. When unlinked, the buttons
will flash and the Zone 2 volume controls will illuminate RED.
Selects Bluetooth as the source. Also press and hold to enter into pairing mode.
Selects Tracks on Bluetooth Media Device.
Selects AUX Input as the source.
AUX

Wet Sounds Dual Zone Bluetooth Controller Owner’s Manual
5
WIRING DIAGRAM
3.5mm JACK (AUX INPUT)
GROUND (BLACK)
SWITCHED +12V (RED)
CONSTANT +12V (YELLOW)
3.5mm JACK (ZONE 2 OUTPUT)
3.5mm JACK (ZONE 1 OUTPUT)
FUSE 2A
REMOTE OUT (BLUE)
ZONE 1 OUTPUT
AUX INPUT
ZONE 2 OUTPUT

Wet Sounds Dual Zone Bluetooth Controller Owner’s Manual
6
LIMITED WARRANTY
What This Warranty Covers This is a “limited” warranty. This warranty covers any de-
fect in materials and workmanship. This warranty only covers the original purchaser
and is not transferable.This warranty is also only valid if the original purchase was
made from an authorized Wet Sounds™ dealer.
How Long Coverage Lasts This warranty extends for 2 years from the date of
purchase. It is recommended to REGISTER your warranty online within 45 days of
purchase atwww.wetsounds. com – click on “warranty registration”.
What Is Not Covered This warranty does not cover fading or discoloration caused
by exposure to sunlight or chemicals such as ammonia, household bleach, or any
cleaning material that contains abrasive substances. Wet Sounds, Inc. does not
cover the expense for removal or re-installation. Additionally, shipping TO Wet
Sounds, Inc. must be paid for by the purchaser. This warranty is void and inapplica-
ble if Wet Sounds deems that the product was abused or misused; including but not
limited to damage caused by accident, mishandling, improper installation, remov-
ing the inline fuse on the power connection, negligence, normal; wear and tear,
excessive water or heat damage, freight/shipping damage, or products that have
been disassembled by anyone other than Wet Sounds technical sta. Wet Sounds
will not be responsible for any incidental or consequential damages, except to the
extent provided (or prohibited) by applicable law. This warranty gives you specific
rights, and you may also have other rights which vary from state to state.
What Wet Sounds, Inc. Will Do Wet Sounds, Inc. will repair any part of your product
that proves to be defective in materials or workmanship. In the event repair is not
possible, Wet Sounds will replace the product in question. If it is deemed necessary
Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will
be replaced with a model that is similar in price is that model is no longer available.
Labor costs and materials needed to complete this service will be at No Charge to
the purchaser. Additionally, return shipping FROM Wet Sounds, Inc. to the purchaser
will be paid for by Wet Sounds.
How To Get Service Contact Wet Sounds, Inc. either by phone at 877-WET-SPKR
or by email ([email protected]). A service representative will assist you
in confirming that the problem you are experiencing is caused by a defective prod-
uct and if that product is covered under warranty. The service representative will
issue you a Return Manufacturer’s Authorization (RMA) and other details to obtain
service for your product.
DO NOT RETURN YOUR PRODUCT WITHOUT THE PROPER
RETURN AUTHORIZATION (RMA)!

WET SOUNDS INC.
www.wetsounds.com
877-938-7757
10621 S Sam Houston PKWY W • Suite 100
Houston, Texas 77071
USA
Internet Warning Wet Sounds, Inc. products sold on
any non- authorized web site or internet auction site
are void of any and all manufacturer’s warranty.
Please Contact Wet Sounds (877-938-7757) or visit
our web site (www.wetsounds.com) for a list of au-
thorized online sellers or to find an authorized dealer
near you.
