Wet Sounds HTX-5 User manual

HTX-1, HTX-2, HTX-4, HTX-6
OWNER'S MANUAL
HIGH PERFORMANCE MARINE AUDIO
wetsounds.com
HTX SERIES

1
CONGRATULATIONS!
Thank you for purchasing the Wet Sounds Hydro-TechTM X (HTX) series amplier.
Wet Sounds represents the ultimate in High Performance Marine Audio. Wet
Sounds HTX Series Marine Ampliers are designed to be a complete solution for
every type of extreme marine application. HTX ampliers use superior performance
circuitry by utilizing Class D Power Supplies. These ampliers have extreme
power output packed inside a small chassis, thermal overload protection, exible
crossovers, extended inputs. HTX ampliers are a well balanced match for all of
the Wet Sounds™ products.
WARNING
We build all Wet Sounds products to play at high volumes for extended periods of
time. Your ears however are not designed for high volume listening. This product
can easily generate high volumes that can permanently damage your hearing.
We urge you to limit your exposure to very high volume sound. You may also nd
your state has laws governing the volume of an audio system. Please be aware
of all local and state laws in your area. A Properly tuned and operated audio
system will deliver years of enjoyment when used properly.
WARNING
Please check the installation location before you begin. Do not cut any of the boats
structure. Pay close attention to what items are behind the panels and carpet.
Often the manufacturer will hide wires, mechanical or other electronic devices in
the exact locations you wish to install in.
Wet Sounds HTX Series Owner’s Manual
WET SOUNDS HTX SERIES SUBWOOFER AMPLIFIERS

2
Wet Sounds HTX Series Owner’s Manual
INSTALLATION INSTRUCTIONS
Wet Sounds Marine Ampliers are designed for easy installation in your boat. To
ensure proper installation of your new purchase please follow all the suggestions
listed below. If you do not have experience with marine electrical and
mechanical systems contact a professional installer. Paying a qualied
installer is almost always cheaper than paying a dealership to repair your
boat.
LOCATING THE AMPLIFIER
The amplier must be securely mounted to a solid surface. Please select a
dry location to mount your amplier. All Wet Sounds products are designed to
operate in humid environments however direct contact with water can damage
the electronics. Do not mount the amplier to any area that may have excessive
vibration (like a subwoofer enclosure). Position the amplier in an area that
receives sufcient airow for proper heat dissipation.
SUPPLYING ENOUGH POWER
Your amplier does NOT make power; it converts power, or current, from your
boats electrical system and converts it into high power musical energy. If the amp
can’t get all the power it needs it will not produce its full output. Your Wet Sounds
amplier will produce full output longer than other amplies on the market today.
Should your voltage or current drop too low the amplier will drop below the rated
output. Make sure your boats charging system is in good working order. Any high
performance audio amplier will increase the demand on your alternator and
battery. If you are unsure have you charging system checked system testing by a
professional technician.

3
RUNNING THE WIRING CABLES
**Always keep the signal cable and the power cables separated to prevent the
possibility of inducing noise into the system**
Carefully run the power and the signal cables through the boat. Always keep all
the wire tight and tied down to prevent the power wire from shorting and reduce
the risk of re. A 4 AWG or larger wire should be used for power and ground
connections. We recommend a fuse to be installed on the power wire within 18
inches of the battery for safety.
AMPLIFIER CONNECTIONS
**Make sure that the +12 volt cable is NOT connected to the battery while making
any of the connections until all the connections and the fuse are installed**
Power Connections
The HTX Series is designed for 4 AWG Power wire (+12 V) and Ground wire
(GND). You will need to prepare the wire by remove 5/8” on the protective shielding
on the power and ground wire. Then take a Phillips head screwdriver and back out
the screws on the terminal block. Insert the +12 volt wire into the +12V side of the
terminal block and then tighten the screw back into the terminal block. You will do
the same for the Ground wire. See below
Wet Sounds HTX Series Owner’s Manual

4
REMOTE CONNECTION
This amplier is designed to accept a 12 AWG – 16 AWG wire input on the terminal
block for speaker outputs 1 and 2. (Diagram A). The Remote Turn-on is how the
amplier knows when to turn on and off. This is typically connected to the remote
output wire on an aftermarket radio. When connecting this amplier to a factory
radio, you will need to nd a +12 volt accessory wire that switches on and off with
the key.
AMPLIFIER SIGNAL INPUTS
Connect the RCA outputs from the source unit into the inputs of the amplier. The
HTX Series has 1 pair of inputs for each pair of channels (6 channel shown below,
other models will vary).
Wet Sounds HTX Series Owner’s Manual
There are 2 different input selection switches. The rst is to designate 2 or 4
channel input. You can select 2 channel input when only using 1 set of RCA inputs
to allow all 4 channels to have output (CH 1,2,3, & 4). The next is to turn on or
off the inputs for channels 5 & 6.(See below) Ch 5 & 6 can be carried over from
inputs 1 & 2 when in 2CH mode, or a separate set of RCA cables can be used in
6CH mode.
**note if you only use the amplier in 2 channel input mode you will not have fading
capabilities between front and rear outputs.**

5
SPEAKER TERMINAL INPUTS
The HTX Series utilizes removable speaker terminal blocks for easier installations
and stronger power connections. The terminal blocks are designed to accept 12
AWG- 16 AWG speaker wire. When preparing the wire you will need to strip 5/8” of
the cables protective shielding. Then take a small Phillips or at head screwdriver
and back out the screw on the terminal block. Insert the speaker wire into the
terminal block and then tighten the screw back into the terminal block. (DO NOT
OVERTIGHTEN) (See below)
Wet Sounds HTX Series Owner’s Manual
POWER INDICATOR
The amplier is equipped with a dual illumination LED on the top of the amplier
that the Wet Sounds logo badge is mounted on. This amplier is equipped with an
advanced diagnostic system controlled by a microprocessor. In the event that the
unit goes into protection for any reason it will ash a diagnostic code. The different
sequences indicate the “Code” for faster trouble shooting. When the amplier rst
turns on the LED will ash blue. Once the amplier is ready for use the LED light
will change to solid blue. If the amplier is in protection mode (over voltage, under
voltage, DC offset, thermal heating or speaker short) the LED light will ash a red
diagnostic sequence. See troubleshooting section for further detail.

6
1. Channel 3-4 Input Switch – Adjusting this switch to 2 channel input and
connecting only the CH 1/2 inputs allows the amplier to have 4 channel output.
2. Channel 5-6 Input Switch – Adjusting this switch turns on/off the RCA inputs for
channels 5 & 6.
3. Gain Control 1-2 -This is the input sensitivity gain control for channels 1 & 2.
4. Variable Crossover 1-2 – Built in 12db crossover with frequencies between 50Hz
– 250Hz.
5. Crossover Switch 1-2 - The HPF attenuates low frequencies and is used with
mid-range speakers and tweeters. LPF attenuates high frequencies and is used for
subwoofers. This controls channels 1 & 2
6. Gain Control 3-4 – This is the input sensitivity gain control for channels 3 & 4.
7. Variable Crossover 3-4 – Built in 12db crossover with frequencies between 50Hz
– 250Hz.
8. Crossover Switch 3-4 - The HPF attenuates low frequencies and is used with
mid-range speakers and tweeters. LPF attenuates high frequencies and is used for
subwoofers. This controls channels 3 & 4.
9. Gain Control 5-6 – This is the input sensitivity gain control for channels 5 & 6.
10. Variable Crossover 5-6 – Built in 12db crossover with frequencies between
50Hz – 250Hz.
11. Crossover Switch 5-6 - The HPF attenuates low frequencies and is used with
mid-range speakers and tweeters. LPF attenuates high frequencies and is used for
subwoofers. This controls channels 5 & 6.
12. Power LED Indicator and Logo
AMP DIAGRAM WITH LEGEND
Wet Sounds HTX Series Owner’s Manual
1 2 3 4 5 6 7 8 9 10 11 12

1
2
3
4
5 6 7 8
7
1. Fuses – The fuses protect the amplier against internal electrical damage and
are meant to protect the amplier only. All other power connections should be
fused at the source
2. (+) 12 Volt Power – Connect this terminal through a FUSE or CIRCUIT
BREAKER to the positive terminal of the vehicle battery or the positive terminal of
an isolated audio system battery.
3. Remote Turn On – This terminal turns on the amplier when (+) 12 volt is
applied to it. Connect it to the Remote Turn on lead of the head unit or signal
source.
4. Ground – Connect this terminal directly to the battery, using the shortest wire
necessary to make this connection. Always use wire of the same gauge or larger
than the (+) 12 volt power wire.
5. RCA Inputs - RCA Input Jacks—Accepts line level outputs from source units or
signal processors at voltages between 250mV and 6 volts.
6. Speaker Terminal Output Block 1-2 – This is the speaker connecting block for
channels 1 & 2.
7. Speaker Terminal Output Block 3-4 – This is the speaker connecting block for
channels 3 & 4.
8. Speaker Terminal Output Block 5-6 – This is the speaker connecting block for
channels 5 & 6.
AMP DIAGRAM WITH LEGEND
Wet Sounds HTX Series Owner’s Manual

8
Because of the wide range of head unit/radio output congurations all Wet Sounds
ampliers have an adjustable input sensitivity or “GAIN”. The gain is NOT a volume
or a power limiting control similar to a throttle. It makes the amplier more sensitive
to input from the stereo. When the gain is turned up the amplier will reach full
output at lower volume levels on the head unit/radio. Also when the gain is set too
high the amplier becomes much more sensitive to noise from your boats electrical
system.
Adjusting the Gain
You will need a small at head screwdriver and select the style/genre of music
you primarily enjoy listening to.
Here are 3 easy steps to follow.
1. Turn the gain all the way counter clockwise to the “min” point on the amp.
2. Increase the head unit/radio volume to ¾ of the maximum volume output while
paying your favorite style/genre of music.
3. Gently turn the gain clockwise to increase the ampliers output until the
desired level of output is achieved.
**You will repeat these steps for both the front and rear channels
independently**
You should not hear any distortion in your speakers at this level,
if you do, slowly turn down the gain until distortion is no longer
present. If you need further assistance please contact Wet
Sounds Technical Services Department.
Crossover Controls
This amplier is designed to play frequencies between 50 Hz and 250 Hz. The
amplier is equipped 2 different optional settings. High-Pass (HI) or Low-Pass
(LO) (See below)
“High-Pass”
designed to play only the frequencies above where the crossover is set at.
“Low Pass”
designed to play only the frequencies below where the crossover is set at.
Input Selection
SETTING UP THE AMPLIFIER
Wet Sounds HTX Series Owner’s Manual

9
TROUBLESHOOTING
1. Check your fuse and replace if necessary.
2. Conrm your Ground wire has a good connection.
3. Make sure your remote wire and power wire has +12 Volts.
4. Make sure your battery has 12 volts.
5. Conrm that the amplier LED color is blue. If the light ashing is red than the
amplier is in protection mode. If the light is red check the following items below:
A. See what sequence is ashing by referencing the chart below
B. Conrm that a/the speaker is not blown.
C. Conrm that there are no loose wires that could be grounding out the
amplier.
D. Check that the amplier has sufcient air circulation where it is
located. Insufcient air ow and overdriving the audio system could
result in the amplier going into protection to preserve the amplier.
If you are experiencing problems with your amplier after
installation follow these procedures to try and remedy the
problem.
Wet Sounds HTX Series Owner’s Manual
F
or HTX 4, 6 ampliers, a short will only shut down the channels which are in fault. The other channels will
contiunue to play
. After a fault connec
tion is cleared, the error code will continue to ash, while the logo is
still illuminated blue. Please contact Tech Support for additional assistance, questions, etc.
Wet Sounds HTX Fault Codes
Circuit Board

10
When connecting two speakers in bridged mode on channels 1-4 on the HTX-
4 or HTX-6, the left and right RCA’s must be split to retain stereo separation.
This means you will have left audio out of the left speaker and right audio out
of the right speaker. You must also switch to 4CH on the input mode section
of the control panel on top of the amplier (See the switch image below for an
example). If you choose not to congure using this method and just use 2CH
mode, then both speakers will play in mono and not stereo.
Two dual male RCA Y-Splitters are
required for this conguration.
Please contact Wet Sounds Technical Support at 877.938.7757 if you need
any assistance or how to bridge your HTX Series Amplier.
HTX-6 Control Panel
Wet Sounds HTX Series Owner’s Manual
BRIDGED AUDIO RCA CONFIGURATION
HTX-4 Connection Panel

11
Wet Sounds HTX Series Owner’s Manual

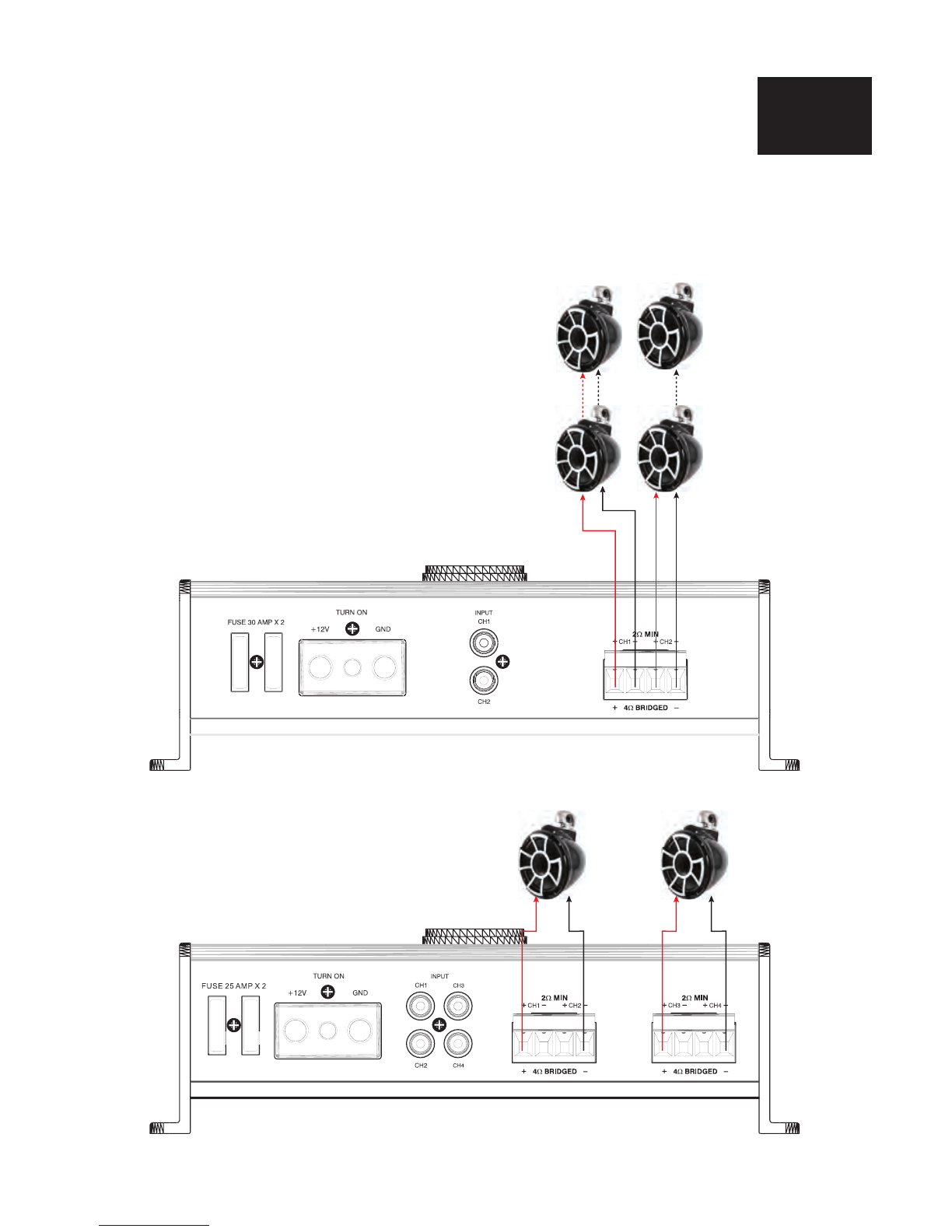

SAMPLE SYSTEM SETUPS
HTX-2
HTX-4

12
Wet Sounds HTX Series Owner’s Manual
HTX-6
HTX-6

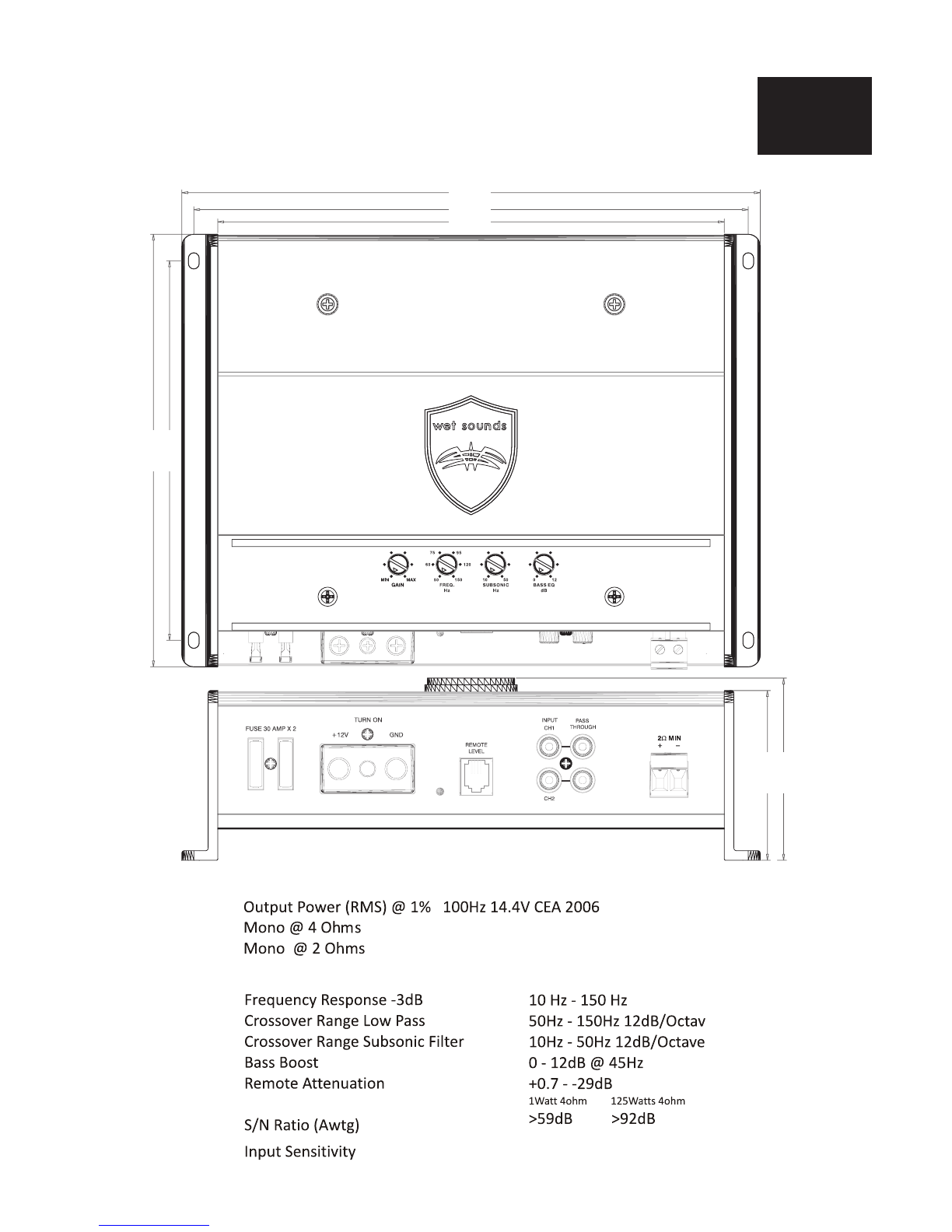

HTX-1 SPECS
HTX-1
330W X 1 @ <1.0% THD
650W X 1 @ <1.0% THD
0.2V-6.0V
Wet Sounds HTX Series Owner’s Manual
13
9.527”
9.134”
8.346”
7.126”
6.25”
2.79” 3.00”

HTX-2 SPECS
HTX-2
150W X 2 @ <1.0% THD
300W X 2 @ <1.0% THD
0.2V-6.0V
STEREO
STEREO
600W X 1 @ <1.0% THD
MONO 4
20Hz-20KHz
600W X 1 @ <1.0% THD
50Hz-250Hz
50Hz-250Hz
60dB 90dB
Wet Sounds HTX Series Owner’s Manual
14
9.527”
9.134”
8.346”
7.126”
6.25”
2.79” 3.00”

4x100
4x150
2x300
HTX-4
Wet Sounds HTX Series Owner’s Manual
15
HTX-4 SPECS
9.527”
9.134”
8.346”
7.126”
6.25”
2.79” 3.00”

13.23”
12.83”
12.05”
7.126”
6.25”
2.79”
3.00”
3.00”
0.512”
6x100
6x150
3x300
Wet Sounds HTX Series Owner’s Manual
16 HTX-6 SPECS
13.23”
12.83”
12.05”
7.126”
6.25”
2.79” 3.00”

LIMITED WARRANTY
Length and limits of Warranty
Wet Sounds warrants this product to be free of defects in material or workmanship
for (1) year from the date of purchase. Wet Sounds warranty applies exclusively
to the original purchaser, not transferable and the amplier must be purchased
from an Authorized Wet Sounds Retailer within the United States. All products
purchased outside of the United States are covered by the Authorized Distributor
or OEM supplier. Any and all warranties not to exclude merchantability or tness
are limited in the duration to 1 year. This warranty gives you specic legal rights,
and those rights may vary from state to state.
Items not covered
• Serial numbers that are defaced, altered or removed.
• Any product purchased outside the United States.
• Any cost related to removal, installation, shipping of the product.
• Damage caused by abuse or accident, theft, water, shipping or neglect.
• Service performed by anyone other than Wet Sounds or a Authorized Wet Sounds
Service Center.
• Subsequent damage to any other components.
• Misrepresentations by the seller.
• Failure to follow installation instructions.
• Cosmetic damage.
Obtaining Service
Should service be necessary Wet Sounds (at its discretion), replace or repair
the defective equipment with new or refurbished product. To receive service the
original invoice of purchase with the customer name, product purchased, retailer
name and address with date of purchase, must be provided to obtain warranty
service. Contact Wet Sounds directly at 1-877-938-7757 contact customer service
to obtain RA # (Return Authorization). You are responsible for the shipping of the
product to Wet Sounds.
Wet Sounds HT-X Series Owner’s Manual
17

Wet Sounds HT-X Series Owner’s Manual
WET SOUNDS INC.
www.wetsounds.com
877-938-7757
10621 S Sam Houston PKWY W • Suite 100
Houston, Texas 77071
USA
18
