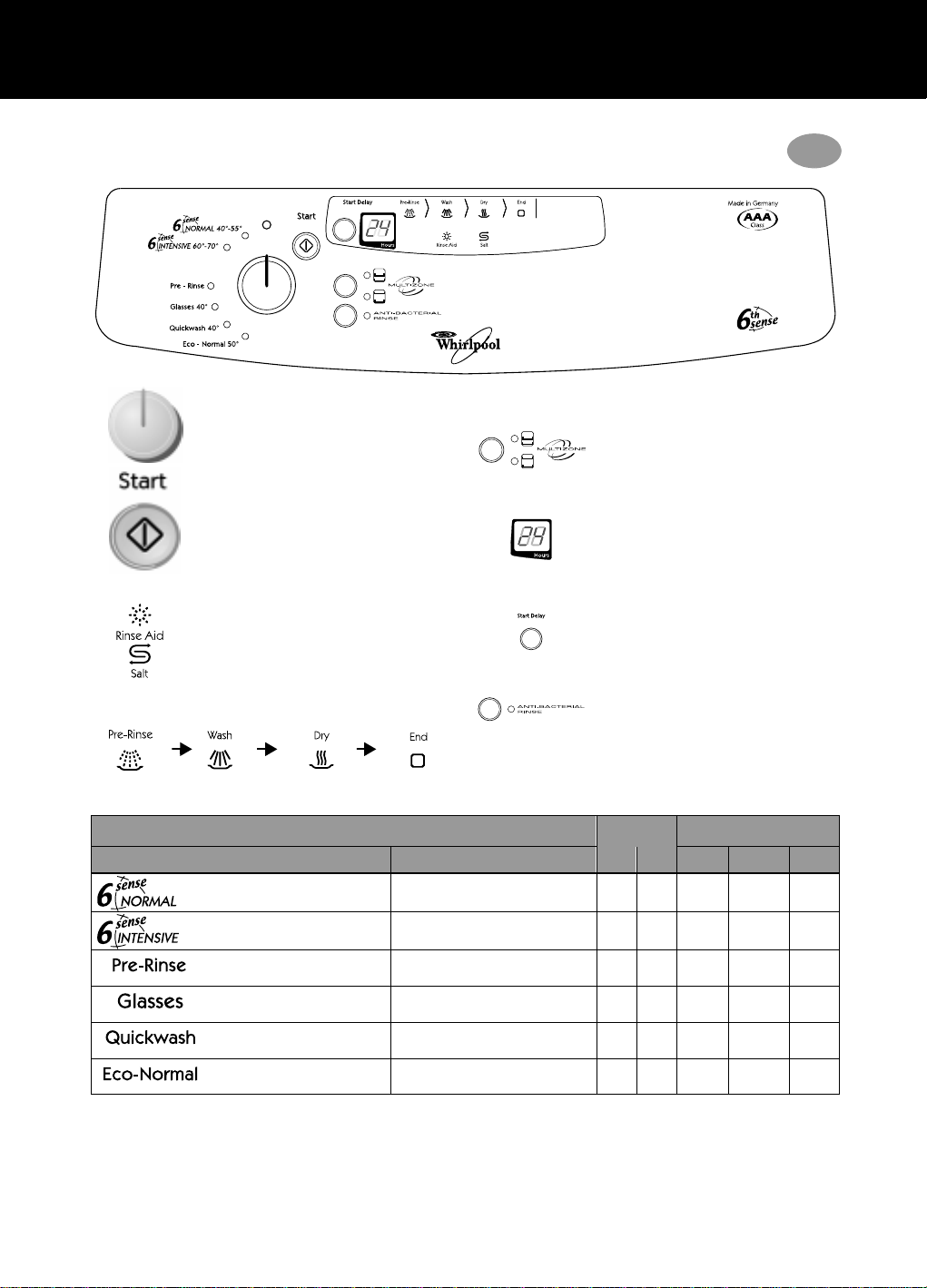

ADP 7966 Quick Reference Guide
Before using the dishwasher, read the user instructions!
WH/I/K/GB
(We reserve the right to make technical modifications)
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately before
starting a wash programme.
“Half load - Multizone” button
Load the upper or lower rack only.
This function can be used with any programme.
When washing without the top rack, press the
“Half Load” button twice, or “Lower rack wash”
(relative LED lights up).
Time and failure display 3)
Indicates in hours the time remaining until the start of
the wash cycle. Switches off when the programme has
started. Toward the end of the programme, during the
drying cycle, the display will indicate the time
remaining in minutes.
“F....” Identification of faults for service technician
“Delayed start” button
The wash cycle can be programmed to start after
1 - 24 hours. With each successive touch of the button,
the delayed start indicator increases by 1 hour, and
after 24 returns to 00. Then press the Start button. The
dishwasher will start at the set time.
Antibacterial rinse 4)
This function adds an antibacterial rinse at the end of
the wash cycle, thereby guaranteeing a perfectly clean
and sanitized load. The lamp will light up when the
function is activated. If the temperature is not
maintained during the antibacterial cycle (e.g. if the
door is opened and remains open for a long time), the
lamp will start blinking to indicate that sanitation is
not guaranteed.
1) Reference programme for energy label in compliance with EN
50242 regulations;
2) Refer to “User instructions“;
3) Program data obtained in conformity with European standard EN
50242. Values may vary in relation to usage, e.g.: different
loads, water temperatures - above or below 15°C - as well as
water hardness and power supply voltage, etc.
4) The bacteria removal efficiency has been tested by
the Institut Pasteur de Lille (France), based on the
NF EN 13697 standard of November 2001.
5) These programmes can be used with the Antibacterial rinse
option.
Program selector knob
Mains On / Off
Start button
Switches “on” when the dishwasher is operating.
Flashes when a fault occurs. Switches off at the end
of the programme.
Indicators
Wash cycle
Pre-Rinse Washing Drying Programme
end
Options
Programme chart Detergent 2) Consumption 3)
Programmes Loading instructions A B Litres kWh Minutes
Sensor Normal 5) 40-55°C Automatic programme recommended for
routine washes, with no dried-on or burnt
food (not for EN 50242). X X 10.0-13.0 0.80-1.05 50-110
Sensor Intensive 5) 60-70°C Automatic programme recommended for
heavily soiled crockery with dried-on or
burnt food, for example pans and saucepans. X X 13.0-20.0 1.10-2.00 90-140
Pre-Rinse cold Crockery to be washed later. - - 4.0 0.03 14
Glasses 40°C Light soiling, for example glasses and cups. X - 10.0 0.80 55
Quickwash 40°C Lightly soiled crockery with no dried-on
food. X - 10.0 0.65 30
Eco-Normal 1) 5) 50°C Normally soiled crockery. X X 13.0 1.05 120
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “[email protected].com”.

WH/II/K/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Automatic start by turning the programme selector knob (in case of
retractable knob, first press the knob to access it).
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Select the desired programme.
The corresponding indicator lamp comes on.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
Only after the START button has switched off: Access the knob (in case of
retractable knob, press and then release the knob).
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
Switch on the appliance
How to fill the
detergent dispenser ABC
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Select options
Press the Start button
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks

WH/III2/GB
Dishwasher loading instructions and racks provided
Upper rack: depending on the model
Multi-purpose support (A): 1)
Depending on the position, for long-
handles utensils, cups and glasses. May
be used in three different positions.
Crockery holders (B):
Depending on the position, for example
plates, cups and long-stemmed glasses.
Revolving glass support (C): 2)
Depending on the position, for example
small or long-stemmed glasses.
Half Load:
Load the upper rack only.
Place the cutlery basket (D) in the
upper rack.
Rack height adjustment
(also when loaded):
•Lower adjustment: pull out the
two rack handles outwards (E)
and lower the rack.
•Upper adjustment: pull the two
handles (E) upwards until the rack
clicks into place (Factory setting).
The rack must be level on both
sides.
Removing the top rack to provide
clearance for large items of
crockery in the bottom rack:
Open the rack guide retainers (F) on
the right and left and remove the top
rack.
When the upper rack is in place the
retainers must always be closed.
Lower rack:
Depending on the model with fixed or
tilting plate holders (G).
Half Load:
Load the lower rack only.
Greater washing power, particularly
for plates and saucepans.
Cutlery basket (J) or (H):
Some models are provided with a grid
(I) that can be fitted onto the cutlery
basket to keep items separated.
Cutlery basket (D) for appliances with
half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the handles
positioned upwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a
dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.
Spare parts which are sold separately:
1) Multi-purpose support (A) - N. AMH 369 series.
2) Revolving glass support (C) - N. WGH 1000 series.
FF
Retainer
closed Retainer
open

WH/IV/GB
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem
(* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working • No water supply. • Open the tap.
• The appliance does not load
sufficient water. • Clean the water supply tap filter. • Ensure there are no kinks in the water hose.
• There is a power failure. • Insert the plug into the mains socket.
• Press the Start button.
• Close the door.
• Check the domestic circuit fuse.
• Starting the selected programme. • The programme can be set to “0” to start.
If crockery is not
perfectly dry • Insufficient rinse aid. • Increase dosage *.
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean • The water jet does not reach
the crockery. • Arrange crockery so that items do not touch each other.
Load crockery upside down.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
Sandy or grainy residues • Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
Colour of plastic parts
faded • Tomato/carrot juice,... • Depending on the material, if necessary use a
detergent with a greater whitening power.
Deposits on crockery
• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• not removable • Insufficient water softening,
calcium deposits. • Change water hardness setting, if necessary add salt *.
Opaque glasses/ glasses
not sparkling • Cannot be washed in the dishwasher. • Use suitable glasses.
Rust on cutlery • Not made of stainless steel. • Use suitable cutlery.
Identifying appliance
faults • The START indicator lamp flashes. • Ensure that the filter assembly is not clogged and
if necessary clean it *.
Start the programme again. Press the Start button for
2 seconds, until the Start indicator lamp switches
off. Select a new programme and press the Start
button again.
• Indicator F... (if provided). • Call the After-Sales Service.
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the
water supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating
plate) inside the door on the right-hand side.
