Whirlpool FD 502.627.92 Operating and installation instructions

SERVICE Whirlpool EMEA
Customer Services 502.627.92
Service Information
Dishwasher integratable FD
502.627.92
8510 020 53000
Last Modification: 05/16/13
Creation Date: 03/21/13
Spare Part List 2
Exploded View 5
Technical Data 10
Circuit Diagram 13
Program Chart 15
Testprogram 16
Error Codes 19
This document is only intended for qualified technicans who are aware of the
respective safety regulations.
Subject to modifications
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 2 of 23
Spare Part List
Pos 12NC Description
1040 4810 104 65798 Door outer BI regular
1041 4812 404 49876 Fastener door
1042 4812 404 48633 Fastener
1054 4810 729 00781 Template Atlantic
1210 4801 401 02018 Door inner Atlantic
1300 4810 103 80263 Door latch Atlantic
1310 4801 401 02029 Hook ,lock
1600 4812 440 89138 Plinth w/o hole sheet
1620 4812 440 11467 Side panel left metallic
1621 4812 440 11466 Side panel right metallic
1830 4810 104 75355 Crossbar
1840 4812 440 11463 Drip tray assy
1841 4812 401 18402 Holder
1850 4812 505 18418 Foot long
1851 4812 528 98004 Shaft flexible
1852 4812 528 78032 Slide disc f.foot
1853 4812 535 98054 Gear
1854 4812 528 98001 Roll f.foot
1880 4810 105 17344 Hinge kit
1883 4812 492 38362 Spring f.door
1884 4812 401 18707 Band, brake
1885 4812 404 48746 Brake f.door
1886 4812 404 68023 Hook
1910 4812 466 68564 Gasket door
1912 4812 466 68912 Gasket door lower (TCP)
2030 4812 466 48051 Insulation without outcut
2338 4810 104 18168 Handle PREMIUM - OBI 2 rack
2410 4810 104 43487 Basket upper OBI2 fix frame
2413 4812 528 88113 Wheel basket upper 10809 4pcs.
2415 4810 104 41560 Basket lower ass.OBI2,2fold
2421 4812 528 88112 Wheel basket lower 10809 8pcs.
2423 4812 535 78098 Bearing
2430 4810 104 83607 Cutlery basket with cover
2436 4801 401 02569 Grille
2447 4810 103 92213 Cup holder OBI
2448 4810 103 92013 Clip Cup holder OBI
2469 4810 103 92219 Plate support OBI row long left LR
2470 4810 103 92218 Plate support OBI long right LR
2610 4810 726 58781 Rail for basket inner
2611 4812 462 79768 Cap rail rear 10809
2612 4812 462 79986 Cap rail front swinging 10809
2613 4812 310 48026 Service kit balls plas
2614 4810 104 41532 Ball cage cpl.(with balls)
2650 4812 404 49712 Basket adjustm. VBL cpl.gr.10809
2652 4812 404 48934 Grip basket adj.VBLgr.10809
3010 4810 104 43873 Control panel with inlay compl.
3320 4801 401 02616 Light guide
4000 4810 105 14599 Spray pump SKIT 1ph Alu MP 220-230V 50Hz
4210 4812 121 18276 Interf.filter
4300 4810 104 78045 Pump draining R 2.5 220-240V 50Hz
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 3 of 23
Pos 12NC Description
4301 4810 726 51921 O-Ring
4500 4840 000 00610 Kit Heating element 210-240V 2kW
4501 4801 401 00778 Kit Outlet long (MPH-VSM) OPI
4800 4810 105 18909 Cable harness service kit
4803 4801 401 00687 Protector f.wiring
4900 4812 321 18051 Cable mains
4901 4812 321 28367 Strain relief
5210 4810 105 41016 Control board (CB) progr. YODA+
5211 4801 401 02021 Connector ,brace YODA
5213 4810 104 57072 Control board (CB) eSAM basic Yoda
5710 4801 401 02032 Valve ,inlet Rast 2,5
6162 4801 401 02393 Contact reed , flowmeter
6800 4801 401 01374 Combidosage new dispenser
6801 4801 401 01607 Gasket (13000419)
6802 4801 401 01608 Gasket (13000421)
6803 4801 401 01606 Push button (12006440)
6910 4812 282 68051 Resistor NTC
7010 4819 530 28926 Hose inlet 2.5 m (Eltek)
7011 4812 310 18302 Yoke
7220 4812 360 68689 Spray arm; lower. cpl. sa
7222 4810 726 46731 Manifold ASM middle spray arm adj.
7261 4810 726 46711 Tube ASM 2level
7500 4810 726 09751 Reg.dosage
7501 4801 401 02392 O-Ring ,reg. dosage
7502 4812 462 78994 Cover reg.dos. gr.10809
7510 4812 418 18598 Water collector
7511 4812 532 68099 Gasket
7550 4810 104 60199 Bow SUCTION BOW
7551 4812 530 28102 Hose inlet
7552 4812 530 48148 Tray,leak
7630 4812 480 58407 Sieve coarse Microban nept.
7631 4812 480 58122 Sieve fine
7632 4810 104 57747 Cover sieve - hybrid
7633 4810 104 57746 Cover hybrid
7634 4812 530 58141 O-Ring
7810 4812 530 29113 Hose,draining
7813 4812 281 28417 Flap non-return
7836 4810 726 29041 Connector tube
9001 4810 725 69521 Accessories set (FDIK2LA)
9010 4812 401 18709 Clamp hose S10-16/9-C7W1
9011 4812 401 18708 Strap 050,0
9012 4812 401 18705 Strap 033,1
9012 4810 104 58033 Clamp STEPLESS EAR CLAMP
9013 4812 401 18806 Strap 47,0 mm
9015 4812 401 48588 Strap 028,6
9018 4812 401 18711 Clamp hose 25-29
9040 4810 104 54124 Plug for tub hole
9100 4812 404 78241 Holder
9101 4812 502 18394 Screw 3,5x17-H
9102 4812 502 18363 Screw 4,0x12-H
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 4 of 23
Pos 12NC Description
9103 4812 502 18527 Screw 4x15 T20; 4x15 T20
9104 4812 502 18741 Screw M3,5x8-T15M
9105 4812 502 18739 Screw 3,5x8 Tx15
9107 4812 502 18397 Screw INOX A2 M 5x14 TX20
9108 4812 502 18389 Screw 5x20 T20
9109 4812 401 18706 Screw 2,5x15-H
9500 4812 466 68867 Batten
9501 4812 466 68504 Gasket
9931 4812 466 78388 Foil protection
9932 4812 404 48753 Key foot
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 5 of 23
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 6 of 23
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 7 of 23
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 8 of 23
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 9 of 23
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 10 of 23
Technical Data
Model
........................................................................................AtlanticHybrid dishwaher-Yoda+
Dimensions + Weight
Product dimensions
Height ........................................................................................... 82 -90cm
Width ...............................................................................................59.7 cm
Depth ...............................................................................................55.5 cm
Weight
net ...............................................................................................36.2 kg
Wooden door for Full Door appliances
Thickness
max. ..............................................................................................19 mm
max. .................................................................................. 30 mm sculptured
Width .........................................................................................592 - 595 mm
Height
max. ............................................................................................718mm
Weight
max. ................................................................................................8kg
Max. stickout overlower edge of appliance door .....................................................92 mm
Height of plinth
min. ..............................................................................................93 mm
Programs
see program diagram
Permanent washing system
Program .................................................................................................ID: 5B
Successionofprograms ...................................................P1a P3a P5k -> SR P7c -> SRP12b
Referenceprogram .........................................................................................P5k
Spray arm
Rotations
Spray arm lower .................................................................................30 - 40rpm
Spray arm upper ................................................................................30 - 40 rpm
Water Level
Measuring the level
Remove the coarse sieve, put in a measuring meter into the sump, measure the hight of the water level.
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 11 of 23
Water Volume Level
Back rinse 3x 1.0 l 60 mm
Prewash 4.8 l 120 mm
Main wash 4.2 l 118 mm
Intermediate rinse 1 4.2 l 118 mm
Intermediate rinse 2 4.2 l 118 mm
Clear rinse 4.2 l 118 mm
Safety/ overflow 8.5 l 141 mm
Electrical base data
Voltage .....................................................................................230 - 240 V / 50 Hz
Total power ............................................................................................. 2.2 kW
Fuse ......................................................................................................10 A
Motor
Colourcode .........................................................................................labelwhite
Voltage .......................................................................................220 - 230 V ±6%
Frequency ............................................................................................... 50 Hz
Nominalconsumption .....................................................................................72 W
Nominal current ......................................................................................... 0.52 A
Windingresistance(T=20°C) .......................................................................48.8 Ω±5%
Flow rate ..................................................................................55 l/min @ 270 mbar
Heating element
Voltage ......................................................................................210 - 240 V / 50Hz
Heatingresistances ..................................(T=20°C) ..................................23.5 - 25.9 Ω
Power Consumption
230 V 2040 W ±5%
240 V 2220 W ±5%
210 V 1700 W ±5%
Safety thermostat
Combination part of
Temperature control ..........................................................................98°C ±5°C
Thermal fuse ............................................................................... 206°C -10°C
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 12 of 23
NTC
20 °C 58.1 kΩ
25 °C 47.1 kΩ
30 °C 38.2 kΩ
40 °C 25.4 kΩ
50 °C 17.2 kΩ
60 °C 11.8 kΩ
70 °C 8.3 kΩ
80 °C 6 kΩ
85 °C 4 kΩ
Single electric water inlet valve
Voltage ..............................................................................................220/ 240 V
Frequency ............................................................................................50/60Hz
Resistance .............................................................................................3.76 kΩ
Inletpressure .......................................................................................0.3 - 10 bar
Drain pump motor
Voltage .....................................................................................220 - 240 V / 50 Hz
Power Consumption ...................................................................................... 30 W
Resistance ...............................................................................................146Ω
Coil of dispenser
Voltage ..............................................................................................220/ 240 V
Frequency ............................................................................................50/60Hz
Resistance ................................................................................................6 kΩ
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 13 of 23

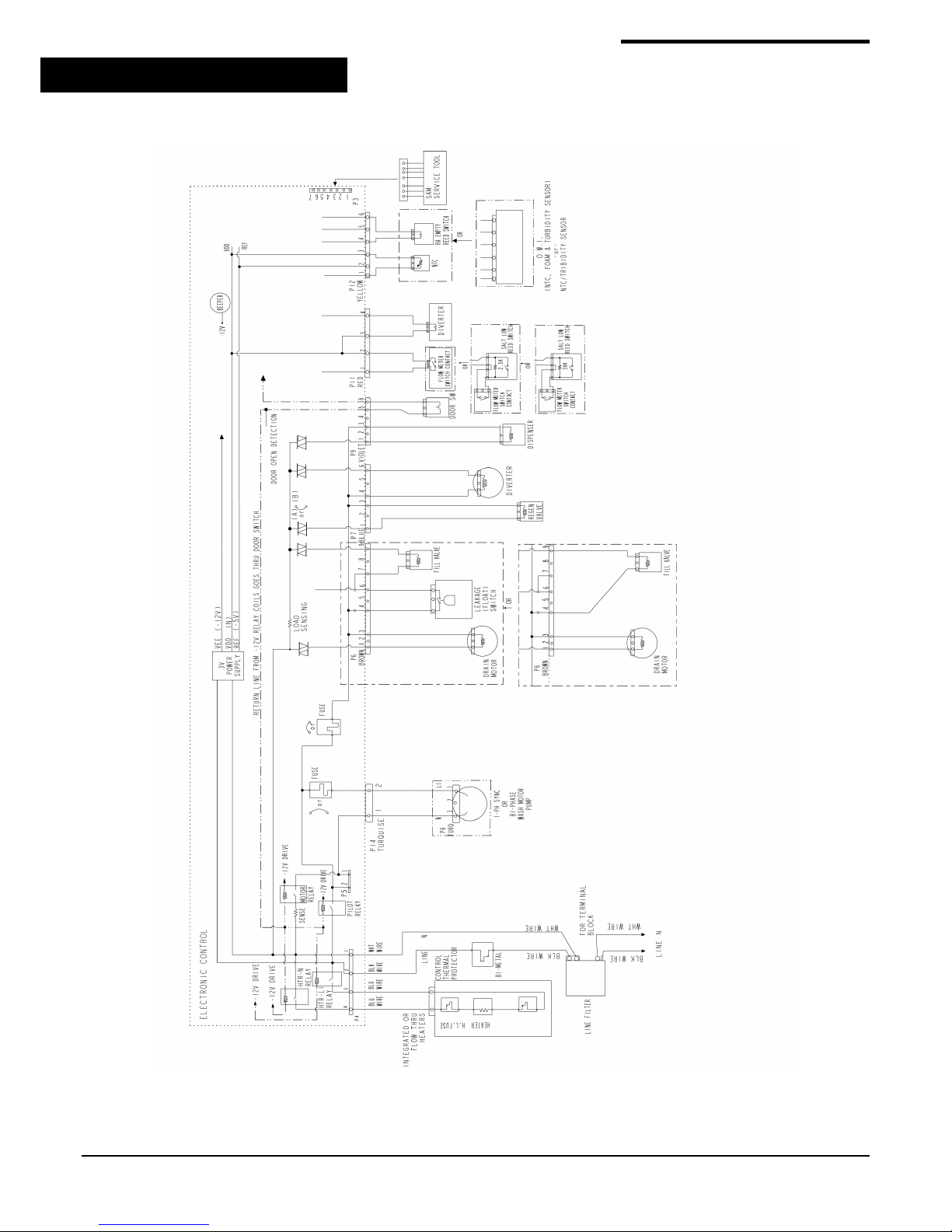

Circuit Diagram
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 14 of 23
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 15 of 23
Program Chart
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 16 of 23
Testprogram
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 17 of 23
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 18 of 23
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 19 of 23
Error Codes
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8510 020 53000, 05/16/13
page 20 of 23
© Whirlpool EMEA www.scc-service.com
