Whirlpool GU3100XTVS0 User manual

UNDERCOUN R DISHWASHER
INST TION INSTRUCTIONS
INSTRUCTIONSD'INSTALIATIONDU[AVE.
VAISSEILE ENCASTRE
_be of ........_o_ " ksDe des mcs et_es
C,o__es s/__,_ _, _,o,,
DISHWASHER SAFETY ............................................................................. 2
INSTALLATION REQUIREMENTS ........................................................... 3
Tools and Parts ....................................................................................... 3
Location Requirements ........................................................................... 3
Electrical Requirements .......................................................................... 5
Water Supply Requirements ................................................................... 5
Drain Requirements ................................................................................ 5
INSTALLATION INSTRUCTIONS ............................................................. 6
Prepare Cabinet Opening--Existing Utility Hookups ............................. 6
Prepare Cabinet Opening--No Existing Utility Hookups ....................... 8
Install Dishwasher ................................................................................. 11
Make Electrical Connections--Direct Wire Method ............................. 13
Make Electrical Connections-- Power Supply Cord Method ............... 13
Connect Dishwasher to Water Supply ................................................. 14
Connect Dishwasher to Drain ............................................................... 14
Attach Dishwasher to Cabinet .............................................................. 15
Complete Installation ............................................................................ 15
SI_CURITI_ DU LAVE-VAISSELLE .......................................................... 17
EXIGENCES D'INSTALLATION .............................................................. 18
Outils et pieces ..................................................................................... 18
Exigences d'emplacement ................................................................... 18
Specifications _lectriq ues ..................................................................... 20
Specifications de I'alimentation en eau................................................ 20
Exigences d'evacuation ........................................................................ 21
INSTRUCTIONS D'INSTALLATION ....................................................... 21
Preparation de I'ouverture d'encastrement du placard
- Moyens de raccordement preexistants ............................................. 21
Preparation de I'ouverture d'encastrement du placard-
Sans moyens de raccordement preexistants ..................................... 23
Installation du lave-vaisselle ................................................................. 27
Raccordement _lectrique - Methode de raccordement direct ............ 29
Raccordement 61ectrique - Methode avec cordon
d'alimentation _lectrique ...................................................................... 29
Raccordement du lave-vaisselle &I'alimentation en eau ..................... 30
Raccordement du lave-vaisselle au circuit d'evacuation .................... 30
Fixation du lave-vaisselle au placard ................................................... 31
Achever I'installation ............................................................................. 32
IM PORTANT:
Save for local electrical inspector's use.
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
IMPORTANT :
Conserver pour consultation par I'inspecteur local des installations electriques.
Installateur :Remettre les instructions d'installation au proprietaire.
Propri_taire : Conserver les instructions d'installation pour ref6rence ulterieure.
Models/Modeles GU3100XTVB GU3100XTVQ GU3100XTVS
W10167841A

DISHWASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
You need to:
• Slowly open dishwasher door while someone grasps the rear
of the dishwasher. Remove shipping materials. Close
dishwasher door. Latch the dishwasher door shut.
• Observe all governing codes and ordinances.
• Install this dishwasher as specified in these instructions.
• Have everything you need to properly install dishwasher.
• Contact a qualified installer to ensure that dishwasher is
installed to meet all electrical and plumbing national and local
codes and ordinances.
2

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools Needed
Phillips screwdriver
Flat-blade screwdriver
8/16"and 1¼.nut drivers
Measuring tape or ruler
1/2",3/4"and 11/2"(1.3 mm,
1.9 mm and 3.8 cm) hole
saw bits
Twist-on wire connectors
(proper size to connect
household wiring to
16-gauge wiring in
dishwasher) (2)
• 6" (15.2 cm) adjustable
wrench
• Small tubing cutter
• Level
• Cordless drill
• 1/8"drill bit
• Flashlight
• Shallow pan
• Wood block
• Bath towel
Parts Needed
• 90° elbow with 3/8"N.P.T.
external threads on one
end
NOTE: The other end
must fit the water supply
line.
• Thread seal tape
• 3 UL listed wire nuts
• Copper tubing
(3/8"recommended)
1V2"to 2" (3.8 cm to
5.1 cm) screw-type clamp
Clamp connector to fit 7/8"
(22.2 cm) diameter hole
1V2"to 2" (3.8 cm to
5.1 cm) screw-type clamp
if connecting to waste-tee
Parts Supplied
Check that all parts are included. See separate parts list for
accessories available for your dishwasher.
A B
A. #8 x_" Phillips flat-head wood screws
B. Phillips color-matched toekick screws
Locc on eme sis
IMPORTANT: Observe all governing codes and ordinances.
Failure to meet codes and ordinances could lead to fire or
electrica( shock.
Proper installation is your responsibility.
• Contact a qualified installer to ensure that the dishwasher is
installed to meet all electrical and plumbing national and local
codes and ordinances.
• Install the dishwasher as specified in these instructions.
• Have everything you need to properly install dishwasher.
• Shelter dishwasher and water lines leading to dishwasher
against freezing. Damage from freezing is not covered by the
warranty.
This dishwasher is manufactured for indoor use only.
Do not run drain lines, water lines or electrical wiring where
they can interfere with or contact the dishwasher motor or
legs.
The location where the dishwasher will be installed must
provide clearance between motor and flooring. Motor should
not touch the floor.
• Do not install dishwasher over carpeted flooring.
Minimum Clearances
Check location where the dishwasher will be installed, the location
must provide:
• Easy access to water, electricity and drain.
• Convenient access for loading and unloading dishes. Corner
locations require 2" (5.1 cm) minimum clearance between the
side of the dishwasher door and the wall or cabinet.
A
A minimum of 25%" (65.1 cm) is required in front of the
dishwasher to allow the door to open fully.
Ic
'. k D
A. 2" (5.1 cm) minimum clearance
for door opening
B. Dishwasher
C. Countertop
D. 25 _" (65.1 cm) minimum
• Square opening for proper orientation.
• Cabinet front perpendicular to floor.
• Level floor. Ifthe floor at the front of the dishwasher is not level
with the rear of the opening, shims may be needed to level the
dishwasher.
NOTE: To avoid shifting during dishwasher operation, shims
must be securely attached attached to the floor.
If the dishwasher will be left unused for a period of time or in a
location where it may be subject to freezing, have it winterized by
authorized service personnel.
Make sure pipes, wires and drain hose are within the shaded area
shown in the "Cutout dimensions" section.
Helpful Tip: Ifthe floor in the dishwasher opening is uneven
(example: tile flooring only partway into opening) you will need to
be accurate when measuring the dimensions and in leveling the
dishwasher.

Product Dimensions
Side View
_, 24" (61cm)*
U
_201/£' (52.1 cm) _'_1
321,_'' to 341/2''
82.6 to 87.6 cm)
* To front of door frame
Rear View
24" (61 cm)
max.
Installation Clearances
Cutout Dimensions
A
24 (61 cm)
maximum
34"to35"*
(86.4 cm to88.9cm
(61cm)
minimum
(15.2cm)
A. All surfaces free from intrusions
* Underside of countertop to floor
NOTES:
• Cut holes in shaded area of cabinet walls or floor for plumbing
and electrical service.
• ADA installation--321W' (82.5 cm) beneath 34" (86.4 cm) high
countertops may be accomplished by adjusting the toekick
and leveling legs.

Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to folow these instructions can result in death,
fire, or electrical shock.
GROUNDING iNSTRUCTiONS
m
m
For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The dishwasher is
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and
ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or
service representative if you are in doubt whether the
dishwasher is properly grounded. Do not modify the
plug provided with the dishwasher; if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
For a permanently connected dishwasher:
The dishwasher must be connected to a grounded
metal, permanent wiring system, or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the dishwasher.
SAVE THESE iNSTRUCTiONS
Contact a qualified electrician.
Ensure that the electrical installation is adequate and in
conformance with all national and local codes and ordinances.
Requirements:
• 120-volt, 60 Hz, AC-only, 15- or 20-amp fused electrical
supply
• Copper wire only, 2 wire with ground
Recommended:
• Time-delay fuse or circuit breaker
• Separate circuit
Direct Wire Connection
• Use flexible, armored or nonmetalic sheathed, copper wire
with grounding wire that meets the wiring requirements for
your home and local codes and ordinances.
• Use strain relief method provided with house wiring junction
box or install a UL-listed/CSA-certified clamp connector to the
house wiring junction box. If using conduit, use a
UL-listed/CSA-certified conduit connector.
Power Supply Cord Connection
Use Power Supply Cord Kit (Part Number 4317824) marked for
use with dishwashers. Kit contents include:
• Voltex, Inc., UL listed 16 gauge 3-wire power supply cord with
3 prong grounding plug
• Neer C-500 7/8"strain relief
• 3 wire connectors
• Part No. 302797 grommet
Follow the kit instructions for installing the power supply cord.
NOTE: Power supply cord must plug into a mating three prong,
grounded outlet, located in the cabinet next to the dishwasher
opening. Outlet must meet all local codes and ordinances.
IMPORTANT: If you plan to install a garbage disposal, an
additional separate 120-volt, 60 Hz, AC-only, 15- or 20-amp fused
electrical supply is required.
• A hot water line with 20-120 psi (138-862 kPa) water pressure.
• 120°F (49°0) water temperature at dishwasher.
• 3/8"O.D. copper tubing with compression fitting or flexible
braided water supply line.
NOTE: Y2"minimum plastic tubing is not recommended.
• 90° elbow with %" N.RT. external pipe threads on one end.
IMPORTANT: Do not solder within 6" (15.2 cm) from water inlet
valve.
• Use the new drain hose supplied with your dishwasher.
NOTE: If a longer drain hose is required:
• Use a new drain hose with maximum length of 10 ft (3 m)
that meets all current AHAM/IAPMO test standards
• Use a new drain hose that is resistant to heat and
detergent
• Use a new drain hose that fits the 1" (2.5 cm) drain
connector on the dishwasher.
• Connect drain hose to waste tee or disposal inlet above drain
trap in house plumbing.
• Connect drain hose to house plumbing 20" (50.8 cm)
minimum above the floor.
NOTE: It is recommended that the drain hose either be looped up
and securely fastened to the underside of the counter, or be
connected to an air gap.
• Use a drain air gap if the drain hose is connected to house
plumbing lower than 18" (45.7 cm) above the subfloor or floor.
Drain Air Gap
• Use V2"(1.3 cm) minimum I.D. drain line fittings.
NOTE: Do not connect drain lines from other devices to the
dishwasher drain hose.

INSTALLATIONINSTRUCTIONS
Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
1. Disconnect power.
2. Turn off water supply.
Follow the steps in this section ifyou are installingthe dishwasher
in an existing cabinet opening with utility hookups.
1. Check that the water supply line reaches to the front left-hand
side of the opening where the water connection will be made.
2. Check that the direct wire reaches to the front right-hand side
of the opening where the electrical connection will be made.
1A
B
A. Water supply line
B. Direct wire
IMPORTANT: Always use a new drain hose even when installing
a new replacement dishwasher.
3. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on
the side of the opening closest to the sink.
Connect Drain Hose to Air Gap--Waste Disposal
1. Remove the waste disposal knockout plug. Cut the end of the
drain hose, if needed.
NOTE: Do not cut the ribbed section.
2=
3=
Attach the drain hose to the air gap with the large spring-type
clamp.
NOTE: If the drain hose was cut, use 11/2"to 2" (3.8 to 5 cm)
screw-type clamp (not provided).
Use a rubber hose connector (not provided) with spring- or
screw-type clamps (not provided) to connect the air gap to the
waste disposal inlet above the drain trap and at least 20" (50.8
cm) above the floor.
AB
E
4=
H
A. Drain hose--cut here, if needed
B. Spring- or screw-type clamps
C. Air gap
D. Large spring-type clamp
G F
E.Drain hose
F. Rubber hose connector
G. Disposal inlet
H. Drain trap
Insert the drain hose through the hole cut in the cabinet and to
the center front of the opening where the drain connection will
be made.
A
A. Drain hose
Connect Drain Hose to Air Gap--No Waste Disposal
1. Cut the end of the drain hose, if needed.
NOTE: Do not cut the ribbed section.
6

2=
3=
Attach the drain hose to the air gap with the large spring-type
clamp.
NOTE: If the drain hose was cut, use 1W' to 2" (3.8 to 5 cm)
screw-type clamp (not provided).
Use a rubber hose connector (not provided) with spring- or
screw-type clamps (not provided) to connect the air gap to the
waste tee above the drain trap and at least 20" (50.8 cm)
above the floor.
A
B
C
E
H\
A. Drain hose-- cut here, if needed
B. Spring- or screw-type clamps
C. Air gap
D. Large spring-type clamp
G F
E.Drain hose
F.Rubber hose connector
G.Wastetee
H.Drain trap
4. Insert the drain hose through the hole cut in the cabinet and to
the center front of the opening where the drain connection will
be made.
A. Drain hose
Connect Drain Hose to Waste Disposal--No Air Gap
1. Remove the waste disposal knockout plug.
NOTE: Do not cut the end of the drain hose.
2. Attach the drain hose to the waste disposal inlet with the large
spring-type clamp.
This connection must be before the drain trap and at least 20"
(50.8 cm) above the floor.
NOTE: It is recommended that the drain hose be looped up
and securely fastened to the underside of the counter.
A
B
C
3=
A. Large spring-type clamp
B. Drain hose C. Disposal inlet
D. Drain trap
Insert the drain hose through the hole cut in the cabinet and to
the center front of the opening where the drain connection will
be made. A
A. Drain hose
Connect Drain Hose-- No Waste Disposal or Air Gap
1. Cut the end of the drain hose, if needed.
NOTE: Do not cut the ribbed section.
2. Attach the drain hose to the waste tee with the 11/2"to 2"
(3.8 cm to 5 cm) screw-type clamp (not provided).
This connection must be before the drain trap and at least 20"
(50.8 cm) above the floor.
NOTE: It is recommended that the drain hose be looped up
and securely fastened to the underside of the counter.
A
B C
D
A. Drain hose--cut here, if needed
B. Screw-type clamp
C. Drain hose
D. Drain trap
E. Waste tee

Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
m
m
GROUNDING iNSTRUCTiONS
For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The dishwasher is
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and
ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or
service representative if you are in doubt whether the
dishwasher is properly grounded. Do not modify the
plug provided with the dishwasher; if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
For apermanently connected dishwasher:
The dishwasher must be connected to a grounded
metal, permanent wiring system, or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the dishwasher.
SAVE THESE iNSTRUCTiONS
Install Electrical Connection--Direct Wire Method
1. Drill a3/4"(1.9 cm) hole in the right-hand cabinet side, the rear
or floor of opening.
A B
A. Optional locations
B. Preferred locations
2. If the cabinet is wood, sand hole until smooth. If the cabinet is
metal, cover the hole with a grommet (not provided).
3. Route the wire into the house wiring junction box.
4. Install a UL listed/CSA certified clamp connector (strain relief)
for flexible-type wire.
NOTE: If installing conduit, attach a UL listed/CSA certified
conduit connector to the junction box.
5= Route the other end of the wire through the cabinet hole. The
cable must extend to the right-hand front side of the cabinet
opening.
Install Electrical Connection-- Power Supply Cord
Method
NOTE: A mating, grounded 3 prong outlet is required in a cabinet
next to the dishwasher opening.
1. Drill a3/4"(1.9 cm) hole in the right-hand cabinet side, the rear
or floor of opening.
A B
2=
A. Optional locations
B. Preferred locations
If the cabinet is wood, sand hole until smooth. If the cabinet is
metal, cover the hole with a grommet (Part Number 302797)
included with power supply cord kit.
8

Install Water Line
1. Drill a 1/2"(1.3 cm) hole in the left-hand cabinet side, the rear or
floor of opening.
A B
A. Optional locations
B. Preferred locations
2. Measure the overall length of the copper tubing required.
3. Attach the copper tubing to the water supply line with a
manual shutoff valve.
4=
5=
Slowly feed the copper tubing through the hole in the cabinet.
NOTE: The copper tubing will bend and kink easily.
The copper tubing should be far enough into the cabinet
opening to connect it to the dishwasher inlet on the front left-
hand side of the dishwasher.
Turn on the water shutoff valve. Run water into a shallow pan
to flush the copper tubing of particles that may clog the inlet
valve.
6. Turn off the shutoff valve.
Connect Drain Hose to Air Gap--Waste Disposal
IMPORTANT: Always use a new drain hose even when installing
a new replacement dishwasher.
1. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on
the side of the opening closest to the sink.
2=
3=
Remove the waste disposal knockout plug. Cut the end of the
drain hose, if needed.
NOTE: Do not cut the ribbed section.
Attach the drain hose to the air gap with the large spring-type
clamp.
NOTE: If the drain hose was cut, use 1V2"to 2" (3.8 to 5 cm)
screw-type clamp (not provided).
4= Use a rubber hose connector (not provided) with spring- or
screw-type clamps (not provided) to connect the air gap to the
waste disposal inlet above the drain trap and at least 20"
(50.8 cm) above the floor.
AB
E
5=
H
G
A. Drain hose--cut here, if needed
B. Spring- or screw-type clamps
C. Air gap
D. Large spring-type clamp
E.Drain hose
F. Rubber hose connector
G. Disposal inlet
H. Drain trap
Insert the drain hose through the hole cut in the cabinet and to
the center front of the opening where the drain connection will
be made.
A
A. Drain hose
Connect Drain Hose to Air Gap--No Waste Disposal
IMPORTANT: Always use a new drain hose even when installing
a new replacement dishwasher.
1. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on
the side of the opening closest to the sink.
2. Cut the end of the drain hose, if needed.
NOTE: Do not cut the ribbed section.

3=
4=
Attach the drain hose to the air gap with the large spring-type
clamp.
NOTE: If the drain hose was cut, use 1V2"to 2" (3.8 to 5 cm)
screw-type clamp (not provided).
Use a rubber hose connector (not provided) with spring- or
screw-type clamps (not provided) to connect the air gap to the
waste tee above the drain trap and at least 20" (50.8 cm)
above the floor.
B
E
A. Drain hose-- cut here, if needed
B. Spring- or screw-type clamps
C. Air gap
D. Large spring-type clamp
E. Drain hose
F. Rubber hose connector
G. Waste tee
H. Drain trap
5. Insert the drain hose through the hole cut in the cabinet and to
the center front of the opening where the drain connection will
be made.
A. Drain hose
Connect Drain Hose to Waste Disposal--No Air Gap
IMPORTANT: Always use a new drain hose even when installing
a new replacement dishwasher.
1. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on
the side of the opening closest to the sink.
2. Remove the waste disposal knockout plug.
NOTE: Do not cut the end of the drain hose.
3. Attach the drain hose to the waste disposal inlet with the large
spring-type clamp.
This connection must be before the drain trap and at least 20"
(50.8 cm) above the floor.
NOTE: It is recommended that the drain hose be looped up
and securely fastened to the underside of the counter.
A
B
C
4=
A. Large spring-type clamp
B. Drain hose C. Disposal inlet
D. Drain trap
Insert the drain hose through the hole cut in the cabinet and to
the center front of the opening where the drain connection will
be made.
A
A. Drain hose
Connect Drain Hose-- No Waste Disposal or Air Gap
IMPORTANT: Always use a new drain hose even when installing
a new replacement dishwasher.
1. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on
the side of the opening closest to the sink.
2. Cut the end of the drain hose, if needed.
NOTE: Do not cut the ribbed section.
3. Attach the drain hose to the waste tee with the 11/2"to 2"
(3.8 cm to 5 cm) screw-type clamp (not provided).
This connection must be before the drain trap and at least 20"
(50.8 cm) above the floor.
10

NOTE: It is recommended that the drain hose be looped up
and securely fastened to the underside of the counter.
A
B C
E
A. Drain hose--cut here, if needed
B. Screw-type clamp
C. Drain hose
D. Drain trap
E. Waste tee
[]SB Slq÷tcsSfCl" °
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
Prepare Dishwasher for Installation
1. Using 2 or more people, place the dishwasher on its back on a
piece of cardboard.
2. Using a 1/4"hex socket, nut driver or Phillips screwdriver,
remove the 4 screws attaching the toekick panel and lower
panel to the dishwasher.
A. Screws
3. Remove both panels and set aside on a protected surface.
4. Apply thread seal tape to 90° elbow fitting and connect fitting
to water inlet valve.
5. Tighten elbow until snug.
NOTE: Elbow should face to the rear of the dishwasher.
A. Waterinlet valve
B.Elbow
6. Remove terminal box cover.
7=
• Direct Wire--Install a U.L. listed/CSA certified clamp
connector to the terminal box. If using conduit, use a U.L.
listed/CSA certified conduit connector.
• Power Supply Cord--Install a power supply cord kit that is
U.L. listed and marked for use with dishwashers (Part
Number 4317824).
Measure the shortest opening height between the underside
of the countertop and the floor where the dishwasher will be
installed.
\
8= Extend leveling legs out from the dishwasher base, 1A"less
than the shortest opening height.
A. Leveling leg
11

NOTES:
Check Door Spring Tension
1. Using 2 or more people, place the dishwasher upright in front
of cabinet opening.
2. With one person holding the dishwasher to avoid tipping,
open and close the dishwasher door a few times. If the door
closes easily or falls open under its own weight, adjust the
tension.
If the door closes too quickly, decrease the spring tension
by pulling the spring adjustment pin out of its hole and
reinsert it into the next hole toward the back of the
dishwasher.
If the door falls open, increase the spring tension by
pulling the spring adjustment pin out of its hole and
reinserting it into the next hole toward the top of the
dishwasher.
NOTE: The spring adjustment pins should be in the same holes
on both the left-hand and right-hand sides of the dishwasher.
Move Dishwasher into Cabinet Opening
1= Using 2 or more people, grasp the sides of the dishwasher at
the edges of the door panel and move dishwasher close to the
cabinet opening.
NOTE: Do not push on the front of the panel or on the console
to avoid bending or denting them.
2= If direct wired, check that the power supply wire is on the
right-hand side at the front of the cabinet opening.
If using a power supply cord, insert the power supply cord
through the hole cut in the cabinet wall.
3. Check that the water supply line is on the left-hand side of the
cabinet opening.
4. Check that the drain hose is near the center and to the front of
the cabinet opening.
5. Slowly move the dishwasher into place inside the cabinet
opening with the front corners of the dishwasher door flush
with the cabinet doors.
6=
7.
• Do not kink or pinch the copper tubing, drain hose, power
supply cord or the direct wire between the dishwasher and
the cabinet.
• Do not removed the insulation blanket from dishwasher to
allow the dishwasher to fit easier into the cabinet opening.
The insulation blanket reduces the sound level when the
dishwasher is operating.
If needed, support the front of the dishwasher by raising,
lowering or shimming the front legs.
Remove cardboard from beneath the dishwasher.
Level the Dishwasher
1. Align the front of the dishwasher door panel with the cabinet
doors by adjusting the front legs using the 6" (15.24 cm)
adjustable wrench.
2=
3.
4.
Check that the leveling legs are firmly against the floor.
Close and latch the dishwasher door.
Place a level against the front panel above the leg to check
that the dishwasher is plumb. If needed, adjust the leveling leg
or add shims until the dishwasher is plumb.
NOTE: Shims must be securely attached to the floor to avoid
their movement during dishwasher operation.
5=
6.
J
J
Repeat for the other side of the dishwasher.
Place the level against the top front opening of the tub. Check
that the dishwasher is level from side to side. If the
dishwasher is not level, adjust the front legs up or down until
the dishwasher is level.
12

Co _ _@c_!o ss----[} [®ct
Wie Met!=od
Check "Electrical Requirements" section before beginning.
Ensure that the electrical installation is adequate and in
conformance with all national and local codes and ordinances.
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to folow these instructions can result in death,
fire, or electrical shock.
1. Route the direct wire so that it does not touch the dishwasher
motor or lower part of the dishwasher tub.
2. Pull the direct wire through the hole in the terminal box.
3= Using twist-on connectors sized to connect direct wire to 16-
gauge dishwasher wire, connect the white wire from the
power supply to the white wire on the terminal box.
4. Using twist-on connectors sized to connect direct wire to 16-
gauge dishwasher wire, connect the black wire from the
power supply to the black wire on the terminal box.
5. Using twist-on connectors sized to connect direct wire to 16-
gauge dishwasher wire, connect the ground wires from the
power supply to the green ground connector on the terminal
box.
A. White wire to white wire
B.Ground wiresto green ground connector
C.Grounding screw
D. Black wire to black wire
6. Tighten the clamp connector or conduit connector screws.
7. Reinstall the terminal box cover with the wires inside terminal
box.
8. Check that no wires are pinched by the cover.
Mclk® ElecL:iccxt Conn®ctions--- w®t
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Use Power Supply Cord Kit (Part Number 4317824) marked for
use with dishwashers. Kit contents include:
• Voltex, Inc., UL listed 16 gauge 3-wire power supply cord with
3 prong grounding plug
• Neer C-500 7/8"strain relief
• 3 wire connectors
• Part No. 302797 grommet
Follow the kit instructions for installing the power supply cord.
NOTE: Power supply cord must plug into a mating three prong,
grounded outlet, located in the cabinet next to the dishwasher
opening. Outlet must meet all local codes and ordinances.
IMPORTANT: Ifyou plan to install a garbage disposal, an
additional separate 120-volt, 60 Hz, AC-only, 15- or 20-amp
fused electrical supply is required.
1. Remove the terminal box cover.
13

2,
3,
4,
Using twist-on connectors sized to connect power supply
cord to 16-gauge dishwasher wire, connect the white wire
from the power supply cord to the white wire on the terminal
box.
Using twist-on connectors sized to connect power supply
cord to 16-gauge dishwasher wire, connect the black wire
from the power supply cord to the black wire on the terminal
box.
Using twist-on connectors sized to connect power supply
cord to 16-gauge dishwasher wire, connect the ground wire
from the power supply cord to the green ground connector on
the terminal box.
A
ki'Z
A. White wire to white wire
B. Ground wires to green ground connector
C. Grounding screw
D. Black wire to black wire
5. Reinstall the terminal box cover with the wires inside terminal
box.
6. Check that no wires are pinched by the cover.
7. Plug power supply cord into a grounded 3 prong outlet.
8. Check that the power supply cord does not touch the
dishwasher motor or lower part of dishwasher tub.
1,
2.
3.
Route thewatersupplylineso thatitdoes nottouchthe
dishwasherbase,frameormotor.
Slidethenutonto thecoppertubingabout I" (2.5cm).
Slidetheferruleontothetubing.
NOTE: Do notpositionferruleon theend ofthetubing.
C
B
A_
A. Elbow
B. Ferrule
C. Nut
4. Push the tubing into the elbow as far as it will go.
5. Slide the nut and ferrule forward and start the nut onto the
elbow threads. Avoid bending or kinking the copper tubing.
6. With the copper tubing pushed into the compression fitting as
far as it will go, use a wrench and tighten the compression
fitting nut to elbow on water inlet valve.
NOTE: Do not use Teflon®tape with compression fittings.
A. Water inlet valve
B. Elbow
7. Place paper towel under the elbow.
8. Turn on the water supply.
9. Check for leaks.
1. Route the drain hose so that it does not touch the dishwasher
motor, door springs, water line, cabinet, flooring or the edge of
the hole where it passes through the cabinet.
NOTE: Do not remove the drain loop from the side of the
dishwasher.
2. Place the shallow pan under the end of the drain hose. The
pan will collect any water in the drain hose.
L_
A. Drain hose
....A
3. Cut on the molded end of the drain hose to fit 1" (2.5 cm), 3/4"
(1.9 cm) or %" (1.6 cm) diameter connections on the air gap,
waste tee or waste disposal.
4,
A
i
Ai
A. Cutting lines
If a longer drain hose is required, add up to 42" (107 cm) of
length for a total of 10 ft (3 m) to the factory-installed drain
hose.
NOTE: Total drain hose length must not exceed 10 ft (3 m) for
proper drain operation.
®Teflon is a registered trademark of E.I. Dupont de Nemours and
Company.
14

5,
6,
Using %" or 7/8"I.D. hose and a coupler, connect the 2 drain
hose ends with hose clamps.
_A
A. Hose clamps
B. Coupler
Connect the drain hose to the air gap, waste tee or disposal
with clamps.
Dsh she
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
1. Open the dishwasher door and remove the lower dish rack.
2. Place a towel over the pump assembly and spray arm of
dishwasher to keep screws from falling into pump area during
installation.
3. Check that the dishwasher is level and centered side to side in
the opening.
4. Check that the tub flange aligns with the front face of the
cabinet frame.
5. Attach the dishwasher to the countertop using the 2 brackets
on top of the dishwasher.
NOTE: The dishwasher must be attached to the countertop to
keep it from tipping when the door is opened.
6,
...................... J
\\ ..... /
\ ............ j
\\\, .............
A
A. Brackets
Insert 2 #8 x 5/8"Phillips flat-head screws through the brackets
and into the countertop.
7. Open the door about 3" (7.6 cm) and check that the space
between the inner door and tub is equal on both sides.
8. If spacing is not equal, loosen the bracket screws and shift the
tub. Retighten bracket screws.
9. Check that the top of the door does not contact the screws,
brackets or countertop. If it does, the dishwasher must be
lowered and leveled again. See "Level Dishwasher" in "Install
Dishwasher."
10. Remove towel from dishwasher.
11. Reinstall the lower dish rack.
( omD ere it'c (x
1. Place the lower panel behind the toekick panel.
2. Place the 2 panels against the legs of the dishwasher.
3. Align the slots on the inner panel with the toekick bracket
screw holes. The lower panel should be touching the floor.
4. Insert the 4 toekick screws into the top 4 screw holes.
A. Top 4 screw holes
B. 2-piece toekick
15

Direct Wire Method
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Power Supply Cord Method
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
5. Reconnect power or plug in dishwasher.
Check Dishwasher Operation
1. Read the User Instructions that came with your dishwasher.
2. Check that all parts have been installed and no steps were
skipped.
3. Check that you have all the tools you used.
4. Start the dishwasher and allow it to complete the shortest
wash cycle.
5. After 2 minutes, unlatch the door. Wait 5 seconds, and then
open the door.
6. Check to see that there is water in the bottom of the
dishwasher tub.
7. Check that the dishwasher is working properly.
If you need Assistance or Service
Please reference the "Assistance or Service" section of your User
Instructions or contact the dealer from whom you purchased your
dishwasher.
16

SECURITEDU LAVE-VAISSELLE
Votre securite et celle des autres est tres importante.
Nous donnons de nombreux messages de s_curit_ importants dans ce manuel et sur votre appareil m_nager. Assurez-vous de
toujours lire tousles messages de s_curit_ et de vous y conformer.
Voici le symbole d'alerte de s_curit&
Ce symbole d'alerte de s_curit_ vous signale les dangers potentiels de d_c_s et de blessures graves & vous
et &d'autres.
Tousles messages de s_curit_ suivront le symbole d'alerte de s_curit_ et le mot "DANGER" ou
"AVERTISSEMENT". Ces mots signifient •
Risque possible de d_cbs ou de blessure grave si vous ne
suivez pas imm_diatement les instructions.
Risque possible de d_cbs ou de blessure grave si vous
ne suivez pas les instructions.
Tous les messages de s_curit_ vous diront quel est le danger potentiel et vous disent comment r_duire le risque de blessure et
ce qui peut se produire en cas de non-respect des instructions.
Risque de basculement
Ne pas utiliser le lave=vaisseile jusqu'a ce qu'il soit complbtement install6.
Ne pas appuyer sur la porte ouverte.
Le non-respect de ces instructions peut causer des blessures graves ou des coupures.
Instructions _respecter :
• Ouvrir lentement la porte du lave-vaisselle tandis qu'une autre
personne saisit I'arriere de I'appareil. Retirer le materiel
d'expedition. Fermer la porte du lave-vaisselle. Fermer la
porte du lave-vaisselle en I'enclenchant pour la verrouiller.
Respecter les dispositions de tousles codes et r_glements en
vigueur.
Installer le lave-vaisselle conformement aux prescriptions des
presentes instructions.
Assurez-vous d'avoir & disposition tout ce dont vous avez
besoin pour I'installation du lave-vaisselle.
Contacter un installateur qualifie pour veiller & ce que
I'installation du lave-vaisselle soit conforme aux prescriptions
de tousles codes d'electricit6 et de plomberie Iocaux et
nationaux.
17

EXIGENCESD'INSTALLATION
O_i_ __ _)_s_"_sc_,,__;;_,_
Rassembler les outils et composants necessaires avant
d'entreprendre I'installation. Lire et observer les instructions
fournies avec chacun des outils de la liste ci-dessous.
Outillage n_cessaire
• Tournevis Phillips •
• Tournevis a lame plate
• Tourne-ecrous deS/le" and
• Metre-ruban ou regle
Meches de scie &guichet
de 1/2",3/4"and 11/2"(1,3
mm, 1,9 mm et 3,8 cm)
Connecteurs de ills (taille
appropriee pour
raccorder le c&blage du
domicile au c&blage de
diametre 16 dans le lave-
vaisselle) (2)
Cle &molette de 6" (15,2
cm)
• Petit coupe-tube
• Niveau
• Perceuse & piles
• Foret de 1/8"
• Lampe de poche
• Plat peu profond
• Cale en bois
• Serviette de bain
Pi_ces n_cessaires
• Coude de 90° avec
filetage externe de 3/8"
NPT &une extremit&
REMARQUE :La
configuration de I'autre
extremite doit _tre
adaptee a celle de la
canalisation
d'alimentation en eau.
• Ruban pour joints filetes
• 3 connecteurs de fils
(homologation UL)
• Tube de cuivre (3/8"
recommande)
1Bride & vis de 1/2"& 2"
(3,8 cm & 5,1 cm)
Serre-c&ble pour trou
d'un diametre de 7/8"(22,2
cm)
1Bride & vis de 1/2"& 2"
(3,8 cm & 5,1 cm), si
raccordement au tuyau
d'evacuation en T
Pi_ces fournies
Verifier que toutes les pieces sont presentes. Voir la liste separ6e
des pieces et accessoires disponibles pour le lave-vaisselle.
A B
A. Vis_bois _t_te plate Phillips n°8 x %"
B. Visassortiespour bride de calage
Phillips
IMPORTANT : Observer les dispositions de tousles codes et
reglements en vigueur. Le non-respect de ces codes et
reglements pourrait entraYner un incendie ou un choc electrique.
C'est a I'utilisateur qu'incombe la responsabilite de realiser une
installation correcte.
Contacter un installateur qualifie pour veiller & ce que
I'installation du lave-vaisselle soit conforme aux prescriptions
de tousles codes d'electricit6 et de plomberie Iocaux et
nationaux en vigueur.
Realiser I'installation du lave-vaisselle tel que specifi6 dans
ces instructions.
Assurez-vous d'avoir & disposition tout ce dont vous avez
besoin pour I'installation du lave-vaisselle.
Abritez les lignes de lave-vaisselle et de flottaison menant au
lave-vaisselle contre la congelation. Des dommages de la
congelation ne sont pas couverts par la garantie.
Ce lave-vaisselle est con£_upour un usage a I'interieur
uniquement.
Ne pas placer de canalisations d'evacuation, canalisations
d'eau ou c&blage electrique & un endroit oQ cela susciterait
interference ou contact avec les pieds ou le moteur du
lavevaisselle.
A I'emplacement d'installation du lave-vaisselle, on doit
pouvoir etablir le degagement approprie entre le moteur et
leplancher. Le moteur ne doit pas toucher le plancher.
• Ne pas installer le lave-vaisselle par-dessus un tapis.
D_gagements minimums
Inspecter I'emplacement d'installation du lave-vaisselle, il doit
comporter les caracteristiques suivantes :
• Facilite d'acces aux canalisations d'eau et d'evacuation et & la
source d'electricit&
Acces facile pour chargement et dechargement de la
vaisselle. Dans le cas de I'installation dans un angle, on doit
pouvoir etablir un degagement minimal de 2" (5,1 cm) entre le
c6te de la porte du lave-vaisselle et lemur ou le placard.
Un degagement minimal de 25%" (65,1 cm) est necessaire
I'avant du lave-vaisselle afin de permettre I'ouverture
complete de la porte. I
i/ i
r
A. D_gagement minimal de 2" C. Plan de travail
(5,1 cm) pour I'ouverture de la porte D. 25%" (65,1 cm)
B. Lave-vaisselle minimum
Veiller & ce que I'ouverture soit d'equerre pour que
I'orientation soit correcte.
Fa£_adedes placards perpendiculaire au plancher.
Plancher de niveau. Si le plancher & I'avant du lave-vaisselle
n'est pas de niveau et aligne avec I'arriere de I'ouverture, des
cales seront peut-_tre necessaires pour etablir I'aplomb du
lave-vaisselle.
18

REMARQUE : Pour eviter tout deplacement des cales durant le
fonctionnement du lave-vaisselle, les cales doivent _tre
solidement fixees au plancher.
Si lelave-vaisselle ne doit pas _tre utilise pendant une periode
prolongee ou s'il est laisse & un endroit oQ il pourrait _tre expose
au gel, on doit le faire hiveriser par un technicien competent.
Veiller &ce que les canalisations d'eau, canalisations d'evacuation
et c&bles electriques se trouvent dans la zone grisee illustree a la
section "Dimensions de I'ouverture d'encastrement".
Conseil utile • Si le plancher de I'ouverture d'encastrement pour
le lave-vaisselle est inegal (exemple : carrelage arrivant seulement
partiellement dans I'ouverture), il faut _tre tres precis Iors du
releve des dimensions et Iors de I'etablissement de I'aplomb du
lave-vaisselle.
Dimensions du produit
Vue lat_rale
*Jusqu'& I'avant du ch&ssis de la porte
Vue arri_re
24"max.(61cm)
n
Distances de d_gagement &respecter
Dimensions de I'ouverture &d_couper
34" to 35"*
............. . (86,4cmto88,9cm)
\", (61 cm)
minimum
(15,2cml
/
(61cm) X r'__24
maximum
A. Touteslessurfaces sent fibres de toute intrusion
*Partie inferieure du plan de travail jusqu'au plancher
REMARQUES :
• Decouper des trous dans la partie grisee des murs de placard
ou du plancher pour I'entretien du systeme electrique et de la
plomberie.
• Installation ADA- une hauteur de 321/2'' (82,5 cm) est
realisable sous des plans de travail elev6s de 34" (86,4 cm) en
r6glant la bride de calage et les pieds de nivellement.
19

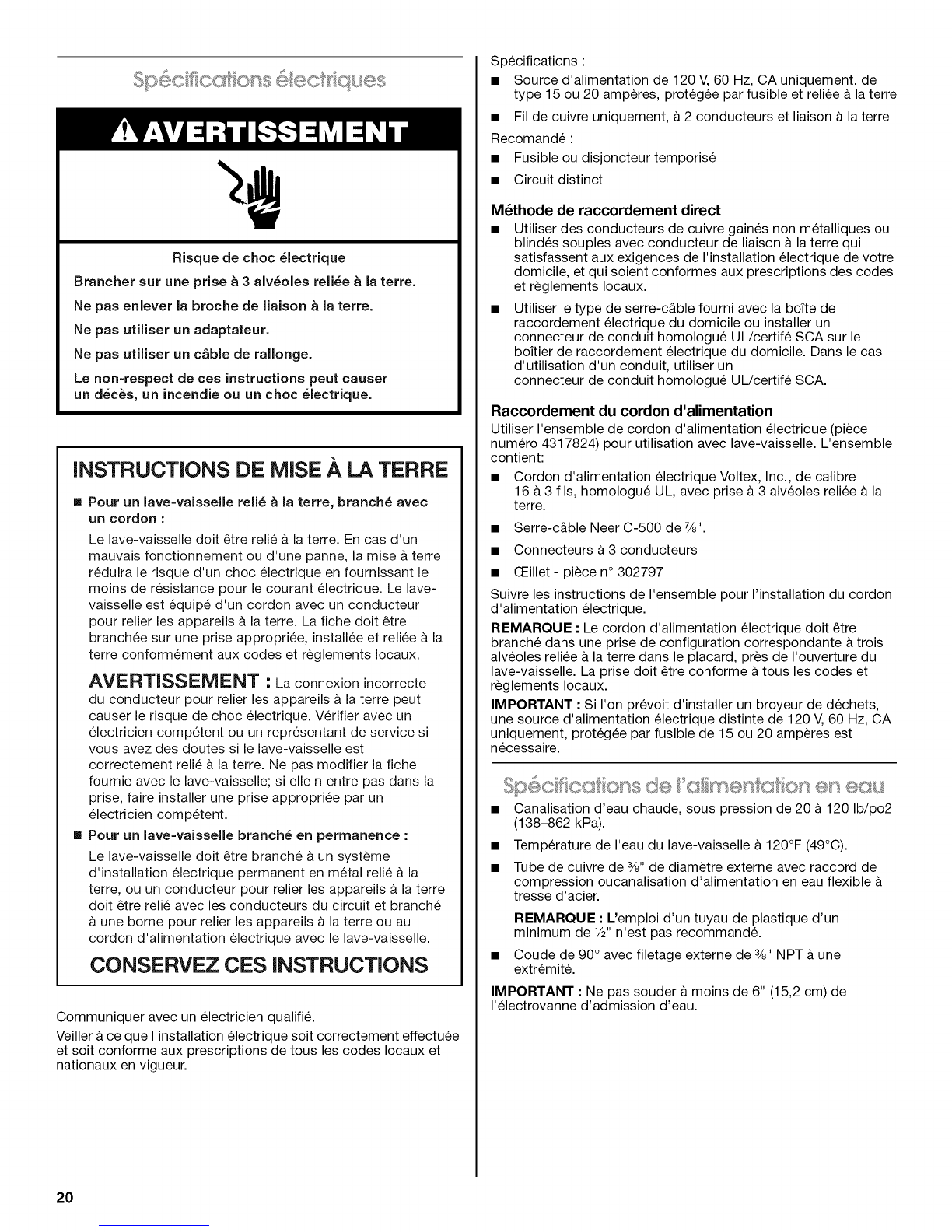

Risque de choc _lectrique
Brancher sur une prise a3aIv_oles reli_e a la terre.
Ne pas eniever la broche de liaison ala terre.
Ne pas utiliser un adaptateur.
Ne pas utiliser un cable de rallonge.
Le non=respect de ces instructions peut causer
un d_c_s, un incendie ou un choc _lectrique.
iNSTRUCTiONS DE MISE A LA TERRE
•Pour un lave=vaisselle reli_ & la terre, branch_ avec
un cordon :
Le lave-vaisselle doit _tre relie & la terre. En cas d'un
mauvais fonctionnement ou d'une panne, la mise &terre
reduira le risque d'un choc electrique en fournissant le
moins de resistance pour le courant electrique. Le lave-
vaisselle est equip6 d'un cordon avec un conducteur
pour relier les appareils a la terre. La fiche doit _tre
branchee sur une prise appropriee, installee et reliee a la
terre conformement aux codes et reglements Iocaux.
AVERTISSEM ENT "La connexion incorrecte
du conducteur pour relier les appareils & la terre peut
causer le risque de choc electrique. Verifier avec un
electricien competent ou un representant de service si
vous avez des doutes si le lave-vaisselle est
correctement relie & la terre. Ne pas modifier la fiche
fournie avec le lave-vaisselle; si elle n'entre pas dans la
prise, faire installer une prise appropriee par un
electricien competent.
•Pour un lave=vaisselle branch_ en permanence :
Le lave-vaisselle doit _tre branche a un systeme
d'installation electrique permanent en metal relie & la
terre, ou un conducteur pour relier les appareils a la terre
doit _tre relie avec les conducteurs du circuit et branche
une borne pour relier les appareils a la terre ou au
cordon d'alimentation electrique avec le lave-vaisselle.
CONSERVEZ CES INSTRUCTIONS
Communiquer avec un electricien qualifi&
Veiller & ce que I'installation electrique soit correctement effectuee
et soit conforme aux prescriptions de tous les codes Iocaux et
nationaux en vigueur.
Specifications :
• Source d'alimentation de 120 V,60 Hz, CA uniquement, de
type 15 ou 20 amperes, protegee par fusible et reliee a la terre
• Fil de cuivre uniquement, &2 conducteurs et liaison &la terre
Recomande :
• Fusible ou disjoncteur temporise
• Circuit distinct
M_thode de raccordement direct
• Utiliser des conducteurs de cuivre gaines non metalliques ou
blindes souples avec conducteur de liaison a la terre qui
satisfassent aux exigences de I'installation electrique de votre
domicile, et qui soient conformes aux prescriptions des codes
et reglements Iocaux.
Utiliser le type de serre-c&ble fourni avec la boite de
raccordement electrique du domicile ou installer un
connecteur de conduit homologue UL/certife SCA sur le
boitier de raccordement electrique du domicile. Dans le cas
d'utilisation d'un conduit, utiliser un
connecteur de conduit homologue UL/certife SCA.
Raccordement du cordon d'alimentation
Utiliser I'ensemble de cordon d'alimentation electrique (piece
numero 4317824) pour utilisation avec lave-vaisselle. L'ensemble
contient:
• Cordon d'alimentation electrique Voltex, Inc., de calibre
16 & 3 ills, homologue UL, avec prise a 3 alveoles reliee a la
terre.
Serre-c&ble Neer C-500 de 7/8".
Connecteurs a 3 conducteurs
CEillet - piece n° 302797
Suivre les instructions de I'ensemble pour I'installation du cordon
d'alimentation electrique.
REMARQUE : Le cordon d'alimentation electrique doit _tre
branche dans une prise de configuration correspondante a trois
alveoles reliee a la terre dans le placard, pres de I'ouverture du
lave-vaisselle. La prise doit _tre conforme a tousles codes et
reglements Iocaux.
IMPORTANT :Si I'on prevoit d'installer un broyeur de dechets,
une source d'alimentation electrique distinte de 120 V, 60 Hz, CA
uniquement, protegee par fusible de 15 ou 20 amperes est
necessaire.
• Canalisation d'eau chaude, sous pression de 20 a 120 Ib/po2
(138-862 kPa).
• Temperature de I'eau du lave-vaisselle a 120°F (49°C).
• Tube de cuivre de 3/8"de diametre externe avec raccord de
compression oucanalisation d'alimentation en eau flexible
tresse d'acier.
REMARQUE : L'emploi d'un tuyau de plastique d'un
minimum de W' n'est pas recommand&
Coude de 90 ° avec filetage externe de 3/8"NPT a une
extremit&
IMPORTANT : Ne pas souder a moins de 6" (15,2 cm) de
I'electrovanne d'admission d'eau.
20
