Whirlpool Duet YGEW9200LQ0 User manual

TM
ELECTRONIC
ELECTRICDRYER
T£ ,
For assistance call: 1-800-461-5681,
for installation and service, call: 1-800-807-6777
or visit our webeite at... www.whirlpool.com/canada
P
SECHEUSE
ELECTRIQUE
ELECTRONIQUE
Pour assistance, compoeez le 1-800-461-5681,
pour installation ou service le 1-800-807-6777
ou vieitez notre site web _ www.whirlpooLcom/canada

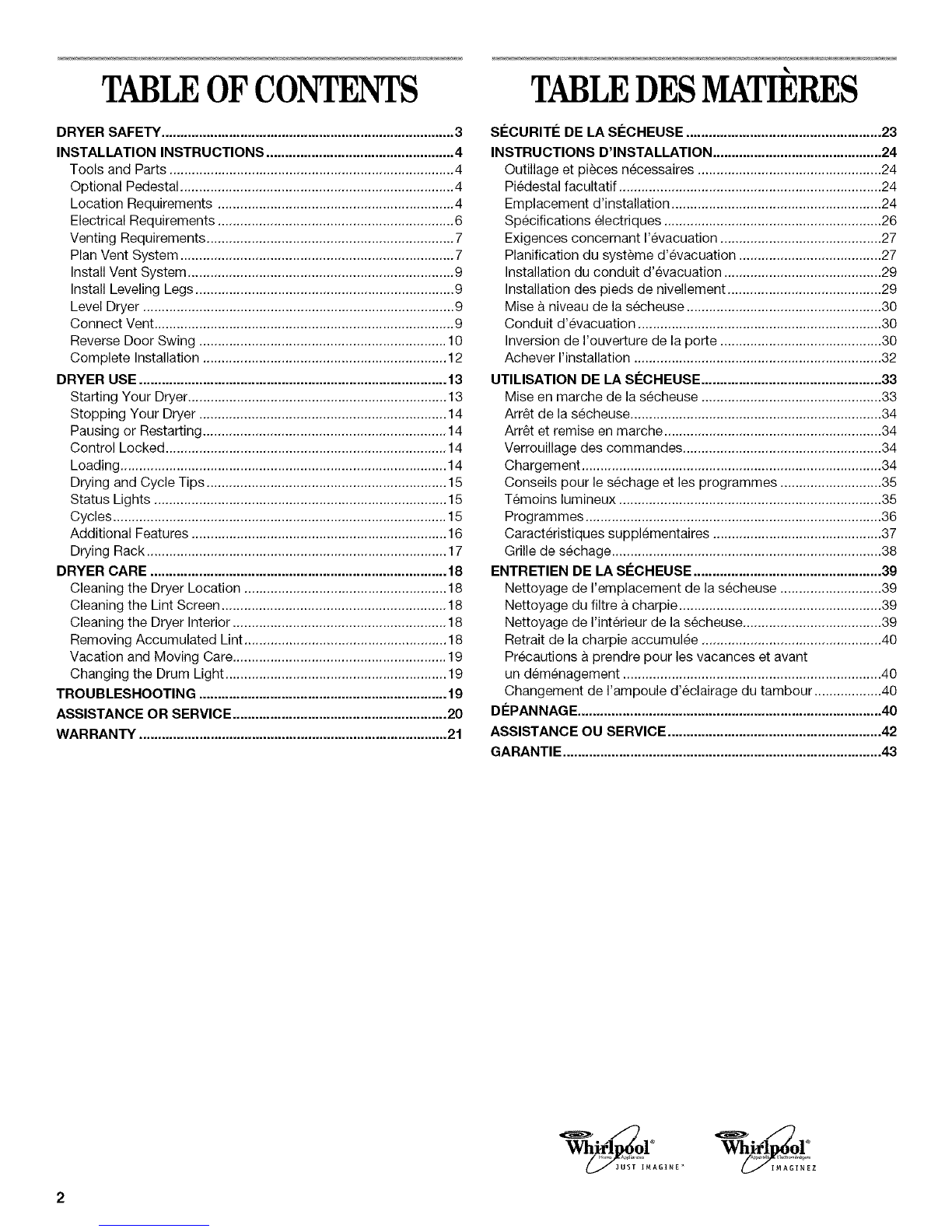

Table of Contents/Table des matieres ................. 2
3979275B

TABLEOFCONTENTS
DRYER SAFETY .............................................................................. 3
INSTALLATION INSTRUCTIONS .................................................. 4
Tools and Parts ............................................................................ 4
Optional Pedestal ......................................................................... 4
Location Requirements ............................................................... 4
Electrical Requirements ............................................................... 6
Venting Requirements .................................................................. 7
Plan Vent System ......................................................................... 7
Install Vent System ....................................................................... 9
Install Leveling Legs ..................................................................... 9
Level Dryer ................................................................................... 9
Connect Vent ................................................................................ 9
Reverse Door Swing .................................................................. 10
Complete Installation ................................................................. 12
DRYER USE .................................................................................. 13
Starting Your Dryer..................................................................... 13
Stopping Your Dryer .................................................................. 14
Pausing or Restarting ................................................................. 14
Control Locked ........................................................................... 14
Loading ....................................................................................... 14
Drying and Cycle Tips ................................................................ 15
Status Lights .............................................................................. 15
Cycles ......................................................................................... 15
Additional Features .................................................................... 16
Drying Rack ................................................................................ 17
DRYER CARE ............................................................................... 18
Cleaning the Dryer Location ...................................................... 18
Cleaning the Lint Screen ............................................................ 18
Cleaning the Dryer Interior ......................................................... 18
Removing Accumulated Lint ...................................................... 18
Vacation and Moving Care ......................................................... 19
Changing the Drum Light ........................................................... 19
TROUBLESHOOTING .................................................................. 19
ASSISTANCE OR SERVICE ......................................................... 20
WARRANTY .................................................................................. 21
TABLEDESMATIERES
SI_CURITE DE LA SI_CHEUSE .................................................... 23
INSTRUCTIONS D'INSTALLATION ............................................. 24
Outillage et pieces n_cessaires ................................................. 24
Piedestal facultatif ...................................................................... 24
Emplacement d'installation ........................................................ 24
Specifications electriques .......................................................... 26
Exigences concernant I'evacuation ........................................... 27
Planification du syst_me d'evacuation ...................................... 27
Installation du conduit d'evacuation .......................................... 29
Installation des pieds de nivellement ......................................... 29
Mise & niveau de la secheuse .................................................... 30
Conduit d'evacuation ................................................................. 30
Inversion de I'ouverture de la porte ........................................... 30
Achever I'installation .................................................................. 32
UTILISATION DE LA SI_CHEUSE ................................................ 33
Mise en marche de la secheuse ................................................ 33
Arr_t de la secheuse ................................................................... 34
Arr_t et remise en marche .......................................................... 34
Verrouillage des commandes ..................................................... 34
Chargement ................................................................................ 34
Conseils pour le sechage et les programmes ........................... 35
Temoins lumineux ...................................................................... 35
Programmes ............................................................................... 36
Caract_ristiques supplementaires ............................................. 37
Grille de sechage ........................................................................ 38
ENTRETIEN DE LA SECHEUSE .................................................. 39
Nettoyage de I'emplacement de la secheuse ........................... 39
Nettoyage du filtre h charpie ...................................................... 39
Nettoyage de I'interieur de la secheuse ..................................... 39
Retrait de la charpie accumulee ................................................ 40
Precautions a prendre pour les vacances et avant
un demenagement ..................................................................... 40
Changement de I'ampoule d'eclairage du tambour .................. 40
DC:PANNAGE ................................................................................. 40
ASSISTANCE OU SERVICE ......................................................... 42
GARANTIE ..................................................................................... 43
Wh 1Whi#_ol °

DRYERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
iMPORTANT SAFETY iNSTRUCTiONS
WARNING: To reduce the risk of fire, electric shock, or injuryto persons when using the dryer, follow basic
precautions, including the following:
[]
[]
Read all instructions before using the dryer.
Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a load to catch fire.
[] Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable,
or explosive substances as they give off vapors
that could ignite or explode.
[] Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children.
[] Before the dryer is removed from service or dis-
carded, remove the door to the drying compart-
ment.
[] Do not reach into the dryer if the drum is moving.
[] Do not install or store the dryer where it will be
exposed to the weather.
[] Do not tamper with controls.
[] Do not repair or replace any part of the dryer or
attempt any servicing unless specifically recom-
mended in this Use and Care Guide or in published
user-repair instructions that you understand and have
the skills to carry out.
[] Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of
the fabric softener or product.
[] Do not use heat to dry articles containing foam rubber
or similarly textured rubber-like materials.
[] Clean lint screen before or after each load.
[] Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint,
dust, and dirt.
[] The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
[] See installation instructions for grounding require-
ments.
SAVE THESE INSTRUCTIONS

INSTALLATION
INSTRUCTIONS Are you placing the dryer on a pedestal? You may purchase a
pedestal separately for this dryer. This pedestal will add about
13 in. (33 cm) to the height of your unit for a total height of
approximately 51 in. (130 cm).
Check that you have everything necessary for correct installation.
Proper installation is your responsibility.
•Flat-blade screwdriver • Safety glasses
• Adjustable wrench that • Vent clamps
opens to 1 in. (2.5 cm) or
hex-head socket wrench • Caulking gun and
compound (for installing
(for adjusting dryer feet) new exhaust vent)
• Level • Gloves
• #2 Phillips screwdriver • Tin snips (new vent
installations)
Parts supplied
Remove parts packages from dryer drum. Check that all parts are
included.
• Door Reversal Kit
• Parts package
4 Leveling legs
NOTE: Do not use leveling legs if installing the dryer on a
pedestal.
Parts needed
Check local codes. Check existing electrical supply and venting.
See "Electrical Requirements" and "Venting Requirements"
before purchasing parts.
• For close-clearance installations between 31.5 in. (80.01 cm)
and 37 in. (93.98 cm), see "Plan Vent System" section for
venting requirements.
I_ 37" 91
(93,98 cm)
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your dryer. For further information, please refer to the "Assistance
or Service" section of this manual.
Optional pedestal
To order, call the dealer from whom you purchased your dryer or
refer to the "Assistance or Service" section of this manual. Ask
for Part Number LAB2700LQ (White) or LAB2700LT (Biscuit).
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (46 cm) above the
floor for a garage installation.
Failure to do so can result in death, explosion,
or fire.
You will need
• A location that allows for proper exhaust installation. See
"Venting Requirements."
• A separate 30 amp circuit.
• A grounded electrical outlet located within 2 ft (61 cm) of
either side of the dryer. See "Electrical Requirements."
• A sturdy floor to support the total dryer weight of 200 Ibs
(90.7 kg). The combined weight of a companion appliance
should also be considered.
A level floor with a maximum slope of 1 in. (2.5 cm) under
entire dryer. If slope is greater than 1 in. (2.5 cm), install
Extended Dryer Feet Kit, Part No. 279810. Clothes may not
tumble properly and automatic sensor cycles may not
operate correctly if dryer is not level.
• For a garage installation, you will need to place the dryer at
least 18 in. (46 cm) above the floor. If using a pedestal, you
will need an additional 6 in. (15.24 cm).

Donotoperateyourdryerattemperaturesbelow45°F(7°C).At
lowertemperatures,thedryermightnotshutoffattheendofan
automaticcycle.Thiscanresultinlongerdryingtimes.
Installthedryerwhereitisprotectedfromwaterand/orweather.
Checkcoderequirements.Somecodeslimit,ordonotpermit,
installationofthedryeringarages,closets,mobilehomes,or
sleepingquarters.Contactyourlocalbuildinginspector.
Installation clearances
• The location must be large enough to fully open the dryer
door.
• Additional spacing should be considered for ease of
installation and servicing.
• Additional clearances might be required for wall, door and
floor moldings.
• Additional spacing of I in. (2.5 cm) on all sides of the dryer is
recommended to reduce noise transfer.
• Companion appliance spacing should also be considered.
Dryer Dimensions
i
38"
(96,52 cm)
(88 cm)
* Most installations require a minimum 51/2in. (14 cm) clearance
behind the dryer for the exhaust vent with elbow. See "Venting
Requirements."
Minimum installation spacing for custom undercounter
installation
The dimensions shown are for the minimum spacing allowed.
Custom undercounter installation -Dryer only
0" 27" 0"
(0 cm) "--'_(68.6 cm"_ _- (0 cm)
Minimum installation spacing for recessed or closet
installation, with or without a pedestal
• The dimensions shown are for the minimum spacing allowed.
For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
Closet installation - Dryer only
_'_ 48,2
(310cm_) -
(1524"c2m2 }
Io"_ 311/2,,_1o"l
(Ocm) (80cm) (Ocm)
12
1. Side view- closet or confined area
2. Closet door with vents
8"
(7.6 cm)
+
(7.6 cm)
+
Recessed or closet installation - Dryer on pedestal
0"_ 27" _i_._ O"
(Ocm) (68.6 cm) (0 cm)
IH 1-144,,0,ox
H
10"1_8_y2"_1 0"
(Ocrn) (80cm) (Ocm)
12
1. Recessed area
2. Side view -closet or confined area

Minimum installation spacing for cabinet installation
•The dimensions shown are for the minimum spacing allowed.
• For cabinet installation, with a door, minimum ventilation
openings in the top of the cabinet are required.
7"(17.8 cm)
_i-- I1
{22.9cm)
0 31½ 0
(0cm) (80.0crn)(0crn)(0crn)(68.6cm)(0crn)
Mobile home-additional installation requirements
This dryer is suitable for mobile home installations.
The installation must conform to the Manufactured Home
Construction and Safety Standard CAN/CSA-Z240 MH.
Mobile home installations require:
• Metal exhaust system hardware which is available for
purchase from your dealer.
Special provisions must be made in mobile homes to
introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening.
Electrical Shock Hazard
Plug into a grounded 4 prong outlet.
Failure to do so can result in death or
electrical shock.
To be sure that the electrical connection is adequate and in
conformance with the Canadian Electrical Code, C22.1 -latest
edition and all local codes. A copy of the above codes
standard may be obtained from: Canadian Standards
Association, 178 Rexdale Blvd., Toronto, ON M9W 1R3
CANADA.
To supply the required 4 wire, single phase, 115/230-volt, 60-
Hz., AC-only electrical supply on a separate 30-amp circuit,
fused on both sides of the line. A time-delay fuse or circuit
breaker is recommended. Connect to an individual branch
circuit.
This dryer is equipped with a CSA International Certified
Power Cord intended to be plugged into a standard 14-30R
wall receptacle. The cord is 5 ft (1.52 m) in length. Be sure
wall receptacle is within reach of dryer's final location.
4-wire receptacle 14-30R
• Do not use an extension cord.
If using a replacement power supply cord, it is recommended
that you use Power Supply Cord Replacement Part Number
9831317. For further information, please reference the service
numbers located in the "Assistance and Service" section of this
manual.
GROUNDING INSTRUCTIONS
[] For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current. This
dryer is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and ground-
ed in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative or
personnel if you are in doubt as to whether the dryer is proper-
ly grounded. Do not modify the plug provided with the dryer: if
it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
SAVE THESE INSTRUCTIONS
It is your responsibility
•Tocontact a qualified electrical installer.

Fire Hazard
Use aheavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in
death or fire.
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
4 in. (10.2 cm) heavy metal exhaust vent and clamps must be
used. DURASAFE TM vent products are recommended.
DURASAFF Mvent products can be purchased from your dealer
or by calling Whirlpool Parts and Accessories. For more
information, see the "Assistance or Service" section of this
manual.
• The dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, or a concealed space of a building.
• Do not use an exhaust hood with a magnetic latch.
• Do not install flexible metal vent in enclosed walls, ceilings or
floors.
Use clamps to seal all joints. Exhaust vent must not be
connected or secured with screws or other fastening devices
which extend into the interior of the duct. Do not use duct
tape.
IMPORTANT: Observe all governing codes and ordinances.
improper venting can cause moisture and lint to collect
indoors, which may result in:
[] Moisture damage to woodwork, furniture, paint, wall-
paper, carpets, etc.
[] Housecleaning problems and health problems.
Use a heavy metal vent. Do not use plastic or metal foil vent.
Rigid metal vent is recommended to prevent crushing and
kinking.
Flexible metal vent must be fully extended and supported when
the dryer is in its final position. Remove excess flexible metal vent
to avoid sagging and kinking that can result in reduced airflow
and poor performance.
An exhaust hood should cap the vent to prevent rodents and
insects from entering the home.
Exhaust hood must be at least 12 in. (30.5 cm) from the ground or
any object that is in the path of the exhaust (such as flowers,
rocks or bushes, etc.).
If using an existing vent system, clean lint from the entire length
of the system and make sure exhaust hood is not plugged with
lint. Replace any plastic or metal foil vent with rigid metal or
flexible metal vent.
Typical exhaust installations
Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.
2
3
1 .........
............ 6
......... 7
1.Dryer
2. Elbow
3. Wall
4. Exhaust hood
5. Clamps
6. Rigid metal or flexible metal vent
7. Vent length necessary to connect elbows
8. Exhaust outlet
Optional exhaust installations
This dryer can be converted to exhaust out the right side, left
side, or through the bottom.
Fire Hazard
Cover unused exhaust holes with one of the
following kits:
279818 (white)
279925 (biscuit)
Contact your local dealer.
Failure to follow these instructions can result in
death, fire, electrical shock, or serious injury.

1 2 3
1. Standard rear offset exhaust installation
2. Left or right side exhaust installation
3. Bottom exhaust installation (Not an option with
pedestal installations.)
Alternate installations for close clearances
Venting systems come in many varieties. Select the type best for
your installation. Two close-clearance installations are shown.
Refer to the manufacturer's instructions.
i/Y
_s
\ i
\ i \'_ I
1 2
1. Over-The-Top installation (also available with one
offset elbow)
2. Periscope installation
NOTE: The following kits for close clearance alternate
installations are available for purchase. Please see the
"Assistance or Service" section of this manual to order.
• Over-The-Top Installation:
Part Number 4396028
• Periscope Installation (For use with dryer vent to wall vent
mismatch):
Part Number 4396037 - 0 in. (0 cm) to 18 in. (45.72 cm)
mismatch
Part Number 4396011 - 18 in. (45.72 cm) to 29 in. (73.66 cm)
mismatch
Part Number 4396014 - 29 in. (73.66 cm) to 50 in. (127 cm)
mismatch
Special provisions for mobile home installations
The exhaust vent must be securely fastened to a noncombustible
portion of the mobile home structure and must not terminate
beneath the mobile home. Terminate the exhaust vent outside.
Determine Vent Length
1. Select the route that will provide the straightest and most
direct path outdoors. Plan the installation to use the fewest
number of elbows and turns, When using elbows or making
turns, allow as much room as possible. Bend vent gradually
to avoid kinking. Avoid 90° turns.
2. Determine vent length.
The maximum length of the exhaust system depends upon:
• The type of vent (rigid metal or flexible metal).
• The number of elbows used.
• The type of hood.
Recommended hood styles are shown here.
1
_ ( • )
(10.2 era)
1.Louvered hood style
2. Box hood style
The angled hood style (shown following) is acceptable.
4" _
3=
See the exhaust vent length chart that matches your hood
type for the maximum vent lengths you can use.
Exhaust systems longer than specified will:
• Shorten the life of the dryer.
• Reduce performance, resulting in longer drying times and
increased energy usage.
Determine the number of elbows you will need.
IMPORTANT: Do not use vent runs longer than those
specified in the Vent Length Chart.
The following chart helps you determine your maximum vent
length based on the number of 90° turns or elbows you will
need and the type of vent (rigid or flexible metal) and hood
that you will use.

Vent Length Chart
Number of Type of Box or Angled
90° turns vent Louvered hoods
or elbows hoods
0 Rigid metal 64 ft (20 m) 58 ft (17.7 m)
Flexible metal 36 ft (11 m) 28 ft (8.5 m)
1 Rigid metal 54 ft (16.5 m) 48 ft (14.6 m)
Flexible metal 31 ft (9.4 m) 23 ft (7 m)
2 Rigid metal 44 ft (13.4 m) 38 ft (11.6 m)
Flexible metal 27 ft (8.2 m) 19 ft (5.8 m)
3Rigid metal 35 ft (10.7 m) 29 ft (8.8 m)
Flexible metal 25 ft (7.6 m) 17 ft (5.2 m)
4 Rigid metal 27 ft (8.2 m) 21 ft (6.4 m)
Flexible metal 23 ft (7 m) 15 ft (4.6 m)
NOTE: Side and bottom exhaust installations have a 90° turn
inside the dryer. To determine maximum exhaust length, add 1
90° turn to the chart.
1. (Optional) Put on safety glasses and gloves.
2. Install exhaust hood. Use caulking compound to seal exterior
wall opening around exhaust hood.
3. Connect vent to exhaust hood. Vent must fit inside exhaust
hood. Secure vent to exhaust hood with 4 in. (10.2 cm)
clamp.
4. Run vent to dryer location. Use the straightest path possible.
See "Determine Vent Length." Avoid 90 ° turns. Use clamps to
seal all joints. Do not use duct tape, screws or other fastening
devices that extend into the interior of the vent to secure
vent.
2. Firmly grasp the body of the dryer (not the console panel).
3.
4.
Gently lay the dryer on the cardboard.
Examine the leveling legs. Find the diamond marking.
1
Screw the legs into the leg holes by hand. Use a wrench to
finish turning the legs until the diamond marking is no longer
visible.
5. Place a carton corner post under each of the 2 dryer back
corners. Stand the dryer up. Slide the dryer on the corner
posts until it is close to its final location. Leave enough room
to connect the exhaust vent.
6. Once connection is made and dryer is in final location,
remove corner posts and cardboard.
Check the levelness of the dryer. Check levelness first
side-to-side, then front-to-back.
Excessive Weight Hazard
Use two or more people to move and install
dryer.
Failure to do so can result in back or other injury.
1. To protect the floor, use a large flat piece of cardboard from
the dryer carton. Place cardboard under the entire back edge
of the dryer. See illustration.
If the dryer is not level, prop up the dryer using a wood block.
Use a wrench to adjust the legs up or down and check again for
levelness.
NOTE: It might be necessary to level the dryer again after it has
been moved into its final position.
1. Using a 4 in. (10.2 cm) clamp, connect vent to exhaust outlet
in dryer. If connecting to existing vent, make sure the vent is
clean. The dryer vent must fit over the dryer exhaust outlet
and inside the exhaust hood. Make sure the vent is secured
to exhaust hood with a 4 in. (10.2 cm) clamp.
2. Move dryer into final position. Do not crush or kink vent.
Make sure dryer is level.
3. (On gas models) Check to be sure there are no kinks in the
flexible gas line.

Youcanchangeyourdoorswingfromaright-sideopeningtoa
left-sideopening,ifdesired.
Locatethedoorreversingkitthatwasshippedinthedrumof
yourdryer.Youwillneedthesepartstocompletethedoor
reversal.
Loosendoortrim
1. Placeatowelorsoftclothontopofthedryerorworkspace
toprotectthesurface.
2. Loosentheplastictrimaboveandbelowthehandlefiller.
Carefullypulloutonthetrimuntilitunsnaps.Removethe
handlefillerandsetaside.
3,
1. Plastic trim
2. Handle filler
Loosen the plastic trim above and below the hinge cover.
Carefully pull out on the trim until it unsnaps. Remove the
hinge cover and set aside.
Remove the door
1. Open the dryer door. Remove the 5 screws that hold the door
hinge on the front panel of the dryer. Loosen, but do not
remove, the screw with the top keyhole opening LAST
(second from the top).
2.
3.
I
Lift and pull forward on the door so that the screwhead clears
the keyhole. Remove the door.
Lay the dryer door on a flat, protected surface with the inside
door assembly facing up. Remove the 2 screws holding the
handle to the door. Pull handle straight out and set aside. A
new handle is provided.
//
/
j//
1
1. Plastic trim
2. Hinge cover
Keep the original handle filler and hinge cover in case you
decide to return the door to its original position.
A new handle filler and hinge cover are provided in the door
reversing kit that will be installed in a later step.
4,
5,
NOTE: Keep this handle in case you decide to return the door
to its original position.
Remove the 6 screws to release the outer door assembly
from the inner door assembly (see illustration). It is important
that you remove ONLY the 6 indicated screws.
Lift the inner door assembly off of the outer door assembly.
Set the outer door assembly aside.
10

Reverse the hinge and hinge bracket
1. Place the inner door, screwhead side up, on the work surface.
2. Remove the 4 screws that hold the hinge to the door.
3=
\
Remove the 2 screws that hold the handle bracket to the
door.
\
\
4=
5=
Insert the new handle into the side opening of the door. Make
sure the handle seats all the way in, and the holes line up with
the holes in the door. Reattach with 2 screws.
Use a small flat-head screwdriver to remove hole plugs in the
door opening. Slide the head of the screwdriver under the
cap of each hole plug, being careful not to scratch the dryer
surface. Lift up. Remove the hole plugs in the door opening
and insert in the opposite side.
6= Insert a screw in the second opening from the top of the
hinge opening and partially tighten, Hang the door by placing
the top hinge keyhole over the second screwhead and tighten
the screw. By putting this screw in first, the door will hang in
place while you insert and tighten the remaining 4 screws.
I
4. Move hinge to the other side and reattach.
5. Move handle bracket to the other side and reattach.
6. Set the inner door assembly aside.
Reinstalling the door
1. Check for fingerprints on the glass. Clean if necessary.
2. Place the inner door assembly into the outer door assembly.
Align the hinge in the opening on the side, To fit correctly, the
inside door assembly edge is completely inside the outside
door assembly edge,
3. Reassemble the inner and outer door assemblies with the 6
screws.
Install new handle filler and hinge cover
1. Using the new handle filler provided in the reversing kit, hook
the top of the handle filler onto the loosened upper door trim,
Snap the joined pieces into place, You may need to use the
heel of your hand to firmly snap the pieces back into place,
2. Hook the bottom of the handle filler onto the lower door trim
and snap into place,
3. Repeat steps 1 and 2 to install the hinge cover on the
opposite side.
4. Close the door and check that it latches securely.
11

1. Check to be sure all parts are now installed. If there is an
extra part, go back through the steps to see which step was
skipped.
2. Check to be sure you have all of your tools.
3. Dispose of all packaging materials.
4. Check the dryer's final location. Be sure the vent is not
crushed or kinked.
5. Check to be sure the dryer is level. (See "Level Dryer.")
6. Plug into a grounded outlet. Turn power on.
7. Remove the blue protective film on the console and any tape
remaining on the dryer.
8. Read "Dryer Use."
9. Wipe the dryer drum interior thoroughly with a damp cloth to
remove any dust.
10. Set the dryer on a full heat cycle (not an air cycle) for 20
minutes and start the dryer.
If the dryer will not start, check the following:
• Controls are set in a running or "On" position.
• Start button has been pushed firmly.
• Dryer is plugged into a grounded outlet.
• Electrical supplyis connected.
• House fuse is intact and tight; or circuit breaker has not
tripped.
• Dryer door is closed.
11. When the dryer has been running for 5 minutes, open the
dryer door and feel for heat.
If you do not feel heat, turn the dryer off and check the
following:
• There may be 2 fuses or circuit breakers for the dryer. Check
to make sure both fuses are intact and tight, or that both
circuit breakers have not tripped. If there is still no heat,
contact a qualified technician.
NOTE: You may notice a burning odor when the dryer is first
heated. This odor is common when the heating element is first
used. The odor will go away.
12

DRYERUSE
Normal
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Do not dry anything that has ever had anything
flammable on it (even after washing).
Failure to follow these instructions can result in
death, explosion, or fire.
oon
oHigh
o _ew o Louder
0 ExtraLow 0 Softer
OAJtOn_y 0Off
Wrinkle Shield Femperatute End Of CycleSignal
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
The following is a guide to starting your dryer. Please refer to
specific sections of this manual for more detailed information,
1. Clean lint screen before or after each cycle.
2. Place laundry into dryer and shut door. See "Loading,"
3. Rotate the dial to select either an Automatic or Manual Cycle
then press the CONTROL ON button. The preset settings and
drying time for the cycle chosen will be displayed.
To use an Automatic Cycle
Point the dial to an Automatic Cycle.
Select DRYNESS LEVEL to adjust how dry you want the
load to be. The time displayed is an estimated length of
the cycle based on the Dryness Level selected. As the
cycle runs, the control senses the dryness of the load and
adjusts the time automatically for the selected Dryness
Level.
0More
0Less
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of
oil on it (including cooking oils).
Items containing foam, rubber, or plastic must be
dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in
death or fire.
Dryness
Level
NOTE: Time is not adjustable for Automatic Cycles. Pressing
the More Time or Less Time buttons will cause a triple beep,
indicating that the time cannot be changed.
Press the WRINKLE SHIELD TM feature button if this
option is desired.
Press the END OF CYCLE SIGNAL button to set signal
volume to desired level.
Press (and hold) HOLD TO START button until dryer starts
(about 1 second).
Once an Automatic cycle has started, the WRINKLE
SHIELD TM feature and the End of Cycle Signal level can be
adjusted. Press the PAUSE/CANCEL key twice to stop the
dryer and clear the settings, allowing you to select another
cycle and Dryness Level.
13

To use a Manual Cycle
Rotate the dial to select a Manual Cycle.
Press MORE TIME or LESS TIME until the desired drying
time is displayed. Tap MORE TIME or LESS TIME and the
time will change by 1-minute intervals. Press and hold
MORE TIME or LESS TIME and the time will change by
5-minute intervals. The initial time displayed is the actual
drying time.
Mo_
Time
Less
_me
NOTE: The More Time or Less Time feature can be used only
with Manual Cycles.
• Press TEMPERATURE until the desired temperature
glows.
NOTE: Pressing the Dryness Level button will cause the triple
beep indicating that this option is not selectable. Also, a
Dryness Level is not indicated.
• Press the WRINKLE SHIELD TM feature button if this
option is desired.
• Press the END OF CYCLE SIGNAL button to set volume
to desired level.
• Press (and hold) HOLD TO START button until dryer starts
(about 1second).
While a Manual Cycle is running, you can change the settings
for Time, Temperature, the WRINKLE SHIELD TM feature, and
the End of Cycle Signal. Press the PAUSE/CANCEL key twice
to stop the dryer and clear the settings, allowing you to select
another cycle.
To stop your dryer at anytime
Press PAUSE/CANCELtwice or open the door.
To pause the dryer at any time
Open the door or press PAUSE/CANCEL once.
To restart the dryer
Close the door and press (and hold) HOLD TO START button until
dryer starts,
NOTE: Drying will continue from where the cycle was interrupted
if you close the door and press Start within 5 minutes. Ifthe cycle
is interrupted for more than 5 minutes, the dryer will shut off.
Select new cycle settings before restarting the dryer.
This feature allows you to lock your settings to prevent
unintended use of the dryer. You can also use the Control Locked
feature to prevent unintended cycle or option changes during
dryer operation.
To enable the Control Locked feature when dryer is
running:
Press and hold the END OF CYCLE SIGNAL button for three
seconds. The control is locked when a single beep is heard and
the Control Locked status light is on.
• When the dryer is off, it is not necessary to press the Control
On button before activating the Control Locked feature.
To unlock:
Press and hold the END OF CYCLE SIGNAL button for three
seconds to turn this feature off.
NOTE: When the dryer is running and Control Locked is on, the
dryer can be stopped by pressing the Pause/Cancel button, but
can't be restarted until the control is unlocked.
Properly loading your dryer can lower your utility bill and prolong
the life of your garments.
Loading suggestions
• Load the dryer by the amount of space items take up, not by
their weight.
• Do not overload the dryer. This causes wrinkling and uneven
drying.
Super Capacity Plus Dryers
Heavy Work Clothes
4 jeans 2 sweatpants
4 workpants 2 sweatshirts
4 workshirts
Towels
10 bath towels
10 hand towels 14 washcloths
Mixed Load
3 sheets (1 king, 2 twin) 9 T-shirts
4 pillowcases 9 shorts
3 shirts 10 handkerchiefs
3 blouses
14

Select the correct cycle and dryness level or temperature for your
load. If an Automatic Cycle is running, the display shows the
estimated cycle time when your dryer is automatically sensing
the dryness level of your load. If a Manual Cycle is running, the
display shows the exact number of minutes remaining in the
cycle.
Cool Down tumbles the load without heat during the last few
minutes of all cycles. Cool Down makes the loads easier to
handle and reduces wrinkling. The length of the Cool Down
depends on the load size and dryness level.
Drying tips
• Follow care label directions when they are available.
• If you use fabric softener sheets, use only ones labeled as
dryer safe. Follow package instructions.
• Remove the load from the dryer as soon as tumbling stops to
reduce wrinkling. This is especially important for permanent
press, knits, and synthetic fabrics.
• Avoid drying heavy work clothes with lighter fabrics. This
could cause overdrying of lighter fabrics, leading to increased
shrinkage or wrinkling.
Cycle tips
• Dry most loads using the preset cycle settings.
• Refer to the Automatic or Manual Preset Cycle Settings chart
(in the "Cycles" section) for a guide to drying various loads.
Drying temperature and Dryness Level are preset when
you choose an Automatic Cycle. You can choose a
different dryness level, depending on your load by
pressing the DRYNESS LEVEL button to select MORE or
LESS.
• Ifyou wish to adjust the cycle length of a Manual Cycle,
you must press MORE TIME or LESS TIME. Adjust the
temperature of a Manual Cycle by pressing
TEMPERATURE until the desired temperature is selected.
NOTE: You cannot choose a Dryness Level with Manual
Cycles.
You may follow the progress of your dryer with the drying Status
indicator lights.
Status
O Sensing
0Wet
0 Damp
0Cool Down
Wet
The WET light will turn on when a wet item has been detected in
the dryer. The Wet light will remain on until:
• The damp dry point is reached in an Automatic Cycle.
• The dryer enters the cool down period in a Manual Cycle.
Damp
The DAMP light indicates that the load has reached the damp dry
level.
NOTE: The Damp light is not used with manual cycles.
Cool Down
The COOL DOWN light glows during the cool down part of the
cycle. Laundry is cooling down for ease in handling.
Cycle Complete
This light glows when a drying cycle is finished. Ifthe WRINKLE
SHIELD TM feature has been selected, the WRINKLE SHIELD TM
feature indicator light will also be on.
The Cycle Complete light turns off one hour after the end of a
drying cycle (including the WRINKLE SHIELD TM cycle of 2 hours),
when Pause/Cancel is pressed, or when the door is opened.
WRINKLE SHIELD TM Feature
The WRINKLE SHIELD feature light glows when this option is
selected. This indicator stays on with the Cycle Complete light.
Control Locked
TheCONTROLLOCKED light glows when this option is enabled.
Indicator lights
Other indicator lights on the control panel show Cycle, Temper-
ature, and End of Cycle settings selected.
The time display will indicate the estimated or actual time
remaining in a cycle.
Select the drying cycle that matches the type of load you are
drying (see Automatic Preset or Manual Preset Cycle Settings
charts).
HeavyOuty,_--_
Normal _;
Casual,
oi V
Delicate
Super
Delicate QuickDry
Automatic Cycles Manual Cycles
0 CycleComplete
0WrinkleShield
Cycle control knob
0ControlLocked
Sensing
When the dryer is first turned on, the SENSING light glows until a
wet item is detected.
• In an Automatic Cycle, if a wet item has not been detected
within 10 minutes, the Sensing light will turn off and the dryer
will shut down.
• In a Manual Cycle, if a wet item is not detected after 10
minutes the Wet light turns on and the selected cycle
continues.
Automatic Cycles allow you to match the cycle to the load you
are drying. See the following "Automatic Preset Cycle Settings"
chart. Each cycle dries certain fabrics at the recommended
temperature. A sensor detects the moisture in the load and
automatically adjusts the drying time for optimal drying.
Heavy Duty
Use this cycle to get High heat for heavy fabrics such as cotton
towels or bedspreads.
15

Normal
Use this cycle to get Medium heat for drying sturdy fabrics such
as work clothes.
Casual
Use this cycle to get Medium heat for drying no-iron fabrics, such
as sport shirts, casual business clothes and permanent press
blends.
Delicate
Use this cycle to get Low heat for drying synthetic fabrics,
washable knit fabrics and no-iron finishes.
Super Delicate
Use this cycle to get Extra Low heat to gently dry items such as
lingerie, exercise wear, or sheer curtains.
Automatic Preset Cycle Settings
Automatic Cycles Temp. Time*
Load Type (Minutes)
HEAVY DUTY High 40
Heavyweight, towels
NORMAL Medium 34
Corduroys, work clothes
CASUAL Medium 36
Permanent press, synthetics
DELICATE Low 28
Lingerie, blouses, washable
woolens
SUPER DELICATE Extra Low 22
Exercise wear, sheer curtains,
lace
*Estimated Time with Dryness Level (medium) setting.
Use Manual Cycles to select a specific amount of drying time and
a drying temperature. When a Manual Cycle is selected, the
ESTIMATED TIME REMAINING display shows the actual time
remaining in your cycle. You can change the actual time in the
cycle by pressing MORE TIME or LESS TIME.
Timed Dry
Use this cycle to complete drying if items are still damp after an
Automatic Cycle. Timed Dry is also useful for drying heavyweight
and bulky items, such as bedspreads and work clothes.
Touch Up
Use this setting to remove wrinkles from items, such as clothes
packed in a suitcase or items wrinkled from being left in the dryer
too long.
Quick Dry
Use this cycle for drying small loads or loads that need a short
drying time.
Manual Preset Cycle Settings
Manual Cycles Temp. Default Time
Load Type (Minutes)
TIMED DRY High 40
Heavyweight, bulk,
bedspreads, work clothes
TOUCH UP Medium 20
Remove wrinkles
QUICK DRY High 27
Small loads
WRINKLE SHIELD TM Feature
When you are unable to remove a load of clothes from the dryer
as soon as it stops, wrinkles can form. The WRINKLE SHIELD TM
feature periodically tumbles, rearranges and fluffs the load to
avoid wrinkles.
• Press the WRINKLE SHIELD TM feature to get up to 120
minutes of heat-free, periodic tumbling at the end of a cycle.
• Stop at any time by pressing the WRINKLE SHIELD TM feature
or opening the dryer door.
For the Casual Cycle, the WRINKLE SHIELD TM feature is
preset to "On." The other Automatic Cycles will retain the
WRINKLE SHIELD TM feature setting. (For example, if you
select the WRINKLE SHIELD TM feature in the Normal cycle,
the WRINKLE SHIELD TM feature will be on the next time you
select the Normal cycle.)
NOTE: If you do not select the WRINKLE SHIELD TM feature, the
dryer stops after the cool down period.
Temperature
Temperature settings are used with the Manual Cycles. Press
TEMPERATURE until the desired temperature setting glows.
Temperature settings cannot be used with the Automatic Cycles.
0High
0Me_um
0Low
0Extra Low
0Air Only
Temperature
(Manual Cydes only)
16

Air Only
Use the Air Only setting for items that require drying without heat
such as rubber, plastic and heat-sensitive fabrics. This chart
shows examples of items that can be dried using Air Only.
Type of Load Time*
(Minutes)
Foam rubber -pillows, padded bras, 20 - 30
stuffed toys
Plastic -Shower curtains, tablecloths 20 - 30
Rubber-backed rugs 40 - 50
Olefin, polypropylene, sheer nylon 10 - 20
* Reset time to complete drying, if needed.
When using Air Only
• Check to see that coverings are securely stitched.
• Shake and fluff pillows by hand periodically during the cycle.
• Dry item completely. Foam rubber pillows are slow to dry.
NOTE: Automatic Cycles are not available when using the Air
Only setting.
End of Cycle Signal
The End of Cycle Signal produces an audible sound when the
drying cycle is finished. Promptly removing clothes at the end of
the cycle reduces wrinkling.
0Louder
0Softer
ooff
0
EndOfCycleSignal
Hold for 3 Seconds to
Lock / Unlock Control
Press and release the END OF CYCLE SIGNAL to adjust the
sound level or turn off the signal.
NOTE: When the WRINKLE SHIELD TM feature is selected and the
End of Cycle Signal is on, an audible sound will emit every five
minutes until the clothes are removed, or the WRINKLE
SHIELD TM feature is finished.
The drying rack is useful for drying items you would not
necessarily want to tumble dry or that you would normally line dry
(for example, sweaters).
To use the drying rack
Do not remove the lint screen.
1. Open dryer door.
2. Place drying rack inside dryer drum, positioning the back wire
on the ledge of the inner dryer back panel. Push down on
front edge of drying rack to secure over the lint screen.
1.Dryer back panel
3. Put the wet items on top of the rack. Leave space between
the items so air can reach all the surfaces.
NOTE: Do not allow items to hang over the edge of the rack.
4. Close the door.
5. Select a timed drying cycle and temperature, or an air cycle.
Items containing foam, rubber, or plastic must be dried on a
clothesline or by using the Air Only temperature setting.
6. You must select a time by pressing MORE TIME or LESS
TIME. Reset time as needed to complete drying. Refer to the
following table.
7. Press (and hold) HOLD TO START button (about 1 second).
NOTE: You must remove rack for normal tumbling. Do not use
automatic cycles with the drying rack.
This chart shows examples of items that can be rack dried and
the suggested cycle, temperature setting and drying time. Actual
drying time will depend on the amount of moisture items hold.
Rack Dry Setting Temp Time*
Wool Sweaters Timed Low 60
Block to shape and lay flat on Dry
the rack
Stuffed toys or pillows Timed Low 60
Cotton or polyester fiber filled Dry
Stuffed toys or pillows Air Only N/A 90
Foam rubber filled (no heat)
Sneakers or canvas shoes Air Only N/A 90
(no heat)
*(Minutes) Reset time to complete drying, if needed.
17

DRYERCARE
Keep dryer area clear and free from items that would obstruct the
flow of combustion and ventilation air.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (46 cm) above the
floor for agarage installation.
Failure to do so can result in death, explosion,
or fire.
Every load cleaning
The lint screen is located in the door opening of the dryer. Clean it
before or after each load. A screen blocked by lint can increase
drying time,
To clean
1. Pull the lint screen straight up. Roll lint off the screen with
your fingers. Do not rinse or wash screen to remove lint. Wet
lint is hard to remove.
J
2. Push the lint screen firmly back into place.
IMPORTANT:
• Do not run the dryer with the lint screen loose, damaged,
blocked, or missing. Doing so can cause overheating and
damage to both the dryer and fabrics.
Some towels made of synthetic fibers and natural fibers
(polyester and cotton blends) may shed more lint than other
towels, causing your dryer's lint screen to fill up faster. Be
sure to remove lint from the lint screen before and after drying
new towels,
• If lint falls oft the screen into the dryer during removal, check
the exhaust hood and remove the lint. (See "Venting
Requirements.")
As needed cleaning
Laundry detergent and fabric softener residue can build up on the
lint screen. This buildup can cause longer drying times for your
clothes, or cause the dryer to stop before your load is completely
dry. The screen is probably clogged if lint falls off the screen,
Clean the lint screen with a nylon brush every 6 months, or more
frequently, if it becomes clogged due to a residue buildup.
To wash
1. Roll lint off the screen with your fingers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with hot water and liquid detergent. Scrub
lint screen with the brush to remove residue buildup.
4. Rinse screen with hot water.
5. Thoroughly dry lint screen with a clean towel. Replace screen
in dryer.
_*_YI__;_'ti_:_ __'. _ '_' ......
.............. _ ............ 0y_,_ _,t:_
To clean dryer drum
1. Make a paste with powdered laundry detergent and very
warm water.
2. Apply paste to a soft cloth.
OR
Apply a liquid, non-flammable household cleaner to the
stained area and rub with a soft cloth until all excess dye is
removed.
3. Wipe drum thoroughly with a damp cloth.
4. Tumble a load of clean cloths or towels to dry drum.
NOTE: Garments which contain unstable dyes, such as denim
blue jeans or brightly colored cotton items, may discolor the
dryer interior. These stains are not harmful to your dryer and will
not stain future loads of clothes. Dry unstable dye items inside
out to prevent dye transfer.
From Inside the Dryer Cabinet
Lint should be removed every 2 years or more often, depending
on dryer usage. Cleaning should be done by a qualified person.
From the Exhaust Vent
Lint should be removed every 2 years, or more often, depending
on dryer usage.
18

Vacation care
Operate your dryer only when you are at home. If you will be on
vacation or not using your dryer for an extended period of time,
you should:
1. Unplug dryer or disconnect power.
2. Wash lint screen.
Moving care
1. Unplug dryer or disconnect power. Disconnect wiring if dryer
is direct wired.
2. Make sure leveling legs are secure in dryer base.
3. Use masking tape to secure dryer door.
The dryer light automatically turns on inside the dryer drum when
you open the door.
To change the drum light
1. Unplug dryer or disconnect power.
2. Open the dryer door. Locate the light bulb cover on the back
wall of the dryer. Remove the screw located in the lower right
corner of the cover. Remove the cover.
3. Turn bulb counterclockwise. Replace the bulb with a 10-watt
appliance bulb only. Replace the cover and secure with the
screw.
4. Plug in dryer or reconnect power.
TROUBLESHOOTING
First try the solutions suggested here and possibly avoid
the cost of a service call...
Dryer displaying code message
• "PF" (power failure), check the following:
Was the drying cycle interrupted by a power failure?
Press (and hold) HOLD TO START button to restart the dryer.
• "E" Variable (El, E2, E3) service codes:
Call for service.
Clothes are not drying satisfactorily
•Checkthe following:
Is the lint screen clogged with lint?
Is the exhaust vent or outside exhaust hood clogged with lint,
restricting air movement? Run the dryer for 5-10 minutes.
Hold your hand under the outside exhaust hood to check air
movement. Ifyou do not feel air movement, clean exhaust
system of lint or replace exhaust vent with heavy metal or
flexible metal vent. (See "Installation Instructions.")
Is the exhaust vent crushed or kinked? Replace with a heavy
metal vent. (See "Installation Instructions.")
Has a fuse blown, or a circuit breaker tripped? Electric dryers
use 2 household fuses or breakers. The drum may be turning,
but you may not have heat.
Has an air cycle been selected? Select the right cycle for the
types of garments being dried (see "Cycles").
Is the automatic cycle ending early? The load may not be
contacting the electronic sensor strips, level the dryer.
Are fabric softener sheets blocking the grille? Use only one
fabric softener sheet and only use it once.
Is the dryer located in a room with temperature below
45°F (7°C)?
Proper operation of dryer cycles requires temperatures above
45°F (7°C).
• Was a cold rinse water used? Was the load very wet?
Expect longer drying times with items rinsed in cold water
and with items that hold moisture (cottons).
•Is the load too large and heavy to dry quickly?
Separate the load to tumble freely.
Dryer will not run
•Check the following:
Is the power cord plugged in?
Has a fuse blown, or has circuit breaker tripped?
Was a regular fuse used? Use a time-delay fuse.
Is the dryer door firmly closed? If not, the time display will
blink.
Was HOLD TO START firmly pressed and held for at least 1
second?
Is a cycle selected?
Unusualsounds
•Has the dryer had a period of non-use?
If the dryer hasn't been used for a while, there may be a
thumping sound during the first few minutes of operation.
Lint on load
•Is the lint screen clogged?
Clean lint screen. Check for air movement.
•Is load properly sorted?
Sort lint givers (towels, chenille) from lint takers (corduroy,
synthetics). Also sort by color.
• Is the load too big or too heavy?
Dry smaller loads so lint can be carried to the lint screen.
• Was the load overdried?
Use correct dryer settings for load type (see "Cycles").
Overdrying can cause lint-attracting static electricity.
• Was paper or tissue left in pockets?
•Is pilling being mistaken for lint?
Pilling (surface fuzz) is caused by normal wear and
laundering.
19

Stains on load or color change
Was dryer fabric softener properly used?
Add dryer fabric softener sheets at the beginning of the cycle
when the load is cold. Do not add fabric softener sheets to a
warm load.
Were items soiled when placed in the dryer?
Items should be clean before being dried.
Were items properly sorted?
Sort light colors from dark colors. Sort colorfast items from
noncolorfast items.
Items shrinking
•Was the dryer overloaded?
Dry smaller loads that can tumble freely.
•Did the load overdry?
Check the manufacturer's care label. Match dryer setting to
load type (see "Cycles").
Loads are wrinkled
•Was load removed from dryer at the end of the cycle?
•Was dryer overloaded?
Dry smaller loads that can tumble freely.
•Did load overdry?
Check the manufacturer's care label. Match dryer setting to
load type (see "Cycles").
Odors
•Have you recently been painting, staining or varnishing in
the area where your dryer is located?
If so, ventilate the area. When the odors or fumes are gone
from the area, re-wash and dry the clothing.
•Is the dryer being used for the first time?
The new electric heating element may have an odor. The odor
will be gone after the first cycle.
Garment damage
•Checkthe following:
Were zippers, snaps, and hooks left open?
Were strings and sashes tied to prevent tangling?
Were care label instructions followed?
Were items damaged before drying?
ASSISTANCEORSERVICE
Before calling for assistance or service, please check
"Troubleshooting." It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
only use FSP_factory specified parts. These parts will fit right
and work right because they are made with the same precision
used to build every new WHIRLPOOL ®appliance.
To locate FSP replacement parts in your area:
Call 1-800-807-6777, or your nearest designated service center.
For assistance
Call the Whirlpool Canada Inc. Customer Interaction Center toll
free: 1-800-461-5681 Monday to Friday 8:00 a.m. - 6:00 p.m.
(EST). Saturday 8:30 a.m. - 4:30 p.m. (EST).
Our consultants provide assistance with:
• Features and specifications on our full line of appliances.
• Referrals to local dealers.
For service
Call 1-800-807-6777. Whirlpool Canada Inc. designated service
technicians are trained to fulfill the product warranty and provide
after-warranty service, anywhere in Canada.
For further assistance
If you need further assistance, you can write to Whirlpool Canada
Inc. with any questions or concerns at:
Customer Interaction Center
Whirlpool Canada Inc.
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Please include a daytime phone number in your correspondence.
2O
