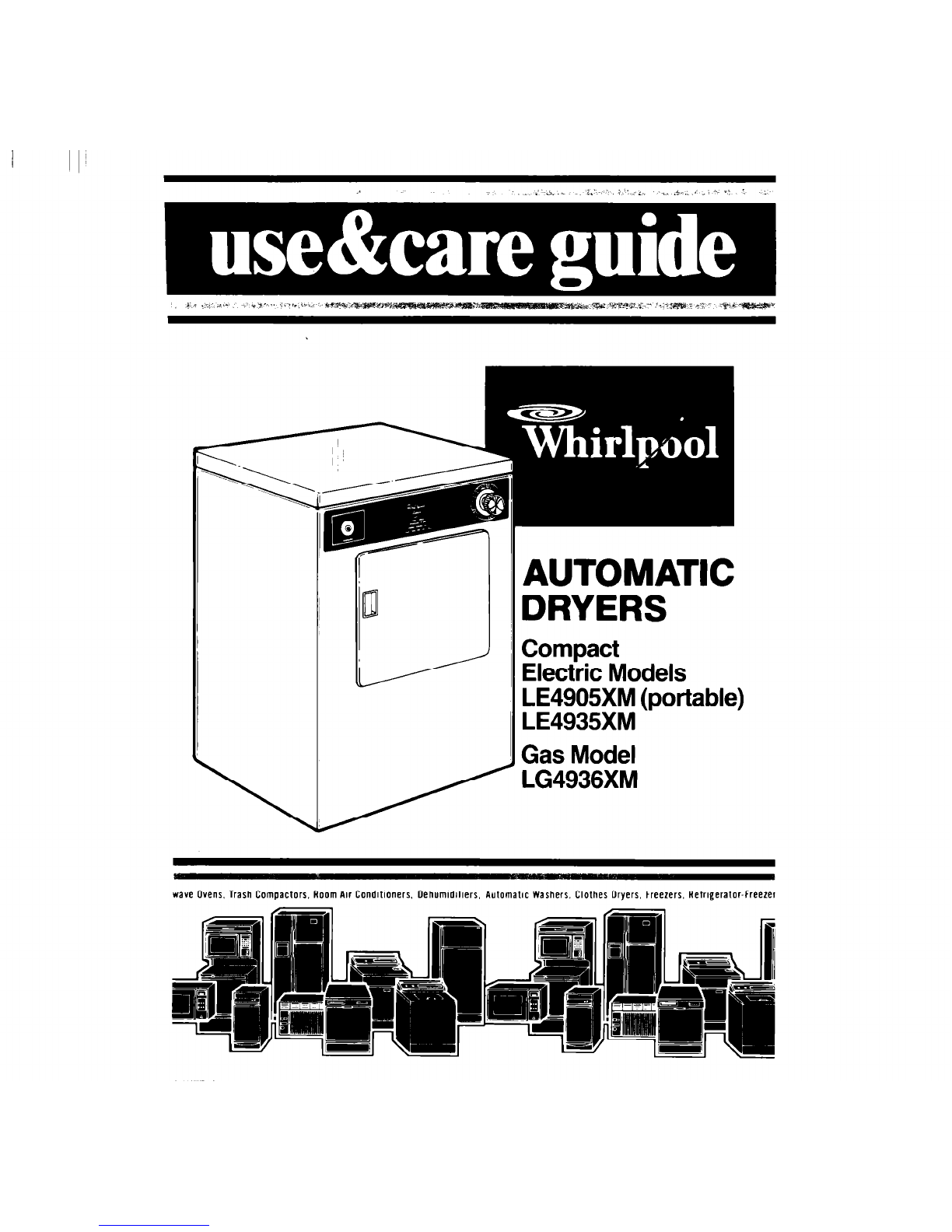

Whirlpool LE4905XM User manual

AUTOMATIC
DRYERS
Compact
Electric Models
LE4905XM (portable)
LE4935XM
Gas Model
LG4936XM
wave Ovens, Trash Compactors, Room AM Condltloners. Oehumldlllers, Automatic Washers, Clolhes Dryers. Freezers. Aefngeralor-Freezer

Parts and features
-.---
CONTROL KNOB
#DRYER DRUM
LOADING DOOR
MODEL
AND SERIAL
NUMBER PLATE
Remove the Con-
sumer Buy Guide la-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
See your “Dryer
Guide” for informa-
tion on fabrics, dry-
Copy your Model and Serial Numbers here
When vou need service or call wtth a
questIon: have this InformatIon ready
Complete Model Number
1. Complete Model and Serial Numbers
[from the plate located as shown)
2. Purchase date from sales slip
Complete Serial Number
Copy this information In these spaces
Keep this book, your warranty, sales slip Purchose Date
and “Dryer Guide”
Serwce Company and
Telephone Number
There IS no warranty reglstratlon to return Proof-of-purchase IS all
that IS required for In-warranty Service
Contents
PARTS AND FEATURES ................
YOUR RESPONSIBILITIES. .............
SAFETY FIRST. .........................
STARTING YOUR DRYER ...............
SELECTING A CYCLE ..................
End-of-Cycle Signal ................
LINTSCREEN. .........................
LINT REMOVAL ........................
CARING FOR YOUR DRYER ............
Cleaning Dryer Interior .............
Vacation Care .....................
Voltage Requirements ..............
Optional Installation Accessories. ...
IF YOU NEED SERVICE OR ASSISTANCE.
2 01985 Whirlpool Corporation

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l is installed by a qualified installer.
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled In
a well ventilated room’ on a floor
that can support the weight.
l is located in an area where the tem-
perature is above 45°F (7.2 C].
l is connected to the right kind of out-
let, electric supply and grounding.*
l is properly connected to exhaust
systems.*
l is used only for jobs normally ex-
pected of home clothes dryers.
l ISnot run where there may beexplo-
save fumes.
l is not used by children or anyone
unable to operate it properly.
‘See the “Installation Instructions” for
complete information.
l FOR YOUR SAFETY l
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
l FOR YOUR SAFETY l
DO NOT STOREOR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THEVICINITY
OF THIS OR ANY OTHER
APPLIANCE.

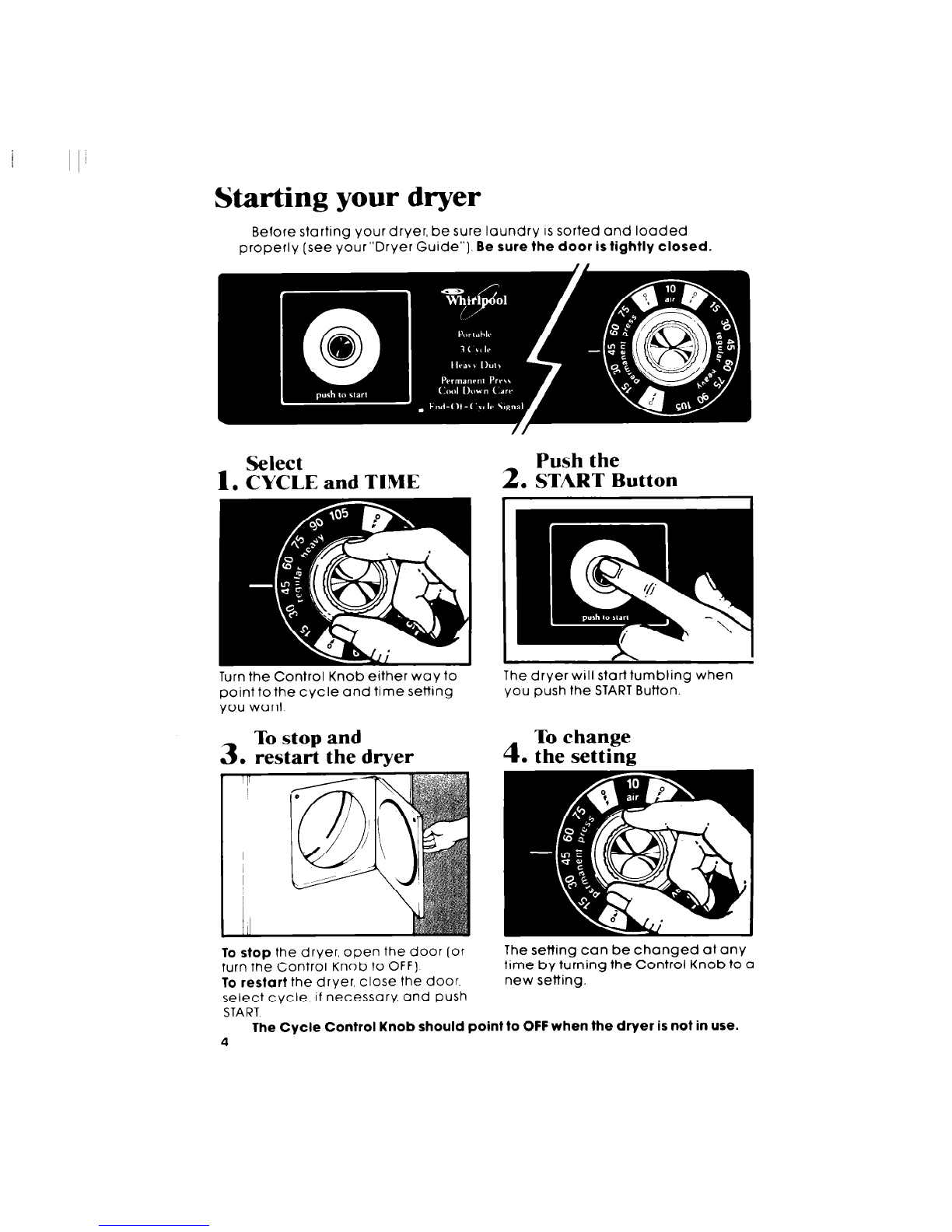

Starting your dryer
Before starting your dryer, be sure laundry ISsorted and loaded
properly (see your”Dryer Guide”). Be sure the door is tightly closed.
1. %%E and TIME
Turn the Control Knob either way to
point to the cycle and time setting
you want
3
To stop and
. restart the dryer
To stop the dryer, open the door (or
turn the Control Knob to OFF]
To restart the dryer, close the door.
select cycle, If necessary, and push
START
The setting can be changed at any
time by turning the Control Knob to a
new setting.
The Cycle Control Knob should point to OFF when the dryer is not in use.
4
I I
The dryer will start tumbling when
you push the START Button.
To change
4. the setting

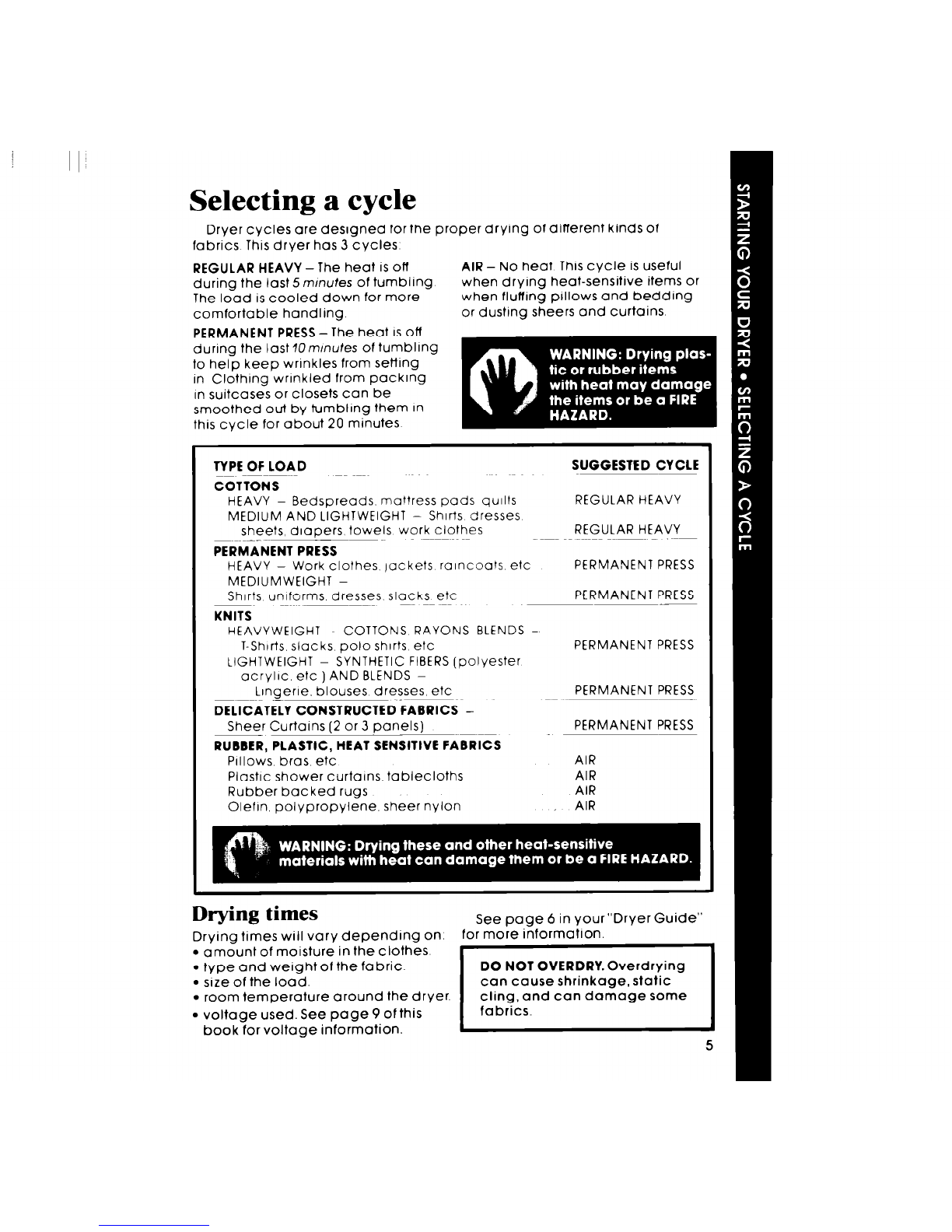

Selecting a cycle
Dryer cycles are designed for the proper drying of different kinds of
fabrics This dryer has 3 cycles
REGULAR HEAVY-The heat is off
AIR - No heat This cycle is useful
during the last 5 mlnufes of tumbling when drying heat-sensitive items or
The load is cooled down for more when fluffing pillows and bedding
comfortable handling or dusting sheers and curtains
PERMANENT PRESS-The heat IS off
during the last 70m1nutes of tumbling
to help keep wrinkles from setting
In Clothing wrinkled from packing
In suitcases or closets can be
smoothed out by tumbling them In
this cycle for about 20 minutes
TYPE OF LOAD SUGGESTED CYCLE
COTTONS
HEAVY - Bedspreads. mattress pads quilts
MEDIUM AND LIGHTWEIGHT - Shirts dresses
sheets, diapers. towels work clothes
PERMANENT PRESS
REGULAR HEAVY
REGULAR HEAVY
HEAVY - Work clothes jackets ralncoats etc
MEDIUMWEIGHT - PERMANENT PRESS
Shirts uniforms. dresses slacks etc
PERMANENT PRESS
KNITS
HEAVYWEIGHT - COTTONS RAYONS BLENDS -
T-Shirts. slacks polo shirts etC
LIGHTWEIGHT - SYNTHETIC FIBERS (polyester
acrylic. etc ) AND BLENDS -
PERMANENT PRESS
Lingerie. blouses dresses, etc
DELICATELY CONSTRUCTED FABRICS -
Sheer Curtains (2 or 3 panels)
RUBBER, PLASTlC, HEAT SENSITIVE FABRICS
Pillows bras etc
Plastic shower curtains. tablecloths
Rubber backed rugs
Olefln. polypropylene. sheer nylon
PERMANENT PRESS
PERMANENT PRESS
AIR
AIR
AIR
AIR
Drying times See page 6 in your”Dryer Guide”
Drying times will vary depending on. for more information.
l amount of moisture in the clothes.
9 type and weight of the fabric.
l size of the load.
l room temperature around the dryer.
l voltage used. See page 9 of this
book for voltage information.
DO NOT OVERDRY. Overdrying
can cause shrinkage, static
cling, and can damage some
fabrics.

II
i
Mixed loads
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest fab-
ncs. When the dryer stops, remove
drv items and reset the control.
important for permanent press,
fabrics.
Suggested load sizes
Use these load size recommendations for your compact dryer. Do not
use the load sizes for larger capacity dryers that are listed in the”Dryer
Guide:’
FABRIC TYPE
Permanent press
or knits
MIXED LOAD UNMIXED LOAD
1 dress
6 shirts OR
2 polrs slacks 2 pantsulfs OR
2 blouses 3-4 dresses
Medium weight 1 pair pajamas
2 plllowcases
3 shlrls
2 sets ot underwear
1 king or queen-stze sheet OR
1 double sheet and 2
plllowcases OR
2 single sheersand
2 pillowcases
Heavywelghl
3 work shhrls
2 work pants 8 bath towels OR
6 bath towels,
3 hand towels and
6 washcloths OR
3 pairs of jeans
End-of-cycle signal
The dryer sounds a signal to let you know
when the cycle is finished. The signal cannot be
turned off and is not adjustable.
The signal is helpful when you are drying
permanent press, synthetics and other items
that should be taken out as soon as the dryer
stops.
6

I
I I’

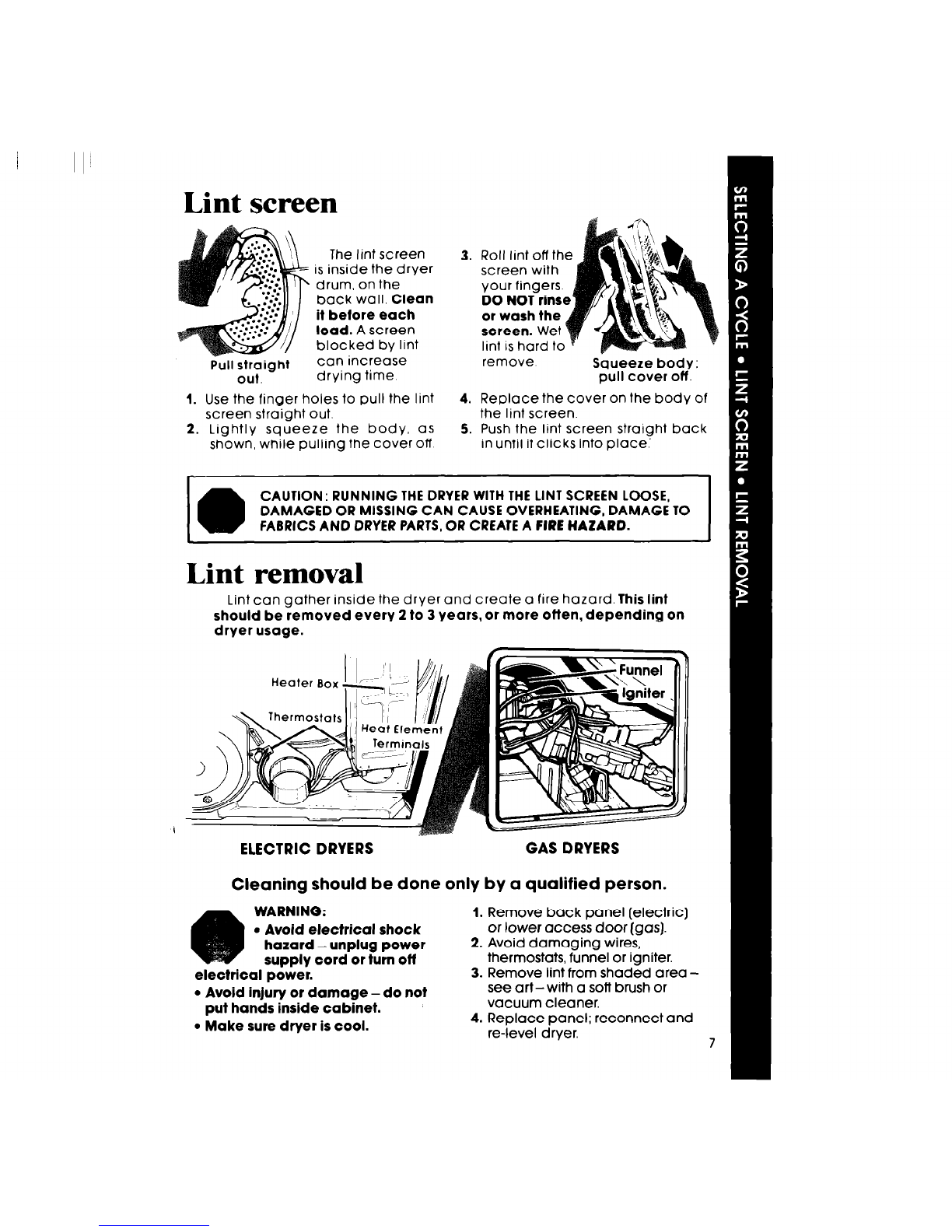

Lint screen
Pull straight
out.
The lint screen
is inside the dryer
drum, on the
back wall. Clean
it betore each
toad. A screen
blocked by lint
can increase
drying time
1. Use the finger holes to pull the lint
screen straight out.
2. Lightly squeeze the body, as
shown, while pulling the cover off
3.
4.
5.
Roll lint off the
screen with
your fingers.
DO NOT rins
or wash the
screen. Wet
lint is hard to
remove
Squeeze body;
pull cover off.
Replace the cover on the body of
the lint screen.
Push the lint screen straight back
rn until it clicks into place:
CAUTION: RUNNING THE DRYER WITH THE LINT SCREEN LOOSE,
DAMAGED OR MISSING CAN CAUSE OVERHEATING, DAMAGE TO
FABRtCS AND DRYER PARTS. OR CREATE A FIRE NAZARD.
Lint removal
Lint can gather inside the dryer and create a fire hazard.This lint
should be removed every 2 to 3 years, or more otten, depending on
dryer usage.
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
WARNING:
l Avoid electrical shock
hazard - unplug power
supply cord or turn off
electrical power.
l Avoid injury or damage - do not
put hands inside cabinet.
l Make sure dryer is cool.
1.
2.
3.
4.
Remove back panel [electric]
or lower access door (gas).
Avoid damaging wires,
thermostats, funnel or igniter.
Remove lint from shaded area -
see art-with a soft brush or
vacuum cleaner.
Replace panel; reconnect and
re-level dryer. 7

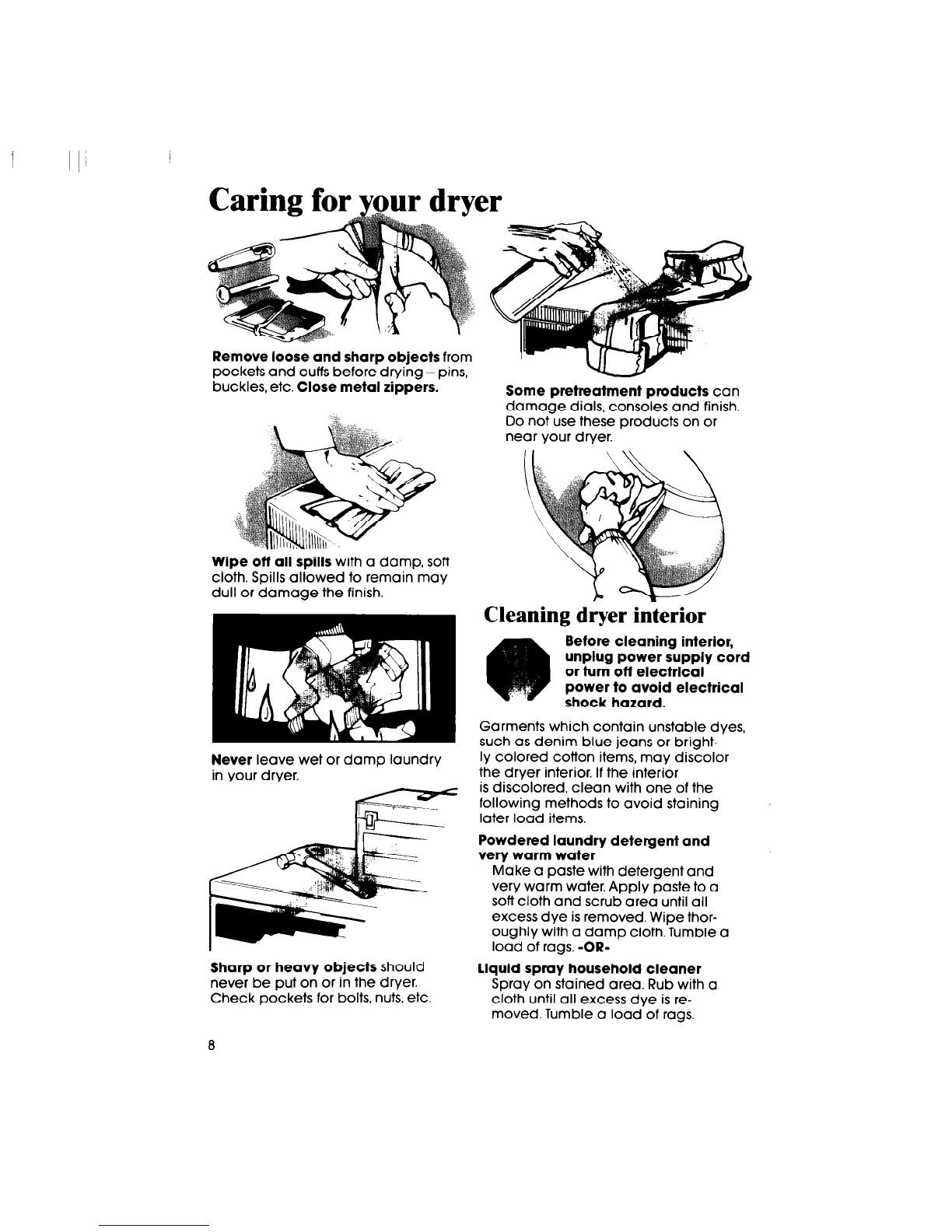

Remove loose and sharp objects from
pockets and cuffs before drying - pins,
buckles, etc. Close metal zippers.
Wipe off all spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc
Some pretreatment products can
damage dials, consoles and finish.
Do not use these products on or
near your dryer.
Cleaning dryer interior
Before cleaning interior,
unplug power supply cord
or turn off electrical
power to avoid electrical
shock hazard.
Garments which contain unstable dyes,
such as denim blue jeans or bright-
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to a
soft cloth and scrub area until all
excess dye is removed. Wipe thor-
oughly with a damp cloth. Tumble a
load of rags. -OR-
liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re-
moved. Tumble a load of rags.

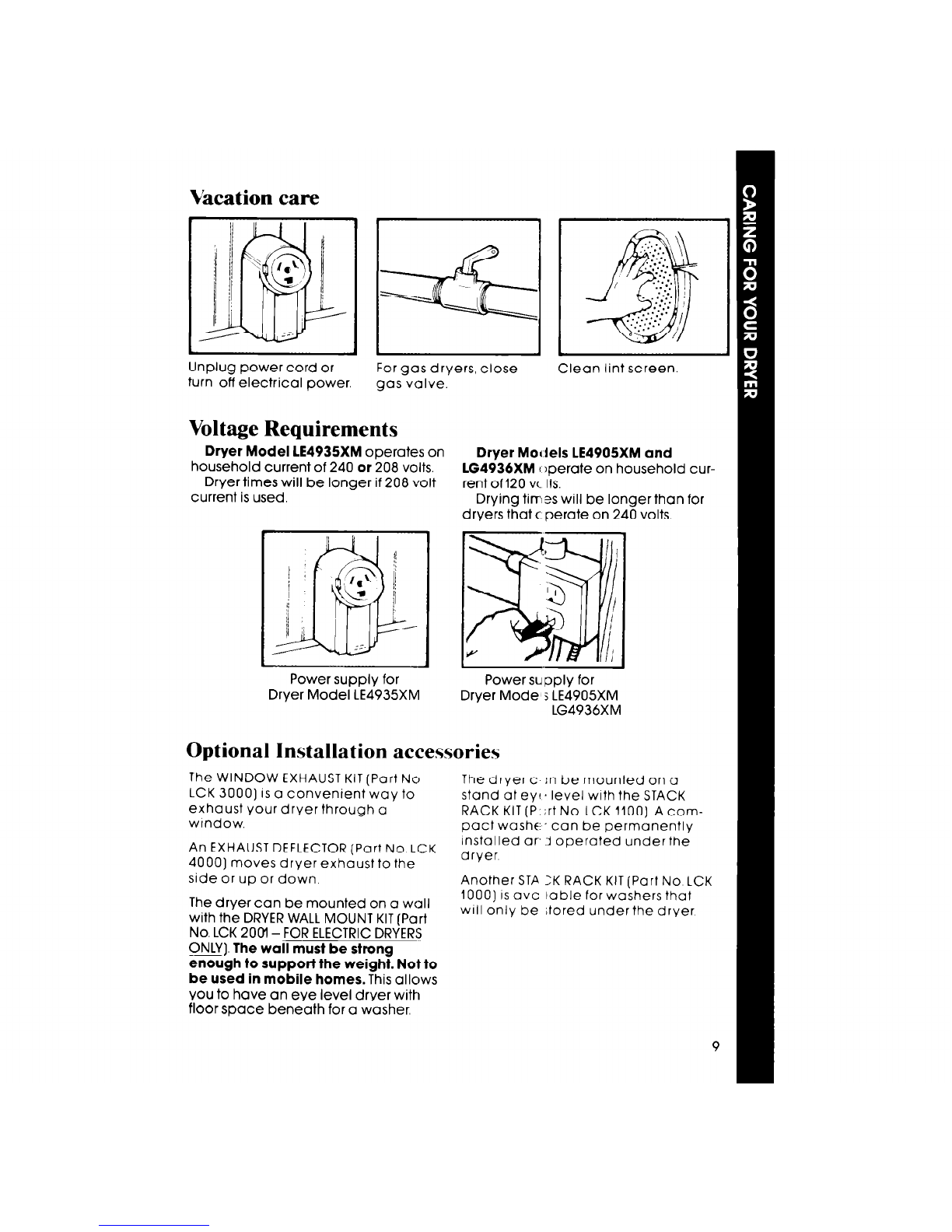

Vacation care
:..
‘.::.. \
...*.
::..:.. -
-*.
4!zb
/ .-:..
.:.*
-: (
.:-..
:*:: :
. ..*..
. .: . . .. .
......*. . i;
o /
Unplug power cord or For gas dryers, close Clean lint screen
turn off electrical power. gas valve.
Voltage Requirements
Dryer Model LE4935XM operates on Dryer MotileIs LE4905XM and
household current of 240 or 208 volts. LG4936XM Ioperate on household cur-
Dryer times will be longer if 208 volt rent of 120 vc Its.
current is used. Drying times will be longer than for
dryers that c perate on 240 volts.
Power supply for
Dryer Model LE4935XM Power supply for
Dryer Mode 5LE4905XM
LG4936XM
Optional Installation accessories
The WINDOW EXHAUST KIT (Part No
LCK 3000) ISa convenient way to
exhaust your dryer through a
window.
An EXHAUST DEFLECTOR (Part No LCK
4000) moves dryer exhaust to the
side or up or down
The dryer can be mounted on a wall
with the DRYER WALL MOUNT KIT (Part
No. LCK 2OOl- FOR ELECTRIC DRYERS
w). The wall must be strong
enough to support the weight. Not to
be used in mobile homes. This allows
you to have an eye level dryer with
floor space beneath for a washer.
The dryer c In be mounted on a
stand at eyl. level with the STACK
RACK KIT (P. ;rt No LCK 1100). A com-
pact washci. con be permanently
Installed ar II operated under the
dryer
Another STA IK RACK KIT (Part No LCK
1000) is ovc Iable for washers that
WIII only be stored under the dryer
9

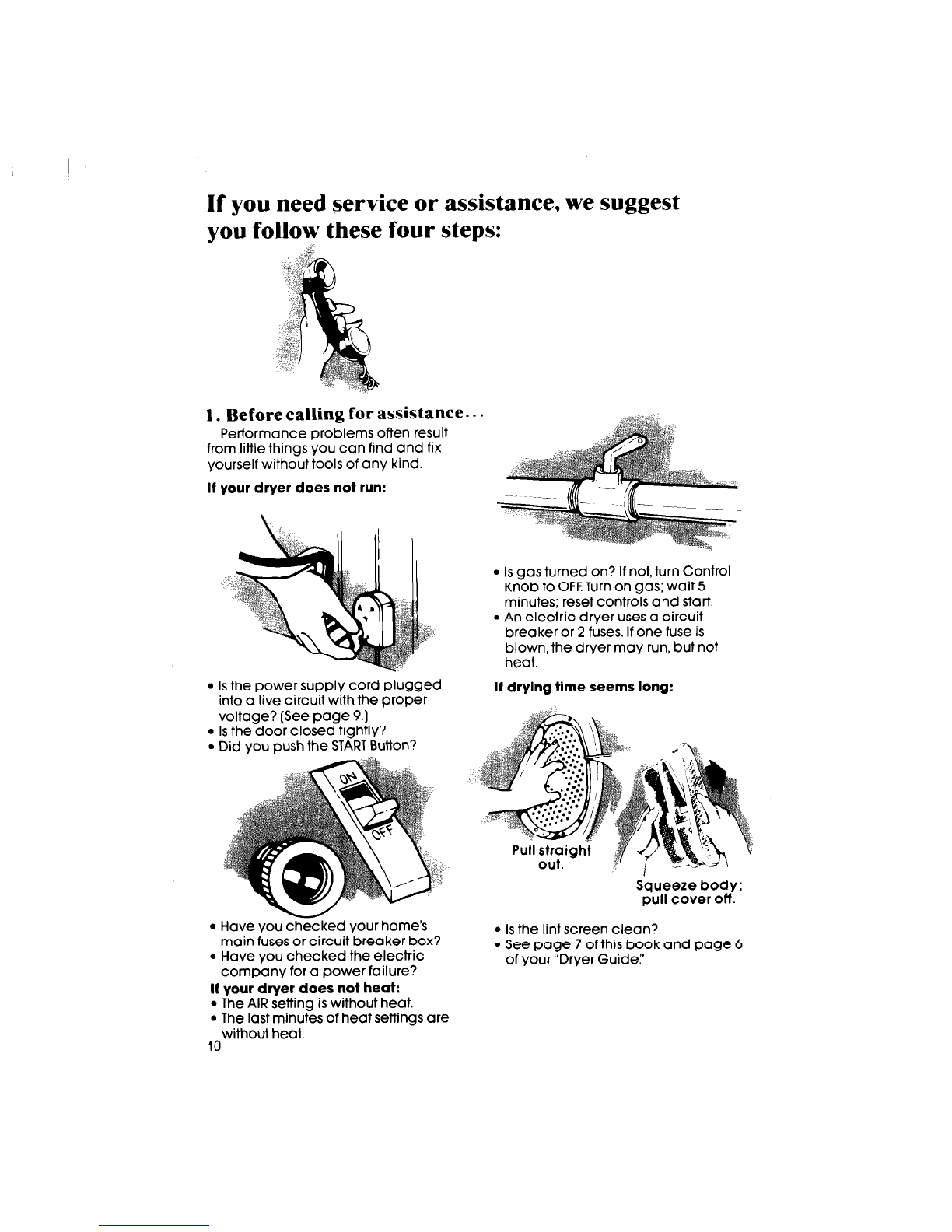

If you need service or assistance, we suggest
you follow these four steps:
I. Before calling for assistance., . .*+” 1
.“<S* .+;>_
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
It your dryer does not run:
l Is the power supply cord plugged
into a live circuit with the proper
voltage? [See page 9.)
l Is the door closed tightly?
l Did you push the START Button?
l Is gas turned on? If not, turn Control
Knob to OFF. Turn on gas; wait 5
minutes; reset controls and start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fUSe iS
blown, the dryer may run, but not
heat.
If drying time seems long:
l Have you checked your home’s
main fuses or circuit breaker box?
l Have you checked the electric
company for a power failure?
If your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
10
Squeeze body;
pull cover off.
l Is the lint screen clean?
l See page 7 of this book and page 6
of your “Dryer Guide:’

2. If you need assistance*...
4. If y’ou ha\,e a problem*...
Call Whirlpool COOL-LINE@ serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of our tralned Con-
sultants The Consultant can Instruct
You In how to obtain satisfactory op-
eration from Your appliance or, If
service IS necessary, recommend a
qualified service company in Your
area
Call our COOL-LINE service as-
sistance telephone number (see
Step 2) and talk with one of our Con-
sultants, or if you prefer, write to
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, MI 49022
‘If you must call or write, please pro-
vide model number, serial number,
dote of purchase, and a complete
description of the problem This in-
formation IS needed in order to bet-
ter respond to Your request for
assrstonce
3. If you need service*...
r
Whirlpool has
a nationwlde net-
work of franchrsed
ice technlclans are tralned to fulfill
the product warranty and provide
after-warranty service, anywhere In
the United States To locate TECH-
CARE service in Your area, call our
COOL-LINE service assistance tele-
phone number (see Step 2) or look In
Your telephone directory Yellow
Pages under
0
FSP 1sa reglstered trademark
al WhIrlpool Carporotlon for
quallty parts took for this
FSP symbol of quallty whenever
8 you need a replacement part
for your WhIrlpool appliance
FSP replacement parts
wll 111right and work right, because they are
mode to the same exachng speclflcatlons
used to build every new WhIrlpool appliance

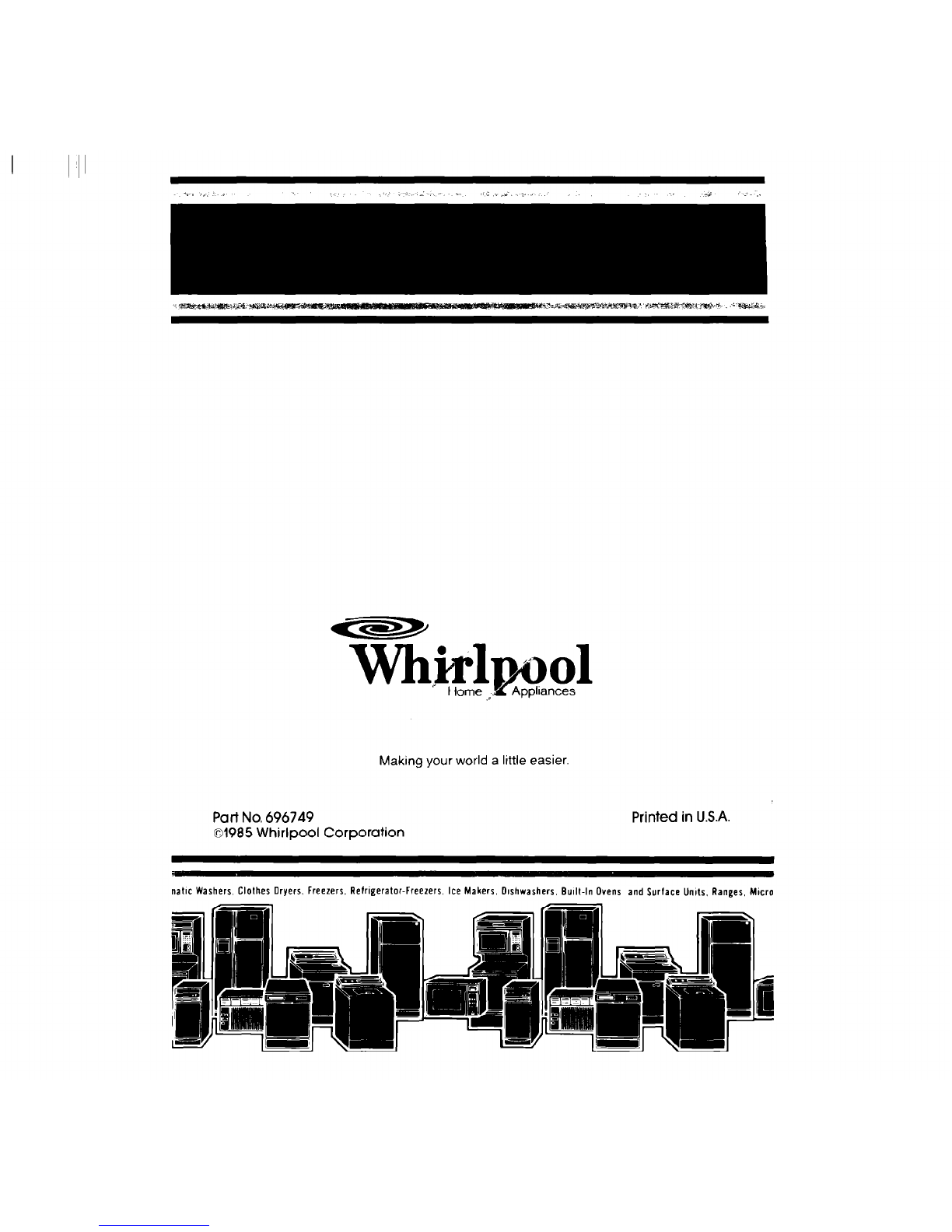

Making your world a little easier.
Pari No. 696749
01985 Whirlpool Corporation Printed in U.S.A.
natx Washers, Clothes Dryers. Freezers. Relrlgeratot-Freezers. Ice Makers. Dishwashers. Bwlt-In Ovens and Surtace Units. Ranges, Micro
