I’

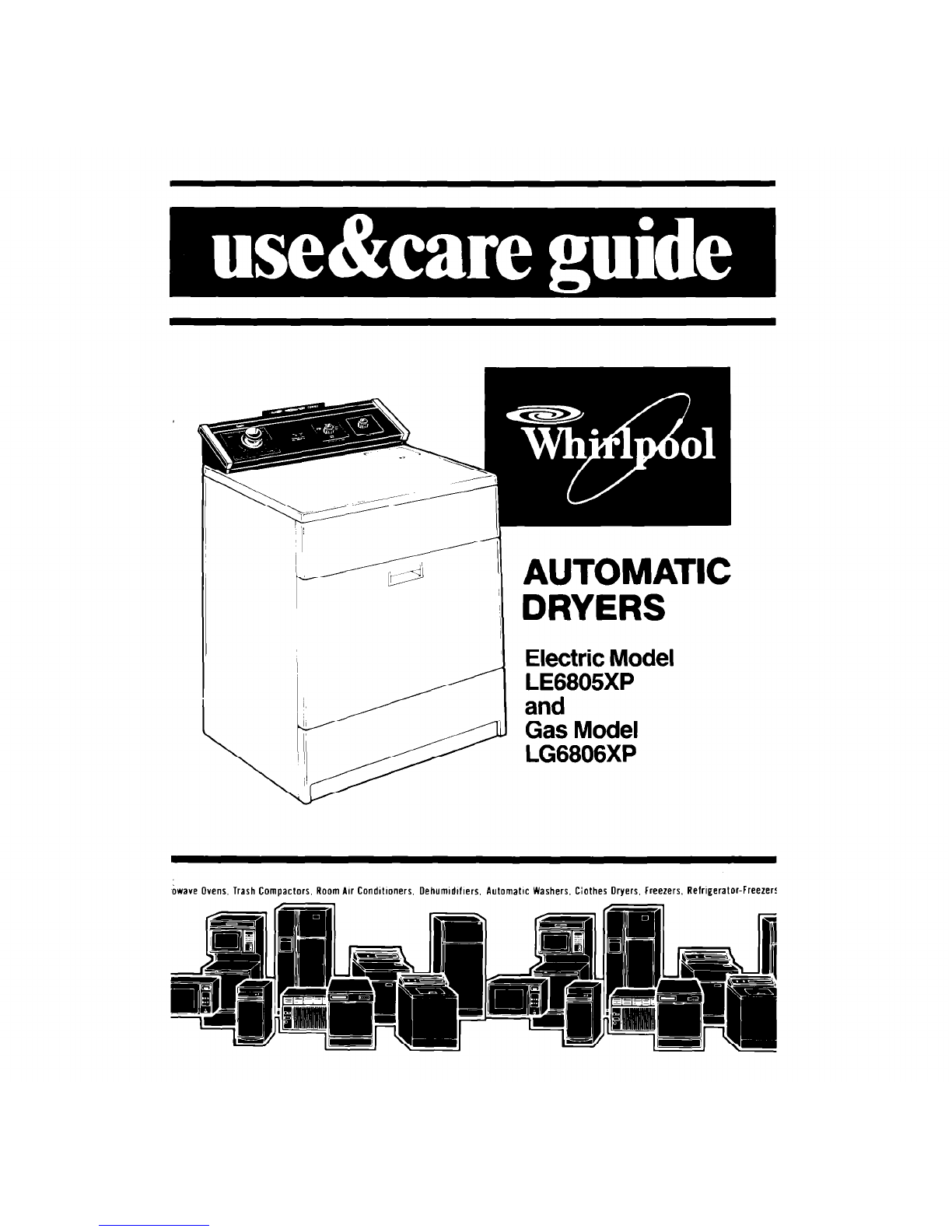

AUTOMATIC
DRYERS
Electric Model
LE6805XP
and
Gas Model
LG6806XP
owave Ovens. Trash Compactors. Room Air Condllloners, Oehumldtliers, Aulomatlc Washers, Ciothes Dryers, Freezers. Refrlgeralor-Freezers

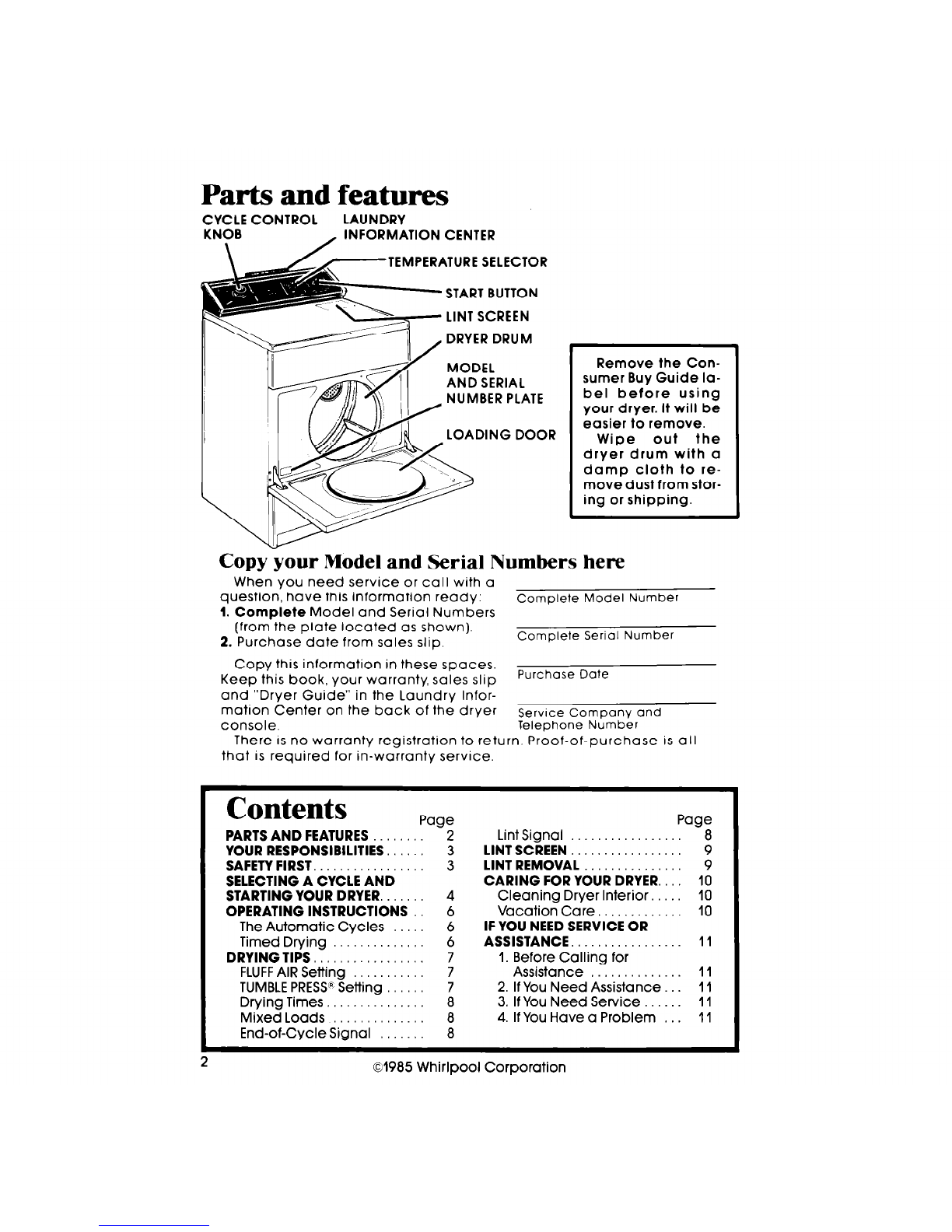

Parts and features
CYCLE CONTROL LAUNDRY
KNOB , INFORMATION CENTER
TEMPERATURE SELECTOR
START BUTTON
LINT SCREEN
DRYER DRUM
AND SERIAL
NUMBER PLATE
LOADING DOOR
Remove the Con-
sumer Buy Guide la-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Complete Model Number
1. Complete Model and Serial Numbers
(from-the plate located as shown).
2. Purchase date from sales slip.
Complete Serial Number
Copy this information in these spaces.
Keep this book, your warranty, sales slip
Purchase Date
and “Dryer Guide” in the Laundry Infor-
matron Center on the back of the dryer
Service Company and
console. Telephone Number
There IS no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.
Contents
Page
PARTS AND FEATURES ........ 2
YOUR RESPONSIBILITIES. ..... 3
SAFETY FIRST. ................ 3
SELECTING A CYCLE AND
STARTING YOUR DRYER. ...... 4
OPERATING INSTRUCTIONS 6
The Automatic Cycles ..... 6
Timed Drying .............. 6
DRYING TIPS. ................ 7
FLUFFAIR Setting ........... 7
TUMBLE PRESS~Setting ...... 7
Drying Times. .............. 8
Mixed Loads .............. 8
End-of-Cycle Signal ....... 8
Lint Signal
LINT SCREEN
LINT REMOVAL
CARING FOR YOUR DRYER.
Cleaning Dryer Interior.
Vacation Care.
IF YOU NEED SERVICE OR
ASSISTANCE.
1. Before Calling for
Assistance
2. If You Need Assistance
3. If You Need Service
4. If You Have a Problem
Page
i
9
10
10
10
11
11
11
11
. 11
01985 Whirlpool Corporation

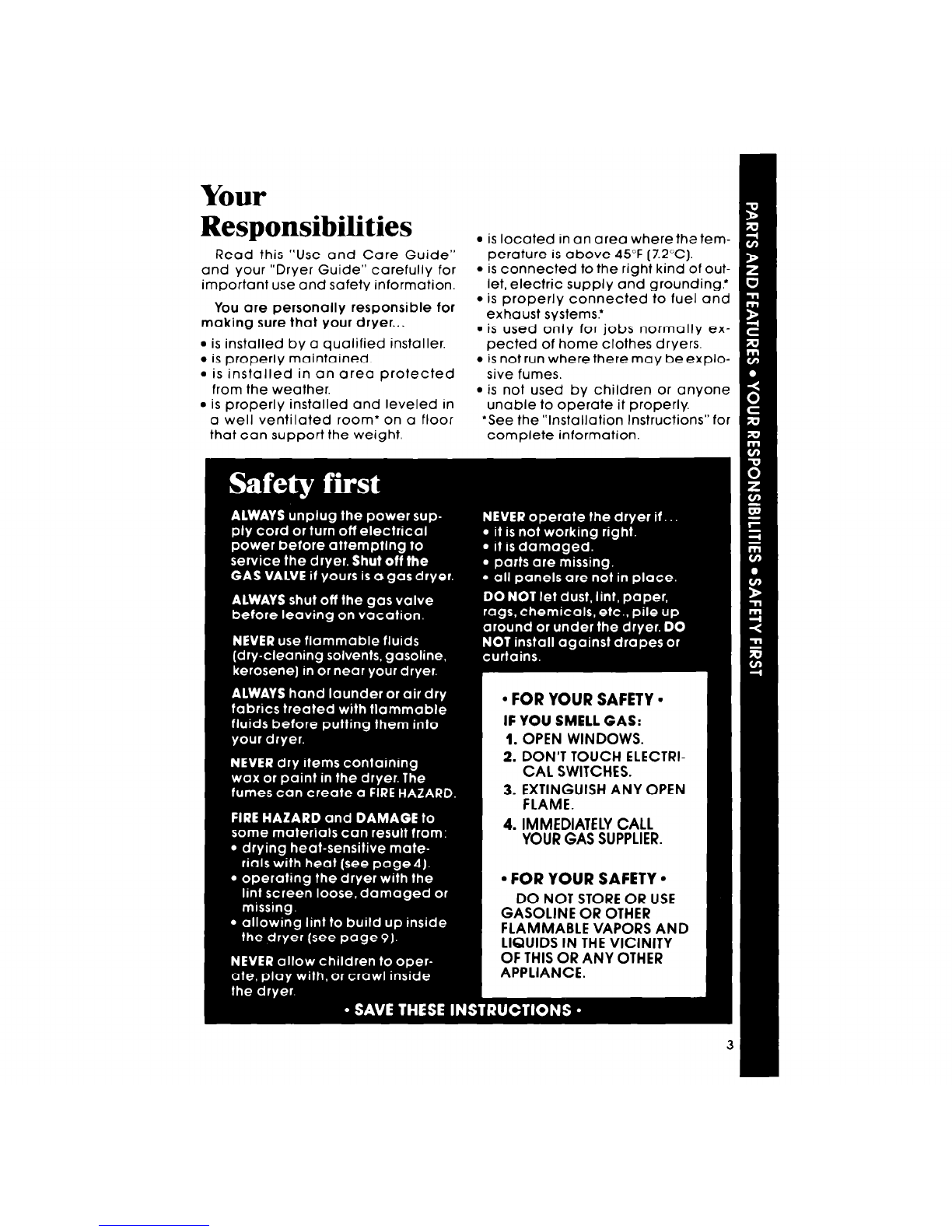

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l is installed by a qualified installer.
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled In
a well ventilated room* on a floor
that can support the weight.
l is located In an area where the tem-
perature is above 45°F (7.2”C).
l is connected to the right kind of out-
let, electric supply and grounding.*
l is properly connected to fuel and
exhaust systems.’
l is used only for jobs normally ex-
pected of home clothes dryers.
l is not run where there may be explo-
sive fumes.
l is not used by children or anyone
unable to operate it properly.
‘See the “Installation Instructions” for
complete information.
l FOR YOUR SAFETY l
DO NOT STOREOR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THEVICINITY
OF THIS OR ANY OTHER
APPLIANCE.
l FOR YOUR SAFETY.
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.

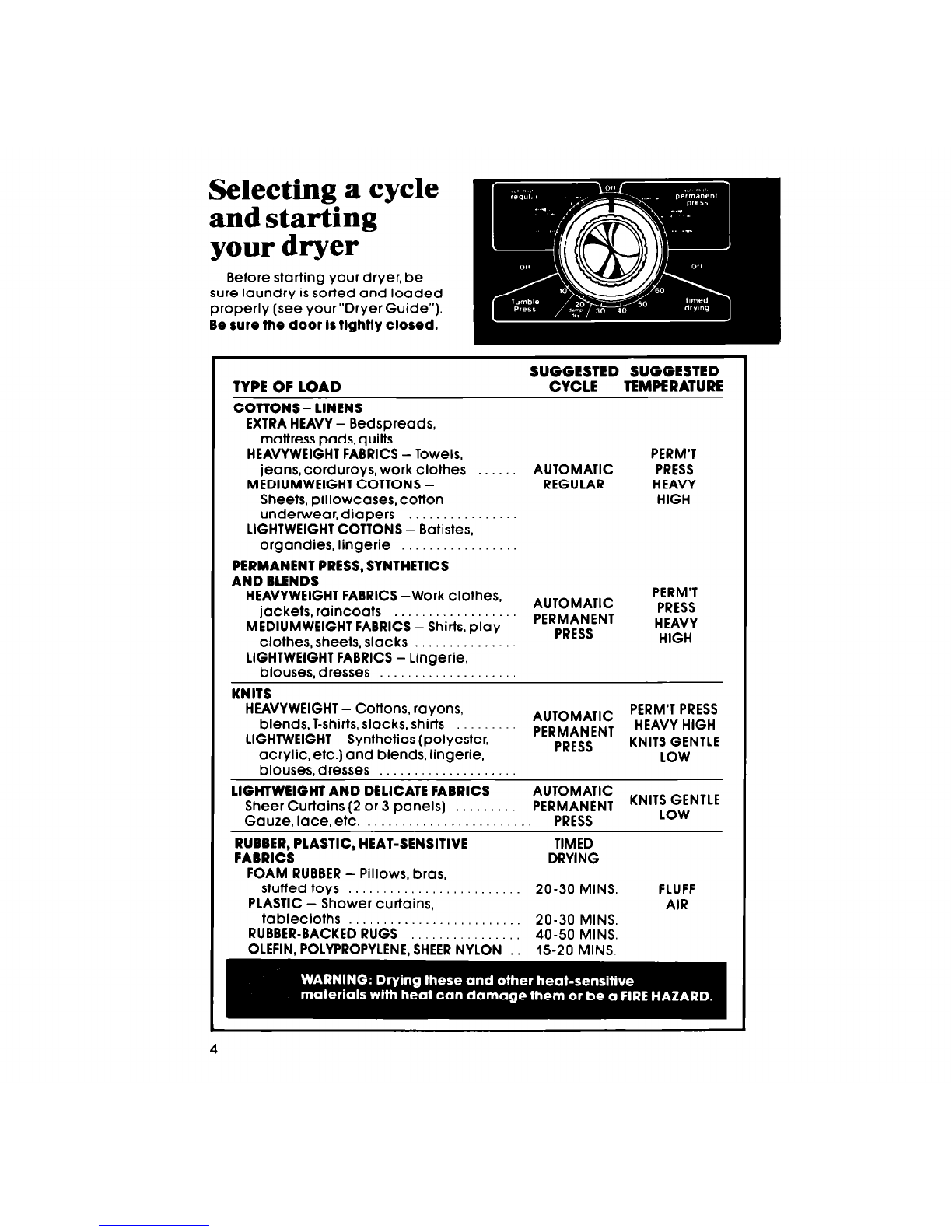

TYPEOF LOAD
COTTONS - LINENS
SlJgW;ED SUGGESTED
TEMPERATURE
EXTRA HEAVY - Bedspreads,
mattress padsquilts.
HEAVYWEIGHT FABRICS-Towels, PERMIT
jeans, corduroys, work clothes AUTOMATIC PRESS
MEDIUMWEIGHT COTTONS - REGULAR HEAVY
Sheets, pillowcases, cotton HIGH
underwear,diapers .
LIGHTWEIGHT COTTONS - Batistes,
organdies, lingerie
PERMANENT PRESS, SYNTHETICS
AND BLENDS
HEAVYWEIGHT FABRICS -Work clothes, PERMIT
jackets, raincoats AUTOMATIC PRESS
MEDIUMWEIGHT FABRICS - Shirts, play PERMANENT HEAVY
clothessheets, slacks PRESS HIGH
LIGHTWEIGHT FABRICS - Lingerie,
blouse&dresses
KNITS
HEAVYWEIGHT - Cottons, rayons,
blend&T-shirts, slacks, shirts AUTOMATIC PERM’T PRESS
PERMANENT HEAVY HIGH
LIGHTWEIGHT - Synthetics (polyester,
acrylic, etc.) and blends, lingerie, PRESS KNITS GENTLE
LOW
blousesdresses
LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC
Sheer Curtains (2 or 3 panels) PERMANENT
Gauze,lace,etc. . . .._____.__.____._.... PRESS KNIT:zfNTLE
RUBBER, PLASTIC, HEAT-SENSITIVE TIMED
FABRICS DRYING
FOAM RUBBER - Pillows, bras,
stuffed toys
PLASTIC - Shower curtains,
tablecloths . . . . . . . . . . . . . . . . . . . . . .._
RUBBER-BACKED RUGS
OLEFIN. POLYPROPYLENE.‘&iiii’bi~i&i’ :
20-30 MINS. FLUFF
AIR
20-30 MINS.
40-50 MINS.
15-20 MINS.

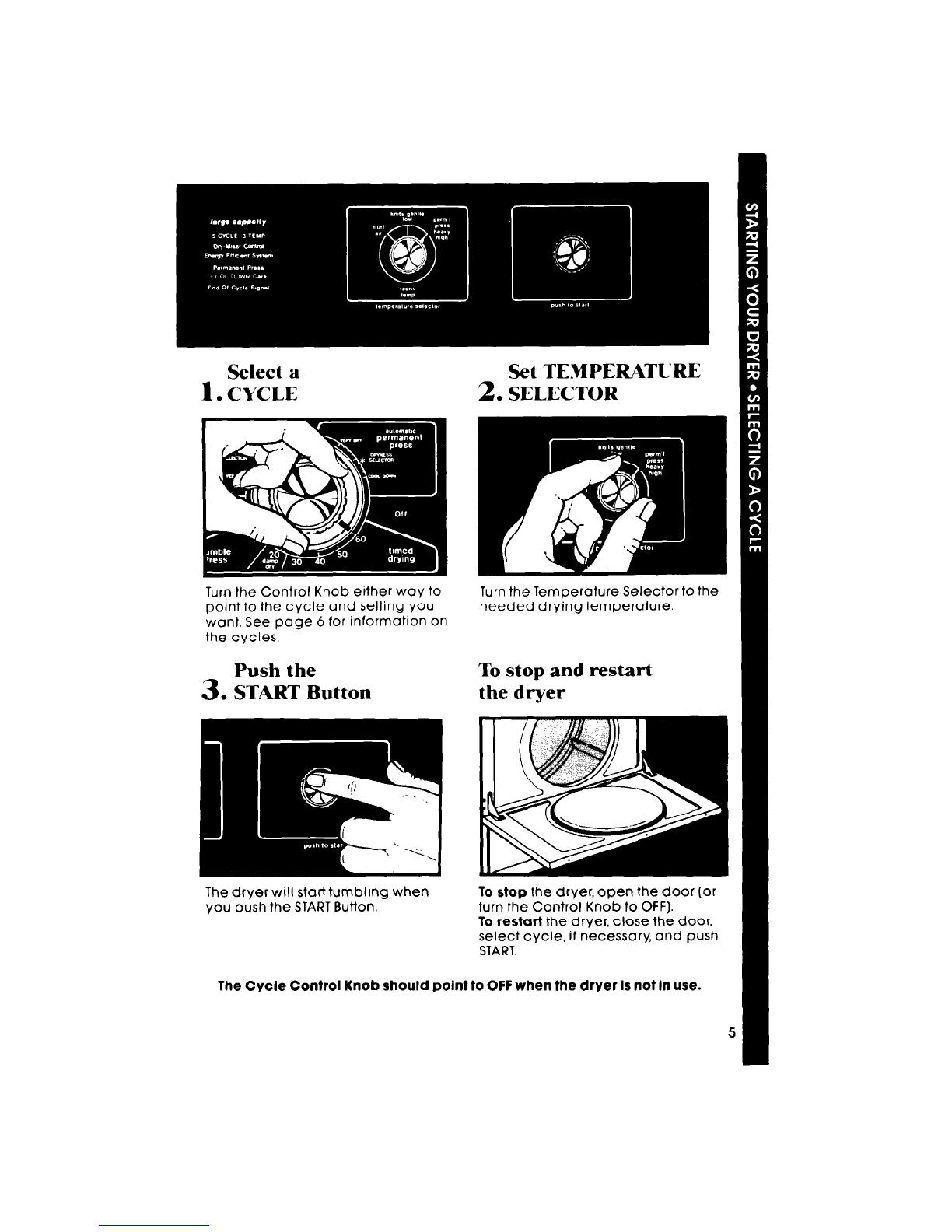

Select a
1. CYCLE Set TEMPERATURE
2. SELECTOR
Turn the Control Knob either way to
point to the cycle and setting you
want. See page 6 for information on
the cycles.
Push the
3. START Button
Turn the Temperature Selector to the
needed drying temperature.
To stop and restart
the dryer
The dryer will start tumbling when
you push the START Button. To stop the dryer. open the door (or
turn the Control Knob to OFF).
To restart the dryer, close the door,
select cycle, if necessary, and push
START.
The Cycle Control Knob should point to OFF when the dryer is not in use.

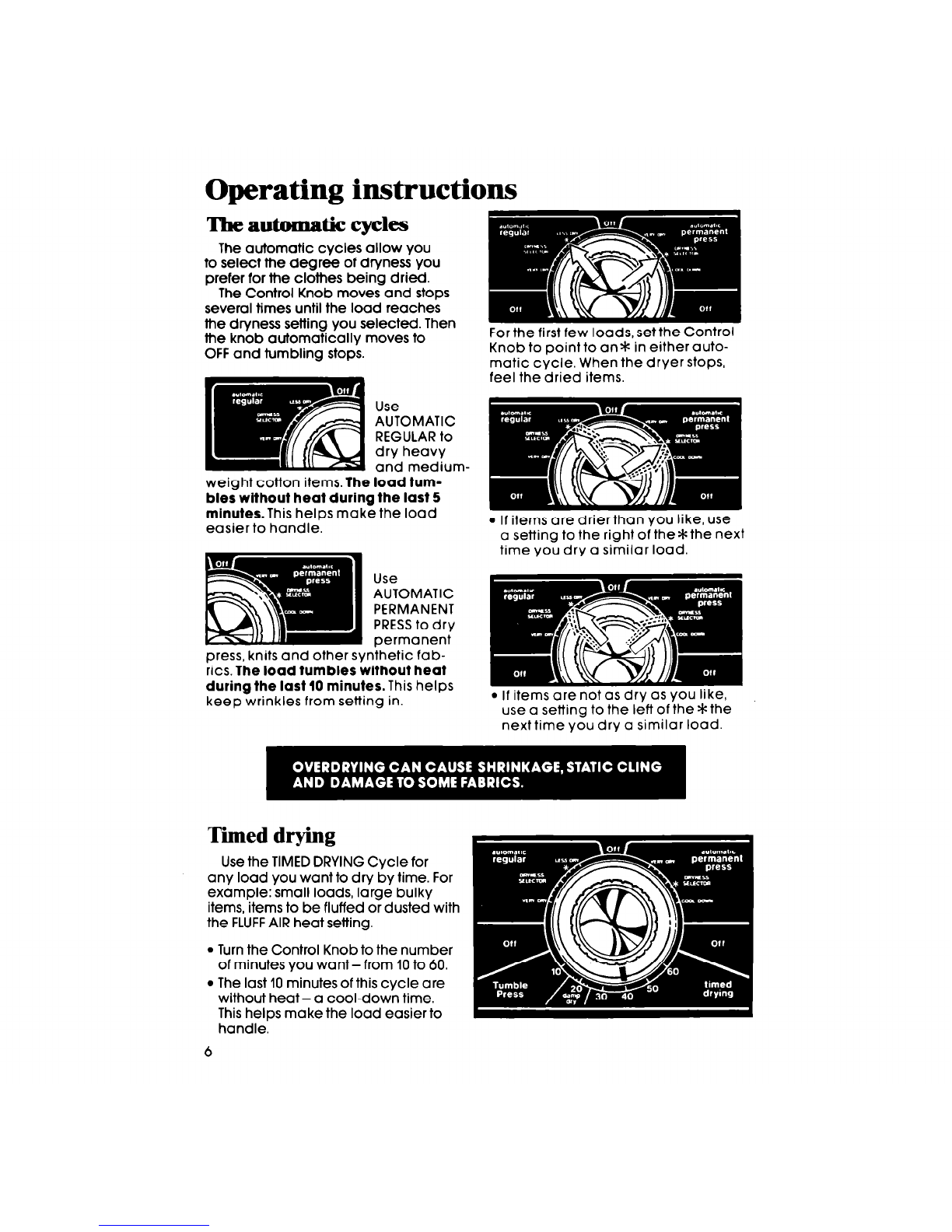

Operating instructions
The automatic cycles
The automatic cycles allow you
to select the degree of dryness you
prefer for the clothes being dried.
The Control Knob moves and stops
several times until the load reaches
the dryness setting you selected. Then
the knob automatically moves to
OFF and tumbling stops.
weight cotton items. The load tum-
bles without heat during the last 5
minutes. This helps make the load
easier to handle.
press, knits and other synthetic fab-
rics. The load tumbles without heat
during the last 10 minutes. This helps
keep wrinkles from setting in.
For the first few loads, set the Control
Knob to point to an* in either auto-
matic cycle. When the dryer stops,
feel the dried items.
l If items are drier than you like, use
a setting to the right of the * the next
time you dry a similar load.
l If items are not as dry as you like,
use a setting to the left of the *the
next time you dry a similar load.
Timed drying
Use the TIMED DRYING Cycle for
any load you want to dry by time. For
example: small loads, large bulky
items, items to be fluffed or dusted with
the FLUFFAIR heat setting.
l Turn the Control Knob to the number
of minutes you want-from 10to 60.
l The last 10 minutes of this cycle are
without heat - a cool-down time.
This helps make the load easier to
handle.
6

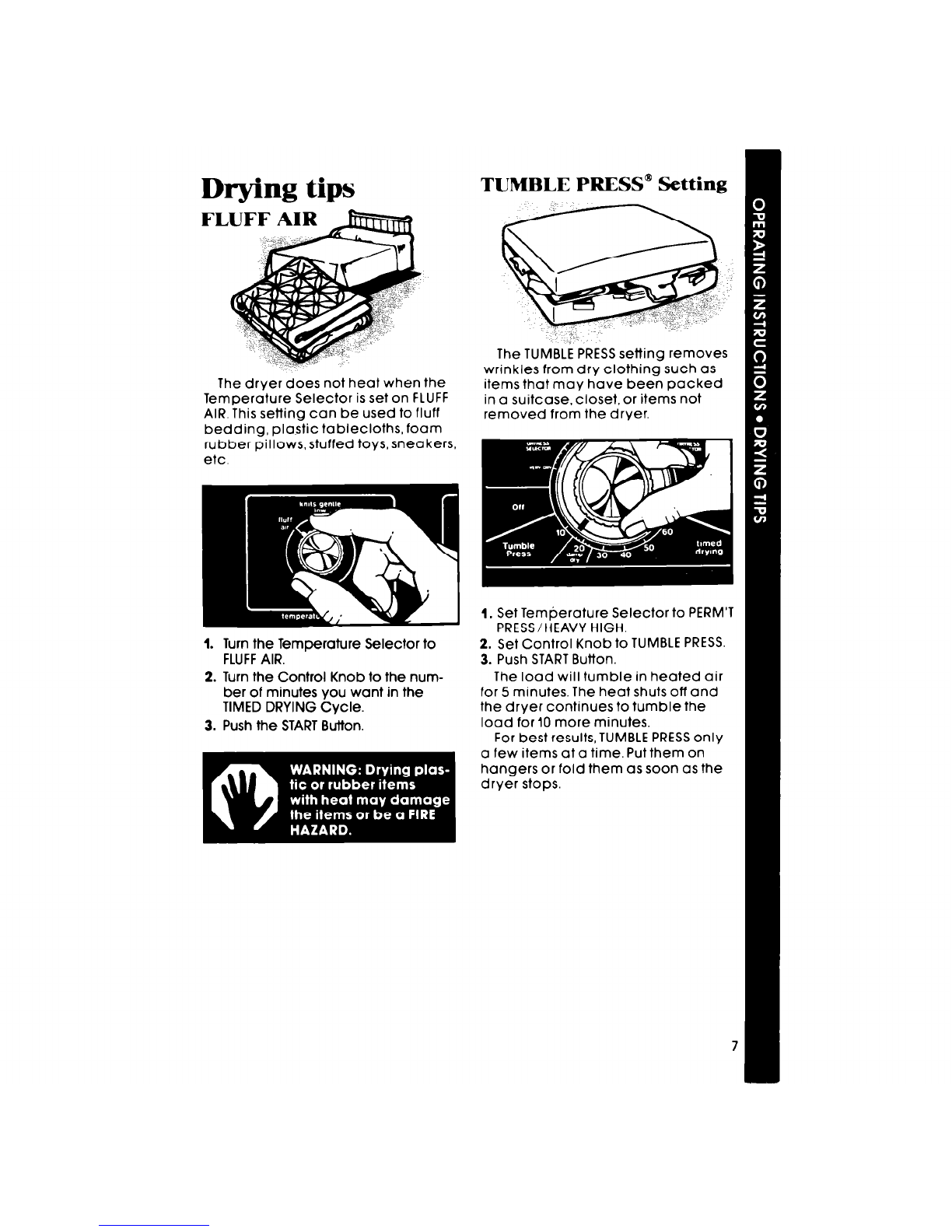

Drying tips
The dryer does not heat when the
Temperature Selector is set on FLUFF
AIR. This setting con be used to fluff
bedding, plastic tablecloths, foam
rubber pillows, stuffed toys, snea kers,
etc.
1. Turn the Temperature Selector to
FLUFFAIR.
2. Turn the Control Knob to the num-
ber of minutes you wont in the
TIMED DRYING Cycle.
3. Push the STARTButton.
TUMBLE PRESS@ Setting
The TUMBLE PRESSsetting removes
wrinkles from dry clothing such as
items that may hove been pocked
in a suitcase. closet, or items not
removed from the dryer.
1. Set Temperature Selector to PERM’T
PRESS/HEAVY HIGH.
2. Set Control Knob to TUMBLE PRESS.
3. Push START Button.
The load will tumble in heated air
for 5 minutes. The heat shuts off and
the dryer continues to tumble the
load for 10 more minutes.
For best results, TUMBLE PRESSonly
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.

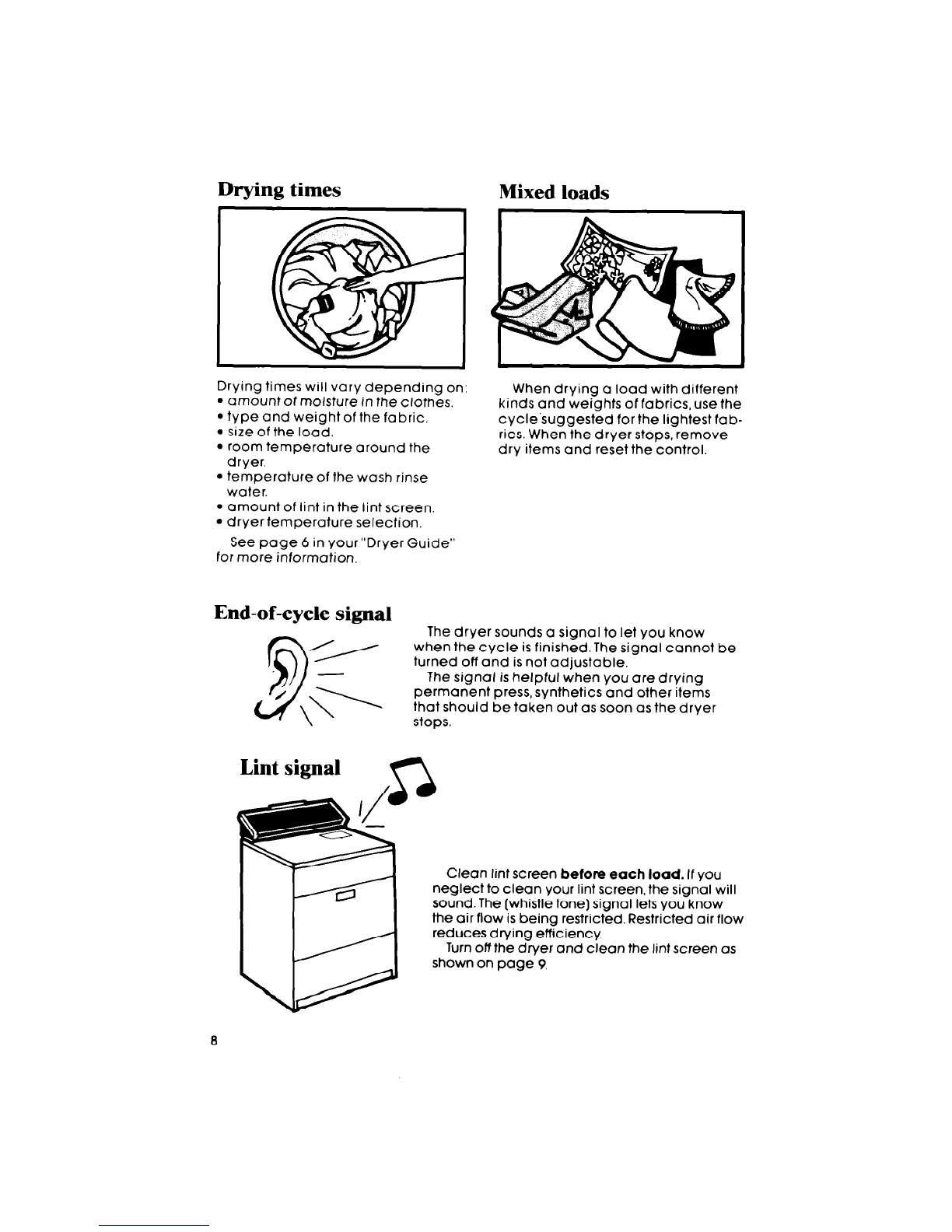

Drying times Mixed loads
Drying times will vary depending on:
l amount of moisture in the clothes,
l type and weight of the fabric.
l size of the load.
l room temperature around the
dryer.
l temperature of the wash rinse
water.
l amount of lint in the lint screen.
l dryertemperature selection.
See page 6 in your”Dryer Guide”
for more information.
When drying CIload with different
kinds and weights of fabrics, use the
cycle‘suggested for the lightest fob-
rics. When the dryer stops, remove
dry items and reset the control.
End-of-cycle signal The dryer sounds a signal to let you know
when the cycle is finished. The signal cannot be
turned off and is not adjustable.
The signal is helpful when you ore drying
permanent press, synthetics and other items
that should be taken out as soon as the dryer
stops.
Lint signal fl
Clean lint screen before each load. If you
neglect to clean your lint screen, the signal will
sound. The [whistle tone) signal lets you know
the air flow is being restricted. Restricted air flow
reduces drying efficiency.
Turn off the dryer and clean the lint screen as
shown on page 9.

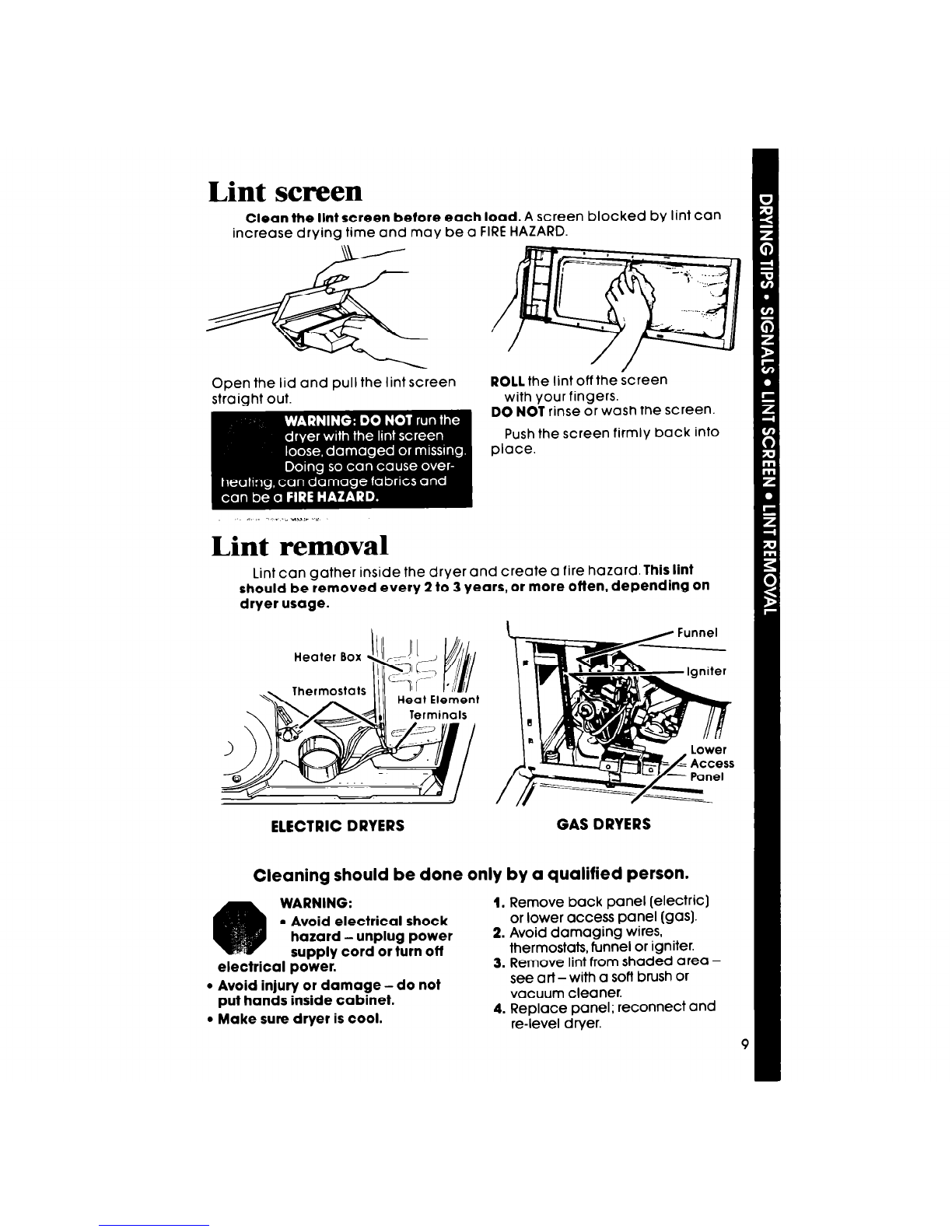

Lint screen
Clean the lint screen before each load. A screen blocked by lint can
increase drying time and may be a FIRE HAZARD.
Open the lid and pull the lintscreen
straight out. ROLL the lint off the ;creen
with your fingers.
DO NOT rinse or wash the screen.
Push the screen firmly bock into
place.
Lint removal
Lint con gather inside the dryer and create a fire hazard.This lint
should be removed every 2 to 3 years, or more otten, depending on
dryer usage.
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
WARNING: 1. Remove back panel (electric]
l Avoid electrical shock or lower access panel (gas].
hazard - unplug power 2. Avoid damaging wires,
supply cord or turn off thermostats, funnel or igniter.
electrical power. 3. Remove lint from shaded area -
l Avoid injury or damage-do not see art-with a soft brush or
put hands inside cabinet. vacuum cleaner.
l Make sure dryer is cool. 4. Replace panel; reconnect and
re-level dryer.

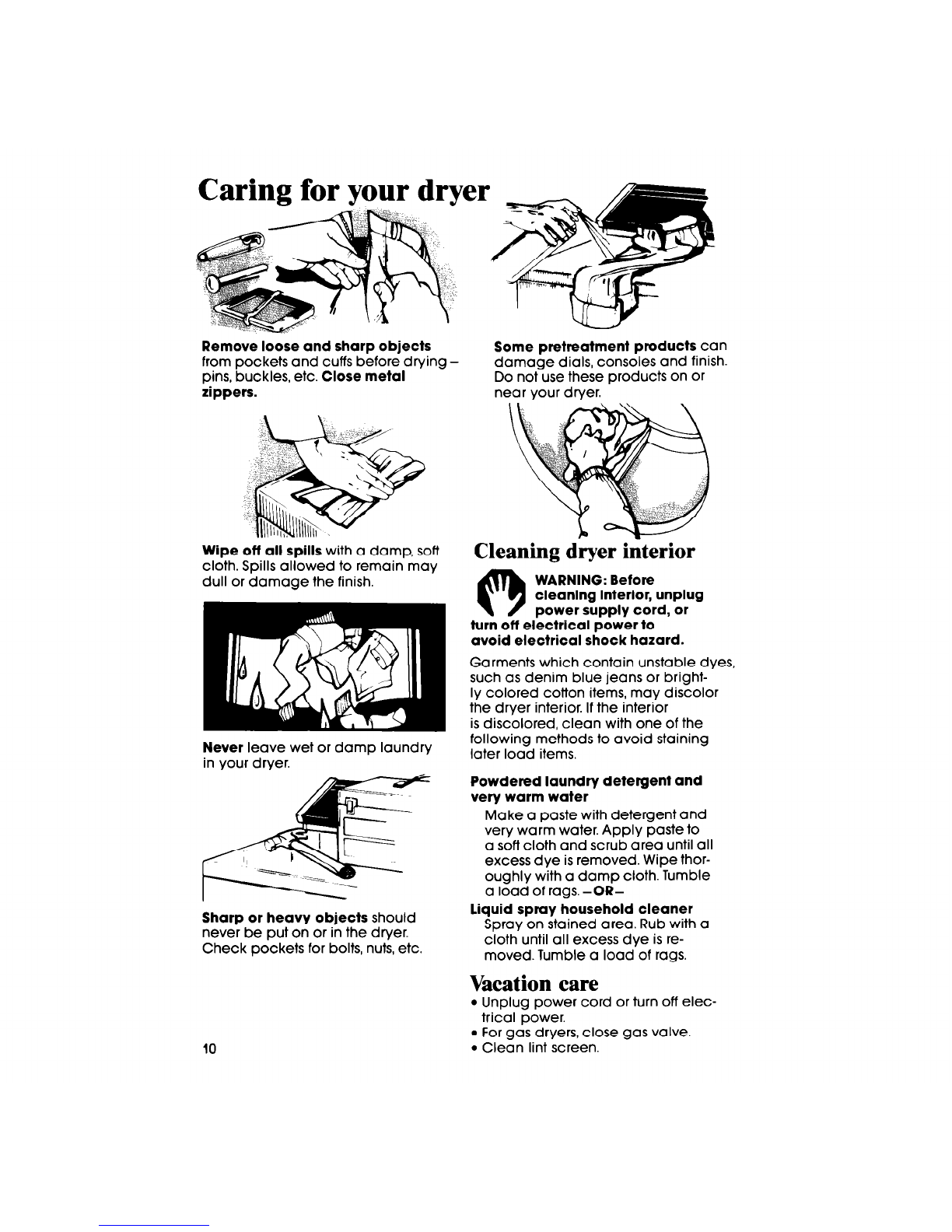

Remove loose and sharp objects
from pockets and cuffs before drying -
pins, buckles, etc. Close metal
zippers.
Wipe off all spills with a damp, soff
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc.
10
Some pretreatment products can
damage dials, consoles and finish.
Do not use these products on or
near your dryer.
Cleaning d-&er interior
0
WARNING: Before
cleaning interior, unplug
power supply cord, or
turn off electrical power to
avoid electrical shock hazard.
Garments which contain unstable dyes,
such as denim blue jeans or bright-
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to
a soft cloth and scrub area until all
excess dye is removed. Wipe thor-
oughly with a damp cloth. Tumble
a load of rags. -OR-
liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re-
moved. Tumble a load of rags.
Vacation care
l Unplug power cord or turn off elec-
trical power.
l For gas dryers, close gas valve.
0 Clean lint screen.

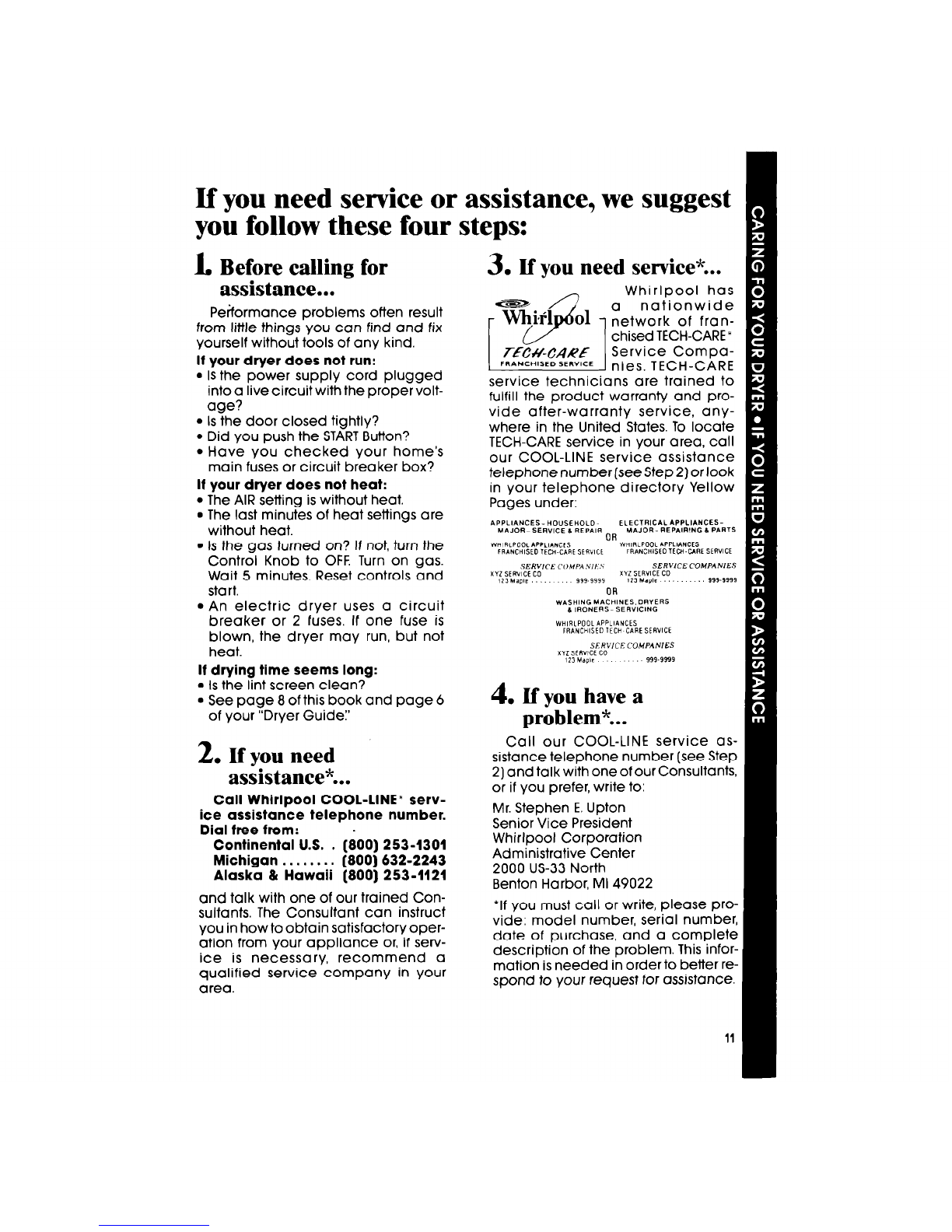

If you need service or assistance, we suggest
you follow these four steps:
I Before calling for
assistance...
Performance problems otten result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l Is the power supply cord plugged
into a live circuit with the propervolt-
age?
l Is the door closed tightly?
l Did you push the STARTButton?
l Have you checked your home’s
main fuses or circuit breaker box?
If your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
l Is the gas turned on? If not, turn the
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
If drying time seems long:
l Is the lint screen clean?
l See page 8 of this book and page 6
of your “Dryer Guide:’
2. If you need
assistance*...
Call Whirlpool COOL-LINE” serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of our trained Con-
sultants The Consultant can instruct
you in how to obtain satisfactoryoper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
3. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-CARE *
Service Compa-
nies, TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CARE service in your area, call
our COOL-LINE service assistance
telephone number (see Step 2) or look
in your telephone directory Yellow
Pages under:
OR
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, MI 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better re-
spond to your request for assistance.

Home 5 Appliances
Maklng your world a little easier.
Part No. 696762
01985 Whirlpool Corporation Printed in U.S.A.
]matlc Washers, Clothes Dryers. Freezers. Relrlgeralor-Freezers, Ice Makers. Dishwashers. Built-In Ovens and Surlace Units. Ranges. Mlcr
