DRYER SAFETY
Table of Contents
DRYER SAFETY ......................................................................2
OPERATING INSTRUCTIONS ............................................... 4
ACCESSORIES.................................................................4
HEAT PUMP TECHNOLOGY ............................................5
CONTROL PANEL AND FEATURES .................................6
PROGRAM/CYCLE GUIDE...............................................7
USING YOUR DRYER.......................................................9
DRYER CARE .................................................................12
INSTALLATION INSTRUCTIONS......................................... 14
INSTALLATION REQUIREMENTS...................................14
LOCATION REQUIREMENTS .........................................15
DRAIN SYSTEM..............................................................16
ELECTRICAL REQUIREMENTS – U.S.A. ONLY .............17
ELECTRIC DRYER POWER HOOKUP –
CANADA ONLY...............................................................18
ELECTRIC INSTALLATION – U.S.A. ONLY ....................18
LEVEL DRYER ................................................................24
COMPLETE INSTALLATION CHECKLIST.......................24
DOOR REVERSAL (OPTIONAL)......................................25
TROUBLESHOOTING...........................................................30
WARRANTY...........................................................................35
ASSISTANCE OR SERVICE..................................Back Cover
Table de matières
SÉCURITÉ DE LA SÉCHEUSE .............................................36
INSTRUCTIONS D’UTILISATION ........................................ 37
ACCESSOIRES...............................................................37
TECHNOLOGIE DE POMPE À CHALEUR......................38
TABLEAU DE COMMANDE ET CARACTÉRISTIQUES...39
GUIDE DE PROGRAMMES ............................................40
UTILISATION DE LA SÉCHEUSE....................................42
ENTRETIEN DE LA SÉCHEUSE......................................45
INSTRUCTIONS D’INSTALLATION..................................... 47
EXIGENCES D’INSTALLATION .......................................47
EXIGENCES D’EMPLACEMENT.....................................48
SYSTÈME DE VIDANGE .................................................49
SPÉCIFICATIONS ÉLECTRIQUES –
ÉTATS-UNIS SEULEMENT .............................................50
RACCORDEMENT DE LA SÉCHEUSE ÉLECTRIQUE –
CANADA UNIQUEMENT.................................................51
INSTALLATION ÉLECTRIQUE –
ÉTATS-UNIS SEULEMENT ............................................51
RÉGLAGE DE L’APLOMB DE LA SÉCHEUSE................57
LISTE DE VÉRIFICATION POUR
INSTALLATION TERMINÉE.............................................57
INVERSION DE LA PORTE (FACULTATIF) ......................58
DÉPANNAGE .........................................................................63
GARANTIE.............................................................................66
ASSISTANCE OU SERVICE...................... Couverture arrière

3
nDo not repair or replace any part of the dryer or attempt
any servicing unless specically recommended in
this Use and Care Guide or in published user-repair
instructions that you understand and have the skills
to carry out.
nDo not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
nDo not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
nClean lint screen before or after each load.
nKeep the grille on the rear of the dryer free from the
accumulation of lint, dust, and dirt.
nThe interior of the appliance should be cleaned
periodically by qualied service personnel.

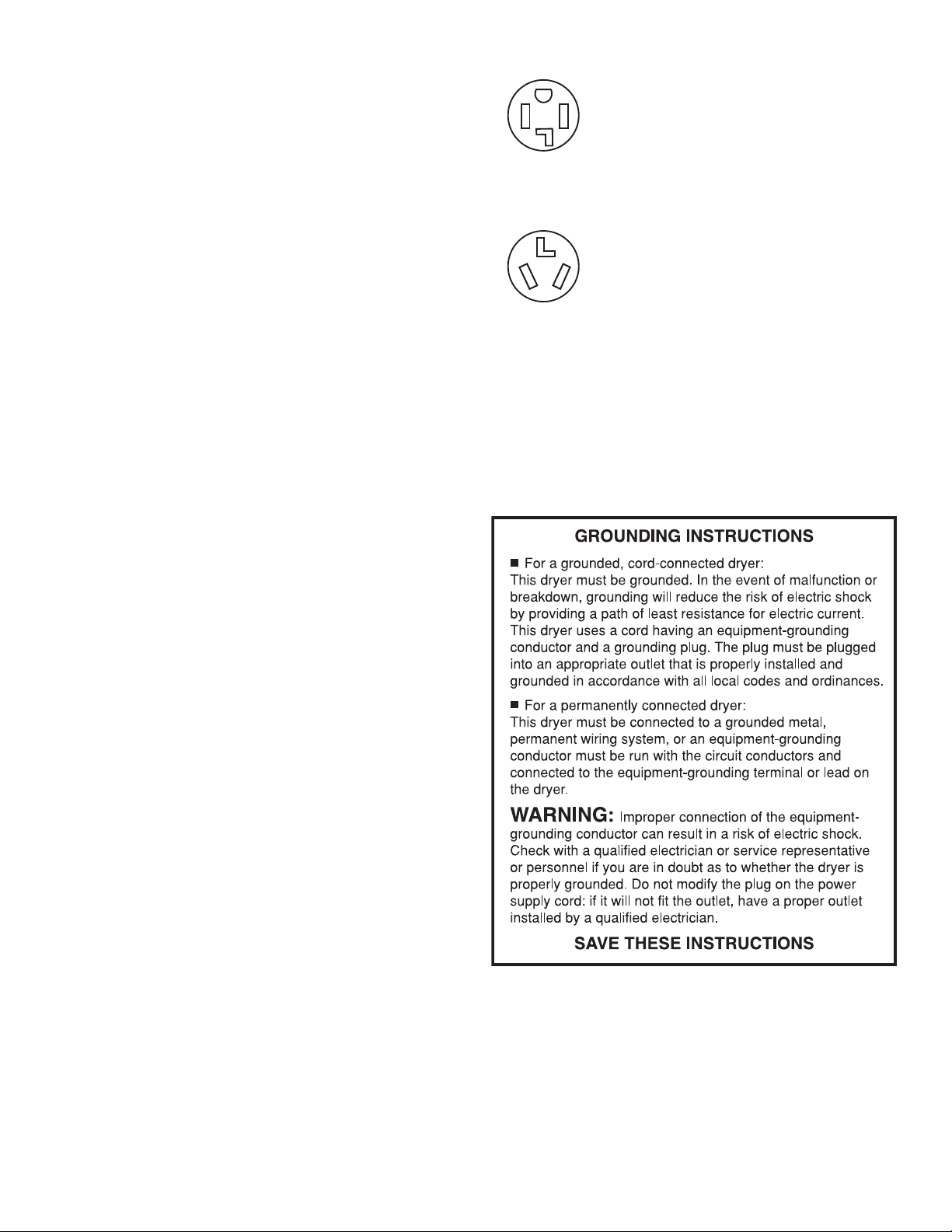

nSee “Electrical Requirements” in “Installation
Instructions” for grounding instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of re, electric shock, or injury to persons when using the dryer, follow basic precautions,
including the following:
SAVE THESE INSTRUCTIONS
nRead all instructions before using the dryer.
nDo not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch re. .
nDo not dry articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, or other ammable or explosive
substances as they give off vapors that could ignite or
explode.
nDo not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
nBefore the dryer is removed from service or discarded,
remove the doors to the drying compartment.
nDo not reach into the dryer if the drum is moving.
nDo not install or store the dryer where it will be exposed
to the weather.
nDo not tamper with controls.

4
Accessories
INSTALLATION & MAINTENANCE
ACCESSORIES
FACTORY CERTIFIED PARTS – these three
words represent quality parts and accessories
designed specically for your appliance.
Time tested engineering that meets
our strict quality specications.
FACTORY CERTIFIED PARTS
Accessories designed for your appliance:
Enhance your new washer and dryer with the following
genuine Whirlpool accessories. For more information
on options and ordering, call 1-866-698-2538, or visit us
at: www.whirlpool.com/accessories. In Canada, call
1-800-688-2002 or visit us at www.whirlpoolparts.ca.
Stack Kit
If space is at a premium, the stack kit
allows the dryer to be installed on top
of the washer.
OPERATING INSTRUCTIONS
12" Pedestal
Color-matched pedestals raise the
washer and dryer to a more comfortable
working height.

5
Use Automatic Cycles for better fabric care and energy savings
Use the Automatic Cycles to provide the most energy savings and enhanced fabric care from the dryer. During Automatic Cycles,
heat pump unit temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the
dryer shuts off when the load reaches the selected dryness. Use the NORMAL dryness level to provide optimal energy savings.
With Timed Dry, the dryer runs the amount of time set and can result in shrinkage, wrinkling, and static due to over-drying.
Use Timed Dry for the occasional damp load that needs a little more drying time.
Condenser is heating up the air
Drying
Air blower
Evaporator is drying air and discharging
condensation water
1
2
3
4
3
4
2
1
Heat Pump Technology
A typical dryer uses large amounts of energy; this dryer consumes a fraction of the energy by recycling and reclaiming heat.
This dryer is a ventless heat pump dryer that uses a refrigeration system to dry and recycle the same air. The laundry
is dried with low temperatures; therefore it may feel cooler than expected during and after the drying process.
The heat pump dryer’s heating phase is longer than in traditional dryers. If possible, do not open the dryer door during the process
as heat can escape from the drum and can make longer drying times.
Benets of a Heat Pump
• ENERGY: Regenerates energy to reduce overall energy
consumption.
• PERFORMANCE: Allows flexibility to manage drying
performance and energy savings.
• FABRIC CARE: Capability to use less heat than vented dryer.
• VENTLESS DESIGN: Allows installation in more locations
throughout the home.
New Sounds from a Heat Pump
• Dryer runs on a compressor like your refrigerator and you
may notice a hum from the compressor.
• The water from wet clothes is pumped out to your drain or
water tank. You may notice a gurgling sound occasionally.
Heat Pump Unit

6
Control Panel and Features
Options
Delay
Start
Timed
Dry
Dryness
Level
P
Program
3 Sec
Cycle
Signal
Control
Lock
Hold3 Sec
Steam
X-Dry
Dry
Damp
Dry
Mixed
Heavy Duty
Normal
Synthetics
Delicates
Wool
Air Dry
Refresh
Timed Dry
Bulky/Bedding
8
3 9
1 2 5
A B C D A B
4
POWER BUTTON
Touch until the indicator above the Program button lights
up. Symbols appear on the control panel and sounds are
played.
PROGRAM (cycle)
When you turn on the dryer, the light above this button
will turn on. The program settings which you used last
will appear on the control panel. This button also lets you
set water conductivity (see “Adapting the dryer to water
conductivity” for more information).
PROGRAM/CYCLE AREA
An indicator next to each program/cycle lights up as you
use the knob to scroll through the list. Press the knob when
the indicator next to the desired program/cycle lights up.
CONTROL KNOB
Turn the knob to select a program/cycle for your laundry
load, change dryness level, set drying time or delay start
time, or select Other Options. Press the knob to confirm
your selection.
OPTIONS
Touch to activate additional dry options or additional
features on the dryer before touching the Start/Pause
button. Additional dry options or additional features
selected after touching the Start/Pause button may
not be activated.
To return to factory default cycle settings, unplug the dryer
for 30 seconds, then plug back in.
NOTE: Not all options are available with all cycles.
Cycle Signal
Use to turn on or off the signal indicating the end
of a drying cycle.
NOTE: Touch and hold the Cycle Signal button for
about one second to turn sounds on or off.
Control Lock
Use to lock the controls of the dryer and avoid
an accidental change in cycle options or preferences
during a drying cycle.
Touch and hold CONTROL LOCK to lock or unlock
the controls of the dryer.
NOTE: The Control Lock function may be enabled
when recovering from a power failure. To unlock
the control, touch and hold CONTROL LOCK.
Steam
Touch to activate the Steam option, which adds
humidity to the end of the Heavy Duty, Normal,
or Synthetics cycle to help smooth out wrinkles.
Delay Start
Touch to start your program/cycle at a later time.
SETTINGS
Timed Dry
Sets the length of a Timed Dry cycle.
Dryness Level
When using some Automatic Cycles, you may
select a Dryness Level based on the type of load
you are drying.
NOTE: Dryness Level is for use with Automatic
Cycles only.
OTHER OPTIONS
Save Time
This option provides quicker drying.
Gentle
This option dries laundry more gently by reducing
the drying temperature.
Wrinkle Shield™
This option helps to avoid creasing if you cannot
unload the laundry soon after the program/cycle
ends. The dryer starts to tumble the laundry
periodically a few minutes after the program/cycle
ends. This tumbling will last up to approximately
12 hours. Tumbling can be stopped any time by
touching the Power button to turn off the dryer.
7
1
2
3
4
57
B
A
C
D
A
B
6
6

7
Items
to Dry: Cycle: Dryness Level: Available Options: Cycle Details:
Mixed laundry
made of cotton,
linen, or synthetic
fibers and blends
Mixed Dry Wrinkle Shield™Uses Medium heat to dry large loads of mixed fabrics and
items.
Heavyweight items
or heavy work
clothes
Heavy Duty Dry Steam
Wrinkle Shield™
Gentle
Offers stepped drying, starting with High heat followed by
Medium heat for enhanced fabric care and energy savings.
Work clothes,
mixed cottons,
corduroys
Normal Extra Dry
Dry
Damp Dry
Steam
Dryness Level
Wrinkle Shield™
Gentle
Save Time
Uses Medium heat to dry large loads of cotton or mixed
fabrics and items. Tumbling reverses intermittently to
redistribute the load for thorough drying.
Normally soiled
laundry made of
artificial fibers or
cotton blends
Synthetics Extra Dry
Dry
Damp Dry
Steam
Dryness Level
Wrinkle Shield™
Gentle
Uses lower heat than the Normal cycle. Tumbling reverses
intermittently to redistribute the load for thorough drying.
Undergarments,
blouses, lingerie,
performance wear
Delicates Dry Wrinkle Shield™Uses Extra Low heat to gently dry delicate items.
Wool items labelled
with the Woolmark
logo and identified
as machine
washable, as well
as textiles made of
silk (see care label
recommendations),
linen, wool, and
viscose marked as
hand-wash only
Wool Dry N/A Uses Low heat to provide a short, finishing touch to items
that have been air-dried.
Comforters, pillows,
sheets Bulky/ Bedding Dry Wrinkle Shield™Use for drying large, bulky items; do not overfill dryer drum. Partway through the cycle, the signal will sound to indicate
when it is time to rearrange items for optimal drying.
Program/Cycle Guide – Automatic Cycles
Settings and options shown in bold are default settings for that cycle. If settings are changed, the new settings will be remembered.
If there is a power failure, settings will return to the default. Not all settings and options are available on each cycle.
Use Automatic Cycles for better fabric care and energy savings
The dryer senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.
Use the NORMAL dryness level to provide optimal energy savings.
Load Size Recommendations
For best results, follow the wet load size recommendations noted for each cycle.
Small load: Fill the dryer drum with 3–4 items, not more
than ¼ full.
Medium load: Fill the dryer drum up to about ½ full.
Large load: Fill the dryer drum up to about ¾ full.
Do not pack tightly. Items need to tumble freely.
START/PAUSE BUTTON
Touch to start, or touch and hold to pause, a program/
cycle.
LED DISPLAY
When you select a program/cycle, its default settings
will light up and the Estimated Time Remaining will be
displayed. Factors such as load size and dryness level
may affect the time shown in the display.
Symbols
Drying time
Delay start
Conductivity adjustment
STATUS INDICATORS (next to control knob)
These indicators will light up to alert you when certain
conditions occur.
Symbols
Water tank full (see “Empty Water Tank” in “Using Your
Dryer”)
Clean bottom filter (see “Cleaning the Bottom Filter” in
“Dryer Care”)
Clean door filter (see “Cleaning the Lint Screen”
in “Dryer Care”)
8
9

8
Load Size Recommendations
For best results, follow the wet load size recommendations noted for each cycle.
Small load: Fill the dryer drum with 3–4 items, not more
than ¼ full.
Medium load: Fill the dryer drum up to about ½ full.
Large load: Fill the dryer drum up to about ¾ full.
Do not pack tightly. Items need to tumble freely.
Items
to Dry: Cycle:
Available
Options: Cycle Details:
Any load
NOTE: Line dry
foam, rubber,
plastic, or heat-
sensitive fabrics.
Air Dry Wrinkle Shield™For airing out, refreshing, and loosening up laundry without heating.
Any load Timed
Dry Wrinkle Shield™Use to dry items with low heat to a damp level for items that do not require an entire drying cycle.
Adjust drying time on Timed Dry Cycles
When you select the Timed Dry or Air Dry
cycle, the time appears in the display. Use
the knob to set the drying time from 10 to
180 minutes (3 hours).
Options
Delay
Start
Timed
Dry
Dryness
Level
P
Program
3 Sec
Cycle
Signal
Control
Lock
Hold3 Sec
Steam
X-Dry
Dry
Damp
Dry
Mixed
Heavy Duty
Normal
Synthetics
Delicates
Wool
Air Dry
Refresh
Timed Dry
Bulky/Bedding
Program/Cycle Guide – Adjustable Time Cycles
Settings and options shown in bold are default settings for that cycle. If settings are changed, the new settings will be
remembered. If there is a power failure, settings will return to the default. Not all settings and options are available on each cycle.
Program/Cycle Guide – Refresh Cycle
The Refresh cycle is designed for use with dry loads to loosen wrinkles, reduce odors, and refresh fabrics.
Items to
Refresh: Cycle:
Available
Options: Cycle Details:
Shirts, blouses,
and slacks Refresh Dry Use to reduce odors and light wrinkles. Do not add dryer sheets. Before loading laundry into the drum, spray it with a maximum of 6.8 oz (200 ml)
water.

9
Using Your Dryer
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
1. Empty water tank
Hold the handle and carefully pull out the water tank.
Holding the full water tank with both hands, empty out the
water. Then push the container back into place. Make sure
that it is properly inserted.
2. Clean door lint screen
Clean the lint screen before each load. Pull the lint screen
straight up and out. Press tab down and open lint screen.
Roll lint off the screen with your fingers. Push the lint screen
firmly back into place.
IMPORTANT: Clean lint screen before each dryer use
as a screen blocked with lint will increase drying time.
3. Clean bottom lter
Clean the bottom filter after every 5 cycles. Open the filter
door on the bottom of the dryer and grab the handle to pull
out filter. Remove the foam from the bottom filter. Clean the
filter foam and filter by hand or rinse with water – do not
wash the filter foam in a washer. Wring out the filter foam –
do not insert it in the bottom filter dripping wet. For additional
cleaning information, see “Dryer Care.”
Replace the filter foam on the bottom filter. Replace the
bottom filter in the filter chamber. Fold the filter handle down
and close the bottom door.
NOTE: To turn off the “Clean bottom filter” ( ) status
indicator, the filter must be removed and replaced with the
Power button touched ON and no cycle running.

10
5. Touch Power button to turn on dryer
4. Load dryer
Open the door by pulling on the handle. Place laundry
in the dryer. Add a dryer sheet to wet load if desired.
Close the door.
IMPORTANT: Do not tightly pack the dryer. Items need
to tumble freely. Tightly packing can lead to poor drying
performance and may increase wrinkling and tangling.
6. Select program/cycle
Turn the knob to select a program/cycle for your laundry load.
As you turn the knob, an indicator light will light up next to
the program/cycle names to the left of the knob. Stop turning
when the indicator next to the desired program/cycle lights up.
Press the knob to confirm your selection.
See “Program/Cycle Guide” for details on program/cycle
features.
Mixed
Heavy Duty
Normal
Synthetics
Delicates
Wool
Air Dry
Refresh
Timed Dry
Bulky/Bedding
Cycle
Signal
Control
Lock
Hold3 Sec
Steam
7. Select options, if desired
Wool
Air Dry
Refresh
Timed Dry
Bulky/Bedding
X-Dry
Dry
Damp
Dry
Delay
Start
8. Setting a delayed start, if desired
If you do not want to begin a cycle immediately, you may
choose the Delay Start option. This will delay the start
of the drying cycle by up to 23 hours.
To set a Delayed Start:
1. Touch the Delay Start button to set the desired delay time.
2. Turn the knob to the number of hours you want to delay
the start of the drying cycle. The delay time will appear
on the display. Press the knob to confirm your selection.
After touching the Start/Pause button, the time will count
down until the delay time has been reached. The dryer will
start and the display will show the remaining time in the cycle.
Wool
Air Dry
Refresh
Timed Dry
Bulky/Bedding
X-Dry
Dry
Damp
Dry
Timed
Dry
9. If Air Dry or Timed Dry was selected,
set drying time
When you select a timed cycle, the indicator light above
“Timed Dry” lights up. Turn the knob to select the desired
time, up to 180 minutes. Press the knob to confirm your
selection.
