Whirlpool EV209NBTN00 User manual

UPRIGHT FREEZER
For questions about features, operation/performance,
parts or service, call: 1-800-2&3-1301.
In Canada, call for assistance 1-800-807-6777,
or visit our website at...
www.whirlpool.com or www.whirlpool.com/canada
P
CONGEIATEUR
VERTICAL
Au Canada, pour assistance, composez le 1-800-807-6777.
ou visitez notre site web www.whirlpool.eom/eanada
Table of Contents/Table des matieres .................. 2
1-82738-001 Rev. 01

TABLEOFCONTENTS
FREEZER SAFETY ......................................................................... 3
Proper Disposal of Your Old Freezer or Refrigerator .................. 3
INSTALLATION INSTRUCTIONS .................................................. 4
Unpacking .................................................................................... 4
Location Requirements ................................................................ 4
Electrical Requirements ............................................................... 4
Water Supply Requirements ........................................................ 5
Water Supply Connection ............................................................ 5
Freezer Doors ............................................................................... 6
Adjust the Door ............................................................................ 9
FREEZER USE ................................................................................ 9
Ensuring Proper Air Circulation .................................................... 9
Using the Control ......................................................................... 9
Indicator Light ............................................................................ 10
Ice Maker .................................................................................... 10
FREEZER FEATURES .................................................................. 11
Shelves ....................................................................................... 11
Door Bin...................................................................................... 11
Storage Bin ................................................................................. 11
FREEZER CARE ........................................................................... 12
Cleaning Your Frost-Free Freezer.............................................. 12
Base Grille .................................................................................. 12
Changing the Light Bulb ............................................................ 12
Power Interruptions.................................................................... 13
Moving Care ............................................................................... 13
TROUBLESHOOTING .................................................................. 13
ASSISTANCE OR SERVICE ......................................................... 15
WAR RANTY .................................................................................. 16
TABLEDESMATIERES
SI_CURITI_ DU CONGI_LATEUR .................................................. 17
Mise au rebut appropriee de votre vieux congelateur ou
refrig6rateur ................................................................................ 17
INSTRUCTIONS D'INSTALLATION ............................................. 18
Deballage .................................................................................... 18
Emplacement d'installation ........................................................ 18
Specifications electriques .......................................................... 18
Specifications de I'alimentation en eau ..................................... 19
Raccordement de la canalisation d'eau .................................... 19
Portes du congelateur ................................................................ 20
Ajustement de porte ................................................................... 23
UTILISATION DU CONGI_LATEUR ............................................. 23
Pour s'assurer d'une circulation d'air appropriee ...................... 23
Utilisation de la commande ........................................................ 23
T6moin indicateur ....................................................................... 24
Machine h glagons ..................................................................... 24
CARACTI_RISTIQUES DU CONGI_LATEUR ............................... 25
Tablettes du r6frigerateur ........................................................... 25
Balconnet de porte ..................................................................... 25
Bac d'entreposage ..................................................................... 25
ENTRETIEN DU CONGI_LATEUR ............................................... 26
Nettoyage du congelateur sans givre ........................................ 26
Grille de la base .......................................................................... 26
Remplacement de I'ampoule d'eclairage .................................. 27
Pannes de courant electrique .................................................... 27
Dem6nagement .......................................................................... 27
DI_PANNAGE ................................................................................. 28
ASSISTANCE OU SERVICE ......................................................... 30
GARANTIE ..................................................................................... 31
2

FREEZERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:To reduce the risk of fire, electric shock, or injury when using your freezer, follow these basic precautions:
m Plug into a grounded 3 prong outlet.
m Do not remove ground prong.
m Do not use an adapter.
m Do not use an extension cord.
m Disconnect power before servicing.
m Replace all parts and panels before operating.
m Use nonflammable cleaner.
m Keep flammable materials and vapors, such as gasoline,
away from freezer.
m Use two or more people to move and install freezer.
m Keep key away from children.
• Remove doors or lid from your old freezer or refrigerator.
[] Disconnect power before installing ice maker (on ice maker
kit ready models only).
SAVETHESEINSTRUCTIONS
Proper Disposal of
Your Old Freezer or Refrigerator
Suffocation Hazard
Remove doors or lid from your old freezer or
refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned freezers or refrigerators are still
dangerous.., even if they will sit for "just a few days." If you are
getting rid of your old refrigerator or freezer, please follow these
instructions to help prevent accidents.
Before You Throw Away Your Old Freezer or Refrigerator:
• Takeoff the doors or lid.
• Leave the shelves in place so that children may not easily
climb inside.

INSTALLATIONINSTRUCTIONS
Excessive Weight Hazard
Use two or more people to move and install freezer.
Failure to do so can result in back or other injury.
Remove Packaging Materials
• Remove tape and glue residue from surfaces before turning
on the freezer. Rub a small amount of liquid dish soap over
the adhesive with your fingers. Wipe with warm water and
dry.
• Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your freezer. For more
information, see "Freezer Safety."
NOTE: This freezer may be installed side by side with another
refrigerator or freezer. Allow for a 3" (7.5 cm) clearance at the top
and sides and a 1/4"(0.64 cm) clearance between the appliances.
3" (7.5 cm)
When Moving "/our Freezer:
Your freezer is heavy. When moving the freezer for
cleaning or service, be sure to protect the floor. Always pull
the freezer straight out when moving it. Do not wiggle or
"walk" the freezer when trying to move it, as floor damage
could occur.
Clean Before Using
After you remove all of the packaging materials, clean the inside
of your freezer before using it. See the cleaning instructions in
"Freezer Care."
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from freezer.
Failure to do so can result in death, explosion, or fire.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Recommended grounding method
A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your freezer be provided. Use an outlet that
cannot be turned off by a switch or pull chain. Do not use an
extension cord.
IMPORTANT: Do not install the freezer near an oven, radiator, or
other heat source, nor in a location where the temperature will fall
below 40°F (5°C).
Check the strength of the floor before installing your freezer. It
should hold the weight of a freezer fully loaded with food.
Allow at least 3" (7.5 cm) of air space at the top and on both sides
of the freezer and 1" (2.5 cm) between the back of the freezer and
the wall. Ifthe freezer is to be against a wall, leave extra space on
the hinge side so the door can open wider.

Readalldirectionsthoroughlybeforeyoubegin.
IMPORTANT:
• Ifyouturnthefreezeronbeforethewaterlineisconnected,
turntheicemakerOFR
• Allinstallationsmustmeetlocalplumbingcoderequirements.
• Useplastictubingandcheckforleaks.Installplastictubing
onlyinareaswheretemperatureswillremainabovefreezing.
TOOLSNEEDED:Flat-bladescrewdriver,7/le"and1/2"open-end
wrenchesortwoadjustablewrenches,%"nutdriveranddrillbit,
handdrillorelectricdrill(properlygrounded).
NOTE:Yourfreezerdealerhasakitavailablewitha1/4"(6.35mm)
saddle-typeshutoffvalve,aunion,andplastictubing.Before
purchasing,makesureasaddle-typevalvecomplieswithyour
localplumbingcodes.Donotuseapiercing-typeor3/le"
(4.76mm)saddlevalvewhichreduceswaterflowandclogsmore
easily.
Water Pressure
A cold water supply with water pressure of between 30 and
120 psi (207 to 827 kPa) is required to operate the water
dispenser and ice maker. If you have questions about your water
pressure, see "Troubleshooting" or call a licensed, qualified
plumber.
Reverse Osmosis Water Supply
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the system needs to be
a minimum of 40 to 60 psi (276 to 414 kPa).
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa), a booster pump can be inserted
into the small tubing that goes from the cold water line to the
reverse osmosis system.
If the water dispenser is still not dispensing water properly:
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
• If your refrigerator has a water filter cartridge, it may further
reduce the water pressure when used in conjunction with a
reverse osmosis system. Remove the water filter cartridge.
See "Water Filtration System."
If you have questions about your water pressure, refer to
"Troubleshooting" or call a licensed, qualified plumber.
Connect to Water Line
1.
2.
3.
Unplug freezer or disconnect power.
Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
Locate a 1/2"to 11/4"(12.7 mm to 3.18 cm) vertical cold water
pipe near the freezer.
IMPORTANT:
• Make sure it is a cold water pipe.
• Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.
4. Determine the length of plastic tubing you need. Measure
from the connection on the lower left rear of freezer to the
water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/4"
(6.35 mm) O.D. (outside diameter) plastic tubing. Be sure
both ends of plastic tubing are cut square.
5. Using a grounded drill, drill a 1/4"(6.35 mm) hole in the cold
water pipe you have selected.

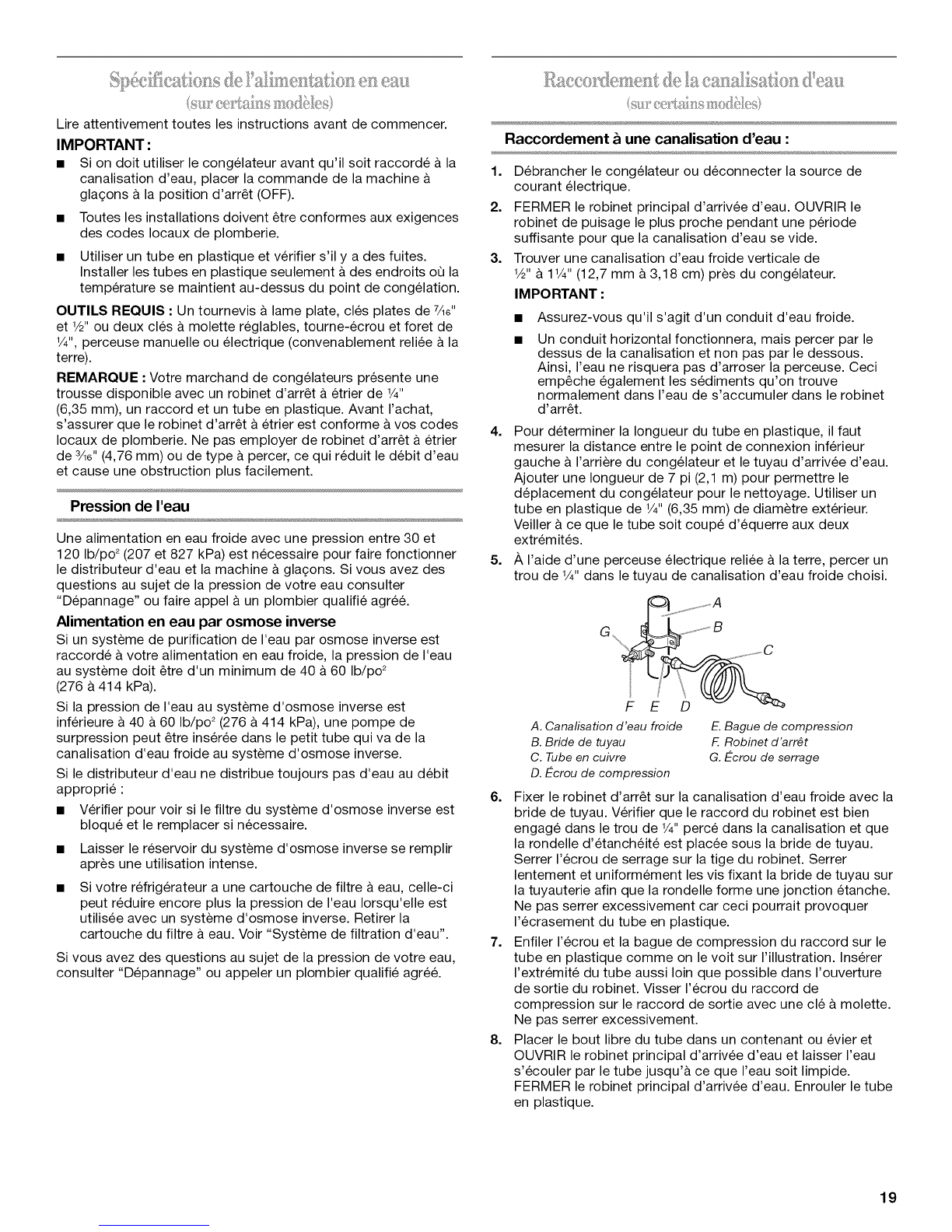

G, ..........B
A. Cold Water Pipe E.Compression Sleeve
B.Pipe Clamp F. Shutoff Valve
C. Copper Tubing G.Packing Nut
D. Compression Nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4"(6.35 mm)
drilled hole in the water pipe and that the washer is under the
pipe clamp. Tighten the packing nut. Tighten the pipe clamp
screws slowly and evenly so washer makes a watertight seal.
Do not overtighten or you may crush the plastic tubing.
7. Slip the compression sleeve and compression nut on the
plastic tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten.
8. Place the free end of the tubing in a container or sink, and
turn ON the main water supply. Flush the tubing until water is
clear. Turn OFF the shutoff valve on the water pipe. Coil the
plastic tubing.
Connect to Freezer
1.
2.
Attach the plastic tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. Do
not overtighten. Use the tube clamp on the back of the
freezer to secure the tubing to the freezer as shown. This will
help avoid damage to the tubing when the freezer is pushed
back against the wall.
Turn shutoff valve ON. Check for leaks. Tighten any
connections (including connections at the valve) or nuts that
leak.
B
A. Tube clamp
B. Plastic tubing
C
D
C. Compression nut
D. Valve inlet

3. The ice maker is equipped with a built-in water strainer. If
your water conditions require a second water strainer, install
it in the 1/4"(6.35 mm) water line at either tube connection.
Obtain a water strainer from your nearest appliance dealer.
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
4. Plug freezer into a grounded 3 prong outlet.
TOOLS NEEDED: 3/le"hex-head socket wrench, 5/8"hex-head
socket wrench, 1/4"hex-head socket wrench, 1/2"hex-head socket
wrench, 3/8"hex-head socket wrench, 3/le"hex-head socket
wrench, #2 Phillips screwdriver, flat-blade screwdriver, 3/le"open-
end wrench, flat 2" putty knife.
IMPORTANT:
• All graphics referenced in the following instructions are
included later in this section after "Final Steps." The graphics
shown are for a right-hand swing door (hinges factory
installed on the right).
• If you only want to remove and replace the door, see the
"Remove Door and Hinges" and "Replace Door and Hinges."
• Before you begin, turn the control OFF, and remove food and
adjustable door or utility bins from door.
Remove Door and Hinges
1.
2.
5,46"Hex-Head Hinge Screw
Unplug freezer or disconnect power.
Open lower door and remove base grille from the bottom
front of the freezer. See Base Grille Graphic 1A.
3. Close the lower door and keep it closed until you are ready to
lift it free from the cabinet.
NOTE: Provide additional support for the door while the
hinges are being moved. Do not depend on the door magnets
to hold the door in place while you are working.
4. Remove the parts for the top hinge as shown in Top Hinge
Graphic 1B.
5. Lift the upper door free from the center hinge and cabinet and
set aside.
6. Remove the center hinge door stop and hinge pin. See
Center Hinge Graphic 1C.
7. Remove the center hinge. Reinstall the hinge screws in the
same holes.
8. Remove the lower door.
9. Remove 3 hex head hinge screws and bottom hinge
assembly. See Bottom Hinge Graphic 1D.
Reverse Door (optional on some models)
IMPORTANT: If you want to reverse your door so that it opens in
the opposite direction, continue with "Reverse Door (optional)"
instructions. If you are not reversing the door, see "Replace Door
and Hinges."
Cabinet
1. Remove the cabinet hinge hole plugs from the cabinet top
and move them to the opposite side hinge holes as shown in
Graphic 1.
2. Remove the door stop screw from the Bottom Hinge bracket.
See Bottom Hinge Graphic 1D.
3. Remove the Hinge Pin Nut and Hinge Pin from the bottom
hinge bracket. See Bottom Hinge Graphic 1D.
4. Remove the screws from the opposite side of the cabinet.
5. Rotate the bottom hinge bracket for installation on the
opposite side of the cabinet. See Graphic 2.
6. Reinstall the Hinge Pin Nut and Hinge Pin to the bottom hinge
bracket. Hinge Pin must point "up" when hinge bracket is
installed to the cabinet.
7. Reinstall the door stop screw. See Graphic 2.
8. Reinstall the bottom hinge bracket to the cabinet with the
3 hex head hinge screws.
9. Remove the door stop screw from the Center Hinge. See
Center Hinge Graphic 1C.
10. Remove the Hinge Pin Nut and Hinge Pin from the center
hinge bracket. See Center Hinge Graphic 1C.
11. Remove the screw from the opposite side of the cabinet.
12. Rotate the center hinge bracket for installation on the
opposite side of the cabinet. See Center Hinge Graphic 1C.
13. Reinstall the Hinge Pin Nut and Hinge Pin to the center hinge
bracket. Hinge Pin must point "up" when hinge bracket is
installed to the cabinet.
14. Reinstall the door stop screws. See Center Hinge
Graphic 1C.
15. Reinstall the hinge bracket to the cabinet with the 3 hex head
hinge screws.
6

Replace Doors and Hinges
NOTE: Graphic may be reversed if door swing is reversed.
1. Replace the parts for the bottom hinge as shown and tighten
screws. See Bottom Hinge Graphic 1D.
2. Rotate and install center hinge. See Center Hinge
Graphic 1C.
3. Replace the lower door.
NOTE: Provide additional support for the door while the
hinges are being moved. Do not depend on the door magnets
to hold the door in place while you are working.
4. Install the center hinge door stop and hinge pin. See Center
Graphic 1C.
5. Align the lower door with the side of the cabinet before
tightening.
6. Replace the upper door.
7. Assemble the parts of the top hinge as shown in the Top
Hinge Graphic 1B. Do not tighten the screws completely.
8. Line up the door so that the bottom aligns evenly with the
cabinet. The top and bottom hinges can be adjusted if the
doors are not straight. Tighten all screws.
Final Steps
1. Check all holes to make sure that hole plugs and screws are
in place. Reinstall top hinge cover. See Top Hinge
Graphic 1B.
2. Replace the base grille. See Base Grille Graphic 1A.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
3. Plug into a grounded 3 prong outlet.
4. Reset the control. See "Using the Control."
5. Return all removable door parts to door and food to freezer.

Center Hinge
A. Door Stop Screw
B. Hinge Pin
Bottom Hinge
D
E
A. Door Stop Screw
B. Door Stop
C. Hinge Pin
D. Hinge Pin Nut
E. 5/1_"Hex-Head Hinge Screws
A................ _ '_
A. Cabinet Hinge Hole Plugs
Left Hand Hinge Right Hand Hinge
Door Stop Door Stop
Lower Hinge Door Stop Lower Hinge
A. Door Stop Screw
B. Door Stop
C. Hinge Pin
D. Hinge Pin Nut
E. 5/18"Hex-Head Hinge
Screws
8

1=
2.
3.
Locate the two front leveling legs taped among the packing
materials.
Screw these legs into the front holes on the bottom of the
freezer. The back of the freezer rests on two fixed supports.
Adjust the front legs just enough to lift the cabinet up off of
the floor.
NOTE: If your model is equipped with rollers, the front legs
should be lowered enough to lift the rollers off of the floor to
ensure the freezer does not roll forward when the door is
opened.
4= Place a leveling tool on top of the freezer first side to side,
then front to back. Turn leg counterclockwise to raise a
corner. Turn leg clockwise to lower a corner.
ii !i
5. Repeat Step 4 until the doors close easily.
6. After freezer is fully loaded with food, recheck with level as in
Step 4.
FREEZERUSE
In order to ensure proper temperature, you need to permit proper
airflow in the freezer. As shown in the illustration, cool air enters
through the freezer wall and moves down. The air then
recirculates through the vent near the bottom.
Do not block any of these vents with food packages. If the vents
are blocked, airflow will be obstructed, and temperature and
moisture problems may occur.
IMPORTANT: To avoid odor transfer and drying out of food, wrap
or cover foods tightly.
Turn the freezer temperature control to 4. This setting is designed
to maintain the temperature at or near 0°F (-17.8°C) under normal
operating conditions.
Allow the freezer to cool 6 to 8 hours before filling with frozen
food. Let the freezer cool overnight before adding large amounts
of unfrozen food. Never add more than 2 to 3 Ibs (907 to 1,350 g)
of unfrozen food per cubic foot (28.32 L) of freezer space.
NOTE: When the freezer is first started, the compressor will run
constantly until the freezer is cooled. It may take up to 6 or
8 hours (or longer), depending on room temperature and the
number of times the freezer door is opened. After the freezer is
cooled, the compressor will turn on and off as needed to keep
the freezer at the proper temperature.
The outside of your freezer may feel warm. This is normal. The
freezer's design and main function is to remove heat from
packages and air space inside the freezer. The heat is transferred
to the room air, making the outside of the freezer feel warm.
Adjusting Control
• Turn control to a higher number for colder temperatures.
• Turn control to a lower number for less cold temperatures.
NOTE: The small snowflake icon represents the number 1 or
the least cold setting. The large snowflake icon represents 6
or the coldest setting.
Fast Freeze (on some models) _.
This setting causes the freezer to run continuously, driving the
freezer temperature to the coldest possible temperature. To
activate, adjust the control knob to the igloo icon, which
represents the fast freeze setting. Use this feature just before
adding large amounts of unfrozen foods. For best food quality, do
not exceed 3 Ibs (1,350 g) per cubic foot (28.32 L). Return to your
normal setting after 24 to 48 hours.

Door Ajar Alarm (on some models)
The door ajar monitor alarm is located to the left of the
temperature control and sounds an audible alarm if either door is
open for more than five minutes.
The alarm is controlled by a three position switch.
I
0
The proper setting for normal freezer use. The alarm
is on.
The alarm is off.
Tests the alarm.
The indicator light assures you that your freezer is running. If the
indicator light is not glowing, immediately check for:
• Power interruption.
• An unplugged power cord.
• An open circuit breaker or blown fuse.
• A burned out indicator light.
NOTE: The ice maker kit must be purchased separately from
your authorized Whirlpool dealer. Ice maker kit part number is
ECKM F94.
To Turn the Ice Maker On/Off
NOTE: Do not force the wire shutoff arm up or down.
• To turn the ice maker on, simply lower the wire shutoff arm.
NOTE: Your ice maker has an automatic shutoff. As ice is
made, the ice cubes fill the ice storage bin and the ice cubes
will raise the wire shutoff arm to the OFF (arm up) position.
• To manually turn the ice maker off, lift the wire shutoff arm to
the OFF (arm up) position and listen for the click to make sure
the ice maker will not continue to operate.
Shut Off Arm
When installing the ice maker kit, part number ECKMF94, it is
necessary to replace the shut off arm that is included with the kit,
with the longer one supplied with the freezer.
Portable Ice Bin
The ice bin may be used as a storage container or a portable ice
bucket.
The lid must be open when used as an ice bin.
Close the lid to use as a portable ice bucket or storage container.
Ice Production Rate
The ice maker should produce approximately 7 to 9 batches of
ice in a 24-hour period. If ice is not being made fast enough, turn
the Temperature Control toward a higher (colder) number in half
number steps. (For example, if the control is at 3, move it to
between 3 and 4.) Wait 24 hours and, if necessary, gradually turn
the Temperature Control to the highest setting, waiting 24 hours
between each increase.
Remember
• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
• The quality of your ice will be only as good as the quality of
the water supplied to your ice maker. Avoid connecting the
ice maker to a softened water supply. Water softener
chemicals (such as salt) can damage parts of the ice maker
and lead to poor quality ice. If a softened water supply cannot
be avoided, make sure the water softener is operating
properly and is well maintained.
• Do not store anything on top of the ice maker or in the ice
storage bin.
10

FREEZERFEATURES
This manual covers several different models. The freezer you
have purchased may have some or all of the items listed. The
locations of the features may not match those of your model.
Store similar foods together and adjust the shelves to fit different
heights. This reduces the time the refrigerator door is open and
saves energy.
To remove and replace a shelf:
1. Remove the shelf by pulling it forward slightly to align the
shelf stops with the openings in the refrigerator compartment
liner. Lift straight up, and pull the shelf out the rest of the way.
• Replace the shelf by lowering the shelf stops through the
openings in the refrigerator compartment liner. Slide the shelf
in the rest of the way.
To remove and replace the bin:
1. Remove the bin by tipping the front of the bin up and sliding
out.
2. Replace the bin by sliding it in above the desired support
tilting it back into place.
The slide out bin provides separate storage space for items that
are difficult to store on freezer shelves.
To extend the bin fully, lift up and slide forward. To remove the
basket slide out.
11

FREEZERCARE
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Frost-free means that you will never have to defrost your freezer.
Frost is removed by air moving and collecting any moisture and
depositing it on the cooling coil. The cooling coil periodically
warms up just enough to melt the frost, and it then flows down to
the drain pan (located behind the base grille) where it is
evaporated.
Complete cleaning should be done at least once ayear.
1. Unplug freezer or disconnect power.
2. Remove all frozen food. Wrap frozen food in several layers of
newspaper and cover with a blanket. Food will stay frozen for
several hours. You may also store frozen food in a cooler,
additional refrigerator-freezer, or in a cool area.
3. Wash the inside walls with a solution of mild detergent in
warm water or 2 tbs (26 mg) baking soda to 1 qt (0.95 L)
warm water.
• Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning
waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on plastic parts, interior
and door liners or gaskets. Do not use paper towels,
scouring pads, or other harsh cleaning tools. These can
scratch or damage materials.
4. Rinse well and wipe dry with a clean soft cloth.
5. Use the appropriate cleaning method for your exterior finish.
Painted metal: Wash exteriors with a clean sponge or soft
cloth and a mild detergent in warm water. Do not use abrasive
or harsh cleaners, or cleaners designed for stainless steel.
Dry thoroughly with a soft cloth. For additional protection
against damage to painted metal exteriors, apply appliance
wax (or auto paste wax) with a clean, soft cloth. Do not wax
plastic parts.
Stainless steel finish: Wash with a clean sponge or soft
cloth and a mild detergent in warm water. Do not use abrasive
or harsh cleaners. Dry thoroughly with a soft cloth.
• To keep your stainless steel refrigerator looking like new
and to remove minor scuffs or marks, it is suggested that
you use the manufacturer's approved Stainless Steel
Cleaner & Polish.
IMPORTANT: This cleaner is for stainless steel parts only!
Do not allow the Stainless Steel Cleaner & Polish to come
into contact with any plastic parts such as the trim
pieces, dispenser covers or door gaskets. If accidental
contact does occur, clean plastic part with a sponge and
mild detergent in warm water. Dry thoroughly with a soft
cloth.
6. Replace all frozen food.
7. Plug in freezer or reconnect power.
8. See "Using the Control."
To Remove and Replace the Base Grille:
1. Open the freezer door and remove the base grille by pulling
down and out from the top.
2. Replace the base grille by putting the clips in the openings in
the refrigerator panel. Push in until the base grille snaps into
place.
NOTE: Not all appliance bulbs will fit your freezer. Be sure to
replace the bulb with one of the same size, shape, and wattage.
Style 1
1. Unplug freezer or disconnect power.
2. Replace the light bulb with an appliance bulb of the same
wattage.
3. Plug in freezer or reconnect power.
Style 2
1. Unplug freezer or disconnect power.
2. Remove the light shield. From the front of the light shield,
push backward and down.
3. Replace the light bulb with an appliance bulb of the same
wattage.
4. Replace the light shield.
5. Plug in freezer or reconnect power.
12

If the power will be out for 24 hours or less, keep the door closed
to help food stay cold and frozen.
If the power will be out for more than 24 hours, do one of the
following:
• Remove all frozen food and store it in a frozen food locker.
• If a food locker is not available, consume or can perishable
food at once.
After the power is restored, unplug the freezer for 30 minutes, to
allow the refrigeration system to equalize. During this time keep
the door closed whenever possible.
REMEMBER: A full freezer stays cold longer than a partially filled
one. A freezer full of meat stays cold longer than a freezer full of
baked goods. If you see that food contains ice crystals, it may be
refrozen, although the quality and flavor may be affected. If the
condition of the food is poor, dispose of it.
1. Remove all frozen food.
2. Unplug the freezer.
3. Clean it thoroughly.
4. Tape the freezer shut and tape the electrical cord to the
cabinet.
When you get to your new home, refer to the "Installation
Instructions" and "Freezer Use" sections for information on
installation and setting the controls.
TROUBLESHOOTING
Try the solutions suggested here first to avoid the cost of an unnecessary service call...
Your freezer will not operate The lights do not work
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
•Is the power supply cord unplugged? Plug into a grounded
3 prong outlet.
•Has a household fuse blown or circuit breaker tripped?
Replace the fuse or reset the circuit breaker.
• Is the Temperature Control turned to the OFF position?
See "Using the Control."
• Is the freezer defrosting (on some models)? Recheck to
see whether the freezer is operating in 30 minutes. Your
freezer will regularly run an automatic defrost cycle.
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
•Is the power supply cord unplugged? Plug into a grounded
3 prong outlet.
• Is a light bulb loose in the socket or burned out? See
"Changing the Light Bulb."
There is water in the defrost drain pan (on some models)
•Is the freezer defrosting? The water will evaporate. It is
normal for water to drip into the defrost pan.
• Is it more humid than normal? When it is humid, expect that
the water in the defrost pan will take longer to evaporate.
13

The motor seems to run too much
•Is there excessive frost or a package keeping the door
from closing? Defrost and clean the freezer, or move the
package so the door closes properly.
• Is the room temperature hotter than normal? The motor
will run longer under warm conditions. At normal room
temperatures, your motor will run about 40% to 80% of the
time. Under warmer conditions, it will run even more.
Has a large amount of food just been added to the
freezer? Adding a large amount of food warms the freezer.
The motor normally will run longer to cool the freezer back
down.
•Is the door opened often? The motor will run longer when
this occurs. Conserve energy by getting all items out at one
time, keeping food organized, and closing the door as soon
as possible.
•Is the control set correctly for the surrounding
conditions? See "Using the Control."
•Is the door or not closed completely? Push the door firmly
shut. If it will not shut all the way, see "The door will not close
completely" later in this section.
•Are the condenser coils dirty (on some models)? This
obstructs air transfer and makes the motor work harder.
Clean the condenser coils. See "Freezer Care."
Is the door gasket sealed all the way around? Contact a
qualified person or a technician.
Is there enough air circulation space around the freezer?
See "Location Requirements."
NOTE: If the problem is not due to any of the above,
remember that your new freezer will run longer than your old
one due to its high-efficiency motor.
The ice maker is not producing ice or not enough ice
(on some models)
•Has the ice maker just been installed? Wait 72 hours for full
ice production to begin. Once your freezer is cooled, the ice
maker should produce 70-120 cubes every 24 hours.
• Is the freezer temperature cold enough to produce ice?
Wait 24 hours after hookup for ice production. See "Using the
Control."
Is the wire shutoff arm in the OFF (arm up) position?
Lower the wire shutoff arm to the ON (arm down) position.
See "Ice Maker."
•Is the water line shutoff valve to the freezer turned on?
Turn on the water valve. See "Connect the Water Supply."
•Does the ice maker mold have water in it or has no ice
been produced? Be sure your freezer has been connected to
a water supply and the supply shutoff valve is turned on. See
"Connect the Water Supply."
• Is an ice cube jammed in the ejector arm? Remove the ice
from the ejector arm with a plastic utensil. See "Ice Maker."
•Has a large amount of ice just been removed? Allow
24 hours for ice maker to produce more ice.
• Is the control set correctly? If too little ice is produced, see
"Using the Control."
NOTE: If not due to any of the above, there may be a problem
with the water line. Call for service.
Off-taste, odor or gray color in the ice (on some models)
•Are the plumbing connections new, causing discolored or
off-flavored ice? Discard the first few batches of ice.
•Have the ice cubes been stored too long? Throw old ice
away and make a new supply.
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
•Do the freezer and ice bin need to be cleaned? See
"Freezer Care."
•Does the water contain minerals (such as sulfur)? A filter
may need to be installed to remove the minerals.
14

Temperature is too warm
•Are the air vents blocked? This obstructs cold air
movement. Move objects away from the air vents. See
"Ensuring Proper Air Circulation" for air vent locations.
• Is the door opened often? Be aware that the freezer will
warm when this occurs. In order to keep the freezer cool, try
to get everything you need out of the freezer at once, keep
food organized so it is easy to find, and close the door as
soon as the food is removed.
•Has a large amount of food just been added to the
freezer? Adding a large amount of food warms the freezer. It
can take several hours for the freezer to return to the normal
temperature.
•Is the control set correctly for the surrounding
conditions? See "Using the Control."
The door will not close completely or is difficult to open
•Are food packages blocking the door ? Rearrange
containers so that they fit more tightly and take up less
space.
•Are the shelves and basket out of position (on some
models)? Put the shelves and basket back into their correct
positions.
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
ASSISTANCEORSERVICE
Before calling for assistance or service, please check
"Troubleshooting." It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If You Need Replacement Parts
If you need to order replacement parts, we recommend that you
only use factory specified parts. Factory specified parts will fit
right and work right, because they are made with the same
precision used to build every new WHIRLPOOL ®appliance.
To locate factory specified parts in your area, call us or your
nearest designated service center.
Call customer service toll free in the U.S.A. toll free:
1-800-253-1301 Monday to Friday 8:00 a.m. -- 8:00 p.m. (EST).
Saturday 8:00 a.m. -- 4:30 p.m. (EST). In Canada call toll free:
1-800-807-6777 Monday to Friday 8:00 a.m. -- 6:00 p.m.
For Further Assistance
If you need further assistance, you can write to us with any
questions or concernt at:
Whirlpool Brand Customer Service
P.O. Box 310
Ottawa, OH 45875-0310
Are the gaskets dirty or sticky? Clean gaskets according to
the directions in "Freezer Care."
Does the freezer wobble or seem unstable? See "Adjust
the Door."
The freezer clicks but does not run
•Has the local power failed? Unplug the freezer for
30 minutes to allow the refrigeration system to equalize.
During this time, keep the door closed whenever possible.
15

FREEZERWARRANTY
Warrantor: WC Wood Company Inc., 677 Woodland Drive, Ottawa, OH 45875
ONE YEAR LIMITED WARRANTY
For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or
furnished with the product, warrantor will pay for factory specified parts and repair labor to correct defects in materials or workmanship.
Service must be provided by a designated service company.
ITEMS WARRANTOR WILL NOT PAY FOR
1. Service calls to correct the installation of your major appliance, to instruct you how to use your major appliance, to replace or repair
house fuses or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Those consumable parts are excluded from warranty
coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in
accordance with electrical or plumbing codes, or use of products not approved by warrantor.
5. Any food loss due to refrigerator or freezer product failures.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery. This major appliance is designed to be repaired in the home.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service in remote locations.
10. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with
published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED
HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WARRANTOR SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE
TO PROVINCE.
Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized dealer to determine if another
warranty applies.
If you need service, first see the "Troubleshooting" section of the Use & Care Guide. After checking "Troubleshooting," additional help
can be found by checking the "Assistance or Service" section or by calling 1-800-253-1301 in the U.S.A. In Canada,
call 1-800-807-6777. lO/O5
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your major appliance
to better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label located on the product.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
16

# # #
SECURITEDUCONGELATEUR
Votre securite et celle des autres est tres importante.
Nous donnons de nombreux messages de securite importants dans ce manuel et sur votre appareil menager. Assurez-vous de
toujours lire tousles messages de securite et de vous y conformer.
Voici le symbole d'alerte de securit&
Ce symbole d'alerte de securite vous signale les dangers potentiels de deces et de blessures graves & vous
et &d'autres.
Tousles messages de securite suivront le symbole d'alerte de securite et le mot "DANGER" ou
"AVERTISSEMENT". Ces mots signifient •
Risque possible de d_cbs ou de blessure grave si vous ne
suivez pas imm_diatement les instructions.
Risque possible de d_cbs ou de blessure grave si vous
ne suivez pas les instructions.
Tousles messages de securite vous diront quel est le danger potentiel et vous disent comment reduire le risque de blessure et
ce qui peut se produire en cas de non-respect des instructions.
llViPORTANTES iNSTRUCTiONS DE SECURITE
AVERTISSEMENT :Pour reduire les risques d'incendie, de choc electrique ou des blessures Iors de I'utilisation du
congelateur, prendre quelques precautions fondamentales, y compris les suivantes "
m Brancher I'appareil sur une prise &3 alveoles reliee &
la terre.
m Ne pas enlever la broche de liaison & la terre.
m Ne pas utiliser un adaptateur.
m Ne pas utiliser un c&ble de rallonge.
m Debrancher la source de courant electrique avant
I'entretien.
m Replacer pieces et panneaux avant de faire la remise en
marche.
m Utiliser un produit de nettoyage ininflammable.
• Garder les materiaux et les vapeurs inflammables, telle que
I'essence, loin du congelateur.
• Utiliser deux ou plus de personnes pour deplacer et
installer le congelateur.
• Garder la cle loin des enfants.
• Enlever les portes ou le couvercle de votre vieux
congelateur ou r6frigerateur.
• Debrancher la source de courant electrique avant
I'installation de la machine & glagons (seulement pour
modeles pr_ts &recevoir une machine & glagons).
CONSERVEZCESINSTRUCTIONS
Miseau rebutappropri e de votrevieux
cong( lateurour( frig( rateur
Risque de suffoquer
Enlever les portes ou le couvercle de votre vieux
cong_lateur ou r_frig_rateur.
Le non=respect de cette instruction peut causer
un d_c_s ou des I_sions c_r_brales.
Avant de mettre au rebut votre vieux cong_lateur ou
r_frig_rateur :
• Enlever les portes ou le couvercle.
• Laisser les tablettes en place, de sorte que les enfants ne
puissent pas facilement se glisser & I'interieur.
IMPORTANT : Le probleme des enfants trouves enfermes ou
etouff6s n'est pas nouveau. Les congelateurs ou refrig6rateurs
jetes ou abandonnes presentent des dangers, m_me s'ils sont
abandonnes pendant "quelques jours" seulement. Si vous vous
debarrassez de votre vieux refrig6rateur ou congelateur, veuillez
suivre les instructions suivantes pour aider a eviter les accidents.
17

INSTRUCTIONSD'INSTALLATION
Risque du poids excessif
Utiiiser deux ou plus de personnes pour d_piacer et
installer le cong_iateur.
Le non=respect de cette instruction peut causer
une biessure au dos ou d'autre biessure.
Enl_vement des mat_riaux d'emballage
•Enlever le ruban adhesif et la colle des surfaces du
congelateur avant de le brancher. Frotter une petite quantite
de savon liquide pour la vaisselle sur I'adhesif avec les
doigts. Rincer a I'eau tiede et essuyer.
•Ne pas utiliser d'instruments coupants, d'alcool a friction, de
liquides inflammables ou de nettoyants abrasifs pour enlever
le ruban adhesif ou la colle. Ces produits peuvent
endommager la surface de votre congelateur. Pour plus de
renseignements, voir "Securite du congelateur".
D_placement de votre cong61ateur :
Votre congelateur est Iourd. Lors du deplacement du
congelateur pour le nettoyage ou le service, veiller &
proteger le plancher.
Toujours tirer le congelateur tout droit Iors du deplacement.
Ne pas incliner le congelateur d'un c6te ou de I'autre nile
"faire marcher" en essayant de le deplacer car le plancher
pourrait _tre endommag&
Nettoyage avant I'utilisation
Apres avoir enleve tousles materiaux d'emballage, nettoyer
I'interieur du congelateur avant I'utilisation. Voir les instructions
de nettoyage a "Entretien du congelateur".
Risque d'explosion
Garder les mat_riaux et [es vapeurs inflammables, teiie
que ressence, loin du cong6iateur.
Le non=respect de cette instruction peut causer
un d_c_s, une explosion ou un incendie.
Laisser un espace d'au moins 3" (7,5 cm) en haut et des deux
c6tes du congelateur et de 1" (2,5 cm) entre I'arriere du
congelateur et lemur. Si le congelateur dolt _tre contre un mur,
laisser un espace plus grand du c6te des charnieres pour que
la porte puisse s'ouvrir plus.
REMARQUE : Ce congelateur peut _tre installe c6te &c6te avec
un autre refrigerateur ou congelateur. Laisser un degagement de
3" (7,5 cm) sur le dessus et les c6tes et un degagement de
1¼,,(0,64 cm) entre les appareils.
- II -- I
I I
Risque de choc _[ectrique
Brancher sur une prise a 3 alv_oles reii_e ala terre.
Ne pas enlever la broche de liaison ala terre.
Ne pas utiliser un adaptateur.
Ne pas utiliser un cfibie de rallonge.
Le non=respect de ces instructions peut causer
un d_c_s, un incendie ou un choc _[ectrique.
M_thode recommand_e de mise _la terre
Une source de courant electrique de 115 V,60 Hz, CA seulement,
et protegee par fusible de 15 ou 20 amperes, adequatement mise
& la terre est necessaire. II est recommande d'utiliser un circuit
distinct pour alimenter uniquement le congelateur. Utiliser une
prise de courant murale qui ne peut pas _tre mise hors circuit &
I'aide d'un commutateur ou d'une chafne. Ne pas employer un
cfble de rallonge.
IMPORTANT : Ne pas installer le congelateur pres d'un four, d'un
radiateur ou d'une autre source de chaleur, ni dans un endroit oQ
la temperature baissera au-dessous de 40°F (5°C).
Verifier la solidite du plancher avant d'installer le congelateur. Le
plancher dolt supporter le poids d'un congelateur entierement
rempli d'aliments.
18

Lire attentivement toutes les instructions avant de commencer.
IMPORTANT:
• Si on doit utiliser le congelateur avant qu'il soit raccorde &la
canalisation d'eau, placer la commande de la machine
glagons a la position d'arr_t (OFF).
• Toutes les installations doivent _tre conformes aux exigences
des codes Iocaux de plomberie.
• Utiliser un tube en plastique et verifier s'il y a des fuites.
Installer les tubes en plastique seulement a des endroits oQla
temperature se maintient au-dessus du point de congelation.
OUTILS REQUlS : Un tournevis & lame plate, cles plates de 7/16"
et V2"ou deux cles a molette reglables, tourne-ecrou et foret de
V4", perceuse manuelle ou electrique (convenablement reliee a la
terre).
REMARQUE •Votre marchand de congelateurs presente une
trousse disponible avec un robinet d'arr_t a etrier de V4"
(6,35 mm), un raccord et un tube en plastique. Avant I'achat,
s'assurer que le robinet d'arr_t a etrier est conforme a vos codes
Iocaux de plomberie. Ne pas employer de robinet d'arr_t a etrier
de 3/le"(4,76 mm) ou de type a percer, ce qui reduit le debit d'eau
et cause une obstruction plus facilement.
Pression de I'eau
Une alimentation en eau froide avec une pression entre 30 et
120 Ib/po _(207 et 827 kPa) est necessaire pour faire fonctionner
le distributeur d'eau et la machine & glagons. Si vous avez des
questions au sujet de la pression de votre eau consulter
"Depannage" ou faire appel & un plombier qualifie agre&
Alimentation en eau par osmose inverse
Si un systeme de purification de I'eau par osmose inverse est
raccorde a votre alimentation en eau froide, la pression de I'eau
au systeme doit _tre d'un minimum de 40 a 60 Ib/po _
(276 a 414 kPa).
Si la pression de I'eau au systeme d'osmose inverse est
inferieure & 40 a 60 Ib/po _(276 a 414 kPa), une pompe de
surpression peut _tre inseree dans le petit tube qui va de la
canalisation d'eau froide au systeme d'osmose inverse.
Si le distributeur d'eau ne distribue toujours pas d'eau au debit
approprie :
• Verifier pour voir si le filtre du systeme d'osmose inverse est
bloque et le remplacer si necessaire.
• Laisser le reservoir du systeme d'osmose inverse se remplir
apr_s une utilisation intense.
• Si votre refrigerateur a une cartouche de filtre & eau, celle-ci
peut red@re encore plus la pression de I'eau Iorsqu'elle est
utilisee avec un systeme d'osmose inverse. Retirer la
cartouche du filtre & eau. Voir "Systeme de filtration d'eau".
Si vous avez des questions au sujet de la pression de votre eau,
consulter "Depannage" ou appeler un plombier qualifie agre&
Raccordement &une canalisation d'eau :
1. Debrancher le congelateur ou deconnecter la source de
courant electrique.
2. FERMER le robinet principal d'arrivee d'eau. OUVRIR le
robinet de puisage le plus proche pendant une periode
suffisante pour que la canalisation d'eau se vide.
3. Trouver une canalisation d'eau froide verticale de
V_"&1V4" (12,7 mm &3,18 cm) pros du congelateur.
IMPORTANT :
Assurez-vous qu'il s'agit d'un conduit d'eau froide.
Un conduit horizontal fonctionnera, mais percer par le
dessus de la canalisation et non pas par le dessous.
Ainsi, I'eau ne risquera pas d'arroser la perceuse. Ceci
emp_che egalement les sediments qu'on trouve
normalement dans I'eau de s'accumuler dans le robinet
d'arr_t.
4. Pour determiner la Iongueur du tube en plastique, il faut
mesurer la distance entre le point de connexion inferieur
gauche a I'arriere du congelateur et le tuyau d'arrivee d'eau.
Ajouter une Iongueur de 7 pi (2,1 m) pour permettre le
deplacement du congelateur pour le nettoyage. Utiliser un
tube en plastique de V4"(6,35 mm) de diam_tre exterieur.
Veiller ace que le tube soit coupe d'equerre aux deux
extremites.
5. A I'aide d'une perceuse electrique reliee a la terre, percer un
trou de V4"dans le tuyau de canalisation d'eau froide choisi.
A. Canalisation d'eau froide
B. Bride de tuyau
C. Tube en cuivre
D. E-crou de compression
E. Bague de compression
F. Robinet d'arr_t
G. Ecrou de serrage
6. Fixer le robinet d'arr_t sur la canalisation d'eau froide avec la
bride de tuyau. Verifier que le raccord du robinet est bien
engage dans le trou de V4"perce dans la canalisation et que
la rondelle d'etancheite est placee sous la bride de tuyau.
Serrer I'ecrou de serrage sur la tige du robinet. Serrer
lentement et uniformement les vis fixant la bride de tuyau sur
la tuyauterie afin que la rondelle forme une jonction etanche.
Ne pas serrer excessivement car ceci pourrait provoquer
I'ecrasement du tube en plastique.
7. Enfiler I'ecrou et la bague de compression du raccord sur le
tube en plastique comme on le voit sur I'illustration. Inserer
I'extremite du tube aussi loin que possible dans I'ouverture
de sortie du robinet. Visser I'ecrou du raccord de
compression sur le raccord de sortie avec une cle a molette.
Ne pas serrer excessivement.
8. Placer le bout libre du tube dans un contenant ou evier et
OUVRIR le robinet principal d'arrivee d'eau et laisser I'eau
s'ecouler par le tube jusqu'& ce que I'eau soit limpide.
FERMER le robinet principal d'arrivee d'eau. Enrouler le tube
en plastique.
19

Raccordement au cong_lateur :
1. Connecter le tube en plastique au robinet d'eau en utilisant
un ecrou et une bague de compression tel qu'illustr& Serrer
I'ecrou de compression. Ne pas serrer excessivement.
Utiliser la bride du tube &I'arriere du congelateur pour fixer le
tube au congelateur tel qu'illustr& Ceci aidera & eviter les
dommages au tube Iorsque le congelateur est pousse contre
lemur.
2. OUVRIR le robinet d'arret. Inspecter pour rechercher les
fuites. Serrer tousles raccords (y compris les raccordements
de la valve d'entree d'eau) ou les ecrous qui coulent.
A.Bride du tube C.Ecrou de compression
B. Tubeen plastique D.Entree d'eau de la valve
3= La machine & gla£;ons est equipee d'un filtre &eau incorpor&
Si la qualite de I'eau distribuee Iocalement necessite un
deuxieme filtre & eau, il serait utile de I'installer dans le tube
de raccordement de 1/4"(6,35 mm). On peut obtenir un tel
filtre & eau chez le marchand d'appareils electromenagers le
plus proche.
4=
Risque de choc _lectrique
Brancher sur une prise a3alv_oles reli_e a la terre.
Ne pas enlever la broche de liaison ala terre.
Ne pas utiliser un adaptateur.
Ne pas utiliser un c&ble de rallonge.
Le non=respect de ces instructions peut causer
un d_c_s, un incendie ou un choc _lectrique.
Brancher le congelateur sur une priese a aleveoles reliee a la
terre.
OUTILLAGE NI_CESSAIRE : Cles & douille hexagonale de ¾e",
%", 1/4",1/2",3/8",¾e"; tournevis Philips n° 2, tournevis a lame
plate, cle plate de ¾e", couteau & mastic 2".
IMPORTANT :
• Toutes les illustrations mentionnees dans les instructions
suivantes sont incluses plus loin dans cette section apres
"12tapes finales". Les illustrations correspondent &une porte
s'ouvrant & droite (charnieres installees a droite a I'usine).
• Si vous desirez seulement enlever et reinstaller la porte, voir
"Demontage - Porte et charnieres et "Reinstallation - Porte et
charnieres".
• Avant de commencer, tourner la commande a OFF (arret), et
retirer les aliments et tout balconnet reglable ou
compartiment utilitaire des portes.
D_montage -Porte et charni_res
Visde charniere _t_te hexagonale de 5/16"
1. Debrancher le congelateur ou deconnecter la source de
courant electrique.
2. Ouvrir la porte inferieure; enlever la grille de base, & I'avant du
congelateur. Voir la grille de la base sur I'illustration 1A.
3. Fermer la porte inferieure; maintenir la porte inferieure fermee
jusqu'au moment oQon pourra la soulever pour la separer de
la caisse de I'appareil.
REMARQUE :Prevoir un support additionnel de la porte
pendant la reinstallation des charnieres. La force d'attraction
des aimants de la porte ne suffit pas & la maintenir en place.
4. Retirer les pieces de la charniere superieure - voir I'illustration
1B de la charniere superieure.
5. Soulever la porte superieure pour la degager de la charniere
centrale et de la caisse; conserver la porte a part.
6. Enlever la butee de porte de la charniere centrale et la broche
de pivotement. Voir I'illustration 1C - charniere centrale.
7. 0ter la charniere centrale. Reinstaller les vis de fixation de la
charniere dans les memes trous.
8. Enlever la porte inferieure.
9. Retirer les trois vis de charniere & tete hexagonale et la
charniere inferieure. Voir I'illustration 1D - charniere inferieure.
Inversion du sens d'ouverture de la porte (facultatif -sur
certains modules)
IMPORTANT : Si vous souhaitez inverser le sens d'ouverture de
la porte, suivre les instructions de la section "Inversion du sens
d'ouverture de la porte (facultatif)". S'il n'est pas necessaire de
changer I'orientation de la porte, voir "Reinstallation - Porte et
charnieres".
Placard
1. Enlever les bouchons d'obturation des trous de charniere au
sommet de la caisse; transferer ceux-ci dans les trous de
charniere du c6te oppose (voir I'illustration 1).
2. Enlever la vis de butee de la porte de la bride de charniere
inferieure. Voir I'illustration 1D - charniere inferieure.
20
