Whirlpool W11176204A User manual

BEVERAGE CENTER
Use & Care Guide
For questions about features, operation/performance, parts or service, call: 1-800-253-1301
In Canada, call for assistance 1-800-807-6777 or visit our website at
www.whirlpool.com or www.whirlpool.ca
CENTRE DE RAFRAÎCHISSEMENT
Guide d’utilisation et d’entretien
Pour des questions à propos des caractéristiques, du fonctionnement/rendement, des pièces ou du service, composer le: 1800253-1301
Au Canada, composer le 1800807-6777 ou visiter nos sites Web au
www.whirlpool.com ou www.whirlpool.ca
CENTRO DE BEBIDAS
Manual de uso y cuidado
Si tiene preguntas respecto a características, funcionamiento, rendimiento, piezas o servicio técnico, llame al: 1-800-253-1301
En Canadá, llame para recibir asistencia al 1-800-807-6777 o visite nuestro sitio web en
www.whirlpool.com o www.whirlpool.ca
W11176204A

2
Table of Contents
BEVERAGE CENTER SAFETY ....................................................3
Proper disposal of your old Beverage Center .........................3
INSTALLATION INSTRUCTIONS.................................................4
Location Requirements............................................................4
Electrical Requirements ...........................................................4
Unpack the Beverage Center ..................................................4
Reverse door swing (optional) ................................................. 5
Door closing .............................................................................6
Base grille.................................................................................6
BEVERAGE CENTER USE........................................................... 7
Normal sounds.........................................................................7
Using the control .....................................................................7
BEVERAGE CENTER FEATURES ...............................................7
Beverage Center shelves.........................................................7
Stocking the Beverage Center.................................................8
Bottom rack 6 bottles ..............................................................8
BEVERAGE CENTER CARE ........................................................8
Cleaning ...................................................................................8
Vacation and moving care........................................................ 9
TROUBLESHOOTING ..................................................................9
ASSISTANCE OR SERVICE .......................................................10
In the U.S.A ............................................................................10
In Canada ..............................................................................10
Acessories .............................................................................10
WARRANTY ................................................................................11
Table des matières
SÉCURITÉ DU CENTRE DE RAFRAÎCHISSEMENT ...............13
Mise aux rebuts de votre centre de rafraîchissement ...........13
INSTRUCTIONS D’INSTALLATION...........................................14
Exigences d’emplacement ....................................................14
Spécications électriques......................................................14
Déballage du centre de rafraîchissement..............................14
Inversion du sens de l’ouverture de la porte (facultatif).........15
Fermeture de la porte.............................................................16
Grille de la base......................................................................16
UTILISATION DU CENTRE DE RAFRAÎCHISSEMENT ...........17
Sons normaux........................................................................17
Utilisation des commandes ..................................................17
CARACTÉRISTIQUES DU CENTRE DE RAFRAÎCHISSEMENT ....17
Tablettes du centre de rafraîchissement................................17
Stockage dans le centre de rafraîchissement ....................... 18
Panier inférieur pour 6 bouteilles ...........................................18
ENTRETIEN DU CENTRE DE RAFRAÎCHISSEMENT .............18
Nettoyage...............................................................................18
Précautions à prendre pour les vacances et avant
undéménagement.................................................................19
DÉPANNAGE...............................................................................19
ASSISTANCE OU SERVICE.......................................................20
Aux É.-U. ................................................................................20
Au Canada..............................................................................20
Accessoires ...........................................................................20
GARANTIE................................................................................... 21
Tabla de contenidos
SEGURIDAD DEL CENTRO DE BEBIDAS ...............................23
Cómo deshacerse de su centro de bebidas anterior............23
INSTRUCCIONES DE INSTALACIÓN .......................................24
Requisitos de ubicación.........................................................24
Requisitos eléctricos..............................................................24
Desempaque el centro de bebidas........................................24
Cambio del sentido de apertura de la puerta (opcional).......25
Cómo cerrar la puerta............................................................26
Rejilla de la base ....................................................................26
USO DEL CENTRO DE BEBIDAS .............................................27
Sonidos normales ..................................................................27
Uso de los controles .............................................................27
CARACTERÍSTICAS DEL CENTRO DE BEBIDAS ..................27
Estantes del centro de bebidas.............................................27
Abastecimiento del centro de bebidas.................................. 28
Canasta inferior 6 botellas .....................................................28
CUIDADO DEL CENTRO DE BEBIDAS....................................28
Limpieza .................................................................................28
Cuidado durante las vacaciones y mudanzas.......................29
SOLUCIÓN DE PROBLEMAS....................................................29
AYUDA O SERVICIO TÉCNICO.................................................30
En EE.UU................................................................................30
En Canadá .............................................................................30
Accesorios .............................................................................30
GARANTÍA...................................................................................31

3

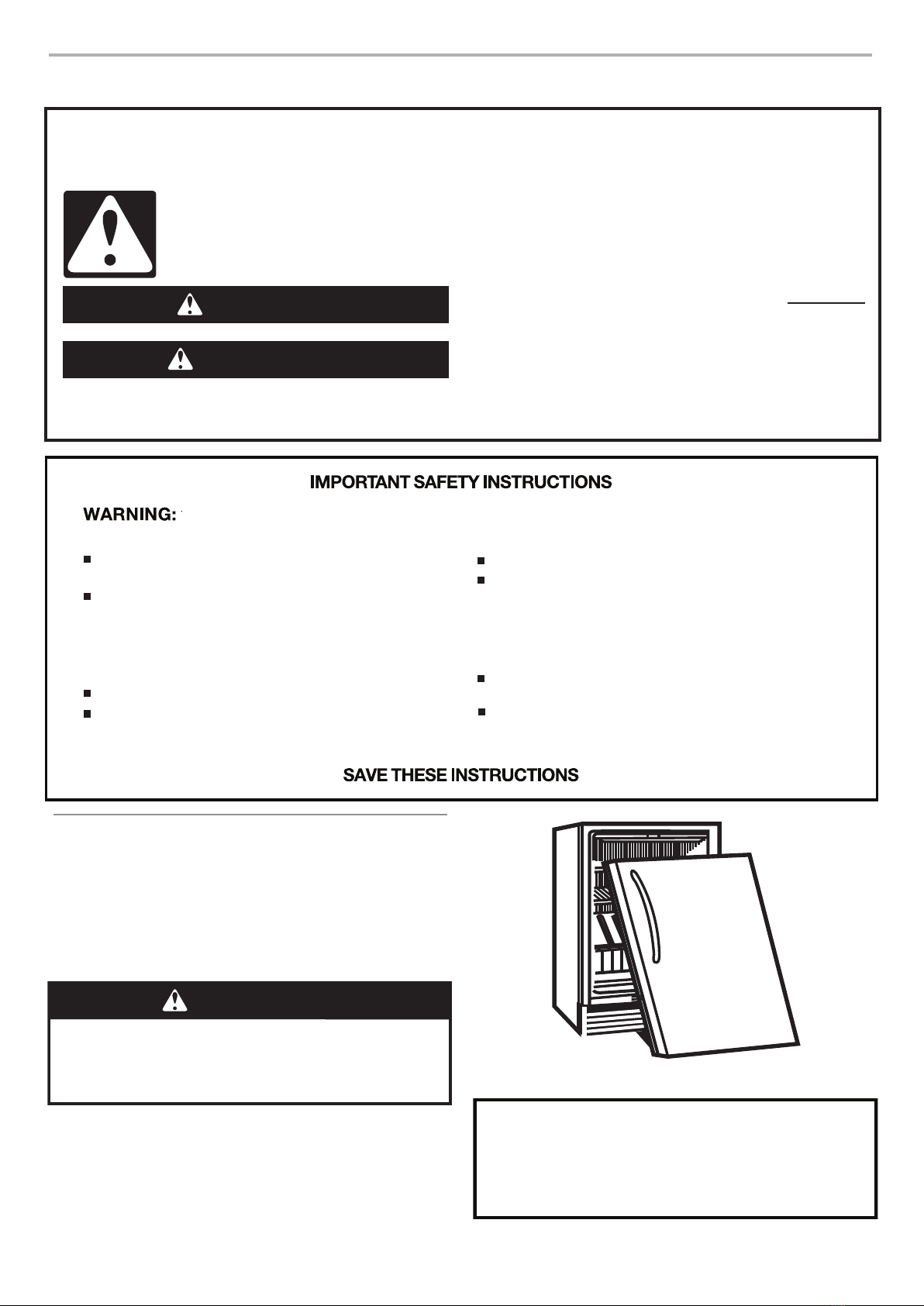

BEVERAGE CENTER SAFETY
Your safety and the safety of others are very important.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
DANGER
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions,
including the following:
Children should be supervised to ensure that they do not play
with the appliance.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mentalcapabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerninguse of the appliance
by a person responsible for their
safety.
Do not use an extension cord.
If power supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or a similarly qualified person
in order to avoid a hazard.
Connect to potable water supply only.
This appliance is intended to be used in household and similar
applications such as: staff kitchen areas in shops, offices, and
other working environments; farm houses andby clients in
hotels, motels, and other residential-typeenvironments; bed and
breakfast-type environments; andcatering and similar non-retail
applications.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Do not use replacement parts that have not been
recommended by the manufacturer (e.g., parts made at home
using a 3D printer).
Proper Disposal of Your Old Beverage
Center
WARNING: Risk of child entrapment. Before You Throw
Away Your Old Refrigerator or Freezer:
■Take off the doors.
■Leave the shelves in place so that children may not easily
climb inside.
IMPORTANT: Child entrapment and suffocation are not
problems of the past. Junked or abandoned refrigerators are
still dangerous – even if they will sit for “just a few days.” If
you are getting rid of your old refrigerator, please follow these
instructions to help prevent accidents.
WARNING
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
Important information to know about disposal of
refrigerants:
Dispose of refrigerator in accordance with Federal and Local
regulations. Refrigerants must be evacuated by a licensed,
EPA certified refrigerant technician in accordance with
established procedures.

4
INSTALLATION INSTRUCTIONS
Location Requirements
To ensure proper ventilation for your Beverage Center, allow
for a 1/4" (6.35 mm) space on each side and at the top. When
installing your Beverage Center next to a xed wall, leave 2½"
(6.35 cm) minimum clearance on the hinge side to allow for the
door to swing open.
NOTE: It is recommended that you do not install the Beverage
Center near an oven, radiator, or other heat source. Do not
install in a location where the temperature will fall below 55°F
(13°C). For best performance, do not block the base grille.
Opening Dimensions
■Height dimensions are shown with the leveling legs
extended to the minimum height.
NOTE: When leveling legs are fully extended, add 5/8" (1.6
cm) to the height dimensions.
■If the oor of the opening is not level with the kitchen oor,
shim the opening to make it level with the kitchen oor.
Electrical Requirements
Before you move your Beverage Center into its nal location,
it is important to make sure you have the proper electrical
connection.
Recommended grounding method
A 115 Volt, 60 Hz., AC only, 15A or 20A fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your Beverage Center be provided. Use
an outlet that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, or cleaning,
unplug Beverage Center or disconnect power.
Unpack the Beverage Center
Remove the Packaging
■Remove tape and glue residue from surfaces before turning
on the Beverage Center. Rub a small amount of liquid dish
soap over the adhesive with your ngers. Wipe with warm
water and dry.
■Do not use sharp instruments, rubbing alcohol, ammable
uids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your Beverage Center.
For more information, see “Beverage Center Safety.”
■Dispose of/recycle all packaging materials.
When Moving Your Beverage Center
Your Beverage Center is heavy. When moving the Beverage
Center for cleaning or service, be sure to cover the oor with
cardboard or hardboard to avoid oor damage. Always pull
the Beverage Center straight out when moving it. Do not
wiggle or “walk” the Beverage Center when trying to move it,
as oor damage could occur. Having someone push against
the front top of the Beverage Center takes some weight off
the front leveling legs. This makes it easier to push the unit
on the rear rollers.

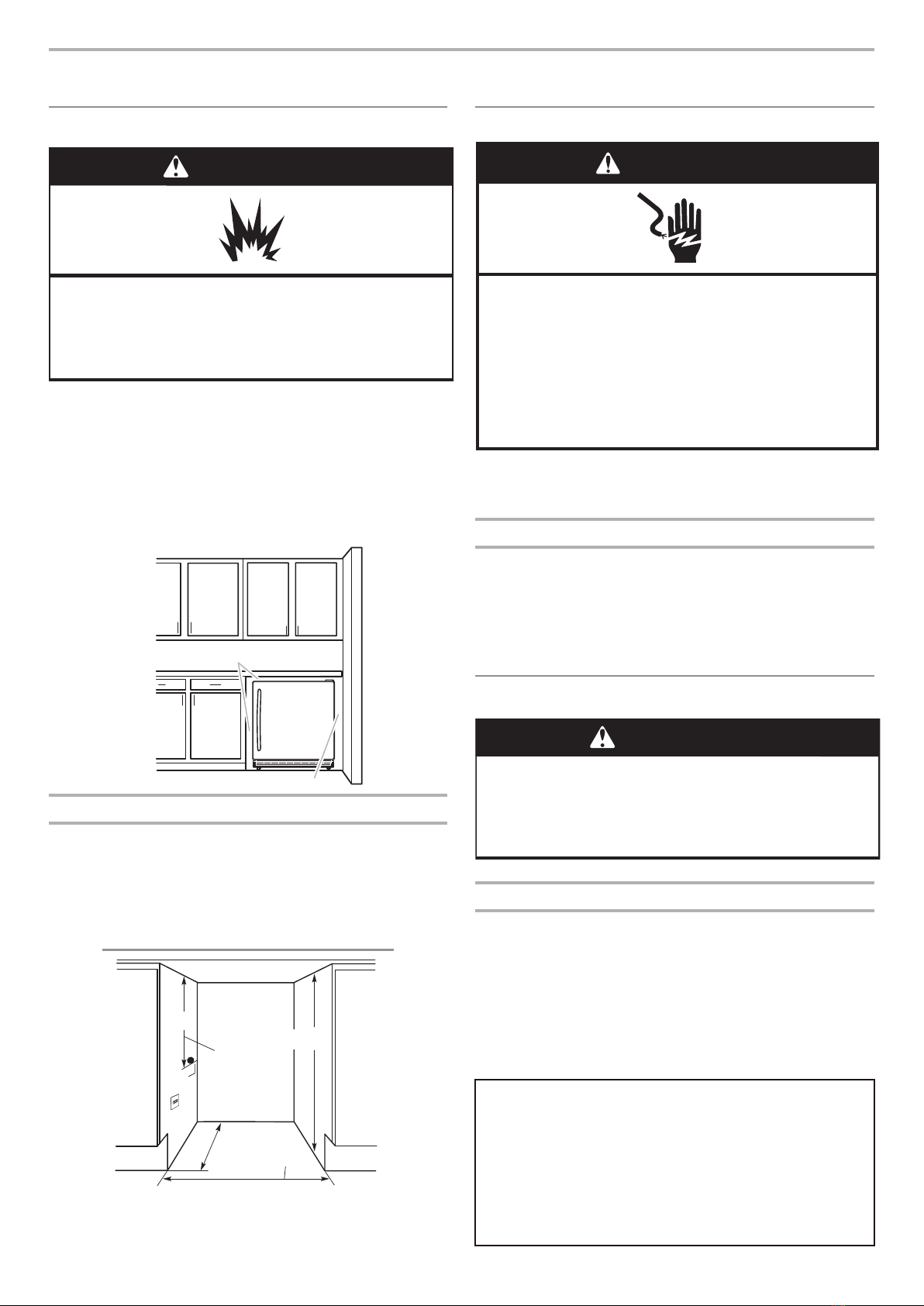

WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from beverage center.
Failure to do so can result in death, explosion, or fire.
1/4" (6.35 mm)
2 ½" (6.35 cm)
14 ¾"
(37.5 cm)
A
1/2"
(1.3 cm)
24"
(60.96 cm) min.
B
24" (60.96 cm) min.
34 ³/8"(87.3 cm) min.
35" (88.9 cm) max.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
beverage center.
Failure to do so can result in back or other injury.
Critical dimensions:
A. 14.¾" (37.5 cm) utility opening
B. 24" (60.96 cm) minimum opening width

5
Clean Before Using
After you remove all of the package materials, clean the inside
of your Beverage Center before using it. See the cleaning
instructions in “Beverage Center Care”.
Important information to know about glass shelves and
covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and
covers are heavy. Use both hands when removing them to
avoid dropping.

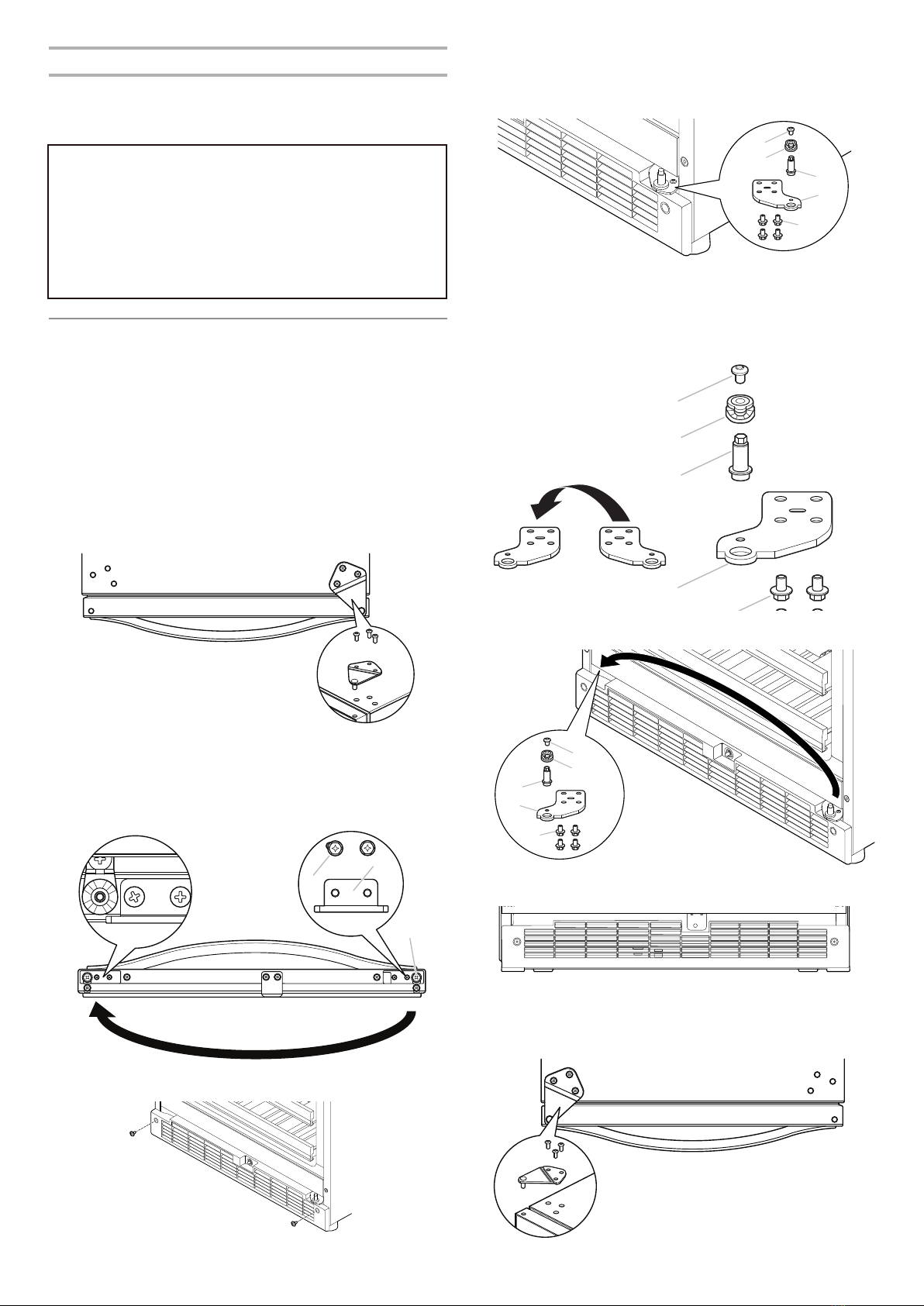

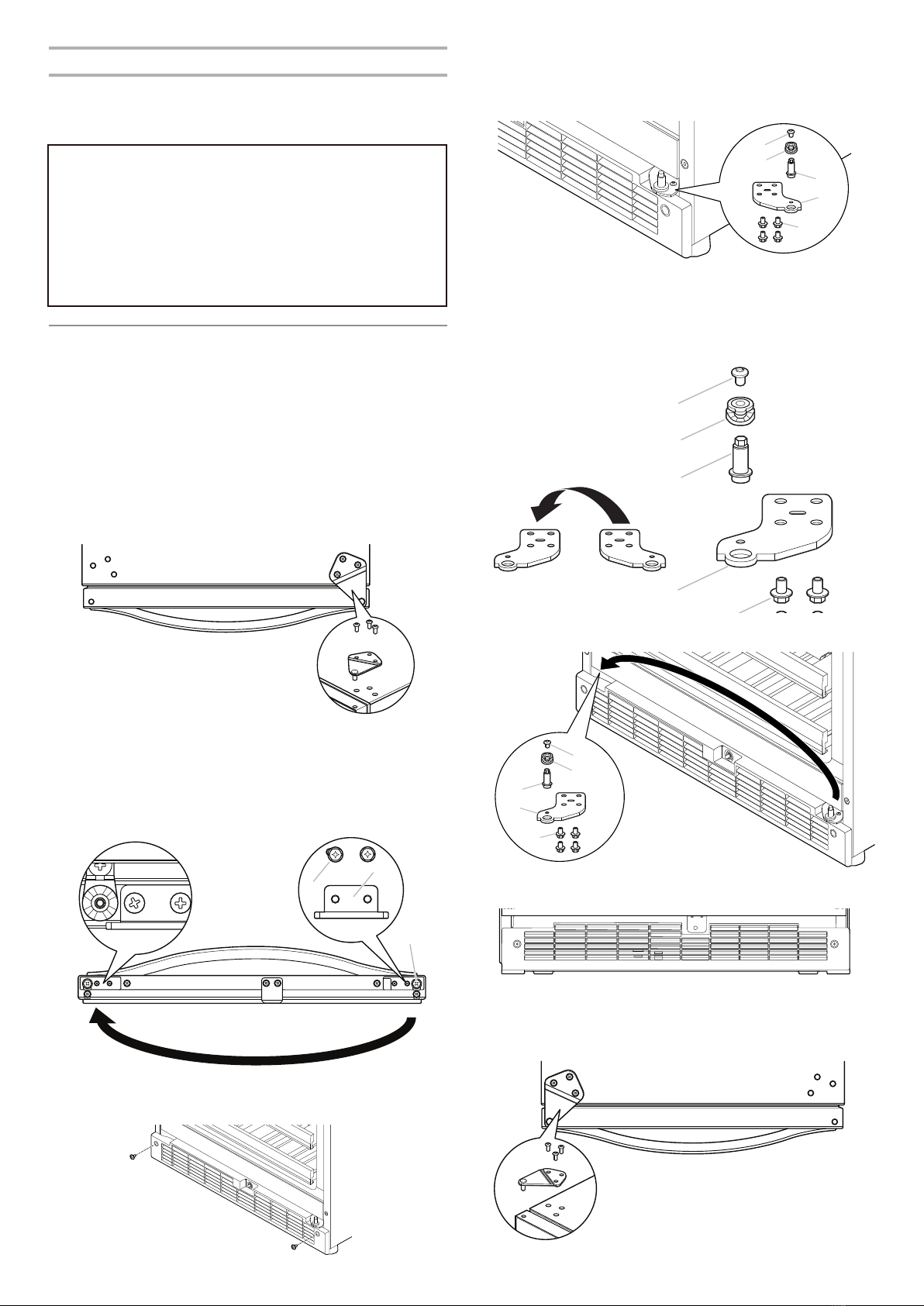

Reverse Door Swing (optional)
Before you move your Beverage Center into its nal location,
it is important to make sure you have the proper electrical
connection.
Tools Needed:
Phillips screwdriver and an 8 mm wrench (or 5/16" in wrench).
1. Unplug Beverage Center or disconnect power.
2. Using the screw driver, remove the screws from each side of
the top of the Beverage Center cabinet and set aside.
NOTE: There are seven screws total. Do not discard.
3. Remove the top hinge and set aside.
4. Lift the door straight up and off the bottom hinge.
5. Set door lying at with gasket facing up. Door should
be placed on a debris free surface such as cardboard or
blanket to avoid scratches.
6. Remove the screws (B) fastening the black metal door
stopper (C) and re-attach it on the opposite side.
7. Remove the screws from each side of the kickplate and set
aside.
8. Pull out the kickplate and set aside.
9. With the wrench, remove the screws (A) fastening the
bottom hinge (B) to the Beverage Center cabinet and set
aside. There are four screws total.
Using the screwdriver, remove the screw (C) fastening the
plastic hinge door latch (E). Set screw aside. Then, unscrew
the bottom hinge shaft (D) and plastic hinge door latch (E)
and set aside.
Flip over the bottom hinge on the opposite side. As shown in
the images below and reverse the process in step 10.
Move hinge to the opposite side and completely tighten the
screws (four total).
Reattach the base grill and tighten with the two screws
provided.
Place the door straight down and on the bottom hinge.
Fasten the top hinge with three silver screws and move the
remaining four screws to the opposite side. Completely
tighten all seven screws.
BOTTOM VIEW
10.
11.
12.
13.
14.
15.
A
B
C
E
D
C
E
D
B
B
A
A
D
E
C
A
B
C
