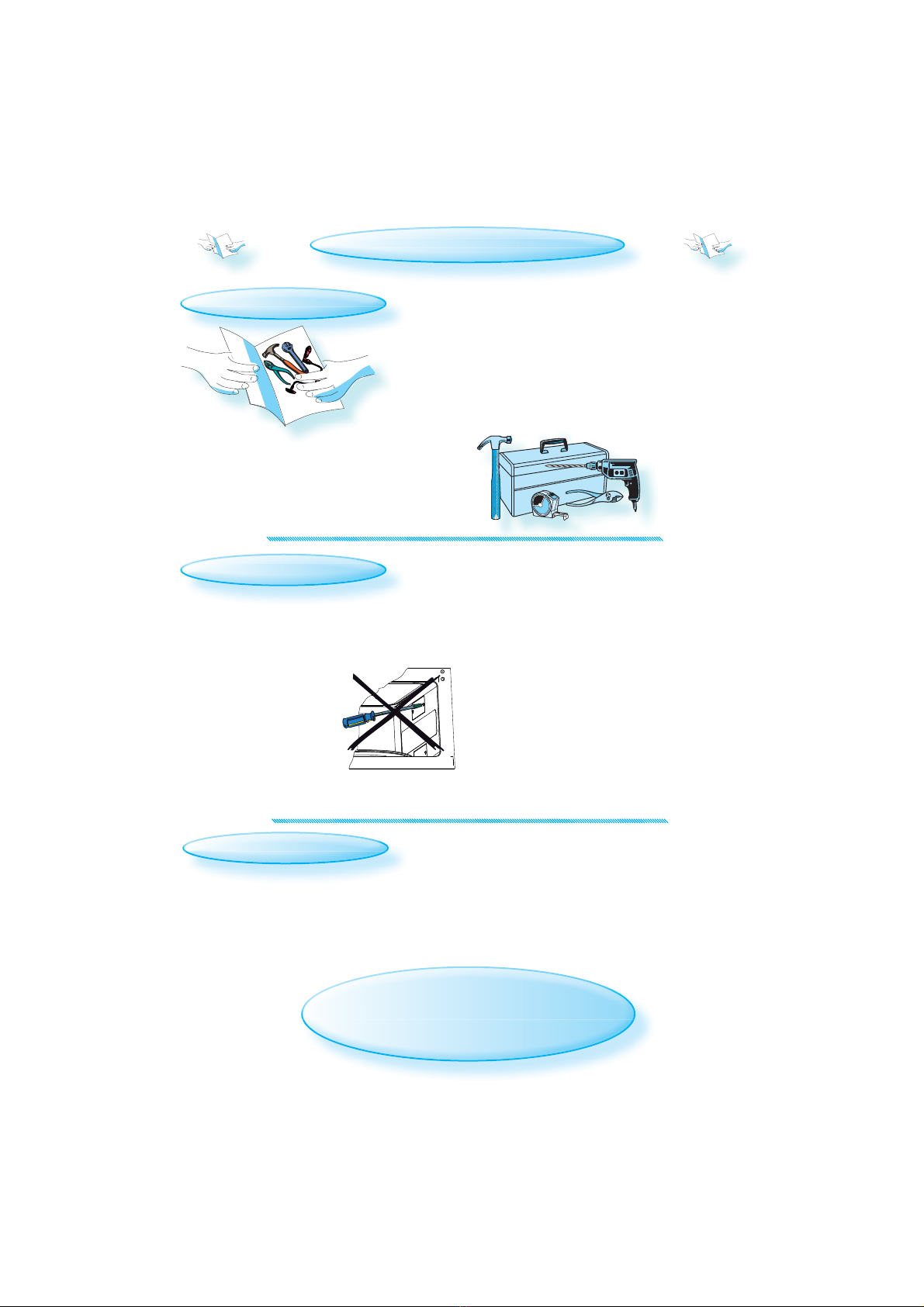

INSTALLATION
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check
that the oven door closes firmly against the door
support and that the internal door seal is not da-
maged. Empty the oven and clean the interior
with a soft, damp cloth.
AFTER CONNECTING
THE EARTHING OF THIS APPLIANCE is compulsory. The
manufacturer will accept no responsibility for in-
jury to persons, animals or damage to objects ari-
sing from the non-observance of this require-
ment.
The manufacturers are not liable for any pro-
blems caused by the user’s failure to observe
these instructions.
DONOT OPERATE THIS APPLIANCE if it has a damaged
mains cord or plug, if it is not working properly,
or if it has been damaged or dropped. Do not im-
merse the mains cord or plug in water. Keep the
cord away from hot surfaces. Electrical shock, fire
or other hazards may result.
DONOT REMOVE THE MICROWAVE INLET PROTECTION
PLATES located on the side of
the oven cavity wall. They
prevent grease & food parti-
cles from entering the micro-
wave inlet channels.
ENSURE the oven cavity is
empty before mounting.
CHECK THAT THE VOLTAGE on the rating plate corres-
ponds to the voltage in your home.
THE OVEN CAN BE OPERATED ONLY if the oven door is
firmly closed.
MOUNTING THE APPLIANCE
FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.

3

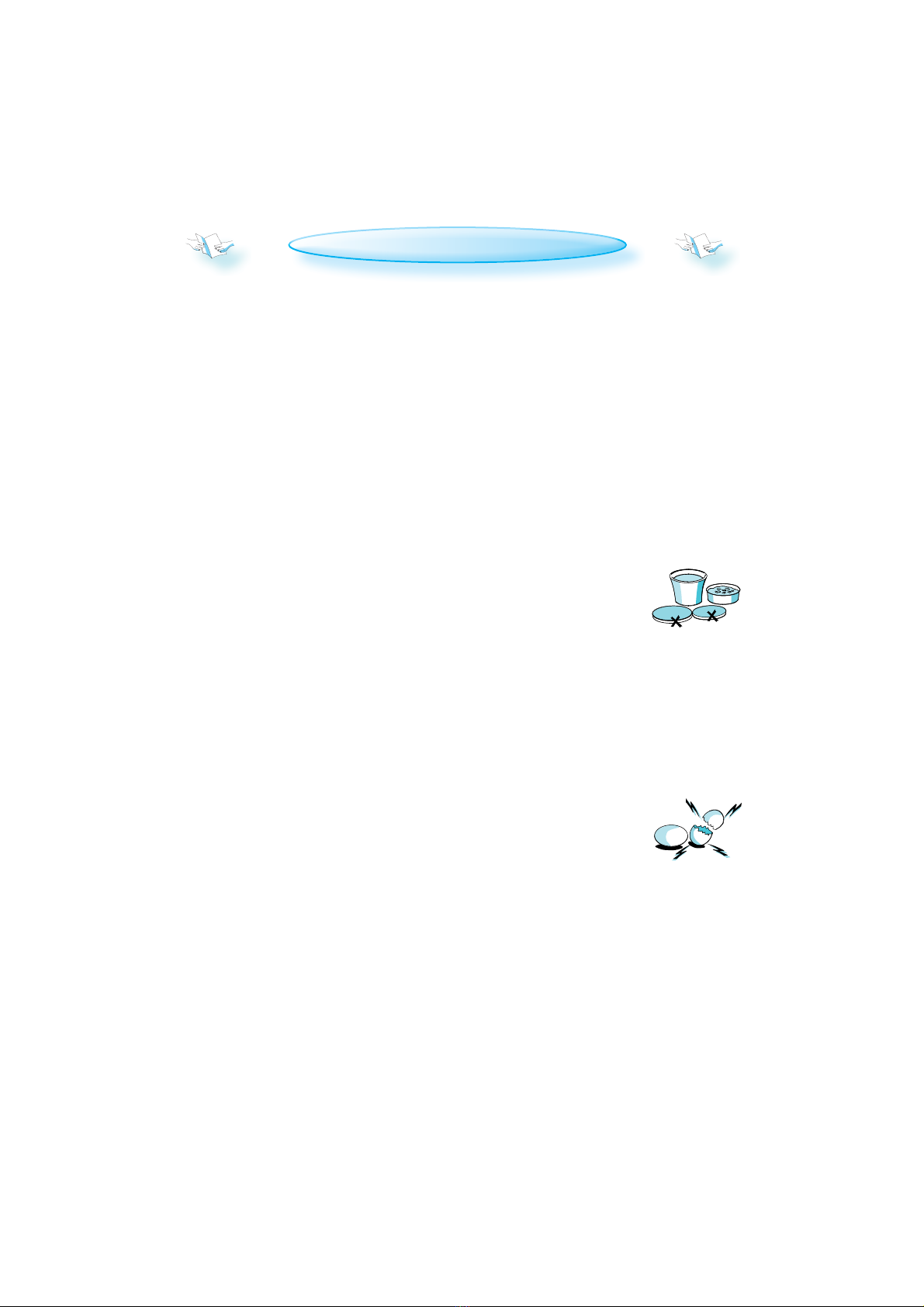

IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE MATERIALS in or near
the oven. Fumes can create a fire hazard or ex-
plosion.
DONOT USE YOUR MICROWAVE oven for drying tex-
tiles, paper, spices, herbs, wood, flowers, fruit or
other combustible materials. Fire could result.
DONOT OVER-COOK FOOD. Fire could result.
DONOT LEAVE THE OVEN UNATTENDED, especially
when using paper, plastic or other combustible
materials in the cooking process. Paper can char
or burn and some plastics can melt if used when
heating foods.
IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD IG-
NITE OR SMOKE IS OBSERVED, keep oven door clo-
sed and turn the oven off. Disconnect the power
cord or shut off power at the fuse or circuit brea-
ker panel.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
ONLY ALLOW CHILDREN to use the appliance under
adult supervision and after adequate instructions
have been given, so that the child is able to use
the appliance in a safe way and understands the
hazards of improper use.
THIS APPLIANCE IS NOT INTENDED FOR use by persons
(including children) with reduced physical, sensory
or mental capabilities, unless used under the
supervision of a person responsible for their safety.
WARNING!
ACCESSIBLE PARTS MAY BECOME HOT during use, young
children should be kept away
DONOT USE YOUR MICROWAVE oven for hea-
ting anything in airtight sealed con-
tainers. The pressure increases and
may cause damage when ope-
ning or may explode.
EGGS
DONOT USE YOUR MICROWAVE oven for
cooking or reheating whole eggs with
or without shell since they may
explode even after microwave
heating has ended.
THE DOOR SEALS AND THE DOOR SEAL AREAS must be re-
gularly inspected for damage. If these areas are da-
maged the appliance should not be operated until it
has been repaired by a trained service technician.
DONOT USE corrosive chemicals or vapors in this
appliance. This type of oven is specifically desig-
ned to heat or cook food. It is not designed for in-
dustrial or laboratory use.

4
GENERAL
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
THE APPLIANCE SHOULD NOT BE OPERATED without food
in the oven when using microwaves. Operation in
this manner is likely to damage the appliance.
IFYOU PRACTICE OPERATING the oven, put a glass of
water inside. The water will absorb the microwa-
ve energy and the oven will not be damaged.
REMOVE WIRE TWIST-TIES from paper or
plastic bags before placing bag in the
oven.
DEEPFRYING
DONOT USE YOUR MICROWAVE oven for deep-frying,
because the oil temperature cannot be
controlled.
LIQUIDS
E.G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden boil
over of the hot liquid.
To prevent this possibility the fol-
lowing steps should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container in
the oven and let the teaspoon remain in the
container.
3. After heating, allow standing for a short
time, stirring again before carefully removi-
ng the container from the oven.
CAREFUL
ALWAYS REFER to a microwave cookbook for de-
tails. Especially, if cooking or reheating food that
contains alcohol.
AFTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food
jar, always stir and check the
temperature before serving. This
will ensure that the heat is evenly distributed and
the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed be-
fore heating!
IMPORTANT PRECAUTIONS
USE HOT PADS OR OVEN MITTS to prevent burns,
when touching containers, oven parts, and pan
after cooking.
DONOT USE THE CAVITY for any storage purposes.
PUSH  PUSH KNOBS
THE KNOBS OF THIS OVEN are aligned with the
buttons on the panel, at delivery.
The knobs will slide out if pushed and
their various functions can be
accessed. It is not necessary
to have them petruding from the panel
during operation.
Simply push them back into the panel when
you are done with the setting and continue
to operate the oven.

5
ACCESSORIES
GENERAL
IFACCESSORIES CONTAINING METAL comes in contact
with the oven interior, while the oven is in ope-
ration, sparking can occur and the oven could be
damaged.
TURNTABLE SUPPORT
USE THE TURNTABLE SUPPORT under the Glass turnta-
ble. Never put any other utensils on
the turntable support.
Fit the turntable support in the
oven.
GLASS TURNTABLE
USE THE GLASS TURNTABLE with all cooking me-
thods. It collects the dripping jui-
ces and food particles that other-
wise would stain and soil the inte-
rior of the oven.
Place the Glass turntable on
the turntable support.
ENSURE THAT THE UTENSILS YOU USE are oven proof
and allow microwaves to pass
through them before coo-
king.
WHEN YOU PUT FOOD AND ACCESSORIES in the micro-
wave oven, ensure that they do not come in con-
tact with the interior of the oven.
This is especially important with accessories
made of metal or metal parts.
ALWAYS ENSURE that the turntable is able to turn
freely before starting the oven.
THERE ARE a number of accessories available on
the market. Before you buy, ensure they are suita-
ble for microwave use.
WIRE RACK
USE THE WIRE RACK when cooking
and baking.
START PROTECTION / KEY LOCK
THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE
MINUTE AFTER the oven has returned to
“stand by mode“. (The oven is in “stand
by” when the 24-hour clock is displa-
yed or if the clock has not been set,
when the display is blank).
THE DOOR MUST BE OPENED AND CLOSED e.g. putting
food into it, before the safety lock is released. Else
the display will show “DOOR”.

6

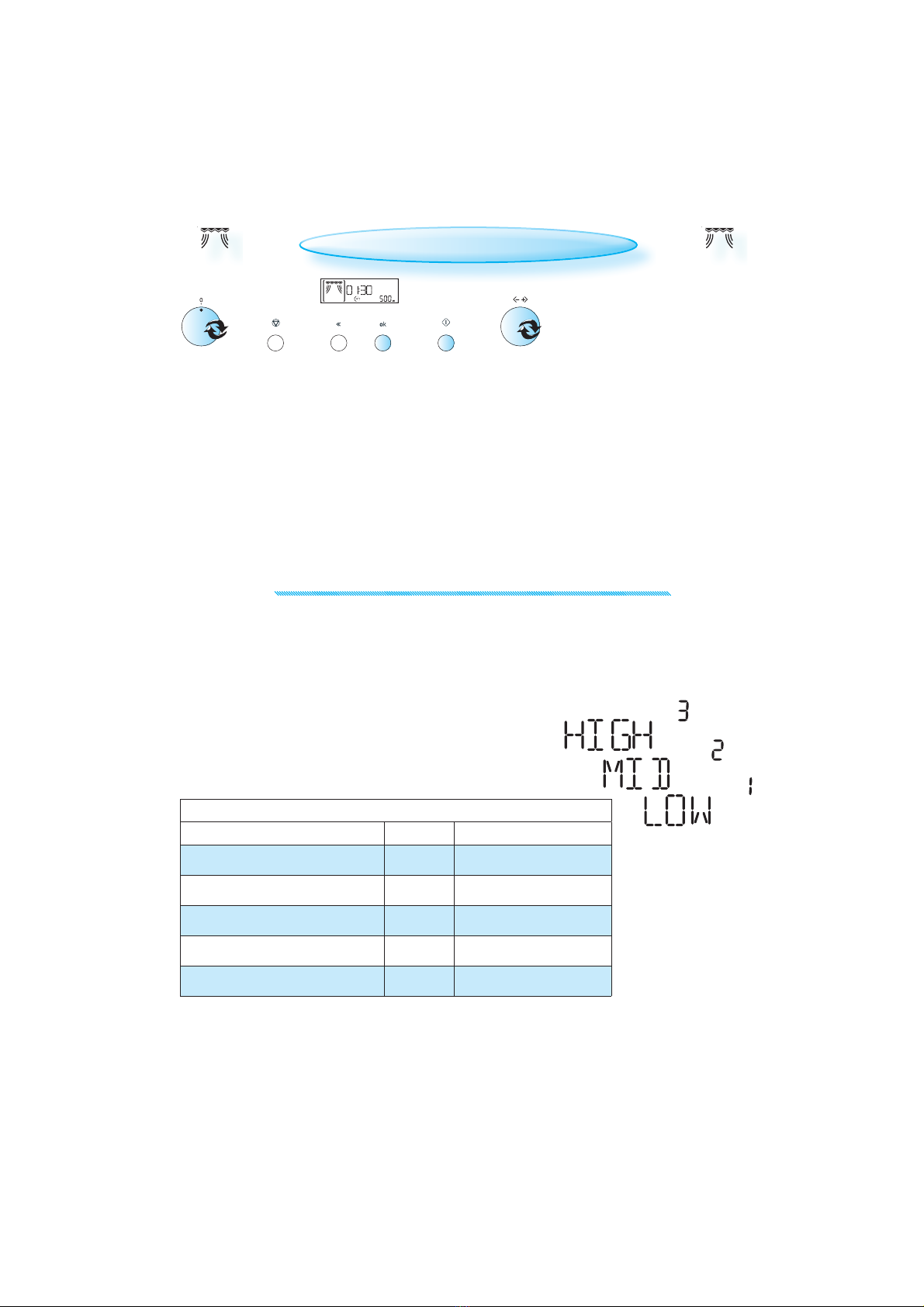

DONENESS (AUTO FUNCTIONS ONLY)
DONENESS IS AVAILABLE in most of the auto functi-
ons. You have the possibility to personally control
the end result through the Adjust doneness fea-
ture. This feature enables you to achieve higher
or lower end temperature compared to the defa-
ult standard setting.
WHEN USING one of these functions the oven cho-
oses the default standard setting. This setting
normally gives you the best result. But if the food
you heated became too warm to eat at once, you
can easily adjust this before you use that function
the next time. NOTE:
THE DONENESS can only be set or altered during
the first 20 seconds of operation.
WHEN USING SOME OF THE AUTO FUNCTIONS the oven
may stop (depending on the chosen program
and food class) and prompt you to STIR FOOD or
TURN FOOD.
STIR OR TURN FOOD (AUTO FUNCTIONS ONLY)
THIS IS DONE BY SELECTING ADONENESS LEVEL with the
adjust knob right after you have pressed the Start
button.
NOTE: IN AUTO DEFROST MODE, THE OVEN CONTINUES
AUTOMATICALLY AFTER 2 MIN. if the food hasn’t been
turned / stirred. The defrost time will be longer in
this case.
TOCONTINUE COOKING:
Open the door.
Stir or turn the food.
Close the door and restart by pressing the
Start button.

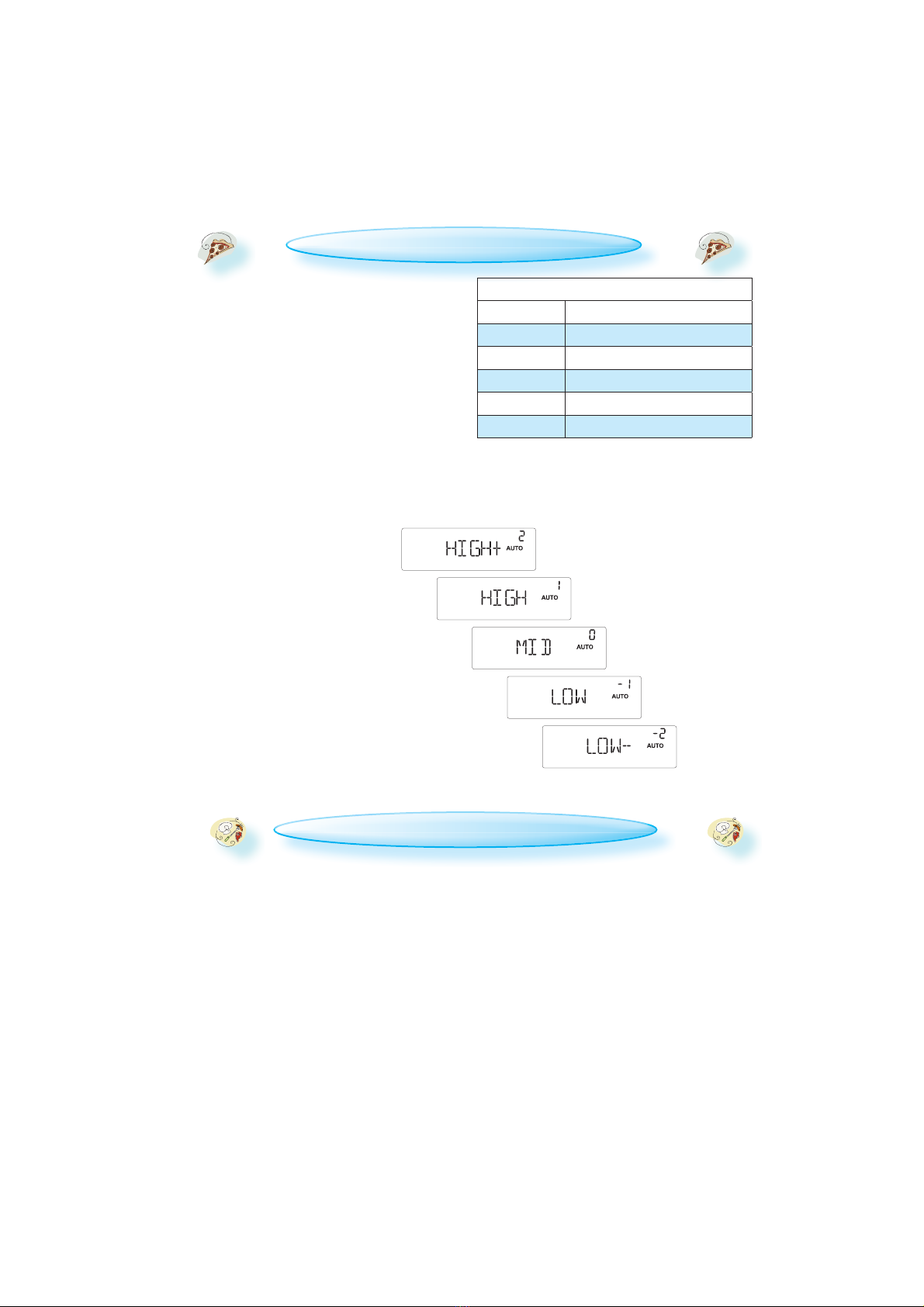

DONENESS
LEVEL EFFECT
HIGH +2 YIELDS HIGHEST END TEMPERATURE
HIGH +1 YIELDS HIGHER END TEMPERATURE
MED 0 DEFAULT STANDARD SETTING
LOW -1 YIELDS LOWER END TEMPERATURE
LOW -2 YIELDS LOWEST END TEMPERATURE

7
FOOD


TRYPOUL (100g -
(100g - 2.0Kg)MEAT
WHEN USING THE AUTO FUNCTIONS the oven needs
to know which food class it is to use to reach pro-
per results. The word FOOD and a food class digit
is displayed when you are choosing a food class
with the adjust knob.

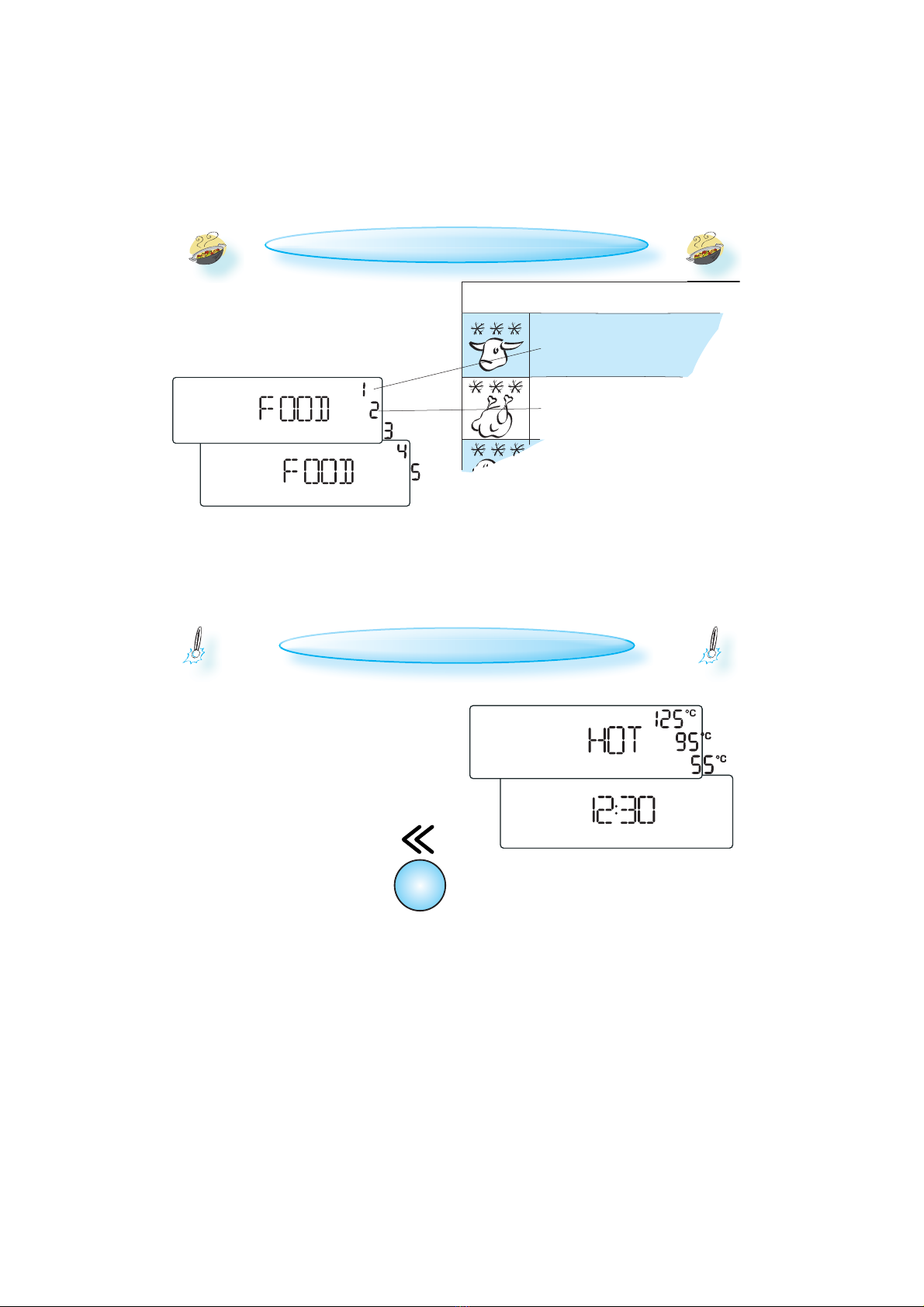

COOLING DOWN
WHEN AFUNCTION IS FINISHED, the oven may carry
out a cooling procedure. This is normal.
After this procedure the oven switches off auto-
matically.
IFTHE TEMPERATURE IS HIGHER THAN 100°C, “HOT”
and the current cavity temperature is displayed.
Be careful not to touch the cavity inside when re-
moving food. Use oven mittens.
IFTHE TEMPERATURE IS LESS THAN 50°C, the 24 hour
clock is displayed.
PRESS THE BACK BUTTON to temporari-
ly view the 24 hour clock when “HOT” is
displayed.
THE COOLING PROCEDURE can be interrup-
ted without any harm to the oven by
opening the door.
FOOD CLASSES (AUTO FUNCTIONS ONLY)
FOR FOOD NOT LISTED IN THE TABLES and if the weight
is lesser or greater than recommended weights,
you should follow the procedure for ”Cook & Re-
heat with microwaves”.
THE FOOD CLASSES are listed in the tables placed
with each Auto function.

8




CLOCK SETTING
WHEN THE APPLIANCE IS FIRST PLUGGED
IN it will ask you to set the Clock.
AFTER APOWER FAILURE the Clock will
flash and needs to be reset.
YOUR OVEN HAS a number of functi-
ons which can be adjusted to your
personal taste.
CHANGING SETTINGS
TURN THE MULTIFUNCTION KNOB until Settingis shown.
USE THE ADJUST KNOB to choose one of the followingsettings to adjust.
Clock
Sound
ECO
Brightness
PRESS THE STOP BUTTON TO EXIT the settings function and save
all your changes when you are done.
PRESS THE OK BUTTON.(The left right hand digits (hours)flicker).
TURN THE ADJUST KNOB to set the hours.
PRESS THE OK BUTTON. (The two right hand digits (minutes)flicker).
TURN THE ADJUST KNOB to set the minutes.
PRESS THE OK BUTTON again to confirm the change.
THE CLOCK IS SET AND IN OPERATION.
IFYOU WISH TO REMOVE THE CLOCK from the display once it has been set,
simply enter the clock settingmode again and press the Stop button
while the digits flicker.


9




SOUNDSETTING
PRESS THE OK BUTTON.
TURN THE ADJUST KNOB to turn the buzzer ON or OFF.
PRESS THE OK BUTTON again to confirm the change.
ECO
PRESS THE OK BUTTON.
TURN THE ADJUST KNOB to turn the ECOsettingON or OFF.
PRESS THE OK BUTTON again to confirm the change.
WHEN ECO IS ON, the display will automatically turn off after a while to
save energy.It will automatically light up again when a button is pre-
ssed or the door is opened.
WHEN OFF IS SET, the display will not turn off and the 24 h clock will al-
ways be visible.
CHANGING SETTINGS

10






USE THIS FUNCTION when you need
a kitchen timer to measure exact
time for various purposes such as
cookingeggs or lettingthe dough
rise before bakingetc.
KITCHEN TIMER
TURN THE ADJUST KNOB to set the desired length of the timer.
PRESS THE OK BUTTON.
ANACOUSTIC SIGNAL will be heard when the timer has finished to count
down.
PRESSING THE STOP BUTTON before the timer has finished will reset the ti-
mer to zero.
CHANGING SETTINGS
BRIGHTNESS
PRESS THE OK BUTTON.
TURN THE ADJUST KNOB to set the level of brightness suitable to your preference.
PRESS THE OK BUTTON again to confirm your selection.
