Whirlpool AMW 712 Operating and maintenance manual

1
INSTALLATION, QUICK START INSTALLATIE, SNEL AAN DE SLAG
INSTALLATION, HURTIG START
INSTALLASJON, HURTIG START
ASENNUS, PIKAOPAS
ÜZEMBE HELYEZÉS, RÖVID
KEZDÉSI ÚTMUTATÓ
INSTALACE, NÁVOD VE ZKRATCE
INSTALACJA, SKRÓCONA
INSTRUKCJA OBSŁUGI
, 
 
INŠTALÁCIA, ÚVODNÁ PRÍRUČKA
INSTALLATION, DÉMARRAGE RAPIDE
AUFSTELLUNG, KURZANLEITUNG
INSTALLAZIONE, GUIDA RAPIDA
INICIO RÁPIDO PARA LA INSTALACIÓN
INSTALAÇÃO, GUIA DE INICIAÇÃO RÁPIDA
INSTALLATION, SNABBGUIDE
AMW 712 AMW 7012

2
INSTALLATION
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check
that the oven door closes firmly against the
door support and that the internal door seal is
not damaged. Empty the oven and clean the
interior with a soft, damp cloth.
AFTER CONNECTING
THE EARTHING OF THIS APPLIANCE is compulsory. The
manufacturer will accept no responsibility for
injury to persons, animals or damage to ob-
jects arising from the non-observance of this
requirement.
The manufacturers are not liable for any
problems caused by the user’s failure to ob-
serve these instructions.
DONOT OPERATE THIS APPLIANCE if it has a damaged
mains cord or plug, if it is not working proper-
ly, or if it has been damaged or dropped. Do
not immerse the mains cord or plug in water.
Keep the cord away from hot surfaces. Electri-
cal shock, fire or other hazards may result.
DONOT REMOVE THE MICROWAVE INLET PROTECTION
PLATES located on the side
of the oven cavity wall.
They prevent grease & food
particles from entering the
microwave inlet channels.
ENSURE the oven cavity is
empty before mounting.
CHECK THAT THE VOLTAGE on the rating plate corre-
sponds to the voltage in your home.
THE OVEN CAN BE OPERATED ONLY if the oven door is
firmly closed.
MOUNTING THE APPLIANCE
FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.
DONOT USE EXTENSION CORD:
IFTHE POWER SUPPLY CORD IS TOO SHORT, have a
qualified electrician or serviceman install
an outlet near the appliance.

3
IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE MATERIALS in or
near the oven. Fumes can create a fire hazard
or explosion.
DONOT USE YOUR MICROWAVE oven for drying tex-
tiles, paper, spices, herbs, wood, flowers, fruit
or other combustible materials. Fire could re-
sult.
DONOT OVER-COOK FOOD. Fire could result.
DONOT LEAVE THE OVEN UNATTENDED, especially
when using paper, plastic or other combusti-
ble materials in the cooking process. Paper can
char or burn and some plastics can melt if used
when heating foods.
IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD IGNITE
OR SMOKE IS OBSERVED, keep oven door closed and
turn the oven off. Disconnect the power cord
or shut off power at the fuse or circuit break-
er panel.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
ONLY ALLOW CHILDREN to use the appliance under
adult supervision and after adequate instructions
have been given, so that the child is able to use
the appliance in a safe way and understands the
hazards of improper use.
THIS APPLIANCE IS NOT INTENDED FOR use by persons
(including children) with reduced physical,
sensory or mental capabilities, unless used under
the supervision of a person responsible for their
safety.
WARNING!
ACCESSIBLE PARTS MAY BECOME HOT during use, young
children should be kept away.
DONOT USE YOUR MICROWAVE oven for heat-
ing anything in airtight sealed con-
tainers. The pressure increases
and may cause damage when
opening or may explode.
EGGS
DONOT USE YOUR MICROWAVE oven for cook-
ing or reheating whole eggs with or
without shell since they may
explode even after microwave
heating has ended.
THE DOOR SEALS AND THE DOOR SEAL AREAS must be reg-
ularly inspected for damage. If these areas are
damaged the appliance should not be operat-
ed until it has been repaired by a trained service
technician.
DONOT USE corrosive chemicals or vapors in this
appliance. This type of oven is specifically de-
signed to heat or cook food. It is not designed
for industrial or laboratory use.

4
GENERAL
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
THE APPLIANCE SHOULD NOT BE OPERATED without food
in the oven when using microwaves. Operation in
this manner is likely to damage the appliance.
IFYOU PRACTICE OPERATING the oven, put a glass
of water inside. The water will absorb the mi-
crowave energy and the oven will not be dam-
aged.
REMOVE WIRE TWIST-TIES from paper or
plastic bags before placing bag in
the oven.
DEEPFRYING
DONOT USE YOUR MICROWAVE oven for deep-
frying, because the oil temperature
cannot be controlled.
LIQUIDS
E.G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden
boil over of the hot liquid.
To prevent this possibility the
following steps should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the oven and let the teaspoon remain
in the container.
3. After heating, allow standing for a short
time, stirring again before carefully re-
moving the container from the oven.
CAREFUL
ALWAYS REFER to a microwave cookbook for de-
tails. Especially, if cooking or reheating food
that contains alcohol.
AFTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food
jar, always stir and check the
temperature before serving.
This will ensure that the heat is evenly distributed
and the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed be-
fore heating!
IMPORTANT PRECAUTIONS
USE HOT PADS OR OVEN MITTS to prevent burns,
when touching containers, oven parts, and
pan after cooking.
DONOT USE THE CAVITY for any storage purposes.

5
ACCESSORIES
GENERAL
IFACCESSORIES CONTAINING METAL comes in contact
with the oven interior, while the oven is in op-
eration, sparking can occur and the oven could
be damaged.
TURNTABLE SUPPORT
USE THE TURNTABLE SUPPORT under the
Glass turntable. Never put any oth-
er utensils on the turntable sup-
port.
Fit the turntable support in the oven.
GLASS TURNTABLE
USE THE GLASS TURNTABLE with all cooking meth-
ods. It collects the dripping juic-
es and food particles that other-
wise would stain and soil the in-
terior of the oven.
Place the Glass turntable on the turntable
support.
ENSURE THAT THE UTENSILS YOU USE are oven proof
and allow microwaves to
pass through them before
cooking.
WHEN YOU PUT FOOD AND ACCESSORIES in the micro-
wave oven, ensure that they do not come in
contact with the interior of the oven.
This is especially important with accesso-
ries made of metal or metal parts.
ALWAYS ENSURE that the turntable is able to turn
freely before starting the oven.
THERE ARE a number of accessories available on
the market. Before you buy, ensure they are
suitable for microwave use.
STEAMER
USE THE STEAMER WITH THE STRAINER
in place for such foods as fish,
vegetables and potatoes.
USE THE STEAMER WITHOUT THE
STRAINER in place for such foods
as rice, pasta and white beans.
ALWAYS PLACE the steamer on the
Glass Turntable.
START PROTECTION / KEY LOCK
THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE
MINUTE AFTER the oven has returned to
“stand by mode“. (The oven is in
“stand by” when the 24-hour clock is
displayed or if the clock has not been
set, when the display is blank).
THE DOOR MUST BE OPENED AND CLOSED e.g. putting
food into it, before the safety lock is released.
Else the display will show “DOOR”.

6
DONENESS (AUTO FUNCTIONS ONLY)
DONENESS IS AVAILABLE in most of the auto func-
tions. You have the possibility to personal-
ly control the end result through the Adjust
doneness feature. This feature enables you to
achieve higher or lower end temperature com-
pared to the default standard setting.
WHEN USING one of these functions the oven
chooses the default standard setting. This set-
ting normally gives you the best result. But if
the food you heated became too warm to eat
at once, you can easily adjust this before you
use that function the next time. NOTE:
THE DONENESS can only be set or altered during
the first 20 seconds of operation.
WHEN USING SOME OF THE AUTO FUNCTIONS the oven
may stop (depending on the chosen program
and food class) and prompt you to STIR FOOD
or TURN FOOD.
OF THE AUTOFUNCTIONS
t
t
he
h
he
o
o
ve
ve
n
n
STIR OR TURN FOOD (AUTO FUNCTIONS ONLY)
THIS IS DONE BY SELECTING ADONENESS LEVEL with the
+/- buttons right after you have pressed the
Start button.
NOTE: THE OVEN CONTINUES AUTOMATICALLY AFTER 1
MIN. if the food hasn’t been turned / stirred.
The heating time will be longer in this case.
TOCONTINUE COOKING:
Open the door.
Stir or turn the food.
Close the door and restart by pressing the
Start button.
DONENESS
LEVEL EFFECT
HIGH +2 YIELDS HIGHEST END TEMPERATURE
HIGH +1 YIELDS HIGHER END TEMPERATURE
MED 0 DEFAULT STANDARD SETTING
LOW -1 YIELDS LOWER END TEMPERATURE
LOW -2 YIELDS LOWEST END TEMPERATURE

7
FOOD


TRYPOUL (100g -
(100g - 2.0Kg)MEAT
WHEN USING THE AUTO FUNCTIONS the oven needs
to know which food class it is to use to reach
proper results. The word FOOD and a food
class digit is displayed when you are choosing
a food class with the +/- buttons.
COOLING DOWN
WHEN AFUNCTION IS FINISHED, the oven may carry
out a cooling procedure. This is normal.
After this procedure the oven switches off au-
tomatically.
UTO FUNCTIONS
the ovenneeds
FOOD CLASSES (AUTO FUNCTIONS ONLY)
FOR FOOD NOT LISTED IN THE TABLES and if the
weight is lesser or greater than recommended
weights, you should follow the procedure for
”Cook & Reheat with microwaves”.
THE FOOD CLASSES are listed in the tables placed
with each Auto function.
THE COOLING PROCEDURE can be interrupted with-
out any harm to the oven by opening the door.

8
CLOCK SETTING
KEEP THE DOOR OPEN WHILE SETTING THE
CLOCK. This gives you 5 minutes to
complete the settingof the Clock.
Otherwise, each step must be ac-
complished within 60seconds.
WHEN THE APPLIANCE IS FIRST PLUGGED
IN it will ask you to set the Clock.
AFTER APOWER FAILURE the Clock will
flash and needs to be reset.
YOUR OVEN HAS a number of func-
tions which can be adjusted to
your personal taste.
CHANGING SETTINGS
PRESS THE MANUAL BUTTON ( ) until Settingis shown.
USE THE +/- BUTTONS to choose one of the followingsettings to adjust.
Clock
Sound
ECO
Brightness
PRESS THE STOP BUTTON TO EXIT the settings function and save
all your changes when you are done.
PRESS THE OK BUTTON.(The left right hand digits (hours)flicker).
PRESS THE +/- BUTTONS to set the hours.
PRESS THE OK BUTTON. (The two right hand digits (minutes)flicker).
PRESS THE +/- BUTTONS to set the minutes.
PRESS THE OK BUTTON again to confirm the change.
THE CLOCK IS SET AND IN OPERATION.
IFYOU WISH TO REMOVE THE CLOCK from the display once it has been set,
simply enter the clock settingmode again and press the Stop but-
ton while the digits flicker.






9


SOUNDSETTING
PRESS THE OK BUTTON.
PRESS THE +/- BUTTONS to turn the buzzer ON or OFF.
PRESS THE OK BUTTON again to confirm the change.
ECO
PRESS THE OK BUTTON.
PRESS THE +/- BUTTONS to turn the ECOsettingON or OFF.
PRESS THE OK BUTTON again to confirm the change.
WHEN ECO IS ON, the display will automatically turn off after a while
to save energy.It will automatically light up again when a button is
pressed or the door is opened.
WHEN OFF IS SET, the display will not turn off and the 24 h clock will
always be visible.
CHANGING SETTINGS



10
USE THIS FUNCTION when you need
a kitchen timer to measure exact
time for various purposes such
as cookingeggs or lettingthe
dough rise before bakingetc.
KITCHEN TIMER
PRESS THE +/- BUTTONS to set the desired length of the timer.
PRESS THE OK BUTTON.
ANACOUSTIC SIGNAL will be heard when the timer has finished to
count down.
PRESSING THE STOP BUTTON before the timer has finished will reset the
timer to zero.
CHANGING SETTINGS
BRIGHTNESS
PRESS THE OK BUTTON.
PRESS THE +/- BUTTONS to set the level of brightness suitable to your preference.
PRESS THE OK BUTTON again to confirm your selection.




11
COOK & REHEAT WITH MICROWAVES
USE THIS FUNCTION for normal cookingand reheating, such as vegetables, fish, potatoes and meat.
PRESS THE MANUAL BUTTON ( ) repeatedly until you find the microwave function.
PRESS THE +/- BUTTONS to set the microwave power level.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
PRESS THE +/- BUTTONS to set the cookingtime.
PRESS THE START BUTTON.
POWER LEVEL
ONCE THE COOKING PROCESS HAS BEEN STARTED:
The time can easily be increased in 30-second steps by pressing
the Start button.Each press increases the time with 30seconds.You
may also alter the time by pressingthe +⁄ buttns to increase or de-
crease the time.
BYPRESSING THE << BUTTON you may return to where you can
change cookingtime and power level.Both can be altered
with the +⁄ buttns duringcooking.


MICROWAVES ONLY
POWER SUGGESTEDUSE:
1000 W REHEATING OF BEVERAGES, water, clear soups, coffee, tea or other food with a high water
content.If the food contains egg or cream choose a lower power.
800 W COOKING OF VEGETABLES, meat etc.
650W COOKING OF fish.
500 W MORE CAREFUL COOKING e.g. high protein sauces, cheese and egg dishes and to finish cook-
ingcasseroles.
350W SIMMERING STEWS, meltingbutter & chocolate.
160W DEFROSTING. Softeningbutter, cheeses.
90W SOFTENING Ice cream
0W WHEN USING the Timer only.

12
JET START
PRESS THE START BUTTON TO AUTOMATICALLY START with full microwave power level
and the cookingtime set to 30seconds.Each additional press increases the
time with 30seconds.
THIS FUNCTION IS USED for quick re-
heatingof food with a high water
content such as; clear soups, cof-
fee or tea.
YOU MAY ALSO ALTER THE TIME BY PRESSING THE +/- BUTTONS to increase or
decrease the time after the function has started.
MANUAL DEFROST
FOLLOW THE PROCEDURE for “Cook & Reheat with
microwaves” and choose power level 160W
when defrostingmanually.
CHECK AND INSPECT THE FOOD REGULARLY. Experi-
ence will give you the times needed for vari-
ous amounts.
TURN LARGE JOINTS halfway through the defrost-
ingprocess.
FROZEN FOOD IN PLASTIC BAGS, plastic films or card-
board packages can be placed directly in the
oven as longas the package has no met-
al parts (e.g. metal twist ties).
THE SHAPE OF THE PACKAGE alters the de-
frostingtime.Shallow packets defrost
more quickly than a deep block.
SEPARATE PIECES as they begin to defrost.
Individual slices defrost more easily.
SHIELD AREAS OF FOOD with small
pieces of aluminum foil if
they start to become warm
(e.g. chicken legs and wing
tips).
BOILED FOOD, STEWS AND MEAT SAUCES defrost
better if stirred duringdefrostingtime.
WHEN DEFROSTING it is better to under-
thaw the food slightly and allow the
process to finish duringstandingtime.
STANDING TIME AFTER DEFROSTING AL-
WAYS IMPROVES the result since
the temperature will then be
evenly distributed through-
out the food.


13

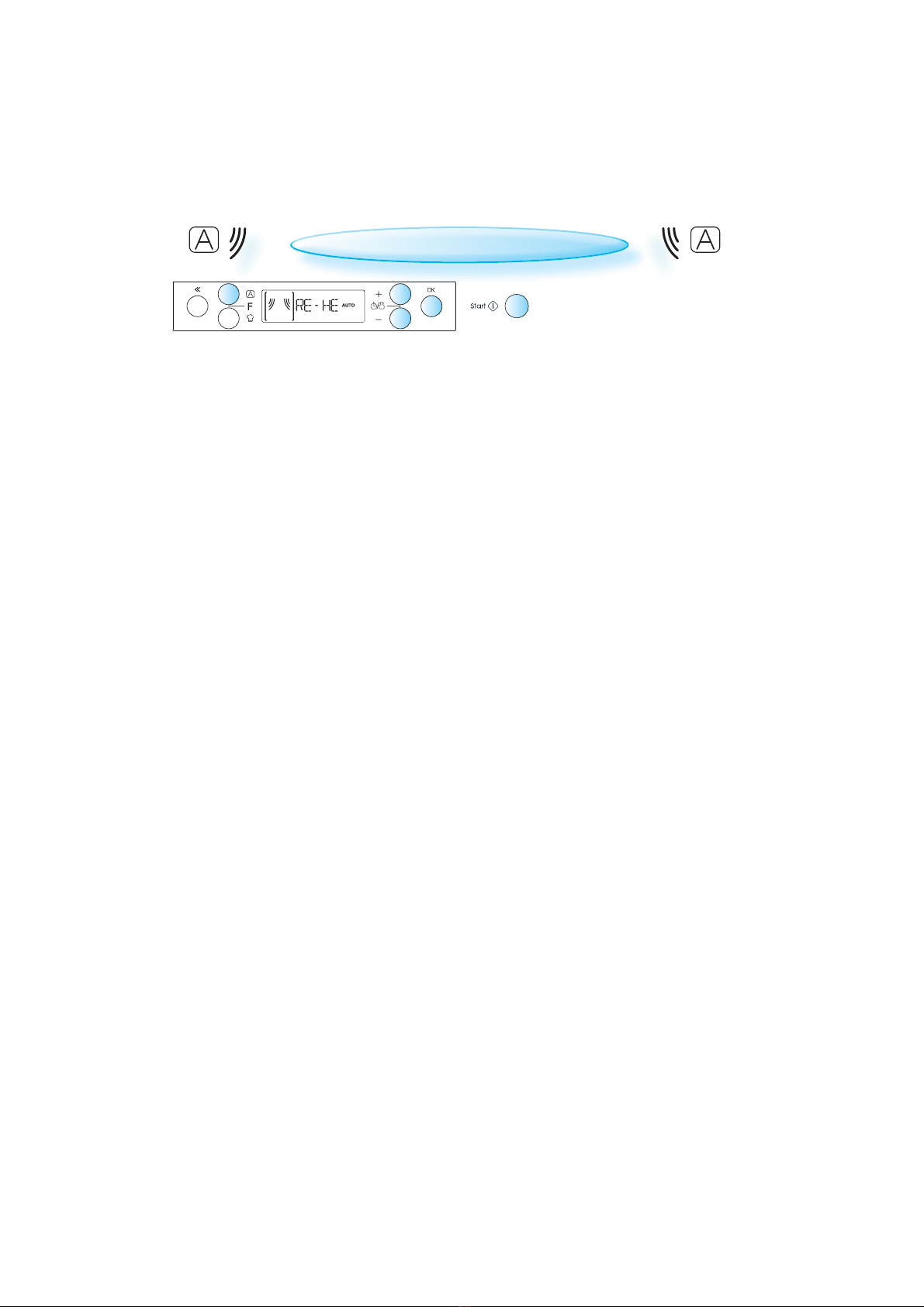

AUTOREHEAT
PRESS THE AUTO BUTTON repeatedly until you find the Auto Reheat function.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
PRESS THE +/- BUTTONS to select food class.(“FOOD” and food class is displayed).
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
PRESS THE +/- BUTTONS to set the weight.
PRESS THE OK BUTTON to confirm your selection.
PRESS THE START BUTTON.





USE THIS FUNCTION when reheating
ready-made food either frozen,
chilled or room tempered.
PLACE FOOD onto a microwave-safe
heat proof dinner plate or dish.

14
WHEN YOU ARE SAVING a meal in the refrigerator
or ”plating” a meal for reheating, arrange the
thicker, denser food to the out-
side of the plate and
the thinner or less
dense food in the
middle.
ALWAYS COVER FOOD when usingthis function ex-
cept when reheatingchilled soups in which
case a cover is not needed!
IFTHE FOOD IS PACKAGED in such way that
it already have a cover, the package
should be cut with 2-3 scores to allow
for excess pressure to escape duringre-
heating.
PLACE THIN SLICES of meat on top of each other
or interlace them.
THICKER SLICES such as meat loaf and sausages
have to be placed close to each other.
PLASTIC FOIL should be scored or
pricked with a fork, to relieve
the pressure and to prevent
bursting, as steam builds-up
duringcooking.
1-2 MINUTES STANDING TIME ALWAYS
IMPROVES the result, especially
for frozen food.
AUTOREHEAT
FOOD HINTS
DINNER PLATE (250g - 500g) PREPARE FOOD in line with recommendations above.
Heat under cover.
SOUP (200g - 800g) REHEAT UNCOVERED in separate bowls or in a large
one.
FROZEN PORTION (250g - 500g) FOLLOW THE DIRECTIONS ON PACKAGE, IE.ventilation,
prickingand so on.
BEVERAGE (0,1 - 0,5l)HEAT UNCOVERED and use a metal spoon in a mug
or cup.
FROZEN LASAGNE (250g - 500g) PLACE in an ovenproof and microwave safe dish.
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight,
you should follow the procedure for ”Cook & Reheat with microwaves”.

15
JET DEFROST
PRESS THE AUTO BUTTON repeatedly until you find the Jet Defrost function.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
PRESS THE +/- BUTTONS to select food class.(“FOOD” and food class is displayed).
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
PRESS THE +/- BUTTONS to set the weight.
PRESS THE OK BUTTON to confirm your selection.
PRESS THE START BUTTON.





USE THIS FUNCTION for defrosting
Meat, Poultry, Fish, Vegetables
and Bread.
Jet Defrost should only be used if
the net weight is between 100 g-
2.5 kg.
ALWAYS PLACE THE FOOD on the glass
turntable.

16
FROZEN FOODS:
IFTHE FOOD IS WARMER than deep-freeze temperature (-18°C),
choose lower weight of the food.
IFTHE FOOD IS COLDER than deep-freeze temperature (-18°C),
choose higher weight of the food.
WEIGHT:
THIS FUNCTION NEEDS TO KNOW the net weight of the food.The
oven will then automatically calculate the needed time to
finish the procedure.
IFTHE WEIGHT IS LESSER OR GREATER THAN RECOMMENDED WEIGHT: Follow the
procedure for “Cook & Reheat with microwaves”and choose 160W
when defrosting.
JET DEFROST
FOOD HINTS
MEAT (100g - 2.0Kg) Minced meat, cutlets, steaks or roasts.
TURN FOOD when oven prompts.
POULTRY (100g - 2.5Kg) Chicken whole, pieces or fillets.
TURN FOOD when oven prompts.
FISH (100g - 1,5Kg) Whole, steaks or fillets.
TURN FOOD when oven prompts.
VEGETABLES (100g - 1,5Kg) Mixed vegetables, peas, broccoli etc.
TURN FOOD when oven prompts.
BREAD (100g - 1.0Kg) Loaf, buns or rolls.
TURN FOOD when oven prompts.
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight,
you should follow the procedure for “Cook and reheat with microwaves” and choose 160W when
defrosting.

17
AUTOSTEAM
PRESS THE AUTO BUTTON repeatedly until you find the Auto Steam function.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
PRESS THE +/- BUTTONS to select food class.(“FOOD” and food class is displayed).
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
PRESS THE +/- BUTTONS to set the weight.
PRESS THE OK BUTTON to confirm your selection.
PRESS THE START BUTTON.
PLACE the food on the steam grid.
ADD 100 ml (1dl)water in the bottom part of the steamer.
COVER with the lid.
THE STEAMER IS designed to be used with microwaves only!
NEVER USE IT WITH ANY OTHER FUNCTION AT ALL.
USING THE STEAMER in any other function may cause damage.
ALWAYS ENSURE that the turntable is able to turn freely before starting the oven.
ALWAYS PLACE the steamer on the Glass Turntable.


USE THIS FUNCTION FOR such food as
vegetables & fish.
ALWAYS USE THE SUPPLIED STEAMER
when usingthis function.







18
POTATOES / ROOT VEGETABLES
(150g - 500g) USE EVEN SIZES.
Cut the vegetables into even pieces.
Allow to stand for 1 - 2minutes, after cooking
VEGETABLES (150g - 500g)
(Cauliflower and Broccoli)
FROZEN VEGETABLES
(150g - 500g) ALLOW TO STAND for 1 - 2minutes.
FISH FILETS (150g - 500g) DISTRIBUTE FILLETS EVENLY on the steamgrid.Interlace thin
parts.Allow to stand for 1 - 2minutes, after cooking.
COOKING FOOD
PLACE THE FOOD in the strainer.
Pour 100 ml water into the bottom part.
Cover with the lid.
AUTOSTEAM





19
AUTOCOOK
USE THIS FUNCTION FOR cooking
ONLY.Auto Cook can only be
used for food belongingto the
categories listed in the table.
PLACE FOOD onto a microwave-safe
heat proof dinner plate or dish.
PRESS THE AUTO BUTTON repeatedly until you find the Auto Cook function.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
PRESS THE +/- BUTTONS to select food class.(“FOOD” and food class is displayed).
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
PRESS THE +/- BUTTONS to set the weight.
PRESS THE OK BUTTON to confirm your selection.
PRESS THE START BUTTON.





20
PLASTIC FOIL should be scored
or pricked with a fork,
to relieve the pres-
sure and to prevent
bursting, as steam
builds-up during
cooking.
AUTOCOOK
CANNED VEGETABLES: Always open the can and
pour the content into a microwave safe
dish.Never cook the vegetables in the
tin packaging.
COOK fresh, frozen or canned vegetables
covered.
RECOMMENDEDWEIGHTS
BAKED POTATOES (200g - 1Kg)
PRICK THE POTATOES and place them in a mi-
crowave safe and oven proof dish.Turn the
potatoes when the oven beeps.Please be
aware that the oven, dish and food are hot.
TURN FOOD when oven prompts.
FRESH VEGETABLES (200g - 800g)
CUT VEGETABLES into even size pieces.Add
2-4 table spoons water and cover.Stir when
oven beeps.
STIR FOOD when oven prompts.
FROZEN VEGETABLES (200g - 800g) COOK UNDER COVER. Stir when oven beeps.
STIR FOOD when oven prompts.
CANNED VEGETABLES (200g - 600g) COOK IN AMICROWAVE SAFE dish with cover.
POPCORN (100g)
ONLY COOK ONE BAG at the time.If more pop-
corn is needed, cook the bags one after an-
other.
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight,
you should follow the procedure for “Cook and reheat with microwaves”
