MICROWAVE OVEN
UNDER-THE-CABINET INSTALLATION INSTRUCTIONS
INSTRUCTIONS D’INSTALLATION F OUR À MICRO-ONDES
SOUS P LACARD MURAL
MICROWAVE OVEN SAF ETY
This product is not intended for use above any heat source, such as a range or cooktop. See “Installation Requirements” section for
further notes.
These installation instructions cover different models. The appearance of your particular model may differ slightly from the illustration in
these installation instructions.
Ce produit n’est pas conçu pour l’utilisation au-dessus de tous de source de chaleur, comme une cuisinière ou table de cuisson. Voir la
section “Exigences d’installation” pour d’autres remarques.
Ces instructions d’installation sont valables pour plusieurs modèles. Il se peut que l’apparence de votre propre modèle soit légèrement
différente de celle montrée sur les illustrations dans ce document.
Ta b le o f Co n te n ts / Ta b le d e s m a tiè re s
MICROWAVE OVEN SAFETY .................................................. 1
INSTALLATION REQUIREMENTS........................................... 2
Tools and Parts ...................................................................... 2
Location Requirements.......................................................... 2
Product Dimensions............................................................... 2
Electrical Requirements ......................................................... 3
INSTALLATION INSTRUCTIONS............................................. 3
Place Cabinet Template......................................................... 3
Mark and Drill Holes............................................................... 4
Install the Microwave Oven.................................................... 4
Complete Installation ............................................................. 5
SÉCURITÉ DU FOUR À MICRO-ONDES.......................................... 7
EXIGENCES D'INSTALLATION.......................................................... 7
Outils et pièces................................................................................. 7
Exigences d’emplacement............................................................... 7
Dimensions du produit ..................................................................... 7
Spécifications électriques ................................................................ 8
INSTRUCTIONS D’INSTALLATION................................................... 9
Placement du gabarit du placard..................................................... 9
Marquage de l’emplacement/perçage des trous ............................ 9
Installation du four à micro-ondes ................................................. 10
Achever l'installation........................................................................11
W10 4 8 20 78 A/J S1M0 6 0 9-18 26 1-0 0 5
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
W ARNING

2
INSTALLATION REQ UIREMENTS
To o ls a n d P a rts
To o ls Ne e d e d
G ather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools
listed here.
P a rts Su p p lie d (n o t s h o w n to s c a le )
F or information on reordering, see “Replacement Parts” section.
*Depending on cabinet shelf depth and/or cabinet trim overhang
length, bolts longer than those provided (40 mm) may be
required.
Lo c a tio n Re q u ire m e n ts
NOTE: This microwave oven is intended for installation over a
countertop. Do not install this microwave oven over any heat
source, such as a range or cooktop.
Check the opening where the microwave oven will be installed.
The location must provide:
nMinimum cabinet depth of 12" (30.5 cm).
nMinimum cabinet lower shelf thickness of 3/16 " (5 mm).
nSupport for weight of at least 50 lbs (22.7 kg), in addition to
the normal contents of the cabinet, as well as any items that
might be hanging from the bottom of the cabinet.
nG rounded electrical outlet inside upper cabinet. See
“Electrical Requirements” section.
nTo allow for adequate ventilation, which is important for
product performance, a clearance of at least 2¹⁄₂" (6 .4 cm)
must exist between the microwave oven and a side wall (or
cabinetry wall) on each side.
P ro d u c t Dim e n sio n s
nMeasuring tape
nPencil
nMasking tape
nScissors
nN o. 2 Phillips screwdriver
nDrill
n1/2" (13 mm) drill bit
n1/2" (13 mm) wood bit or
metal hole cutter (if
installing under a metal
cabinet)
nCovering or microwave
oven carton
5 mm x 80, 40 mm bolts (4)* C-washers (4)
Spacers (8) Templates A and B
1 0 ¹⁄₂"
(26 .7 cm)
1 2
¹⁄₂
"
(31 .8 cm)
1 8 " (45.7 cm)

3
Ele c tric a lRe q u ire m e n ts
Observe all governing codes and ordinances.
Re q u ire d :
nA 120 volt, 6 0 Hz , AC only, 15- or 20-amp electrical supply
with a fuse or circuit breaker.
Re c o m m e n d e d :
nA time-delay fuse or time-delay circuit breaker.
nA separate circuit serving only this microwave oven.
INSTALLATION INSTRUCTIONS
P la c e Ca b in e t Te m p la te

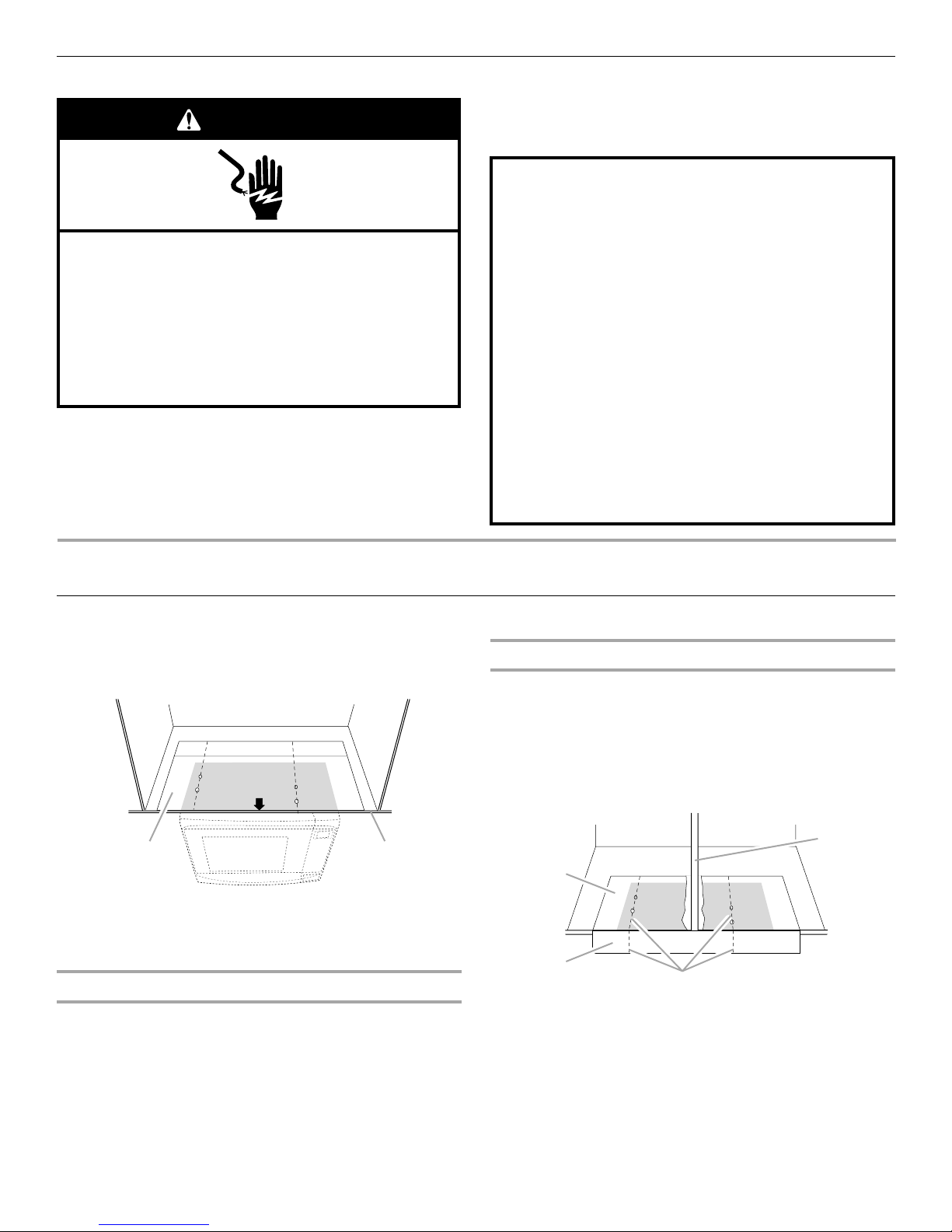

The shadowed area of Template A represents the top of the
microwave oven. Make sure it is centered in the space where the
microwave oven will be installed.
In s ta lla tio n Un d e r Ca b in e t w ith o u t P a rtitio n
1. If the cabinet does not have a partition, place the template
(Template A) on the lower shelf of the cabinet, as shown in the
illustration at the beginning of this section.
2. Tape the template into place.
3. Proceed to “Mark and Drill Holes” section.
In s ta lla tio n Un d e r Ca b in e t w ith P a rtitio n
1. If the cabinet has a partition, or if the microwave oven is being
installed under adjoining cabinets, cut Template B from
Template A.
2. Cut Template A into two pieces to fit into each side of the
partition.
3. Align each piece of Template A so that it is flush with the front
edge of the cabinet, as shown.
4 . Align the Hole Centerlines of Template A with those of
Template B , as shown.
5 . Tape the template pieces into place.
E lectrical S hock H az ard
P lug into a g rounded 3 prong outlet.
D o not remove g round prong .
D o not use an adapter.
D o not use an ex tension cord.
F ailure to follow these instructions can result in death,
fire, or electrical shock.
W ARNING
GROUNDING INSTRUCTIONS
SAVETHESE INSTRUCTIONS
nF o r a ll c o rd c o n n e c te d a p p lia n c e s :
The microwave oven must be grounded. In the event of
an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric
current. The microwave oven is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
W ARNING: Improper use of the grounding plug can
result in a risk of electric shock. C onsult a qualified
electrician or serviceman if the grounding instructions are
not completely understood, or if doubt ex ists as to whether
the microwave oven is properly grounded.
D o not use an ex tension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install
an outlet near the microwave oven.
A. Template A
B. Cabinet front edg e
A B
A. Template A (in 2 pieces)
B. Template B
C. H ole centerlines
D . P artition
A
B
D
C

4
Ma rk a n d DrillHo le s
1. Mark the four hole centers through the template onto the
lower shelf of the cabinet.
2. Remove the template.
F ollowing are the dimensions for the mounting holes on
Template A:
3. U sing 1/2" drill, drill four holes through the centers marked in
Step 1.
4 . Place the four C-washers near the holes inside the cabinet.
In sta llth e Mic ro w a v e Ov e n
1. Remove the plugs from the four mounting holes on the top of
the microwave oven. Save the plugs in case the microwave
oven is used as a countertop unit in the future.
A. P lu g s (4)
2. Start the four bolts into the mounting holes. Turn each bolt
three or four times.
3. If the front edge of the cabinet is flush with the bottom of the
cabinet (if there is no “lip” or trim overhang that extends below
the cabinet bottom), proceed to Step 7.
4 . If the front edge of the cabinet has a “lip” or trim overhang that
extends below the bottom of the cabinet, measure the length
of the overhang. Spacers may need to be used on the back
bolts.
5 . Determine the number of spacers needed for the back bolts.
6 . Place the appropriate number of spacers on the back bolts.
¹⁄₂" (1 3 mm)
diam.
5 ¹¹⁄₁ ₆ "
(1 4.4 cm)
5 ¹¹⁄₁ ₆ "
(1 4.4 cm)
4 ⁵ ⁄₁ ₆ "
(1 0 .9 cm)
7³ ⁄₄ " (1 9 .8 cm)
3"
(7 .6 cm) 1 ⁹ ⁄₁ ₆ "
(4.0 cm)
8 ¹¹⁄₁ ₆ "
(22.0 cm) 7 ¹⁄₄ "
(1 8 .4 cm)
C abinet front edg e
C enter of
installation
space
1 2 ¹⁄₁ ₆ " (30 .7 cm)
A. Cabinet
B. Trim ov erhang
If th e trim o v e rh a n g is : Us e :
less than 1/2" (13 mm)
1/2" -3/4" (13-19 mm)
3/4" -1" (19-25 mm)
0, 1 or 2 spacers
2 or 3 spacers
3 or 4 spacers
A
A
B

5
NOTE: Although the microwave oven can be installed by one
person, we recommend having the aid of a second person for the
next step.
7. G ently lift the microwave oven to the cabinet bottom, until the
bolts emerge through the holes drilled into the lower shelf of
the cabinet.
8 . Slide the slotted portion of each C-washer against each bolt.
These washers will temporarily hold the microwave oven while
installation is being completed.
9. G ently and evenly, tighten each of the bolts, until the
microwave oven is secure and level.
Properly installed, the microwave oven door will protrude in front
of the front surface of the cabinet.
Co m p le te In sta lla tio n
1. Plug microwave oven into grounded 3 prong outlet.
2. Check the operation of microwave oven by placing 1 cup
(250 mL) of water on the turntable, and programming a cook
time of 1 minute at 100% power.
3. If the microwave oven does not operate:
nCheck that a household fuse has not blown, or that a
circuit breaker has not tripped. Replace the fuse or reset
the circuit breaker. If the problem continues, call an
electrician.
nCheck that the power supply cord is plugged into a
grounded 3 prong outlet.
nSee the U se and Care G uide for troubleshooting
information.
Installation is now complete.
Save Installation Instructions for future use.
A. Bolts
B. C-washers
Ca b in e t w ith o u t trim
o v e rh a n g Ca b in e t w ith trim o v e rh a n g
A. Bolts
B. Spacers
A B
A B
E lectrical S hock H az ard
P lug into a g rounded 3 prong outlet.
D o not remove g round prong .
D o not use an adapter.
D o not use an ex tension cord.
F ailure to follow these instructions can result in death,
fire, or electrical shock.
W ARNING
