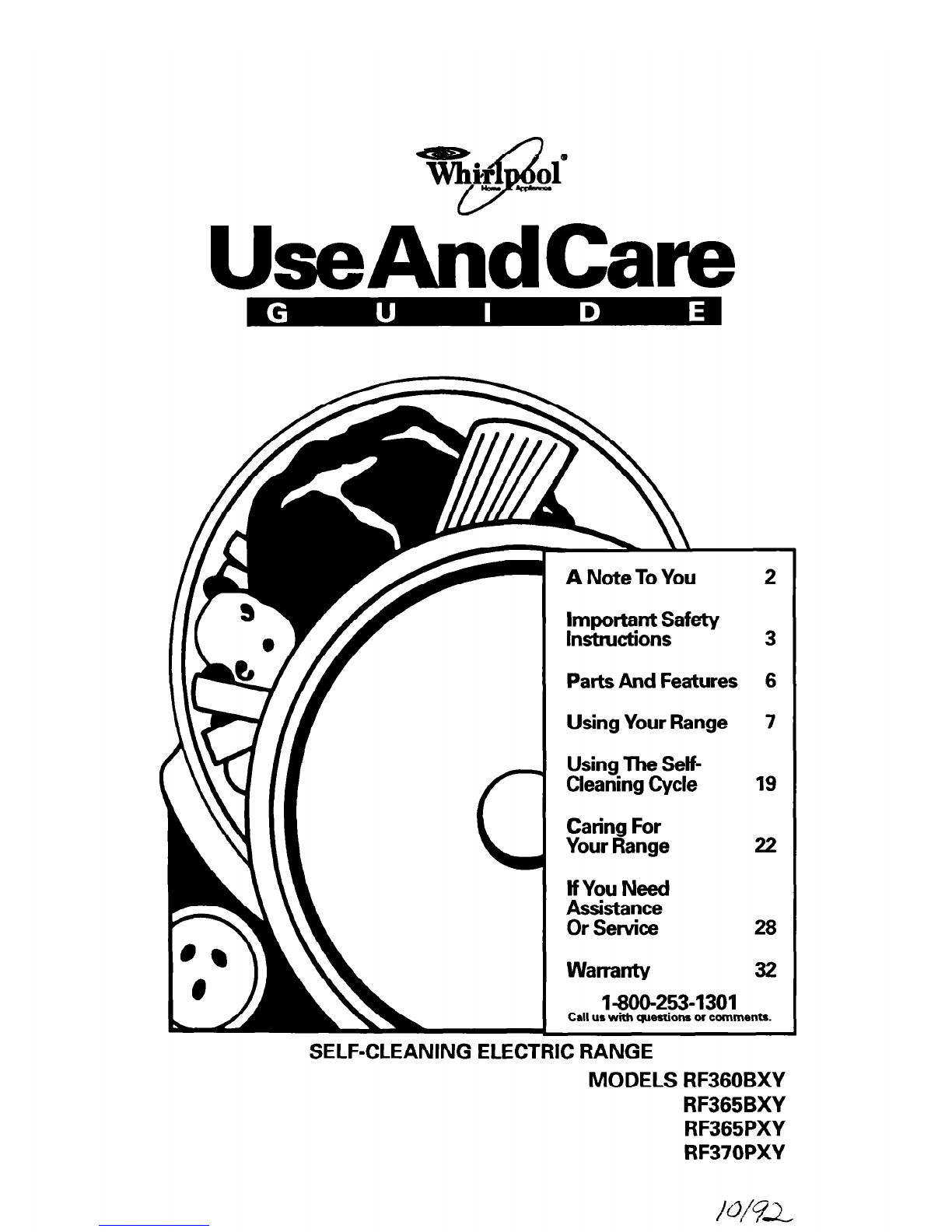

Whirlpool RF360BXY User manual

UseAndCare
A Note To You 2
Important Safety
lnsbuctions 3
Parts And Features 6
Using Your Range 7
Using The Self-
Cleaning Cycle 19
Caring For
Your Range 22
Warranty 32
1-800-253-1301
Call us with cpstions of comments.
SELF-CLEANING ELECTRIC RANGE
MODELS RF360BXY
RF365BXY
RF365PXY
RF370PXY

A Note To You
Thank you for buying a Whirlpool appliance.
You have purchased a quality, world-class home appliance. Years of engineering experience have gone
into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have
developed this Use and Care Guide. It is full of valuable information on how to operate and maintain
your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-
ship Registration Card provided with your appliance. This will help us notify you about any new informa-
tion on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these symbols and
follow any instructions given. Here is a brief explanation of the use of each symbol.
This symbol will help alert you to such dangers as
personal injury, burns, fire and electrical shock. This symbol will help you avoid actions which could cause product damage (scratches, dents,
etc.) and damage to your personal property.
Our Consumer Assistance Center number, 1-800-253-1301,
is toll-free, 24 hours a day.
If you ever have a question concerning your appliance’s operation, or if you need service, first see “If
You Need Assistance Or Service” on page 26. If you need further help, feel free to call our Consumer
Assistance Center. When calling, you will need to know your appliance’s complete model number and
serial number. You can find this information on the model and serial number plate (see diagram on
page 6). For your convenience, we have included a handy place below for you to record these numbers,
the purchase date from the sales slip and your dealer’s name and telephone number. Keep this book
and the sales slip together in a safe place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone
2

Important Safety Instructions
To reduce the risk of fire, electrical shock, injury to
persons, or damage when using the range, follow
basic precautions, including the following:
General @Usethe range only for its+
4ead all instructions before
using the range. t;;;;tluse as described In this
.
4nstall or locate the range only
in accordance with the pro-
vided Installation Instructions.
@WARNING: To reduce the risk
of ti ping of the appliance, the
app iance must be secured by
P
a proper1 installed anti-tip
bracket. o check if the bracket
f
is installed properly, see “The
anti-tip bracket” on page 18.
*CAUTION: Do not store things
children mi
range. Chil %
ht want above the
ren could be
burned or injured while climb-
ing on it.
*Do not leave children alone or
unattended in area where the
range is in use. They should
never be allowed to sit or stand
on an
could II part of the range. They
e burned or injured.
@DONOT TOUCH SURFACE
UNITS, AREAS NEAR UNITS,
HEATING ELEMENTS OR
INTERIOR SURFACES OF
OVEN. Surface units and heat-
ing elements may be hot even
though they are dark in color.
Areas near surface units and
interior surfaces of an oven
become hot enou
burns. During anc?
h to cause
after use,
do not touch, or let clothing
or other flammable materials
contact surface units, areas
elements or
near units, heatin
interior surfaces 0 oven until
9
they have had sufficient time
to cool. Other surfaces of the
range may become hot enough
to cause burns; such as, the
l Do not operate the range if it
is damaged or not working
properly.
*Do not use the range for
warming or heatin %
the room.
Persons could be urned or
injured, or a fire could start.
*Do not wear loose or hanging
garments when using the
range. They could ignite if they
touch a hot surface unit and
you could be burned.
continued on next page 3

*Use only d potholders. Moist
or damp po holders on hot sur-r
faces may result in burns from
steam. Do not let potholder
touch hot heating elements. Do
not use a towel or bulk cloth
foOnror~otholder. It coul c7catch
*Keep range vents unobstructed.
@Donot heat unopened contain-
ers. They could explode. The hot
contents could cause burns and
container particles could cause
Injury.
*Do not store flammable materi-
als on or near the range. The
fumes can create an explosion
and/or fire hazard.
When using the cooktop
*Make sure the reflector bowls
are in place during cooking.
Cookin %without reflector bowls
may su ject the wiring and
components underneath them to
damage.
*Do not line reflector bowls with
aluminum foil or other liners.
Improper installation of these
liners may result in a risk of
electric shock or fire.
*Select a pan with a flat bottom
that is about the same size as
the surface unit. If pan is smaller
than the surface unit, some of
the heating element will be
exposed and may result in the
I
8 niting of clothing or potholders.
orrect pan size also improves
cooking efficiency.
*Check to be sure lass cook-
ing utensils are sa e for use on
3
the range. Only certain types
of glass, glass-ceramic, ce-
ramic, earthenware or other
glazed utensils are suitable for
cooktops without breaking due
to the sudden change in
temperature.
@Never leave surface units
unattended at high heat set-
tings. A boilover could result
and cause smokin and
gr;;.y spillovers tI!at may
.
*Turn pan handles inward, but
not over other surface units.
This will help reduce the
chance of burns, i niting of
flammable materia s, and9
spills due to bumping of the
pan.
When usincr the oven
@Always position oven rack(s)
in desired location while oven
is cool. If a rack must be re-
moved while oven is hot, do
not let potholder contact hot
heating element in oven.
4Jse care when opening oven
door. Let hot air or steam
escape before removing or
replacing food.
4

Grease
*Grease is flammable. Do not
allow grease to collect around
cooktop or in vents. Wipe spill-
overs immediately.
I
@Donot use water on grease
fires. Never pick up a flaming
pan. Smother flamin pan on
range by coverin Y-l WIh a well-
9
fitted lid, cookie s eet or flat
tray. Flaming grease outside of
&
an can be extin Puished with
aking soda or, i available, a
multipurpose dry chemical or
foam-type extinguisher.
Care and cleanina
@Small amounts of formaldehyde
and carbon monoxide are iven
off in the Self-Cleaning cyc e
7
from fiberglass insulatron and
food decomposition. Significant
exposure to these substances
can cause cancer or reproduc-
tive harm. Exposure can be
minimized by venting with a
hood or open window and
wiping out excess food spills
pnor to self-cleaning.
@Donot use oven cleaners. No
commercial oven cleaner or
oven liner rotective coating of
any kind sI!ould be used in or
around any part of the oven.
*Before self-cleaning the oven.,
remove broiler
oven racks an8 an, broiler nd, other utensr s.9
Do not use your oven to clean
miscellaneous parts unless you
are instructed to do so in this
Use and Care Guide.
*Do not soak removable heating
elements in water. The element
will be damaged and shock or
fire could result.
*Do not clean door heat seal. It
is essential for a good seal.
Care should be taken not to rub,
damage or move the seal.
Clean only parts recommended
in this Use and Care Guide.
@Donot repair or replace any
part of the range unless specifi-
cally recommended in this
manual. All other servicing
should be referred to a qualified
technician.
*Disconnect the electrical supply
before servicing the range.
- SAVE THESE INSTRUCTIONS -

Parts And Features
This section contains captioned illustrations of your range. Use them to become familiar with the
location and appearance of all parts and features.
Anti-tip bracket
(on wall behind
control panel)
Control panel
Plug-in surface unit
(\> Oven vent
with porcelain- kL=-=i
enamel reflector bowl
and chrome trim ring
(Model RF365PXY,
Q series)
NOTE: All other
models have chrome
reflector bowls. 3 Lock lever
Broil element
Model and serial
number plate / Bake element
Removable storage
Control panel
Left front Left rear
control control
knob knob
Automatic
MEALTIMER” Manual Oven
clocWMinute Stop oven light temperature Oven
Timer time switch control knob selector
Surface
unit
marker
&art
time Surfa& &fen dight Right heating heating rear front
indicator indicator control control
light light knob knob

Using Your Range
In This Section
Paw
Using the ourface unite .................................... .17
Positioning racks and pans .............................. .9

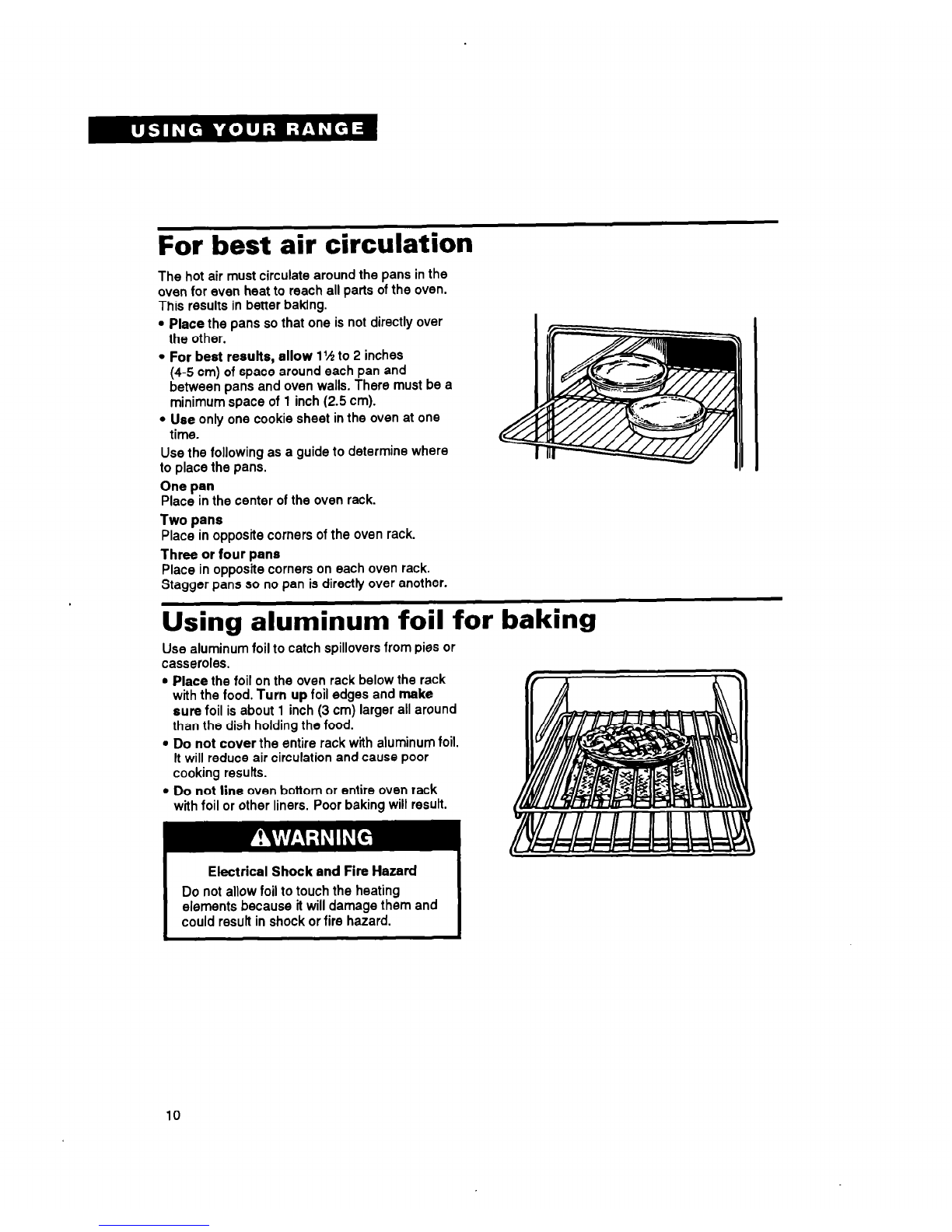

For best air circulation ..................................... 10
Using aluminum foil for baking ...................... .10

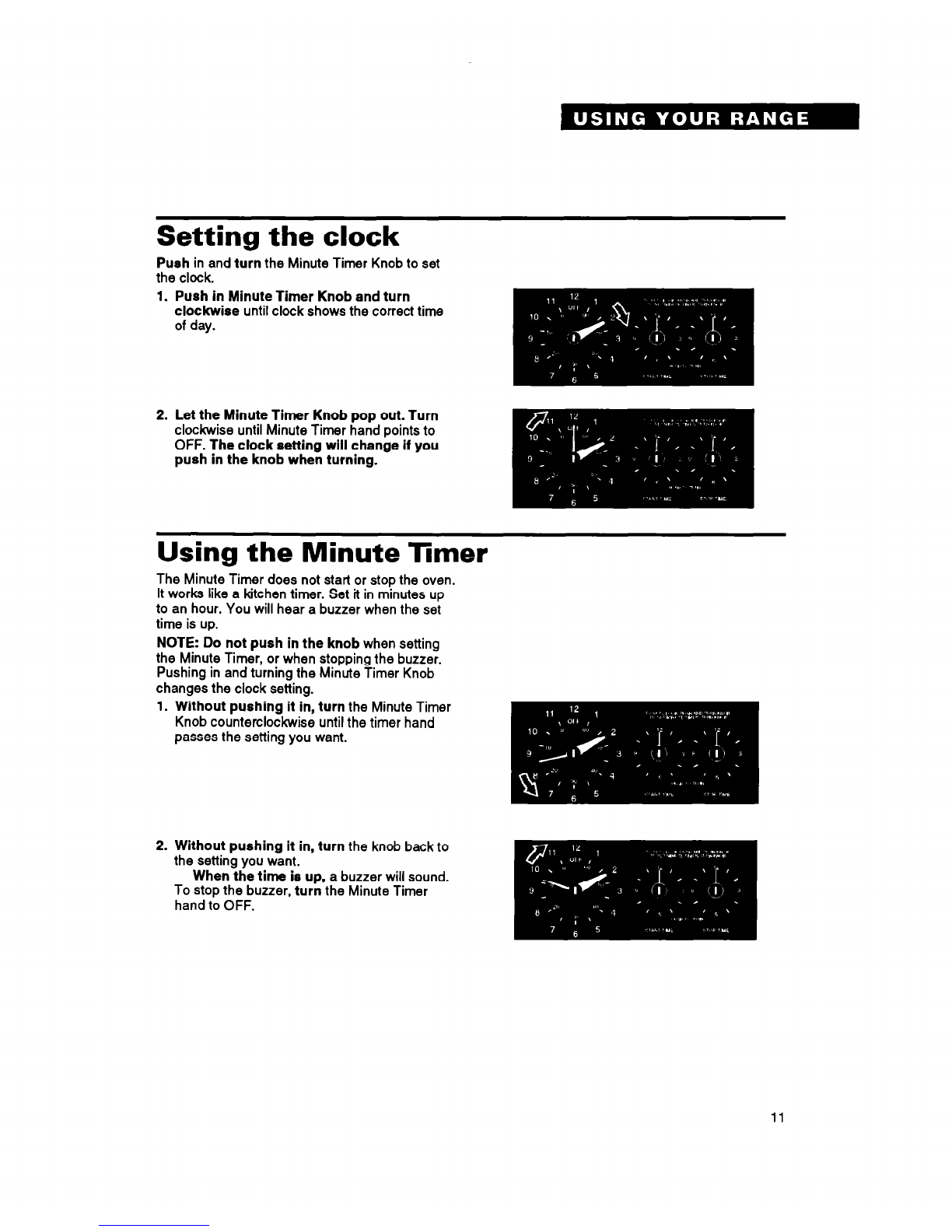

Setting the clock ............................................... 11
Using the Minute Timer .................................... 11
Bakinglroasting ................................................ 12
Adjusting the oven temperature control ....... .13
Page
Broiling ........................................................... 13
Broiling tips .................................................... 14
Energy l aving tipe ......................................... 15

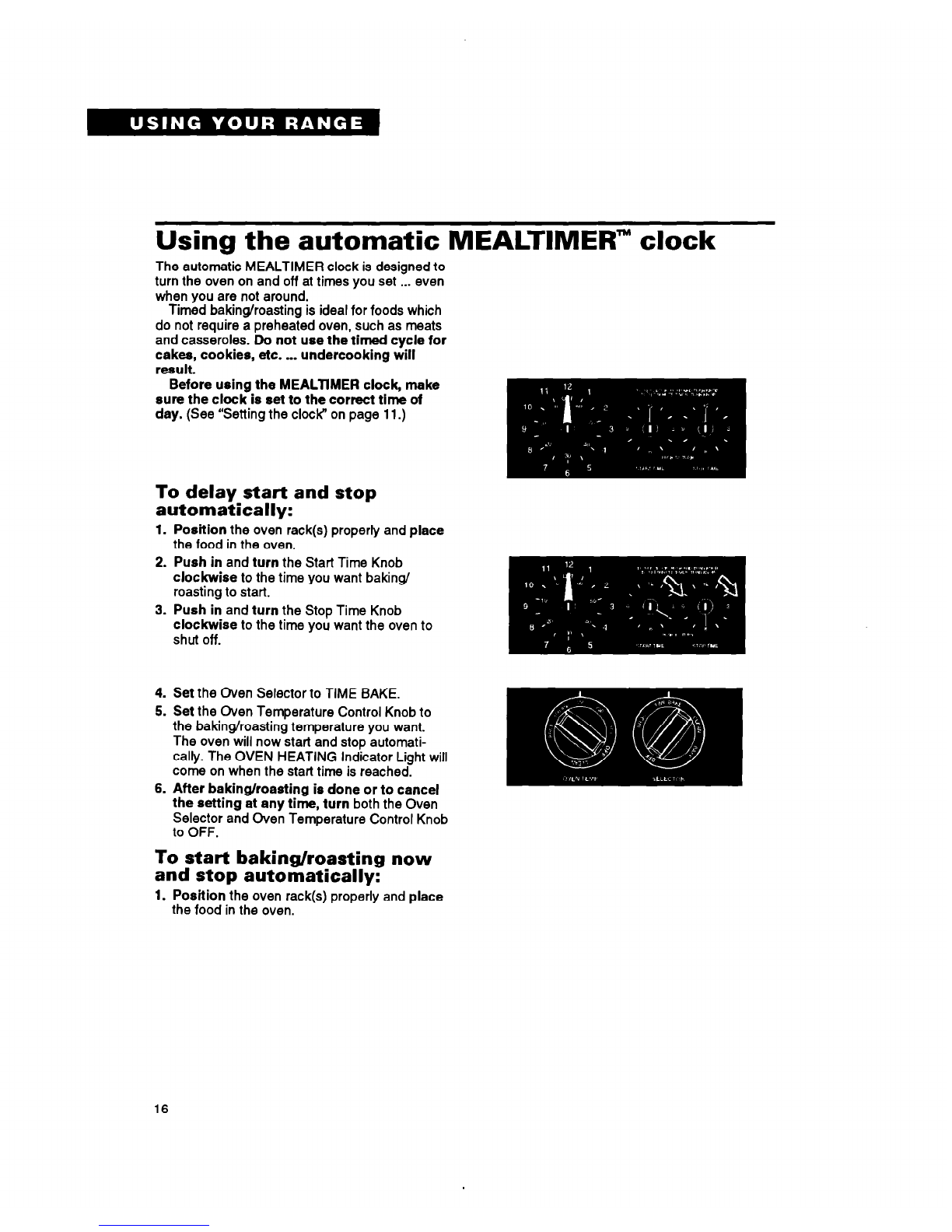

Using the automatic MEALTIMER” clock.. .
.16
The oven vent ................................................. 17
The storage drawer ........................................ 19
The anti-tip bracket ........................................
16
Optional door panel pat ................................ 16
To obtain the best cooking results possible, you must operate your range properly. This section gives
you important information for efficient and safe use of your range.

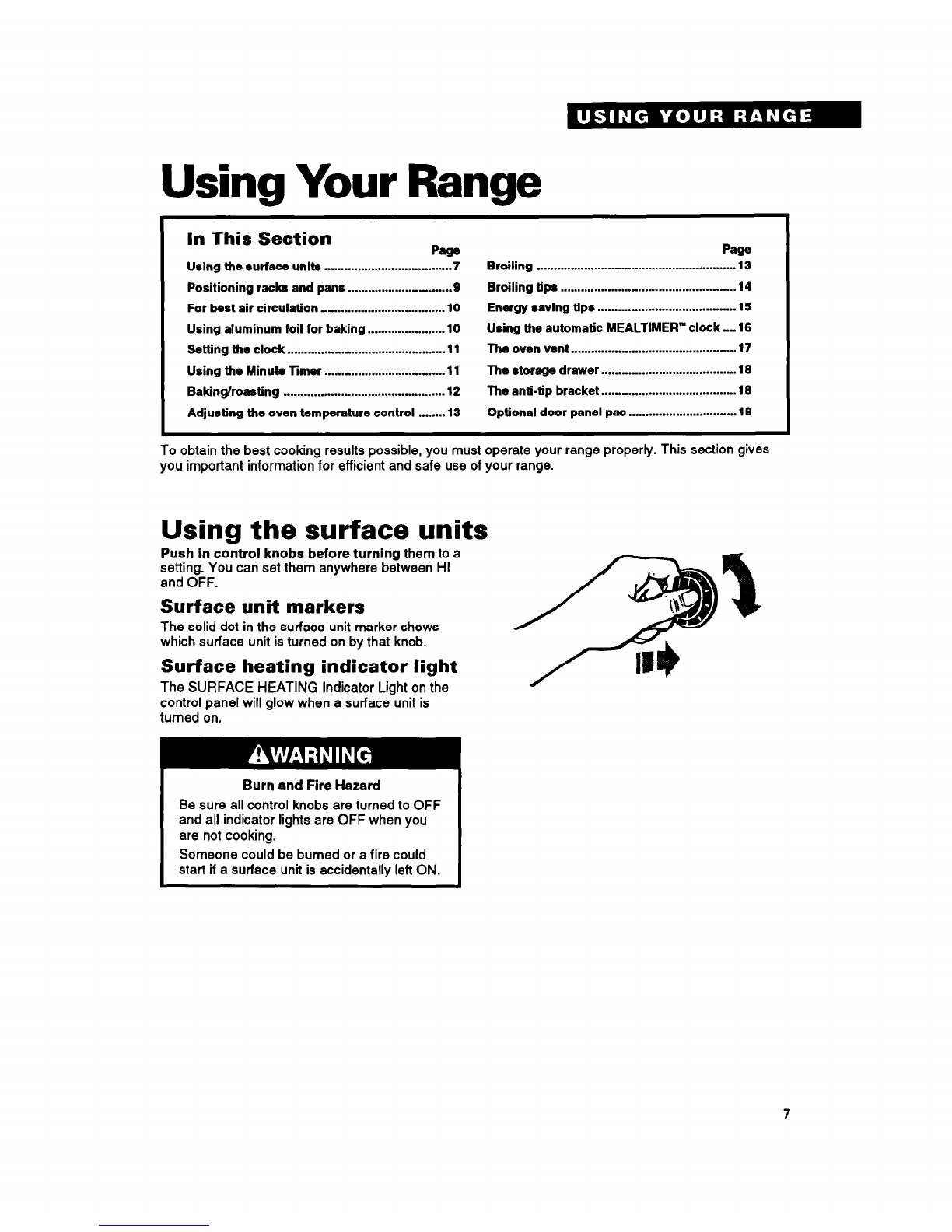

Using the surface units
Push in control knobs before turning them to a
setting. You can set them anywhere between HI
and OFF.
Surface unit markers
The solid dot in the surface unit marker shows
which surface unit is turned on by that knob.
Surface heating indicator light
The SURFACE HEATING Indicator Light on the
control panel will glow when a surface unit is
turned on.
Burn and Fire Hazard
Be sure all control knobs are turned to OFF
and all indicator lights are OFF when you
are not cooking.
Someone could be burned or a fire could
start if a surface unit is accidentally left ON.

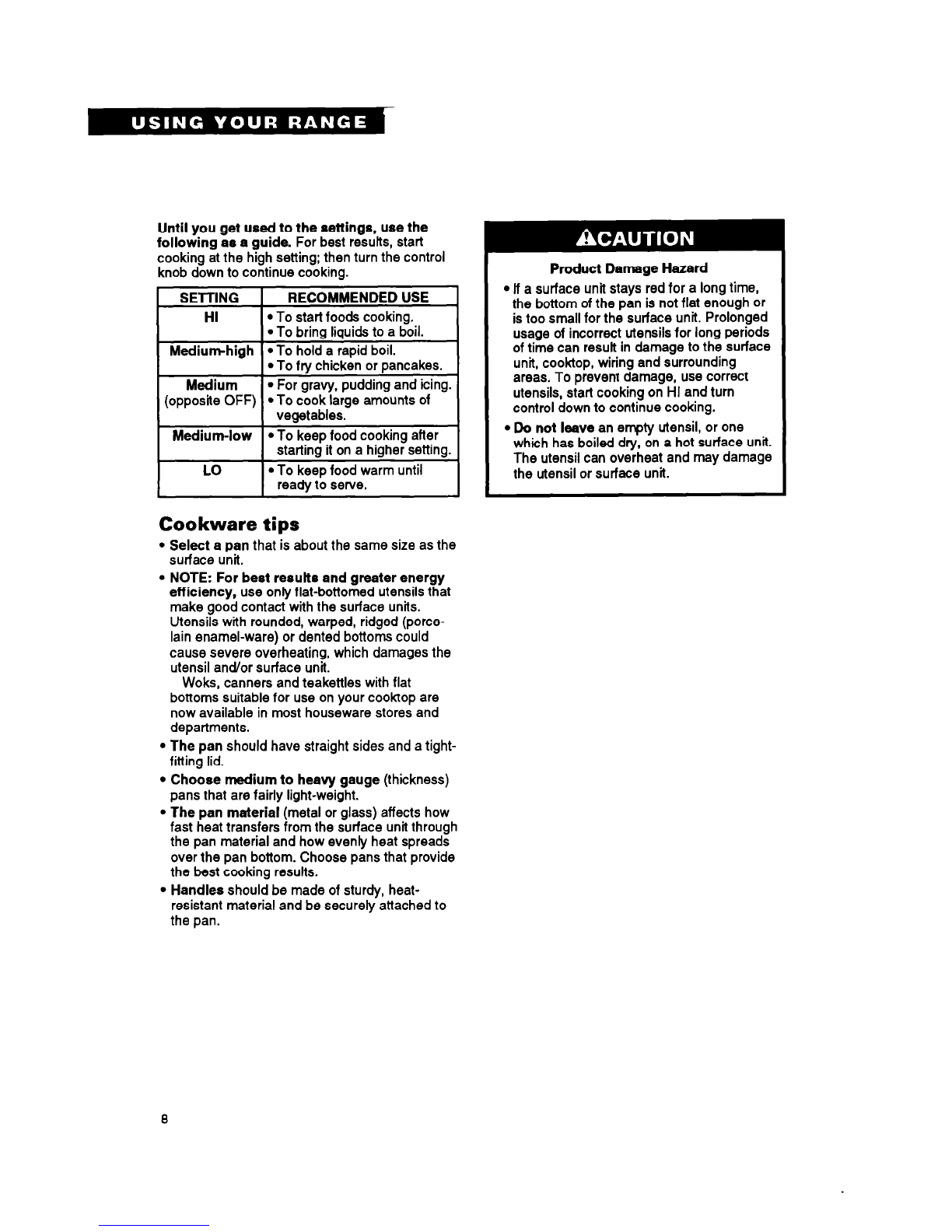

Until you get used to the settings, use the
following as a guide. For best resufts, start
cooking at the high setting; then turn the control
knob down to continue cooking.
SETTING RECOMMENDED USE
HI
l To start foods cooking.
l To bring liquids to a boil.
Medium-high l To hold a rapid boil.
l To fry chicken or pancakes.
Medium
l For gravy, pudding and icing.
(opposite OFF) l To cook large amounts of
vegetables.
Medium-low l To keep food cooking after
starting it on a higher setting.
LO
l To keep food warm until
ready to serve.
Cookware tips
l Select a pan that is about the same size as the
surface unit.
l NOTE: For best results and greater energy
efficiency, use only flat-bottomed utensils that
make good contact with the surface units.
Utensils with rounded, warped, ridged (porce-
lain enamel-ware) or dented bottoms could
cause severe overheating, which damages the
utensil and/or surface unit.
Woks, canners and teakettles with flat
bottoms suitable for use on your cooktop are
now available in most houseware stores and
departments.
l The pan should have straight sides and a tight-
fitting lid.
l Choose medium to heavy gauge (thickness)
pans that are fairly light-weight.
l The pan material (metal or glass) affects how
fast heat transfers from the surface unit through
the pan material and how evenly heat spreads
over the pan bottom. Choose pans that provide
the best cooking results.
l Handles should be made of sturdy, heat-
resistant material and be securely attached to
the pan.
Product Damage Hazard
l lf a surface unit stays red for a long time,
the bottom of the pan is not flat enough or
is too small for the surface unit. Prolonged
usage of incorrect utensils for long periods
of time can result in damage to the surface
unit, cooktop, wiring and surrounding
areas. To prevent damage, use correct
utensils, start cooking on HI and turn
control down to continue cooking.
0 Do not leave an empty utensil, or one
which has boiled dry, on a hot surface unit.
The utensil can overheat and may damage
the utensil or surface unit.

Home canning information
Optional canning kii
To protect your range:
l Use flat-bottomed canners/pans for best
resufts.
l Use the largest surface unit for best results.
Also, use a canner/pan which can be centered
over the surface unit and which does not
extend more than one inch outside surface unit
area. Large diameter canners/pans, if not
properly centered, trap heat and can cause
damage to the cooktop.
l Do not place canner on two surface units at
the same time. Too much heat will build up and
will damage the cook-top.
l Start with hot water. This reduces the time the
control is set on high. Reduce heat setting to
lowest position needed to keep water boiling.
l Keep reflector bowls clean for best heat
reflection.
The large diameter of most water-bath or
pressure canners combined with high heat
settings for long periods of time can shorten the
life of regular surface units and cause damage to
the cooktop.
If you plan to use the cooktop for canning, we
recommend the installation of a Canning Kit.
Order the kii (Part No. 242905) from your
Whirlpool dealer or authorized WhirlpoolSM
service company.
l To prolong the life of the elements:
- Prepare small batches at a time.
- Do not use elements for canning all day.
Positioning racks and pans
For baking/roasting with one rack, place the
rack so the top of the food will be centered in the
oven.
Rack placement for specific foods:
1 FOOD
RACK POSITION
Frozen pies, large
roasts, turkeys Lowest level or 2nd level from
1 bottom I
Angel and bundt cakes,
most quick breads, yeast
breads, casseroles,
meats
1 Cookies, biscuits,
muffins, cakes, non-
frozen Dies
2nd level from
bottom
2nd or 3rd level
from bottom
When baking on two racks, arrange racks on
bottom and third level from bottom.
NOTE: For recommended rack placement when
broiling, see “Broiling rack position chart” on
page 14.
Personal Injury Hazard
l Always position oven rack(s) in desired
location before turning oven on. Be sure
the rack(s) is level.
l If rack(s) must be moved while oven is
hot, use potholders or oven mitts to
protect hands.
Failure to follow the above precautions may
result in personal injury.

For best air circulation
The hot air must circulate around the pans in the
oven for even heat to reach all parts of the oven.
This results in better baking.
l Place the pans so that one is not directly over
the other.
l For best results, allow 1‘h to 2 inches
(4-5 cm) of space around each pan and
between pans and oven walls. There must be a
minimum space of 1 inch (2.5 cm).
l Use only one cookie sheet in the oven at one
time.
Use the following as a guide to determine where
to place the pans.
One pan
Place in the center of the oven rack.
Two pans
Place in opposite corners of the oven rack.
Three or four pans
Place in opposite corners on each oven rack.
Stagger pans so no pan is directly over another.
Using aluminum foil for baking
Use aluminum foil to catch spillovers from pies or
casseroles.
l Place the foil on the oven rack below the rack
with the food. Turn up foil edges and make
sure foil is about 1 inch (3 cm) larger all around
than the dish holding the food.
l Do not cover the entire rack with aluminum foil.
It will reduce air circulation and cause poor
cooking results.
l Do not line oven bottom or entire oven rack
with foil or other liners. Poor baking will result.
I
Electrical Shock and Fire Hazard
Do not allow foil to touch the heating
elements because it will damage them and
could result in shock or fire hazard.
10

Setting the clock
Push in and turn the Minute Timer Knob to set
the clock.
1. Push in Minute Timer Knob and turn
clockwise until clock shows the correct time
of day.
2. Let the Minute Timer Knob pop out. Turn
clockwise until Minute Timer hand points to
OFF. The clock setting will change if you
push in the knob when turning.
Using the Minute Timer
The Minute Timer does not start or stop the oven.
It works like a kitchen timer. Set it in minutes up
to an hour. You will hear a buzzer when the set
time is up.
NOTE: Do not push in the knob when setting
the Minute Timer, or when stopping the buzzer.
Pushing in and turning the Minute Timer Knob
changes the clock setting.
1. Without pushing it in, turn the Minute Timer
Knob counterclockwise until the timer hand
passes the setting you want.
2. Without pushing it in, turn the knob back to
the setting you want.
When the time is up, a buzzer will sound.
To stop the buzzer, turn the Minute Timer
hand to OFF.
11

Baking/roasting
1. Position the rack(s) properly before turning
on the oven. To change rack position, lift
rack at front and pull out. For further informa-
tion, see “Positioning racks and pans” on
page 9.
2. Set the Oven Selector to BAKE.
3. Set the Oven Temperature Control Knob to
the baking/roasting temperature you want.
The OVEN HEATING Indicator Light will come
on. The oven is preheated when the OVEN
HEATING Indicator Light first goes off.
NOTE: Do not preheat oven when roasting or
cooking items such as casseroles.
4. Put food in the oven.
During baking/roasting, the elements will
turn on and off to maintain the temperature
setting. The OVEN HEATING Indicator Light
will turn on and off with the elements.
NOTE: The top element helps heat during
baking/roasting, but does not turn red.
5. When baking/roasting is done, turn both
the Oven Selector and the Oven Temperature
Control Knob to OFF. The OVEN HEATING
Indicator Light will go off.
12

Adjusting the oven temperature control
Oven temperature controls will gradually shift
after years of use. So, even though your new
oven is propery adjusted to provide accurate
temperatures, it may cook faster or slower than
your old oven.
If, after using the oven for a period of time, you
are not satisfied with the temperature settings,
you can change them by following these steps:
1. Turn the Oven Temperature Control Knob to
the off position. Pull knob straight off and flip
it over.
2. Loosen the locking screws inside the control
knob. Note the position of the notches.
3. To lower the temperature, hold knob handle
firmly and move the tooth a notch counter-
clockwise. Each notch equals about 5°F
(2.5%).
4. To raise the temperature, hold knob handle
firmly and move the tooth a notch clockwise.
Each notch equals about 5°F (2.5%).
Tighten the locking screws and replace the
control knob.
Broiling
1. Position the rack properly before turning on
the oven. Position rack so that the surface of
the food is at least 3 inches (7.4 cm) away
from the broil element. See “Broiling rack
position chart” on page 14.
2. Put the broiler pan and food on the rack
3. Close the door to the Broil Stop position (open
about 4 inches [lo.2 cm]). The door will stay
open by itself.
4. Set the Oven Selector and Oven Temperature
Control Knob to BROIL. The OVEN HEATING
Indicator Light will come on.
NOTE: Do not preheat oven when broiling.
5. When broiling is done, turn both the Oven
Selector and Oven Temperature Control Knob
to OFF. The OVEN HEATING Indicator Light
will go off.
13

Custom broil
l If food is cooking too fast, turn the Oven
Temperature Control Knob counterclockwise
until the OVEN HEATING Indicator Light
goes off.
l If you want the food to broil slower from the
start, set the Oven Temperature Control Knob
between 170°F and 325°F (77% and 163°C).
These temperature settings allow the broil
heating element to cycle and to slow cooking.
The lower the temperature, the slower the
cooking.
l Fish and chicken are some foods that may cook
better if you use lower broiling temperatures.
The Oven Selector must be on BROIL for all
broiling temperatures.
NOTE: Leave the oven door partly open when-
ever using the oven to broil. Leaving the door
open allows the oven to maintain proper
temperatures.
Broiling rack position chart
I
RACK POSlTlON I TYPE OF FOOD/
FROM BOlTOM DONENESS I
3 Quickly searing food, rare
and medium steaks and
patties, ham slices, fish
steaks, frankfurters
2 Well-done steaks and
patties, lamb chops, split
chicken, pork steaks and
chops, whole fish
Broiling tips
l Use the broiler pan and grid for broiling. They
are designed to drain excess liquid and fat
away from the cooking surface to help prevent
spatter, smoke or fire.
l Refer to a broiling chart in a reliable cookbook
for correct broiling times.
l After broiling, remove the broiler pan from the
oven when you remove the food. Drippings will
bake on the pan if you leave it in the heated
oven.
Fire Hazard
l Place meat the correct distance from the
element. Meat placed too close to the
element may spatter, smoke, burn or
catch fire during broiling.
l To ensure adequate grease drainage, do
~ not use cookie sheets or similar pans for broiling. Also, covering the broiler grid
with foil is not recommended. Poor
drainage of grease may result in fire. If foil
is used, cut slits in foil to line up with all
openings in broiler grid. Grease can then
drain away and cool in pan.
14

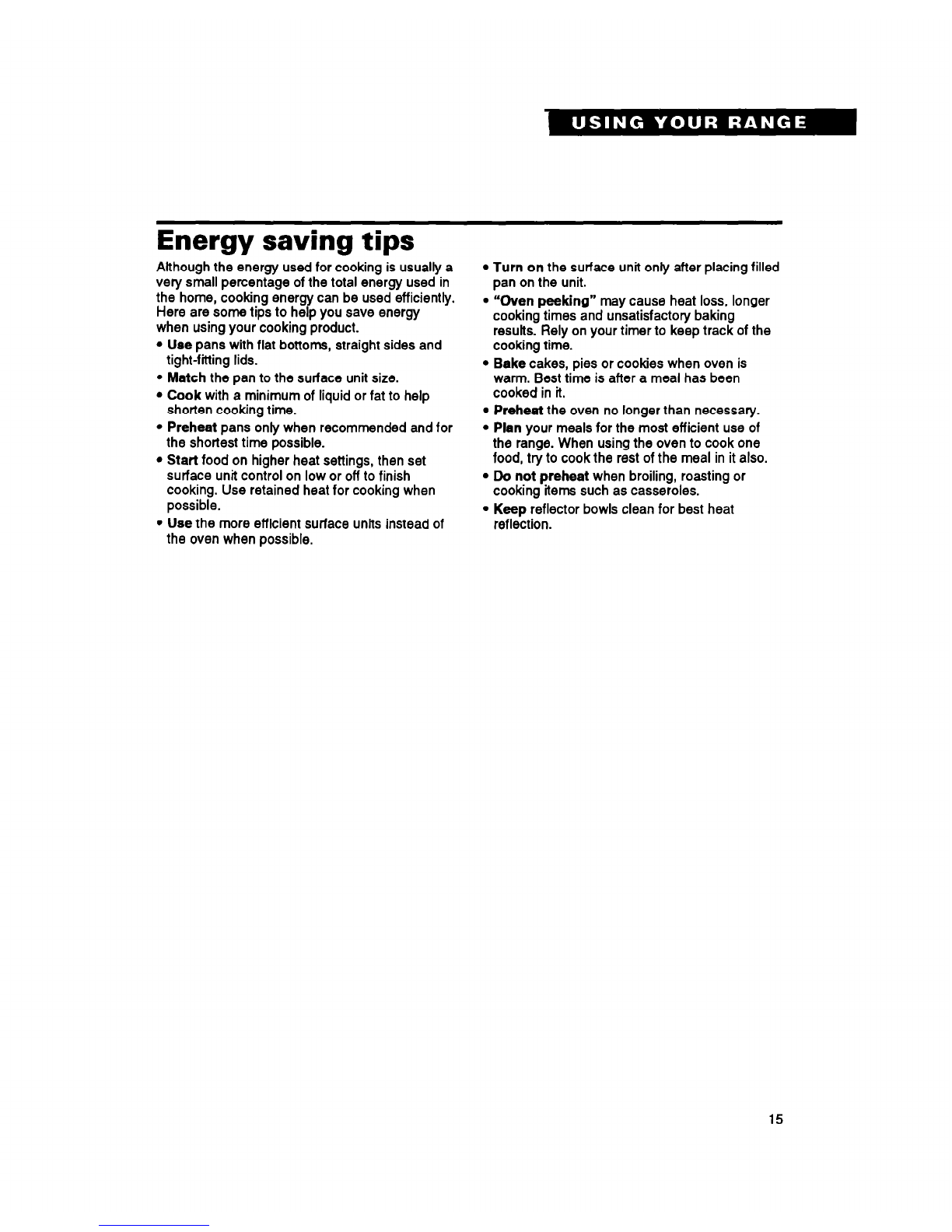

Energy saving tips
Although the energy used for cooking is usually a
very small percentage of the total energy used in
the home, cooking energy can be used efficiently.
Here are some tips to help you save energy
when using your cooking product.
. Use pans with flat bottoms, straight sides and
tight-fitting lids.
l Match the pan to the surface unit size.
l Cook with a minimum of liquid or fat to help
shorten cooking time.
l Preheat pans only when recommended and for
the shortest time possible.
l Start food on higher heat settings, then set
surface unit control on low or off to finish
cooking. Use retained heat for cooking when
possible.
l Use the more efficient surface units instead of
the oven when possible.
l Turn on the surface unit only after placing filled
pan on the unit.
l “Oven peeking” may cause heat loss, longer
cooking times and unsatisfactory baking
results. Rely on your timer to keep track of the
cooking time.
l Bake cakes, pies or cookies when oven is
warm. Best time is after a meal has been
cooked in it.
l Preheat the oven no longer than necessary.
l Plan your meals for the most efficient use of
the range. When using the oven to cook one
food, try to cook the rest of the meal in it also.
l Do not preheat when broiling, roasting or
cooking items such as casseroles.
l Keep reflector bowls clean for best heat
reflection.
15

Using the automatic MEALTIMER” clock
The automatic MEALTIMER clock is designed to
turn the oven on and off at times you set ... even
when you are not around.
Timed baking/roasting is ideal for foods which
do not require a preheated oven, such as meats
and casseroles. Do not use the timed cycle for
cakes, cookies, etc. ... undercooking will
result.
Before using the MEALTIMER clock, make
sure the clock is set to the correct time of
day. (See “Setting the clock” on page 11.)
To delay start and stop
automatically:
1. Position the oven rack(s) properly and place
the food in the oven.
2. Push in and turn the Start Time Knob
clockwise to the time you want baking/
roasting to start.
3. Push in and turn the Stop Time Knob
clockwise to the time you want the oven to
shut off.
4. Set the Oven Selector to TIME BAKE.
5. Set the Oven Temperature Control Knob to
the baking/roasting temperature you want.
The oven will now start and stop automati-
cally. The OVEN HEATING Indicator Light will
come on when the start time is reached.
6. After baking/roasting is done or to cancel
the setting at any time, turn both the Oven
Selector and Oven Temperature Control Knob
to OFF.
To start baking/roasting now
and stop automatically:
1. Position the oven rack(s) properly and place
the food in the oven.
16

2. Push in and turn the Stop Time Knob
clockwise to the time you want the oven to
shut off. Make sure the Start Time Knob is not
pushed in.
3. Set the Oven Selector to TIME BAKE.
4. Set the Oven Temperature Control Knob to
the baking/roasting temperature you want.
5. After baking/roasting is done or to cancel
the setting at any time, turn both the Oven
Selector and the Oven Temperature Control
Knob to OFF.
To avoid sickness and food waste when
using the MEALTIMER” control:
l Do not let most UNFROZEN food stand
for more than two hours before cooking
starts.
l Do not allow food to remain in oven for
more than two hours after the end of
cooking cycle.
NOTE: Do not use foods that will spoil while
waiting for cooking to start. Such foods are:
dishes with milk or eggs, cream soups, and
cooked meats or fish. Also, foods containing
baking powder or yeast will not rise properly
when cooked using delay start.
The oven vent
Hot air and moisture escape from the oven
through a vent under the right rear surface unit.
You can cook on the unit or keep food warm on it
while the oven is on. The vent is needed for air
circulation. Do not block the vent. Poor baking/
roasting can result.
NOTE: Plastic utensils left over the vent can melt.
Burn and Fire Hazard
If you leave a utensil on the right rear
surface unit, use potholders when moving
it. Pan handles can become hot enough to
burn.
Keep flammable materials away from oven
vent.
Failure to do so can result in burns or a fire.
17

The storage drawer
You can remove the storage drawer to make it
easier to clean under the range. Use care when
handling the drawer.
Removing the storage drawer:
1. Empty drawer before removing drawer. Pull
drawer straight out to the first stop. Lift front
and pull out to the second stop.
2. Lii back slightly and slide drawer all the
way out.
Replacing the storage drawer:
1. Fii ends of drawer slide rails into the drawer
guides on both sides of opening.
2. Lii drawer front and push in until metal stops
on drawer slide rails clear white stops on
drawer guides. Lift drawer front again to clear
second stop and slide drawer closed.
Drawer slide rail v
The anti-tip bracket
The range will not tip during normal use. How-
ever, tipping can occur if you apply too much
force or weight to the open door without the anti-
tip bracket properly secured.
To verify the anti-tip bracket is engaged:
l Look to see if the anti-tip bracket is attached
with screws to the wall behind the control panel.
l Make sure the cable tether on the back of the
range is secured by the two hooks on the
bracket.
l See Installation Instructions for further details.
Optional door panel pat
If you would like to change the color of your oven
door glass to white or almond, you can order one
of these kits from your Whirlpool Dealer. The kiis
include easy installation instructions.
Models RF365PXY and RF370PXY:
l White (Kit No. 614069)
l Almond (Kit No. 814070)
Models RF360BXY and RF365BXY:
l White (Kit No. 814071)
l Almond (Kit No. 814072)
18

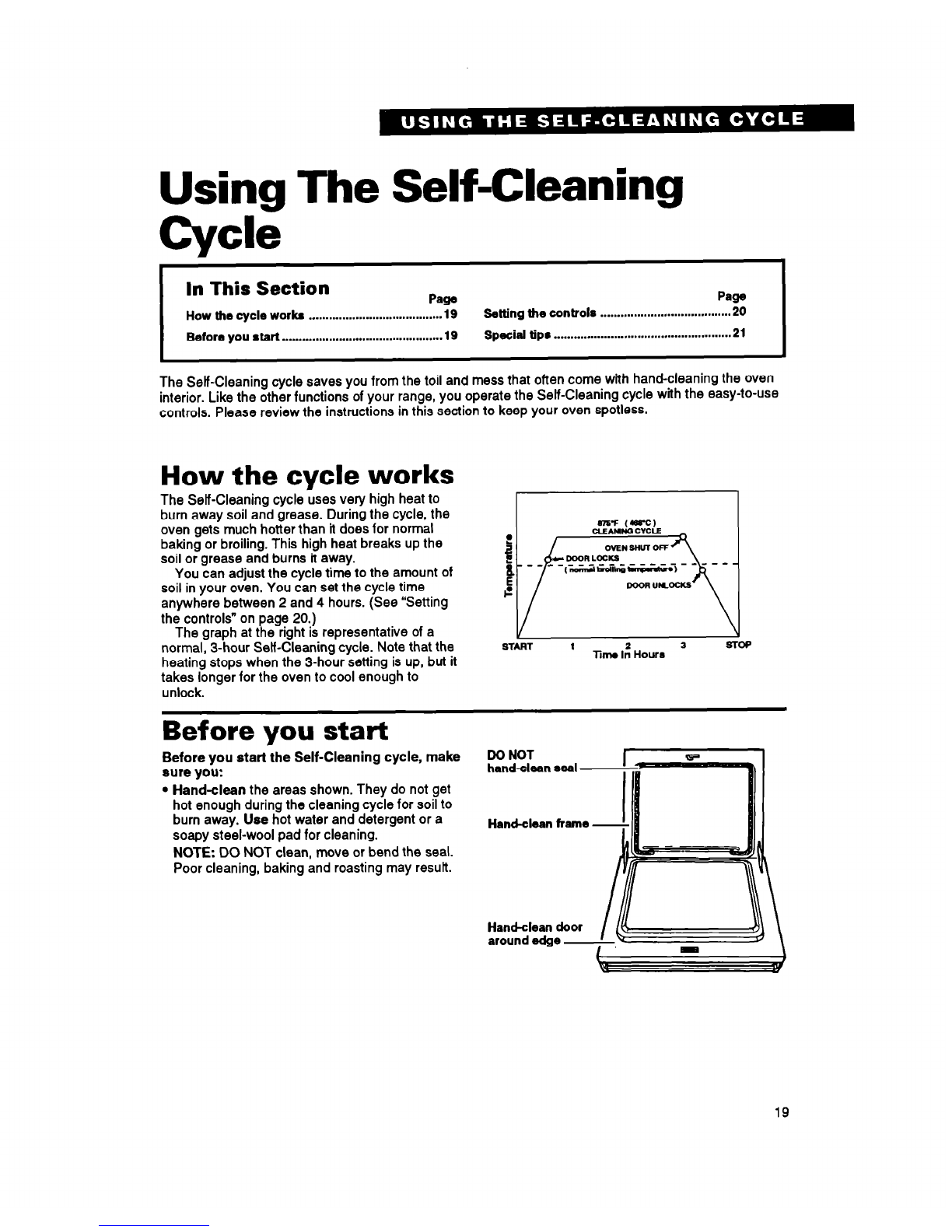

Using The Self-Cleaning
Cycle
In This Section Paw Paw
How tfm cycle worka ........................................ 19 Setting the controls .......................................20
Before you start ................................................ 19 Special tip8 .................................e...................21
The Self-Cleaning cycle saves you from the toil and mess that often come with hand-cleaning the oven
interior. Like the other functions of your range, you operate the Self-Cleaning cycle with the easy-to-use
controls. Please review the instructions in this section to keep your oven spotless.
How the cycle works
The Self-Cleaning cycle uses very high heat to
burn away soil and grease. During the cycle, the
oven gets much hotter than it does for normal
baking or broiling. This high heat breaks up the
soil or grease and burns it away.
You can adjust the cycle time to the amount of
soil in your oven. You can set the cycle time
anywhere between 2 and 4 hours. (See “Setting
the controls” on page 20.)
The graph at the right is representative of a
normal, 3-hour Setf-Cleaning cycle. Note that the
heating stops when the 3-hour setting is up, but it
takes longer for the oven to cool enough to
unlock.
START 1 lima 1,’ Hour8 3 STOP
Before you start
Before you start the Self-Cleaning cycle, make
sure you:
l Hand-clean the areas shown. They do not get
hot enough during the cleaning cycle for soil to
burn away. Use hot water and detergent or a
soapy steel-wool pad for cleaning.
NOTE: DO NOT clean, move or bend the seal.
Poor cleaning, baking and roasting may result.
DO NOT
hand-&an seal
Hand-&an frame
Hand-clean door
around edge
19

l Remove the broiler pan grki and any pots
and pans being stored in the oven.
NOTE: You can clean the broiler pan (without
grid) in the oven if you have first removed most
of the soil by hand-cleaning or a dishwasher. If
most of the soil is not removed, too much
smoking will occur. The chrome broiler pan grid
will discolor if cleaned in the Self-Cleaning
cycle.
l Wipe out any loose soil or grease. This will
help reduce smoke during the cleaning cycle.
l Remove the oven racks from the oven ii you
want them to remain shiny. You can clean the
oven racks in the Self-Cleaning cycle, but they
will become harder to slide. (See page 26.) If
you clean racks in the Self-Cleaning cycle,
place them on the 2nd and 4th rack guides.
(Guides are counted from bottom to top.)
l Heat and odors are normal during the Self-
Cleaning cycle. Keep the kitchen well ventilated
by opening a window or by turning on a vent
hood or other kitchen vent during the cycle.
Personal Injury and
Product Damage Hazard
l Do not touch the oven during the Self-
Cleaning cycle. It could burn you.
l Do not use commercial oven cleaners in
your oven. Cleaners may produce hazard-
ous fumes or damage the porcelain finish.
l Do not leave foil in the oven during the Self-
Cleaning cycle. Foil can burn or melt and
damage the oven surface.
NOTE: Do not force the Lock Lever. You could
bend or break it. The lever is designed to stay
locked until the oven is cool enough to safely
open. Wait until it moves freely.
Do not block the vent during the Self-Cleaning
cycle. Air must move freely for best cleaning
results.
Do not leave plastic utensils near the vent.
They may melt.
Setting the controls
1. Set the Oven Selector and Oven Temperature
Control Knob to CLEAN.
2. Make sure the clock, Start and Stop Times all
have the correct time of day.
3. Push in and turn the Stop Time Knob
clockwise 2 or 3 hours.
l Use 2 hours for light soil.
l Use 3 hours or more for moderate to heavy
soil.
NOTE: Make sure the Start Time Knob is not
pushed in.
20
