U Continuous-Cleaning
Model SF332BSWER
and
Models SF302BSR/ER
Microwave Ovens, Trash Compactors. Room Air Conditioners. Oehumldifiers. Automatic Washers, Clothes Dryers, freezers, Refrigerator-F

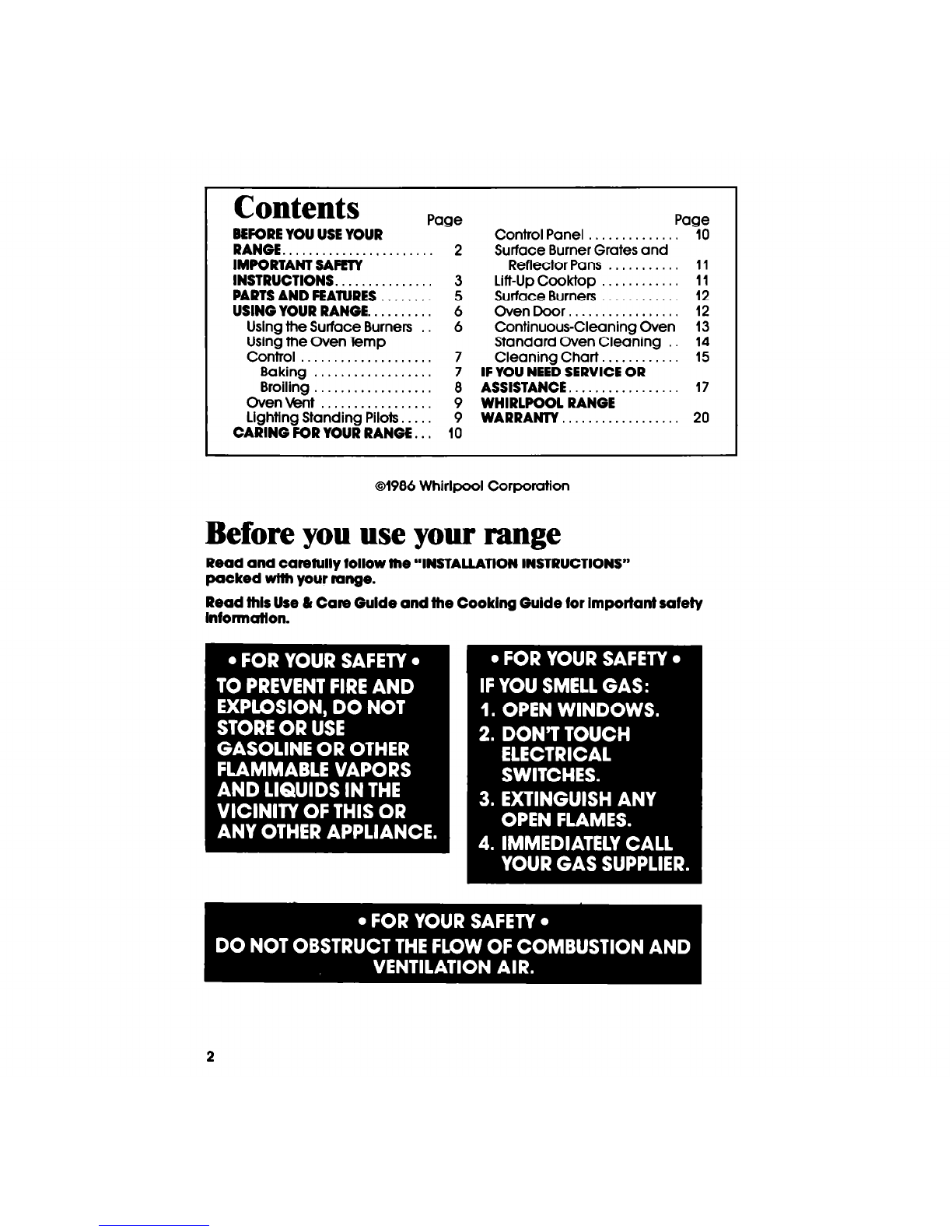

Contents
Page
BEFOREYOU USEYOUR
RANGE. . . . . . . . . . . . . . , . . . . . . . . 2
IMPORTANT SAFETY
INSTRUCTIONS. . . . . . . . . . . . . . . 3
PARTSAND FEATURES. . . . . . . 5
USING YOUR RANGE. . . . . . . . . . 6
Using the Surface Burners . 6
Using the Oven Temp
Control . . . . . . . . . . . . . . . 7
Baking . . . . . . . . . . . . . . . . . . 7
Broiling . . . . . . . . . . . . . . . . . 8
CvenMt . . . . . . . . . . . . . . . . 9
lighting Standing Pilots. . . . . 9
CARING FORYOUR RANGE. . . 10
Page
Control Panel . . . . . . . . . . . . . . 10
Surface Burner Grates and
Reflector Pans . . . . . . . . . . . 11
Lift-Up Cooktop . . . . . . . . . . . . 11
Surface Burners . . . . . . . 12
OvenDoor.. . . . . . . . . . . . . . . . 12
Continuous-Cleaning Oven 13
Standard Oven Cleaning . 14
Cleaning Chart. . . . . . 15
IF YOU NEEDSERVICEOR
ASSISTANCE. . . . . . . . . . . 17
WHIRLPOOL RANGE
WARRANTY.. . . . . . . . . . . . . . . . . 20
01986 Whirlpool Corporation
Before you use your range
Read and carefully follow the llINSTAUATION INSTRUCTIONS~~
packed with your mnge.
Read lhls Use 6 Care Gulde and the CookIng Guide for important safety
Information.

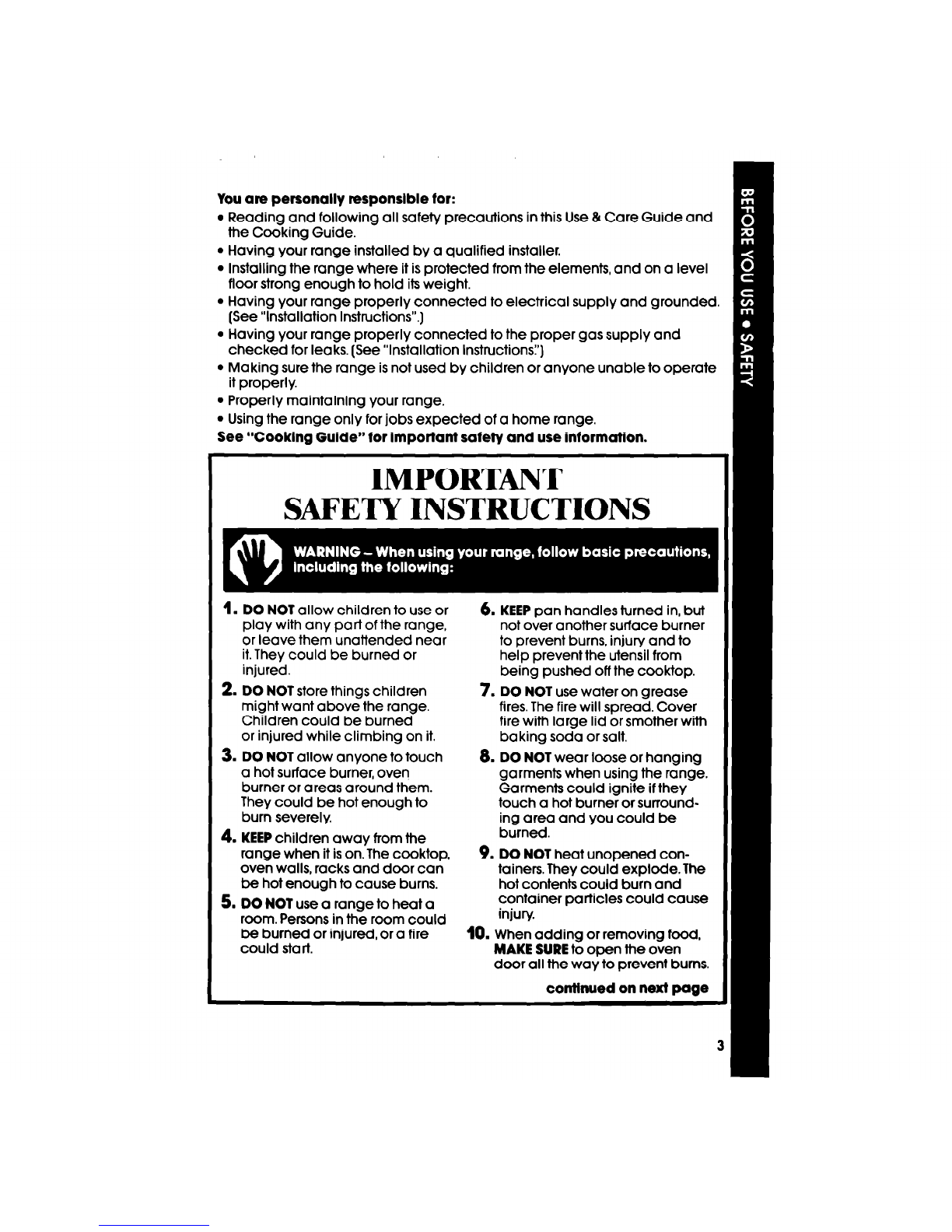

You are personally responsible for:
l Reading and following ail safety precautions in this Use 81Care Guide and
the Cooking Guide.
l Having your range installed by a qualified installer.
l installing the range where it is protected from the elements, and on a level
floor strong enough to hold itsweight.
l Having your range properly connected to electrical supply and grounded.
(See “installation instructions”.]
l Having your range properly connected to the proper gas supply and
checked for leaks. (See “installation instructions:‘)
l Making sure the range is not used by children or anyone unable to operate
it properly.
l Properly maintaining your range.
l Using the range only for jobs expected of a home range.
See “Cooking Guide” for Imporfanf safety and use information.
IMPORTANT
SAFETY INSTRUCTIONS
1. DO NOT allow children to use or
play with any part of the range,
or leave them unattended near
it.They could be burned or
injured.
2. DO NOT store things children
might want above the range.
Children could be burned
or injured while climbing on it.
3. DO NOT allow anyone to touch
a hot surface burner, oven
burner or areas around them.
They could be hot enough to
burn severely.
4. KEEPchildren away from the
range when it ison. The cooktop,
oven wails, racks and door can
be hot enough to cause burns.
5. DO NOT use a range to heat a
room. Persons in the room could
be burned or injured, or a fire
could start.
6. KEEPpan handles turned in, but
not over another surface burner
to prevent burns, injury and to
help prevent the utensil from
being pushed off the cooktop.
7. DO NOT use water on grease
fires. The fire will spread. Cover
fire with large lid or smother with
baking soda or salt.
8. DO NOT wear loose or hanging
garments when using the range.
Garments could ignite if they
touch a hot burner or surround-
ing area and you could be
burned.
9. DO NOT heat unopened con-
tainers. They could explode. The
hot contents could burn and
container particles could cause
injury.
10. When adding or removing food,
MAKE SUREto open the oven
door ail the way to prevent burns.
continued on next page

11. DO NOT use a wet pot holder. 14. GREASEisflammable and
Steam burns can result. DO NOT should be handled carefully. Let
use a towel or bulky cloth as a fat cool before attempting to
pot holder. They could catch fire handle it.Do not allow grease to
and burn you. collect around range or in
12. MAKE SUREthe utensils you use vents. Wipe spill-overs
are large enough to contain immediately.
food and avoid boil-oven and 15. NEVERuse a match or other
spiii*vers. Thiswill help prevent flame to look for a gas leak. Ex-
hazardous build-ups of food. piosion and injury could result.
Heavy splattering or spiiievers
left on a range can ignite and
16. DO NOT repair or replace any
burn you. Pan size is especially parts unless specifically recom-
important in deep fat frying. mended in this manual. Ail other
113. DO NOT leave surface burners on servicing should be referred to a qualified service technician.
high heat settings. Boii-overs and
greasy spiiiovers could cause
steam, smoke and could ignite
and burn you.
17. DO NOT use oven for storage.
Stored items and range could be
damaged if oven is turned on
accidentally.
II
8 FOR YOUR SAFETY l 8 FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITEIN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE
CAUSING EXPLOSION AND/OR FIRE.CAUSING EXPLOSION AND/OR FIRE.
- SAW THESE INSTRUCTIONS -
Copy your Model and Serial Numbers here...
If you need service, or call with
a question, have this information
ready: Model Number
1. Complete Model and Serial
Numbers (from the plate located
Serial Number
as shown).
2. Purchase date from sales slip.
CODV this information in these
spa&. Keep this book and your
sales slip together in the Literature
Purchase Date
Service Company Phone Number
Pac.
Please complete and mall the Owner Reglstraflon Card
furnlshed wlff~ this product.

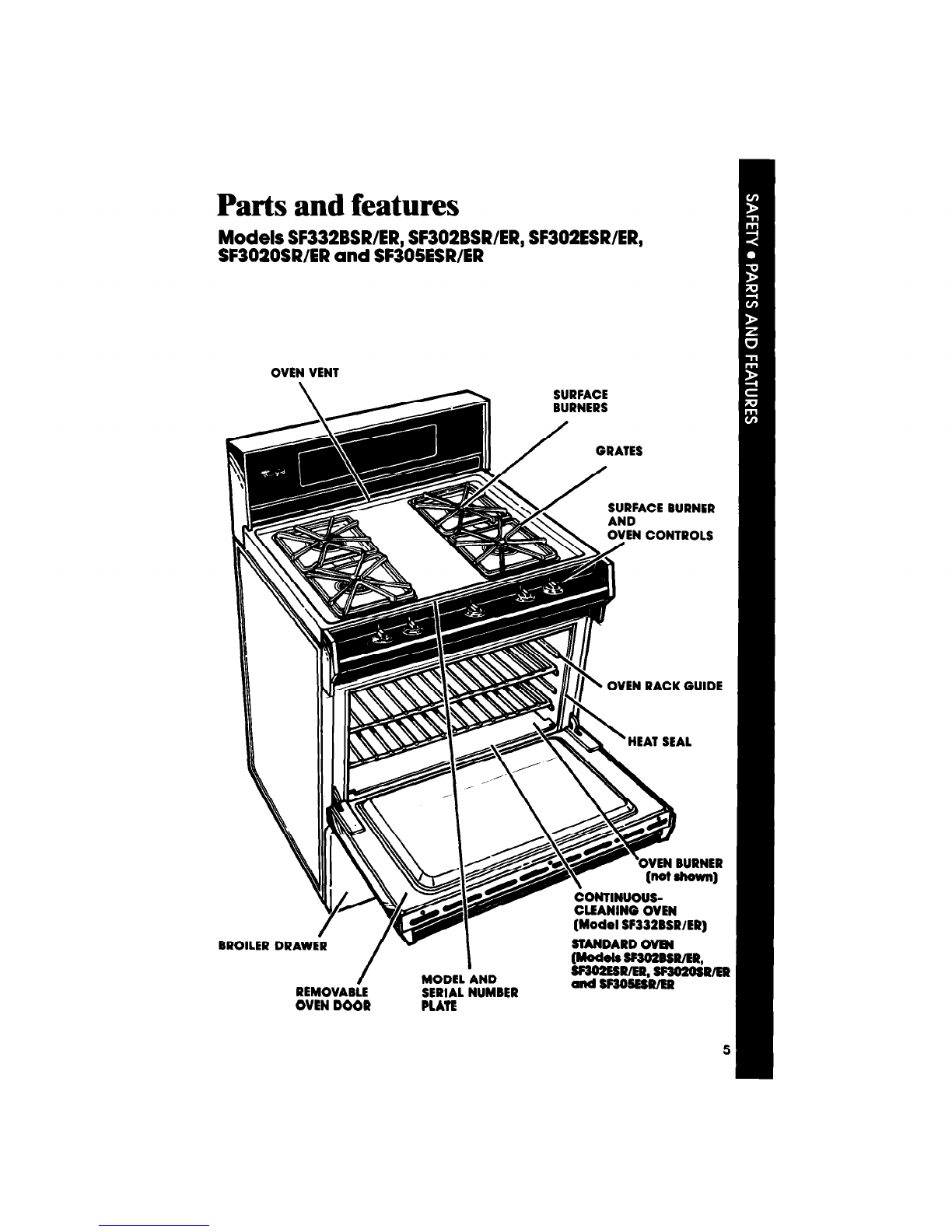

Parts and features
Models SF332BSR/ER,SFSOZBSR/ER,SF302ESRIER,
SF302OSR/ERand SF305ESR/ER
OVEN VENT
SURFACE
BURNERS
OVEN RACK GUIDE
HEAT SEAL
r ‘OVEN
I
BURNER
‘rr,,,,UOi: -’
~DARD OVBS
CLEANING OVEN
fModei8 SP302BSRIEP.
[Model SF332BSRIERl
/
BROILER DRAWE-R
MODEL ‘AND
REMOVABLE
/
SERIAL NUMBER
OVENDOOR PLATE
5

Using your range
LEFT FRONT LEFl REAR RIGHT FRONT RIGHT REAR
CONTROL KNOB CONTROL KNOB CONTROL KNOB CONTROL KNOB
/ SURiACE
OVEN TEMP BURNER
CONTROL KNOB INDICATORS
Using the Surface Burners
These ranges are equipped with either standing pilots or electronic igniters.
Standing pilots must be lit initially with a match following the directions on
page9. The pilot light will remain lit when the burners are turned off.Toturn a
burner on again, just push in and turn the control knob to LITEand the burner
will light. Electronic ignitors automatically light the burners each time they
are used.
Control knobs must be pushed in,
then turned to LITEposition. On elec-
tronic ignitor models, the clicking
sound isthe ignitor sparking.
After the burner lights, turn the control
knob back to a desired setting. The
control knob can be set anywhere
between HIand OFFDo not cook
with the control In the LITEposition.
Surface Burner Indicators
The solid dot in the surface burner
indicator shows which surface burner
isturned on by that knob.
In Case of a Prolonged Power Failure
Surface burners with electronic ignitors can be manually lighted. Hold a lit
match near the burner and turn the control to the LITEposition. After the burner
lights, turn the control to the desired setting. Power failures will not affect Stand-
ing Pilots.

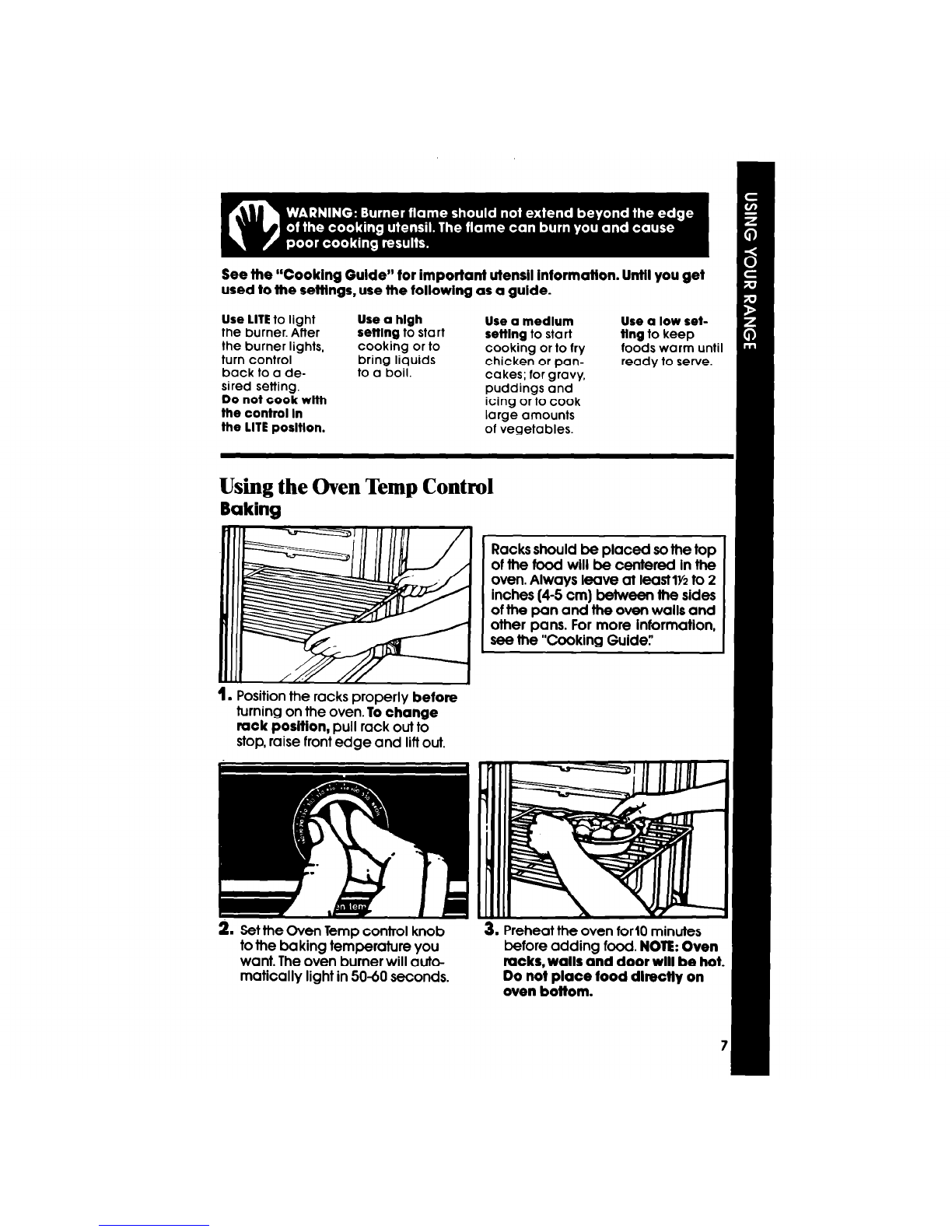

See the “Cooking Guide” tor important utensil information. Until you get
used to the sefflngs, use the following as a guide.
Use LITE to light
the burner. After
the burner lights,
turn control
back to a de-
sired setting.
Do not cook wlth
the control In
the LITE porltlon.
Use a hlgh
setting to start
cooking or to
bring liquids
to a boil.
Use a medlum
rettlng to start
cooking or to fry
chicken or pan-
cakes; for gravy,
puddings and
icing or to cook
large amounts
of vegetables.
Use a low set-
tlng to keep
foods warm until
ready to serve.
Using the Oven Temp Control
Baking
1. Position the racks properly before
turning on the oven. To change
rack position, pull rack out to
stop, raise front edge and lift out.
2. Setthe Oven Temp control knob
to the baking temperature you
want. The oven burner will auto-
matically light in 5060 seconds.
Racks should be placed so the top
of the food wtll be centered In the
oven. Always leave at least 1K to 2
Inches (4-5 cm) belween the sides
of the pan and the oven walls and
other pans. For more informatlon,
see the “COOkinQ Guide:
3. Preheat the oven for10 minutes
before adding food. NOTE:Oven
racks, walls and door will be hot.
Do not place food dlrecffy on
oven boffom.

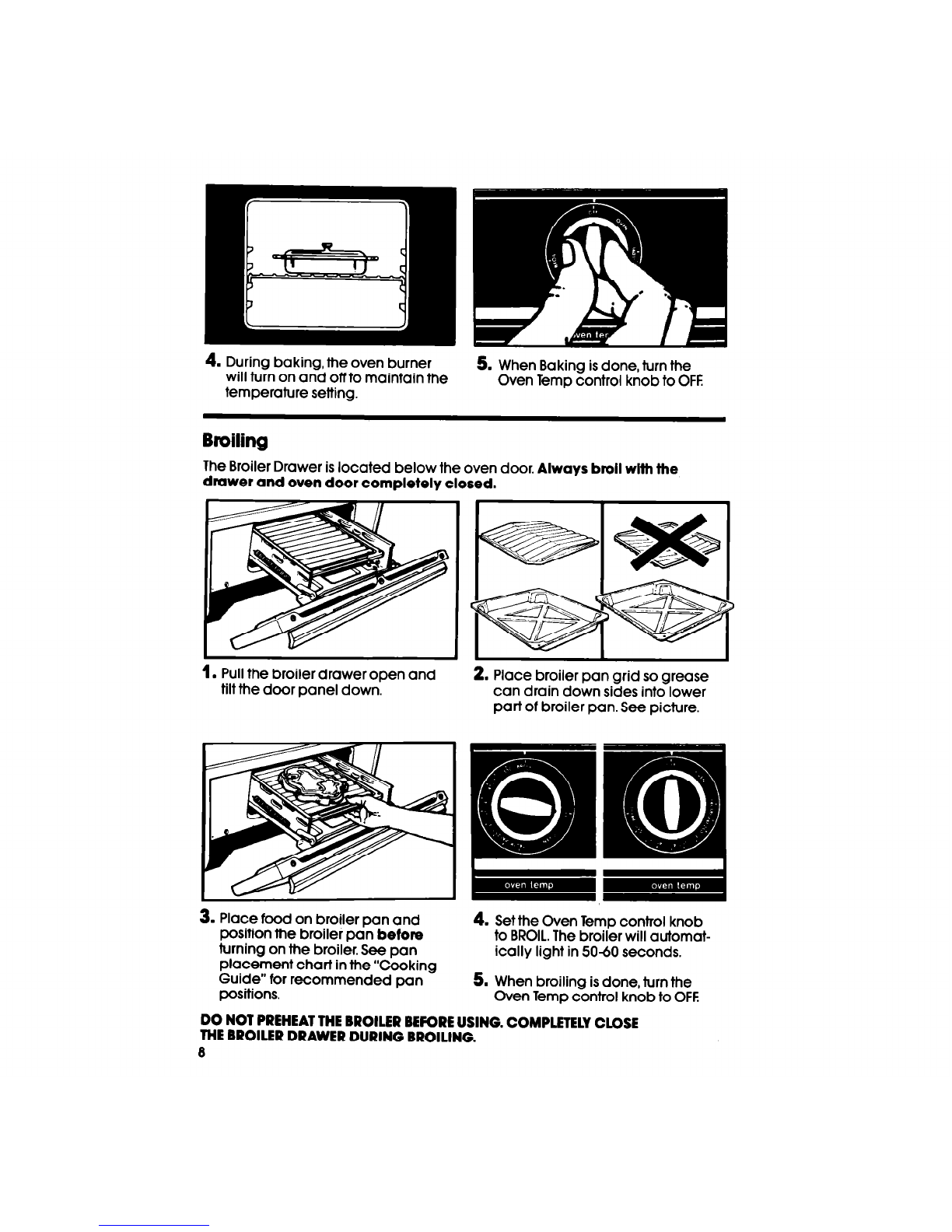

4. During baking, the oven burner
will turn on and off to maintain the
temperature setting.
5. When Baking isdone, turn the
Oven Temp control knob to OFF.
Broiling
The Broiler Drawer is located below the oven door. Always broil wlth the
drawer and oven door completely closed.
1. Pull the broiler drawer open and
tilt the door panel down. 2. Place broiler pan grid so grease
can drain down sides into lower
part of broiler pan. See picture.
3. Place food on broiler pan and
position the broiler pan betore 4. Setthe Oven Temp control knob
to BROIL.The broiler will automat-
turning on the broiler. See pan
placement chart in the “Cooking ically light in 5060 seconds.
Guide” for recommended pan
positions. 5. When broiling is done, turn the
Oven Temp control knob to OFF.
DO NOT PREHEATTHEBROILERBEFOREUSING. COMPLETELYCLOSE
THEBROILERDRAWERDURING BROILING.
8

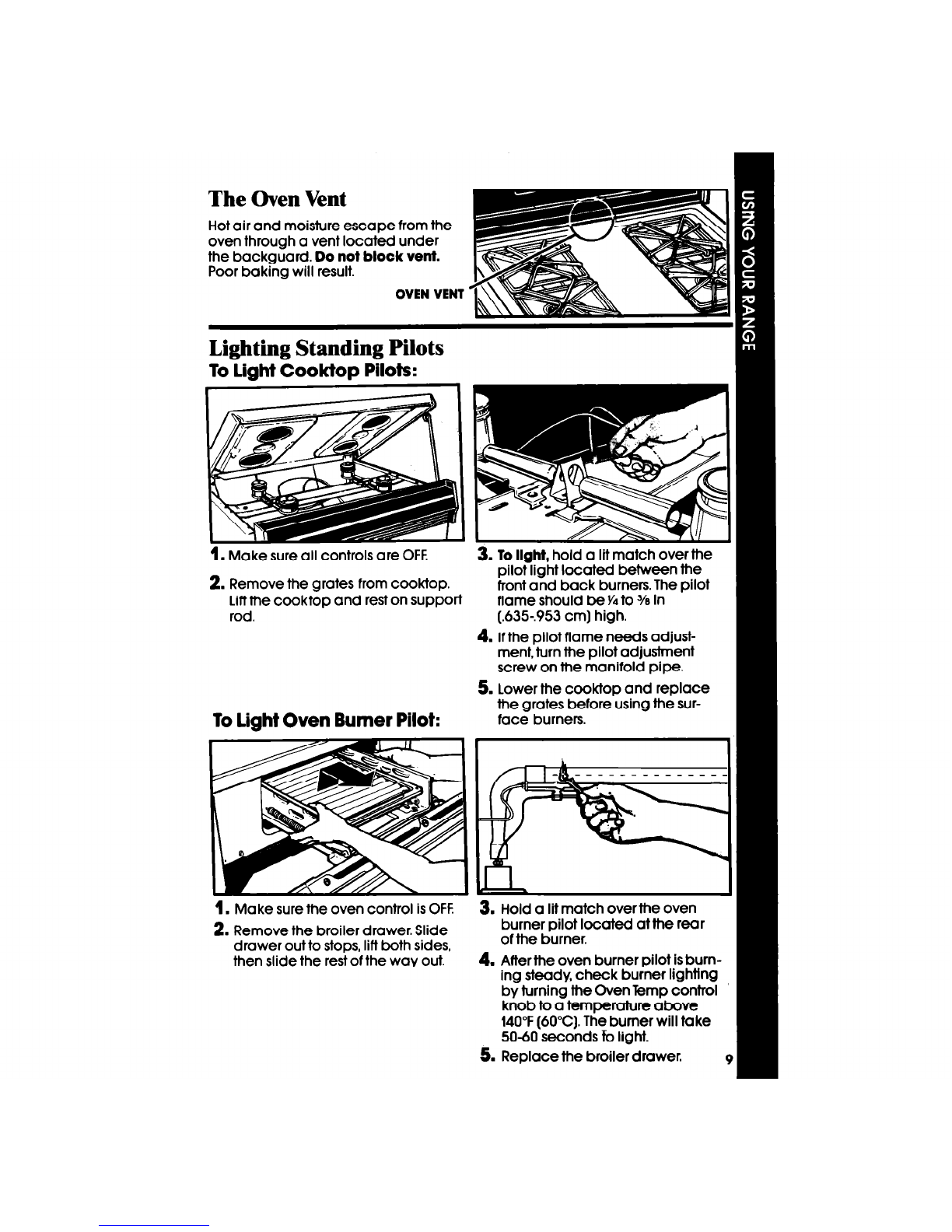

The Oven Vent
Hot air and moisture escape from the
oven through a vent located under
the backguard. Do not block vent.
Poor baking will result. OVENVENT
Lighting Standing Pilots
To Light Cooktop Pilots:
1. Make sure all controls are OFF.
2. Remove the grates from cook-top.
Liftthe cooktop and rest on support
rod.
To light Oven Burner Pilot:
1. Make sure the oven control isOFF.
2. Remove the broiler drawer. Slide
drawer out to stops, lift both sides,
then slide the rest of the way out.
3. To Ilght, hold a lit match over the
pilot light located between the
front and back burners. The pilot
flame should be ti to 3/ein
(.635-,953 cm) high.
4. Ifthe pilot flame needs adjust-
ment, turn the pilot adjustment
screw on the manifold pipe.
5. Lower the cook-top and replace
the grates before using the sur-
face burners.
3. Hold a lit match overthe oven
burner pilot located at the rear
of the burner.
4. After the oven burner pilot isburn-
ing steady, check burner lighting
by turning the Oven Temp control
knob to a temperature above
140°F(60°C). The burner will take
5060 seconds fo light.
5. Replace the broiler drawer. 9

Caring for your range
Control Panel
1. Pull knobs straight off.
3. Wash knobs in warm soapy
water or use baking soda and
a damp, soft cloth or follow
directions provided with glass
cleaner. Rinse well and dry.
CAUTION: Do not soak or use
abrasive cleansers. They could
Nb off the marklngs.
2. Use warm soapy water, baking
soda and a damp soft cloth or
spray glass cleaner to wipe the
control panels. Rinse and wipe
dry.
4. Pushthe knobs straight back on.
Make sure they point to OFF.
IO

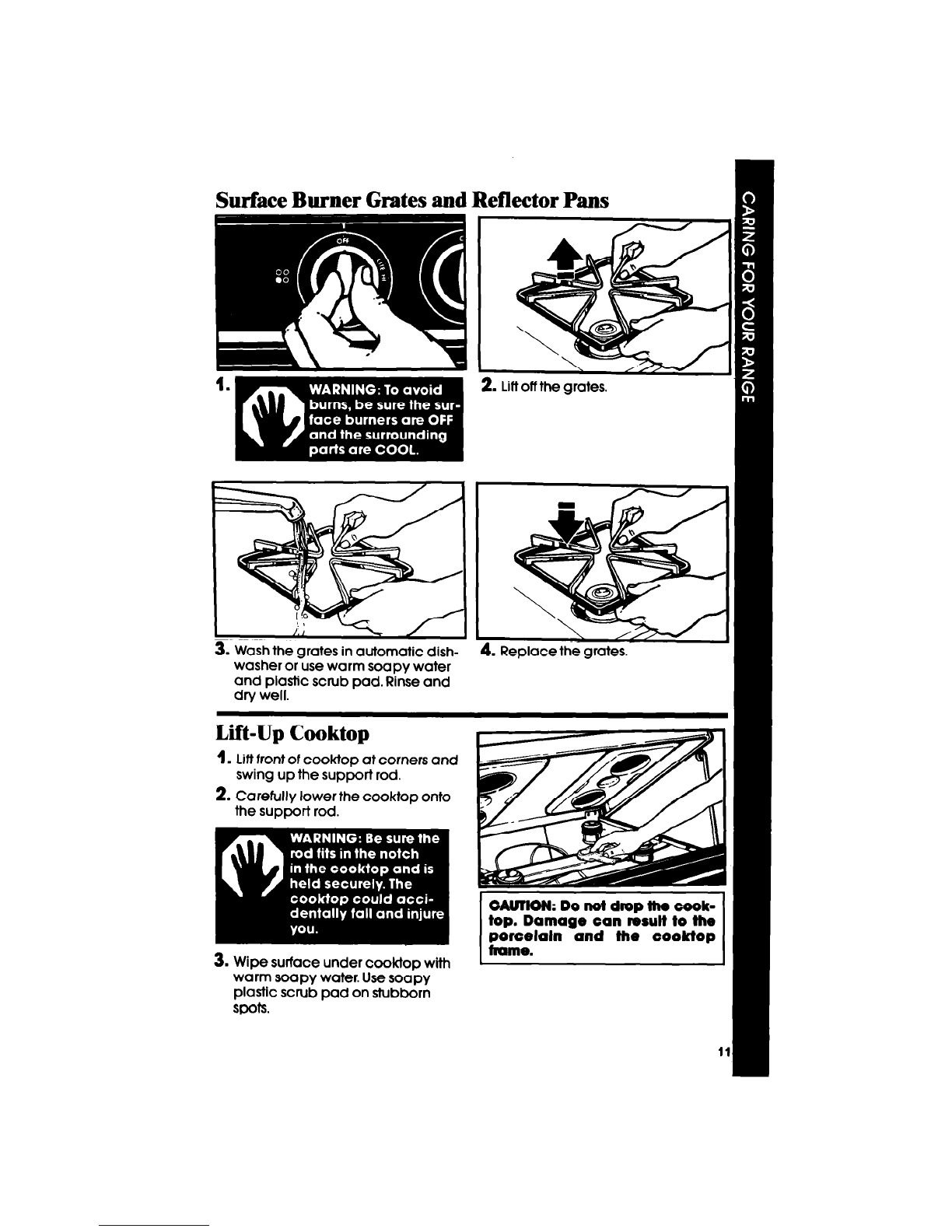

Surface Burner Grates and Reflector Pans
2. Liftoff the grates.
3. Wash the grates in automatic dish-
washer or use warm soapy water
and plastic scrub pad. Rinse and
dry well.
4. Replace the grates.
Lift-Up Cooktop
1. Lift front of cook-top at corners and
swing up the support rod.
2. Carefully lower the cooktop onto
the support rod.
3. Wipe surface under cooktop with
warm soapy water. Use soapy
plastic scrub pad on stubborn
Spats.
CAUTtCtd:Donotdropthaeook-
top. Damage can result to the
porcelain and the oooktop
mme.

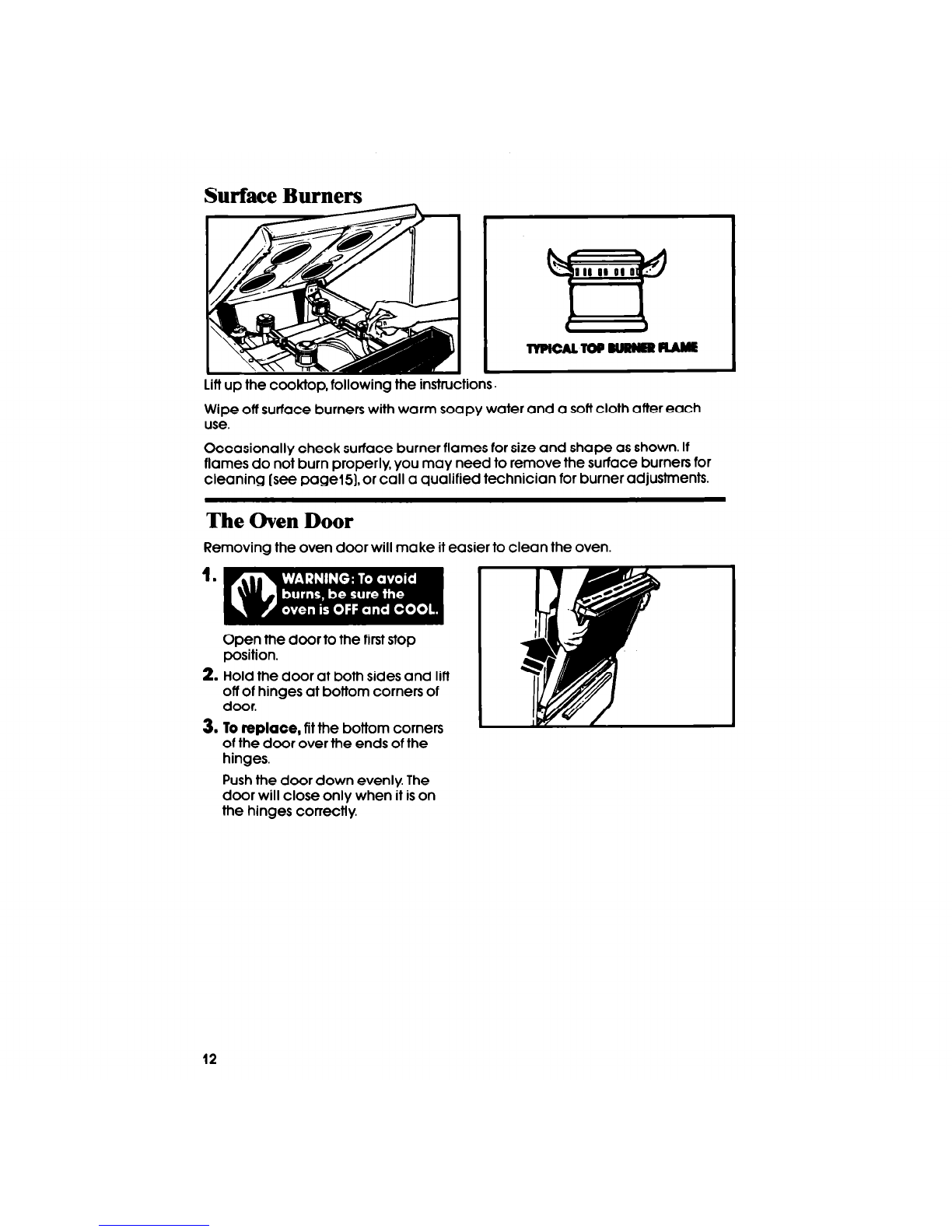

Lift up the cooktop, following the instructions.
Wipe off surface burners with warm soapy water and a soft cloth after each
use.
Occasionally check surface burner flames for size and shape as shown. If
flames do not burn properly, you may need to remove the surface burners for
cleaning (see pagel5), or call a qualified technician for burner adjustments.
The Oven Door
Removing the oven door will make it easier to clean the oven.
Open the door to the first stop
position.
2. Hold the door at both sides and lift
off of hinges at bottom corners of
door.
3. To replace, fit the bottom corners
of the door over the ends of the
hinges.
Push the door down evenly. The
door will close only when it ison
the hinges correctly.
12

The Continuous-Cleaning Oven
(Model SF332BSR/ER only)
Standard oven walls are coated with smooth porcelain. Your continuous-
cleaning oven walls are coated with a special, rougher porcelain. A fat spat-
ter beads up on the smooth surface, but spreads out on the rougher surface.
The bead of fat on the smooth surface chars and turns black. The spread-out
fat on the rough surface gradyally burns away at medlum to hlgh baklng
temperatures so the oven can return to a presentably clean condition.
Using Foil
Tocatch sugar or starchy spills from pies and casseroles, use a piece of
heavy-duty aluminum foil or a shallow pan on the lower rack, slightly larger
than the cooking container.
Cleaning Tips
1. The oven racks are not coated. Clean them by hand.
2. The oven door does not get as hot as the walls. Some hand cleaning may
be needed.
3. Use aluminum foil or a shallow pan according to instructions. Spill-overs
do not burn away and may stain the bottom.

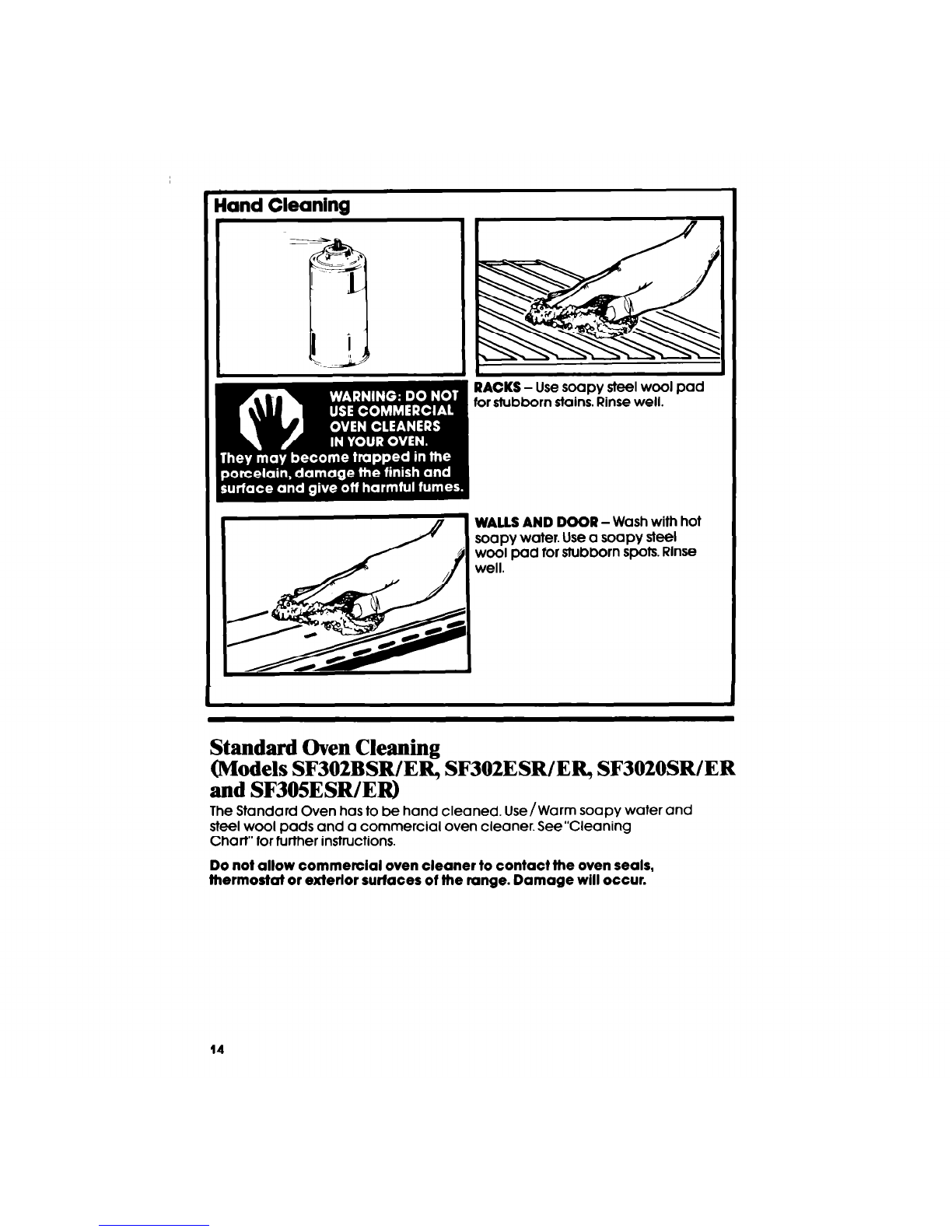

md Cleanlng
RACKS - Usesoapy steel wool pad
for stubborn stains. Rinse well.
WALLSAND DOOR - Wash with hot
soapy water. Use a soapy steel
wool pad for stubborn spots. Rinse
well.
Standard Oven Cleaning
(Models SF302BSR/ER, SF302ESR/ER, SF3020SR/ER
and SF305ESR/ER)
The Standard Oven has to be hand cleaned. Use/Warm soapy water and
steel wool pads and a commercial oven cleaner. See’Cleaning
Chart” for further instructions.
Do not allow commercial oven cleaner to contact the oven seals,
thermostat or exterior surfaces of the range. Damage will occur.
14

Cleaning Chart
PART
Extertor
surfaces
WHAT TO USE HOW TO CLEAN
Sott cloth and warm soapy
l Wipe off regularly when cook-
water or baklng soda. top and range are cool.
Nylon or plastic scrubbing
l Do not allow food oontalnlng
pad for stubborn spots. aolds (such as vinegar, tomato,
lemon Juloe or milk) to remain on
surface. Acids will remove the
flnlsh.
l Do not use abmslve or harsh
cleansers.
Surface burner Automatic dlshwasher or
l Wash with other cooklng utenslls.
grates warm soapy water and
plastic scrubbing pad.
l Dry completely.
l Do not use abrasive or harsh
cleansers.
Surface burners Warm soapy water, a
l Lift-up the cooktop, see page tl.
plastic scrubbing pad,
dlshwashlng detergent
l Wipe off spills lmmedlately after
burner has cooled.
or a solutlon of 1quart
of bolling hot water In case of stubborn stalns:
and 2 tablespoons of
l Remove burner from manifold
DIP IT? wlth phlllips screwdrlver.
l Soak In warm soapy water and
wlpe with plastic scrubbing pad
and dlshwashlng detergent.
If staln Is still there, soak 20
minutes In bolllng water and
DIP IT@solutton. Be sure the
solutton covers the whole burner.
l Rlnse and dry well.
l If ports are clogged, clean with
a stralght pln. Do not enlarge
or distort pofts. Do not use a
wooden toothplok.
l Do not clean surfaoe burner In
dlshwasher.
Broiler drawer, Warm soapy water and l Clean after each use.
pan and grid plastic scrubbing pad.
l Wash pan and grld with other
utensils.
l After broiler Is cool, wlpe
Interlor with warm damp cloth.
For stubborn snots. use a elastic
scrubbing pad. ’
Control knobs Warm soapy water and
l Wash, rlnse and dry well.
soft cloth.
l Do not soak.
Control panel Warm soapy water or
l Wash, rlnse and dry well.
. . _.
Oven mcks
baking soda, son ctom
and spray glass cleaner.
l Follow dlrectlons provlded wlth
cleaner.
Warm soapy water and l Wash, rinse and dry well.
plastic scrubbing pad. Use plastic scrubbing pad for
stubborn areas. 15

PART WHAT TO USE HOW TO CLEAN
Oven door
glass
Spray glass cleaner;
l Make sure oven Is cool.
warm soapy water and
soft cloth.
l Follow directions provided
with cleaner.
l Wash, rinse and dry well.
Contlnuous-
Warm soapy water or
l Clean stubborn spots or stains.
Cleaning oven soapy scrubbing pad. Rinse well with water.
Heavy-duty aluminum
l Place piece of foil or shallow
foil or shallow pan. pan, slightly larger than the
cooking container, on lower rack
to catch spillovers.
0 Do not use commercial cleaners.
Standard
oven
Most fat spatters on Continuous-Cleaning
porcelain-enamel lnterlor rurtace gradually
reduce to a presentably clean condltlon durlng
normal baklng or roasting operatlons.
Warm soapy water or l Remove door for easier access.
soapy steel wool pad.
l Place newspaper on floor to
Commercial oven protect floor surface.
cleaners.
l Follow directions provided wlth
the oven cleaner.
l Rinse well with clear water.
l Use in well ventilated room.
l Do not allow commercial oven
cleaner to contact the oven
seals, thermostat or exterior
surtaces of the range. Damage
will occur.

If you need service or assistance,
we suggest you follow these five steps:
lo Before calling for
assistance... It control knob(s) will not turn:
l Did you push in before trying to turn?
Performance problems often result
from little things you can find and fix
without tools of any kind.
It nothlng operates:
l Isthe range properly connected to
gas and electrical supplies? (See
“Installation Instructions:‘)
l Have you checked your home’s
main fuses or circuit breaker box?
l Is the flow of combustion and/or
ventilation air to the range
blocked? Do not block the air flow
to and around the range.
l Isthe Oven Temp control knob
turned to a temperature setting or
BROIL?
If burner fails to light:
l Isthe range connected to electrical
power?
l Have you checked your home’s
main fuses or circuit breaker box?
l Are burner ports clogged? (See
page15.)
If burner flames are uneven:
l Are burner ports clogged? (See
page 15.1
If burner flames lift off ports, are
yellow, or are nolsy when turned off:
l The air/gas mixture may be incor-
rect. (Call for service.)
If burner makes a popping noise
when ON:
l Is the burner wet from washing? Let
dry.
If soil is visible on Contlnuous-
Cleaning oven finish:
l The special finish is designed to
gradually reduce oven sol1 during
normal baking or roasting. It is not
designed to keep your oven spot-
less, only presentably clean.
l The door is cooler than the oven
walls. Soil will be more visible on the
door than other areas in the oven.
See page 14for how to clean.
l Sugar and starchy spills may leave
stains. See page 14for hand clean-
ing tips. Use foil on lower mck to
catch these spills.
If cooking results aren’t what you
expected:
l Is the range level?
l Are you using pans recommended
in the ‘Cooking Guide”?
l If baking, have you allowed lY2to 2
inches (4-5 cm] on all sides of the
pans for air circulation?
l Have you preheated the oven as the
recipe calls for?
l Are the pansthe size called for in the
recipe?
l Are you following a tested recipe
from a reliable source?
l Do the cooking utensils have
smooth, flat bottoms and tit the sur-
face burners?
See the Cooking Guide for more tnfor-
mation on cooking problems and
how to solve them.

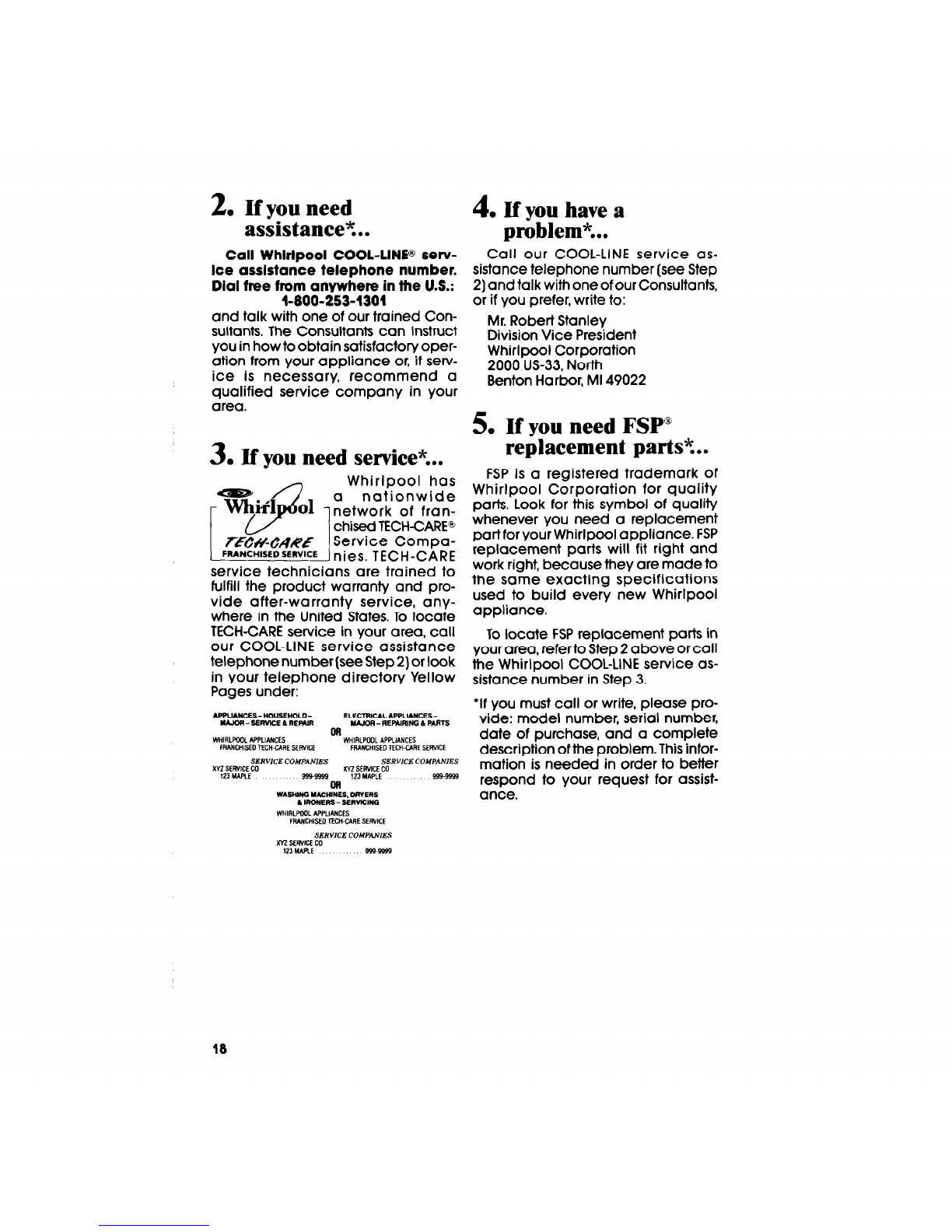

2. If you need
assistance%.
Call Whirlpool COOL-LINE@ serv-
ice assistance telephone number.
Dial free from anywhere in the U.S.:
l-800-253-1301
and talk with one of our trained Con-
sultants. The Consultants can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
3. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-CARE@
Service Compa-
nies, TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CAREservice in your area, call
our COOL-LINE service assistance
telephone number (see Step 2)or look
in your telephone directory Yellow
Pages under:
4. If you have a
problem*...
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 US-33, North
Benton Harbor, Ml 49022
5. If vou need FSP”
replacement parts?. .
FSP is a registered trademark of
Whirlpool Corporation for quality
parts. Look for this symbol of quality
whenever you need a replacement
partforyour Whirlpool appliance. FSP
replacement parts will fit right and
work right, because they are made to
the same exacting specifications
used to build every new Whirlpool
appliance.
To locate FSPreplacement parts in
your area, refer to Step 2 above or call
the Whirlpool COOL-LINE service as-
sistance number in Step 3.
‘If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better
respond to your request for assist-
ance.
18

Notes

WHIRLPOOL MICROWAW OVEN/
RANGE PRODUCT
Wm
l.ENGTN OF WARRANTY
FUU OHE-YEAR
WARRANTY
From Date of Purchase
WHIRLPOOL WILL PAY FOR
Replacement parts and repalr labor to correct
defects In materlals or workmanshlp. Servlce
must be provlded by a franchised TECH-CARE@
servlce company.
LlMlTED FOUR-YEAR
WARRANlV Replacement magnetron tube on microwave
Second Through Fifth Year ovens if defective In materlals or workmanship.
From Date of Purchase
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the Installation of the range product.
2. Instruct you how to use the range product.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace owner accessible light bulbs.
8. Repalrs when range product is used In otherthan normal, single-family
household use.
C. Pick up and deliver. Thls product Is designed to be repalred in the
home.
D. Damage to range product caused by accident. misuse, fire. flood, acts
of God or use of products not approved by Whlrlpool.
E. Any labor costs during the llmlted warranty.
WHIRLPOOL CORPORATION SHALL NOT BELIABLEFOR INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES. Some states do not allow the exclusion or Ilmltatlon of incidental or
consequentlal damages so thls limltatton or exclusion may not apply to you. Thls
WarrantY gives you specific legal rights, and you may also have other rlghts which
vary from state to state.
Outslde the Unlted States, a different warranty may apply. For detalls. please
contact your franchised Whlrlpool dlstrlbutor or military exchange.
Part No. 75587-001786767 Rev.C
01986 Whirlpool Corporation Printed in U.S.A.
utomatic Washers, Clothes Dryers, Freezers, Refrigerator-Freezers, Ice Makers. Dishwashers, Built-In Ovens and Surface Units, Ranges.
